Decoding PCB Board Price: Factors, Costs & Getting the Best Deal
From powering your smartphone to controlling complex machinery, printed circuit boards (PCBs) are the unsung heroes of modern technology. But how much does a PCB board cost? The price isn't a simple figure, fluctuating based on numerous factors. This guide delves into the intricacies of PCB pricing, exploring everything from material costs to manufacturing processes, empowering you to make informed decisions and secure the most cost-effective solutions for your projects. Just like the complex web of connections on a PCB, the price also has many different components that we are about to explore.
Key Factors Influencing PCB Board Price
Understanding the cost drivers behind PCB (Printed Circuit Board) manufacturing is crucial for budget planning and design optimization. Several key factors significantly influence the final price of a PCB, including the materials used, the complexity of the design, and the manufacturing processes involved.
These factors can be broadly categorized and are detailed below:
- Material Type
The choice of substrate material, such as FR-4, aluminum, or flexible polyimide, impacts cost significantly. FR-4 is the most common and cost-effective, while materials like aluminum for heat dissipation or high-frequency laminates for specialized applications command a premium. - Number of Layers
The complexity and functionality of a PCB often depend on its layer count. Single-layer PCBs are the least expensive, while multi-layer boards with complex routing and impedance control dramatically increase costs due to added manufacturing complexity and higher material usage. - Board Size and Thickness
The physical dimensions of the PCB directly affect material usage and processing time, impacting the overall cost. Larger boards naturally require more material, while boards with specific thickness requirements can further increase manufacturing complexity, thus affecting pcb board price. - Surface Finish
The selected surface finish, whether HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), or others, influences both the performance and cost of the PCB. ENIG is generally more expensive due to gold plating, while HASL is a cost-effective standard. - Design Complexity
Fine pitch components, tight tolerances, vias, and complex routing demand advanced manufacturing techniques and equipment and therefore increases the overall PCB price. - Quantity
Prototype quantities are more expensive per unit compared to mass production due to setup costs. High-volume production benefits from economies of scale, significantly reducing the per-unit cost.
| Factor | Impact on Cost | Cost Implications |
|---|---|---|
| FR-4 | Low | Common, cost-effective material. |
| Aluminum | Medium | Higher cost due to thermal properties. |
| High-Frequency Laminates | High | Specialized material for high-frequency applications. |
| Single-Layer | Lowest | Simplest PCB design. |
| Multi-Layer | High | Complex design with multiple layers. |
| HASL | Low | Cost-effective standard. |
| ENIG | High | Gold plating enhances reliability and performance. |
| Large board size | Higher | Increase in material and process costs. |
| Small batch (prototype) | Higher per unit | Higher setup costs distributed across fewer units |
| Large batch (mass production) | Lower per unit | Economies of scale reduce cost per unit. |
Each of these elements contributes in varying degrees to the total cost. By carefully considering these factors during the design phase, engineers can significantly control costs while ensuring that performance requirements are met. It is important to note that the overall pcb board price may also be affected by the manufacturer selected, location, and other logistical factors.

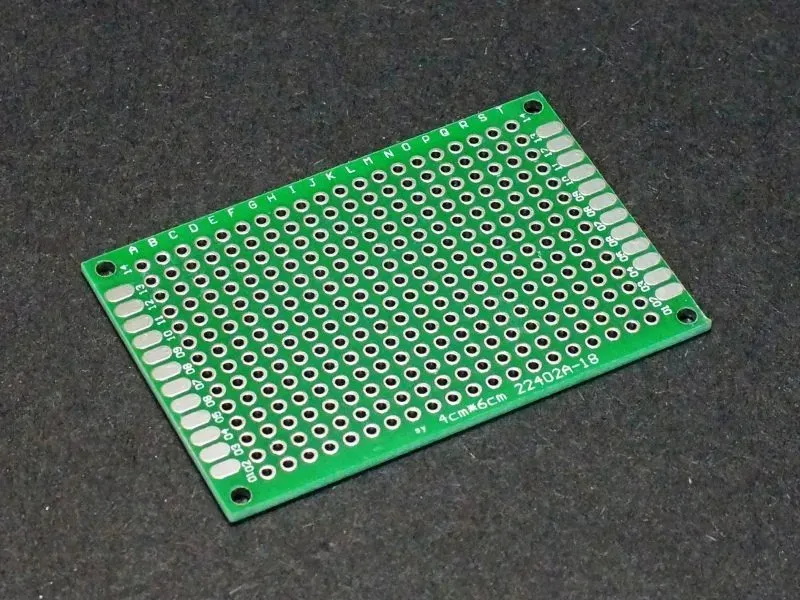

Comparing PCB Manufacturing Costs: Prototype vs. Mass Production
The cost of manufacturing Printed Circuit Boards (PCBs) varies significantly depending on whether you're producing prototypes or engaging in mass production. Understanding these cost differences is crucial for effective budgeting and scaling strategies. Prototype runs typically incur higher per-unit costs due to setup fees and smaller order volumes, while mass production benefits from economies of scale, drastically reducing the per-unit price.
| Factor | Prototype Production | Mass Production |
|---|---|---|
| Setup Costs | High (fixed cost per run) | Lower (amortized over large volumes) |
| Per-Unit Cost | High | Low |
| Lead Time | Shorter (sometimes faster turn around) | Longer (due to production volume) |
| Volume | Small Batches (often <100) | Large Volumes (hundreds to thousands or more) |
| Tooling | Higher relative cost per unit | Lower relative cost per unit |
| Suitability | Testing and Design Verification | Large-scale Market Deployment |
In prototype production, the initial investment covers tooling setup, programming of machinery, and smaller material orders, which results in a higher per-unit cost. These costs are often fixed, regardless of whether you produce ten or a hundred boards. Conversely, mass production spreads these initial costs across thousands of units, drastically lowering the per-unit price. This is due to several factors, including volume discounts on materials, streamlined manufacturing processes, and optimized resource utilization.
The transition from prototype to mass production is not merely about increased quantity; it involves a change in production methodology. Prototypes may use more manual processes for flexibility, while mass production is heavily automated for efficiency and consistency. The sweet spot for scaling from prototype to mass production is reached when the per-unit cost reduction from volume outweighs the initial scaling costs. This point needs to be carefully evaluated, taking into account projected demand and inventory management.
- Prototype Production Advantages
Rapid design iteration and testing, lower upfront commitment for new designs, flexibility to adapt design quickly. - Mass Production Advantages
Lower per-unit costs, consistent quality and large production capacities, economies of scale for higher profits. - Prototype Production Disadvantages
Higher per-unit cost, longer lead times, not ideal for large quantities. - Mass Production Disadvantages
Large upfront investment, less flexibility for design changes, not optimal for testing.

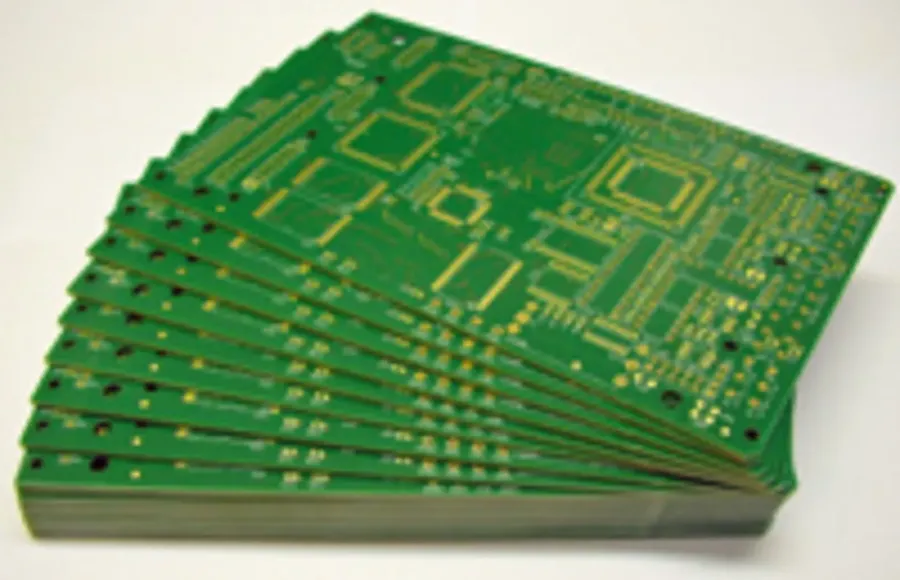

PCB Layer Count and Its Impact on Price
The number of layers in a Printed Circuit Board (PCB) is a primary determinant of its cost. As the layer count increases, so does the complexity of the manufacturing process, directly translating to higher prices. This section explores how single-layer, double-layer, and multi-layer PCBs differ in cost and application.
| PCB Type | Description | Typical Applications | Cost Factor |
|---|---|---|---|
| Single-Layer PCB | One layer of conductive material on one side of the substrate. | Simple electronics, toys, single-sided sensors. | Lowest Cost |

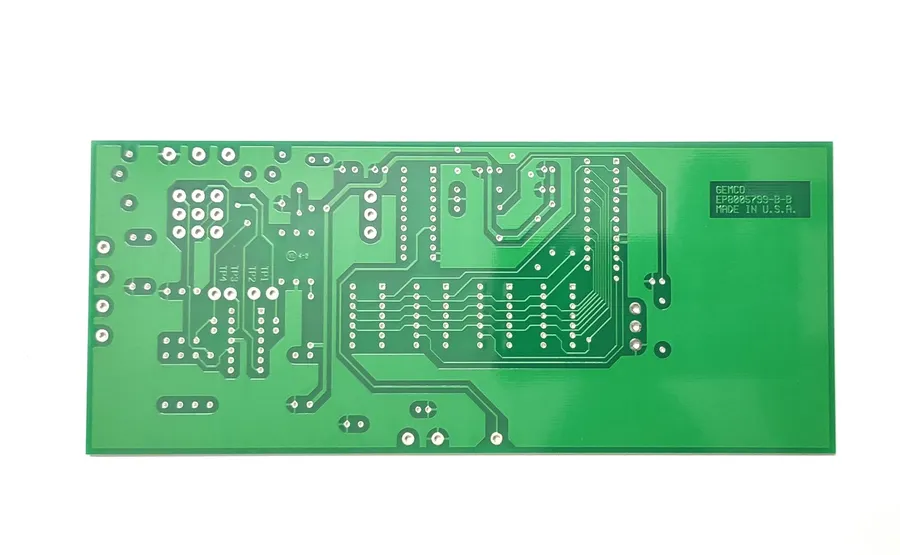

| Double-Layer PCB | Two layers of conductive material on both sides of the substrate. | Power supplies, basic circuits, simple communication systems. | Moderate Cost |
| Multi-Layer PCB | Three or more layers of conductive material. | Complex electronics, high speed data transmission, networking devices, medical equipment, aerospace and defense applications. | Highest Cost |
The escalation in cost with increased layers is due to several factors, including:
- Increased Material Usage
Each added layer requires more base material and copper, thus raising material costs. - Complex Manufacturing Processes
Multi-layer boards demand precision alignment, lamination, and drilling which require sophisticated equipment and specialized expertise. - Higher Yield Loss
The intricate manufacturing procedures increase the potential for defects, which lead to higher production costs from wasted boards. - Increased Fabrication Time
More layers mean more process steps, consequently prolonging production time and contributing to higher overall expenses.
Choosing the correct layer count is vital for both functionality and cost-effectiveness. While single-layer PCBs are ideal for basic projects, more complicated applications demand a higher layer count which has cost implications. Designers must carefully evaluate their needs to choose the most effective solution.

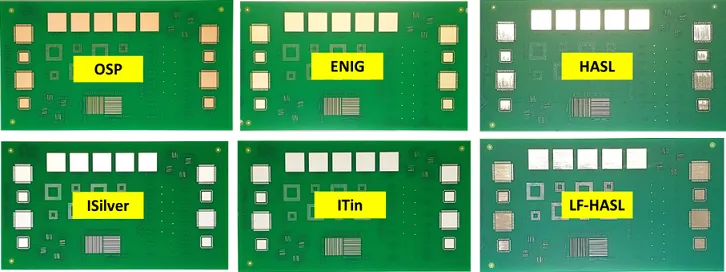

Surface Finish and Its Cost Implications
The surface finish of a printed circuit board (PCB) is a crucial factor influencing its performance, reliability, and, importantly, its cost. The finish protects the copper circuitry from oxidation and corrosion, ensuring solderability and electrical conductivity. Different finishes offer varying degrees of protection, have different manufacturing processes, and, therefore, different price points. Selecting the appropriate finish requires a careful evaluation of performance requirements against cost considerations.
| Surface Finish | Description | Cost | Advantages | Disadvantages | Typical Applications |
|---|---|---|---|---|---|
| HASL (Hot Air Solder Leveling) | A molten solder is applied to the board and then leveled off with hot air. | Low | Low cost, widely available, good solderability | Not suitable for fine-pitch components, uneven surface | General purpose PCBs |
| ENIG (Electroless Nickel Immersion Gold) | A thin layer of nickel is deposited followed by a thin layer of gold. | High | Excellent solderability, good for fine-pitch components, good corrosion resistance | More expensive, risk of black pad | High reliability, complex PCBs, wire bonding |
| Immersion Silver | A thin layer of silver is applied to the copper. | Medium | Good solderability, good for fine-pitch components, RoHS compliant | Can tarnish, susceptible to scratches | High-frequency applications, LEDs |
| Immersion Tin | A thin layer of tin is applied to the copper. | Medium | Good solderability, cost effective, RoHS compliant | Can grow whiskers, not as durable as ENIG | General purpose, cost-sensitive projects |
| OSP (Organic Solderability Preservative) | A thin layer of organic material is applied to the copper. | Low | Very flat surface, cost effective, RoHS compliant | Short shelf life, sensitive to handling and multiple reflow | Cost-sensitive applications with a short shelf life |
The cost of each finish is dictated by the materials and processes involved in their application. HASL is generally the most cost-effective, while ENIG tends to be the most expensive. Immersion Silver, Immersion Tin and OSP fall in between. When considering the cost implications, it's essential to also factor in the expected lifespan and performance requirements of the PCB.
- HASL (Hot Air Solder Leveling)
This is the most cost-effective finish but is less suitable for fine-pitch components due to its uneven surface. - ENIG (Electroless Nickel Immersion Gold)
Offers superior solderability and corrosion resistance, making it ideal for complex designs but at a higher cost. - Immersion Silver
Provides a good balance of solderability and cost but can tarnish over time. - Immersion Tin
Cost effective and provides good solderability, but not as durable as ENIG - OSP (Organic Solderability Preservative)
Offers a flat surface at a low cost, but has a shorter shelf life and is sensitive to handling.
Choosing the right surface finish requires a trade-off between performance, cost, and application requirements. For standard, low-cost applications, HASL might suffice, while for high-reliability electronics with fine-pitch components, ENIG is a more appropriate choice. Understanding these trade-offs is crucial in controlling overall PCB board costs.

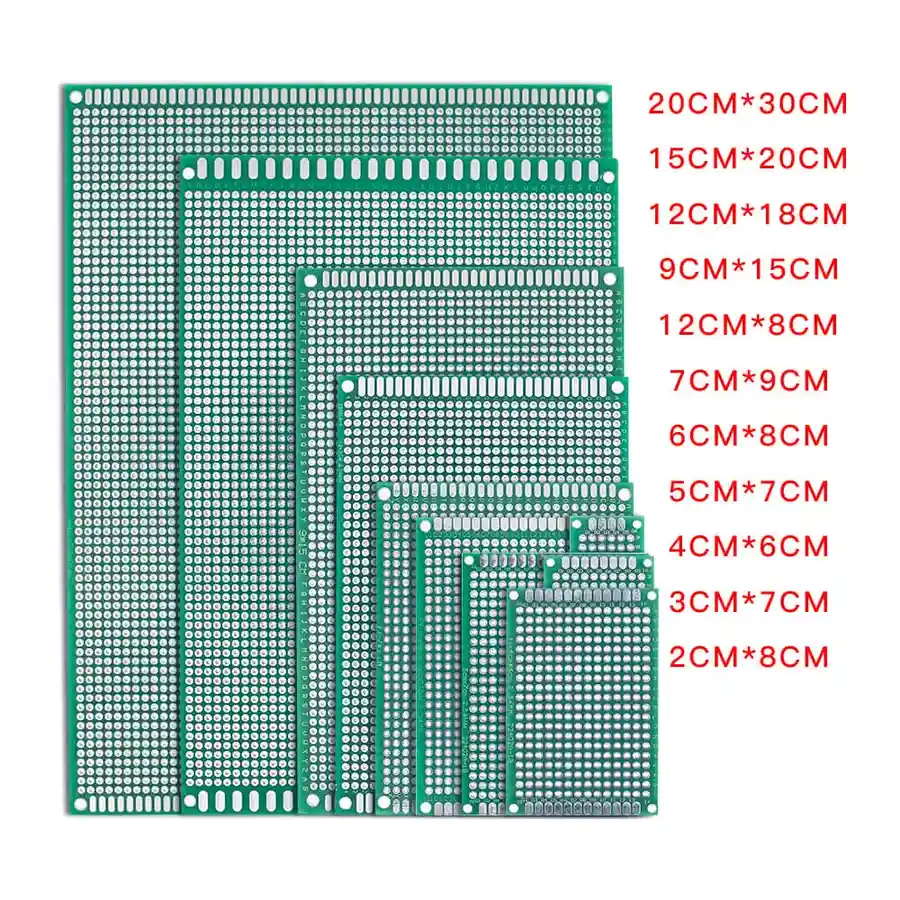

PCB Board Size, Thickness and Complexity Affecting Price
The physical dimensions and intricate design of a Printed Circuit Board (PCB) significantly influence its manufacturing cost. Larger boards, increased thickness, and higher design complexity each drive up expenses due to material usage, processing time, and fabrication challenges.
| Factor | Impact on Cost | Considerations |
|---|---|---|
| Board Size | Directly proportional; larger boards require more material and processing time. | Optimize board size to the minimum required for functionality; consider panelization for mass production. |
| Board Thickness | Increased thickness adds material and can require specialized equipment and processes. | Select appropriate thickness based on impedance and structural requirements, avoiding unnecessary thickness. |
| Board Complexity (e.g., trace density, via count, component density) | Higher complexity leads to increased fabrication steps, finer tolerances, and higher defect probability. | Simplify the design as much as possible; consider standard layout practices and avoid unnecessary complexity. |
Let's explore each of these factors in more detail:
- Board Size
Larger PCBs necessitate more raw materials (e.g., substrate, copper) and often require more processing time for etching, drilling, and plating. The material cost is directly proportional to the area of the board. Standardized panel sizes can help to manage costs in volume production. - Board Thickness
While seemingly minor, PCB thickness has a noteworthy effect on manufacturing price. Thicker boards use more substrate and often require specialized machinery and handling. For example, PCBs designed for high current applications or mechanical strength will typically be thicker but incur a higher cost. - Board Complexity
Complexity in this context refers to the density of components, trace widths and spacing, the number of vias, and overall design intricacy. Complex designs demand higher precision during fabrication, potentially leading to lower production yields, additional inspection steps, and higher costs.
Design considerations play a key role in managing costs related to size, thickness, and complexity. By optimizing the layout, utilizing standard components, and minimizing unnecessary features, you can significantly reduce the overall manufacturing expenses.

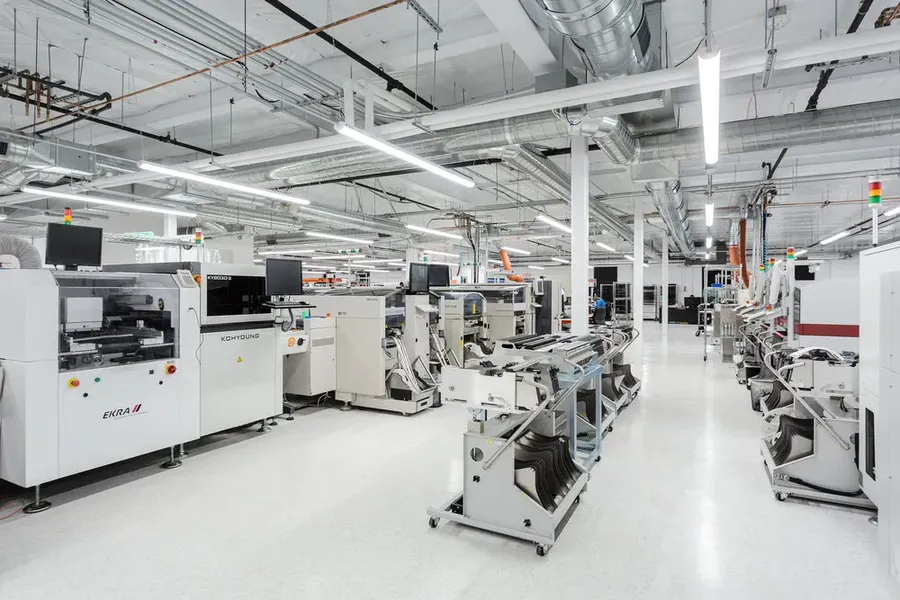

Geographic Variations in PCB Board Price: US vs. China
The cost of manufacturing printed circuit boards (PCBs) can vary significantly based on geographic location, primarily between the United States and China. These variations are driven by differences in labor costs, material sourcing, manufacturing infrastructure, and regulatory environments. Understanding these differences is critical for optimizing PCB procurement strategies.
| Factor | United States | China |
|---|---|---|
| Labor Costs | Significantly higher | Substantially lower |
| Material Costs | Potentially higher due to domestic sourcing | Lower due to large-scale local production and sourcing |
| Manufacturing Infrastructure | Advanced, high precision, and stringent quality control processes | Varying levels of capabilities, from basic to highly advanced facilities |
| Quality Standards | Generally stringent, compliant with international standards and regulations | Highly variable. Can range from low quality to equivalent or exceeding US quality. |
| Lead Times | Potentially shorter for domestic projects, but depends on specific manufacturer and project complexity | Potentially longer due to shipping but often with higher capacity |
| Communication | Generally easier with domestic manufacturers due to timezone, language and cultural compatibility. | Potentially more challenging due to language barriers, time zone differences, and cultural nuances. |
| Cost | Typically higher overall for comparable PCB specifications. | Typically lower overall for comparable PCB specifications. |
| Intellectual Property Protection | Strong legal framework | Variable level of protection and enforcement |
When comparing the US and China, it's important to consider that, while Chinese manufacturers often offer lower prices, this can come with varying quality standards and longer lead times (including potential shipping delays). US manufacturers, on the other hand, may offer higher quality and faster turnaround, but at a premium cost. The key to optimizing cost involves balancing price, quality, and lead time based on the specific requirements of the project.
- Advantages of US PCB Manufacturers:
Higher quality control, potentially faster lead times for domestic projects, better communication, stronger intellectual property protection. - Disadvantages of US PCB Manufacturers:
Higher overall costs, especially for high-volume production. - Advantages of Chinese PCB Manufacturers:
Lower manufacturing costs, potentially higher capacity for mass production. - Disadvantages of Chinese PCB Manufacturers:
Variable quality control, potentially longer lead times and communication issues, less stringent intellectual property protection, more complex logistic considerations.
The choice between US and Chinese manufacturers should be determined by evaluating the specific needs of the project. For high-reliability applications with stringent quality requirements and faster turnarounds, a US-based manufacturer may be preferable. For cost-sensitive projects with less demanding quality needs, and where larger volumes are required, a Chinese manufacturer can be a good option, provided that appropriate due diligence is conducted and quality checks are implemented.
Frequently Asked Questions About PCB Board Price
Understanding the cost of printed circuit boards (PCBs) is crucial for both design and manufacturing. This section addresses common questions regarding PCB board prices, offering clarity and practical insights.
- How much does a PCB typically cost?
The cost of a PCB varies significantly based on several factors such as the number of layers, material type, size, complexity, and quantity. Simple, single-layer boards can be relatively inexpensive, while complex multi-layer boards with specialized materials and finishes can be significantly more expensive. The price can range from a few dollars for a small, simple board in bulk to hundreds of dollars for a complex prototype. - What is a reasonable price for a PCB board?
A reasonable price for a PCB board is dependent on its specific requirements. It's essential to balance the desired functionality and performance with cost considerations. Obtain multiple quotes from different manufacturers, ensuring that the specifications are identical for an accurate comparison. A cost-effective approach involves optimizing the design, using standard materials where possible, and ordering in quantities that qualify for bulk discounts. - What factors primarily influence the price of a PCB?
The major factors affecting PCB price are: Material (e.g., FR4, aluminum, etc.), number of layers, board size, copper thickness, surface finish (e.g., HASL, ENIG), complexity of the design, manufacturing tolerances, and volume of the order. Each of these contributes to the overall manufacturing cost, where more complex requirements result in higher prices. - Is it worth replacing a faulty PCB board, or should I replace the entire device?
The decision to replace a PCB board or the entire device depends on several considerations: the cost of the new PCB versus the cost of a new device, the age and condition of other components, the complexity of the repair, and availability of spare parts. If the cost of the PCB is minor compared to a new device, and the replacement process is straightforward then replacement is worthwhile. However, if the cost is high, or if replacing the PCB is technically complex, then it may be more cost-effective to replace the whole device. - Does the PCB board design complexity impact the price?
Yes, the complexity of a PCB board design has a significant impact on its price. Complex designs with fine traces, high-density layouts, and multiple vias require more precision during fabrication which increases the cost. Opting for simpler design layouts can reduce manufacturing cost, as long as these choices align with performance and functional requirements. - How does ordering in larger quantities affect the per-unit cost of PCBs?
Ordering PCBs in larger quantities typically results in a lower per-unit cost. Manufacturers often provide volume discounts, as the setup costs are spread across a larger number of boards. Therefore, bulk ordering is a cost-effective approach for mass production and product scalability. It’s prudent to assess current and projected demand to make informed ordering decisions. - Which PCB surface finish is the most cost-effective and why?
Hot Air Solder Leveling (HASL) is generally the most cost-effective PCB surface finish. This is due to its simple process and readily available materials. While it offers good solderability, it is not the best option for very fine pitch components or high reliability applications and may present an uneven surface finish. The best surface finish for cost and performance depends on your specific application requirements.
Actionable Tips to Optimize Your PCB Board Price
Optimizing PCB board prices requires a strategic approach encompassing design choices, supplier selection, and an understanding of market dynamics. By implementing these actionable tips, you can significantly reduce costs without sacrificing the quality or performance of your printed circuit boards.
- Design Optimization
Simplify your PCB design by reducing the number of layers, minimizing board size, and using standard component footprints. These actions directly translate to lower manufacturing costs. Avoid unnecessary complexity; design for manufacturability. - Standardization of components
Opt for readily available, standard components rather than custom or obscure parts. Standard parts are generally less expensive and easier to source, reducing overall cost. - Strategic Supplier Selection
Don't rely on a single quote. Shop around and compare prices from multiple PCB manufacturers. Factor in not only price but also lead times, quality certifications, and customer reviews. Consider domestic and international suppliers based on project needs. - Leveraging Volume Discounts
Understand minimum order quantities (MOQs) and bulk order pricing. Planning for larger production runs, where applicable, can drastically reduce the per-unit cost of your PCBs. Even if you don't immediately need the entire quantity, holding the additional stock might be more cost-effective. - Panelization Strategy
When ordering multiple copies of smaller boards, panelization can reduce costs by maximizing the efficient use of manufacturing materials and processes. The fabrication process becomes more streamlined and economical. - Material Consideration
Choose materials appropriate for your application. While high-performance materials like Rogers are beneficial for some RF applications, simpler and cheaper materials like FR-4 might suffice for many projects. Selecting the correct grade of FR-4 is also essential for budget conscious designs. - Surface Finish Decisions
Select the appropriate surface finish based on your requirements. While ENIG (Electroless Nickel Immersion Gold) offers excellent solderability and corrosion resistance, it’s more expensive than HASL (Hot Air Solder Leveling). Evaluate if HASL or other options meet your project's specifications and can provide cost savings. - Optimize Layer Count
Each additional layer added to a PCB significantly increases the manufacturing cost. Design your circuits to minimize the needed layers. Explore if a single- or double-layer board is sufficient before moving to more complex designs. - Efficient Layout Practices
A well-organized and optimized circuit board layout reduces manufacturing time and material waste. Keep trace widths uniform and avoid extreme density layouts, which can lead to yield issues and higher costs. - Early Communication with Manufacturers
Engage with manufacturers early in the design phase. Getting their input on design for manufacturing (DFM) can help identify potential cost drivers or areas that can be optimized, avoiding costly redesigns.
| Optimization Area | Actionable Tip | Potential Cost Impact |
|---|---|---|
| Design | Simplify design, reduce layers/size | Significant reduction in material/manufacturing costs |
| Component Selection | Use standard, readily available components | Reduction in component prices and sourcing costs |
| Sourcing | Compare multiple quotes, consider geographic options | Competitive pricing and favorable terms can be achieved |
| Production Volume | Leverage volume discounts, plan for larger runs | Lower per-unit costs due to economies of scale |
| Panelization | Panelize smaller boards | Improved material utilization and reduced processing time |
| Material | Choose materials based on application requirement | Savings on cost by not over specifying the material |
| Surface Finish | Select appropriate finish (e.g., HASL) | Cost reduction by utilizing a lower cost, functional finish |
| Layer Count | Minimize layers in design | Significant reduction in material and fabrication costs |
| Layout Efficiency | Optimize the PCB layout | Improved fabrication yield and reduced material wastage |
| Manufacturer Communication | Engage early with PCB manufacturers | Early identification of DFM issues can prevent future expenses |

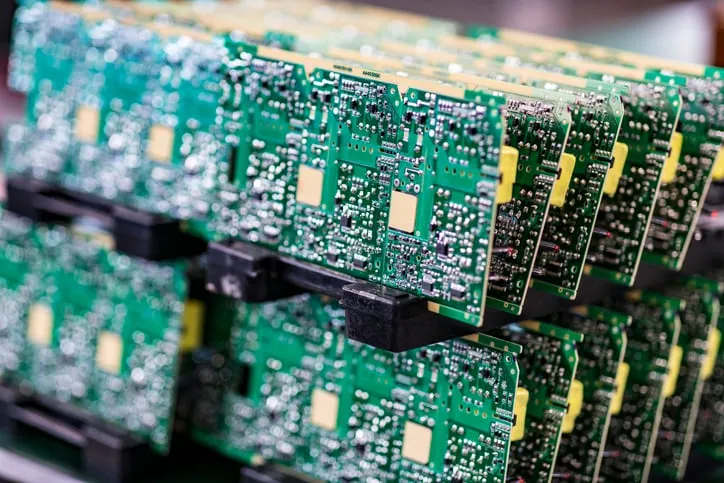

Choosing the Right PCB Manufacturer: Considerations & How to Get Quotes
Selecting the right PCB manufacturer is crucial for ensuring the quality, reliability, and cost-effectiveness of your printed circuit boards. Beyond just the quoted price, several factors should be carefully considered to optimize your project's success. This section guides you through the key considerations and the process of obtaining accurate quotes.
- Quality Standards and Certifications
Look for manufacturers with certifications like ISO 9001, which indicates adherence to quality management principles. IPC standards compliance is also crucial for ensuring the reliability of the boards. - Manufacturing Capabilities
Ensure that the manufacturer has the required capabilities for your specific needs, including layer count, material types, surface finishes, and tolerances. Review their equipment and process capabilities carefully. - Lead Time and Delivery
Assess the manufacturer's typical lead times, especially for prototype and production runs. Consider how delivery times align with your project timeline to avoid costly delays. - Communication and Customer Support
Evaluate the responsiveness of their customer support team and the clarity of their communication. A reliable partner should be available to address questions and concerns efficiently throughout the process. - Minimum Order Quantities (MOQs)
Understand the manufacturer's MOQs, and be mindful of how they affect your budget. Some manufacturers offer flexibility for small-batch prototyping while others are geared towards mass production.
Following these considerations, getting accurate quotes is a vital step in selecting the appropriate manufacturer.
- Prepare a Detailed Bill of Materials (BOM)
Provide a comprehensive BOM with the specific materials, layer stack up, surface finish, board thickness and other requirements for your PCB design to help manufacturers give you accurate quotes. - Send Design Files in Standard Formats
Include Gerber files, drill files, and any other necessary manufacturing files in commonly used formats. This helps reduce miscommunication and quoting errors. - Specify Quantity and Turnaround
Clearly state the number of boards you need and the desired delivery timeframe. This ensures you get a price that is specific to your needs. - Request Multiple Quotes
Get quotes from several manufacturers to compare the pricing, lead time and service before committing to a choice. Doing this allows you to have a wider view of the market.
Ultimately, choosing the right PCB manufacturer is not solely about finding the lowest price; it's about finding a partner that can consistently meet your project's specific needs, quality standards, and deadlines. A focus on the factors discussed above along with getting clear, well defined quotes is critical to ensuring a seamless and cost-effective process.
Navigating the complexities of PCB board price requires understanding the numerous factors that influence cost. From the material composition and layer counts to the geographic location of the manufacturer, each element plays a crucial role in determining the final price. By leveraging the insights provided here and carefully considering your project's specific requirements, you can make informed decisions that will optimize your cost, find a great pcb board price, and enhance the overall efficiency of your production process. Remember to continuously evaluate your options and seek expert advice to stay ahead in this dynamic field.
