Choosing the Right PCB Layout Maker: A Comprehensive Guide

In today's rapidly evolving tech landscape, the precision of a PCB (Printed Circuit Board) layout is critical to the success of any electronic device. Just as a city needs a well-planned layout for efficient flow, your electronic projects rely on a robust PCB layout. The right PCB layout maker is your city planner, and with numerous options available, choosing the best one can seem daunting. This article guides you through popular PCB layout maker options, focusing on their features and capabilities, helping you select the ideal tool for your projects and bringing a mix of art and engineering to your electronics projects.

Understanding PCB Layout Maker Basics

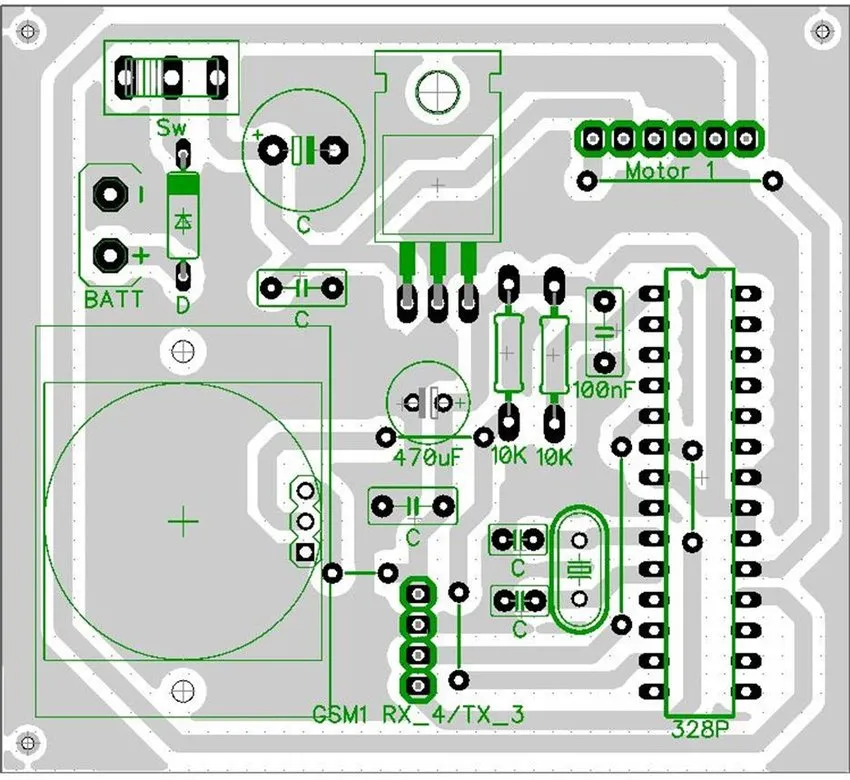

A top-down view of a PCB layout with traces and components.
PCB Layout

A PCB (Printed Circuit Board) layout maker is a specialized software application essential for designing and editing the physical arrangement of electronic components, conductive tracks (traces), and other features on a printed circuit board. These tools are fundamental for translating an electronic schematic into a manufacturable physical design, enabling the creation of both simple and highly complex electronic devices.

At its core, a PCB layout maker facilitates three primary functions: schematic capture, component placement, and trace routing. Schematic capture allows engineers to define the electrical connections between components. Component placement involves positioning components on the PCB in a way that optimizes electrical performance and manufacturability. Trace routing involves drawing the conductive pathways that connect the components, ensuring proper electrical signals are transmitted between them. These functions require accurate representation of physical dimensions and electrical properties of components to make sure designs function as expected.

Whether you are working on a simple hobbyist project or an intricate industrial design, a solid understanding of how these software tools work is crucial to project success, from conception to physical realization. The effective use of a PCB layout maker ensures that designs meet both functional requirements and manufacturing standards.

Key Features to Consider in a PCB Layout Maker

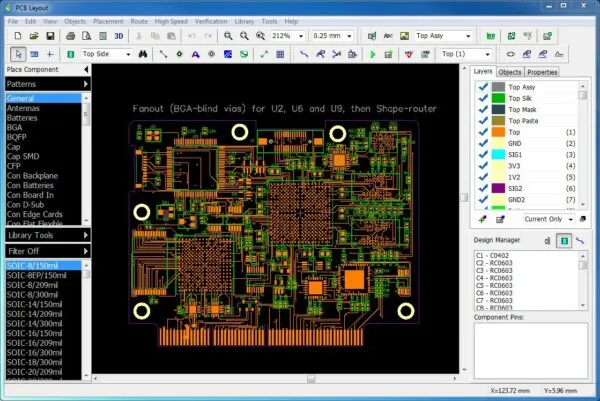

A screenshot of a PCB layout software interface.
PCB Editor Interface

Selecting the appropriate PCB layout software hinges on understanding the core features that streamline the design process. Key aspects range from usability and component management to simulation and output capabilities, directly affecting design efficiency and accuracy.

FeatureDescriptionImportance
Ease of UseIntuitive interface and workflow, minimal learning curveCrucial for quick design iterations and reduced project time, especially for beginners.
Schematic CaptureTools for creating and editing electronic circuit schematicsEssential for translating logical circuit design into a physical layout.
Component LibrariesPre-built component models and symbols, facilitating easy placement of partsSaves significant time and effort in sourcing and creating component data.
Autorouting ToolsAutomated trace placement functionality, especially useful for complex boardsHelps speed up the routing process, although manual review is typically needed for optimal results.
Layer SupportAbility to handle multi-layered board designsNecessary for complex circuits and when space is a constraint.
Export OptionsCompatibility with various output formats (e.g., Gerber, ODB++)Important for fabrication and assembly processes.
Simulation ToolsIntegrated circuit simulation features to verify design performanceReduces the need for physical prototyping, saving time and resources.

Top Free PCB Layout Maker Options

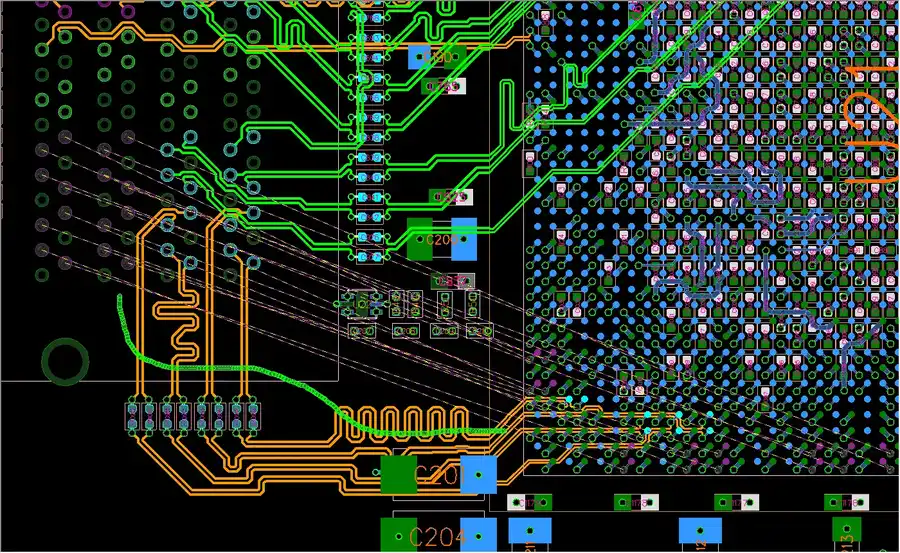

A computer screen displaying an open-source PCB design software.
Open Source PCB Design Software

For many hobbyists, students, and small businesses, the cost of software can be a significant barrier. Fortunately, several powerful and capable free PCB layout makers are available. These tools offer a range of features suitable for various project complexities, enabling users to design and test their circuits without incurring software costs. Let's explore some leading free options.

  • EasyEDA
    A popular web-based PCB design tool known for its user-friendly interface, extensive component library, and integrated circuit simulator. Its cloud-based nature allows accessibility from any device. However, being web-based requires a stable internet connection.
  • CircuitMaker
    A free professional-grade PCB design software offered by Altium, this tool provides unlimited layers and PCB dimensions, making it suitable for complex designs. However, it requires registration and is Windows-only.
  • LibrePCB
    An open-source, cross-platform PCB design tool emphasizing ease of use. It aims to be a user-friendly solution for students and makers with a modular design and simple interface. Its community support is constantly growing.
  • KiCad
    An established open-source PCB design suite used by hobbyists and professionals. It includes schematic capture, PCB layout, and a 3D viewer. KiCad has a steeper learning curve, but offers advanced features for complex designs. Its active community contributes to extensive support and libraries.

Free vs. Paid PCB Layout Maker: A Detailed Comparison

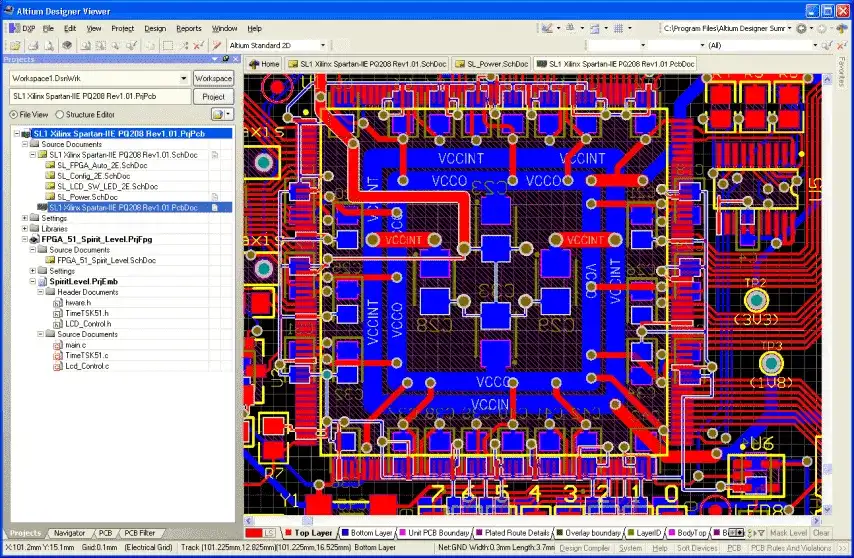

A split screen comparing interfaces of free and paid PCB layout software.
PCB Software Comparison

The choice between free and paid PCB layout software hinges on project complexity, budget, and required features. Free options often provide robust tools suitable for many applications, while paid software typically offers advanced functionality and specialized support.

FeatureFree PCB Layout MakerPaid PCB Layout Maker
CostNo licensing feesSubscription or one-time purchase fees
Advanced FeaturesMay have limitations on complex featuresTypically includes advanced simulation, signal integrity analysis, and collaborative design
Component LibrariesMay have smaller or community-driven librariesUsually include extensive, up-to-date libraries
SupportCommunity forums and online resourcesDedicated technical support
Ease of UseDesigned for user-friendly experienceMay have a steeper learning curve, designed for advance functions
AutoroutingBasic Autorouting functionalitiesAdvanced Autorouting algorithm
Layer supportLimited layers supportUnlimited layers support
Export OptionsBasic export options such as Gerber filesVarious export options including STEP, DXF, IPC-2581
Target AudienceHobbyists, students, small projectsProfessional designers, and large-scale projects

Free software such as EasyEDA, KiCad, and CircuitMaker provide a comprehensive suite of tools for most basic to moderately complex PCB designs. These are favored for their cost-effectiveness and ease of use, often being ideal for learning and small-scale projects. Conversely, paid options like Altium Designer and Autodesk EAGLE offer more sophisticated tools, enhanced component management, and dedicated support systems which are essential for professional environments and complex projects requiring stringent design specifications.

How to Choose the Right PCB Layout Maker for Your Project

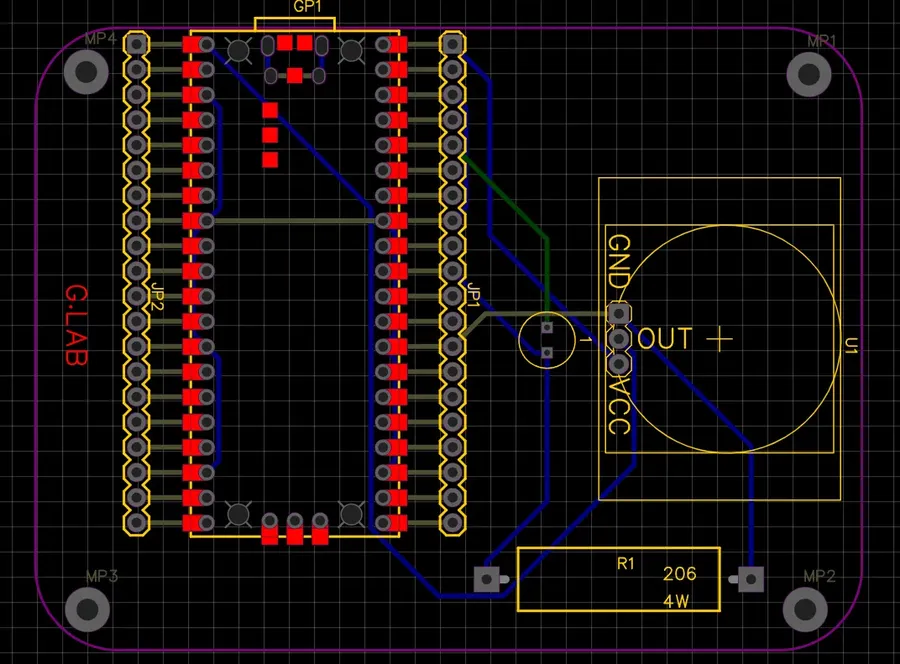

A visual representation of a PCB design project from start to finish.
PCB Design Project

Selecting the ideal PCB layout maker is a critical step that significantly impacts the efficiency and outcome of your project. The optimal choice hinges on several factors including your project's complexity, your proficiency in PCB design, budget limitations, and the specific objectives you aim to achieve. This section provides actionable advice to navigate these considerations and ensure you select the right tool for your unique needs.

  • Assess Project Complexity
    Begin by defining the scope and intricacy of your project. Simple, single-layer PCBs for hobbyist projects may only need basic layout functions, while complex multilayer designs with high-density interconnections require more advanced features like sophisticated autorouting and signal integrity analysis capabilities.
  • Evaluate Your Skill Level
    Consider your experience with PCB design. Beginners should opt for user-friendly interfaces with tutorials, pre-built component libraries, and automated features. Experienced designers can use more robust options with advanced customization features and control over every design parameter.
  • Set a Realistic Budget
    Free software is an attractive choice for many projects, as they provide robust feature sets and are ideal for beginners or budget-conscious users. There are paid software options that provide advanced functionality and enterprise level support which may be more suitable for professional projects.
  • Define Your Design Goals
    Establish clearly the main objectives of your project. Whether you are aiming to prototype, create a product for mass production, or to fulfil certain design guidelines, having well-defined goals will greatly assist in software selection. For example, if your goal is to prototype fast, a tool with easy to use routing tools and quick turn around time for fabrication could be ideal.
  • Prioritize Key Features
    Identify your required features to optimize the design process, like schematic capture, component library, autorouting, simulation, and export options. Some software excel in specific areas, so match these to your requirements. Ensure compatibility with the platforms, operating system, and file formats you plan on using.

Frequently Asked Questions About PCB Layout Makers

This section addresses common questions regarding PCB layout design and the tools used for it, providing clear and concise answers to help you navigate the complexities of PCB creation.

  • How do I create a PCB layout?
    Creating a PCB layout involves several key steps: starting with a schematic diagram of your circuit, selecting appropriate components and footprints, placing these components onto the board, and finally, routing the traces to connect them electrically. PCB layout software aids in automating and optimizing these steps for efficiency and accuracy. It is crucial to adhere to design standards to ensure both the manufacturability and functionality of the board.
  • Is there an AI tool for PCB design?
    Yes, Artificial Intelligence (AI) tools are increasingly being integrated into PCB design software. These tools can assist in tasks such as component placement, routing optimization, and even design rule checking. While AI is not yet fully autonomous in PCB design, it significantly enhances the speed and efficiency of the layout process.
  • Is CircuitMaker 2000 free to use?
    No, CircuitMaker 2000 is not a relevant version to consider as the current version of CircuitMaker is free. While the name might suggest a historical legacy version, please check the current offering from the providers of CircuitMaker to understand its features and availability.
  • What software is commonly used for PCB layout design?
    Several software options are available for PCB layout design, ranging from free to professional versions. Popular choices include KiCad, EasyEDA, and CircuitMaker for free software; and Altium Designer and Autodesk EAGLE for paid options. The selection of software often depends on the designer’s skill level, project complexity, budget, and specific requirements.
  • Can I use online tools for PCB layout?
    Yes, several online PCB layout tools are available, such as EasyEDA. These platforms allow you to design PCBs directly in your web browser, without needing to install software. They are often more accessible for beginners and offer collaborative features, making them ideal for team projects or designs that need to be shared.
  • What are the critical factors for component placement in PCB design?
    Effective component placement on a PCB considers factors such as thermal management, signal integrity, and ease of routing. Components with high thermal output should be positioned with adequate ventilation and away from heat-sensitive parts. Critical signal paths should be kept short and routed carefully to minimize signal interference and ensure optimum performance. It's also important to consider the placement in relation to the board's intended enclosure. Finally, ensure to place the components in a manner that reduces the design complexity.
  • How do I choose between free and paid PCB layout software?
    The choice between free and paid PCB layout software hinges on project requirements and budget. Free options are excellent for hobbyists, students, and simple to medium complexity projects, offering a good balance of functionality at no cost. Professional-paid software typically offers a broader range of advanced tools, superior support, and may be better suited for large, high-density, or complex industrial projects. Evaluating the specific features and support of each option will guide your decision.

Tips for Efficient PCB Layout Design

Effective PCB layout design is crucial for the performance and reliability of electronic circuits. It involves strategic component placement, efficient trace routing, and adherence to established design principles, ensuring signal integrity, minimizing interference, and optimizing thermal management.

  • Component Placement:
    Start by strategically placing components, grouping related parts together to minimize trace lengths and signal paths. Position heat-generating components away from temperature-sensitive parts and near the board's edge to facilitate heat dissipation. Consider the physical constraints of your enclosure during placement.
  • Proper Routing Techniques:
    Use 45-degree or curved traces whenever possible to avoid sharp corners, which can cause impedance discontinuities. Keep traces as short and direct as possible. Use adequate spacing between traces to prevent crosstalk and ensure manufacturability. Employ wider traces for power and ground lines to handle larger current.
  • Layer Assignment:
    Dedicate specific layers for power, ground, and signal routing. Typically, power and ground planes are placed on inner layers. Signal layers are located on the outer layers and strategically routed to minimize interference. Efficient layer assignment reduces signal loops and provides better thermal performance.
  • Decoupling Capacitors:
    Place decoupling capacitors close to the power pins of integrated circuits. These capacitors provide a local charge reservoir and help minimize noise and voltage fluctuations that can affect circuit performance. A combination of different capacitor values may be used to effectively reduce a broad range of noise frequencies.
  • Grounding:
    Employ a robust ground plane. A solid ground plane reduces impedance, provides a return path, minimizes noise, and maintains signal integrity. Make sure the ground plane is properly connected to all components requiring it and with enough via holes for proper connections to other layers.
  • Adherence to Design Rules:
    Always adhere to the design rules (DRC) specified by the PCB manufacturer. Design rule checks (DRC) help you avoid common errors, ensure your design is easily manufacturable and help prevent problems during the manufacturing process. Rules can include minimum trace widths, spacing, and via diameters.
  • Simulation and Testing:
    Before sending your layout for fabrication, use circuit simulation tools to verify the signal integrity and performance of your design. Check for any unexpected performance issues. When possible it is always useful to test the design after fabrication. This can include functional tests, signal integrity tests, and thermal performance checks.

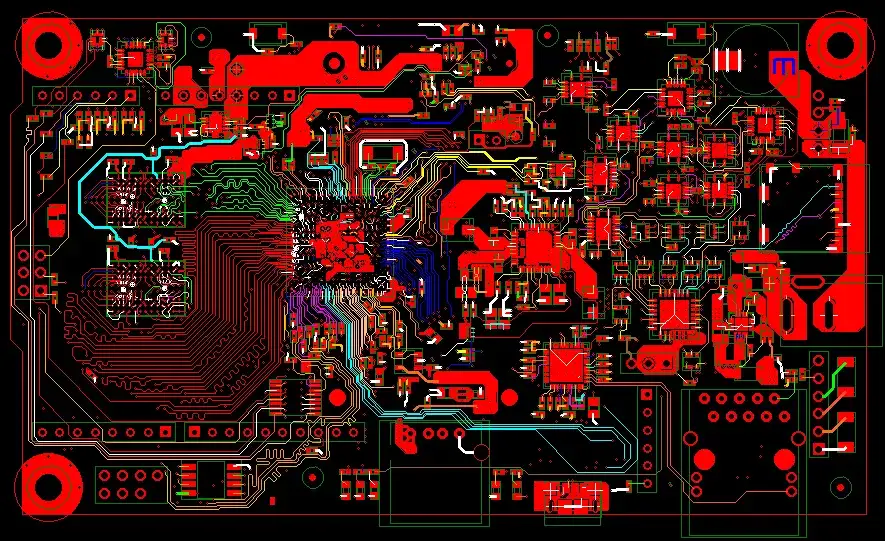

A visualization of AI-powered PCB layout technology.
AI in PCB Layout

The landscape of PCB layout technology is in constant flux, driven by advancements in computational power and software capabilities. This section delves into the emerging trends that are set to redefine PCB design, focusing on the integration of AI-powered tools and advanced simulation techniques, equipping you with insights into the next generation of PCB design practices.

  • AI-Powered Design Tools
    Artificial intelligence is increasingly being integrated into PCB design software. These tools can automate complex tasks such as component placement and trace routing, significantly reducing design time and improving layout efficiency. AI algorithms are also capable of optimizing designs for performance, power consumption, and manufacturability based on established parameters.
  • Advanced Simulation Techniques
    Advanced simulation tools are becoming more sophisticated, allowing designers to analyze thermal behavior, signal integrity, and electromagnetic compatibility with greater accuracy. These simulations help in identifying potential issues early in the design process, reducing costly prototyping iterations and ensuring high-performance PCBs.
  • Cloud-Based Collaboration
    Cloud-based platforms are facilitating seamless collaboration among geographically dispersed design teams. These platforms enable real-time co-editing, version control, and centralized data management, improving workflow efficiency and ensuring consistency across projects. This trend is particularly beneficial for larger projects and remote teams.
  • 3D Integration and Modeling
    The move towards 3D integration of electronic components is influencing PCB design. Tools are now being developed to handle multi-layered and stacked PCBs and components. This approach allows for higher component density, and more compact, efficient designs. Furthermore, 3D modeling and visualization enhances the design process.
  • Increased Focus on Sustainability
    Sustainability is becoming a more significant factor in PCB design. Future tools will likely incorporate features to optimize designs for reduced material usage and energy consumption. These new tools will be designed to handle the requirements of the latest environmental legislation.

Selecting the appropriate PCB layout software is crucial for efficient and accurate circuit board design. This section provides a detailed comparison of several popular options, highlighting their cost, key features, and target audience. The following table offers a structured overview to aid in your decision-making process.

SoftwareCostKey FeaturesTarget Audience
EasyEDAFreeWeb-based, easy to use, circuit simulatorHobbyists, students
CircuitMakerFreeNo restrictions on layers or PCB dimensionsProfessionals
LibrePCBFreeCross-platform, easy-to-use, for makers, studentsMakers, students
KiCadFreeSchematic capture, PCB design, 3D viewerProfessionals
AltiumPaidIndustry-leading tools, schematic capture, layout, prototypingProfessionals
Autodesk EAGLEPaidAdvanced tools, PCB design and simulation, collaborative featuresProfessionals

Choosing the right PCB layout maker is pivotal for successful electronics projects. Whether you opt for a free option like EasyEDA or a paid one such as Altium, selecting the right tool requires an understanding of your project needs and budget. By applying the knowledge gained from this article, you are now better equipped to navigate the complex world of PCB design, ensuring efficient, accurate and innovative project development. Remember, the right tool, like a skilled architect with their [pcb layout maker] equivalent, can bring your circuit designs to life.
