Choosing the Best PCB Maker Online: A Comprehensive Guide

In today's fast-paced electronics world, creating custom PCBs is no longer confined to specialized workshops. The rise of online PCB makers has empowered hobbyists, students, and professional engineers alike to design and fabricate PCBs with unprecedented ease. This guide explores the diverse options available for online PCB design and fabrication, helping you find the perfect [pcb maker online] for your needs. We'll delve into design software, online ordering processes, and key features to ensure you choose the best path for your project.

Understanding Online PCB Design and Fabrication

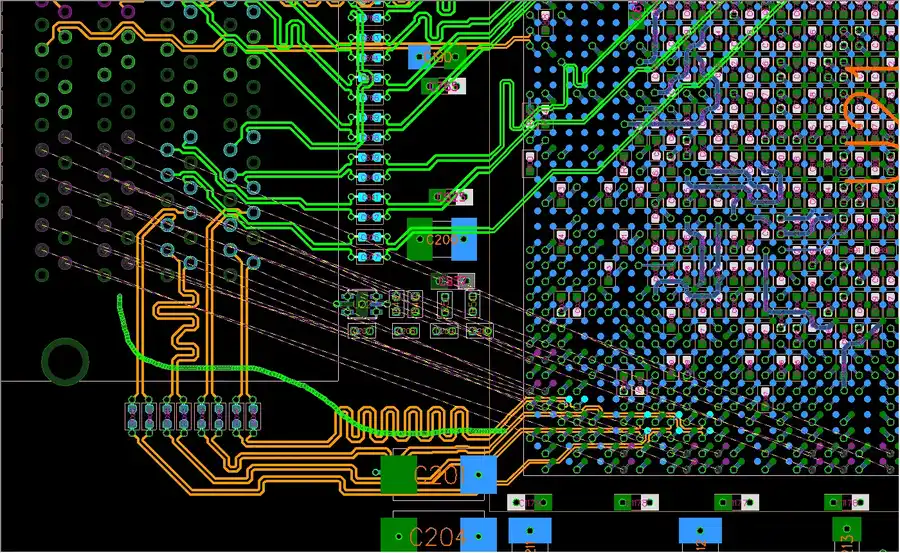

Screenshot of an online PCB design software interface.
Online PCB Design Software

Online platforms have revolutionized PCB design and fabrication, offering unprecedented accessibility, cost-effectiveness, and rapid prototyping capabilities. These tools have democratized PCB manufacturing, empowering hobbyists and professionals alike to bring their electronic designs to life with greater ease and efficiency.

The core of this transformation lies in the ability to perform PCB design tasks using web-based tools, eliminating the need for expensive, locally installed software. Furthermore, the integration of online fabrication services provides a streamlined path from design to physical board, accelerating the prototyping process significantly.

  • Accessibility
    Online platforms can be accessed from any computer with an internet connection, allowing designers to work from anywhere, anytime. This removes geographical limitations and enables collaboration across distances.
  • Cost-Effectiveness
    Free or low-cost design tools reduce upfront expenses. Furthermore, online fabrication services offer competitive pricing due to economies of scale and automated processes, making PCB production more affordable.
  • Rapid Prototyping
    Online fabrication services often offer quick turnaround times, allowing designers to rapidly iterate through different versions of their PCB designs and test their ideas without prolonged delays.
FeatureTraditional PCB Design and FabricationOnline PCB Design and Fabrication
SoftwareExpensive, locally installed softwareWeb-based tools, often free or low-cost
AccessLimited to machines with software installedAccessible from any internet-connected computer
CostHigher due to software and fabrication costsLower cost due to free software and competitive fabrication prices
Turnaround timePotentially longer due to fabrication process and distanceFaster due to streamlined online ordering and rapid prototyping

Free and User-Friendly Online PCB Design Software

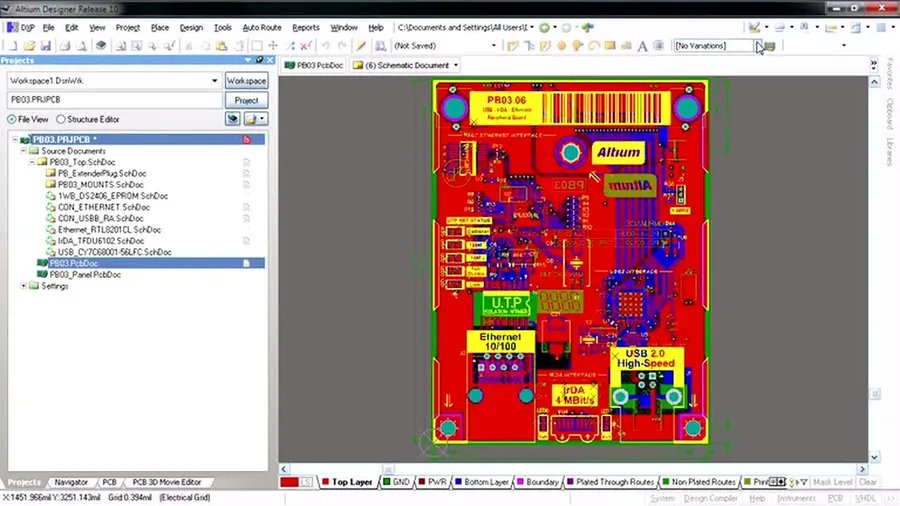

Close-up view of a PCB design software toolbar showing design tools.
PCB Design Software Toolbar

The accessibility of free and user-friendly online PCB design software has revolutionized the electronics industry, empowering hobbyists and professionals alike to design circuit boards without significant financial barriers. These platforms offer a range of tools for schematic capture, PCB layout, and often, simulation, all within a web browser or through downloadable open-source solutions.

When selecting an online PCB design tool, consider the following crucial aspects:

  • Schematic Capture
    The software should provide an intuitive interface for creating circuit diagrams with a comprehensive library of electronic components.
  • PCB Layout Tools
    Effective layout features for precise placement of components, routing of traces, and creation of board outlines are essential.
  • Simulation Capabilities
    Some platforms offer simulation tools to test circuit designs before physical fabrication, which can prevent costly errors.
  • User Interface and Ease of Use
    The platform should be easy to learn and navigate, particularly for beginners.
  • Component Libraries and Availability
    The breadth and depth of component libraries directly impact design capability and ease, the ability to import or create custom components is important.

Let's explore some of the popular free options:

SoftwareTypeKey FeaturesSuitabilityLimitations
EasyEDABrowser-basedIntegrated schematic capture, PCB layout, and component library; supports online collaborationBeginners to intermediate users who need a comprehensive, accessible platform with ready access to fabricationRequires an internet connection; less control over the software's evolution than open-source tools.
CircuitMakerDesktop softwareComprehensive schematic and PCB design tools; strong community support; allows access to advanced features.Intermediate to advanced users looking for a more feature-rich, professional grade design experience.Requires a Windows OS and registration; software can be intensive for some system specifications.
LibrePCBOpen-source Cross-platform, modular design philosophy, extensive customization, a good alternative to commercial optionsUsers who prefer open-source solutions and customization; those who require a stable platform.Has a steeper learning curve, community is smaller compared to commercial tools.

Selecting the right PCB design software depends on specific needs and skill levels. Browser-based tools like EasyEDA are excellent for quick prototyping and collaborative work, while desktop options like CircuitMaker provide more features for advanced designs. Open-source solutions such as LibrePCB offer a high level of customization and freedom.

Key Features to Consider When Choosing an Online PCB Maker

A diagram illustrating the layers of a printed circuit board stackup.
PCB Layer Stackup

Selecting the right online PCB maker involves carefully evaluating several crucial features that directly impact the quality, functionality, and cost of your printed circuit boards. These features range from the materials used in construction to the precision of the manufacturing process and the overall pricing structure.

Understanding these factors is essential for both hobbyists and professional users seeking reliable and efficient PCB fabrication services.

  • Material Selection
    The base material for PCBs is typically FR-4 (Flame Retardant 4), a fiberglass epoxy laminate, which offers a balance of mechanical strength, electrical properties, and cost-effectiveness. However, other materials like aluminum (for better thermal performance) and flexible substrates (for non-rigid applications) may be necessary for specialized uses. The availability of these diverse materials is a critical factor.
  • Layer Count
    The number of layers (single-sided, double-sided, or multi-layer) determines the complexity of the circuits a board can accommodate. Multi-layer boards allow for higher component density and intricate routing, but they typically incur higher manufacturing costs. Consider the complexity of your design when determining the required layer count.
  • Minimum Trace Width and Spacing
    The capability of the PCB maker to produce fine traces and spacing impacts the density of the board and the number of components that can be accommodated. Finer traces allow for more compact designs, but require higher precision in manufacturing. Typically expressed in mils (thousandths of an inch), this specification determines the capabilities of a fabrication house. For example, advanced designs may need 4-6 mils of trace and space whereas standard boards might use 8-10 mils.
  • Board Size Limits
    Each PCB manufacturer has size limitations on the boards they can fabricate. The maximum size of the PCB you can produce will vary by manufacturer. Knowing these limits will be important if you plan on making larger boards. The minimum dimensions can also be a factor for some makers.
  • Design Rule Checks (DRC)
    The PCB maker should provide a design rule check (DRC) service that can analyze your design files and alert you to potential manufacturing issues, such as trace violations, insufficient via clearances, and solder mask problems. Having these tools are invaluable to ensuring your designs are manufacturable.
  • Pricing Structure
    Pricing models can vary significantly among online PCB makers, and should be evaluated based on board size, layer count, quantity, and fabrication options. Look for makers who provide transparent cost breakdowns and understand that per-piece costs decrease as the quantity increases. Pricing can also depend on the lead time.
FeatureImportanceConsiderations
Material Selection (FR-4, Aluminum, Flexible)HighChoose based on thermal and application needs.
Layer CountHighConsider complexity; impacts cost and design flexibility.
Minimum Trace Width/SpacingHighAffects routing density and manufacturing precision.
Board Size LimitsMediumEnsure compatibility with design needs and project.
Design Rule Checks (DRC)HighEssential for identifying design errors before fabrication.
Pricing StructureHighCompare costs for varying quantities and options.

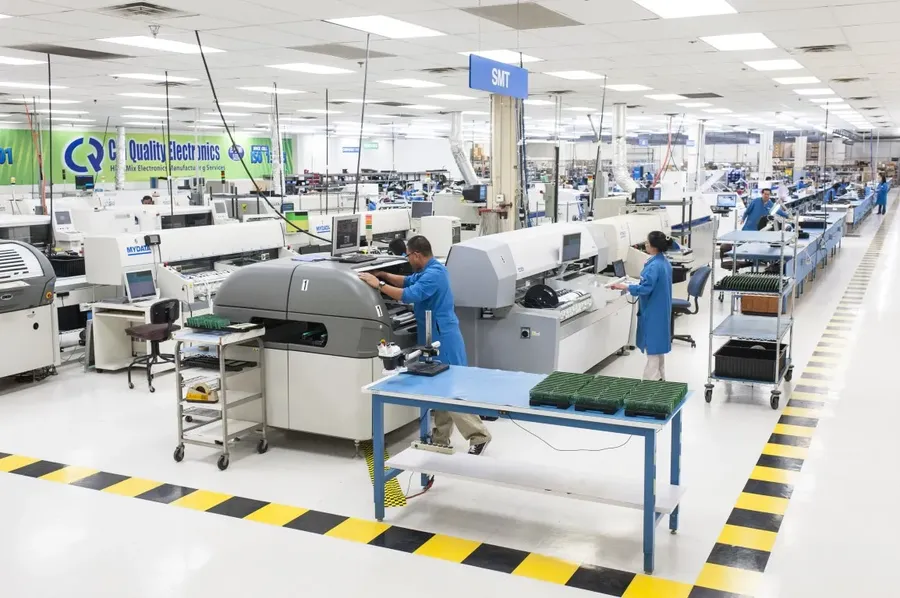

A view of a PCB manufacturing facility with various fabrication equipment.
PCB Manufacturing Factory

Selecting the right online PCB fabrication service is crucial for bringing your electronic designs to life. This section provides a comparative analysis of leading providers, focusing on key factors such as pricing, turnaround times, shipping options, and overall quality to help you make an informed decision. We will evaluate services like JLCPCB, PCBWay, and PCB Power, highlighting their strengths and weaknesses for both hobbyist and professional applications.

FeatureJLCPCBPCBWayPCB Power
Starting Price (for 10 PCBs)Typically very competitive, often lower for standard boardsSlightly higher than JLCPCB for basic boards, offers more flexibilityCan be more expensive for small orders, focuses on larger quantities
Turnaround Time (Standard)2-5 days fabrication, plus shipping3-7 days fabrication, plus shipping5-10 days fabrication, plus shipping
Shipping OptionsDHL, FedEx, EMS, Standard AirmailDHL, FedEx, UPS, EMS, Standard AirmailDHL, FedEx, Aramex, UPS, Standard Shipping
QualityGood quality for the price, suitable for most hobbyist and some professional uses.Good overall quality, with more options for advanced manufacturing.High-quality focused on professional or industrial uses.
Layer Count OptionsUp to 16 layers.Up to 12 layers.Up to 20 layers.
MaterialsFR-4 standard, some aluminum and other options available.FR-4, aluminum, flexible PCBs and special materials.FR-4, aluminum, ceramic and other high performance materials
Additional ServicesBasic PCB assembly, stencil service.Advanced assembly, component sourcing, full turnkey solutions.Professional assembly services, in-house component stocking and more.
Ideal forHobbyists, small-scale prototyping and budget-constrained projects.Hobbyists, medium-scale prototyping and projects needing more optionsIndustrial, professional and large projects.
  • JLCPCB:
    Known for their extremely competitive pricing, JLCPCB is a popular choice for hobbyists and small-scale prototyping. Their standard PCB offerings are high-quality and they offer a fast turnaround. They also offer basic assembly services.
  • PCBWay:
    PCBWay provides a broader range of options including more materials, advanced assembly services, and flexible PCBs, which are suitable for more specialized needs. Though slightly pricier than JLCPCB, they offer high-quality and are very reliable.
  • PCB Power:
    PCB Power focuses on higher quality and advanced manufacturing for industrial users. They have a comprehensive range of products, including high layer count PCBs. Their products are well-suited for professional and large-scale manufacturing.

The PCB Ordering Process: A Step-by-Step Guide

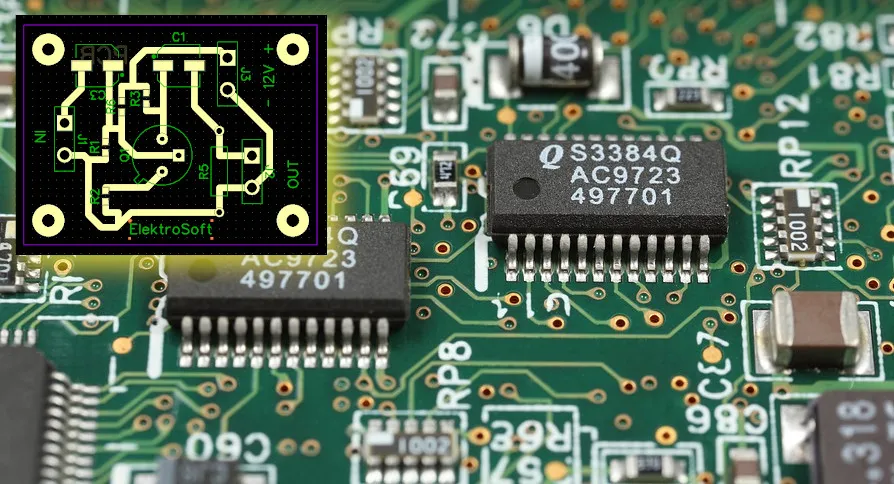

A set of Gerber files displayed on a computer screen.
PCB Gerber Files

Successfully ordering PCBs online involves a series of well-defined steps, from preparing your design files to tracking the production and delivery of your finished boards. This process, while relatively straightforward, requires attention to detail to avoid costly errors and delays. This section provides a comprehensive guide to navigate the PCB ordering process effectively.

  1. Step 1: Prepare Your Design Files (Gerber Files)
    The cornerstone of any PCB order lies in the accuracy of your Gerber files. These files, generated by your PCB design software, are the industry standard for describing the physical structure of your board. Ensure all layers (copper, solder mask, silkscreen, drill) are correctly generated, including the board outline. Also, generate a drill file in Excellon format. Double-check all file names and extensions for accuracy.
  2. Step 2: Choose Materials and Specifications
    Most PCB manufacturers offer various material options, including FR-4 (the most common), aluminum, and flexible substrates. Select the material based on your application’s thermal, electrical, and mechanical requirements. Furthermore, specify other parameters including board thickness (typically 1.6mm), copper weight (typically 1oz or 2oz), solder mask color, silkscreen color, surface finish (HASL, ENIG etc.) and layer count. Consider tolerances which could affect the final PCB.
  3. Step 3: Upload Files and Verify
    Most manufacturers provide an intuitive interface to upload your Gerber files. Before proceeding, use their online Gerber viewer (if available) to verify that all layers and the board outline are displayed correctly and that the dimensions are accurate. Ensure all critical features such as pad sizes, traces, vias are correct before submitting.
  4. Step 4: Place Order and Make Payment
    After confirming the specifications and previewing the files, place your order. At this stage, you will likely need to specify the quantity of PCBs, delivery time, and your shipping address. Secure payment will be required to begin production, most manufacturers support various forms of online payments.
  5. Step 5: Monitor Production and Track Delivery
    Once payment is confirmed, the manufacturer will start the PCB fabrication. Most providers offer tracking updates through their portal. Monitor for updates, and if there are any unexpected delays then contact the manufacturer for further information and resolution. Once the boards are shipped, monitor for tracking updates until the package arrives.

Before finalizing your order, several critical checks are essential.

  • Design Rule Check (DRC)
    Prior to generating Gerber files, ensure that the design rule checks in your CAD software have been run, and that there are no errors or warnings. These ensure your design meets the manufacturing capabilities of your chosen fabricator, such as minimum trace width, via size, and spacing.
  • File Integrity
    Confirm that the Gerber files have been generated correctly, with all layers exported in the correct format. This will be easy to see using the manufacturers online Gerber preview tools.
  • BOM (Bill of Materials)
    If you are using a PCB assembly service, ensure the bill of materials is complete and accurate. If your vendor is sourcing parts for you this will be essential. Double check all part numbers, quantities and values.
  • Communication with Manufacturer
    If there are any specific requirements or questions, it’s a good idea to communicate directly with your manufacturer before placing the order, to avoid any uncertainty or errors.

Integrating AI into PCB Design

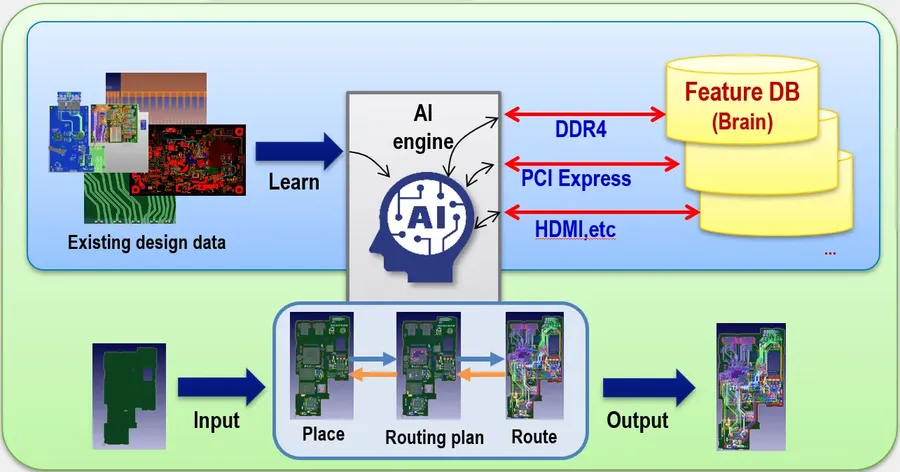

An interface showing AI tools being used in PCB design.
AI PCB Design

The integration of Artificial Intelligence (AI) and Machine Learning (ML) is revolutionizing PCB design, offering significant advancements in layout, routing, and overall design efficiency. These technologies are moving beyond basic automation to provide intelligent assistance, reducing design time and improving board performance.

AI-powered tools are capable of analyzing complex design constraints and performance requirements, suggesting optimal component placements, trace routing, and via placement. This capability is especially useful for high-density and multilayer PCBs, where manual design can be time-consuming and prone to errors.

  • AI-Driven Component Placement
    AI algorithms analyze component connectivity, thermal considerations, and signal integrity requirements to suggest optimal placements. This reduces design iterations and ensures a more efficient layout.
  • Intelligent Routing
    ML algorithms are used to find the most efficient routing paths, minimizing trace lengths, vias, and signal crosstalk. This leads to improved signal integrity and board performance.
  • Design Rule Checking (DRC) Enhancement
    AI-powered DRC tools can learn from past designs and identify potential design rule violations with higher accuracy, reducing the risk of manufacturing issues. They also offer suggestions to resolve design conflicts more efficiently.
  • Automated Component Selection
    AI is used to automatically select the best components based on the design requirements, availability, and cost considerations. This reduces the time spent on manual component selection and ensures optimal parts are used.

Several companies are at the forefront of developing AI-powered PCB design software. Flux.ai is one such platform, providing a collaborative environment where AI assists designers throughout the PCB design process.

FeatureTraditional PCB DesignAI-Assisted PCB Design
Component PlacementManual, based on experience and rulesAutomated, optimized by AI algorithms
RoutingManual or rule-based auto-routingAI-driven routing with consideration of constraints and signal integrity
Design Rule CheckingBasic checks with predefined rulesAdvanced checks using AI, identifies potential issues more accurately
Component SelectionManual selectionAutomated component selection based on performance, cost, and availability
Design IterationsNumerous iterations due to potential errorsReduced iterations with AI-driven error detection and optimization

Frequently Asked Questions About Online PCB Makers

This section addresses common questions regarding online PCB design and fabrication, offering clear and concise answers to guide users through the process. We've compiled the most frequently asked questions to help clarify any confusion.

  • Can I make my own PCB at home?
    While it is possible to create PCBs at home using methods like etching and toner transfer, the quality and complexity are generally limited. Online PCB makers offer professional-grade manufacturing with higher precision, better materials, and more advanced capabilities such as multi-layer boards and surface finish options, which are very difficult to achieve at home.
  • Is EasyEDA free or paid?
    EasyEDA offers a robust free version with powerful features, suitable for most hobbyist and some professional designs. However, for more advanced features and capabilities, a paid subscription is required. The free tier is a excellent place to start for those new to PCB design and fabrication.
  • Are there PCB design tools that use AI?
    Yes, AI and machine learning are increasingly being integrated into PCB design tools. These tools offer features such as automated routing, component placement, and design rule checking, which significantly speeds up the process and improves design quality. For example, Flux.ai is a notable example.
  • Is CircuitMaker free to use?
    CircuitMaker is a free PCB design tool provided by Altium. It offers a comprehensive suite of features for schematic capture and PCB layout, making it a viable option for both students and professional designers looking for a free yet capable tool.
  • What are the key differences between online and traditional PCB fabrication?
    Online PCB fabrication offers accessibility, cost-effectiveness, and faster turnaround times, especially for small to medium production volumes. Traditional methods usually require a larger capital investment, and long lead times, making online services a great option for hobbyists and rapid prototyping.
  • How do I select the right online PCB maker for my project?
    Selecting the right online PCB maker involves considering factors such as the complexity of your design, the required materials (e.g. FR-4, Aluminum), the desired turnaround time, shipping costs, and required support. Evaluating the service's strengths and weaknesses in these areas will help you make the best decision.
  • What file formats are required when ordering PCBs?
    Online PCB manufacturers generally require Gerber files (RS-274X format) or extended Gerber files (X2 format), which are the standard in the industry, along with drill files. Some manufacturers also accept native design files from popular EDA softwares, making the uploading process easier for beginners.

Tips for Designing PCBs Online Effectively

Designing PCBs online effectively requires a blend of careful planning and adherence to established best practices to ensure manufacturability, optimal performance, and reliability. This section outlines crucial tips to help you navigate the design process and avoid common pitfalls.

  • Design for Manufacturability (DFM):
    Prioritize DFM principles from the outset. Adhere to the PCB manufacturer's minimum trace width, spacing, and via size specifications. Consider panelization for cost savings when ordering multiple boards.
  • Thorough Schematic Design
    Create a well-organized schematic with clear component symbols and labels. Pay close attention to signal routing and power distribution.
  • Component Placement:
    Arrange components logically on the board, keeping critical signal paths short. Group related components together. Always perform a Design Rule Check (DRC) to ensure your design meets specified requirements.
  • Layer Stackup Management
    Plan the PCB layer stackup carefully, especially for multilayer boards. Consider impedance control for high-speed signals. Proper grounding and power planes are crucial.
  • Thermal Management:
    Incorporate proper thermal management techniques, such as using thermal vias under heat-generating components. Consider heatsinks where necessary.
  • Clear Documentation:
    Generate comprehensive fabrication files (Gerber files) and provide clear instructions for board assembly. Double-check all files and settings to prevent delays.
  • Use Design Rule Checks (DRCs):
    Run DRCs frequently throughout the design process to identify and correct errors. Most PCB design software packages have DRC functionality.
  • Simulation and Testing
    Employ simulation tools to verify the performance of your PCB design before fabrication. Simulate critical sections to ensure proper signal integrity. Test points are critical for debugging.
  • Standardization
    Use standard component footprints and symbols. This will make collaboration and manufacturing more efficient. Consider using IPC standards.
Best PracticeDescriptionBenefit
Clearance RulesAdhering to minimum spacing requirements between traces and components.Prevents shorts and manufacturing errors.
Via PlacementStrategic placement of vias for routing and thermal dissipation.Improves signal integrity and thermal management.
Signal IntegrityOptimizing trace lengths and impedance matching for high-speed signals.Ensures reliable signal transmission and minimizes signal loss.
Test Point IntegrationInclusion of test points at strategic locations for easy debugging.Simplifies testing and troubleshooting.
Component SelectionChoosing reliable components that are readily available from authorized distributors.Minimizes supply chain issues and reduces the risk of counterfeit components.

By following these tips and focusing on careful planning, you can improve the manufacturability and overall performance of your online PCB designs.

PCB Assembly Services and Turnkey Solutions

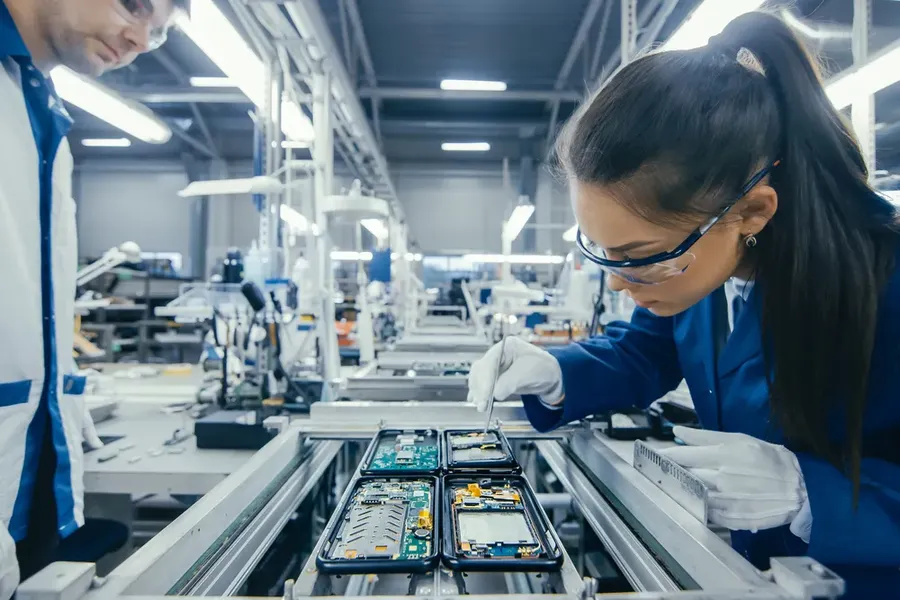

A production line showing PCB assembly process.
PCB Assembly Line

For projects requiring more than just bare PCBs, online PCB manufacturers offer comprehensive PCB assembly services and turnkey solutions, streamlining the entire process from design to finished product. These services are particularly beneficial for larger production runs or when a faster time-to-market is crucial.

Turnkey PCB assembly encompasses a full suite of services, including component sourcing, PCB manufacturing, assembly, and testing. This approach simplifies logistics and reduces lead times by consolidating all aspects under a single provider.

  • Component Sourcing
    The manufacturer sources all required components based on your Bill of Materials (BOM). This can include active components (ICs), passive components (resistors, capacitors), connectors, and more. This eliminates the need for the customer to source and manage component inventory.
  • PCB Manufacturing
    This involves the fabrication of the bare printed circuit board based on your design files (Gerber). This step ensures the board meets the design specifications.
  • Assembly
    Components are placed onto the PCB using automated surface mount technology (SMT) or through-hole soldering techniques or a combination of both.
  • Testing
    Assembled boards are tested using various methods, like In-Circuit Testing (ICT) or functional testing, to ensure they function as intended, which is crucial for delivering high-quality assembled products.
ServiceDescriptionAdvantagesConsiderations
PCB Assembly ServicesFocuses on component placement and soldering onto pre-fabricated PCBs, providing flexibility for those who manage their component sourcing.Suitable for prototypes, small batches, and when sourcing parts or having access to specialized partsComponent sourcing is not part of the service.
Turnkey SolutionsIncludes end-to-end services from component sourcing to board assembly and testing, simplifying the manufacturing process.Time-saving, lower risk of mistakes, efficient for large-scale production, and simplifies logistics.Higher initial investment due to component procurement, not as flexible

When choosing between assembly services and turnkey solutions, consider the following:

  1. Project Scale
    Turnkey solutions are more efficient for large-scale projects due to cost efficiencies that can be realized, and streamlined processes.
  2. Component Sourcing Expertise
    If you have in-house expertise in sourcing components or wish to use specific parts, assembly services can work.
  3. Time Constraints
    If time is a critical factor and need end-to-end service, turnkey solutions provide faster turnaround times as it eliminates the hassle of sourcing and managing multiple vendors.
  4. Budget
    While turnkey solutions simplify the process, the upfront costs might be higher. Assembly services can be cost-effective for smaller projects or where sourcing components in bulk is already in place.

Several online PCB manufacturers provide PCB assembly and turnkey solutions. Some of the more well-known providers are JLCPCB, PCBWay, and Eurocircuits. Be sure to request quotes and compare services to determine which best aligns with your requirements.

The landscape of [pcb maker online] is continually evolving, offering more powerful tools and streamlined services for everyone, from hobbyists to professional engineers. By understanding the capabilities and limitations of these online platforms, you can select the best options to bring your electronic designs to life quickly and efficiently. Whether you're creating a simple circuit or a complex system, the right online PCB maker is just a few clicks away. Remember to consider software compatibility, pricing, and the specific needs of your project to make the best choice.
