Choosing the Right PCB Maker: A Comprehensive Guide

In today's tech-driven world, Printed Circuit Boards (PCBs) are the backbone of nearly all electronic devices. From the smartphones in our pockets to the complex systems in industrial machinery, PCBs are indispensable. Choosing the right PCB maker is critical to ensure the quality and reliability of your electronic product. This article will guide you through the essential considerations when selecting a PCB maker, helping you navigate the options and make informed decisions for your project.

Understanding Your PCB Needs

Before selecting a PCB maker, it's essential to have a clear understanding of your project's specific requirements. This involves evaluating several key factors that directly influence the choice of the most suitable manufacturer. These factors include the board's complexity, layer count, material specifications, required tolerances, and production volume—whether for prototypes or mass production.

• Board Complexity
  This refers to the intricacy of the circuit design, including the number of components, trace density, and the presence of complex routing patterns. Highly complex designs may require advanced manufacturing techniques.
• Layer Count

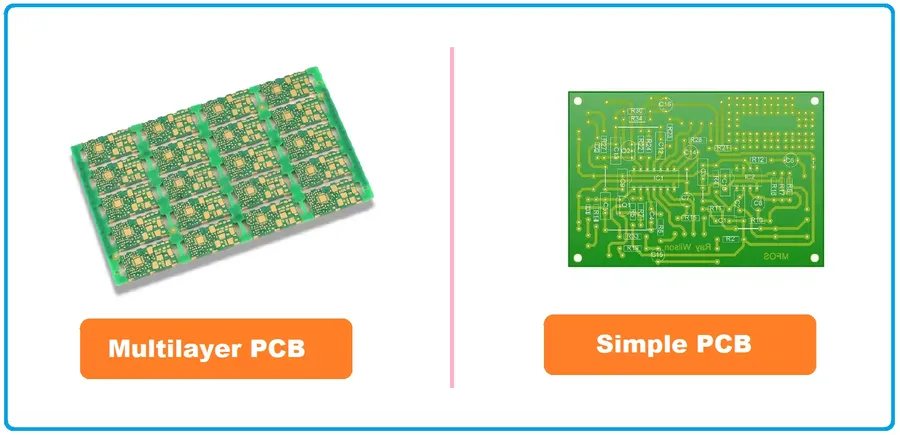

  The number of copper layers in your PCB design is a critical factor. Single-layer boards are simplest and cheapest, while multi-layer boards can accommodate more complex circuitry. Common layer counts range from 2 to 16 or more for advanced applications.
• Material Specifications
  The substrate material, most commonly FR-4, affects the board's thermal and mechanical properties, electrical performance, and cost. Special materials like aluminum or flexible substrates may be needed for specific applications. The material's UL flame rating is also critical for safety certification.
• Tolerances
  Manufacturing tolerances, including trace width and spacing, via sizes, and layer alignment, influence the final electrical and mechanical performance of the PCB. Higher precision requires tighter tolerances which can increase cost.
• Production Volume
  Whether you require a few prototypes for testing or a large production run will significantly impact your choice. Some PCB makers specialize in rapid prototyping and can accommodate lower volumes quickly, whereas others are more suited to larger-scale production.

Accurately defining these parameters upfront ensures that you are equipped to make informed decisions about the PCB maker that best fits your project's unique technical and economic constraints. Failure to properly assess these needs can lead to increased costs, delayed delivery, and potentially compromised performance.

Types of PCB Makers: Prototypes vs. Production

The printed circuit board (PCB) manufacturing landscape is broadly divided into two categories: PCB makers specializing in rapid prototyping and those focused on large-scale production. Understanding this distinction is critical to choosing the right partner for your project, as each type caters to different needs and production volumes.

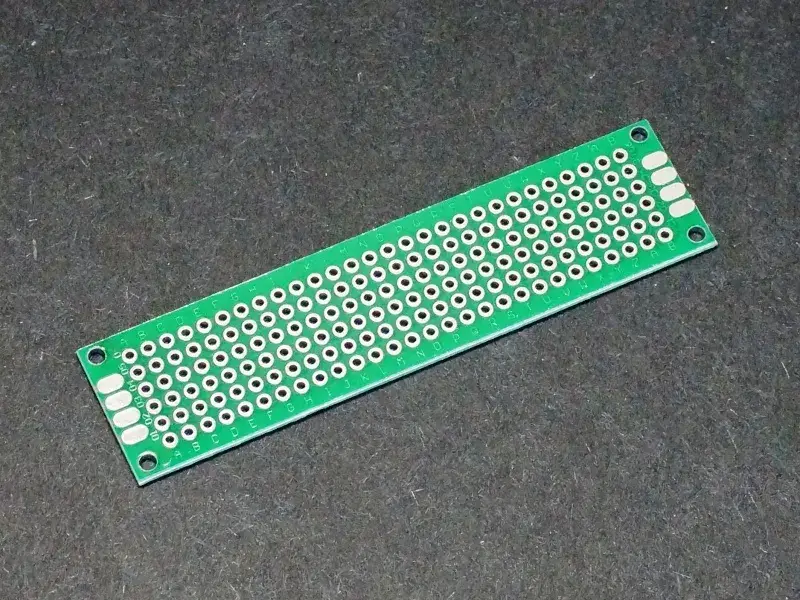

Prototype PCB makers prioritize speed and flexibility, enabling engineers to test their PCB designs efficiently. Production PCB makers, on the other hand, are geared towards high-volume manufacturing, optimizing for cost and consistency.

• Prototype PCB Makers
  These manufacturers specialize in quick turnaround times and lower volumes, ideal for iterative design testing and validation. Examples include JLCPCB and PCBWay which are popular choices for initial design verification. They often offer a wider range of options and flexibility in the design rules and material types but may come at a higher per-unit cost. Services are often streamlined for rapid ordering via online platforms.
• Production PCB Makers

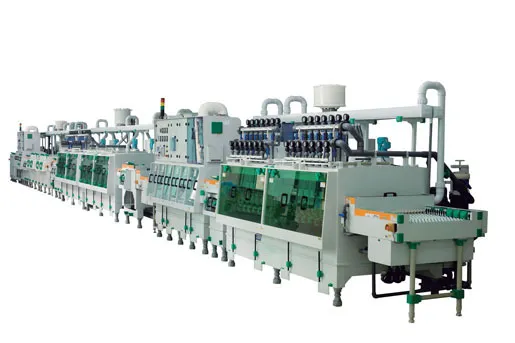

  These manufacturers focus on mass production runs, with capabilities for higher volumes and optimized manufacturing processes. Lead times may be longer than prototype makers but per-unit costs are typically lower. These PCB makers often work on larger or more complex orders and may require more direct engagement and quoting processes. Some prototype makers do offer a production service as well.

It is important to note that some PCB makers offer services that combine both prototyping and production runs. This integrated model can be beneficial for companies who require both during product development. The choice depends on the specific needs of your project.

Key Factors to Evaluate When Choosing a PCB Maker

Selecting the right PCB maker involves carefully evaluating several crucial factors to ensure your project's success. This section details the critical aspects such as cost, lead time, manufacturing capabilities, material options, and quality control that should be considered when making your decision.

• Cost Analysis
  Examine the cost structure of PCB manufacturing, including per-board costs, setup fees, and any tooling charges. Consider both your prototype and production volumes when assessing overall expenses. Some PCB makers may offer cost advantages for larger orders while others may be suitable for smaller runs.
• Lead Time
  Evaluate the expected turnaround time from order placement to delivery. Lead times can vary greatly depending on the complexity of your board and the PCB maker's production schedule. Consider if the PCB maker is local or international as this can impact time greatly.
• Manufacturing Capabilities
  Confirm that the PCB maker can handle the specific technical requirements of your PCB design, including minimum trace widths, via sizes, layer count, board dimensions, impedance control if needed and surface finish. Ensure their technology is up-to-date for your design needs.
• Material Options
  Verify the availability of the PCB materials you need, such as FR-4, aluminum, flexible substrates and the specific material thickness. Different materials have different thermal, electrical and mechanical characteristics that may make one superior to another for your application.
• Quality Control Processes
  Investigate the quality control measures in place, including electrical testing, and visual inspections. Look for certifications and quality standards the PCB maker adheres to. Quality should be the most critical factor for a successful PCB.

DigiKey and similar suppliers offer board builder services that allow you to compare quotes from multiple PCB manufacturers, this can streamline your research process. They can also provide additional support related to the build such as component sourcing and assembly services.

Online PCB Design Tools and Software

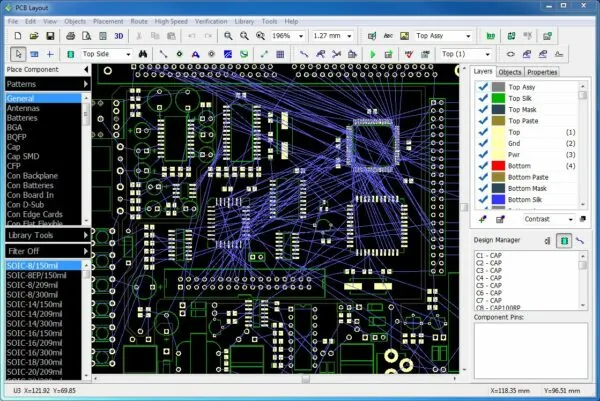

Online PCB design tools and software have revolutionized the way electronic circuits are developed, offering accessible platforms for both novice and experienced designers. These platforms, often provided by PCB makers, streamline the design process with features like schematic capture, PCB layout, and design rule checking (DRC), significantly reducing prototyping time and costs.

Key benefits of using online PCB design tools include:

• Accessibility
  Accessible via web browsers, eliminating the need for expensive software installations or compatibility issues.
• Ease of Use
  User-friendly interfaces and integrated workflows that simplify the PCB design process.
• Real-Time Collaboration
  Facilitates collaborative design efforts, enabling multiple users to work on the same project simultaneously.
• Integrated Ordering
  Directly connects to PCB fabrication services, streamlining the process from design to production.
• Design Rule Checking
  Automated checks to ensure designs meet manufacturing requirements and prevent costly errors.

Here's a comparison of some popular online PCB design platforms:

While these online tools offer significant convenience, it's essential to understand their limitations. Complex or highly specialized projects might still require the power of dedicated desktop-based CAD software. However, for many prototyping and small production runs, these online platforms are invaluable.

PCB Assembly Services: A Comprehensive Offering

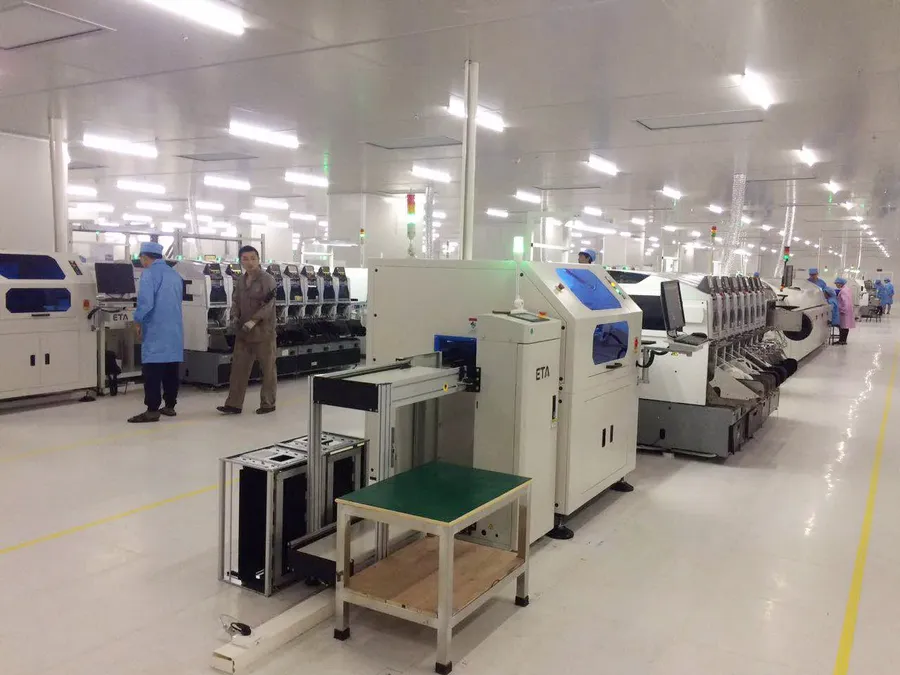

Many PCB manufacturers now offer comprehensive assembly services, streamlining the entire process from fabrication to a fully assembled board. Integrating these services can significantly reduce errors and accelerate project timelines, especially for complex designs.

Choosing a PCB maker that provides both fabrication and assembly services can lead to better communication, fewer logistical headaches, and improved quality control. This approach is particularly beneficial for projects where precision and reliability are critical.

• Benefits of Integrated Assembly Services
  Integrating PCB fabrication and assembly services can result in several key advantages such as reduced lead time, improved communication, and streamlined project management.
• Reduced Handling and Shipping
  Fewer handoffs between suppliers leads to decreased risk of damage and faster turnaround times.
• Better Quality Control
  Having a single provider manage both PCB fabrication and assembly ensures greater accountability and consistency in the final product.
• Cost Savings
  While not always the case, using an integrated service provider can result in overall cost savings due to streamlined processes.

When evaluating PCB assembly services, consider the level of service you require. Basic assembly is sufficient for straightforward projects. However, full turnkey services are often more suitable for more intricate PCB designs.

PCB makers like PCBWay offer comprehensive manufacturing and assembly services, catering to a variety of project complexities. They provide both basic and full turnkey options, making them a good choice for a wide range of needs.

What is a Turnkey PCB Assembly Service?

A turnkey PCB assembly service refers to a comprehensive solution where the manufacturer handles all aspects of the PCB assembly process, from sourcing components to final testing. This approach minimizes the customer's involvement and reduces the potential for errors and delays.

Component Sourcing for PCB Assembly Services

A key aspect of PCB assembly is component sourcing. Some manufacturers offer component procurement as part of their assembly service, which simplifies the logistics for the customer. Verify what component procurement options are available, and if you need to supply the components yourself.

Geographic Considerations for PCB Manufacturing

The geographic location of your chosen PCB manufacturer significantly impacts project timelines and overall costs. Factors such as shipping distances, import duties, and lead times are directly influenced by the manufacturer's location. Strategically selecting a PCB maker based on geographic factors can optimize both time and budget.

Consider these key geographic factors when making your selection:

• Shipping Costs
  The distance between the manufacturer and your location directly affects shipping costs. International shipping can be substantially more expensive than domestic shipping, especially for larger or heavier orders. These costs should be factored into your project budget.
• Lead Times
  Shipping time adds to the overall lead time, meaning the time it takes from placing an order to receiving the PCBs. Overseas manufacturing can result in significantly longer lead times. If your project has tight deadlines, prioritize PCB makers that are geographically closer to minimize transit times. PCB lead times often do not include shipping.
• Import Duties and Taxes
  If you are importing PCBs from another country, you will likely incur import duties and taxes. These can add considerable cost and complexity to the project, sometimes unpredictably. Check the rules and regulations of your country.
• Communication and Time Zones
  When working with international manufacturers, time zone differences can impact communication efficiency. If your project requires frequent interaction and problem-solving, consider working with manufacturers that have similar working hours.
• Local vs. Overseas
  Local PCB makers may offer quicker turnaround times for prototyping, and the proximity could improve customer support. However, cost considerations may favor overseas options for large production runs. A balanced approach is usually recommended when selecting a PCB manufacturer.

The following table provides a basic comparison of typical considerations when evaluating PCB makers based on geographic location:

By carefully analyzing these geographic factors, you can choose a PCB maker that best aligns with your project's schedule, budget, and communication requirements. Consider a balanced approach, which may mean leveraging both local and overseas options for different phases of your project.

Cost Comparison: Balancing Budget and Quality

A crucial aspect of selecting a PCB maker involves a careful evaluation of costs while maintaining the necessary quality and reliability. It's important to understand all associated expenses, from initial setup to the final unit price, to make an informed decision that aligns with both your budgetary constraints and project requirements.

Here's a breakdown of typical cost factors to consider:

• Tooling Costs
  These are the initial charges for preparing the production line. Some manufacturers will amortize tooling costs over a larger production run, reducing the upfront per-unit price.
• Setup Fees
  These costs cover the time and resources required to prepare your specific design for manufacturing. Setup fees might vary depending on the complexity of your board.
• Unit Price
  This is the cost per PCB. Unit price typically decreases with the quantity produced. Ordering in bulk often significantly reduces the overall per board costs.
• NRE(Non-Recurring Engineering) Charges
  These are one-time costs for specific designs and needs. They could cover design for manufacturability review, testing and special handling requirements.

While a low price point may be attractive, it's essential to consider the trade-offs with quality. Cheaper PCBs may involve the use of less durable materials, lack rigorous quality controls, or have less precise manufacturing processes. This can lead to board failures and increased long-term costs, which can far outweigh the initial savings. A thorough cost-benefit analysis is vital before making any final decision.

To help you navigate the cost vs quality trade off, here are some key points to consider:

1. Request Quotes from Multiple PCB Makers
   Comparing quotes from different manufacturers allows you to assess the cost ranges and choose one that fits your budget. Check to see if costs are broken down in a way you can understand, as this can assist in negotiations.
2. Evaluate Quality and Certifications
   Verify if the PCB maker adheres to industry standards. Relevant certifications can be a good indication of reliability and the quality of manufacturing process.
3. Factor in hidden costs
   Don't forget to consider factors such as shipping costs, import duties and potential additional charges for expedited services which can impact the overall project budget.
4. Negotiate Based on Volume
   If your project requires significant quantities of PCBs, inquire about discounts that can be applied to volume orders. Bulk orders typically result in lower unit prices.

The balance between cost and quality is a critical consideration, it's crucial to prioritize the selection of a PCB maker that can consistently provide reliable boards that meet your project requirements, while remaining within your budget.

PCB Maker Options Comparison Table

This section provides a structured comparison of several popular PCB (Printed Circuit Board) manufacturers. The table below highlights their key strengths, material options, minimum order quantities, and assembly service capabilities. This is designed to help you choose the best fit for your specific project needs, whether you're prototyping or producing at scale.

Each of these manufacturers offers a unique combination of services and capabilities. Understanding these differences can be crucial in selecting the most appropriate partner for your PCB fabrication and assembly needs.

Frequently Asked Questions About PCB Makers and Manufacturing

Navigating the world of PCB fabrication can raise several questions. This section addresses some of the most common inquiries regarding PCB makers, manufacturing processes, and design considerations, offering practical insights and guidance.

• What is a Gerber file, and why is it essential for PCB manufacturing?
  A Gerber file is a standard file format used in PCB manufacturing to describe the different layers of a circuit board, including copper traces, solder mask, and silkscreen. It is crucial because it provides the necessary data for the PCB maker's equipment to accurately produce the board. Without Gerber files, a manufacturer cannot fabricate your PCB design.
• How do I select the appropriate PCB material for my project?
  The selection of PCB material depends heavily on your application's needs, primarily thermal and electrical requirements. Common materials include FR-4 for general use, which offers a good balance of cost and performance. Materials like Rogers are better for high-frequency applications, while aluminum boards excel in heat dissipation. Consider factors like dielectric constant, operating temperature, and the mechanical properties of the substrate when making your choice.
• What are typical PCB manufacturing lead times, and how can I expedite the process?
  Typical lead times for PCB manufacturing vary depending on complexity, quantity, and the manufacturer's capacity. For prototyping, lead times can be as short as 24 hours for expedited services, while larger production runs may take several days or weeks. You can expedite the process by ensuring your design files are complete and accurate, choosing a manufacturer with faster turnaround options, and using standard materials if possible.
• How do I choose between a prototype and a production run for PCBs?
  Prototype runs are ideal for testing and refining your design before committing to a larger production. They are typically low-volume orders aimed at verifying functionality, fit, and performance of the board. Production runs are high-volume orders for mass production of a design you have verified and are confident in. Start with a prototype run to debug issues and then proceed to a production run when your design is finalized.
• What are some common mistakes to avoid when designing PCBs for manufacturing?
  Common mistakes include insufficient pad size for soldering, traces that are too close together for the manufacturer's capabilities, vias placed too close to pads or traces, incorrect file formats, missing drill files, or not adhering to the manufacturer's design rules. Careful adherence to design guidelines and a thorough design rule check (DRC) can prevent many of these issues.
• What is a Design Rule Check (DRC) and why is it important?
  A Design Rule Check (DRC) is an automated process that verifies if a PCB layout conforms to a predefined set of design rules set by either the engineer or the PCB manufacturer. This process ensures that the PCB is manufacturable, avoiding common design errors that could result in a non-functional circuit board. Performing a DRC is critical before sending your design for manufacturing.
• What is the best way to get a quote for PCB manufacturing?
  The best way to get an accurate quote is to provide the PCB manufacturer with a complete set of design files including the Gerber files, a bill of materials (BOM) if assembly is also needed, and any special requirements or preferences such as material, finish, layer count etc. Many PCB manufactures will have online portals that allow you to upload the design information and receive a quote.

Selecting the right PCB maker is a critical decision that impacts the success of your electronic project. By understanding your project needs, comparing the capabilities of various PCB makers, and focusing on both quality and cost, you can ensure you find the perfect partner for PCB fabrication. Consider partnering with reliable PCB makers like JLCPCB and PCBWay, whose services and experience can ensure your project needs are met.
