The Complete Guide to PCB Production: From Design to Finished Board

The printed circuit board (PCB) is the unsung hero of modern electronics, the foundation upon which our digital world is built. From smartphones to spacecraft, PCBs are essential. This article demystifies the intricate process of PCB production, detailing each critical step and ensuring a comprehensive understanding of how these essential components are brought to life. We'll journey from the initial design phase to the final, functional circuit board, uncovering the technology and expertise that go into every manufactured PCB.

PCB Design and Layout: The Foundation of Production

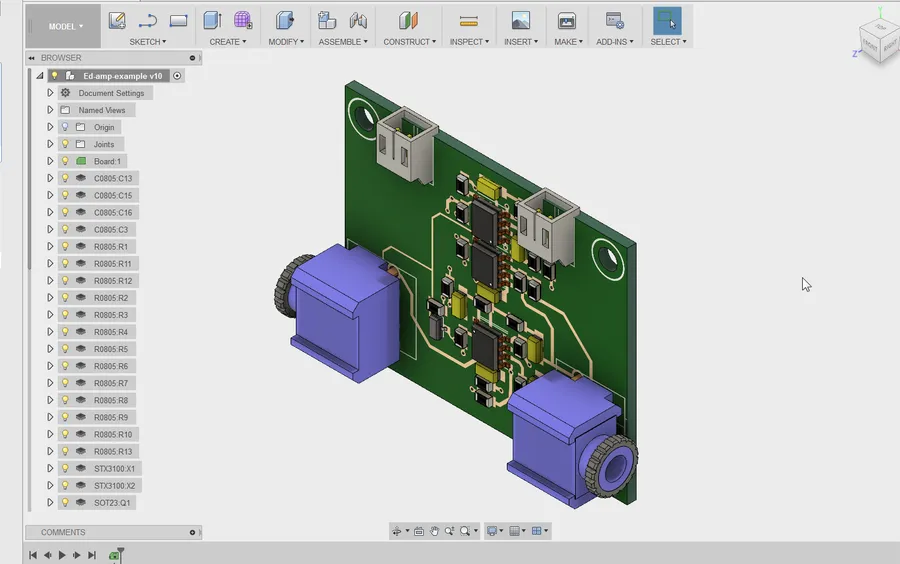

A computer screen showing a PCB design software interface.
PCB Design Software Interface

The genesis of any printed circuit board (PCB) lies in its meticulous design and layout phase. This foundational step employs Computer-Aided Design (CAD) software to translate electrical requirements into a physical blueprint, defining component placement, electrical pathways, and overall board functionality. Accurate design at this stage is paramount, as it directly impacts signal integrity, thermal management, and the manufacturability of the final product.

AspectDescriptionImportance
Schematic CaptureCreation of the electrical circuit diagram representing the interconnection of components.Defines the functional requirements of the PCB.
PCB LayoutPhysical arrangement of components, traces, and other elements on the board.Ensures electrical functionality, signal integrity and facilitates manufacturability.
CAD SoftwareSpecialized software tools (e.g., Altium Designer, Eagle, KiCad) used for schematic capture and PCB layout.Enables precise and efficient PCB design.
Signal IntegrityEnsuring the quality and fidelity of electrical signals as they propagate through traces.Crucial for high-speed and analog circuits.
Thermal ManagementDesigning the board to dissipate heat effectively, preventing component overheating.Ensures reliability and performance of the PCB.
ManufacturabilityDesigning the PCB with consideration for the capabilities of the manufacturing processes and equipment.Reduces manufacturing costs and improves yield.

Gerber File Generation: Translating Design to Manufacturing Data

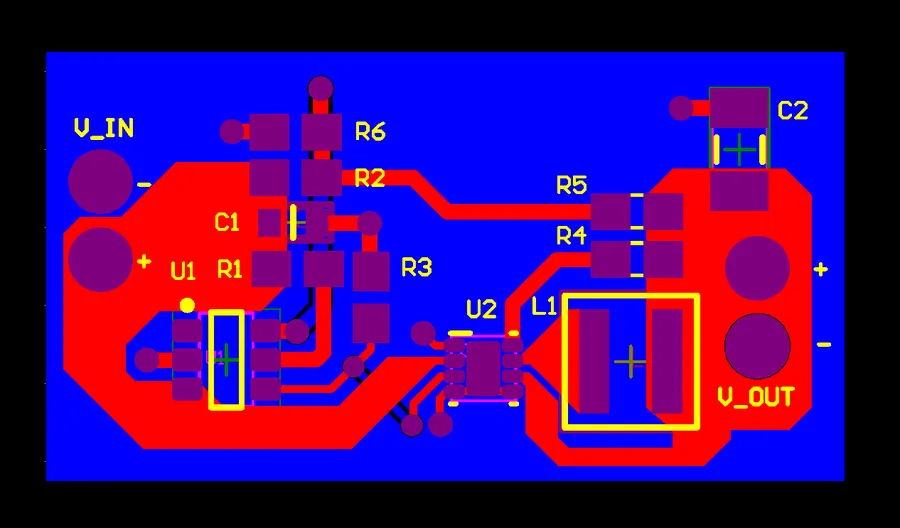

A digital representation of a Gerber file showing PCB layers.
Gerber File Representation

The transition from a completed PCB design to its physical manufacturing hinges on the accurate generation of Gerber files. These files serve as the standardized digital blueprint, conveying every critical detail of the PCB layout to the fabrication equipment. A comprehensive set of Gerber files is essential for a seamless and precise manufacturing process, dictating the precise copper layers, solder mask, silkscreen, and drill hole locations.

  • Copper Layers
    Gerber files define the conductive pathways on the PCB, specifying the exact traces, pads, and shapes for each copper layer. These dictate the electrical network of the board.
  • Solder Mask
    The solder mask layer is defined to specify areas where solder should not adhere during assembly, preventing short circuits and protecting traces.
  • Silkscreen
    The silkscreen layer provides component markings, labels, and other identifying information on the board to facilitate assembly and maintenance.
  • Drill Holes
    Precise locations for all holes, including vias and component mounting points, are specified in the drill files, ensuring correct mechanical fit and layer connectivity.
Gerber File ExtensionDescriptionPurpose
.GTLTop Copper LayerDefines the top layer copper traces and pads
.GBLBottom Copper LayerDefines the bottom layer copper traces and pads
.GTSTop Solder MaskDefines the top solder mask layer
.GBSBottom Solder MaskDefines the bottom solder mask layer
.GTOTop Silkscreen LayerDefines the top silkscreen layer
.GBOBottom Silkscreen LayerDefines the bottom silkscreen layer
.TXTDrill FileDefines drill hole locations and sizes
.GKOKeepout LayerDefines areas where components cannot be placed

Material Selection: Choosing the Right Substrates and Laminates

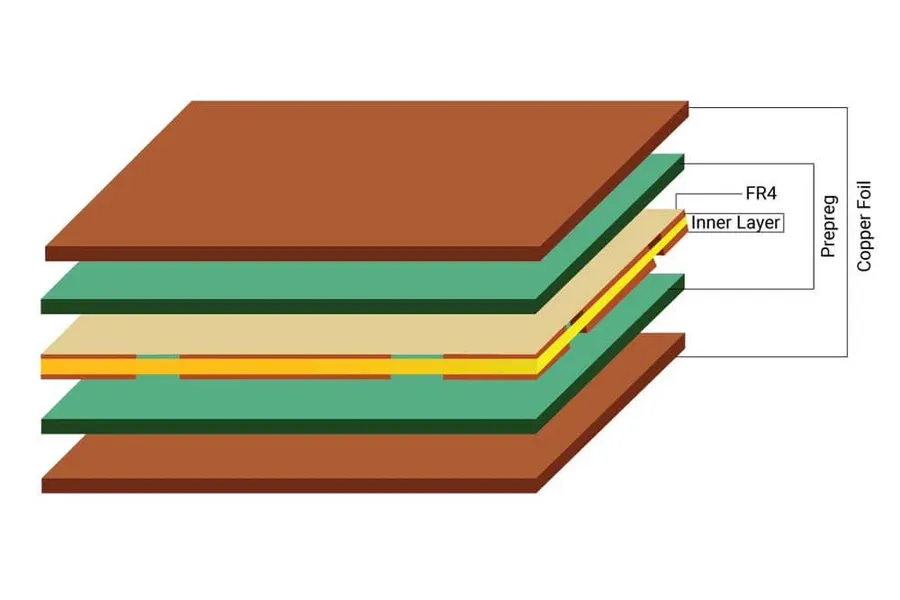

A stack of different PCB laminate materials.
PCB Laminate Materials

The selection of appropriate materials is paramount in PCB production, as it directly influences the final performance and reliability of the board. This decision hinges on a careful evaluation of the intended application, operating environment, and performance requirements, affecting both the mechanical and electrical characteristics of the finished PCB.

MaterialDescriptionTypical ApplicationsAdvantagesDisadvantages
FR-4A composite material made of woven fiberglass cloth with epoxy resin.General-purpose PCBs, most consumer electronics.Cost-effective, good mechanical strength, widely available.Limited thermal performance, not suitable for high-frequency applications.
High-Tg FR-4FR-4 with higher glass transition temperature.Higher-temperature applications, automotive electronics.Improved thermal resistance compared to standard FR-4.More expensive than standard FR-4.
PolyimideA high-performance polymer.Aerospace, high-temperature, and flexible circuits.Excellent thermal stability, good electrical properties, flexible.More expensive, may be sensitive to moisture absorption.
PTFE (Teflon)A fluoropolymer.High-frequency applications, microwave circuits, RF applications.Excellent electrical performance, low dielectric constant, low loss.Expensive, can be difficult to process.
Metal Core (Aluminum, Copper)A metal base with a dielectric layer.High-power electronics, LED lighting, thermal management.Excellent thermal conductivity, good heat dissipation.Can be heavier and more costly
  • Key Material Properties to Consider:
    When selecting materials for PCB production, it is crucial to consider several key properties. These properties include the dielectric constant, which affects signal propagation speed; the dissipation factor, which influences signal loss; the glass transition temperature (Tg), which determines the temperature at which the material loses its rigidity; and the thermal conductivity, which affects the PCB's ability to dissipate heat. Each of these factors plays a significant role in the performance and reliability of the finished product.
  • Dielectric Constant (Dk)
    The dielectric constant of the material affects the signal propagation speed and impedance of the circuit. Low Dk materials are preferred for high-speed applications to minimize signal delay and maintain signal integrity.
  • Dissipation Factor (Df)
    The dissipation factor, also known as loss tangent, indicates the amount of signal loss in the material. Lower Df is desirable for high-frequency applications to reduce energy loss and signal degradation.
  • Glass Transition Temperature (Tg)
    The glass transition temperature is the point at which the material transitions from a rigid, glassy state to a more pliable, rubbery state. A higher Tg is needed for PCBs that will be subject to high temperatures during operation or assembly, to prevent damage to the board.
  • Thermal Conductivity
    The thermal conductivity indicates how well the material conducts heat. High thermal conductivity is beneficial for high-power applications to prevent overheating and improve reliability. Metal core PCBs are often used for applications where heat dissipation is critical.
  • Mechanical Strength
    Mechanical properties such as tensile strength, flexural strength, and impact resistance are important for ensuring the board can withstand mechanical stresses and vibration. Selecting materials with adequate mechanical strength prevents board damage during manufacturing and operation.
  • Moisture Absorption
    Some PCB materials can absorb moisture, which can negatively impact electrical properties and cause delamination. This is more pronounced in humid environments. Materials with low moisture absorption rates are preferred for reliable long term operation.

Inner Layer Fabrication: Creating the Internal Copper Traces

A close-up view of the internal copper traces on a PCB layer.
Internal Copper Traces

In the production of multi-layer PCBs, the fabrication of inner layers is a critical early step. This process involves transferring the designed circuit patterns onto copper-clad laminates, followed by precise etching to remove excess copper, thereby forming the conductive traces. This stage demands high precision and control to ensure dimensional accuracy of the internal circuitry.

Process StepDescriptionKey Considerations
PreparationCleaning and preparing the copper-clad laminate for photoresist application.Ensuring a clean, contaminant-free surface for optimal adhesion.
Photoresist ApplicationApplying a photosensitive material onto the copper surface.Uniform coating thickness and minimal defects.
ExposureExposing the photoresist to UV light through a mask containing the circuit pattern.Accurate alignment of the mask to the copper layer, sufficient UV intensity for proper curing.
DevelopmentRemoving unexposed photoresist using a chemical solution.Proper chemical concentration and temperature for complete removal of unwanted photoresist.
EtchingChemically removing the unprotected copper to form the circuit traces.Precise control of etching parameters (time, temperature, chemical concentration) to achieve desired trace width and shape.
Photoresist RemovalRemoving the remaining photoresist after etching.Complete removal of the photoresist to prepare for the next process.
InspectionVerifying the quality of the etched traces against design specifications.Ensuring the dimensional accuracy and integrity of the circuit patterns.

Lamination and Layer Bonding: Building the PCB Stack-Up

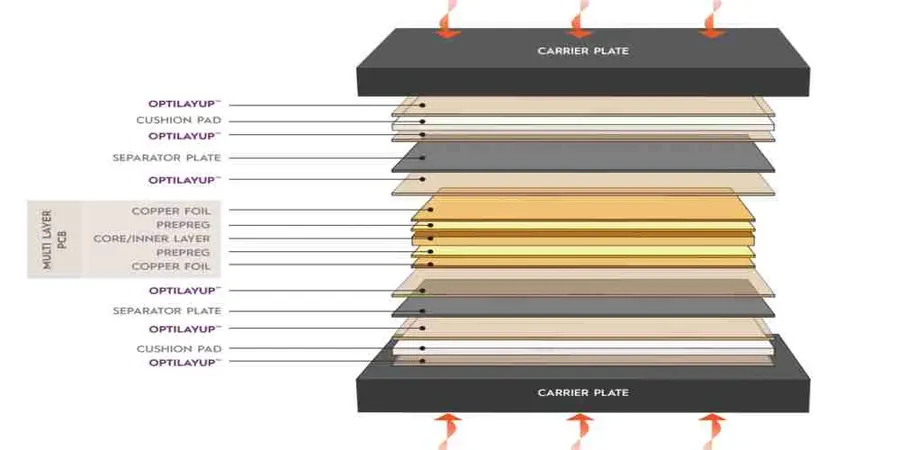

A PCB lamination machine pressing multiple layers of PCBs.
PCB Lamination Machine

Lamination and layer bonding are critical processes in multi-layer PCB production, where pre-fabricated inner layers are meticulously stacked and fused to form the core structure of the printed circuit board. This step involves the application of controlled heat and pressure to ensure a homogenous bond, creating a robust, multi-layered substrate for further processing.

Key aspects of this process include:

  • Layer Alignment
    Precise registration of the inner layers is essential to ensure that conductive traces and vias align correctly in the final PCB stack-up. Misalignment can result in electrical shorts or open circuits. High-resolution optical registration systems and specialized alignment pins ensure the accuracy of layer stacking.
  • Material Preparation
    The inner layers (etched with circuitry) are prepared with a bonding agent, typically a prepreg material, which is a fiberglass cloth impregnated with a resin that cures under heat and pressure. This material acts as an insulator and also bonds the copper layers together. The correct type and thickness of prepreg are vital for the mechanical and electrical properties of the final PCB.
  • Lamination Process
    The prepared layers, along with prepreg sheets, are stacked in a specific order and then placed into a hydraulic press. During lamination, heat and pressure are applied over a specified duration and under a controlled temperature profile. The heat melts the resin in the prepreg, while the pressure ensures that the layers are tightly compressed and that the resin fills any gaps. The press is then cooled before the bonded stack is removed to ensure proper bonding.
  • Curing
    After lamination, the stack undergoes a curing process where the resin in the prepreg fully solidifies to establish a permanent bond. The curing parameters are critical for achieving the desired mechanical, thermal, and electrical properties of the laminate, preventing layer separation. The temperature and duration are optimized to ensure proper bonding and material stability.
ParameterDescriptionImpact on PCB
Lamination TemperatureTemperature at which heat is applied during bondingAffects resin melting, bonding strength, and laminate properties
Lamination PressureForce applied during the bonding processEnsures proper resin flow, good contact, and layer bonding
Curing TimeDuration of heat and pressure during laminationImpacts resin curing and the dimensional stability of the PCB
Prepreg MaterialType of bonding agent used between layersDetermines dielectric properties, layer adhesion, and thermal resistance

Drilling and Plating: Creating Through-Holes and Vias

A CNC machine drilling holes in a PCB.
PCB Drilling

The drilling and plating stage in PCB production is critical for establishing electrical connections between different layers of a multi-layer board and for creating mounting points for components. This process involves creating precise holes through the laminated PCB stack-up, followed by plating the interior of these holes with copper.

This ensures the functionality of a multi-layer PCB by enabling the interconnections between layers.

  • Drilling Process
    Drilling is accomplished using computer-controlled machines with high-speed drill bits. The size of the drill bits is crucial for the specific vias and component mounting holes required. The drilling process needs to maintain precise positional accuracy to ensure that the holes connect correctly with the copper traces in each layer.
  • Plating Process
    After drilling, the holes are chemically treated and then plated with copper. This copper plating is done using an electroless process, which deposits a thin layer of copper on the hole walls. Then, an electrolytic copper plating process thickens the copper layer to establish the electrical connection. The plating must be continuous and consistent in thickness to ensure proper conduction.
ParameterDescriptionTypical Value
Drill Bit DiameterSize of the drill bit used to create vias and component holes.0.1 mm - 1.0 mm
Copper Plating ThicknessThickness of copper deposited within drilled holes.20 - 30 µm
Hole Positional AccuracyAccuracy of drill hole location relative to design.± 0.05 mm

Solder Mask Application and Silkscreen Printing: Protecting and Labeling the PCB

A PCB with solder mask being applied.
Solder Mask Application

The application of solder mask and silkscreen printing are critical steps in PCB production, serving distinct yet complementary purposes. The solder mask acts as a protective layer, preventing unintended solder connections, while the silkscreen provides crucial labeling for component placement and identification, ensuring efficient assembly and maintenance of the board.

  • Solder Mask Application
    The solder mask is a thin, protective layer typically made of epoxy or polymer, applied over the copper traces on the PCB. It prevents solder from bridging between adjacent pads during assembly. This is achieved through a screen-printing or photolithography process, which exposes the mask to UV light to create the desired patterns.
  • Silkscreen Printing
    The silkscreen layer is applied on top of the solder mask, providing human-readable markings for component locations, polarity indicators, test points, and other relevant information. It uses a special ink that adheres well to the PCB surface, typically white or yellow, to ensure that the markings are easily visible.
FeatureSolder MaskSilkscreen
Primary FunctionPrevents Solder Bridges; Protects TracesProvides Component Labels & Markings
MaterialEpoxy or PolymerSpecialized Ink
Application MethodScreen Printing/PhotolithographyScreen Printing
PositionApplied over copper tracesApplied over solder mask
ColorUsually Green; Other Colors AvailableUsually White or Yellow

Surface Finish: Enhancing Solderability and Conductivity

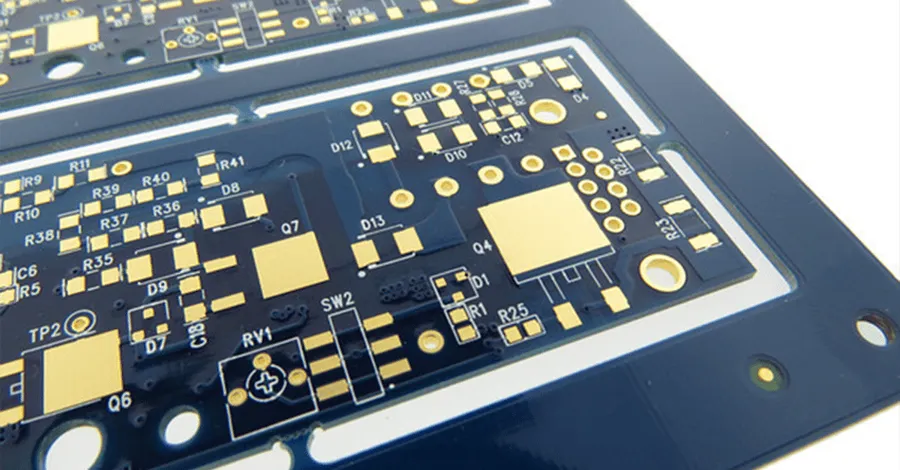

A close up of PCB with ENIG surface finish.
ENIG Surface Finish

The application of a surface finish to the exposed copper pads on a PCB is a critical step in the manufacturing process, serving to enhance both solderability and protection against corrosion. This ensures reliable electrical connections and prolongs the lifespan of the board. The selection of the appropriate surface finish is often dictated by the specific requirements of the application, including factors such as cost, environmental conditions, and desired performance characteristics.

Surface Finish TypeDescriptionAdvantagesDisadvantages
HASL (Hot Air Solder Leveling)A coating of molten solder applied to the copper pads and then leveled with hot air.Low cost, good solderability, robust.Uneven surface, not ideal for fine-pitch components, contains lead (in leaded HASL).
ENIG (Electroless Nickel Immersion Gold)A layer of nickel is deposited on the copper followed by a thin layer of gold.Excellent solderability, good for wire bonding, flat surface.Higher cost, potential for 'black pad' issues.
Immersion TinA thin layer of tin is chemically deposited on the copper.Good solderability, lead-free, relatively low cost.Susceptible to tin whiskers, short shelf life.
Immersion SilverA thin layer of silver is chemically deposited on the copper.Good solderability, lead-free, good for fine-pitch components.Susceptible to tarnishing, migration issues under high humidity.
OSP (Organic Solderability Preservative)A thin, water-based organic coating that protects the copper from oxidation.Low cost, good solderability, lead-free.Very short shelf life, easily damaged during handling, not suitable for multiple reflow cycles.

Electrical Testing and Quality Control: Ensuring Functionality

Rigorous electrical testing and quality control are crucial steps in PCB production, ensuring that fabricated boards meet the required specifications and perform as intended before component assembly. These procedures identify potential defects early, preventing costly rework and ensuring the reliability of the final product.

The testing phase typically involves a combination of automated and manual methods to verify circuit integrity, impedance characteristics, and overall functionality. These tests are designed to detect manufacturing flaws such as shorts, opens, and incorrect component connections, all of which can compromise the functionality of the board.

Quality control measures are implemented to maintain consistent manufacturing standards and identify areas for process improvements. Data collected during testing provides valuable insights for optimizing production and enhancing the overall reliability of the final product.

Test TypeDescriptionPurpose
Continuity TestChecks for open circuits in traces and vias.Ensures proper electrical connections.
Short Circuit TestIdentifies unintended connections between different parts of the circuit.Prevents malfunctions due to shorts.
Impedance TestVerifies that the impedance of traces falls within the specified tolerance.Maintains signal integrity.
Flying Probe TestAutomated test using probes to check electrical connections without a dedicated test fixture.Flexible testing for prototypes and low volume runs
Bed-of-Nails TestUtilizes a fixture with multiple spring-loaded pins to test multiple points on the board simultaneously.Fast high-volume testing.

Frequently Asked Questions About PCB Production

This section addresses common queries regarding PCB (Printed Circuit Board) production, providing concise and informative answers based on engineering principles and industry best practices.

  • What does PCB stand for?
    PCB stands for Printed Circuit Board. It's a foundational component in electronics, providing mechanical support and electrical connections for electronic components.
  • What is the purpose of the solder mask in PCB production?
    The solder mask is a protective layer applied to the PCB to prevent solder bridges (shorts between adjacent pads) during component soldering. It also protects copper traces from oxidation, corrosion, and other environmental damages, thus enhancing reliability and extending the lifespan of the PCB.
  • Who are some of the major PCB manufacturers globally?
    There are numerous PCB manufacturers worldwide, each with varying capabilities and specialties. Some of the well-known manufacturers include companies like TTM Technologies, Unimicron, and others, along with many specialized manufacturers serving specific industry niches. The selection of a suitable manufacturer depends on the specific project requirements, such as PCB complexity, material requirements, and the volume of production.
  • Are PCBs expensive to manufacture?
    The cost of PCB manufacturing is highly variable and depends on several factors, including the complexity of the design (number of layers, trace density, etc.), the quantity of boards being produced, the materials used (e.g., FR-4 vs. high-frequency laminates), and the specific manufacturing processes involved. Simple single-layer PCBs produced in high volume are relatively inexpensive, whereas complex, multi-layer PCBs with specialized materials will significantly increase the cost. Additionally, special features or finishes can further impact the overall manufacturing cost.
  • What are Gerber files and why are they important?
    Gerber files are the industry standard file format used to convey the design information of a PCB to the manufacturing equipment. They essentially act as the blueprint for manufacturing, defining the copper layers, solder mask, silkscreen, and drill hole locations. Accurate Gerber data ensures that the manufactured PCB matches the intended design, minimizing errors and ensuring smooth transitions from design to production.
  • What is the role of material selection in PCB production?
    Material selection is a critical factor influencing the performance and reliability of a PCB. The substrate material (e.g., FR-4, polyimide) determines the mechanical, thermal, and electrical properties of the final product. Specific applications may require specialized materials that can withstand high temperatures or provide enhanced high-frequency performance. The selection of appropriate materials should be done early in the design process in accordance with design requirements and operating conditions.
  • How is the quality of PCBs ensured during manufacturing?
    Quality assurance in PCB manufacturing involves several stringent processes, starting with thorough design verification and including electrical testing, such as open/short tests, to verify the integrity of the circuit traces and vias. This helps to ensure that the boards function as per specification before component assembly. In addition to electrical tests, visual and dimensional checks are performed during each stage of production. Manufacturers often employ automated testing equipment and adherence to quality standards (e.g., IPC standards) to maintain consistent and reliable production.

PCB production is a sophisticated process combining design expertise with advanced manufacturing techniques. Each stage, from initial design to final testing, plays a crucial role in ensuring the quality and reliability of the finished product. Understanding this intricate process is essential for anyone involved in electronics engineering and design, as it enables the creation of increasingly complex and efficient electronic devices. By staying informed about advancements in PCB production technology, we can continue to push the boundaries of what is possible in the digital age. From simple single-layer boards to highly complex multi-layer PCBs, the future of electronics is closely intertwined with progress in PCB manufacturing.
