The Ultimate Guide to PCB Making: From Design to Finished Board

The backbone of modern electronics, printed circuit boards (PCBs) are essential for connecting electronic components. From smartphones to complex industrial machinery, PCBs enable the functionality we rely on daily. This guide will take you through the entire PCB making journey, exploring design principles, manufacturing processes, and practical tips for creating your own circuits, demystifying the process for both hobbyists and professionals alike.

Understanding PCB Basics: Materials and Structure

A cross-sectional view of a multi-layer PCB showing different layers.
Multi-layer PCB structure

Printed Circuit Boards (PCBs) form the backbone of modern electronics, providing the mechanical support and electrical pathways for electronic components. The foundational understanding of their materials and layered structure is critical for anyone involved in electronics design or manufacturing. PCBs are constructed from a combination of materials, each selected for its specific electrical and mechanical properties. This section will explore these core materials and the multi-layered structure typical of most PCBs.

MaterialDescriptionTypical PropertiesFunction
Substrate (e.g., FR-4)The base insulating material providing structural support.Good electrical insulation, moderate mechanical strength, flame retardantProvides the physical base for the PCB; maintains component separation and stability.
Copper TracesThin layers of copper etched to form conductive paths.High electrical conductivity, malleableConducts electrical signals and power to components; defines the circuit.
Solder MaskProtective layer covering most of the PCB.Electrical insulation, chemical resistanceProtects traces from oxidation, prevents solder bridging and shorts.
SilkscreenInk layer used for component and board markings.Good adhesion, provides contrast against solder maskProvides labels, component designators, and other informational markings.
Plating (e.g., Tin, Gold)A metallic coating applied to exposed copper padsExcellent solderability, oxidation resistanceEnsures good solder joints for attaching components

The layered structure of a PCB typically includes the substrate as the core, followed by layers of copper for traces, solder mask and finally, the silkscreen. Multi-layer PCBs are constructed by stacking several layers of these materials, each separated by insulating layers, to increase circuit complexity. The number of layers can range from simple single-layer boards to complex multi-layer boards for advanced electronic devices.

Essential PCB Design Software and Tools

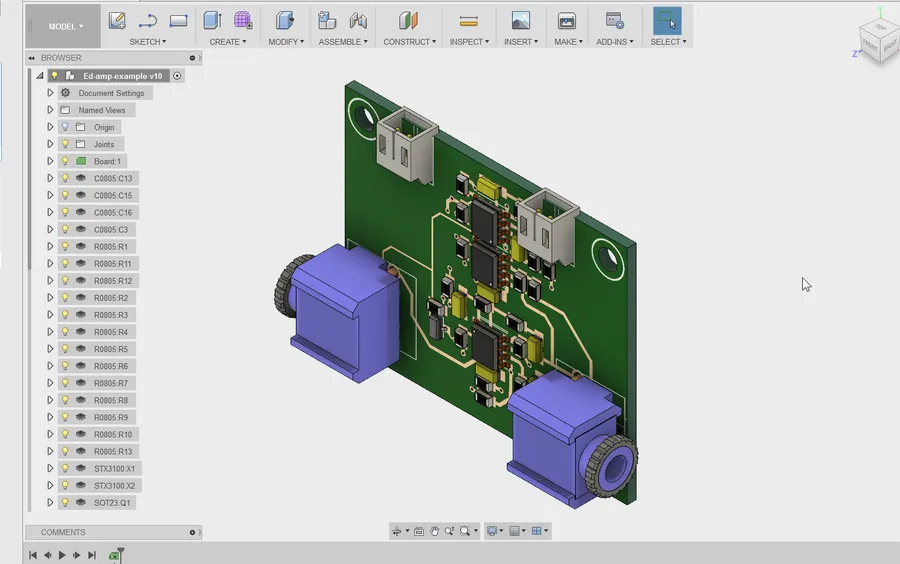

A screenshot of a PCB design software interface showing a circuit board layout.
PCB design software

Effective PCB design hinges on selecting the right software and tools for schematic capture, layout design, and Gerber file generation. This section details several industry-standard software options and the importance of each design stage.

SoftwareDescriptionKey FeaturesPricing
EagleA widely-used PCB design tool known for its user-friendly interface and extensive component library.Schematic capture, PCB layout, component library, 3D visualizationSubscription-based, free for personal use with limitations
KiCadAn open-source PCB design suite offering a full range of features, excellent for hobbyists and professionals.Schematic capture, PCB layout, Gerber file generation, 3D viewerFree and open-source
Altium DesignerA high-end PCB design tool favored by professional engineers for its advanced capabilities and data management.Hierarchical schematic design, advanced routing, signal integrity analysis, team collaborationSubscription-based, high cost
OrCADAnother industry standard PCB design suite offering comprehensive tools for schematic capture and PCB layout.Schematic capture, PCB layout, component library, signal integrity analysis, and 3D visualization.Subscription-based, professional
EasyEDAAn online PCB design tool with a user-friendly interface and access to a large library of components. Integrates seamlessly with JLCPCB for ordering.Schematic Capture, PCB Layout, Gerber File Generation, Cloud-Based, Component LibraryFree with premium options for more storage/functionality

The PCB design process is fundamentally divided into two key phases: schematic capture and layout design. Schematic capture involves drawing the electronic circuit using electronic symbols. The layout design takes this schematic information and translates it into a physical board layout. The design software is used to place components, route traces and define vias. Both these design phases are critical to ensure correct functionality of the PCB. Gerber files, an industry-standard format, are essential for PCB manufacturing as they contain all the information needed to fabricate the physical board.

The PCB Fabrication Process: A Step-by-Step Guide

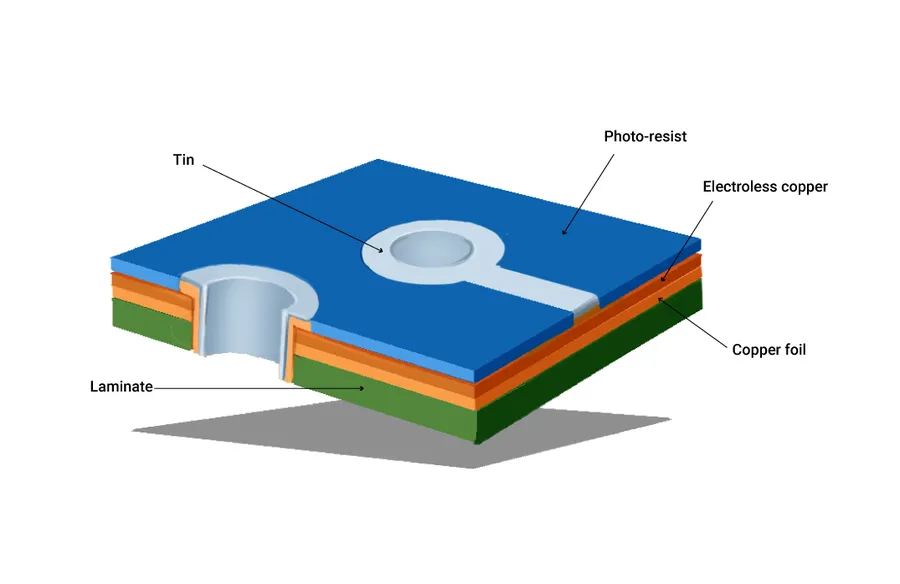

A series of images showcasing different stages of PCB fabrication.
PCB fabrication steps

The fabrication of a Printed Circuit Board (PCB) is a multi-stage process that transforms a design into a physical, functional board. This process involves precision and control to ensure the final product meets the required specifications. From selecting raw materials to final testing, every step is crucial in determining the quality and reliability of the PCB.

  1. 1. Film Generation
    The fabrication process begins with the generation of film from the PCB design. This involves converting the digital design files (typically Gerber files) into physical film layers. These films act as stencils or masks for subsequent stages, defining the layout of copper traces and other features on the board.
  2. 2. Material Preparation and Layering
    The raw materials for the PCB, typically FR-4 or similar composite materials, are prepared and cut to the required size. For multi-layer PCBs, this step also includes the precise layering of these substrate materials with copper sheets, all properly aligned, and laminated to create a cohesive stack.
  3. 3. Copper Etching
    The copper layers are then etched using chemicals to remove unwanted copper and leave the designed traces and pads. This process involves applying photoresist to the copper, exposing it to UV light through the film mask to harden the desired areas, and then using etchants to dissolve the unprotected copper.
  4. 4. Drilling
    Holes are drilled into the PCB for through-hole components and vias. This requires high precision and specialized drilling equipment, usually computer numerical control (CNC) machines, to ensure the holes align accurately with the circuit design.
  5. 5. Plating
    Following the drilling process, the drilled holes are plated with copper to establish electrical connections between the board's layers, which is essential for multi-layered boards. This copper plating often involves electrochemical deposition processes to achieve uniform conductivity.
  6. 6. Solder Mask Application
    A solder mask layer is applied to the board's surface, leaving only the areas where components are to be soldered exposed. This layer prevents solder bridges during assembly and protects the board from environmental damage.
  7. 7. Silkscreen Printing
    The final step is silkscreen printing, where text and component symbols are printed on the board. This aids in component assembly and provides identification and information labels on the board.
  8. 8. Final Testing and Quality Check
    The finished board undergoes a final test and quality check to ensure all the electrical connections are working as required. The quality check includes visual inspections and electrical tests. This final validation step ensures the board's performance before it’s ready to use.

Home PCB Making Methods: DIY Techniques

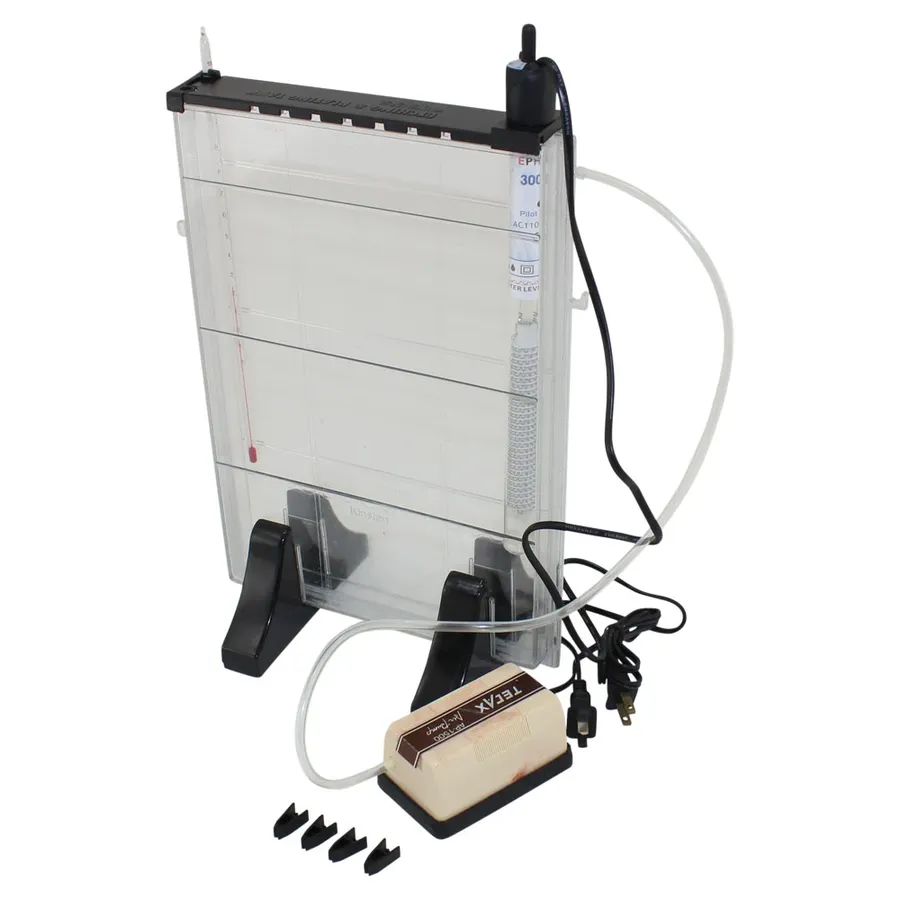

A DIY PCB etching kit and components laid out on a table.
DIY PCB Etching

Creating printed circuit boards (PCBs) at home is a viable option for hobbyists and small-scale projects, allowing for rapid prototyping and customization. Several DIY methods are available, each with its own set of procedures, benefits, and limitations. These methods include toner transfer, photo-resist etching, and CNC milling, and each method varies in precision, cost, and complexity.

MethodProcessAdvantagesDisadvantagesSafety Precautions
Toner TransferPrinting the PCB layout onto special paper, transferring toner to copper-clad board using heat, then etching.Low cost, relatively simple, good for single-sided boards.Can be inconsistent toner transfer, requires careful alignment, limited resolution.Work in a well-ventilated area, use gloves, use caution with heat source.
Photo-Resist MethodApplying photo-sensitive film to the copper board, exposing it to UV light through a mask, developing, then etching.Higher resolution than toner transfer, suitable for more complex designs, repeatable.More steps involved, requires specific chemicals and UV exposure setup, can be more expensive.Work in a dark room when applying the film, wear gloves, use proper ventilation when handling chemicals, use UV protection
CNC MillingUsing a CNC machine to directly remove copper from the PCB to create the traces.High precision, allows for complex designs, can produce both single- and double-sided boards, no chemicals required.High initial cost of the machine, requires specialized skills, can be slower than other methods.Wear safety glasses, ensure proper machine operation, use dust collection system to avoid inhalation of micro particles

Professional PCB Manufacturing: Outsourcing for Precision

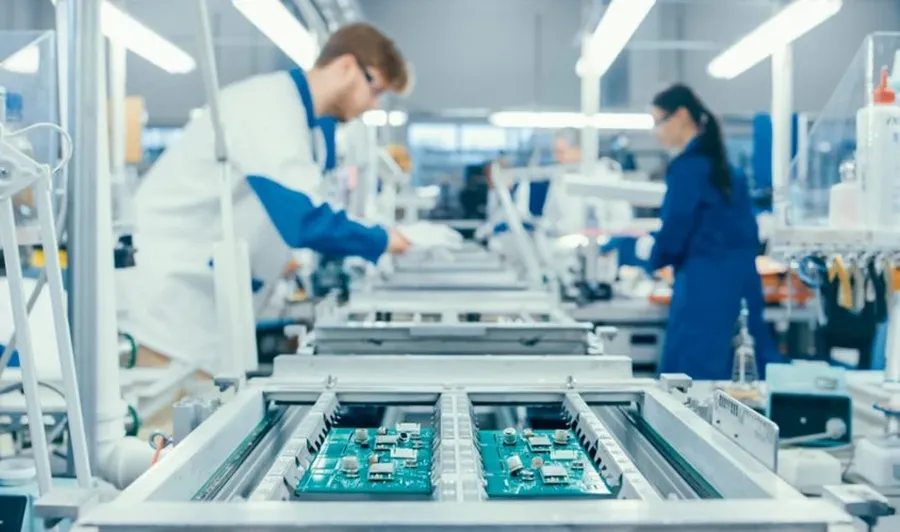

A view of a PCB manufacturing line inside a factory.
PCB production line

Professional PCB manufacturing services offer a significant leap in precision and quality compared to DIY methods, particularly when complex designs or larger production volumes are required. Outsourcing to specialized manufacturers like JLCPCB and PCBWay ensures adherence to strict industry standards, resulting in highly reliable and consistent circuit boards. This section explores the advantages and options available through professional PCB manufacturing.

  • Advantages of Professional PCB Manufacturing
    Professional services provide high precision, better quality, a wider range of materials, and faster turnaround times for complex designs. They are also equipped to handle large volume production runs efficiently and cost-effectively. This is particularly important for commercial products where reliability and consistency are paramount.
  • Capabilities of Professional Manufacturers
    Manufacturers like JLCPCB and PCBWay utilize advanced machinery and techniques that are not feasible for home setups, such as automated optical inspection, laser direct imaging, and multi-layer lamination. They support a variety of PCB types, including rigid, flexible, and rigid-flex boards. Additionally, they offer different surface finishes like ENIG, HASL, and Immersion Tin to suit various applications.
  • Prototype vs Mass Production
    Professional manufacturers offer options for both prototype and mass production. Prototype runs allow engineers to test and refine designs before committing to large-scale production. Mass production is cost-effective for large volumes due to economies of scale. Manufacturers also offer quick turn-around times for prototypes to facilitate fast product development.
FeatureProfessional PCB ManufacturingDIY PCB Making
PrecisionHigh (micron level)Lower (millimeter level)
QualityConsistent and HighVariable, Dependent on Skill
ComplexityMulti-layer, complex designsLimited to Single or Double Layer
VolumeSuitable for both prototype and mass productionSuitable only for small batch production
MaterialsWide range of materials availableLimited Material Choice
EquipmentAdvanced, Specialized machineryLimited to basic tools and equipment
CostCost-effective for large volumes, can be higher for prototypesLower upfront cost for small quantities

PCB Assembly: Attaching Components to the Board

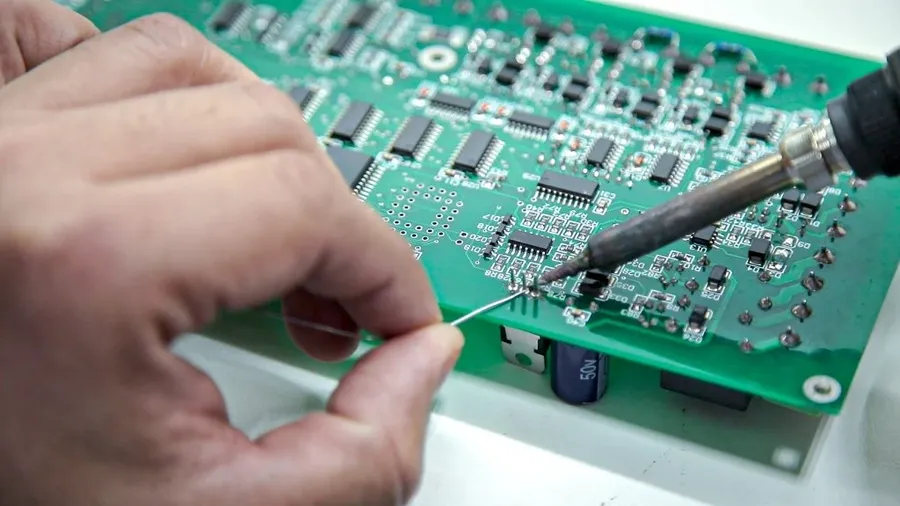

A close-up view of components being soldered onto a PCB.
Soldering PCB

PCB assembly is the crucial process of populating a bare printed circuit board with electronic components, transforming it into a functional electronic device. This process can range from manual hand-soldering for prototypes to automated high-speed assembly for mass production, each with its own set of techniques and considerations.

  • Manual PCB Assembly
    Manual assembly is often used for prototypes or small production runs. It involves hand-placing and soldering components onto the PCB. Key techniques include through-hole soldering for leaded components and surface mount soldering using a soldering iron or hot air rework station for smaller surface mount devices (SMD). Skilled technicians utilize flux to improve solder flow and ensure strong and reliable connections.
  • Automated PCB Assembly
    Automated assembly is essential for large-scale production, employing pick-and-place machines that precisely position components onto the board. Solder paste is then applied, and the boards are sent through a reflow oven, where controlled heating melts the solder to create permanent electrical connections. Automated processes significantly increase speed, accuracy, and repeatability, reducing errors and costs for high-volume production.
  • Soldering Techniques
    Effective soldering is paramount for both manual and automated assembly. It involves properly applying solder paste or wire solder, achieving sufficient heat, and avoiding cold solder joints. Correct temperature control is crucial to ensure that solder flows and adheres correctly, resulting in reliable connections. Reflow soldering profiles are carefully designed to ensure that all solder joints are reliably formed without damaging the components.
  • Component Placement
    Accurate component placement is vital for the correct functioning of the PCB. Manual placement relies on precision and careful observation to align components correctly with their pads. Automated placement uses data from the PCB design files (like Gerbers and Pick and Place files) to position components with utmost precision. Fiducial marks on the board are used for precise alignment. Incorrect placement can lead to shorts, opens, and improper functioning.
  • Reflow Soldering for Surface Mount Components
    Reflow soldering is the primary method for connecting surface mount components. Solder paste is applied to the board using a stencil. Components are placed on the solder paste, and the board goes through a reflow oven which heats the paste to its melting temperature and allows it to reflow and make contact with the leads and pads forming a solid electrical and mechanical bond. Proper temperature profiles in the reflow oven are critical.

Quality Control and Testing: Ensuring PCB Performance

Rigorous quality control and testing are paramount in PCB fabrication to ensure reliability and functionality. These steps are critical whether you're producing PCBs at home or outsourcing to a professional manufacturer. Effective testing catches defects early, preventing costly issues down the line and guaranteeing that the final product meets the required specifications.

The testing process often involves a combination of visual checks and sophisticated electrical tests, which verify both the physical integrity of the board and its electrical performance. From simple continuity checks to advanced automated optical inspections (AOI), a range of methods ensure every PCB meets standards.

Testing MethodDescriptionAdvantagesDisadvantages
Visual InspectionManual inspection of the PCB for visible defects such as misalignments, solder issues, and trace discontinuities.Simple, low cost, and requires minimal equipment.Subjective, can miss subtle defects, and is time-consuming for large volumes.
Continuity TestingChecking electrical connections between different points on the PCB using a multimeter.Quick and straightforward to verify basic connections.Does not detect complex issues, and may not work with certain high-density designs.
Automated Optical Inspection (AOI)Automated visual inspection that uses cameras to capture images and software to detect defects in solder joints, components, and alignment.Highly accurate, fast, and consistent for large-scale PCB fabrication.Requires investment in equipment, may have limitations with certain board types.
In-Circuit Testing (ICT)Uses probes to test individual components and circuit nodes on the PCB, identifying shorts, opens, and component issues.Comprehensive testing, can detect many types of electrical issuesRequires test fixtures and significant setup effort.
Functional TestingTesting the complete functionality of the populated PCB under conditions that simulate real-world operations.Verifies the correct operation of the entire circuit.May require custom test setups, time-consuming, and may not cover all possible failure scenarios.

Troubleshooting Common PCB Making Issues

Effective troubleshooting is crucial for successful PCB making, whether you're a hobbyist working at home or a professional in a manufacturing environment. This section addresses common issues that can arise during PCB fabrication and assembly and provides practical solutions to overcome these challenges, ensuring a functional final product.

  • Etching Problems
    Common etching issues include over-etching (where traces become too thin or disappear entirely) and under-etching (where copper is left between traces). Over-etching can be caused by an etchant solution that is too concentrated or by leaving the board in the solution for too long. Under-etching is often due to an insufficient etchant concentration or insufficient time in the solution. Proper calibration of the etching process is necessary and always start with fresh etching solution, and accurately follow the manufacturer's recommended parameters, such as etching time and temperature, and test the etchant concentration periodically to maintain the correct balance.
  • Soldering Difficulties
    Soldering issues such as cold solder joints, solder bridges, and insufficient solder flow are common in PCB assembly. Cold solder joints occur when the solder does not properly bond to the pad and component lead, resulting in a weak or unreliable connection, and are typically the result of insufficient heat or movement during the cooling process. Solder bridges, on the other hand, form when solder unintentionally connects adjacent pads or leads, creating a short circuit. These can be caused by excessive solder, improper tip size, or poor soldering technique. Ensure a clean tip for your soldering iron, accurate temperature, and stable component placement before attempting to solder. Ensure proper flux usage to promote solder flow and wetting.
  • Short Circuits
    Short circuits occur when unintended electrical connections are made, often due to solder bridges or misplaced components. They can also arise from debris or copper slivers bridging traces. To avoid shorts, ensure that no conductive materials, such as solder, copper, or component leads, are unintentionally connecting different parts of the circuit. After completing assembly, visually inspect the board for solder bridges, and use a multimeter to test the circuit continuity and isolate potential short circuits. Check components to ensure correct placement and that component leads are not inadvertently making contact.
  • Component Placement Errors
    Component placement errors involve incorrectly positioned or oriented components on the PCB. Such errors can lead to a non-functional circuit or damage components if reverse-polarity devices are installed backwards. To avoid placement errors, verify component polarity and orientation against the PCB layout during assembly, use tape or other adhesive to keep small components in place during manual assembly, and use a pick and place machine for high volume assembly. Double-check parts against the Bill of Materials (BOM) and layout diagram.
  • Drilling Issues
    Drilling issues, such as misaligned holes, broken drill bits, and burrs around drilled holes, can interfere with proper component installation and connectivity. Misaligned holes can be caused by errors in the PCB design or imprecise drilling equipment. Broken bits can be the result of worn drills, or excessive force. Burrs may also require additional processing and could impact the solder process. Regular maintenance of drilling equipment and proper selection of drill bits that are compatible with the substrate material used in the fabrication process is critical. Double check the drill alignment with the correct drilling parameters and use sharp drill bits that are appropriate for the material you are drilling through, and if needed, do a final post-drilling cleaning to ensure smooth hole walls.
  • Solder Mask Problems
    Solder mask issues include misalignment, incomplete coverage, and pinholes. These defects can lead to solder shorts and corrosion of unprotected traces. Aligning the solder mask correctly with the copper traces is important, and using the correct material and application technique to ensure that it covers the traces completely and consistently, and ensuring the correct curing process is necessary to avoid issues. Inspect the finished product and ensure that the solder mask is consistent and even, and is properly registered with the traces and pads.

Frequently Asked Questions About PCB Making

This section addresses common inquiries regarding PCB (Printed Circuit Board) fabrication, encompassing both the overall process and specific techniques, to provide clarity on various aspects of PCB creation, from design to production.

  • What is the general process for making a PCB?
    The PCB fabrication process generally involves several key steps: design using CAD software, printing the design onto a film, transferring the design onto a copper clad board, etching away unwanted copper, drilling holes for component placement, plating to ensure conductivity, applying a solder mask, and finally adding a silkscreen for component identification.
  • Is it possible to create your own PCBs at home?
    Yes, it is possible to create PCBs at home using methods such as toner transfer, photoresist, or even a CNC machine. However, home methods typically have limitations in terms of precision and complexity compared to professional manufacturing.
  • What home PCB making methods are available?
    Several DIY methods exist, including toner transfer (using a laser printer and iron), photoresist methods (using UV light and chemicals), and CNC milling (using specialized machines to remove copper). Each has its trade-offs in terms of cost, precision, and materials required.
  • How much does it typically cost to make PCBs?
    The cost of making PCBs can vary widely depending on the complexity, size, quantity, and production method. Home methods are generally cheaper for very simple, low-quantity boards. Professional manufacturing becomes more cost-effective for more complex or higher quantity production runs, benefiting from economies of scale.
  • What are the advantages of professional PCB manufacturing?
    Professional PCB manufacturing offers higher precision, better quality control, and the ability to handle complex designs, multilayer boards, and fine pitch components that are difficult to achieve with home methods. It also provides greater consistency, repeatability, and faster production times for larger quantities.
  • What are common issues encountered when making PCBs?
    Common issues include etching problems such as incomplete etching or over-etching, solder issues like bridging and cold joints, misalignment of layers, or design errors leading to shorts or open circuits. These issues can be minimized through careful design, preparation, and execution of the fabrication process.
  • How can I choose between home PCB making and professional services?
    The choice depends on several factors including the complexity of the design, the required precision, budget constraints, the quantity needed, and the available equipment. Home methods are suitable for simple, low-volume prototypes, while professional services are recommended for complex, high-precision, or large-quantity production.

Cost Analysis: Home vs. Professional PCB Making

Determining the most cost-effective method for PCB fabrication—whether through DIY techniques or professional manufacturing services—requires a detailed analysis of material costs, time investment, and equipment expenses. This section provides a comparative breakdown to aid in informed decision-making for your PCB project.

Cost FactorHome PCB Making (DIY)Professional PCB Manufacturing
Materials (e.g., copper clad boards, chemicals, etching solutions)Low for basic setups, but increases with complexity and quality requirements.Cost-effective at scale due to bulk purchasing and efficient processes.
Equipment (e.g., UV exposure box, etching tanks, drilling machines, soldering station)Can be minimal for very basic methods, but significantly increases for higher accuracy and more complex designs. initial equipment costs can be high.Included in service cost; no initial investment needed for production equipment.
Time InvestmentHigh; Requires significant time for design, setup, fabrication, and rework.Lower; Production time can vary from a few days to a couple weeks based on complexity and order size. Standard turnaround time is usually consistent and fast.
Labor CostHigh if valuing your time. Time spent is usually not quantified.Included in service cost; efficient automated assembly processes.
Accuracy & ReliabilityHighly dependent on skill and equipment; results can be inconsistent or unreliable.High accuracy and reliability due to precision machinery and quality control.
Setup CostsPotentially lower for very simple single-sided board but can increase when doing double sided board or more complex board with plated through holes. Multiple attempts may require additional expenses.Minimal set up costs for simple boards with standard requirements.
Volume ProductionDifficult and time-consuming to produce multiple copies.Designed for efficient mass production at a reduced per-unit cost.
Complexity HandlingLimited by equipment, skills, and material. Difficult to do multi layer boards.Capable of handling complex multi-layer PCBs, fine pitch components and specialized requirements.
Waste & Environmental ImpactChemical usage may lead to increased waste if not controlled properly.Professional service have environmental control and are likely more sustainable.

Ultimately, the choice between home and professional PCB fabrication hinges on project requirements and resource availability. For simple prototypes or hobbyist projects, DIY methods can be educational and cost-effective, but when precision, reliability, and volume are needed professional manufacturing is a more efficient and economical choice.

Mastering the art of PCB making is a rewarding journey, whether for a simple hobby project or a complex professional undertaking. This comprehensive guide has walked you through every step, from design to final assembly, empowering you to create your own custom electronic circuits. Whether you choose a DIY approach or opt for professional services, understanding the intricacies of PCB making is essential for successful electronics projects. Continue to explore and experiment, and you'll find yourself at the forefront of innovation in the fascinating world of PCB making.
