In today's interconnected world, the automotive industry is rapidly evolving, with vehicle connectivity becoming a cornerstone of modern driving experiences. From advanced infotainment systems to crucial safety features and autonomous driving capabilities, a reliable and high-performance communication backbone is indispensable. At the heart of this revolution lies the Car WiFi Communication Module, a critical component enabling seamless data exchange within and around the vehicle. Zero One Solution Limited, a leader in rapid-response PCB assembly solutions, is at the forefront of providing the robust and precise PCB solutions required for these sophisticated modules. How can a meticulously engineered PCB design elevate the performance and reliability of your next-generation automotive WiFi communication? Let's delve into the intricacies of our specialized solutions.
The Transformative Role of In-Car WiFi: Driving the Future of Automotive Connectivity
The modern automobile is rapidly evolving into a connected ecosystem, with in-car WiFi emerging as a pivotal technology. This shift is driven by the increasing consumer demand for seamless digital experiences and the automotive industry's pursuit of advanced functionalities. A robust Car WiFi PCB solution is not merely an add-on but a critical enabler for a wide array of features, significantly impacting infotainment, navigation, telematics, and the path toward autonomous driving. As the demand for data-intensive applications such as streaming services, over-the-air updates, and real-time traffic information surges, the reliability and performance of the underlying WiFi PCB become paramount.
The integration of WiFi within vehicles has expanded far beyond simple internet access. Consider these key areas:
Infotainment Systems High-quality streaming of audio and video content, interactive gaming, and access to a vast library of entertainment options for passengers.
Navigation and Mapping Real-time traffic updates, dynamic route optimization, and the downloading of map data for offline use, enhancing the accuracy and efficiency of navigation systems.
Telematics Secure vehicle diagnostics, remote vehicle control, and the transmission of critical data to manufacturers, insurance providers, and emergency services for enhanced safety and support.
Autonomous Driving Applications Communication with external infrastructure (V2X), facilitating data exchange with other vehicles and traffic management systems to enhance road safety and optimize traffic flow. This includes high-bandwidth data transfer for sensor data and software updates.
These applications collectively necessitate a reliable, high-performance Car WiFi PCB solution. The demand for robust, high-speed data transfer and low latency is pushing the boundaries of PCB design and manufacturing, making expert solutions essential for optimal performance. As the automotive industry continues to innovate, the role of in-car WiFi will only grow, cementing its place as a core component of the driving experience.
Overcoming the Hurdles: Navigating Challenges in Automotive WiFi Communication Module PCB Design
Designing PCBs for Car WiFi communication modules presents unique challenges demanding meticulous attention to detail. Unlike consumer electronics, automotive applications demand extreme reliability, performance, and durability under harsh conditions. Successfully navigating these hurdles is critical for delivering seamless in-car connectivity and ensuring passenger safety and satisfaction. This section delves into the key design challenges faced by automotive WiFi communication modules and how Zero One Solution addresses them.
Electromagnetic Interference (EMI) Mitigation Automotive environments are rife with potential sources of EMI, from engine control units to in-cabin electronics. Effective EMI shielding, proper grounding techniques, and careful component placement are essential to prevent interference that can disrupt WiFi signals. Zero One Solution employs advanced simulation tools and design practices to minimize EMI and ensure optimal signal integrity.
Thermal Management in Confined Spaces The high processing power of WiFi modules generates significant heat, especially within the confined space of a vehicle. Efficient thermal management solutions, such as strategically placed thermal vias, heat spreaders, and the use of high-performance thermal interface materials (TIMs), are crucial to prevent overheating and ensure reliable operation across a wide temperature range. Zero One Solution utilizes advanced thermal analysis to optimize PCB designs for efficient heat dissipation.
Vibration Resistance and Mechanical Durability Vehicles experience constant vibration, potentially causing mechanical stress on PCB components and solder joints. Robust PCB construction, including the use of automotive-grade components and careful component selection, is essential to withstand these vibrations. Zero One Solution's manufacturing processes include rigorous testing to ensure that all PCBs meet stringent vibration resistance standards.
Automotive-Grade Component Selection Choosing components that meet the demanding quality and reliability requirements of the automotive industry is paramount. These components must be able to withstand extreme temperatures, humidity, and vibrations, and must comply with automotive standards such as AEC-Q100/200. Zero One Solution works with a network of trusted suppliers to ensure that all components used in our Car WiFi PCB solutions meet these critical requirements.
Signal Integrity in Complex RF Environments Ensuring optimal signal integrity across the PCB is essential for reliable WiFi performance. This requires careful impedance control, minimizing signal reflections, and employing techniques such as differential pair routing to maintain signal quality. Zero One Solution's engineers have extensive experience in RF design and employ advanced simulation and testing to ensure optimal signal integrity in our Car WiFi PCB solutions.
Zero One Solution: Your Partner in Cutting-Edge Car WiFi Communication Module PCB Solutions
Car WiFi module PCB
Zero One Solution stands at the forefront of providing advanced PCB solutions tailored specifically for Car WiFi Communication Modules. With a deep understanding of the automotive industry's stringent requirements, we offer unparalleled expertise in designing, manufacturing, and assembling high-performance PCBs. Our commitment extends beyond mere production; we partner with you to accelerate your product development, ensuring that your innovative solutions reach the market with unmatched efficiency and reliability.
Rapid Prototyping for Accelerated Development We specialize in rapid prototyping, allowing you to swiftly iterate designs and validate functionalities. This rapid turnaround is crucial in the fast-paced automotive sector, where time-to-market can significantly impact competitiveness.
One-Stop Service from Design to Assembly Our comprehensive one-stop service streamlines the entire process, from initial design and layout to manufacturing and assembly. This integrated approach reduces lead times, minimizes communication issues, and ensures seamless project execution.
Expert Engineering Team Benefit from our team of veteran engineers with extensive experience in PCB design for automotive applications. Their expertise ensures that your Car WiFi Communication Module PCBs meet the highest standards of performance and reliability.
Automotive-Grade Component Sourcing We have established strong relationships with leading component suppliers, enabling us to source automotive-grade components that meet stringent quality and performance requirements. This ensures that your PCBs can withstand the demanding conditions of the automotive environment.
Global Supply Chain Network Leverage our global PCBA supply chain network to access worldwide resources and support. This strategic advantage ensures cost-effectiveness, flexibility, and consistent quality across all your projects.
Our expertise is not just about building PCBs; it's about empowering you to innovate. We are dedicated to delivering solutions that drive the future of in-car connectivity, offering unparalleled support and expertise every step of the way.
Critical Design Elements for High-Performance Car WiFi Communication Module PCBs

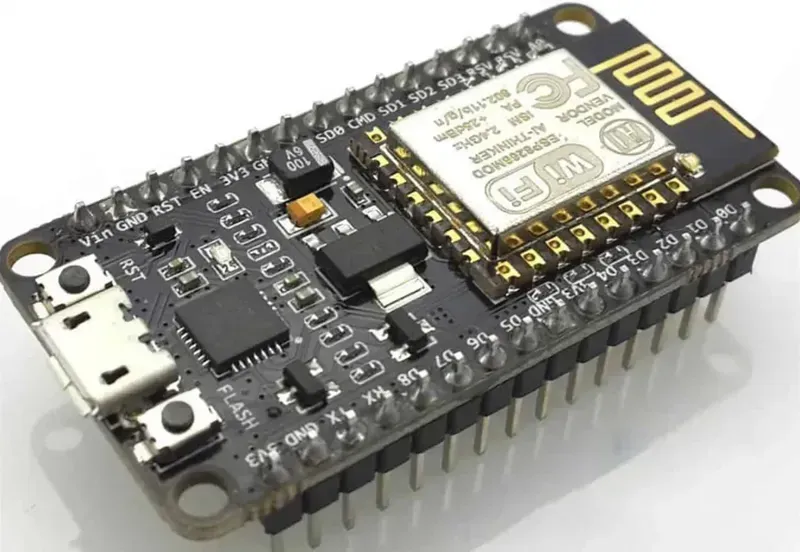

RF circuit Car WiFi PCB
The design of a Car WiFi Communication Module PCB is a complex process that demands meticulous attention to detail. Achieving optimal performance necessitates a deep understanding of Radio Frequency (RF) circuit design, antenna integration, power integrity, impedance control, and material selection. These elements are not merely components; they are the very foundation upon which reliable and efficient automotive WiFi systems are built. At Zero One Solution, we prioritize these critical design considerations to ensure that our PCB solutions meet and exceed the stringent demands of the automotive industry.
RF Circuit Design for WiFi Modules RF circuit design is at the heart of any WiFi communication module. Proper design involves careful selection of components, precise trace routing, and signal integrity analysis to minimize signal loss and interference. Advanced simulation tools are employed to predict and mitigate potential issues, such as signal reflections and crosstalk. Effective RF design ensures the module's ability to transmit and receive data reliably, a fundamental requirement for in-car connectivity.
Antenna Integration The antenna is the gateway for WiFi signals, making its integration a critical aspect of PCB design. Proper antenna placement, impedance matching, and grounding techniques are essential to maximize signal strength and coverage. Zero One Solution's expertise includes the selection of antenna types, such as patch antennas or external antennas, based on the specific application requirements and space constraints within the vehicle. The goal is to deliver a robust and reliable WiFi signal throughout the car environment.
Power Integrity Stable and clean power delivery is vital for the reliable operation of the WiFi module. Power integrity design involves careful consideration of power distribution networks (PDNs), decoupling capacitor placement, and voltage regulator selection. These measures help minimize voltage drops and noise, ensuring that all components receive the necessary power to function correctly. Maintaining power integrity is crucial to avoid performance degradation and ensure the long-term reliability of the WiFi module.
Impedance Control Precise impedance control is essential for high-speed signal transmission within the PCB. Controlled impedance ensures that signal reflections and distortions are minimized, preserving signal integrity. Zero One Solution employs advanced simulation and measurement techniques to precisely control impedance, particularly for critical RF signal paths. This guarantees the efficient transfer of data, crucial for applications like streaming media and real-time navigation.
Material Selection The choice of PCB materials significantly impacts the performance and reliability of the WiFi module. Low-loss laminates, such as those with a low dielectric constant and dissipation factor, are preferred to minimize signal loss at high frequencies. Furthermore, materials must withstand the harsh automotive environment, including temperature fluctuations, vibration, and humidity. Zero One Solution selects materials that are not only high-performing but also meet automotive-grade standards, ensuring long-term durability and reliability. The selection of materials directly affects the performance and longevity of the WiFi module.
Advanced Manufacturing and Assembly for Automotive Reliability in Car WiFi Communication Module PCBs
X-ray inspection automotive PCB
The reliability of Car WiFi Communication Module PCBs hinges on advanced manufacturing and assembly techniques designed to withstand the demanding automotive environment. Zero One Solution employs rigorous processes and cutting-edge technologies to ensure these PCBs deliver consistent, high-performance connectivity, critical for modern in-car experiences.
The manufacturing and assembly processes are multi-faceted, each step carefully controlled to eliminate defects and enhance the PCB's durability. Here's how Zero One Solution achieves superior reliability:
Automated Optical Inspection (AOI) AOI systems utilize high-resolution cameras to scan assembled PCBs, detecting component placement errors, solder joint defects, and other anomalies. This automated process ensures that every board meets stringent quality standards before moving to the next stage of production.
X-ray Inspection X-ray inspection is employed to examine hidden solder joints, particularly those beneath BGA (Ball Grid Array) components and other shielded areas. This technique provides a non-destructive means of verifying the integrity of solder connections, which is essential for preventing failures in high-vibration automotive applications.
Advanced Soldering Techniques Zero One Solution utilizes advanced soldering processes, including reflow soldering and wave soldering, optimized for automotive-grade components. These techniques ensure robust solder joints capable of withstanding thermal cycling and mechanical stress.
Environmental Testing Before release, Car WiFi Communication Module PCBs undergo extensive environmental testing, including thermal shock, vibration testing, and humidity resistance evaluations. These tests simulate real-world operating conditions, allowing Zero One Solution to validate the PCB's performance and longevity.
Component Sourcing and Management Zero One Solution implements strict component sourcing and management processes, ensuring the use of automotive-grade components from trusted suppliers. This helps maintain consistent quality and reliability throughout the PCB's lifecycle.
By adhering to these advanced manufacturing and assembly processes, Zero One Solution provides Car WiFi Communication Module PCBs that meet the high reliability and performance demands of the automotive industry.
Ensuring Compliance with Automotive Standards for Car WiFi Communication Modules
In the demanding automotive environment, the reliability and performance of Car WiFi Communication Module PCBs are non-negotiable. Achieving this necessitates strict adherence to industry-specific standards, with AEC-Q100 and AEC-Q200 playing pivotal roles in ensuring component quality and operational integrity. At Zero One Solution Limited, we place paramount importance on compliance, integrating these standards into every stage of our PCB design, manufacturing, and assembly processes.
AEC-Q100: IC Qualification AEC-Q100 is a stress test qualification for integrated circuits (ICs) used in automotive applications. It covers a wide range of tests, including temperature cycling, high-temperature operating life, and electrostatic discharge (ESD) tests. Compliance with AEC-Q100 ensures that the ICs within your Car WiFi modules can withstand the extreme conditions inherent in automotive use. Zero One Solution carefully selects and sources ICs that meet or exceed AEC-Q100 standards, thereby mitigating the risk of premature failure and enhancing the overall reliability of the WiFi communication module.
AEC-Q200: Passive Component Qualification AEC-Q200 establishes the qualification requirements for passive components, such as resistors, capacitors, and inductors, utilized within automotive electronics. The tests under AEC-Q200 are designed to assess the components' durability and stability under various stresses, including temperature, humidity, and mechanical shock. By employing AEC-Q200-qualified components, Zero One Solution guarantees that Car WiFi Communication Module PCBs can consistently operate under the demanding conditions encountered in automotive applications, contributing to a longer lifespan and improved performance.
Zero One Solution's Commitment to Compliance Our commitment extends beyond simply meeting these standards. We conduct thorough component selection, rigorous testing throughout the manufacturing process, and detailed documentation to maintain full traceability. Our quality management system is designed to ensure that every Car WiFi Communication Module PCB solution not only meets but exceeds the stringent requirements of AEC-Q100 and AEC-Q200, providing our clients with confidence in the reliability and performance of their automotive electronics. We regularly update our processes to align with the latest revisions of these standards, guaranteeing that our solutions reflect the highest levels of quality and reliability in the industry.
Why Choose Zero One Solution for Your Car WiFi PCB Projects?
Partnering with Zero One Solution for your Car WiFi Communication Module PCB needs provides a distinct competitive edge. Our expertise is not just about building PCBs; it's about accelerating your time to market, ensuring cost-efficiency, and delivering unparalleled performance. We offer a comprehensive suite of services, from initial design to final assembly, all under one roof, streamlining your project and reducing the complexities associated with multiple vendors.
Accelerated Time-to-Market Our rapid prototyping capabilities and efficient manufacturing processes enable us to deliver your Car WiFi PCB solutions faster than traditional providers, crucial in the fast-paced automotive industry. We understand that speed is paramount, and we are equipped to meet tight deadlines without compromising quality.
Cost-Effective Solutions We optimize costs through efficient design, component sourcing, and manufacturing processes. Our global supply chain network allows us to procure high-quality components at competitive prices, ensuring value for your investment. We provide detailed cost analysis and transparent pricing models to help you manage your budget effectively.
Expert Engineering Support Our team comprises veteran engineers with extensive experience in PCB design and automotive applications. We offer expert guidance on all aspects of your Car WiFi PCB project, from design optimization to component selection and compliance with automotive standards. Our experts are available to provide personalized support and tailored solutions.
Seamless Global Supply Chain Management With a strategic presence in Shenzhen and Dubai, we offer seamless access to a global PCBA supply chain. This ensures consistent component availability, reduces lead times, and mitigates supply chain risks. We manage all aspects of the supply chain, from procurement to logistics, allowing you to focus on your core competencies.
Quality and Reliability Assurance We adhere to stringent quality control measures throughout the manufacturing process, including automated optical inspection (AOI), X-ray inspection, and environmental testing. Our commitment to quality ensures the reliability and longevity of your Car WiFi PCBs, meeting the rigorous demands of the automotive sector. We have a proven track record of delivering high-quality, reliable products.
Frequently Asked Questions About Car WiFi Communication Module PCBs
This section addresses common inquiries about the design, manufacturing, and application of Car WiFi Communication Module PCBs. We aim to provide clear, concise answers to help you understand the intricacies of these critical components and how Zero One Solution can meet your specific needs.
What are the primary challenges in designing Car WiFi Communication Module PCBs? The main challenges include managing electromagnetic interference (EMI), ensuring thermal management in high-temperature environments, selecting automotive-grade components, maintaining signal integrity, and ensuring robust vibration resistance. These factors are crucial for reliable in-vehicle WiFi performance. At Zero One Solution, we use advanced simulation tools and design methodologies to mitigate these challenges effectively.
What automotive standards and certifications are important for Car WiFi PCBs? Key standards include AEC-Q100 and AEC-Q200, which certify the reliability of integrated circuits and passive components, respectively. Compliance with these standards is vital for ensuring the longevity and safety of automotive electronics. Zero One Solution ensures that all Car WiFi Communication Module PCBs meet or exceed these requirements through rigorous testing and quality control processes.
How does Zero One Solution ensure the reliability of Car WiFi Communication Module PCBs? We employ several measures, including the use of high-quality, automotive-grade components, advanced manufacturing processes such as automated optical inspection (AOI) and X-ray inspection, and comprehensive environmental testing. These steps guarantee that our PCBs can withstand the harsh conditions of the automotive environment and provide consistent performance over time.
What materials are typically used in Car WiFi Communication Module PCBs? Typically, we use low-loss laminates like FR-4, along with specific copper weights and thicknesses designed for optimal signal integrity and thermal performance. The choice of materials is critical for the overall performance and longevity of the PCB, especially in high-frequency applications. Zero One Solution's material selection adheres to strict automotive industry standards.
How does Zero One Solution support rapid prototyping for Car WiFi Communication Module PCBs? We offer rapid prototyping services, including quick-turn PCB fabrication and assembly, allowing you to accelerate your product development cycle. Our streamlined processes and advanced manufacturing capabilities enable us to deliver prototypes quickly while maintaining high quality, which helps clients to bring innovative solutions to market efficiently.
What are the advantages of partnering with Zero One Solution for Car WiFi PCB projects? Collaborating with Zero One Solution provides several benefits: accelerated time-to-market due to rapid prototyping, cost-effectiveness through optimized designs and supply chain management, access to veteran engineering expertise, and seamless global supply chain management. These advantages enable our clients to gain a competitive edge in the automotive electronics market.
The future of automotive technology hinges on reliable and high-performance communication. Zero One Solution Limited is proud to be a pivotal partner in this journey, offering unparalleled expertise in Car WiFi Communication Module PCB solutions. Our commitment to rapid prototyping, design excellence, and comprehensive one-stop services from design to assembly ensures that your automotive innovations move from concept to market with unmatched speed and precision. By choosing Zero One Solution, you're not just getting a PCB; you're gaining a strategic advantage rooted in two decades of Silicon Valley experience and a global supply chain network. Partner with us to drive the next generation of connected vehicles. Visit our website or contact us today to discuss how our bespoke PCB solutions can accelerate your automotive communication projects.
