Custom circuit boards are the backbone of modern electronics, powering everything from smartphones to complex industrial equipment. But what exactly determines the custom circuit board cost? This article dives deep into the various factors that influence the price, guiding you through material choices, design complexity, production volume, and more. We’ll also explore practical tips to help you optimize costs and get the most value for your investment, making even the most complex electronic project financially accessible. Understanding these costs isn’t just about budgeting; it's about making informed decisions that can impact the success of your projects.

Key Factors Influencing Custom PCB Costs

The cost of a custom circuit board is not a fixed figure; rather, it is a function of several interconnected variables. Understanding these key factors—namely, the physical dimensions of the board, the number of conductive layers it contains, the base materials employed, and the complexity of the circuit design—is crucial for accurate cost estimation and effective budget management. Each of these elements independently and collectively impacts the overall manufacturing expenses.

Material Choices and Their Impact on Cost

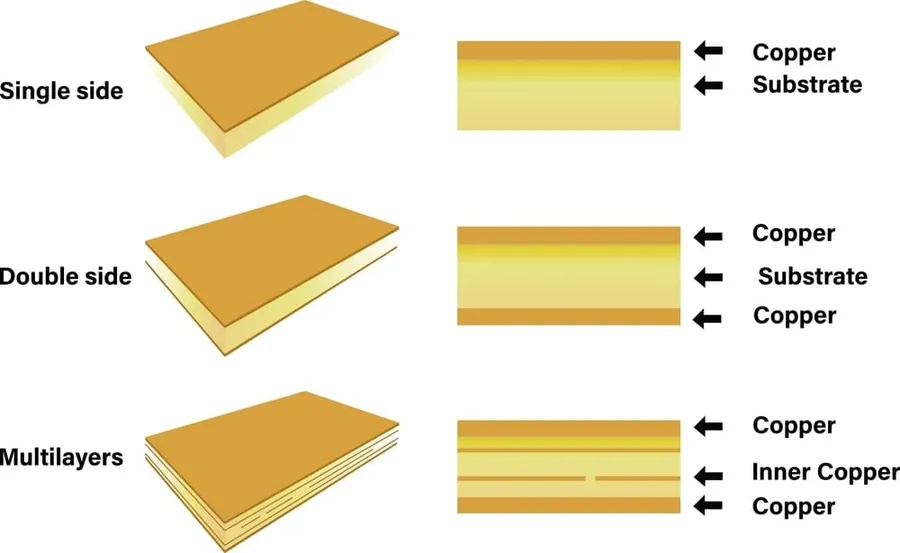

The selection of materials in printed circuit board (PCB) manufacturing is a critical determinant of both performance and cost. Different materials offer varying electrical, thermal, and mechanical properties, each with its own price point. Understanding these differences is crucial for optimizing cost and ensuring the PCB meets the application's specific demands.

Beyond the primary substrate materials, other factors can influence cost, including the copper thickness, the type of surface finish, and specific treatments. For instance, heavier copper layers enhance current-carrying capacity but increase material usage and processing time, thus raising costs. Similarly, specialized surface finishes like ENIG (Electroless Nickel Immersion Gold) offer superior corrosion resistance and solderability compared to HASL (Hot Air Solder Leveling) but also come at a premium. When selecting materials, it's crucial to balance performance requirements with budgetary constraints. An engineer should consider material costs alongside factors such as the required reliability, lifespan, and environmental conditions to ensure that the optimal material choice is made.

PCB Design Complexity and Cost Implications

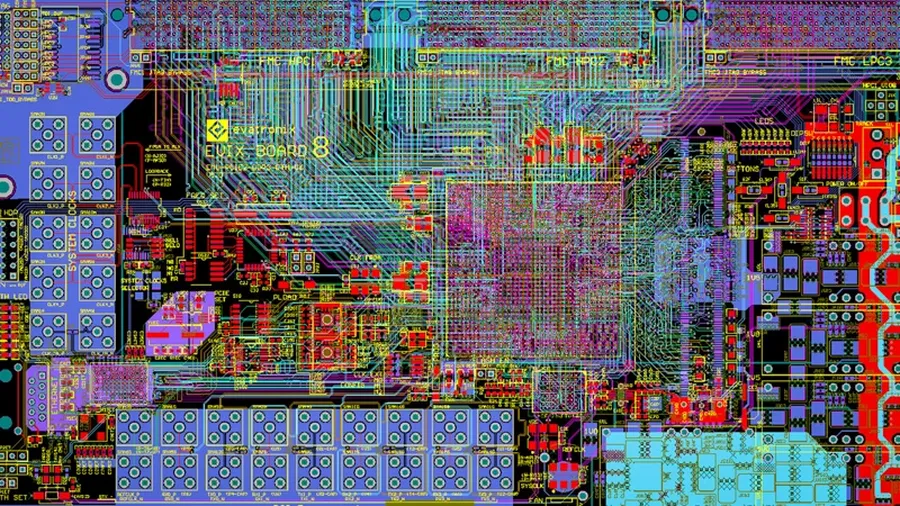

The complexity of a PCB design significantly influences its manufacturing cost. Intricate designs with a high density of components, multiple layers, and fine trace widths require more sophisticated manufacturing processes, leading to increased costs. Design choices directly impact the yield, time, and resources required, making it crucial to optimize for both functionality and cost-effectiveness.

The Role of Production Volume in Pricing

Production volume is a critical factor in determining the unit cost of custom circuit boards. The principle of economies of scale dictates that as the quantity of PCBs ordered increases, the per-unit price decreases significantly. This relationship is primarily due to the distribution of fixed costs, such as setup fees and tooling expenses, over a larger number of units.

The following points will discuss the relationship between production volume and pricing:

• Initial Setup Costs:
  These costs, including tooling, programming, and machine setup, are generally fixed and do not change significantly with order size. Therefore, spreading these costs over a larger production run significantly reduces the unit cost.
• Material Procurement:
  Purchasing materials in bulk often leads to discounts from suppliers. Manufacturers can secure lower material costs per PCB when dealing with larger orders.
• Manufacturing Efficiency:
  Larger production volumes allow manufacturers to optimize their processes. This increased efficiency leads to shorter production times and reduced labor costs per unit.
• Reduced Handling and Shipping:
  Handling and shipping are often more cost-effective when done in larger quantities. This can lower logistics costs per board.
• Negotiating with Manufacturers:
  Higher volume orders provide more leverage when negotiating with PCB manufacturers, which can lead to more favorable pricing.

Surface Finish Options and Cost Differences

The surface finish of a printed circuit board (PCB) is a crucial factor impacting both its performance and cost. Different finishes offer varying levels of solderability, corrosion resistance, and overall reliability, directly influencing the final product's lifespan and effectiveness. This section details common surface finish options, their associated costs, and their performance characteristics.

When selecting a surface finish, it's essential to balance cost considerations with performance requirements. While cost-effective options like HASL may suffice for simple through-hole boards, more advanced finishes such as ENIG are necessary for complex designs that demand high reliability, fine-pitch components, and long-term performance. Understanding these trade-offs is critical for effective PCB design and manufacturing. Additionally, considerations such as environmental regulations (e.g., RoHS) can also influence the selection.

Comparing Costs: Prototype vs. Production

Understanding the cost variations between prototype and production runs is crucial for effective budgeting and project planning in custom circuit board manufacturing. Prototype runs incur higher per-unit costs due to initial setup expenses, while production runs benefit from economies of scale, significantly reducing the per-unit price.

The primary cost driver in prototype runs is the initial setup and tooling expenses. These costs include creating the necessary files, configuring machinery for a small batch, and potentially incurring extra charges for rapid turnaround. In production runs, these setup costs are spread over a larger number of units, drastically lowering the per-unit price. The tooling costs, which might be high for prototype runs, are minimal for production runs due to the use of existing and refined manufacturing processes.

Production runs benefit from economies of scale. As the number of boards increases, manufacturers can optimize their processes, leading to lower material costs and more efficient production methods. This efficiency translates to a significantly reduced per-unit price. However, production runs usually have longer lead times due to the large quantity being manufactured, whereas prototype runs prioritize quick turnaround for testing and validation.

The optimal choice between prototype and production runs hinges on the project's phase. Prototypes are critical for validating design and functionality before mass production. Production runs are the next step to mass produce and scale the project. Understanding the financial implication of each approach helps make well-informed decisions.

Frequently Asked Questions About Custom Circuit Board Costs

Understanding the cost of custom circuit boards can be complex, given the various factors at play. This section addresses common questions to clarify the pricing process and help you make informed decisions.

• How much does it cost to build a circuit board?
  The cost to build a circuit board is highly variable, depending on factors such as the complexity of the design, the number of layers, the materials used, the board size, and the quantity produced. A simple, single-layer PCB in small quantities might cost a few dollars, while complex, multi-layer boards in larger production runs could cost hundreds of dollars each, even with economies of scale. The most accurate way to determine cost is to obtain a quote from a manufacturer, providing them with all the specific design and production requirements.
• Why are custom PCBs so expensive?
  Custom PCBs often appear expensive due to several underlying costs associated with their production. These include: the initial setup costs for tooling and design verification; the cost of specialized materials such as FR-4 or Rogers; the labor costs associated with complex design requirements; the precision manufacturing processes required to create fine circuit traces and vias; and the overhead associated with small production runs, which lack economies of scale. These factors, combined with quality assurance and testing, contribute to the overall cost of custom PCB production.
• How much should a PCB cost?
  Determining the “right” cost for a PCB is difficult, as it varies with the project specifications. For a simple prototype, costs may be higher on a per-unit basis because of setup fees. As the quantity increases for production runs, the per-unit cost typically decreases significantly, due to the amortization of the initial costs. To determine if you're receiving a fair quote, obtain several quotes from different manufacturers, and analyze them in terms of the board's complexity, the materials used, the production volume, and the turnaround time. Online PCB cost calculators can also provide a preliminary estimate.
• Can I make my own circuit board?
  Yes, it is possible to make your own circuit board, especially for simpler designs or prototype purposes. Common methods include using chemical etching or a CNC mill, as well as using transfer paper with a laser printer. However, DIY circuit board fabrication is typically limited in terms of precision, layer count, and materials. Complex designs or mass-production would be nearly impossible to achieve without specialized equipment and processes. For projects requiring high reliability and mass manufacturing, it's generally more efficient and cost-effective to use a professional manufacturer.
• How does PCB size affect the cost?
  The size of the PCB directly impacts the cost, as larger boards consume more materials and require more processing time. The cost of materials such as FR-4 or other substrates is directly proportional to the board size. Larger boards may also have a higher probability of defects, increasing the number of boards that have to be scrapped. For optimized cost, it is crucial to use only the necessary space on the PCB while considering design rules and the spacing of components, and also consider standard panel sizes.
• Do more layers increase PCB costs?
  Yes, increasing the number of layers on a PCB significantly increases the cost, since multilayer PCBs require more materials and more complex production processes. Additional layers also require alignment processes, electrical testing, and lamination, all adding to the overall cost. While multilayer PCBs provide higher density and better electromagnetic compatibility (EMC), the additional costs should always be justified by performance requirements.
• What is the difference in cost between prototype and production PCBs?
  Prototype PCBs often have higher per-unit costs than production PCBs, because the initial set-up costs like tooling and programming are amortized over a smaller number of boards. Production runs take advantage of these costs being divided over a large quantity of boards, resulting in lower per-unit costs. It's often advisable to start with a prototype run to debug and optimize a design before committing to a larger production run. This approach can lead to savings, because it allows you to correct any issues before significant money is invested.

Practical Tips for Reducing Custom Circuit Board Cost

Reducing the cost of custom circuit boards requires a strategic approach that considers design, materials, and manufacturing processes. By optimizing these areas, you can significantly lower your expenses without sacrificing functionality or quality. This section provides actionable tips to achieve cost-effective PCB fabrication.

• Optimize Your PCB Design
  Simplify your design by minimizing the number of layers, trace width, and vias. Every unnecessary feature adds to the cost. Use design rule checks (DRC) to identify potential issues before manufacturing.
• Choose Cost-Effective Materials
  FR-4 is often the most economical choice for many standard applications. While advanced materials like Rogers offer superior performance, they come at a higher price. Select materials that meet your project's performance requirements without overspending.
• Panelize Your Design
  If you are ordering multiple boards, panelize your design to maximize the usage of the manufacturing panel. This reduces the number of setup runs and can substantially reduce cost, especially for larger orders.
• Standardize Component Selection
  Opt for common, readily available components. Avoid custom or hard-to-source parts, which can increase procurement and manufacturing costs. Using common packages can help reduce manufacturing costs through streamlined processes.
• Use Online PCB Cost Calculators
  Before finalizing your design, utilize online cost calculators from various PCB manufacturers. These tools provide instant estimates based on your design specifications, allowing you to compare options and make informed decisions. These tools can also highlight design features that are driving up costs.
• Plan for Production Volume
  Consider your needs for production. Economies of scale apply here. Ordering in larger quantities can significantly reduce the per-unit cost. If your project allows, plan for future needs so that you can benefit from these cost reductions.
• Consider Alternative Surface Finishes
  While ENIG (Electroless Nickel Immersion Gold) provides excellent performance and durability, HASL (Hot Air Solder Leveling) is more economical and suitable for many applications. Consider HASL if your application does not require the superior finish or wire bond capability of ENIG.

Choosing the Right PCB Manufacturer

Selecting the appropriate PCB manufacturer is a critical step in ensuring the success of your project, balancing cost, quality, and timeliness. A dependable manufacturer not only provides competitive pricing but also offers the necessary support and expertise to handle the intricacies of your custom circuit board production.

When evaluating potential manufacturers, consider the following key criteria:

• Pricing
  Assess cost structures, paying attention to hidden fees and shipping costs, and understand the impact of volume on pricing.
• Turnaround Time
  Ensure the manufacturer can meet project deadlines. Confirm their typical lead times for both prototype and production runs.
• Quality Standards
  Verify their certifications and adherence to industry standards such as IPC standards. Review samples and previous customer reviews to gauge the quality of their output.
• Customer Support
  Evaluate the responsiveness and technical capabilities of the manufacturer's support team to address any questions or issues that may arise during your project.
• Manufacturing Capabilities
  Confirm they can produce boards that meet the required specifications, including layers, materials, and surface finishes.

Leveraging online PCB cost calculators can provide a valuable starting point in assessing the cost of your custom circuit board. These tools allow you to input project-specific parameters and quickly generate an estimate. However, understand that these are estimates; contacting manufacturers directly for a tailored quote, especially for complex designs or large orders, is recommended.

By carefully evaluating manufacturer capabilities, comparing pricing, and utilizing estimation tools, you can make an informed decision, ensuring a cost-effective and high-quality outcome for your custom circuit board project.

Understanding the nuances of custom circuit board cost is essential for any electronics project. By carefully considering factors like materials, design complexity, and production volume, you can effectively manage expenses. Custom circuit board cost can range from a few dollars to hundreds, depending on your specific needs. By utilizing the tips and information provided in this guide, you can navigate these costs effectively, ensuring that your projects are both innovative and budget-conscious. Remember to leverage online PCB calculators for accurate estimates and to select a manufacturer that aligns with your project requirements, thus balancing quality and cost.
