The deep sea, a realm of mystery and immense ecological importance, demands sophisticated monitoring solutions to safeguard its delicate ecosystems. Traditional monitoring methods often fall short in addressing the challenges posed by the extreme pressures, corrosive saltwater, and communication limitations of this environment. This is where advanced PCB (Printed Circuit Board) technology steps in. Zero One Solution Limited, with its extensive expertise in rapid prototyping and PCB assembly, offers innovative Deep Sea Environment Monitoring Board Solutions. These solutions are crucial for collecting vital data, understanding the impacts of climate change, and preserving the health of our oceans. This article delves into the intricacies of these specialized PCB solutions, highlighting their design considerations, functionalities, and the pivotal role they play in oceanographic research and conservation efforts. Zero One Solution is paving the way for a sustainable future for our planet's most vital resource.

Introduction to Deep Sea Environment Monitoring

Deep sea environment monitoring is a critical frontier for scientific discovery, resource management, and climate change understanding, yet it presents an engineering challenge of unparalleled complexity. The harsh realities of the abyssal plain—extreme hydrostatic pressure, corrosive saline environments, and the profound absence of light and traditional communication channels—demand a level of technological resilience and precision that only specialized PCB solutions can provide. Understanding these fundamental challenges is the cornerstone of designing effective and reliable deep-sea monitoring systems.

• Extreme Hydrostatic Pressure
  For every 10 meters of depth, pressure increases by approximately 1 atmosphere (atm). At the Mariana Trench's deepest point (around 11,000 meters), the pressure exceeds 1,100 atm (16,000 psi), equivalent to placing 50 jumbo jets on a human thumb. This necessitates robust mechanical design and specialized potting compounds for electronic components and PCBs to prevent crushing and functional failure.
• Corrosive Saline Environment
  Seawater, rich in dissolved salts and minerals, is a highly corrosive electrolyte. Prolonged exposure can degrade conventional materials, leading to short circuits, material fatigue, and sensor malfunction. Marine-grade materials, hermetic sealing, and protective coatings are essential to ensure the longevity and reliability of deep-sea electronic systems.
• Limited Communication and Power
  Radio waves, commonly used for surface communication, attenuate rapidly in water, making traditional wireless data transmission over long distances impractical. This forces reliance on acoustic modems (which are slow and power-intensive), fiber optics (requiring physical tethers), or on-board data logging for later retrieval. Power supply is also a significant constraint, often relying on long-life batteries or energy harvesting, requiring ultra-low-power electronic designs.
• Temperature Extremes and Thermal Management
  While often cold, deep-sea environments can also have hydrothermal vents with extreme heat. Electronics must withstand significant temperature fluctuations and efficiently dissipate heat generated by components, especially within sealed enclosures where convection is limited.
• Biofouling and Sedimentation
  Over time, marine organisms can attach to and grow on submerged equipment (biofouling), potentially obstructing sensors, interfering with mechanical parts, and impacting data accuracy. Sedimentation can also bury equipment or block optical sensors. Anti-fouling coatings and smart design are necessary to mitigate these biological and physical interferences.

The Role of PCB Solutions in Underwater Monitoring

Specialized Printed Circuit Board (PCB) solutions are the bedrock of reliable and effective deep-sea environment monitoring, serving as the central nervous system for powering, controlling, and transmitting critical data from underwater sensors and equipment. In an environment defined by extreme pressure, corrosive elements, and limited accessibility, the integrity and performance of these PCBs are paramount to the success of any deep-sea mission. They are engineered to withstand conditions that would compromise standard electronics, ensuring uninterrupted operation and accurate data acquisition vital for oceanographic research, resource management, and environmental protection.

• Powering Remote Sensor Arrays
  Deep-sea PCBs efficiently manage power distribution from specialized battery packs or energy harvesting systems to an array of sensors, ensuring continuous operation for extended durations without human intervention. This includes managing power consumption for active sensors and communication modules, often employing low-power design strategies to maximize deployment time.
• Precision Control of Instruments
  These boards host microcontrollers and processors that precisely control the operation of various underwater instruments. This involves managing data acquisition timing, sensor calibration routines, and activation/deactivation sequences for specific functions, ensuring accurate and synchronized data collection across diverse sensor types.
• Robust Data Acquisition and Logging
  Deep-sea PCBs are equipped with high-performance analog-to-digital converters (ADCs) to accurately digitize sensor readings. They also incorporate secure, non-volatile memory for reliable data logging, often employing redundancy and error correction protocols to safeguard invaluable scientific data against power fluctuations or system disruptions.
• Enabling Subsea Communication
  Integral to deep-sea monitoring, PCBs facilitate communication between the subsea instruments and surface stations or autonomous underwater vehicles (AUVs). This typically involves integrating acoustic modems or optical communication interfaces, requiring precise impedance matching and signal integrity management to overcome the challenges of underwater data transmission.
• Ensuring Structural Integrity and Reliability
  Beyond electrical functionality, the physical design and material selection of deep-sea PCBs are critical. They are manufactured using specialized substrates and conformal coatings that resist hydrostatic pressure, saltwater corrosion, and biofouling, ensuring long-term operational reliability in one of Earth's harshest environments.

Key Design Considerations for Deep Sea PCBs

Designing Printed Circuit Boards (PCBs) for the extreme deep-sea environment demands a meticulous approach that goes far beyond conventional electronics manufacturing. The profound pressures, corrosive saline water, and limited accessibility necessitate specialized materials, robust structural integrity, and highly efficient power management to ensure unwavering operational reliability. Failing to address these critical design considerations can lead to catastrophic system failure, making the selection of appropriate materials and strategic component placement paramount for any deep-sea environment monitoring board solution.

1. Understanding Hydrostatic Pressure Effects
   Deep-sea environments expose PCBs to immense hydrostatic pressure, which can exceed 16,000 psi (1,100 bar) in the deepest trenches. This pressure can cause component deformation, solder joint fatigue, and even catastrophic board delamination. Our designs meticulously account for pressure equalization, utilize components rated for high pressure, and often involve vacuum potting or encapsulation to eliminate air pockets that could lead to collapse.
2. Corrosion Resistance and Biocompatibility
   Saltwater is highly corrosive, and deep-sea organisms can cause biofouling. Material selection extends beyond the PCB itself to connectors, enclosures, and coatings. We prioritize materials like high-performance composites, marine-grade stainless steels, and titanium alloys, along with specialized conformal coatings and encapsulation methods, to protect against chemical degradation and biological interference over extended deployment periods.
3. Optimized Power Management Strategies
   Remote deep-sea deployments often rely on limited battery power for months or even years. This necessitates an extremely efficient power management system. Our designs incorporate ultra-low-power components, advanced power cycling techniques, highly efficient DC-DC converters, and intelligent sensor activation routines to maximize operational longevity, minimizing the need for costly and complex retrieval and redeployment.

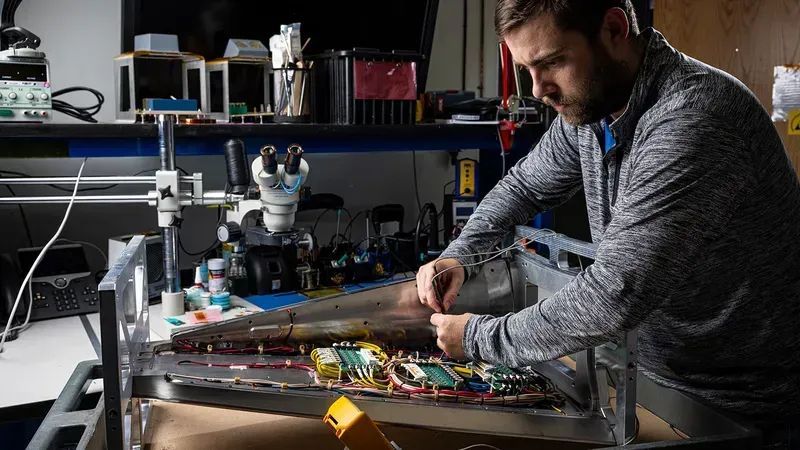

Zero One Solution's Expertise in Deep Sea PCB Assembly

At Zero One Solution Limited, our expertise in Deep Sea PCB assembly is not merely about manufacturing; it's about engineering resilience and precision for the planet's most unforgiving environments. Leveraging over a decade of innovation and a strategic presence in global electronics hubs, we provide specialized PCB solutions that stand up to the extreme pressures, corrosive elements, and isolation of deep-sea operations, ensuring unparalleled reliability and performance for critical monitoring applications. Our integrated approach, from rapid prototyping to advanced manufacturing processes, empowers our clients to push the boundaries of oceanographic research and exploration.

• Rapid Prototyping for Accelerated Development
  Understanding the critical need for speed in R&D, Zero One Solution excels in rapid prototyping for deep-sea PCBs. Our agile manufacturing processes allow for quick iteration and testing of designs, significantly reducing time-to-market for innovative deep-sea monitoring solutions. This capability ensures that design flaws are identified and rectified early, optimizing performance before full-scale production.
• Strategic Material Sourcing for Extreme Environments
  The success of deep-sea PCBs hinges on material integrity. We employ a robust, global supply chain network to source high-grade, marine-compatible materials such as advanced epoxy resins, ceramic substrates, and specialized metals like titanium or high-nickel alloys. These materials are selected for their exceptional dielectric properties, pressure resistance, corrosion immunity, and thermal stability under extreme deep-sea conditions, ensuring long-term operational reliability.
• Advanced Manufacturing Processes for Robustness
  Our manufacturing facilities are equipped with state-of-the-art technology tailored for high-reliability PCB assembly. This includes precision etching, multi-layer lamination processes, vacuum lamination to prevent voids, and advanced conformal coating techniques that provide superior protection against moisture and corrosive agents. Every step is meticulously controlled to meet stringent deep-sea operational standards.
• Rigorous Testing and Quality Assurance
  Before deployment, every deep-sea PCB solution undergoes extensive testing protocols that simulate actual operating conditions. This includes hydrostatic pressure testing, thermal cycling, vibration analysis, and insulation resistance tests. Our commitment to stringent quality assurance ensures that each board can withstand the extreme mechanical and chemical stresses of the deep-sea environment, guaranteeing optimal functionality and longevity.
• Customization and Integrated Solutions
  Zero One Solution offers bespoke PCB design and assembly services, tailoring solutions to specific project requirements. Whether it's integrating complex sensor arrays, optimizing power management for extended deployments, or developing custom communication interfaces, our engineering team collaborates closely with clients to deliver integrated solutions that precisely meet the unique challenges of deep-sea environmental monitoring.

Partnering with Zero One Solution Limited means gaining access to a partner committed to innovation, quality, and reliability in the most challenging operational environments. Our dedicated expertise in deep-sea PCB assembly ensures that your monitoring solutions are not just functional, but truly robust and dependable.

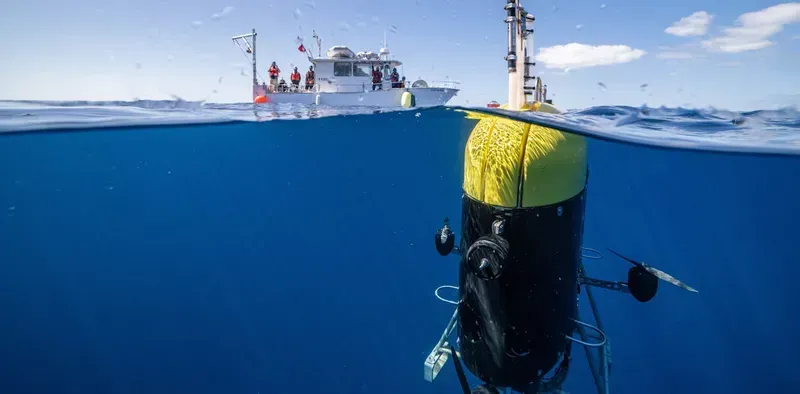

Types of Sensors Integrated into Deep Sea Monitoring Boards

Integrating the right array of sensors is paramount for any effective Deep Sea Environment Monitoring Board Solution, enabling comprehensive data collection critical for understanding and managing our planet's most extreme environments. These specialized boards serve as the backbone, processing signals from an eclectic mix of transducers designed to withstand immense pressure and provide accurate readings on vital oceanographic parameters. The selection of sensors directly impacts the system's ability to address specific research, environmental, or commercial objectives, making their robust integration a cornerstone of reliable deep-sea data acquisition.

• Temperature Sensors
  These are crucial for monitoring ocean currents, climate change effects, and marine life habitats. High-precision thermistors or platinum resistance thermometers (PRTs) are often used, encased in robust, pressure-resistant housings to ensure accuracy across vast temperature ranges and extreme depths. Stability and low drift are critical for long-term deployments, providing foundational data for oceanographic models and biological studies.
• Salinity Sensors (Conductivity Sensors)
  Measuring electrical conductivity, these sensors infer salinity, a key parameter influencing water density, circulation patterns, and marine ecosystems. They typically utilize inductive or electrode-based designs, engineered with advanced materials to resist biofouling and corrosion while maintaining precision in varying saline conditions, essential for understanding water mass characteristics and ocean mixing.
• Pressure Sensors
  Fundamental for determining depth, these sensors are designed to withstand multi-atmospheric pressures, converting mechanical strain into electrical signals. Silicon-based MEMS (Micro-Electro-Mechanical Systems) or resonant quartz sensors are frequently employed for their accuracy and long-term stability, providing vital data for depth profiling, tsunami detection systems, and validating subsea infrastructure integrity.
• Dissolved Oxygen (DO) Sensors
  Crucial for assessing marine ecosystem health and biogeochemical processes, DO sensors measure the concentration of oxygen in the water. Optic (luminescence quenching) or electrochemical (Clark electrode) methods are common. Optic sensors are favored for deep-sea applications due to their stability, low power consumption, and reduced susceptibility to drift, providing insights into anoxia, hypoxia, and metabolic rates of marine organisms.
• Current Meters
  These sensors measure the speed and direction of underwater currents, vital for understanding ocean dynamics, pollutant dispersion, and sediment transport. Acoustic Doppler Current Profilers (ADCPs) are widely used, emitting acoustic pulses and measuring the Doppler shift from scattering particles in the water column. Their non-intrusive nature and ability to profile currents over a range of depths make them indispensable for physical oceanography and offshore engineering.

Communication and Data Transmission Strategies

Effective communication and data transmission are paramount for any deep-sea environment monitoring board solution, transforming raw sensor data into actionable insights from the ocean's depths. The unique challenges of the underwater environment, including signal attenuation, limited bandwidth, and power constraints, necessitate sophisticated strategies to reliably retrieve critical information. Without robust communication links, even the most advanced sensor arrays are rendered ineffective, underscoring the vital role of these strategies in successful deep-sea deployments.

1. Acoustic Communication Systems
   Underwater acoustic communication (UAC) is the primary method for transmitting data through the water column. This technology relies on sound waves, which propagate much more effectively in water than electromagnetic waves. Advanced UAC systems utilize various modulation techniques (e.g., FSK, PSK, OFDM) and error correction codes to achieve reliable data rates over varying distances and conditions. Challenges include multipath propagation, Doppler spread, and high attenuation at higher frequencies, requiring adaptive equalization and robust signal processing.
2. Optical Communication (Underwater Wireless Optical Communication - UWOC)
   For short-range, high-bandwidth applications, especially in clear waters, UWOC offers an alternative. It uses blue-green lasers or LEDs to transmit data at speeds significantly higher than acoustics. UWOC is highly directional and susceptible to turbidity and absorption, limiting its range, but it is ideal for close-proximity data transfer, such as between an AUV and a seabed lander, or for real-time video transmission.

Beyond active communication, data logging remains a critical strategy. Deep-sea monitoring boards often include substantial onboard storage to log data over extended periods. This data can then be retrieved when the board is physically recovered, or transmitted via a pop-up buoy that ascends to the surface to establish a satellite link. This hybrid approach ensures data integrity even when continuous real-time transmission is impractical or impossible. The design of these systems must meticulously balance power consumption, data volume, and the operational life of the deployment.

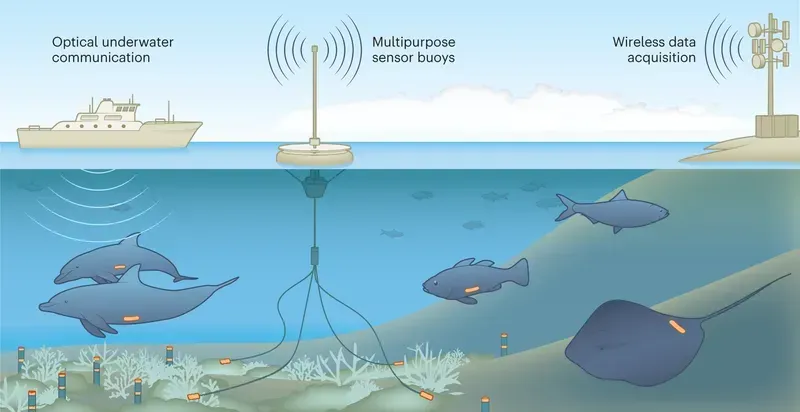

Applications of Deep Sea Environment Monitoring Boards

Deep sea environment monitoring boards, engineered for extreme conditions, are instrumental across a diverse array of critical applications, enabling unprecedented insights and management capabilities in the planet's most challenging frontier. Their robust design and integrated sensor capabilities make them indispensable tools for understanding, protecting, and sustainably utilizing the vast resources of the deep ocean.

• Oceanographic Research & Climate Science
  Deep sea monitoring boards provide vital data on ocean currents, temperature, salinity, dissolved oxygen, and pH levels, crucial for understanding ocean circulation patterns, climate change impacts (e.g., ocean acidification, deoxygenation), and complex marine ecosystems. This data is fundamental for climate modeling and predicting future environmental shifts.
• Marine Resource Management & Conservation
  These boards are deployed to monitor deep-sea fishing grounds, track marine protected areas, and assess the health of sensitive habitats like hydrothermal vents and cold seeps. They aid in the sustainable management of fisheries, deep-sea mining exploration, and the conservation of vulnerable marine species by providing real-time ecological data.
• Environmental Impact Assessments (EIAs)
  Before and after deep-sea industrial activities such as oil and gas exploration, submarine cable laying, or potential deep-sea mining, monitoring boards are used to establish baseline environmental conditions and track potential impacts. They help ensure compliance with environmental regulations and mitigate long-term damage to fragile deep-sea environments.
• Deep-Sea Exploration & Mapping
  Integrated into remotely operated vehicles (ROVs) and autonomous underwater vehicles (AUVs), these boards facilitate the discovery of new species, geological formations, and potential resources. They provide essential navigation, depth, and environmental data for high-resolution seabed mapping and characterization, expanding our knowledge of the unexplored deep.
• Underwater Infrastructure Monitoring
  Deep sea monitoring boards are critical for assessing the structural integrity and environmental conditions around submerged assets like pipelines, communication cables, and offshore energy platforms. They detect leaks, corrosion, or seismic activity, ensuring the safety and operational efficiency of vital underwater infrastructure.
• Disaster Preparedness & Warning Systems
  In seismic zones, deep sea monitoring boards equipped with pressure sensors can detect tsunamis, providing early warning signals to coastal communities. They also monitor underwater volcanic activity and hydrothermal vent systems, contributing to our understanding of geological hazards.

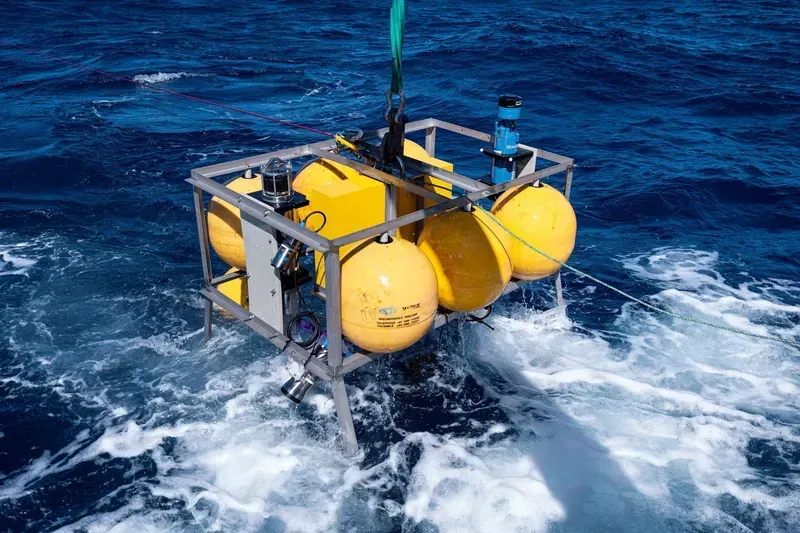

Case Studies: Successful Deep Sea Monitoring Projects

Zero One Solution has been instrumental in numerous pioneering deep-sea monitoring initiatives, providing robust and reliable PCB solutions that withstand extreme underwater conditions. Our commitment to precision engineering and rapid prototyping enables the development of custom circuit boards essential for the accurate collection and transmission of critical oceanographic data, proving our capability to support complex deep-sea exploration and environmental assessment endeavors.

Future Trends in Deep Sea PCB Technology

The frontier of deep-sea environment monitoring is continuously expanding, driven by innovations in PCB technology that promise unprecedented capabilities for data acquisition in extreme underwater conditions. The evolution of specialized PCBs for deep-sea applications is centered on enhancing durability, efficiency, and data fidelity, fundamentally transforming how we interact with and understand our oceans.

• Miniaturization and Compact Integration
  The trend towards miniaturization in Deep Sea Environment Monitoring Boards is critical for reducing the overall footprint of underwater devices, enabling deployment in more confined spaces and enhancing stealth for sensitive research. This involves advanced multi-layer PCB designs, micro-component placement, and efficient thermal management in compact enclosures. Smaller boards reduce material consumption and can lead to lower power requirements, extending deployment durations and reducing the frequency of retrieval missions, thereby lowering operational costs and environmental impact. Zero One Solution Limited is at the forefront, utilizing high-density interconnect (HDI) technology and advanced stacking solutions to pack more functionality into smaller, pressure-resistant form factors.
• Wireless Power Transfer (WPT) for Enhanced Autonomy
  Wireless Power Transfer (WPT) is poised to revolutionize deep-sea monitoring by enabling autonomous charging of underwater devices without physical connectors, eliminating a critical failure point susceptible to corrosion and leaks. This technology will allow for extended, uninterrupted deployments, reducing the need for costly and risky recovery operations. Inductive or resonant coupling techniques, tailored for the unique properties of saltwater, are under development to efficiently transmit power over short to medium distances. The integration of WPT on Deep Sea PCBs requires robust antenna design and highly efficient power management circuits to minimize energy loss during transfer, ensuring reliable operation in remote and inaccessible deep-sea environments. This advancement is crucial for maintaining continuous data streams from long-term monitoring stations and remote autonomous underwater vehicles (AUVs).
• Advanced Sensor Integration and AI-Driven Analytics
  Future Deep Sea Environment Monitoring Boards will feature highly integrated, multi-modal sensor arrays capable of simultaneous data collection across various parameters, such as hyperspectral imaging for biological surveys, advanced chemical sensors for pollutant detection, and high-resolution acoustic sensors for geological mapping. This integration moves beyond discrete sensors to a unified system where data is fused and processed onboard. Coupled with this is the emergence of edge AI processing directly on the PCB. By embedding low-power, high-performance microcontrollers with AI capabilities, initial data analysis, anomaly detection, and event flagging can occur in situ, significantly reducing the volume of data needing transmission. This intelligent processing minimizes communication bandwidth requirements, conserves power, and provides immediate, actionable insights, making deep-sea monitoring more efficient and responsive.

FAQs about Deep Sea Environment Monitoring Boards

Navigating the complexities of deep-sea environmental monitoring requires a robust understanding of the underlying technology. This section addresses common inquiries regarding the design, manufacturing, and application of Deep Sea Environment Monitoring Boards, offering clarity and expert insights for engineers and researchers alike.

• What are the primary challenges in designing PCBs for deep-sea environments?
  The primary challenges include extreme pressure, corrosive saltwater, limited power availability, and complex data transmission requirements. PCBs must be designed with specialized materials, hermetic sealing, and efficient power management to withstand these harsh conditions and ensure reliable operation.
• How does Zero One Solution ensure the reliability of Deep Sea Environment Monitoring Boards under high pressure?
  Zero One Solution ensures reliability by employing advanced material selection, such as high-grade epoxy resins and marine-grade metals, combined with meticulous component placement to mitigate stress concentrations. Our manufacturing processes include rigorous pressure testing and encapsulation techniques to prevent ingress and structural failure.
• What specific materials are crucial for deep-sea PCB construction?
  Crucial materials include high-Tg (glass transition temperature) laminates, ceramic substrates for enhanced thermal stability, and corrosion-resistant metallic components like titanium or specialized stainless steel. Encapsulants, such as silicone or epoxy potting compounds, are also vital for waterproofing and pressure resistance.
• How is data transmitted from deep-sea monitoring boards to the surface?
  Data transmission from deep-sea monitoring boards often relies on acoustic modems for wireless communication, or robust subsea cables for wired connections. Acoustic communication offers flexibility but is limited by bandwidth and range, while cabled systems provide high bandwidth and power delivery but are more complex to deploy and retrieve.
• Can Zero One Solution assist with custom sensor integration for specific deep-sea research needs?
  Yes, Zero One Solution specializes in custom PCB solutions, including the integration of diverse sensors for specific deep-sea research needs. Our expertise in rapid prototyping allows us to quickly develop and test boards with unique sensor arrays for parameters such as dissolved gases, seismic activity, or bioluminescence.
• What are the power management considerations for long-term deep-sea deployments?
  For long-term deep-sea deployments, power management is critical. Solutions include ultra-low-power microcontrollers, energy harvesting technologies (e.g., thermal gradients, currents), and efficient battery chemistries. Designs often incorporate sleep modes and optimized data transmission cycles to extend operational life without frequent retrieval.

In conclusion, Deep Sea Environment Monitoring Board Solutions represent a crucial advancement in our ability to understand and protect the ocean's depths. Zero One Solution Limited is dedicated to providing robust, reliable, and cutting-edge PCB solutions that empower researchers and conservationists to monitor deep-sea environments effectively. By investing in these technologies, we can gain invaluable insights into the complex dynamics of our oceans and work towards a more sustainable future. Contact Zero One Solution today to discuss your deep-sea monitoring PCB needs and explore how our expertise can help you achieve your research and conservation goals. Visit our website or reach out to our team to learn more about our comprehensive PCB solutions and rapid prototyping services.
