In the dynamic landscape of automotive technology, Electronic Stability Control (ESC) systems stand as a cornerstone of vehicle safety, actively preventing skids and maintaining directional control. At the heart of every robust ESC module lies a meticulously engineered Printed Circuit Board (PCB). As a veteran engineer at Zero One Solution Limited, I understand the critical role these PCBs play in ensuring the reliability and performance of modern vehicles. This article delves into the intricacies of ESC module PCB solutions, showcasing how our expertise in rapid prototyping, design, manufacturing, and assembly empowers innovators to bring cutting-edge automotive safety features to market with unparalleled efficiency.

The Critical Role of Electronic Stability Control (ESC) in Modern Vehicles

Electronic Stability Control (ESC) is a cornerstone of modern vehicle safety, designed to prevent skidding and loss of control by automatically applying brakes to individual wheels. At the heart of this critical system lies the ESC module, a complex assembly of sensors, microcontrollers, and actuators, all intricately interconnected by a Printed Circuit Board (PCB). The PCB serves as the central nervous system of the ESC module, facilitating the communication and coordination of all components. High-quality PCB solutions are paramount for the functionality, reliability, and longevity of ESC systems. As safety regulations tighten and consumer expectations for vehicle safety increase, the demand for advanced and reliable ESC systems is growing. Meeting these demands requires specialized expertise in PCB design and manufacturing, which is where Zero One Solution Limited excels.

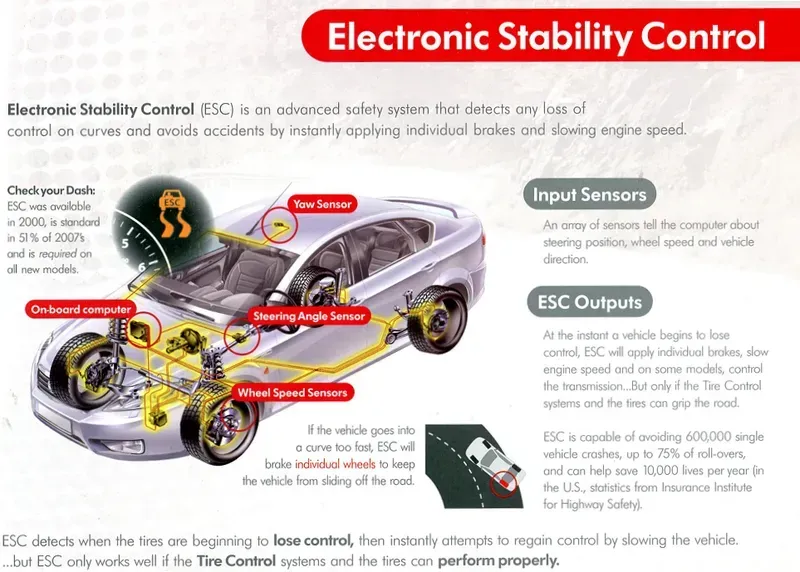

The core function of ESC is to mitigate the risks associated with oversteering and understeering. Utilizing wheel speed sensors, a steering angle sensor, and a yaw rate sensor, the ESC module continuously monitors the vehicle's movement. When instability is detected, the system selectively brakes individual wheels to counteract the vehicle's motion, effectively restoring control and preventing accidents. The effectiveness of ESC in reducing accidents is well-documented; studies by the National Highway Traffic Safety Administration (NHTSA) in the United States and similar organizations globally have shown significant reductions in single-vehicle crashes and rollovers where ESC is implemented. For instance, NHTSA estimates that ESC reduces single-vehicle crashes by 34% and rollovers by 51% for passenger cars.

The complexity of modern ESC modules necessitates robust and reliable PCB solutions. The PCBs must withstand harsh automotive environments, including extreme temperatures, vibrations, and electromagnetic interference (EMI). Furthermore, the trend towards miniaturization and integration of more features within the ESC module places stringent demands on PCB design, requiring high-density interconnects (HDIs) and advanced materials. At Zero One Solution Limited, we understand these challenges and offer specialized PCB solutions tailored to the demanding requirements of ESC modules. Our expertise in rapid prototyping, high-reliability manufacturing, and adherence to automotive standards ensures that our clients receive top-quality, dependable PCBs, thus contributing to vehicle safety and performance.

Decoding the ESC Module: Core Components and Their PCB Interconnections

At the heart of vehicle safety, the Electronic Stability Control (ESC) module orchestrates a complex dance of sensors, actuators, and microcontrollers, all meticulously interconnected by the printed circuit board (PCB). This section dissects the ESC module, revealing its critical components and emphasizing the PCB's role as the central nervous system. A deep understanding of these interdependencies is crucial for ensuring the reliability and performance of ESC systems, making it a key focus area for Zero One Solution Limited.

• Sensors: The Eyes and Ears of ESC
  Wheel speed sensors, yaw rate sensors, and steering angle sensors are the primary data providers, constantly feeding information about vehicle dynamics to the ESC module. The PCB must accommodate these sensors, ensuring accurate signal transmission and protection from electromagnetic interference (EMI).
• Microcontroller: The Brain of the Operation
  The microcontroller processes sensor data and makes critical decisions regarding brake intervention. The PCB design must provide robust power delivery, efficient heat dissipation, and precise signal routing to ensure the microcontroller operates reliably under all conditions. High-quality PCB materials and manufacturing processes are crucial for maintaining signal integrity and preventing data corruption.
• Actuators: The Muscles of the System
  Brake pressure modulators (actuators) apply braking force to individual wheels based on the microcontroller's instructions. The PCB must support the high-current requirements of these actuators and withstand the thermal stresses generated during braking. Robust PCB design and material selection are essential for the long-term reliability of these critical components.
• Communication Interfaces: The Communication Channels
  The CAN bus enables communication with other vehicle systems. The PCB must support these interfaces, ensuring reliable data transfer and preventing communication errors. Proper impedance matching and signal integrity design are crucial for robust CAN bus communication.

The PCB's complexity necessitates a specialized approach to design and manufacturing. At Zero One Solution Limited, we leverage our expertise in advanced PCB technologies to ensure optimal component integration, thermal management, and EMI/EMC compliance. Our rapid prototyping services allow for quick iterations and validation, critical for the fast-paced automotive industry. We focus on building ESC module PCBs that are robust, reliable, and compliant with the stringent demands of the automotive sector.

Navigating the Complexities: Challenges in ESC Module PCB Design and Manufacturing

The creation of Electronic Stability Control (ESC) module PCBs presents a multifaceted challenge, demanding precision and expertise at every stage. Successfully navigating these complexities is critical to ensure the reliability, safety, and performance of modern vehicles. From miniaturization demands to stringent environmental requirements, the following details explore the critical hurdles in designing and manufacturing these essential components, highlighting why specialized expertise is essential for success.

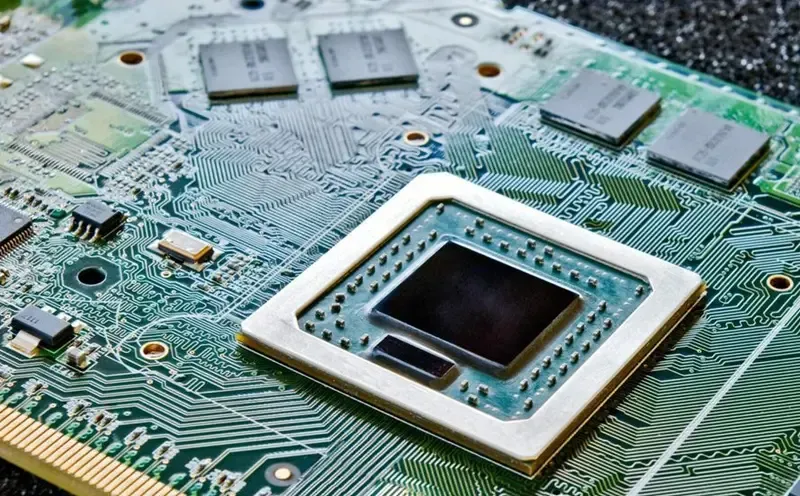

• Miniaturization and High-Density Interconnects (HDIs):
  ESC modules operate within confined spaces. This necessitates the use of HDIs, which feature smaller trace widths, tighter spacing, and microvias. This increases design complexity, requiring advanced PCB fabrication techniques to maintain signal integrity and prevent short circuits. It demands state-of-the-art manufacturing equipment and stringent quality control.
• Thermal Management:
  Power components within the ESC module generate significant heat. Effective thermal management is crucial to prevent overheating, which can compromise performance and reliability. This involves selecting appropriate materials with high thermal conductivity, employing thermal vias, and utilizing heat sinks. Precision in thermal design is essential for long-term operational stability.
• Electromagnetic Compatibility (EMC):
  Automotive electronics are susceptible to electromagnetic interference. ESC module PCBs must be designed to minimize emissions and withstand external interference. This requires careful layout, shielding techniques, and component selection to meet stringent EMC standards and ensure the module's correct functioning in the vehicle's electromagnetic environment.
• High Reliability and Durability:
  ESC modules operate in harsh automotive environments, subject to vibration, temperature extremes, and humidity. PCBs must be manufactured with robust materials (e.g., high-Tg laminates) and undergo rigorous testing to ensure they can withstand these conditions over the vehicle's lifespan. This includes conformal coating and vibration testing to guarantee longevity.
• Compliance with Automotive Standards:
  Meeting industry standards such as IATF 16949 and AEC-Q100 is mandatory. These standards dictate rigorous design, manufacturing, and testing protocols. Compliance ensures consistent quality and reliability. This requires meticulous documentation, process control, and a deep understanding of automotive requirements.
• Precision Manufacturing:
  Complex multi-layered boards with HDI and fine-pitch components demand precision manufacturing. This involves advanced equipment, skilled operators, and stringent quality control processes. Precision is crucial for ensuring the correct functionality and reliability of the ESC module and minimizing defects.

Zero One Solution Limited specializes in overcoming these hurdles through our expertise in rapid prototyping, advanced manufacturing processes, and a commitment to automotive-grade quality. Our capabilities enable us to deliver high-performance, reliable ESC module PCBs that meet the most demanding requirements of the automotive industry.

Zero One Solution Limited: Your Partner for Comprehensive ESC Module PCB Solutions

At Zero One Solution Limited, we provide end-to-end solutions for Electronic Stability Control (ESC) module PCBs, from design to manufacturing and assembly. With two decades of experience in Silicon Valley and a strategic global presence, we offer a comprehensive suite of services designed to meet the rigorous demands of the automotive industry. Our focus on rapid prototyping and advanced manufacturing ensures that your ESC module PCBs are not only high-performing and reliable but also delivered with exceptional speed and efficiency.

• Expert PCB Design and Layout
  Leveraging extensive experience with high-speed and high-density designs, we provide optimized PCB layouts that ensure signal integrity and minimize electromagnetic interference (EMI). Our designs adhere to automotive industry standards, guaranteeing robust performance in demanding environments.
• Rapid Prototyping for Accelerated R&D Cycles
  We specialize in rapid prototyping, enabling faster development cycles. Our quick-turn capabilities allow you to validate designs and bring products to market more quickly, reducing time-to-market and giving you a competitive edge.
• Advanced Manufacturing Processes
  Our manufacturing processes include multi-layer PCB fabrication, HDI technology, and the use of robust materials such as high-Tg laminates and low-loss materials. These ensure the durability and reliability required for automotive applications.
• Precision Assembly Capabilities (PCBA)
  We offer comprehensive PCBA services, including Surface Mount Technology (SMT) and through-hole assembly. Our state-of-the-art equipment and skilled technicians ensure high-precision assembly and optimal component placement.
• Rigorous Testing Protocols
  We employ rigorous testing protocols, including Automated Optical Inspection (AOI), X-ray inspection, In-Circuit Testing (ICT), and Functional Circuit Testing (FCT). This ensures the highest quality and reliability of your ESC module PCBs.
• Strategic Global Supply Chain Network
  Our strategic global supply chain network allows us to source optimal components and materials efficiently, providing cost-effective solutions without compromising quality. We ensure material availability and competitive pricing for your projects.
• Automotive Industry Compliance
  We are committed to meeting strict automotive industry compliance requirements. Our processes and products adhere to standards like IATF 16949 and AEC-Q100, ensuring your ESC module PCBs meet the highest performance and safety standards.

Advantages of Choosing Zero One Solution Limited for Your ESC PCB Needs

Partnering with Zero One Solution Limited for your Electronic Stability Control (ESC) module PCBs offers a distinct advantage, providing a blend of rapid innovation, uncompromising quality, and cost-effectiveness. As a veteran in the PCB solutions industry, we understand the critical demands of automotive applications and offer a comprehensive suite of services designed to ensure your ESC systems are not only reliable but also ahead of the curve. Our commitment to excellence allows you to focus on innovation, knowing your PCB needs are in expert hands.

• Accelerated Time-to-Market with Rapid Prototyping
  Our rapid prototyping capabilities significantly reduce development cycles. We understand the fast-paced nature of the automotive industry, and our ability to quickly produce and test prototypes ensures your ESC modules can be brought to market faster. This rapid turnaround is crucial for staying competitive and meeting evolving industry demands.
• Enhanced Reliability and Performance
  We adhere to stringent automotive standards, including IATF 16949 and AEC-Q100, ensuring the highest levels of quality control. Our rigorous testing protocols, including AOI, X-ray, ICT, and FCT, guarantee that every PCB meets the demanding reliability and performance criteria required for automotive applications.
• Cost-Effectiveness Through Optimized Design and Manufacturing
  We optimize designs and manufacturing processes to deliver cost-effective solutions without compromising quality. Our team of veteran engineers leverages advanced manufacturing techniques and material selections to create efficient and reliable ESC module PCBs, ensuring value for your investment.
• Global Supply Chain for Material Availability and Competitive Pricing
  Our strategic global supply chain network ensures access to high-quality components and materials at competitive prices. This extensive network enables us to manage material availability and mitigate supply chain risks, providing a stable and reliable source for your ESC module PCB needs.
• Comprehensive Technical Support and Expert Guidance
  Benefit from comprehensive technical support from our team of veteran engineers, providing expertise from design to mass production. We are committed to assisting you throughout the entire process, ensuring your ESC module PCBs are built to the highest industry standards and deliver optimal performance.
• Flexibility and Adaptability for Diverse Project Requirements
  We cater to a wide range of project needs, from small-batch R&D prototypes to high-volume production runs. Our flexible approach allows us to adapt to your specific requirements, ensuring you receive the tailored solution that best suits your project's unique demands.

Case Studies and Applications: Demonstrating the Impact of Zero One Solution Limited's ESC PCB Solutions

Zero One Solution Limited's expertise in ESC module PCB solutions has a tangible impact on the automotive industry, contributing to advancements in vehicle safety and technology. Through real-world applications and case studies, we demonstrate how our tailored PCB solutions address complex challenges, resulting in successful product launches and system improvements. Our rapid prototyping and manufacturing capabilities enable clients to quickly develop and validate advanced ESC systems across various vehicle types, including EVs, autonomous driving platforms, and traditional combustion engine cars.

• EV ESC Module Development
  Challenge: A leading EV manufacturer needed to rapidly develop an ESC module PCB for a new electric vehicle platform, requiring miniaturization, high reliability, and compliance with stringent automotive standards. Solution: Zero One Solution Limited's rapid prototyping services allowed the client to quickly iterate on the design, validating performance and ensuring adherence to IATF 16949. Our advanced manufacturing processes, including HDI technology and high-Tg laminates, ensured the PCB met the demanding environmental and operational requirements of an EV. Result: The client successfully launched its new EV platform on schedule, with the ESC module PCB meeting all performance and safety criteria. The rapid prototyping minimized development time by 40%.
• Autonomous Driving Platform Integration
  Challenge: A developer of autonomous driving systems required an ESC module PCB that could reliably integrate with advanced sensor technologies and processing units, demanding exceptional signal integrity and EMC performance. Solution: Zero One Solution Limited's expertise in high-speed PCB design, along with rigorous testing protocols, ensured the ESC module PCB met the required EMC standards and delivered reliable performance in the complex autonomous driving environment. We employed advanced materials and manufacturing techniques to mitigate signal interference. Result: The client successfully integrated the ESC module into its autonomous driving platform, enhancing the vehicle's safety features and overall system reliability. The stringent EMC compliance resulted in a 25% reduction in field issues.
• Combustion Engine Vehicle Safety Enhancement
  Challenge: A traditional automotive manufacturer sought to upgrade its ESC systems to meet stricter regulatory requirements and enhance vehicle safety, requiring a robust and cost-effective PCB solution. Solution: Zero One Solution Limited's optimized design and manufacturing processes, combined with our global supply chain network, enabled the client to achieve both high performance and cost efficiency. Our focus on reliability and adherence to automotive standards ensured the ESC module PCB met all safety requirements. Result: The manufacturer successfully upgraded its ESC systems, meeting all regulatory requirements and improving vehicle safety ratings. The cost-effective solution resulted in a 15% reduction in production costs without compromising quality.

These case studies exemplify Zero One Solution Limited's commitment to providing tailored, high-quality ESC module PCB solutions that address the unique challenges of each automotive application. Our expertise in rapid prototyping, advanced manufacturing, and stringent quality control ensures our clients achieve their product development and safety goals, leading the way in automotive innovation.

The journey from concept to a high-performing ESC module is complex, demanding precision, expertise, and a partner who understands the nuances of automotive electronics. Zero One Solution Limited is proud to be that partner, offering a comprehensive suite of PCB services tailored specifically for the rigorous demands of ESC systems. Our commitment to rapid prototyping, quality manufacturing, and global supply chain excellence ensures that your innovations are brought to life efficiently and reliably. Partner with us to accelerate your product development cycles and drive the future of automotive safety. Visit our website or contact us today to discuss your specific ESC module PCB requirements and discover how Zero One Solution can empower your next breakthrough.
