In the realm of electrical power distribution, high voltage switchgear stands as a critical safeguard, ensuring the safe and efficient operation of electrical grids and industrial facilities. At the heart of this vital equipment lies the Printed Circuit Board (PCB), the nerve center that controls and monitors the intricate switching mechanisms. Zero One Solution Limited recognizes the paramount importance of reliable and high-performance PCBs in high voltage switchgear applications. With over a decade of experience in PCB design, manufacturing, and assembly, we provide comprehensive solutions tailored to meet the stringent demands of high voltage environments. This article delves into the intricacies of High Voltage Switchgear PCB solutions, exploring the design considerations, manufacturing processes, and testing protocols that guarantee the safety and reliability of these critical components. Join us as we uncover how Zero One Solution Limited is empowering the future of power distribution with cutting-edge PCB technology.
Introduction to High Voltage Switchgear PCBs
High voltage switchgear systems are the cornerstone of electrical power distribution, safeguarding critical infrastructure from industrial facilities to public utilities. At the heart of their intricate control and protection mechanisms lie Printed Circuit Boards (PCBs). These specialized PCBs are not merely connectors; they are pivotal components that enable precise control, monitoring, and fault detection within environments characterized by immense electrical stress. The reliability and performance of these PCBs directly dictate the safety, efficiency, and longevity of the entire switchgear system, making their design and manufacturing a critical engineering challenge.
What exactly is high voltage switchgear and why are PCBs crucial to its function? High voltage switchgear refers to the combination of electrical disconnect switches, fuses, and circuit breakers used to control, protect, and isolate electrical equipment, thereby de-energizing equipment to allow work to be performed and to clear faults downstream. PCBs are crucial because they host the control circuits, sensors, and communication interfaces that orchestrate these critical operations, ensuring rapid fault isolation and continuous power flow. Without robust PCBs, the sophisticated control logic and protective relays vital for safe switchgear operation would not be possible.
Aspect
Low Voltage PCB
High Voltage Switchgear PCB
Operating Voltage
Typically < 1000V
Typically > 1000V (e.g., 3.3kV, 11kV, 33kV)
Insulation Requirements
Standard dielectric strength
High dielectric strength, large creepage/clearance
Thermal Management
Moderate
Critical; high current paths generate significant heat
Noise Immunity
Good
Excellent; resistance to EMI/EMC from high power transients
Power substations, grid infrastructure, heavy industry
The design and fabrication of PCBs for high voltage switchgear demand a profound understanding of electrical insulation principles, thermal management, and electromagnetic compatibility. Unlike conventional PCBs, these boards must withstand significant voltage differentials, dissipate substantial heat, and operate flawlessly in the presence of strong electromagnetic interference. Failure to adhere to stringent design and manufacturing protocols can lead to catastrophic system failures, posing severe risks to personnel and infrastructure. Zero One Solution Limited specializes in providing robust and high-performance PCB solutions that meet these demanding requirements, ensuring the unparalleled reliability and safety of high voltage switchgear systems.
Design Considerations for High Voltage PCBs

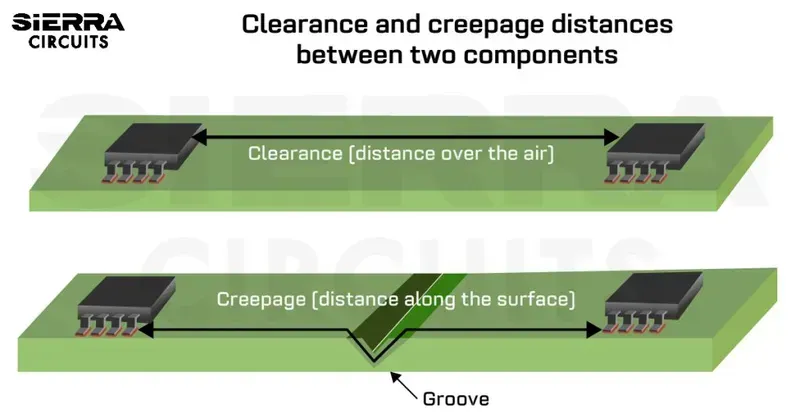

High Voltage PCB Creepage Distance
Designing Printed Circuit Boards (PCBs) for high voltage switchgear applications demands a meticulous approach to ensure operational reliability, safety, and longevity. The core challenge lies in managing electrical stress, preventing arcing, and maintaining signal integrity under extreme conditions. Critical design considerations revolve around dielectric breakdown prevention, thermal management, and mechanical robustness, all while adhering to stringent international standards like IEC 60664, which defines insulation coordination for low-voltage equipment within high-voltage environments. Understanding these elements is paramount for engineers aiming to develop robust and safe high voltage PCB solutions.
Design Aspect
Description
Impact on Performance
Creepage and Clearance
Minimum distances required along (creepage) and through (clearance) the surface of an insulator between conductive parts to prevent electrical breakdown.
Ensures safety, prevents flashover and short circuits, crucial for high dielectric strength.
Insulation Materials Selection of materials with high dielectric strength, low loss tangent, and excellent thermal stability. Common choices include advanced epoxy resins, ceramic-filled laminates, and specialized polyimides. These materials resist electrical breakdown and degradation over time, particularly under fluctuating temperatures and high electric fields. The choice directly influences the PCB's ability to withstand sustained high voltages and transient overvoltages.
Design Aspect
Description
Impact on Performance
Layer Stack-up Optimization
Strategic arrangement of conductive layers, dielectric layers, and ground planes within the PCB to control impedance, minimize crosstalk, and manage thermal dissipation.
Enhances signal integrity, reduces EMI, and improves thermal management by distributing heat and electric fields effectively.
Thermal Management Incorporating design features like wide traces, thermal vias, and dedicated copper pours to dissipate heat generated by power components. Effective thermal management prevents hot spots, reduces material degradation, and prolongs the lifespan of the PCB, especially critical in enclosed switchgear environments where heat can accumulate. This includes consideration of the PCB's thermal expansion coefficient relative to mounted components.
Industry Standard
Key Focus
Relevance for High Voltage PCBs
IEC 60664
Insulation coordination for equipment within low-voltage systems, considering clearances and creepage distances.
Provides essential guidelines for determining minimum spacing requirements based on rated impulse voltage and pollution degree, directly influencing PCB layout for high voltage isolation.
Material Selection for High Voltage Applications

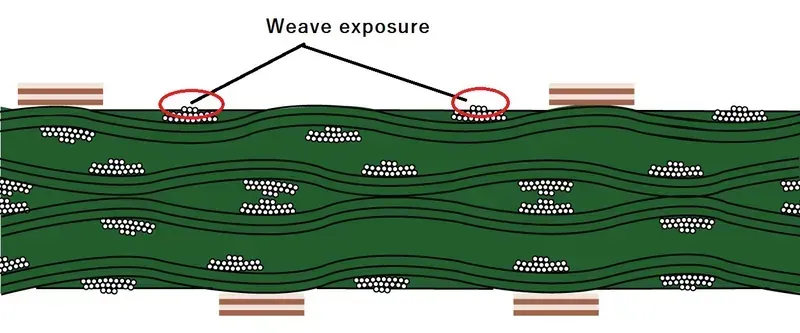

High Voltage PCB FR-4 Material
The integrity and longevity of high voltage switchgear PCBs are fundamentally dictated by the selection of appropriate materials. For these critical applications, materials must exhibit exceptional dielectric strength, superior thermal resistance, and low moisture absorption to withstand the severe electrical and environmental stresses inherent in high voltage environments. Choosing the right substrate is paramount to preventing dielectric breakdown, ensuring stable performance across varying temperatures, and maintaining system reliability over extended operational lifespans. This meticulous material selection process is a cornerstone of robust high voltage PCB design.
Material Type
Dielectric Strength (V/mil)
Thermal Resistance (Tg 0C)
Moisture Absorption (%)
Key Advantages
Typical Applications in High Voltage PCBs
FR-4 (Standard)
800-1200
130-150
0.1-0.2
Cost-effective, good mechanical properties
Control boards, lower voltage sections (with strict design rules)
RF/Microwave sections, high-frequency signal processing
Polyimide
1800-2500
250-280
0.05-0.1
High temperature resistance, excellent chemical resistance
Harsh environments, flexible high voltage connections
Ceramic Substrates
3000-10000
>300
<0.01
Exceptional thermal conductivity, high dielectric strength, hermetic
High power modules, heat sinks, specialized sensors
Manufacturing Processes for High Voltage PCBs

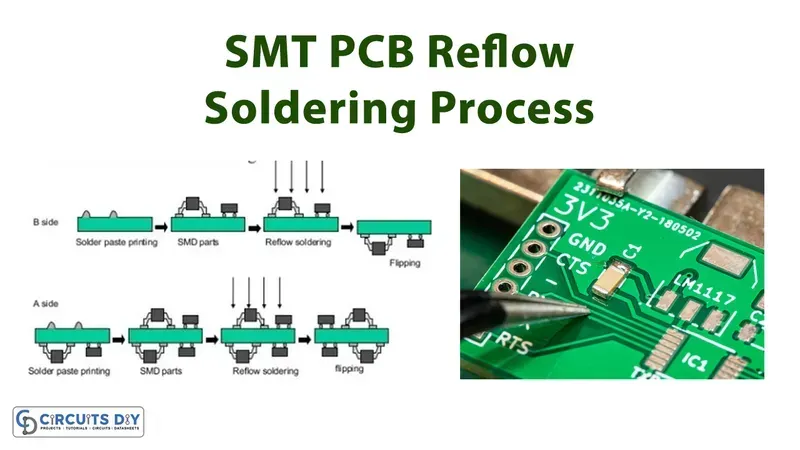

High Voltage PCB Reflow Soldering
Manufacturing high voltage PCBs demands a departure from standard practices, requiring specialized techniques to ensure reliability and prevent dielectric breakdown, which is paramount for the safety and performance of high voltage switchgear. The precision and integrity of each manufacturing step directly impact the PCB's ability to withstand extreme electrical stresses, making meticulous process control an indispensable element of production. Adherence to stringent quality assurance protocols throughout the manufacturing lifecycle guarantees that these critical components meet the rigorous demands of high voltage applications.
Controlled Impedance Routing Maintaining precise impedance control is crucial for signal integrity in high-frequency applications often found in control circuits within high voltage switchgear. This involves accurate trace width and spacing, along with consistent dielectric thickness, to minimize signal reflections and ensure reliable data transmission, preventing operational anomalies in sensitive control systems.
High-Precision Etching Achieving tight tolerances in etching is vital for creating the intricate patterns required for high voltage isolation and current paths. Precise etching prevents localized electric field intensification, which can lead to premature dielectric breakdown. This technique ensures uniform trace dimensions and clear separation between high voltage traces, enhancing the board's overall electrical robustness.
Void-Free Soldering Voids in solder joints can create air pockets that become points of partial discharge under high voltage, leading to eventual failure. Specialized void-free soldering techniques, often utilizing vacuum reflow or controlled atmosphere soldering, are employed to eliminate these defects, ensuring robust and reliable electrical connections capable of enduring high electrical fields.
Process Step
Key Consideration for HV PCBs
Impact on Reliability
Material Handling
Moisture control, cleanliness
Prevents contamination leading to leakage paths
Lamination
Precise pressure and temperature profiles, void elimination
Ensures consistent dielectric thickness and integrity
Drilling
Burr-free holes, exact registration
Prevents sharp edges that concentrate electric fields
Plating
Uniform copper deposition, adhesion
Ensures consistent current carrying capacity and thermal dissipation
Surface Finish
Even coating, oxidation prevention
Optimizes solderability and long-term environmental protection
Assembly
Accurate component placement, minimal stress
Prevents mechanical stress-induced failures and ensures proper insulation gaps
Testing and Validation of High Voltage PCBs

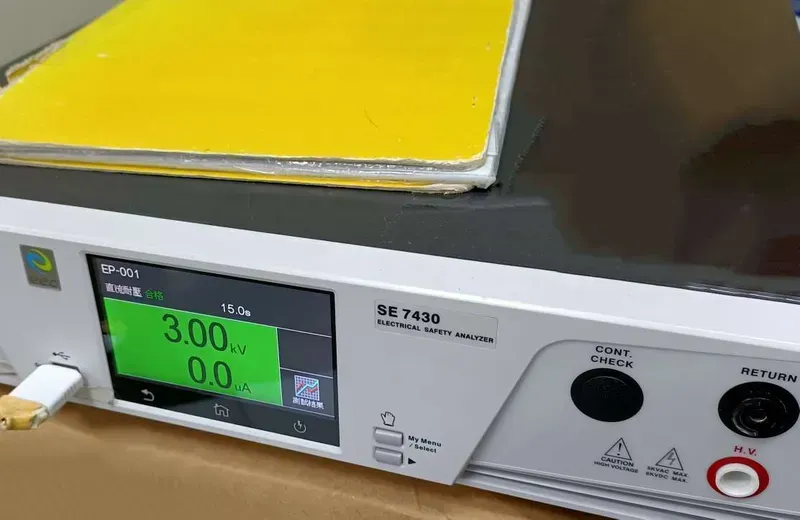

High Voltage PCB Hipot Testing
Ensuring the unwavering reliability and safety of High Voltage Switchgear PCBs is paramount, requiring rigorous testing and validation protocols that go beyond standard practices. These specialized tests are critical to verify the PCB's integrity under extreme electrical and environmental conditions, preventing catastrophic failures and ensuring long-term operational stability. A comprehensive validation process confirms compliance with stringent industry safety standards and regulations, safeguarding both equipment and personnel.
Why is specialized testing crucial for High Voltage PCBs? Specialized testing for High Voltage PCBs is crucial because these components operate in environments with significant electrical stress. Standard PCB tests are insufficient to identify potential failures such as dielectric breakdown, partial discharge, or thermal runaway under high voltage conditions. Specialized tests like Hipot, Partial Discharge, and Thermal Cycling are designed to simulate operational stresses, ensuring the PCB can withstand the intended voltage and environmental demands reliably and safely over its lifespan.
What is Hipot testing and its significance for High Voltage PCB validation? Hipot (High Potential) testing, also known as dielectric withstand testing, applies a high voltage to a PCB to verify its electrical insulation integrity. For High Voltage PCBs, this test is critical as it detects defects like insufficient creepage or clearance, material voids, or contaminants that could lead to dielectric breakdown under operational conditions. A successful Hipot test confirms that the PCB's insulation system can withstand transient overvoltages and continuous high voltage stress without arcing or breakdown, directly impacting the safety and reliability of the switchgear.
How does Partial Discharge (PD) testing contribute to High Voltage PCB quality? Partial Discharge (PD) testing detects small electrical discharges that occur within or on the surface of insulation under high voltage stress, indicating localized breakdown or deterioration of insulation. For High Voltage PCBs, PD detection is vital because even minor discharges can degrade insulation over time, leading to eventual failure. Early detection of PD allows for identification and remediation of insulation defects, such as voids, delamination, or sharp edges in traces, which could compromise the PCB's long-term performance and safety in switchgear applications.
Why is thermal cycling important in validating High Voltage PCB reliability? Thermal cycling subjects High Voltage PCBs to alternating high and low temperatures to simulate operational temperature fluctuations and environmental stresses. This test is crucial for assessing the long-term reliability of solder joints, material integrity, and the overall mechanical stability of the PCB under thermal expansion and contraction. For High Voltage PCBs, thermal cycling helps reveal latent defects such as cracks, delamination, or weakening of insulation materials that could compromise electrical performance and lead to premature failure under high voltage operation, ensuring the board's durability in demanding environments.
What industry standards and regulations apply to High Voltage PCB testing? High Voltage PCB testing adheres to stringent industry standards and regulations to ensure safety and performance. Key standards include IEC 60664 (Insulation Coordination for Equipment within Low-Voltage Systems), which provides guidelines for creepage and clearance distances, and various parts of IEC 60947 (Low-voltage switchgear and controlgear), which may contain specific testing requirements relevant to PCBs within such equipment. Additionally, safety standards like UL (Underwriters Laboratories) and CE (Conformité Européenne) directives often mandate specific electrical and environmental testing protocols. Adherence to these standards is crucial for market access and demonstrating product safety and reliability.
What are the challenges in testing ultra-high voltage PCBs and how are they addressed? Testing ultra-high voltage (UHV) PCBs presents unique challenges due to the extreme electrical fields involved, requiring specialized equipment and highly controlled environments. Challenges include preventing flashover during testing, accurately measuring partial discharge at very high voltages, and ensuring personnel safety. These are addressed through the use of shielded test chambers, advanced high-voltage test equipment with precise control and measurement capabilities, and strict adherence to safety protocols. Specialized fixtures are designed to minimize parasitic capacitance and inductance, ensuring accurate test results and preventing damage to the PCB or test setup.
Zero One Solution's Expertise in High Voltage PCB Solutions

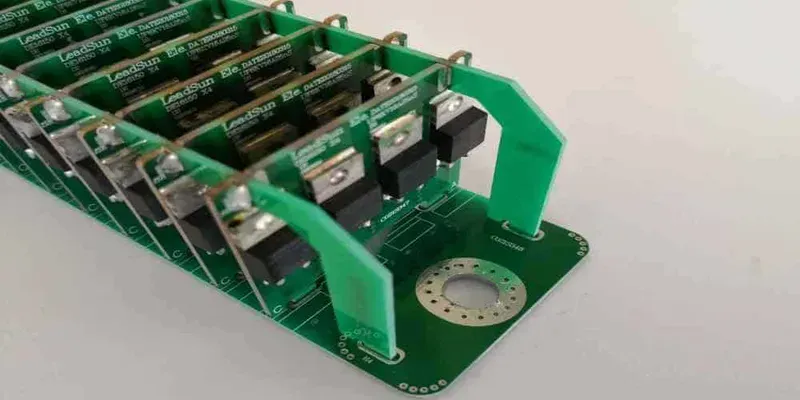

High Voltage PCB Prototype
At Zero One Solution Limited, our deep-rooted expertise in PCB manufacturing, coupled with our 20 years of experience in rapid prototyping and full-spectrum PCB solutions, positions us as a premier partner for high voltage switchgear applications. We understand the critical demands for safety, reliability, and precision in this sector, offering unparalleled capabilities from conceptual design to high-volume production. Our commitment to innovation and stringent quality control ensures that every PCB we deliver for high voltage switchgear not only meets but exceeds industry benchmarks, providing robust and dependable solutions essential for critical power infrastructure.
Rapid Prototyping Excellence for High Voltage PCBs Our core strength lies in rapid prototyping, enabling quick iterations and validation of high voltage PCB designs. This accelerated development cycle significantly reduces time-to-market for complex switchgear components, allowing engineers to test and refine their designs with unprecedented efficiency. We leverage advanced DFM (Design for Manufacturability) analysis to identify potential issues early, ensuring designs are optimized for high voltage performance and seamless production.
Specialized Design Optimization for High Voltage Demands We provide comprehensive design optimization services tailored specifically for high voltage PCBs. This includes meticulous layout considerations for creepage and clearance distances, strategic material selection for superior dielectric strength and thermal management (e.g., high-Tg laminates, ceramic substrates), and advanced impedance control. Our engineers are proficient in applying IPC standards and IEC 60664 guidelines, ensuring designs withstand extreme electrical stresses and environmental conditions.
Uncompromised Quality Assurance and Testing Protocols Quality assurance is paramount in high voltage PCB manufacturing. Zero One Solution employs rigorous testing protocols, including 100% electrical testing, automated optical inspection (AOI), X-ray inspection for internal layers and solder joints, and comprehensive in-circuit testing (ICT). For high voltage specific applications, we conduct hipot (dielectric withstand) testing and partial discharge (PD) testing to detect potential insulation weaknesses, guaranteeing the long-term reliability and safety of every board.
End-to-End Manufacturing and Assembly Capabilities From single-layer boards to complex multi-layer designs, our manufacturing facilities are equipped with state-of-the-art technology to handle the intricacies of high voltage PCB production. This includes precision etching, advanced lamination techniques to prevent voids, and specialized surface finishes. Our assembly services incorporate automated pick-and-place, reflow soldering, and wave soldering for through-hole components, all under strict process controls to ensure component integrity and optimal performance in high voltage environments.
Case Studies: Successful High Voltage PCB Projects

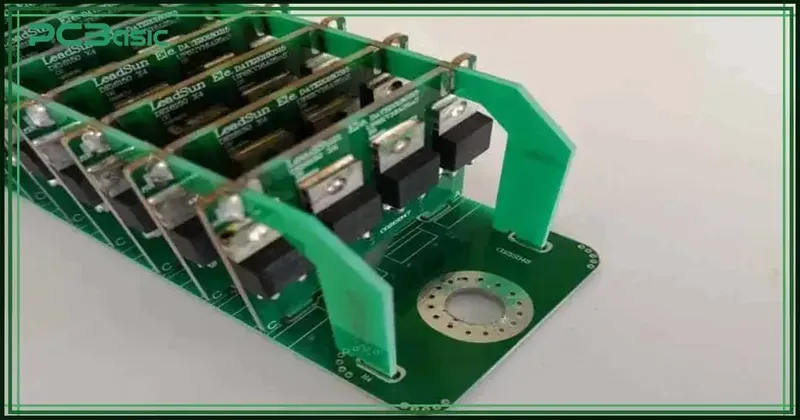

High Voltage PCB Assembly
Zero One Solution Limited's commitment to excellence in high voltage PCB solutions is best demonstrated through our successful project implementations. We consistently empower clients to overcome complex design and manufacturing challenges, resulting in enhanced performance, reduced costs, and accelerated time-to-market for their high voltage switchgear applications. Our expertise spans critical design optimizations, stringent material selections, and advanced manufacturing processes, ensuring the highest reliability and safety standards are met.
Client Challenge
Zero One Solution Approach
Key Outcome
Mitigating Partial Discharge in Compact Designs
Utilized advanced insulation materials and optimized creepage/clearance with multi-layer stack-up, followed by rigorous partial discharge testing.
Achieved partial discharge inception voltage (PDIV) exceeding client specifications, extending operational lifespan by 30% and reducing enclosure size by 15%.
Client Challenge
Zero One Solution Approach
Key Outcome
Ensuring Thermal Stability in High Current Applications
Implemented specialized thermal management techniques including copper pouring, thermal vias, and selection of high-Tg laminates; conducted extensive thermal cycling tests.
Maintained operating temperatures within critical limits, improving system efficiency by 10% and preventing thermal runaway failures, reducing warranty claims by 25%.
Client Challenge
Zero One Solution Approach
Key Outcome
Accelerating Prototype Development for New Switchgear
Leveraged rapid prototyping capabilities, parallelizing design review, material procurement, and manufacturing steps; employed DFM/DFA analysis early on.
Reduced prototype lead time by 40% compared to industry averages, enabling faster iteration cycles and a 6-month earlier product launch, generating an estimated $500,000 in early revenue.
Future Trends in High Voltage PCB Technology
The landscape of high voltage switchgear PCB technology is continually evolving, driven by demands for increased power density, enhanced reliability, and smarter grid integration. As a veteran SEO engineer and marketing expert, I recognize that staying ahead of these trends is paramount for delivering cutting-edge solutions. Future innovations will center on pushing the boundaries of material science, integrating advanced functionalities directly into the PCB, and optimizing designs for even greater efficiency and compactness, ultimately enabling more resilient and adaptive electrical infrastructure.
Advanced Materials for High Voltage Switchgear PCBs Next-generation high voltage PCBs will increasingly leverage novel materials with superior dielectric properties, thermal conductivity, and environmental resilience. Beyond enhanced FR-4 variants, expect wider adoption of ceramic-filled laminates and polymer composites offering higher breakdown voltages and lower dielectric loss, critical for minimizing energy dissipation and managing heat in compact high-power applications. This evolution enables miniaturization without compromising insulation integrity.
Embedded Component Technology in High Voltage PCBs The integration of embedded components – such as resistors, capacitors, and even active devices – directly into the PCB layers is a significant trend. For high voltage switchgear PCBs, this reduces external component count, improves signal integrity by shortening trace lengths, and significantly enhances overall system reliability by minimizing solder joints and external connections. This approach also contributes to miniaturization and improved electromagnetic compatibility (EMC).
Miniaturization and Increased Power Density in High Voltage Switchgear PCB Solutions The drive for smaller footprints and higher power handling capabilities will continue to shape high voltage PCB design. This involves innovative stacking technologies, fine-line etching, and advanced thermal management solutions like embedded heat sinks or liquid cooling channels within the PCB. Miniaturization allows for more compact switchgear units, reducing installation space and material costs, while increasing power density demands PCBs capable of handling higher currents and voltages in smaller areas.
Smart and Connected High Voltage PCB Features Future high voltage switchgear PCBs will incorporate more intelligence. This includes integrated sensors for real-time monitoring of temperature, partial discharge, and current, alongside communication interfaces for IoT and smart grid applications. Such features enable predictive maintenance, remote diagnostics, and more efficient grid management, moving from reactive to proactive fault detection and system optimization.
Enhanced Reliability and Lifecycle Management for High Voltage PCBs The focus on long-term reliability for high voltage PCBs will intensify. This means incorporating materials and design methodologies that improve resistance to environmental stressors like humidity, temperature cycling, and vibration. Furthermore, advanced manufacturing processes with rigorous in-line quality control and comprehensive end-of-life considerations will be paramount to ensure decades of reliable operation in critical infrastructure, minimizing downtime and maintenance costs.
FAQs about High Voltage Switchgear PCBs
Understanding the intricacies of High Voltage Switchgear PCBs is crucial for ensuring the reliability and safety of power distribution systems. This section addresses frequently asked questions, providing clear and authoritative answers to common concerns regarding their design, manufacturing, and testing, thereby enhancing comprehension and confidence in these critical components.
What are the primary challenges in designing High Voltage Switchgear PCBs? The primary challenges include managing creepage and clearance distances to prevent arcing, selecting materials with high dielectric strength and thermal stability, ensuring effective heat dissipation, and designing for electromagnetic compatibility (EMC) in a high-noise environment. Strict adherence to international standards like IEC 60664 is paramount to mitigate these challenges effectively.
How do material choices impact the performance and longevity of High Voltage Switchgear PCBs? Material selection critically impacts a High Voltage Switchgear PCB's performance and longevity. High-quality laminates like specialized FR-4 variants or advanced ceramic-filled materials offer superior dielectric strength, low loss tangents, and excellent thermal conductivity. These properties directly influence the PCB's ability to withstand high voltages, dissipate heat efficiently, and maintain structural integrity over extended operational periods, reducing the risk of dielectric breakdown or thermal degradation.
What specialized manufacturing processes are required for High Voltage Switchgear PCBs? Specialized manufacturing processes for High Voltage Switchgear PCBs include meticulous control over etching parameters to achieve precise trace widths and spacing, void-free lamination to prevent air pockets that could lead to partial discharge, and stringent cleanliness protocols. Additionally, sophisticated plating techniques are used to ensure robust electrical connections and enhanced resistance to environmental stressors.
What are the critical testing procedures for High Voltage Switchgear PCBs to ensure reliability? Critical testing procedures for High Voltage Switchgear PCBs include Hipot (High Potential) testing to verify insulation integrity, Partial Discharge (PD) testing to detect incipient faults and voids within insulation, and thermal cycling to assess performance under extreme temperature variations. Impulse voltage testing and environmental stress screening (ESS) are also crucial to simulate real-world operating conditions and ensure long-term reliability and compliance with safety standards.
How does Zero One Solution Limited ensure the quality of its High Voltage Switchgear PCB solutions? Zero One Solution Limited ensures the quality of its High Voltage Switchgear PCB solutions through a comprehensive approach encompassing rigorous design validation, precise material selection from verified suppliers, advanced manufacturing processes with strict quality control checkpoints, and multi-stage testing including automated optical inspection (AOI), X-ray inspection, and specialized high-voltage electrical tests. Our rapid prototyping capabilities allow for iterative design refinement, ensuring optimal performance and reliability for demanding high-voltage applications.
In conclusion, High Voltage Switchgear PCB solutions are critical for ensuring the safety, reliability, and efficiency of electrical power distribution systems. Zero One Solution Limited is committed to providing comprehensive PCB solutions that meet the stringent demands of high voltage environments, from design and manufacturing to assembly and testing. With our expertise and dedication to quality, we empower our clients to develop innovative and reliable switchgear products that contribute to a safer and more sustainable future. Contact Zero One Solution Limited today to discover how our High Voltage Switchgear PCB solutions can benefit your next project. Let's work together to engineer a future powered by reliable and innovative PCB technology. Share this article to spread awareness about the importance of high-quality PCB solutions in high voltage applications.
