In an era where smart homes are becoming increasingly prevalent, the demand for reliable and intelligent circuit protection is soaring. Traditional circuit breakers, while effective, lack the advanced features needed for modern homes. This is where the Smart Circuit Breaker Motherboard Solution steps in, offering a sophisticated approach to electrical safety and management. Zero One Solution Limited, a leader in PCB solutions, provides cutting-edge services from design to manufacturing and assembly, empowering innovation in this crucial area. This article delves into the intricacies of this solution, exploring its design, functionality, and the benefits it brings to smart home technology.

Introduction to Smart Circuit Breaker Motherboard Solutions

A Smart Circuit Breaker Motherboard Solution represents the technological heart of modern intelligent electrical distribution systems, transforming traditional circuit protection into a dynamic, data-driven entity. Unlike conventional circuit breakers that merely interrupt current flow during faults, these advanced motherboards integrate sophisticated microelectronics, communication protocols, and sensing capabilities to offer unprecedented levels of safety, control, and efficiency in smart homes, commercial buildings, and industrial settings. They are pivotal in enabling proactive electrical management, remote diagnostics, and seamless integration with broader IoT ecosystems.

1. Core Function
   The primary role of a smart circuit breaker motherboard is to provide real-time monitoring and intelligent control over electrical circuits. It goes beyond basic overcurrent and short-circuit protection, incorporating features like arc fault detection (AFDD), ground fault detection (GFDD), and precise power consumption monitoring. This granular data allows for immediate fault isolation and preventive action, significantly enhancing electrical safety and preventing potential hazards such as fires due to electrical faults or overloads.

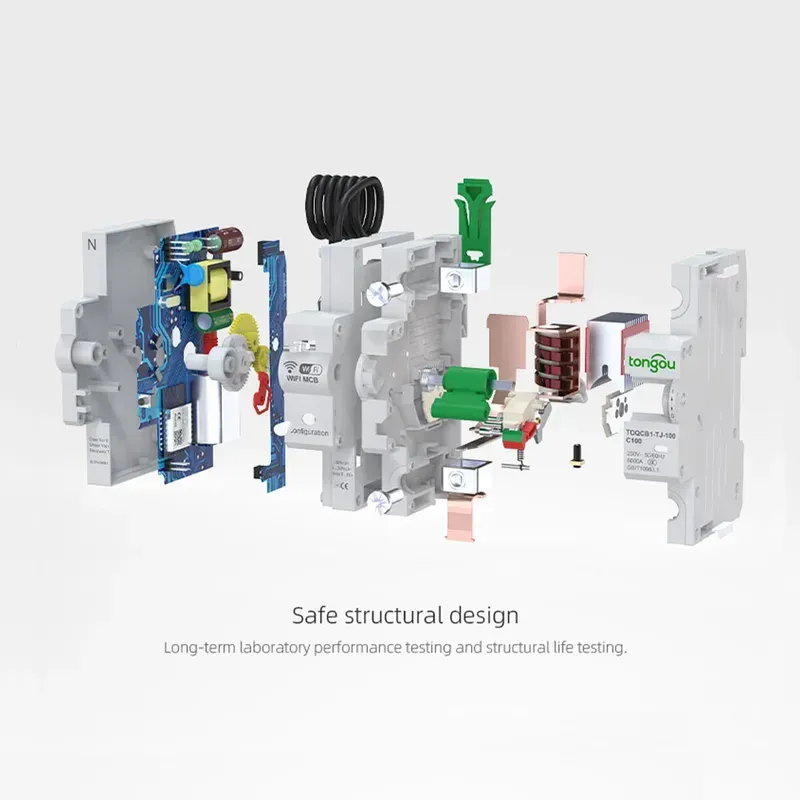

The Core Components of a Smart Circuit Breaker Motherboard

At the heart of every robust Smart Circuit Breaker Motherboard lies a sophisticated integration of core electronic components, each playing a critical role in its advanced functionality. These components—microcontrollers, sensors, communication modules, and power management ICs—collectively enable the smart circuit breaker to deliver precise fault detection, real-time monitoring, and remote control capabilities, distinguishing it from conventional circuit protection devices.

• Microcontrollers (MCUs)
  The MCU acts as the 'brain' of the smart circuit breaker motherboard. It processes data from sensors, executes control algorithms, and manages communication with other devices. For instance, an ARM Cortex-M series MCU might be chosen for its low power consumption and high processing efficiency, crucial for continuous operation and rapid response to fault conditions.
• Sensors
  Various sensors are integral for detecting electrical anomalies. Current sensors (e.g., Hall effect or shunt resistors) monitor real-time current flow, enabling overcurrent and short-circuit detection. Temperature sensors safeguard against overheating, while arc fault detection (AFD) sensors use advanced algorithms to identify hazardous arc signatures, preventing electrical fires. For example, a Rogowski coil could be used for highly accurate and non-invasive current measurement.
• Communication Modules
  These modules facilitate connectivity, allowing remote monitoring and control. Common protocols include Wi-Fi (IEEE 802.11b/g/n) for local network integration, Zigbee or Z-Wave for mesh networking in smart home ecosystems, and sometimes cellular (LTE-M, NB-IoT) for broader remote accessibility. The choice depends on the required range, power consumption, and data throughput.
• Power Management ICs (PMICs)
  PMICs are crucial for efficiently distributing and regulating power to all components on the motherboard, ensuring stable operation and maximizing energy efficiency. This includes voltage regulators, battery chargers (for backup power), and power sequencers, all designed to handle varying load conditions and protect the sensitive electronics from power fluctuations.
• Relays/Switching Mechanisms
  While not always considered a 'core' electronic component in the same vein as MCUs or sensors, the electromechanical or solid-state relays are fundamental to the circuit breaker's primary function—to interrupt the circuit. These components are controlled by the MCU based on sensor data to safely disconnect power during a fault.

Functionality and Features of Advanced Smart Circuit Breakers

Advanced smart circuit breakers redefine electrical safety and management by integrating sophisticated functionalities that extend far beyond traditional overcurrent protection. These intelligent devices provide real-time insights and proactive control over electrical systems, significantly enhancing safety, efficiency, and convenience in both residential and commercial settings. Their core capabilities encompass precise fault detection, remote operational control, and comprehensive energy consumption analysis, all built upon robust motherboard designs.

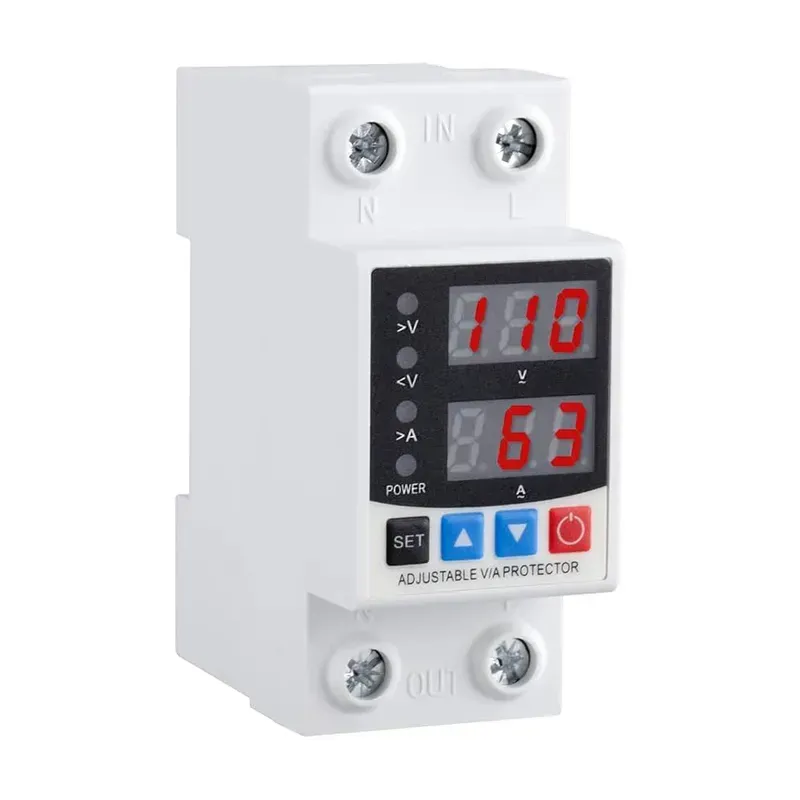

1. Overcurrent Protection and Short-Circuit Safeguards
   Smart circuit breakers excel in rapidly detecting and interrupting overcurrents and short circuits, preventing damage to appliances, wiring, and mitigating fire risks. Unlike conventional breakers, their digital precision allows for faster response times and more accurate trip thresholds, often configurable for specific loads, minimizing nuisance tripping while maximizing protection. This is critical for safeguarding sensitive electronics and ensuring the longevity of an electrical system. According to IEEE standards, rapid fault isolation is paramount for system integrity and safety, a principle central to smart breaker design.

• Arc Fault Detection (AFDD)
  A key differentiator, arc fault detection identifies dangerous electrical arcs that traditional breakers often miss. These arcs, caused by damaged wiring or loose connections, are a leading cause of electrical fires. Smart circuit breakers employ advanced algorithms to distinguish between harmless operational arcs (e.g., from motor brushes) and hazardous intermittent or persistent arcs, tripping before a fire can ignite. This proactive safety feature significantly enhances building safety codes and compliance.

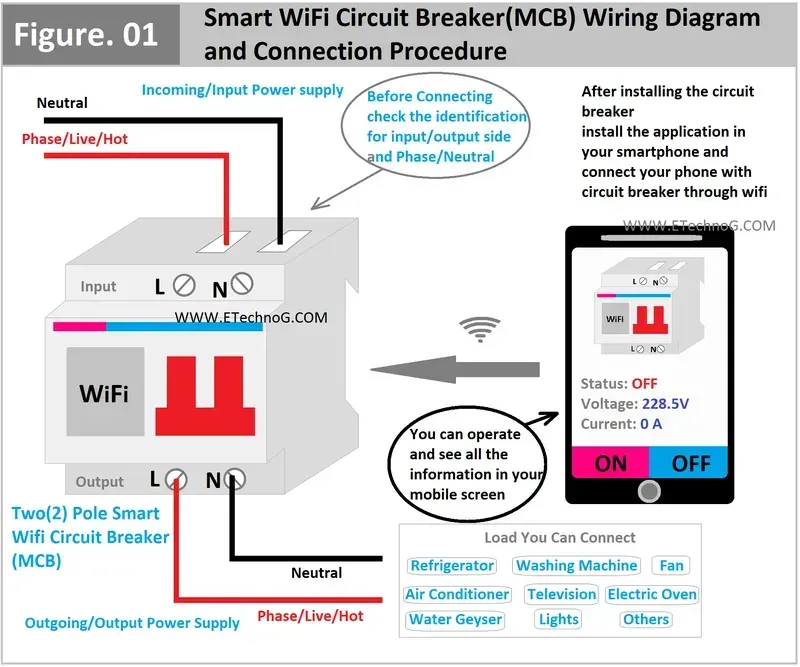

PCB Design Considerations for Smart Circuit Breaker Motherboards

Designing a Printed Circuit Board (PCB) for a Smart Circuit Breaker Motherboard is a critical phase that directly impacts the device's reliability, safety, and performance. Optimal PCB design goes beyond mere component placement; it involves meticulous attention to layout optimization, robust thermal management, ensuring signal integrity, and strategic component placement. These considerations are paramount for creating a resilient and high-performing smart circuit breaker capable of advanced protection and monitoring features, ensuring it meets stringent industry standards and user expectations.

1. Layout Optimization for Compactness and Efficiency
   Achieving a compact yet efficient PCB layout is essential for smart circuit breakers, which often operate within confined spaces. This involves minimizing trace lengths, strategically placing components to reduce electromagnetic interference (EMI), and optimizing power and ground planes to ensure stable voltage distribution and minimize noise. Careful planning can significantly reduce the overall board size while maintaining high performance, contributing to cost-effectiveness and ease of integration into existing electrical systems. Advanced routing techniques, such as differential pairs for high-speed signals, further enhance signal integrity and reduce cross-talk, which is critical for sensitive sensor data and communication modules.

• Rigorous Testing and Validation in PCB Design
  Beyond initial design, rigorous testing and validation are crucial for Smart Circuit Breaker Motherboards. This includes electrical performance testing, thermal imaging to identify hot spots, EMI/EMC compliance testing, and functional verification across various operating conditions. Simulation tools are widely used during the design phase to predict behavior and identify potential issues before physical prototyping, significantly reducing development cycles and costs. Adherence to standards like UL, CE, and IEC is mandatory, ensuring the device's safety and reliability in diverse global markets.

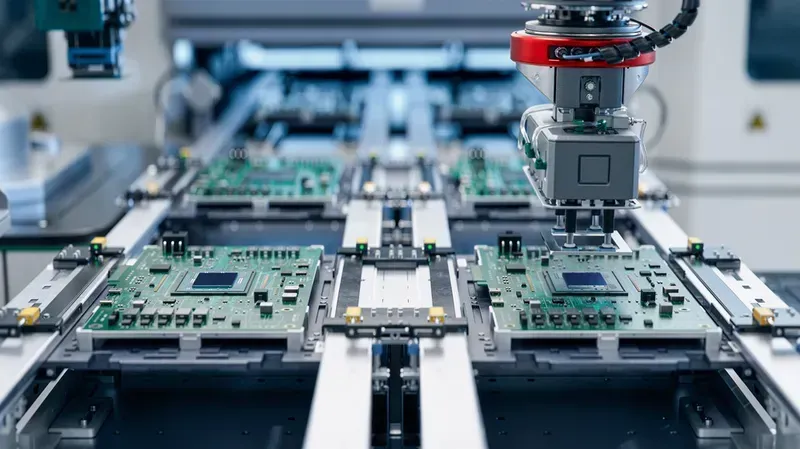

Manufacturing and Assembly: Ensuring Reliability and Quality

The successful deployment of Smart Circuit Breaker Motherboard Solutions hinges critically on the precision and robustness of their manufacturing and assembly processes. At Zero One Solution Limited, we recognize that superior reliability and unwavering quality are not merely desirable but fundamental to the safety and performance of smart circuit breakers. This commitment translates into meticulous attention across every stage, from automated assembly lines that guarantee consistency to rigorous testing protocols and comprehensive quality control measures, collectively ensuring that each motherboard meets the highest industry standards for resilience and operational excellence.

• Rigorous Testing Protocols
  Each Smart Circuit Breaker Motherboard undergoes a multi-faceted testing regime, including In-Circuit Testing (ICT) to verify component presence and functionality, Functional Testing (FCT) to simulate real-world operation, and environmental stress testing (e.g., temperature and humidity cycles) to assess performance under varying conditions. This comprehensive approach uncovers potential flaws before deployment, ensuring operational integrity and longevity. According to a 2022 industry report by MarketsandMarkets, effective testing can reduce product failures by up to 30%, significantly enhancing reliability and customer satisfaction for critical safety devices like circuit breakers.

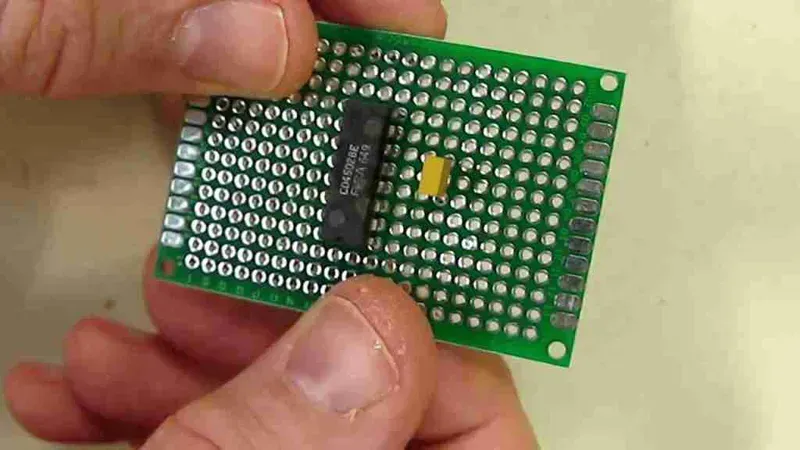

Zero One Solution Limited's Expertise in PCB Solutions

Zero One Solution Limited stands at the forefront of PCB innovation, offering unparalleled expertise in bringing complex smart circuit breaker motherboard solutions from concept to reality. Our robust capabilities in rapid prototyping, precision PCB design, advanced manufacturing, and meticulous assembly are tailored to meet the stringent demands of modern electrical safety and control systems. We empower product developers to accelerate their time-to-market with high-quality, reliable, and performance-optimized smart circuit breaker motherboards, ensuring seamless integration and superior functionality in the evolving smart home and industrial automation landscapes.

Our integrated approach, from initial design consultation to final assembly, allows us to deliver end-to-end solutions that meet the highest industry standards. By leveraging our deep engineering knowledge and advanced manufacturing facilities, Zero One Solution Limited is your trusted partner in navigating the complexities of smart circuit breaker motherboard development, ensuring that your products are not only innovative but also reliable and market-ready.

Benefits of Using a Smart Circuit Breaker Motherboard

Implementing a Smart Circuit Breaker Motherboard solution offers a multifaceted upgrade to traditional electrical systems, fundamentally enhancing safety, efficiency, and operational control. These advanced motherboards move beyond simple fault interruption, integrating intelligence that allows for real-time monitoring, remote management, and predictive capabilities, thereby transforming passive electrical infrastructure into an active, responsive network. This shift not only prevents catastrophic failures but also optimizes energy consumption and simplifies system maintenance.

• Enhanced Electrical Safety
  Smart circuit breaker motherboards incorporate advanced detection algorithms for issues like arc faults and ground faults that traditional breakers might miss. They offer instantaneous cut-off capabilities, minimizing the risk of electrical fires and shock hazards, thereby safeguarding property and lives. Data from the National Fire Protection Association (NFPA) indicates that electrical distribution and lighting equipment were involved in an estimated 33,900 home structure fires in 2021, emphasizing the critical need for enhanced safety mechanisms like those provided by smart breakers.
• Superior Control and Remote Accessibility
  Unlike conventional breakers, smart motherboards enable users to monitor and control circuits remotely via smartphone applications or web interfaces. This allows for scheduled power cycling, individual circuit lockout, and instant alerts in case of anomalies, providing unparalleled convenience and peace of mind, whether at home or away.
• Significant Energy Savings and Efficiency
  By providing granular data on energy consumption for each circuit, smart circuit breaker motherboards empower users to identify and address energy wastage. This real-time visibility facilitates informed decisions on power usage, potentially leading to substantial reductions in electricity bills and a lower carbon footprint. Studies have shown that smart energy management systems can lead to energy savings of 10-30% in residential and commercial settings.

The integration of predictive maintenance capabilities is another pivotal advantage. Smart circuit breaker motherboards continuously monitor electrical parameters, detecting subtle deviations that might indicate impending failures. This proactive approach allows for timely interventions, preventing unexpected outages, reducing repair costs, and extending the lifespan of electrical appliances and systems. This capability aligns with Industry 4.0 principles, transforming electrical infrastructure from a static component into a dynamic, data-rich asset that contributes to the overall resilience and intelligence of a building.

Future Trends in Smart Circuit Breaker Technology

The evolution of smart circuit breaker technology is poised for transformative advancements, moving beyond current capabilities to integrate cutting-edge innovations such as artificial intelligence (AI), sophisticated predictive failure algorithms, and next-generation communication protocols. These developments will redefine electrical safety, energy management, and system reliability, establishing a new paradigm for intelligent power distribution within smart homes, commercial buildings, and industrial facilities. The core objective is to shift from reactive protection to proactive, self-optimizing electrical systems.

• AI Integration for Predictive Maintenance and Anomaly Detection
  Future smart circuit breakers will leverage AI and machine learning to analyze vast datasets of electrical parameters, including current, voltage, temperature, and power consumption. This enables the system to identify subtle anomalies that precede potential faults, such as deteriorating insulation, loose connections, or impending component failures. For instance, AI algorithms can learn typical load profiles and flag deviations that indicate abnormal behavior, allowing for proactive maintenance before an actual outage or hazard occurs. This minimizes downtime, extends equipment lifespan, and significantly enhances safety by predicting and preventing electrical incidents.
• Advanced Algorithms for Enhanced Predictive Failure Analysis
  Beyond basic anomaly detection, advanced algorithms will employ complex statistical models and neural networks to perform highly accurate predictive failure analysis. These algorithms will consider environmental factors, historical usage patterns, and component aging to forecast the remaining useful life of the circuit breaker and its connected devices. This capability is crucial for critical infrastructure and industrial applications, enabling scheduled maintenance during off-peak hours and reducing the risk of catastrophic failures. The goal is to move towards 'health-aware' electrical systems that self-diagnose and recommend preventive actions.
• Enhanced Communication Protocols and Interoperability
  The next generation of smart circuit breakers will feature more robust, secure, and interoperable communication protocols. While Wi-Fi and Zigbee are common today, future systems will increasingly adopt Thread, Matter, and 5G/6G for ultra-low latency, higher bandwidth, and improved reliability. This will facilitate seamless integration within broader IoT ecosystems, allowing smart circuit breakers to communicate not only with centralized hubs but also directly with smart appliances, energy management systems, and grid operators. This enhanced connectivity will support advanced features like dynamic load balancing, demand-response programs, and optimized energy distribution, leading to more resilient and efficient electrical grids. Interoperability standards will ensure that devices from different manufacturers can communicate and work together harmoniously.
• Self-Healing Grids and Decentralized Energy Management
  As part of a larger trend towards decentralized energy systems and smart grids, future smart circuit breakers will play a critical role in enabling self-healing capabilities. In the event of a localized fault, these intelligent devices will be able to isolate the problem area and automatically reroute power through alternative paths, minimizing the impact on the rest of the grid. This contributes to greater grid resilience and reliability, especially with the increasing integration of renewable energy sources and localized microgrids. Their ability to autonomously manage localized power flows will be essential for efficient energy distribution and fault recovery.
• Miniaturization and Edge Computing Integration
  Advances in semiconductor technology and PCB manufacturing will lead to further miniaturization of smart circuit breaker motherboards, allowing for more compact designs and greater integration of advanced functionalities directly at the edge. Edge computing capabilities will enable more immediate data processing and decision-making directly within the device, reducing reliance on cloud connectivity for critical functions. This ensures faster response times for safety measures and enhanced data privacy, as sensitive operational data can be processed locally before aggregation or transmission to the cloud, improving both security and efficiency.

FAQs About Smart Circuit Breaker Motherboards

Smart Circuit Breaker Motherboards represent a significant leap forward in electrical safety and home automation. Addressing frequently asked questions provides clarity on their practical application, demystifying their integration, operational nuances, and long-term benefits for a broader audience. This section aims to answer key questions to help users understand these advanced solutions comprehensively.

• What are the primary safety advantages of a smart circuit breaker motherboard over traditional breakers?
  Smart circuit breaker motherboards offer enhanced safety through real-time monitoring and proactive intervention. Unlike traditional thermal-magnetic breakers, smart versions can detect subtle electrical anomalies like arc faults and ground faults that often precede major hazards, instantly tripping to prevent fires or electrocution. They also provide remote monitoring, allowing users to identify and address issues even when away from home, significantly reducing risk.
• Is a smart circuit breaker motherboard compatible with my existing electrical system?
  Most smart circuit breaker motherboards are designed for modular integration into standard residential and commercial electrical panels, often replacing existing breakers directly. However, compatibility can depend on the panel type, available space, and the specific communication protocol used by the smart breaker. Consulting a qualified electrician is recommended to ensure seamless and safe integration with your current wiring and panel configuration.
• How does remote monitoring and control work with these smart motherboards?
  Remote monitoring and control are facilitated by integrated communication modules (e.g., Wi-Fi, Zigbee, Z-Wave) on the smart circuit breaker motherboard. These modules connect to a central hub or directly to a home network, allowing data transmission to a smartphone app or web interface. Users can then view real-time energy consumption, receive alerts for tripped breakers, and remotely trip or reset individual circuits from anywhere with an internet connection, providing unparalleled convenience and oversight.
• What kind of maintenance do smart circuit breaker motherboards require?
  Smart circuit breaker motherboards generally require minimal physical maintenance. Their advanced self-diagnostic capabilities often alert users to potential issues. Regular maintenance primarily involves ensuring software and firmware updates are applied to maintain optimal performance, security, and compatibility with other smart home devices. Periodic professional electrical inspections are still recommended for overall system health, including checking connections and panel integrity.
• Can smart circuit breaker motherboards help reduce energy consumption?
  Yes, smart circuit breaker motherboards can significantly contribute to energy savings. By providing granular, real-time data on energy consumption for individual circuits and appliances, they empower users to identify energy-intensive devices or patterns of waste. Features like scheduling and remote control allow users to automatically shut off non-essential loads during peak hours or when not needed, leading to optimized energy usage and reduced utility bills. Some models also integrate with demand-response programs from utility providers.

In conclusion, the Smart Circuit Breaker Motherboard Solution represents a significant leap forward in electrical safety and smart home integration. By offering enhanced control, real-time monitoring, and remote accessibility, this solution empowers homeowners and improves overall system reliability. As Zero One Solution Limited continues to innovate in PCB design and assembly, we are committed to providing state-of-the-art solutions that drive the future of smart home technology. Contact us today to discover how our expertise can bring your smart circuit breaker project to life and revolutionize the way you protect and manage electrical systems.
