Just like how a 1 microfarad capacitor stores a small but crucial amount of electrical energy, our daily lives often depend on equally small yet significant components. From smoothing out power in our smartphones to filtering noise in audio equipment, capacitors play a vital role in modern electronics. This article provides a comprehensive look into the world of 1 microfarad capacitors, exploring their functions, types, and applications, revealing their fundamental importance in engineering and technology. Let's dive in!

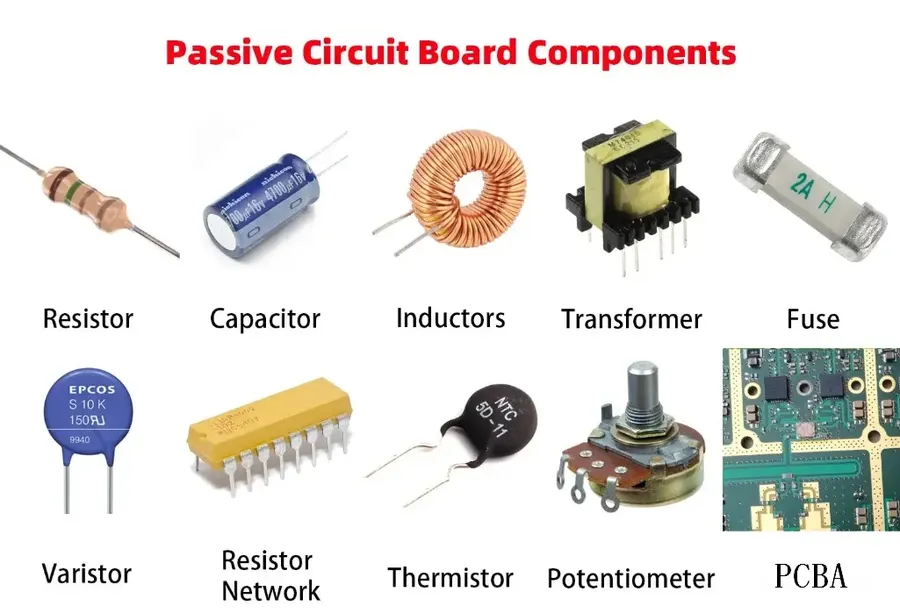

What is a 1 Microfarad Capacitor?

A 1 microfarad (1µF) capacitor is a fundamental electronic component that stores electrical energy in an electric field. The term 'microfarad' represents a unit of capacitance, where one microfarad is one millionth of a farad (1µF = 10⁻⁶ F). Capacitance, measured in farads (F), indicates a capacitor's ability to store charge. Specifically, a 1µF capacitor can store a certain amount of electrical charge for every volt applied across its terminals. This value is a measure of the capacitor's capacity to resist changes in voltage; in essence, it stores charge to maintain a constant voltage level or to filter out fluctuations within an electrical circuit.

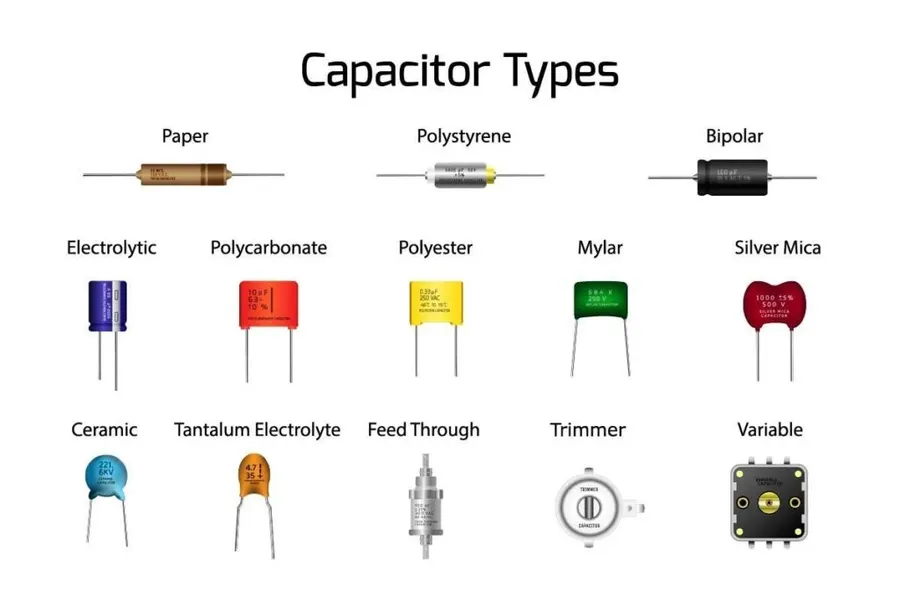

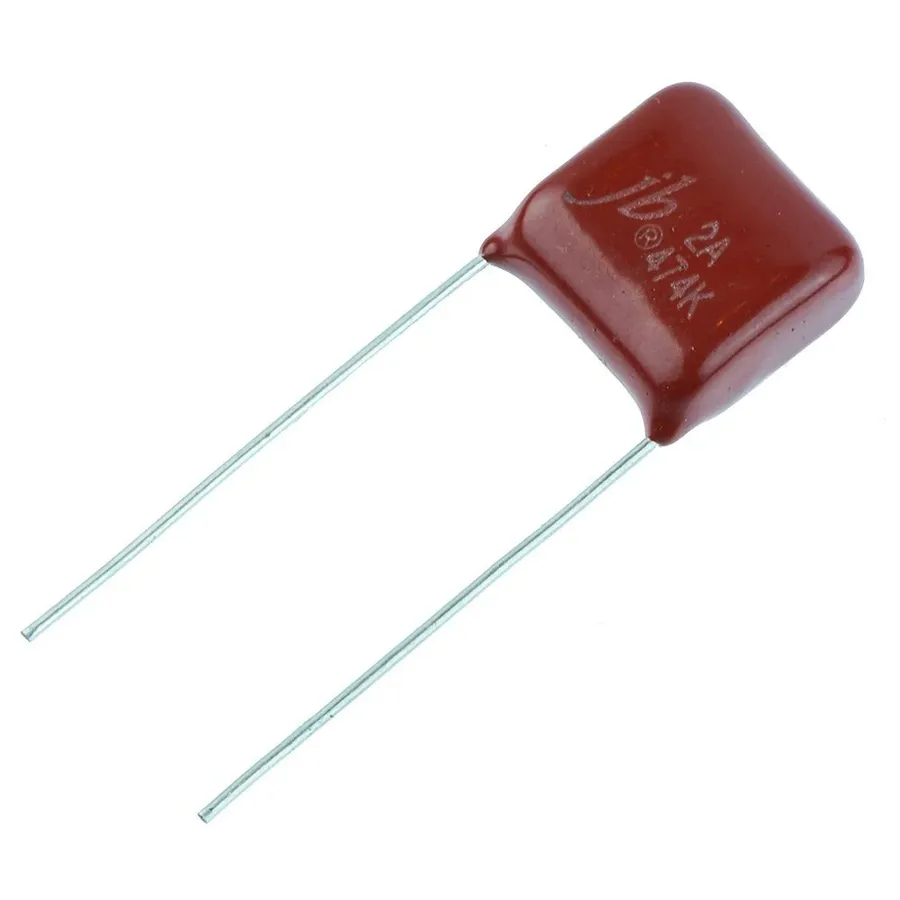

Types of 1 Microfarad Capacitors

The 1 microfarad (1µF) capacitor is a common component in electronics, available in several types, each with distinct characteristics that make them suitable for different applications. These variations stem from differences in their construction and materials, affecting their performance and behavior in circuits.

In summary, ceramic capacitors are ideal for high-frequency applications and general use due to their low cost and stability. Electrolytic capacitors are best for applications needing high capacitance at low frequencies, such as power supply smoothing. Tantalum capacitors offer reliability and temperature stability, suitable for critical applications. Film capacitors provide a good balance of performance for applications requiring low loss and good stability.

Common Applications of 1 Microfarad Capacitors

1 microfarad capacitors are fundamental components in a wide array of electronic circuits, performing crucial functions such as power supply filtering, signal decoupling, and timing control. Their versatile nature makes them indispensable in both simple and complex electronic systems.

Below are some common applications of the 1 microfarad capacitor, alongside illustrative case examples:

• Power Supply Filtering
  In power supplies, 1 microfarad capacitors are often used to smooth out voltage ripples and reduce noise. This ensures a stable and clean power source for sensitive components. For example, a 1uF capacitor placed across the input power of a microcontroller helps stabilize the voltage and prevent erratic behavior.
• Signal Decoupling
  Decoupling capacitors, also known as bypass capacitors, are used to isolate different parts of a circuit. A 1 microfarad capacitor placed close to the power pin of an integrated circuit can provide a local charge reservoir, quickly supplying current during brief current demands, thereby minimizing voltage drops and noise. This can prevent unwanted interactions between different sub-circuits.
• Timing Circuits
  1 microfarad capacitors are commonly found in timing circuits where they determine the duration of specific operations. For example, in an LED blinking circuit, a 1uF capacitor combined with a resistor can set the blinking frequency. The charging and discharging cycle of the capacitor determines the on and off times of the LED.

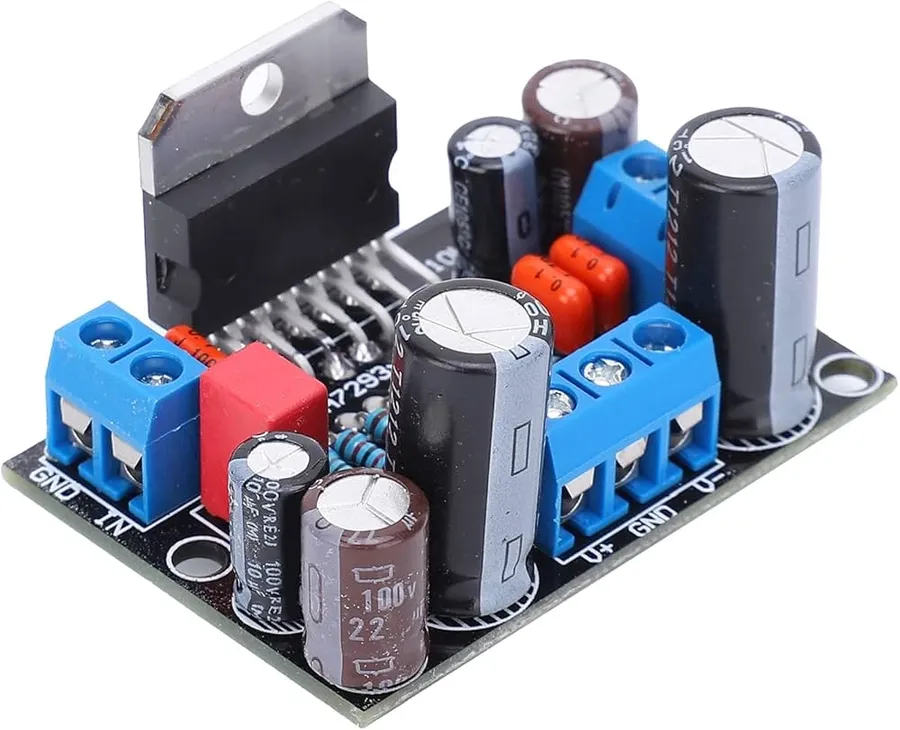

• Audio Circuits
  In audio circuits, 1 microfarad capacitors can be used for coupling and filtering signals. For instance, they might be used in an amplifier to block DC components from the audio signal, ensuring only the AC audio signal is amplified. The specific capacitor value affects the frequency response, so 1uF is often used for low and mid-range frequencies.
• Analog Signal Processing
  1 microfarad capacitors can be used in sample-and-hold circuits, integrators, and differentiators, which are basic building blocks of analog signal processing. These components are vital for implementing various types of filters, providing signal conditioning. The 1uF value can set time constants in this circuits.

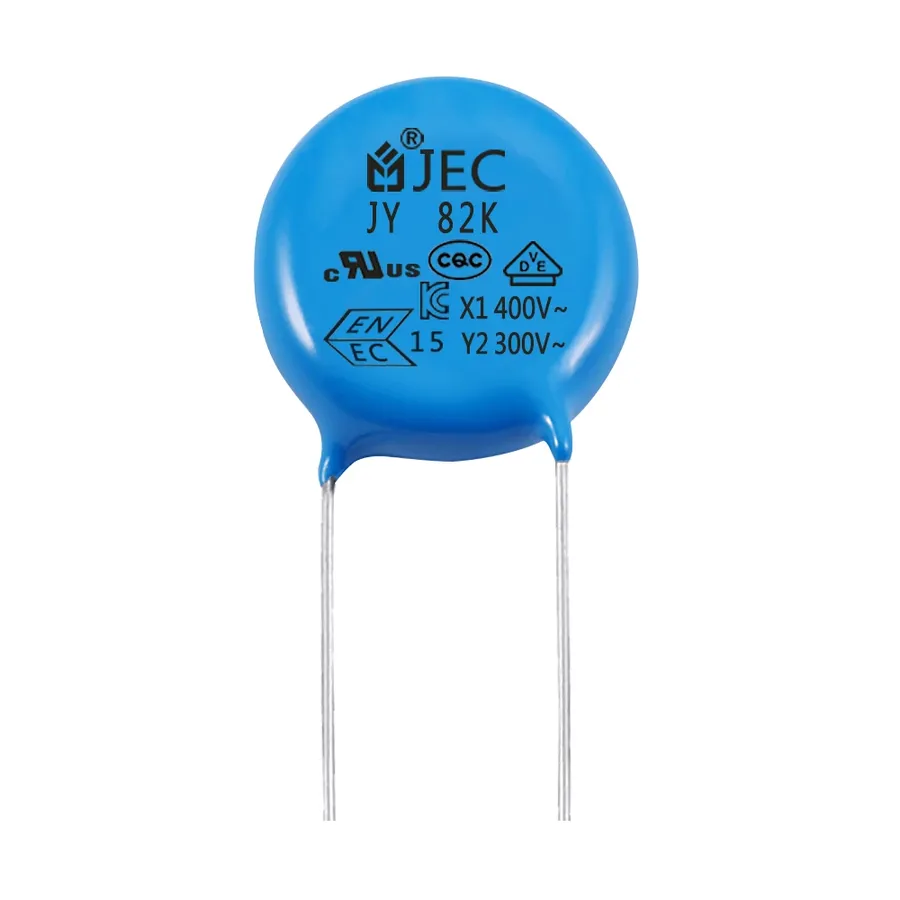

Understanding Capacitor Codes and Markings

Capacitors, including 1 microfarad (1µF) units, often have markings to indicate their electrical characteristics, including capacitance, voltage rating, and tolerance. These codes can be numerical, alpha-numeric, or color-coded, making it essential to understand these markings to select the appropriate component for a circuit.

Decoding these markings allows for accurate identification of the capacitor's specifications, ensuring proper functionality and preventing potential circuit damage. Manufacturers use various coding schemes, often varying based on capacitor type and physical size.

Additionally, some capacitors may include a letter code that specifies the tolerance of the capacitor. For example, J often indicates a 5% tolerance, while K represents 10% and M represents 20% tolerance. It is critical to note that the voltage rating is also very important to check, as exceeding this voltage rating can result in failure of the capacitor.

1 Microfarad vs. Other Common Capacitor Values

The selection of a capacitor value is a critical aspect of circuit design, directly impacting performance and stability. While a 1 microfarad (µF) capacitor serves various purposes, comparing it with other common values like 0.1µF, 10µF, and 100 nanofarads (nF) reveals distinct application niches. Each value offers unique characteristics that are better suited for certain roles within an electronic circuit.

The choice between these values depends heavily on the frequency range, impedance, and energy storage requirements of the application. For example, 0.1 µF capacitors are often used for high-frequency decoupling due to their lower impedance at higher frequencies, effectively suppressing high-frequency noise on power lines. Conversely, 10 µF capacitors, with their higher capacitance, are more effective at smoothing out power supply ripple and providing bulk decoupling for stable voltage levels. A 1 µF capacitor fits in between these, offering a balance of size and performance for a wide variety of uses, making it a versatile component. Lastly, 100nF capacitors, being equivalent to 0.1µF, are often used for high-frequency bypass. Understanding these differences is vital for optimal circuit design and performance.

Frequently Asked Questions About 1 Microfarad Capacitors

This section addresses common queries regarding 1 microfarad capacitors, providing clear and concise answers to enhance understanding and dispel any confusion.

• What is the numerical code for a 1 µF capacitor?
  The numerical code for a 1 µF capacitor often varies depending on the manufacturer and type of capacitor. However, the most common representation is '105', where '10' represents the value and '5' indicates the multiplier (10^5 pF). When converted to microfarads, it translates to 10 * 10^5 pF = 1,000,000 pF = 1 µF. Other coding systems may also be used, so it is crucial to always refer to the capacitor datasheet for precise interpretation.
• What does '1uF' or '1µF' mean on a capacitor?
  The notation '1uF' or '1µF' on a capacitor signifies its capacitance value, which is 1 microfarad. The prefix 'µ' is the Greek letter 'mu', which is the standard symbol for 'micro' and represents a factor of 10^-6. Therefore, a 1 µF capacitor has a capacitance of one millionth of a farad.
• What is the purpose of a 1 microfarad capacitor in a circuit?
  A 1 microfarad capacitor serves a variety of purposes in electronic circuits, primarily as a decoupling capacitor, a filtering element, and in timing applications. For decoupling, it is frequently placed close to integrated circuits to stabilize voltage, reducing power supply noise and spikes by shunting high-frequency noise to ground, thereby improving circuit performance and signal integrity. In filtering applications, a 1 µF capacitor, along with a resistor, can create a low-pass or high-pass filter to block specific frequencies. In timing circuits, it helps determine the duration of timing intervals, particularly in oscillator and timer circuits.
• What is the actual capacitance value of a '1uF' capacitor?
  The nominal capacitance value of a capacitor labeled '1uF' is, by definition, 1 microfarad. However, it's important to note that real-world capacitors have tolerances. This means the actual measured value of a 1 µF capacitor may vary slightly. The actual value will typically be within the tolerance range specified by the manufacturer. For example, a capacitor with a ±10% tolerance could have a value between 0.9 µF and 1.1 µF.
• Can I use a 1000nF capacitor instead of a 1uF capacitor?
  Yes, a 1000nF capacitor is equivalent to a 1uF capacitor. 'nF' stands for nanofarad, and 1 nanofarad is equal to 10^-9 farads, meaning 1000 nF = 1000 * 10^-9 F = 1 * 10^-6 F = 1 µF. Therefore, they can be used interchangeably in most applications, but consider other parameters like tolerance, voltage rating and capacitor type before replacement.
• What are the common failure modes of a 1uF capacitor?
  Common failure modes of 1uF capacitors include degradation due to heat and aging, resulting in decreased capacitance. Overvoltage can cause dielectric breakdown, while excessive current can lead to internal heating and damage. Electrolytic capacitors are particularly susceptible to drying out over time, increasing their equivalent series resistance (ESR) and decreasing capacitance. Physical damage from mishandling or improper installation can also result in failure, such as cracked casing or damaged leads. For reliable long-term operation, choosing the right type of capacitor and keeping operating conditions within their ratings are critical.

Selecting the Right 1 Microfarad Capacitor for Your Project

Choosing the correct 1 microfarad capacitor for your project is crucial for optimal circuit performance and reliability. This selection process requires a careful consideration of several key parameters including voltage rating, tolerance, temperature range, and the specific capacitor type.

Troubleshooting and Testing 1 Microfarad Capacitors

Testing and troubleshooting a 1 microfarad capacitor is crucial to ensure its proper functionality within an electronic circuit. This section provides a step-by-step approach to assess capacitance, equivalent series resistance (ESR), and leakage current, enabling the identification of faulty components and preventing potential circuit failures.

1. Capacitance Measurement
   Use a multimeter with a capacitance measurement function or a dedicated capacitor tester. Disconnect the capacitor from the circuit to prevent inaccurate readings. Select the appropriate capacitance range on your measuring device, connect the probes to the capacitor terminals, and note the reading. A healthy 1 microfarad capacitor should measure close to its rated value, although tolerances may vary.
2. Equivalent Series Resistance (ESR) Measurement
   ESR is the internal resistance of the capacitor which can indicate degradation or a faulty component. Use an ESR meter or a multimeter with ESR measurement capability. Connect the meter to the capacitor and observe the value. Elevated ESR can result in heat generation and poor circuit performance, indicating that the capacitor may need replacement.
3. Leakage Current Test
   Leakage current, though usually small, can increase as a capacitor degrades. A high leakage current can be problematic, especially in sensitive analog circuits. Use a multimeter to measure current with an appropriate voltage applied (typically the rated working voltage), or use a capacitor tester with a leakage current test feature. Excessive leakage suggests a defective capacitor.
4. Visual Inspection
   Before any electrical tests, a visual check can reveal obvious problems. Look for signs of physical damage such as bulging, cracks, or leakage. These are clear indicators of a faulty component, which will likely require replacement.
5. Identifying Faulty Capacitors
   A capacitor is considered faulty if the capacitance value deviates significantly from the rated value (outside tolerance), the ESR is much higher than typical, or the leakage current is excessive. Physical damage, like bulging or cracking, also indicates a need for replacement. Consistent poor performance of the circuit where a capacitor is used might be the best clue that the component is compromised.
6. Preventing Capacitor Failure
   To enhance the longevity of 1 microfarad capacitors, ensure that the working voltage and temperature do not exceed the rated specifications. Select components suitable for high-frequency or high-current applications when required, and always follow proper handling procedures during circuit assembly and design. Always keep them away from excessive physical stress.

The 1 microfarad capacitor, seemingly small, plays an indispensable role in the world of electronics. From its ability to filter out noise, to provide timing in circuits, these tiny components are critical to how electronics work. This article has offered a comprehensive view into these components, their types, uses, and how to choose the right one. Whether you are an engineer or a hobbyist, a strong understanding of the 1 microfarad capacitor is important for any electronic project. Just like a 1 microfarad capacitor helps in smoothing out electrical signals, by understanding these concepts will enable smooth project execution. Keep exploring, experimenting and building on your electronics expertise.
