In the world of advanced circuits, precision and efficiency are paramount. Getting the right quote for your Printed Circuit Board (PCB) project is the first step toward success. This guide will demystify the process of obtaining a quote from Advanced Circuits, highlighting key factors influencing cost and offering practical tips to ensure you secure the best possible value. Whether you're prototyping or mass-producing, understanding these intricacies is crucial to bringing your advanced circuits designs to life.
The cost of an advanced circuit board is a multifaceted calculation, influenced by several key parameters. Understanding these factors is crucial for obtaining an accurate and competitive quote from Advanced Circuits. This section delves into the primary elements impacting your PCB project's cost, enabling you to make informed decisions and optimize your design for cost-effectiveness.
| Factor | Description | Impact on Cost |
|---|---|---|
| Board Size | The physical dimensions of the PCB. | Larger boards generally require more material and processing, thus increasing cost. |
| Number of Layers | The count of conductive layers within the PCB. | More layers increase complexity and material usage, leading to higher costs. |
| Material Type | The substrate material used, such as FR-4, Rogers, or Polyimide. | Advanced materials with superior electrical or thermal properties command higher prices. |
| PCB Quantity | The number of boards required in the order. | Higher quantities usually result in a lower per-unit cost due to economies of scale. |
| Lead Time | The timeframe within which the boards are required to be manufactured and delivered. | Faster turnaround times often incur premium charges. |
| Surface Finish | The type of plating used for component pads and vias (e.g., HASL, ENIG, immersion silver). | More complex finishes such as ENIG are more expensive than standard finishes. |
| Via Type | The type of vias used for electrical connection between layers (e.g., blind, buried). | Advanced vias such as blind and buried vias require more complex manufacturing processes increasing costs. |
| Trace Width and Spacing | The width and spacing of copper traces. | Very fine traces and spacing can increase manufacturing difficulty and price. |
| Drill Size | The size of drill used for vias and mounting holes. | Very small drill size can increase manufacturing difficulty and price. |
Obtaining an accurate quote from Advanced Circuits is a critical first step in your PCB manufacturing process. This section provides a detailed, step-by-step guide to ensure you gather all necessary information and submit a complete request, minimizing delays and ensuring an accurate cost estimate. By following these steps, you'll be well-positioned to receive a prompt and precise quote for your project.
Choosing the right PCB manufacturer is critical for project success. While Advanced Circuits is a well-established provider known for its high quality and quick turnarounds, understanding how it stacks up against other manufacturers, like JLCPCB, is essential for informed decision-making. This section provides a comparative analysis, highlighting the strengths and weaknesses of each.
| Feature | Advanced Circuits | JLCPCB |
|---|---|---|
| Quality | High, with rigorous testing standards | Good, generally meets industry standards |
| Turnaround Time | Fast, with options for expedited services | Can be slower, especially for complex orders |
| Cost | Generally higher, premium pricing | More affordable, budget-friendly options |
| Complexity Handling | Specializes in advanced PCBs, handles complex designs well | Good for standard PCBs, may have limitations with highly intricate designs |
| Customer Service | Responsive and personalized support | Largely online support, may lack personal touch |
| Minimum Order Quantity | Flexible, accommodates small and large runs | Generally higher minimum order quantities |
| Material Options | Wide range of specialized materials available | Standard material options, fewer specialized options |
While JLCPCB offers cost-effective solutions suitable for standard PCB designs, Advanced Circuits stands out in its ability to produce high-quality, complex PCBs with fast turnaround times and robust customer support. The choice between the two often depends on the specific project requirements, budget, and desired lead time. Projects requiring advanced materials, complex designs, and quick delivery might find Advanced Circuits's premium service worth the cost. Conversely, budget-sensitive projects with less stringent complexity requirements could greatly benefit from JLCPCB's more affordable options.
Optimizing PCB design for cost-effectiveness is crucial in managing the overall expenses of advanced circuits projects. Strategic design choices can significantly reduce manufacturing costs without sacrificing the desired performance characteristics. This section will explore several key considerations.
By carefully considering design parameters such as PCB size, layer count, material selection, and the use of techniques like panelization, designers can directly influence the cost of fabrication. Implementing these strategies requires a balanced understanding of design trade-offs and material properties, enabling the optimization of cost and performance effectively.
| Optimization Technique | Description | Impact on Cost |
|---|---|---|
| Panelization | Combining multiple PCB designs onto a single manufacturing panel, improving production efficiency. | Reduces per-unit cost by maximizing material usage and streamlining the manufacturing process. |
| Layer Reduction | Decreasing the number of conductive layers in a PCB. | Lowers material costs and reduces the complexity of fabrication. |
| Standardized Component Footprints | Using standard component packages and footprints. | Reduces design time and complexity, potentially leading to better pricing due to fewer custom requests. |
| Optimal Board Size | Designing the PCB board size to maximize manufacturing panel utilization. | Reduces material waste, leading to lower unit costs. |
| Material Choice | Selecting cost-effective materials without compromising functional requirements. | Material costs can significantly impact the overall price, and lower cost materials should be considered when suitable. |
This section addresses common queries regarding Advanced Circuits quotes, providing clarity on essential aspects such as data requirements, differences between PCB types, and company information to ensure you have a comprehensive understanding.
Advanced Circuits, like many PCB manufacturers, occasionally provides special offers and discounts to attract and retain customers. These promotions can significantly impact the overall cost of your project. Understanding how to identify, evaluate, and leverage these offers is crucial for optimizing your budget.

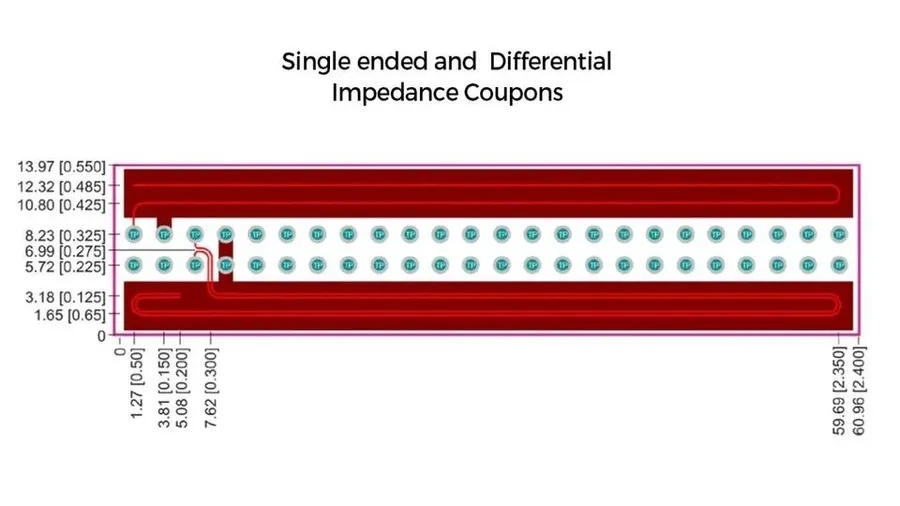

These offers typically vary, including discounts based on order volume, specific board configurations, or promotional periods. For example, the '$33 Each Special' is a frequently advertised discount.
| Offer Type | Description | Typical Conditions | How to Leverage |
|---|---|---|---|
| Volume Discount | Price reduction based on the quantity of PCBs ordered. | Minimum order quantity required. | Plan your project to reach the threshold for a better rate. |
| New Customer Promotion | Discounts or credits for first-time buyers. | May apply only to the first order. | Ensure to use the required promotional code for your first order. |
| Seasonal Discount | Promotions for specific times of the year. | Limited-time offer. | Time your project to coincide with special holiday and seasonal promotions. |
| $33 Each Special | A fixed price per board for specific configurations. | Specific PCB dimensions, layer count, and other technical specifications. | Design your board to comply with the required specifications. |
Carefully assess the terms and conditions of each offer, such as expiration dates, board requirements, and order quantities. Thoroughly understanding these details will help you accurately determine the final cost and maximize your savings when using these special offers.
Negotiating an advanced circuits quote requires a strategic approach that balances cost reduction with the preservation of quality and performance. It's not merely about securing the lowest price, but about achieving the best value for your specific project requirements, necessitating a thorough understanding of the factors influencing the quote.
The type of printed circuit board (PCB) significantly influences the quoting process and overall cost due to variations in materials, manufacturing processes, and design complexity. Understanding these differences is crucial for obtaining an accurate quote from manufacturers like Advanced Circuits and ensuring that project budgets are well-managed.

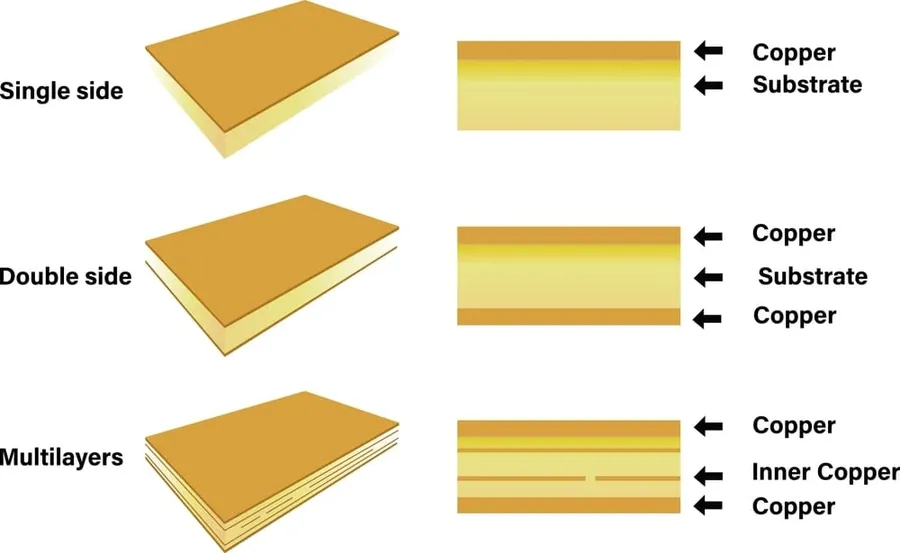

| PCB Type | Material | Complexity | Cost Impact | Typical Applications |
|---|---|---|---|---|
| Single-Sided PCB | FR-4 (common), CEM-1 | Low | Lowest | Simple electronics, basic LED circuits |
| Double-Sided PCB | FR-4 (common), CEM-1 | Medium | Low-Medium | Consumer electronics, basic industrial control |
| Multilayer PCB | FR-4 (common), High-Tg FR-4, Polyimide | High | Medium-High | Complex circuits, high-speed applications |

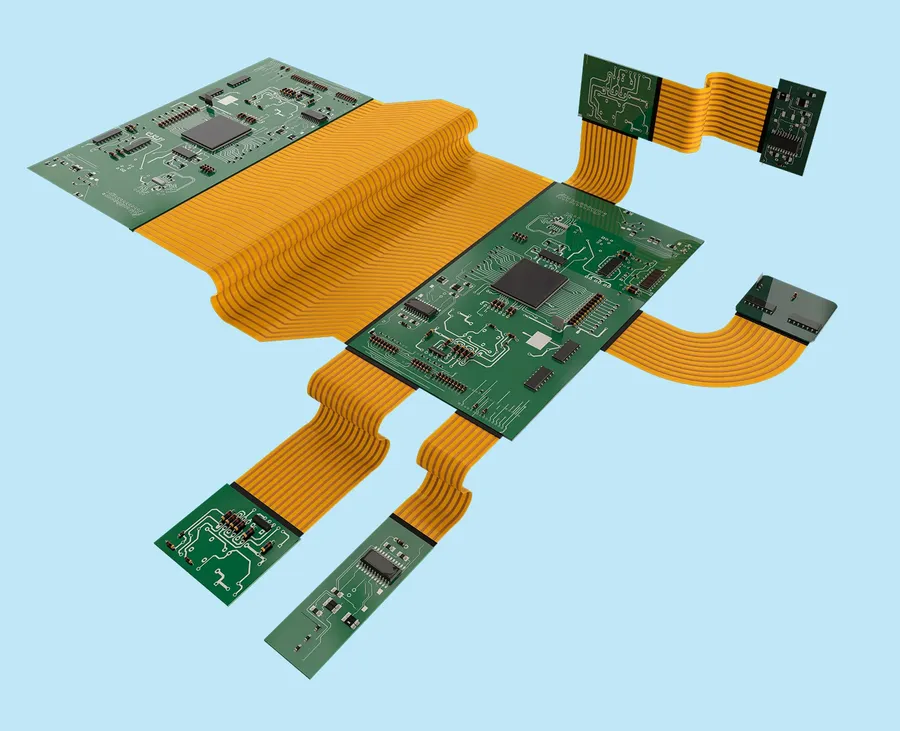

| Rigid-Flex PCB | Polyimide (flexible), FR-4 (rigid) | High | High | Space-constrained electronics, automotive |
| Flex PCB | Polyimide, Polyester | High | High | Wearable devices, medical equipment |
| Metal Core PCB | Aluminum, Copper | Medium-High | High | High-power applications, LED lighting |
Each PCB type is associated with distinct fabrication methods and material requirements. For instance, rigid-flex PCBs, which combine rigid and flexible substrates, incur higher costs due to their sophisticated construction. Similarly, flex PCBs often require more intricate manufacturing processes because of their thin and delicate material composition.
Understanding the specific requirements of your project and the corresponding PCB type is key to obtaining a precise quote. This allows you to accurately plan your budget and timeline while ensuring the product meets desired functional and performance standards.
Securing the best quote for your advanced circuits project requires a thorough understanding of the various influencing factors and a strategic approach to both design and communication with manufacturers like Advanced Circuits. By applying the knowledge and tips shared in this guide, you will be able to get the best value for your PCB needs, ensuring the success of your advanced circuits projects. Remember, the right quote is not just about price, but about the overall value and quality of the final product.
