In the modern aerospace industry, the evolution of aircraft cabin entertainment systems (ACES) has transformed the passenger experience, turning long flights into enjoyable journeys. These sophisticated systems, integrating everything from high-definition displays to seamless connectivity, are fundamentally reliant on advanced Printed Circuit Boards (PCBs). As a veteran engineer at Zero One Solution Limited, I understand that the reliability and performance of these critical components are paramount. This article delves into the intricacies of ACES PCB solutions, highlighting how Zero One Solution Limited, a leader in rapid prototyping and one-stop PCB services, empowers aerospace innovators to achieve unparalleled system performance and reliability.
The Evolution of Aircraft Cabin Entertainment Systems: From Simple Audio to Complex Digital Platforms
The journey of Aircraft Cabin Entertainment Systems (ACES) reflects a significant technological evolution, with Printed Circuit Boards (PCBs) playing an increasingly pivotal role. Initially, in-flight entertainment consisted of basic audio systems. Today's ACES, however, have transformed into sophisticated digital platforms, offering on-demand video, interactive games, real-time information, and connectivity services. This transition has placed unprecedented demands on the underlying electronics, especially PCBs, which must support higher data rates, increased processing power, and enhanced reliability to ensure a seamless passenger experience.
Early Systems: Audio-Centric Entertainment Early ACES were rudimentary, offering limited audio channels via wired connections. PCBs in these systems were simpler, primarily managing analog audio signals and basic control functions. The focus was on robustness and basic functionality, with less emphasis on complexity or high-speed data transmission.
The Rise of Video and Interactive Content The introduction of video marked a significant leap. This necessitated more complex PCBs capable of handling video signals and controlling display units. The advent of personal screens and the incorporation of interactive games further increased the demand for processing power and memory, driving the need for advanced PCB designs.
Digital Transformation: IP-Based Systems and Connectivity Modern ACES are fully digital, utilizing IP-based systems for content delivery and connectivity. This includes Wi-Fi, Bluetooth, and satellite communication, enabling passengers to access the internet, stream content, and connect personal devices. This transformation has driven the need for high-speed PCBs, sophisticated signal integrity management, and robust electromagnetic interference (EMI) shielding to maintain reliable performance.
The Role of Advanced PCB Technology The increasing complexity of ACES has made advanced PCB technology indispensable. Key advancements include multi-layer designs for increased component density, high-frequency materials for faster data transmission, and specialized coatings for environmental protection. As systems become more integrated and feature-rich, the capabilities of the PCBs directly impact the performance, reliability, and overall passenger experience.
The evolution of ACES underscores the critical role of PCBs in aviation technology. At Zero One Solution Limited, we understand these evolving demands and provide advanced PCB solutions designed to meet the rigorous requirements of modern aircraft cabin entertainment systems.
Navigating the Hurdles: Key Challenges in Aircraft Cabin Entertainment System PCB Design

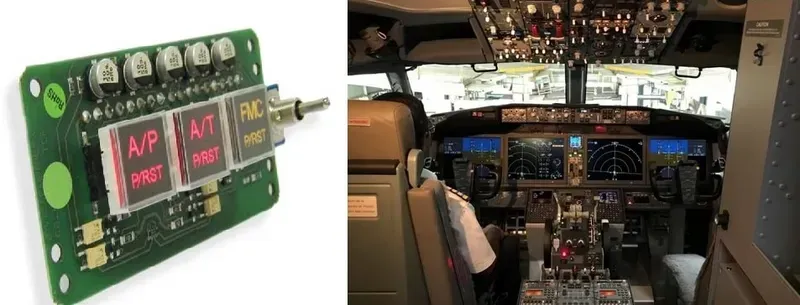

Aircraft Cockpit PCB Design
Designing PCBs for aircraft cabin entertainment systems (ACES) presents a unique set of challenges far removed from standard consumer electronics. The demanding operational environment, stringent regulatory requirements, and the need for uncompromising reliability necessitate careful consideration of several key factors. Meeting these challenges head-on is crucial for ensuring the safety, functionality, and longevity of in-flight entertainment systems.
Regulatory Compliance and Standards Aerospace PCBs must strictly adhere to aviation standards, most notably the RTCA DO-160 standard. This standard mandates rigorous testing for environmental conditions such as temperature variations, altitude, vibration, shock, and humidity. Compliance requires meticulous design, material selection, and manufacturing processes to ensure the PCBs can withstand these harsh conditions without failure.
Vibration and Shock Resistance Aircraft environments expose PCBs to significant vibration and shock during takeoff, flight, and landing. To mitigate these effects, PCB designers must carefully select materials with high mechanical strength, employ robust component mounting techniques, and optimize the layout to minimize stress points. This might involve using specific types of connectors or conformal coatings to protect the components.
Thermal Management Efficient thermal management is crucial due to the confined spaces and temperature fluctuations within an aircraft. PCBs must effectively dissipate heat generated by electronic components to prevent overheating and performance degradation. Strategies include using thermal vias, heat sinks, and selecting materials with high thermal conductivity. Advanced thermal simulations can also be employed during the design phase to optimize thermal performance.
Electromagnetic Compatibility (EMC) Aircraft environments are susceptible to electromagnetic interference (EMI), which can disrupt the functionality of sensitive electronic systems. PCBs must be designed to minimize both emissions and susceptibility to EMI. This involves careful layout, grounding techniques, shielding, and the use of appropriate filtering components. Meeting EMC requirements is essential to prevent interference with other aircraft systems and maintain the integrity of the ACES.
Weight and Space Constraints Weight is a critical factor in aircraft design, and every component contributes to the overall weight of the aircraft. PCBs for ACES must be designed to be as lightweight and compact as possible without compromising performance or reliability. This often leads to the use of multi-layer PCBs, miniaturized components, and advanced manufacturing techniques to optimize space and reduce weight.
At Zero One Solution Limited, we understand these challenges and offer tailored PCB solutions that address them head-on. Our expertise in rapid prototyping, coupled with our commitment to quality and compliance, ensures that your ACES projects meet the highest standards of performance and reliability.
Critical PCB Requirements for High-Performance Aircraft Cabin Entertainment Systems

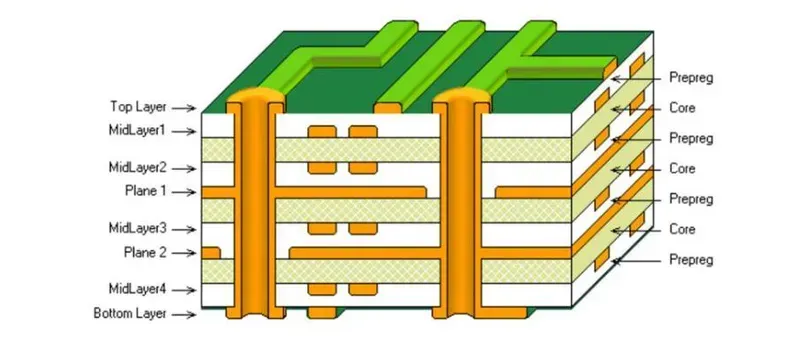

Multi-Layer PCB Board
High-performance Aircraft Cabin Entertainment Systems (ACES) demand Printed Circuit Boards (PCBs) that meet stringent technical specifications. These requirements are crucial for ensuring the reliability, efficiency, and longevity of in-flight entertainment experiences. At Zero One Solution Limited, we recognize these challenges and engineer PCB solutions to meet the highest standards of the aerospace industry.
High-Speed Data Transmission Capabilities Modern ACES rely heavily on high-speed data transfer for streaming media, interactive games, and real-time information. PCBs must support high data rates using advanced materials and designs that minimize signal loss and ensure signal integrity. This includes impedance control, careful trace routing, and the use of high-frequency components.
Power Efficiency Power efficiency is a critical factor in ACES, where thermal management and weight are primary concerns. PCBs must be designed to minimize power consumption and heat generation. This involves selecting low-power components, optimizing power distribution networks, and employing thermal management techniques such as thermal vias and heat sinks.
Signal Integrity Maintaining signal integrity is paramount in ACES to prevent data errors and ensure reliable performance. PCBs must be designed to mitigate signal reflections, crosstalk, and electromagnetic interference (EMI). This involves careful component placement, controlled impedance traces, and the use of shielding techniques.
Compact and Multi-Layer Designs Space is at a premium in aircraft, necessitating compact, lightweight PCB designs. Multi-layer PCBs are often employed to maximize functionality within a limited footprint. These designs require advanced manufacturing capabilities to ensure the reliability of through-holes, blind vias, and other complex features.
Robust Connectors and Component Integration Reliable connectors are essential for maintaining robust connections and preventing failures in ACES. PCBs must be designed with high-quality, vibration-resistant connectors. Moreover, components must be carefully integrated to ensure proper functionality and ease of maintenance. Proper component selection and placement are crucial for both performance and long-term reliability.
Zero One Solution Limited specializes in providing tailored PCB solutions that address these critical requirements, ensuring that your ACES operate reliably and efficiently.
Zero One Solution Limited: Your Partner in Advanced Aerospace PCB Solutions
Engineer Holding PCB Prototype
In the demanding world of aerospace, the reliability and performance of Aircraft Cabin Entertainment Systems (ACES) are paramount. Zero One Solution Limited stands as a premier provider of advanced PCB solutions, uniquely positioned to meet the stringent requirements of the aerospace industry. With a foundation built on rapid prototyping, comprehensive one-stop services, and a steadfast commitment to quality, we empower clients to innovate and excel in this critical sector.
Our expertise spans the entire PCB lifecycle, from initial design and prototyping to manufacturing and assembly. We specialize in delivering high-reliability PCBs that withstand the harsh environments typical of aerospace applications. Our team possesses in-depth knowledge of aerospace standards, including DO-160, ensuring that our solutions meet the necessary regulatory compliances.
Rapid Prototyping for Accelerated Development: We understand the importance of speed in aerospace projects. Our rapid prototyping services enable clients to swiftly iterate designs, minimizing time-to-market and fostering a competitive edge. We offer quick-turn PCB prototypes, allowing for fast testing and validation of designs.
One-Stop PCB Design, Manufacturing, and Assembly: Zero One Solution Limited provides a streamlined, integrated service, encompassing all aspects of PCB development. This comprehensive approach simplifies project management, enhances quality control, and reduces the risk of errors. Our global supply chain network guarantees access to the latest components and technologies.
Uncompromising Quality and Reliability: We are committed to the highest standards of quality. Our manufacturing processes adhere to rigorous quality control measures, including IPC standards and stringent testing protocols. This dedication ensures that our PCBs perform reliably in the challenging operating conditions of ACES.
Specialization in High-Complexity, High-Reliability Applications: Our team has extensive experience with complex PCB designs, including multi-layer boards, HDI technology, and advanced component integration. We are adept at addressing critical design considerations such as signal integrity, thermal management, and electromagnetic compatibility (EMC).
Partner with Zero One Solution Limited and benefit from a proven track record of excellence in aerospace PCB solutions. Contact us today to learn how we can help bring your innovative ACES projects to fruition.
Our Comprehensive Approach to ACES PCB Development

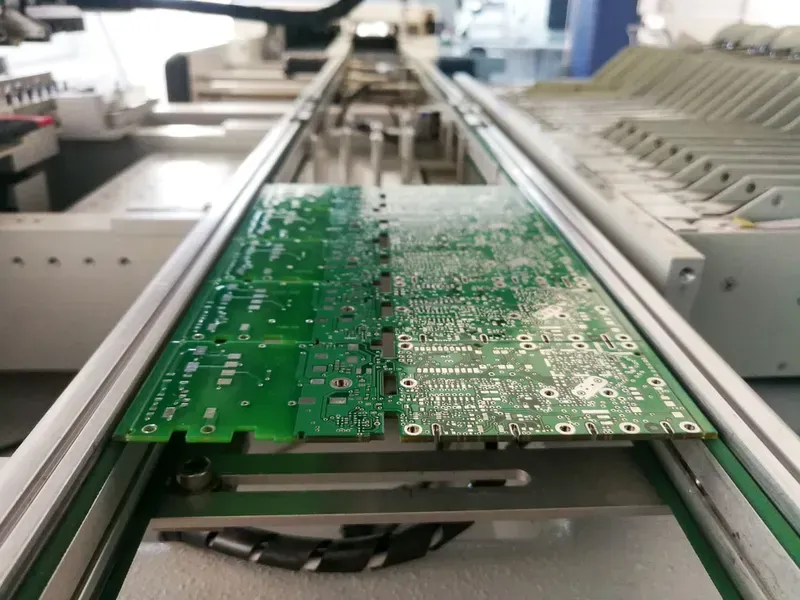

PCB Manufacturing Factory Line
At Zero One Solution Limited, we believe that a successful Aircraft Cabin Entertainment System (ACES) PCB solution begins with a deep understanding of our clients' needs and the stringent demands of the aerospace environment. Our comprehensive approach is a meticulous, multi-stage process designed to deliver robust, reliable, and high-performing PCBs. This structured methodology ensures that every project, from initial concept to final deployment, meets the highest standards of quality and performance.
1. Initial Consultation and Requirement Gathering We start with an in-depth consultation to understand your specific project requirements, including performance specifications, environmental constraints, and regulatory compliance needs (e.g., DO-160). This phase includes a thorough analysis of your system architecture and a detailed discussion of desired functionalities and performance metrics.
2. PCB Design and Simulation Our experienced design engineers utilize advanced CAD software to create your PCB layout, considering factors such as signal integrity, power distribution, and thermal management. We perform extensive simulations to validate designs, ensuring optimal performance and mitigating potential risks before prototyping.
3. Rapid Prototyping and Testing Leveraging our rapid prototyping capabilities, we quickly produce physical prototypes of the PCB. These prototypes undergo rigorous testing, including functional testing, environmental stress testing (vibration, temperature cycling), and EMC testing. This iterative process allows us to refine designs and ensure they meet all performance criteria.
4. Manufacturing and Assembly Once the design is validated, we move into the manufacturing and assembly phase. We use high-quality materials and employ advanced manufacturing techniques to produce PCBs that meet the highest standards of reliability and durability. Our global supply chain ensures access to the latest components and materials.
5. Rigorous Quality Control and Final Inspection Every PCB undergoes a comprehensive quality control process, including automated optical inspection (AOI), electrical testing, and final inspection. We adhere to strict quality management systems to guarantee the reliability and performance of our products. Each ACES PCB solution is delivered with complete documentation and certification.
Our collaborative process emphasizes close communication and partnership with our clients. We provide regular updates, design reviews, and technical support throughout the project lifecycle, ensuring that the final product perfectly aligns with your project specifications and regulatory needs. This systematic approach, combined with our commitment to excellence, makes Zero One Solution Limited the ideal partner for your ACES PCB development needs.
Advantages of Partnering with Zero One Solution Limited for ACES PCBs
Choosing Zero One Solution Limited for your Aircraft Cabin Entertainment System (ACES) PCB needs offers significant advantages, directly translating into faster time-to-market, reduced costs, and enhanced product performance. Our commitment to excellence, combined with our comprehensive capabilities, makes us the ideal partner for your aerospace projects. We provide a streamlined process from design to manufacturing, ensuring your ACES PCBs meet the highest standards of quality and reliability.
Accelerated Product Development Through Rapid Prototyping Our rapid prototyping services significantly reduce development cycles. We understand the critical need for speed in the aerospace industry. By quickly iterating designs and providing prototypes, we enable you to validate concepts, identify potential issues early on, and accelerate your product's time to market. This efficiency is crucial for staying ahead in a competitive landscape.
Cost-Effective Solutions and Competitive Pricing We offer cost-effective solutions without compromising on quality. Our strategic location in Shenzhen, China, allows us to leverage a global supply chain network, providing access to competitive component pricing and efficient manufacturing processes. This translates into reduced overall project costs, helping you maximize your investment while ensuring high-quality, reliable PCBs.
Global Supply Chain Network for Seamless Access to Resources Our extensive global network ensures access to the latest components and technologies. With a strong presence in the Shenzhen electronics hub and a branch in Dubai, we navigate the global supply chain, ensuring a smooth flow of materials and components. This global reach minimizes supply chain disruptions and provides flexibility in sourcing, supporting your project's success.
Unwavering Technical Support and Expert Guidance Our team of veteran engineers provides dedicated technical support throughout the entire project lifecycle. From design consultation and DFM (Design for Manufacturability) analysis to post-manufacturing support, we are committed to helping you succeed. Our expertise ensures that your ACES PCBs are optimized for performance, reliability, and compliance with stringent aerospace standards.
Partnering with Zero One Solution Limited means choosing a dedicated partner who understands the complexities of ACES PCB development. We are committed to providing solutions that drive innovation and deliver exceptional value to our clients in the aerospace industry. Our focus is on reliability, performance, and cost-effectiveness, ensuring your projects meet and exceed expectations.
The demands placed on Aircraft Cabin Entertainment Systems are continuously evolving, requiring PCB solutions that are not only robust and high-performing but also adaptable and scalable. Zero One Solution Limited, with its proven expertise in rapid prototyping, comprehensive PCB design, manufacturing, and assembly, stands as your ideal partner. Our strategic global presence and unwavering commitment to quality ensure that your ACES projects benefit from the most advanced and reliable PCB technology available. Partner with us to elevate your in-flight entertainment offerings and provide an unparalleled passenger experience. Contact Zero One Solution Limited today to discuss your next-generation ACES PCB requirements.
