In the rapidly evolving landscape of electronics, batteries are the lifeblood of countless innovations, from electric vehicles to portable medical devices. Yet, the true potential and longevity of these power sources hinge on one critical component: the Battery Management System (BMS). A robust BMS is not merely an accessory; it's the intelligence that safeguards, optimizes, and extends battery life, ensuring safety and peak performance. At Zero One Solution Limited, we understand that a superior BMS begins with a flawlessly engineered Printed Circuit Board (PCB). This article delves into how our comprehensive BMS PCB solutions empower your projects, providing the foundational reliability and efficiency necessary to bring cutting-edge products to market faster and more safely.
The Indispensable Role of the Battery Management System (BMS) in Modern Electronics
In the realm of battery-powered devices, the Battery Management System (BMS) is not merely an accessory but a fundamental necessity. Serving as the central nervous system for batteries, the BMS is critical for ensuring both the safety and optimal performance of battery packs across a multitude of applications. From electric vehicles to portable consumer electronics, the BMS plays a pivotal role in maximizing battery lifespan, preventing catastrophic failures, and enhancing overall system efficiency. Its importance stems from its multifaceted responsibilities, which are essential for the safe and effective operation of battery technology.
Safety and Protection The primary function of a BMS is to safeguard the battery from damage. It continuously monitors critical parameters such as voltage, current, and temperature to prevent overcharging, over-discharging, and thermal runaway – all potential hazards that can lead to battery failure, fire, or explosion. By implementing protective measures, the BMS enhances the reliability and safety of battery-powered devices, protecting both the equipment and the user.
Performance Optimization A well-designed BMS optimizes battery performance by balancing the charge across all cells within a battery pack. This ensures that each cell operates within its optimal voltage range, thereby maximizing the overall capacity and efficiency of the battery system. The BMS manages the charging and discharging processes effectively, enhancing the usable energy and extending the operational life of the battery.
Longevity and Lifecycle Management By regulating the operational conditions of the battery, the BMS significantly contributes to extending its lifespan. It monitors the battery's state of charge (SOC) and state of health (SOH), providing valuable insights into the battery's remaining capacity and overall condition. Through these monitoring capabilities, the BMS helps to prevent premature aging and degradation, ensuring the battery's long-term reliability and performance. Furthermore, the BMS assists in predicting the end-of-life stage, enabling timely replacement and disposal, which is crucial for both environmental sustainability and cost management.
Understanding the BMS PCB: The Core of Battery Management

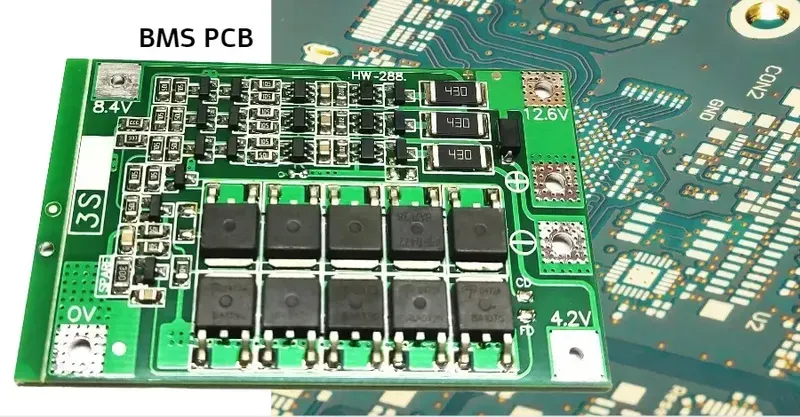

BMS PCB
At the heart of every effective Battery Management System (BMS) lies the BMS PCB, an intricately designed circuit board that acts as the central nervous system, orchestrating the safety, performance, and longevity of battery packs. The BMS PCB is far more than just a collection of components; it's a sophisticated platform where advanced algorithms and precision engineering converge to ensure optimal battery operation. Its design and manufacturing directly dictate the BMS's overall reliability, efficiency, and ability to protect the battery from potential hazards, such as overcharging, over-discharging, and thermal runaway.
The BMS PCB’s primary functions include:
Cell Monitoring Continuously monitors the voltage, current, and temperature of each individual battery cell to ensure operation within safe parameters.
Protection Implements protection mechanisms to prevent overcharge, over-discharge, over-current, and short-circuit conditions, which can damage the battery or pose safety risks.
Balancing Balances the charge across all cells in the battery pack to maximize capacity and extend lifespan by equalizing the state of charge (SOC) of each cell.
Communication Facilitates communication with external devices, such as the charger, the application it powers, and the user interface, often via protocols like CAN bus or SMBus.
Data Logging Records critical operational data for diagnostics, performance analysis, and predictive maintenance.
The design of a BMS PCB demands specialized expertise in several key areas. It requires proficiency in high-current routing to handle the substantial power flows involved in charging and discharging. Thermal management is crucial to dissipate heat generated by the battery cells and electronic components, preventing overheating. Precision analog circuitry is essential for accurate voltage and current sensing, while robust communication interfaces are needed for data transfer and control. Furthermore, the PCB must adhere to stringent safety standards and regulatory requirements, such as those set by UL and IEC.
The manufacturing process also plays a pivotal role in the BMS PCB's performance. High-quality materials, precise fabrication techniques, and rigorous testing are vital to ensure the board's reliability and longevity. At Zero One Solution Limited, we leverage advanced manufacturing capabilities to deliver BMS PCBs that meet the highest standards of quality and performance, ensuring that your battery systems operate safely and efficiently.
Zero One Solution Limited: Your Premier Partner for Comprehensive BMS PCB Solutions
In the dynamic world of battery-powered technologies, the Battery Management System (BMS) is pivotal, and at Zero One Solution Limited, we offer a comprehensive, integrated approach to BMS PCB solutions. As a veteran in the PCB industry, we understand the critical nature of BMS PCBs in ensuring battery safety, optimizing performance, and extending lifespan. Our one-stop service model, encompassing design, manufacturing, and assembly, is specifically engineered to meet the complex requirements of modern BMS applications. We are committed to empowering our clients with rapid prototyping capabilities, cutting-edge engineering expertise, and a global supply chain network, making us the ideal partner for your BMS PCB projects.
Founded in 2011, Zero One Solution Limited has rapidly evolved to meet the demands of the rapidly growing PCB assembly solutions sector. Our strategic location in Shenzhen, the heart of China's electronics manufacturing, complemented by our branch in Dubai, enhances our ability to support a global network of clients. With a focus on rapid-response R&D prototype manufacturing, we specialize in bringing innovative solutions to market with exceptional efficiency, ensuring that you gain a competitive edge.
Our comprehensive BMS PCB solutions include:
Custom Design and Engineering: Expert design services tailored to your specific BMS requirements, including schematic capture, PCB layout, and simulation.
Rapid Prototyping: Accelerated prototyping services, enabling quick iterations and validation of your BMS PCB designs.
High-Quality Manufacturing: Advanced manufacturing processes and stringent quality control measures to ensure reliable and high-performance BMS PCBs.
PCB Assembly Services: Complete PCB assembly, including component sourcing, SMT (Surface Mount Technology), and through-hole assembly, with a focus on precision and reliability.
Testing and Validation: Comprehensive testing and validation services to ensure your BMS PCBs meet the highest standards of performance and safety.
By choosing Zero One Solution Limited, you gain a strategic partner with extensive industry experience, enabling you to expedite your product development and secure your position in the market.
Key Features and Technologies in Our BMS PCB Design

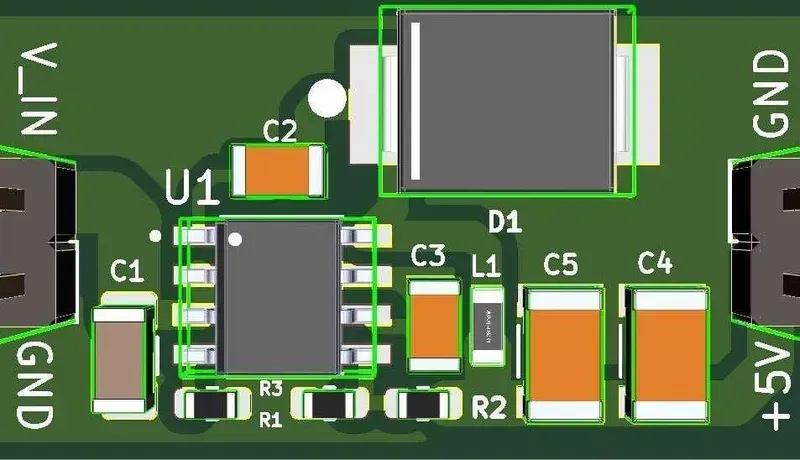

High Current PCB Routing
At Zero One Solution Limited, we understand that the performance and reliability of a Battery Management System (BMS) hinge on the precision of its PCB design. Our BMS PCB solutions are engineered with a focus on critical features and cutting-edge technologies that ensure optimal battery performance, safety, and longevity. We integrate advanced design considerations to meet the demanding requirements of various applications, from electric vehicles to energy storage systems.
Our core design features and technologies include:
High Current Routing We employ robust high-current routing techniques, including the use of thicker copper layers and optimized trace widths, to handle the substantial currents associated with battery charging and discharging. This design aspect minimizes resistance, reduces heat generation, and ensures efficient power delivery.
Thermal Management Effective thermal management is crucial for BMS PCBs. We integrate thermal vias, heat sinks, and carefully designed PCB layouts to dissipate heat generated by power components. This ensures stable operating temperatures, prevents thermal runaway, and extends the lifespan of the BMS.
Precision Voltage and Current Sensing Accurate voltage and current sensing are fundamental to BMS operation. We utilize high-precision sensing circuits and components to measure battery cell voltages and currents with high accuracy. This enables precise state-of-charge (SOC) estimation, overcharge/over-discharge protection, and optimized battery performance.
Communication Interfaces We incorporate a range of communication interfaces, such as CAN, I2C, and UART, to facilitate seamless communication between the BMS and other system components. This enables data exchange, control commands, and real-time monitoring of battery status.
Robust Protection Circuits Our designs include comprehensive protection circuits for over-voltage, under-voltage, over-current, and short-circuit conditions. These safeguards protect the battery pack from damage and ensure the safety of the overall system.
EMI/EMC Compliance We design our BMS PCBs to meet stringent Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC) standards. This includes careful component placement, shielding techniques, and filtering to minimize interference and ensure reliable operation in various environments.
By focusing on these key features and technologies, Zero One Solution Limited delivers BMS PCB solutions that are not only highly functional but also reliable, safe, and optimized for the specific needs of your application.
Manufacturing and Assembly Excellence for BMS PCBs: Ensuring Reliability

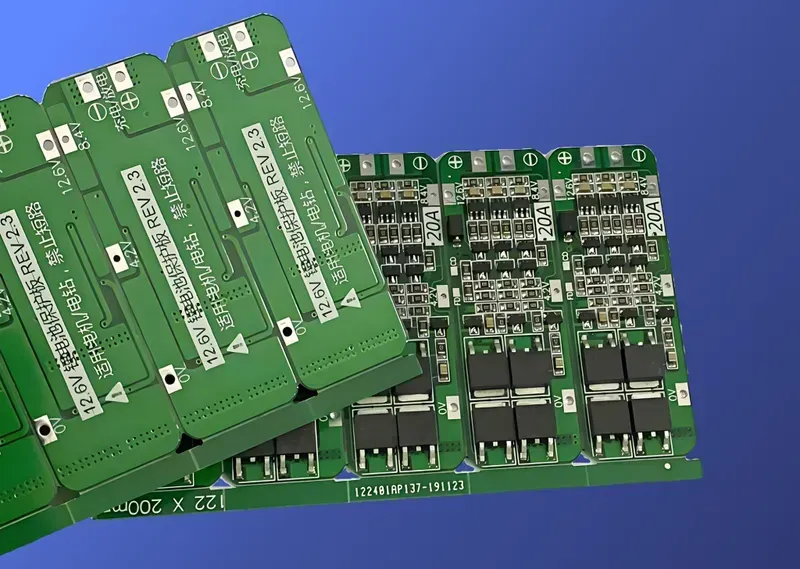

BMS PCBA Manufacturing
The reliability and performance of a Battery Management System (BMS) hinges on the precision of its manufacturing and assembly. At Zero One Solution Limited, we understand that a robust BMS PCB is not just about design; it's about executing a flawless manufacturing process. Our commitment to excellence in manufacturing and assembly ensures that every BMS PCBA meets the stringent requirements of its application, providing longevity and optimal performance.
Our approach encompasses several key aspects:
Advanced Manufacturing Processes We employ state-of-the-art manufacturing equipment and techniques, including automated pick-and-place machines, reflow ovens, and AOI (Automated Optical Inspection) systems. These technologies enable us to handle complex PCB designs with precision, ensuring accurate component placement and reliable solder joints. This is especially critical for BMS PCBs, where components are often densely packed and require high precision.
Stringent Quality Control Quality is paramount in our manufacturing process. We adhere to IPC standards and implement rigorous quality control measures at every stage, from incoming material inspection to final product testing. This includes AOI, X-ray inspection, and functional testing to identify and rectify any defects. Our quality control team is dedicated to ensuring that every BMS PCBA meets the highest standards of quality and reliability. We also use flying probe tests to test the electrical performance of the assembled PCB.
Specialized Assembly Capabilities We have the expertise to assemble BMS PCBs with a wide range of components, including surface-mount devices (SMDs), through-hole components, and BGAs (Ball Grid Arrays). Our assembly processes are optimized for high-volume production while maintaining the highest levels of quality. We handle various assembly requirements, from simple to highly complex designs, ensuring that each BMS PCBA functions flawlessly.
Thermal Management Solutions Given the thermal challenges inherent in BMS applications, we provide solutions to dissipate heat generated by components. This includes the use of thermal vias, heat sinks, and thermal interface materials to improve the reliability and lifespan of the BMS PCB.
Our comprehensive manufacturing and assembly capabilities enable us to deliver BMS PCB solutions that are not only innovative but also highly reliable and efficient. We understand the critical role that BMS plays in product safety and performance, and we are dedicated to providing the highest quality solutions to our clients.
Industries Revolutionized by Advanced BMS PCB Solutions
Electric Vehicle BMS
The Battery Management System (BMS) PCB is not just a component; it's a critical enabler, driving innovation and efficiency across a multitude of sectors. The capabilities of a well-engineered BMS PCB directly translate into improved performance, safety, and longevity of battery-powered devices. Zero One Solution Limited's advanced BMS PCB solutions are at the forefront of this technological evolution, powering a wide array of applications and industries.
Electric Vehicles (EVs) EVs are perhaps the most visible beneficiaries of advanced BMS PCB technology. Our solutions ensure optimal battery performance, range maximization, and critical safety measures. Sophisticated BMS PCBs in EVs continuously monitor individual cell voltages, temperatures, and charging/discharging rates to prevent overcharging, overheating, and other hazards. This continuous monitoring extends battery life and enhances the overall driving experience.
Energy Storage Systems (ESS) ESS, including residential and grid-scale systems, rely on BMS PCBs to manage large battery banks efficiently. Zero One Solution's BMS solutions facilitate the seamless integration of renewable energy sources and provide reliable backup power. Our PCBs optimize energy storage and distribution, contributing to the stability and sustainability of power grids.
Medical Devices In the medical field, the reliability of battery-powered devices is paramount. Our BMS PCBs ensure that critical medical equipment, such as portable monitoring devices, infusion pumps, and surgical tools, operate safely and consistently. The precision and safety features built into our BMS PCBs are essential for patient safety and device performance.
Consumer Electronics From smartphones and laptops to power tools and e-bikes, consumer electronics depend on efficient and safe battery management. Our BMS PCB solutions provide enhanced battery life, improved performance, and increased safety for a wide range of portable devices. We enable manufacturers to create more reliable, longer-lasting, and safer products.
Aerospace and Defense Aerospace and defense applications require high-reliability BMS solutions due to the critical nature of these systems. Zero One Solution's BMS PCBs are designed to withstand extreme conditions and ensure the safe and efficient operation of battery-powered equipment used in aviation, space exploration, and defense systems. Our robust solutions meet the stringent demands of these high-stakes environments.
By focusing on these key applications, Zero One Solution Limited demonstrates its commitment to delivering advanced BMS PCB solutions that meet the evolving needs of various industries, ensuring safety, performance, and longevity for all battery-powered devices.
Why Choose Zero One Solution Limited for Your BMS PCB Needs?
Choosing the right partner for your Battery Management System (BMS) PCB needs is paramount. At Zero One Solution Limited, we offer a comprehensive suite of services and unparalleled expertise, making us the ideal choice for your project. Our commitment to quality, rapid prototyping, and global supply chain management ensures that your BMS PCB solutions are not only innovative but also reliable and cost-effective.
Rapid Prototyping & Fast Turnaround We specialize in rapid prototyping, allowing you to accelerate your product development cycle. Our streamlined processes and state-of-the-art manufacturing capabilities enable us to deliver prototypes quickly, helping you to test, refine, and bring your products to market faster.
Engineering Expertise Our team of experienced engineers has deep expertise in BMS PCB design, manufacturing, and assembly. We provide design support, DFM (Design for Manufacturability) analysis, and comprehensive technical guidance to ensure optimal performance and reliability of your BMS PCBs.
Global Supply Chain Network Leveraging our strategically located headquarters in Shenzhen, China, and a branch in Dubai, we have established a robust global supply chain network. This allows us to source high-quality components efficiently and manage costs effectively, ensuring timely delivery of your projects.
Commitment to Quality Quality is at the heart of everything we do. We adhere to stringent quality control measures throughout the manufacturing process, including rigorous testing and inspection. Our commitment to excellence ensures that every BMS PCB meets the highest standards of performance and reliability.
One-Stop Solution From initial design and prototyping to manufacturing and assembly, we offer a complete, one-stop solution. This integrated approach simplifies the process, reduces lead times, and allows you to focus on your core business, knowing your PCB needs are in expert hands.
Frequently Asked Questions About Battery Management System (BMS) PCB Solutions
Navigating the intricacies of Battery Management System (BMS) PCB solutions can be complex. This section addresses common inquiries, providing clear, concise answers to empower you with essential knowledge.
What is a BMS PCB, and why is it important? A BMS PCB (Printed Circuit Board) is the central electronic component within a Battery Management System. It's crucial because it monitors, controls, and protects the battery pack, ensuring safe and efficient operation. The BMS PCB manages critical functions such as cell balancing, overcharge/discharge protection, and thermal management, directly impacting the battery's lifespan and performance.
What are the key considerations in designing a BMS PCB? Key design considerations include high-current routing, thermal management, precision voltage and current sensing, and robust communication interfaces. The PCB must be designed to withstand harsh environments, including vibrations and temperature fluctuations. Component selection, layout, and material choices play a critical role in the BMS PCB's reliability and performance.
How does Zero One Solution Limited ensure the quality of BMS PCB manufacturing? Zero One Solution Limited employs stringent manufacturing processes, including automated optical inspection (AOI), X-ray inspection, and functional testing to guarantee the highest quality. We adhere to IPC standards and conduct rigorous quality control checks throughout the production process. Our commitment to quality ensures that each BMS PCB meets or exceeds industry standards.
What industries benefit from Zero One Solution Limited's BMS PCB solutions? Our BMS PCB solutions are essential for various industries, including electric vehicles (EVs), energy storage systems (ESS), medical devices, and consumer electronics. Any application requiring reliable, high-performance battery management can benefit from our specialized PCB solutions, ensuring optimal battery performance and safety.
What advantages does Zero One Solution Limited offer compared to other PCB manufacturers for BMS PCBs? We offer rapid prototyping, advanced engineering expertise, and a global supply chain network. This enables us to provide custom BMS PCB solutions quickly and efficiently. Our focus on quality, combined with our one-stop-shop capabilities, makes us a preferred partner for companies needing reliable, high-performance BMS PCB solutions.
How do I get started with a BMS PCB project with Zero One Solution Limited? Contact us with your project specifications, including battery type, voltage, current requirements, and any specific performance or environmental constraints. Our engineering team will assess your needs and provide a tailored solution. We offer support from the initial design phase through manufacturing and assembly to ensure your project's success.
The future of power lies in intelligent, reliable, and efficient battery management. At Zero One Solution Limited, our commitment to excellence in BMS PCB solutions is unwavering. Leveraging our deep expertise in rapid prototyping, design, manufacturing, and assembly, we provide a one-stop service that transforms your innovative concepts into market-ready realities with unmatched speed and precision. Partner with us to unlock the full potential of your battery-powered systems, ensuring safety, longevity, and superior performance. Contact Zero One Solution Limited today to discuss your next BMS PCB project and experience the difference that true engineering partnership can make.
