Project Background

With the rapid growth of IoT and the sharing economy, the demand for high-precision, low-power, and compact positioning modules has increased significantly. This project required a highly integrated tracker mainboard that can be used as a standalone device or embedded into other equipment for asset tracking, vehicle security, pet tracking, and other applications.

Key Hardware Requirements:

• Multi-Mode Positioning: GPS, BeiDou, LBS (base station), WiFi, and AGPS

• Global Connectivity: GSM/GPRS quad-band (850/900/1800/1900MHz) for global deployment

• Low Power Consumption: Support for sleep modes to extend battery life

• Compact Size: High-density integration for space-constrained applications

• Rich Interface: Support for external sensors, relay control, and expansion

• Alert Functions: Vibration, movement, over-speed, and low-battery alerts

Our PCBA Solution

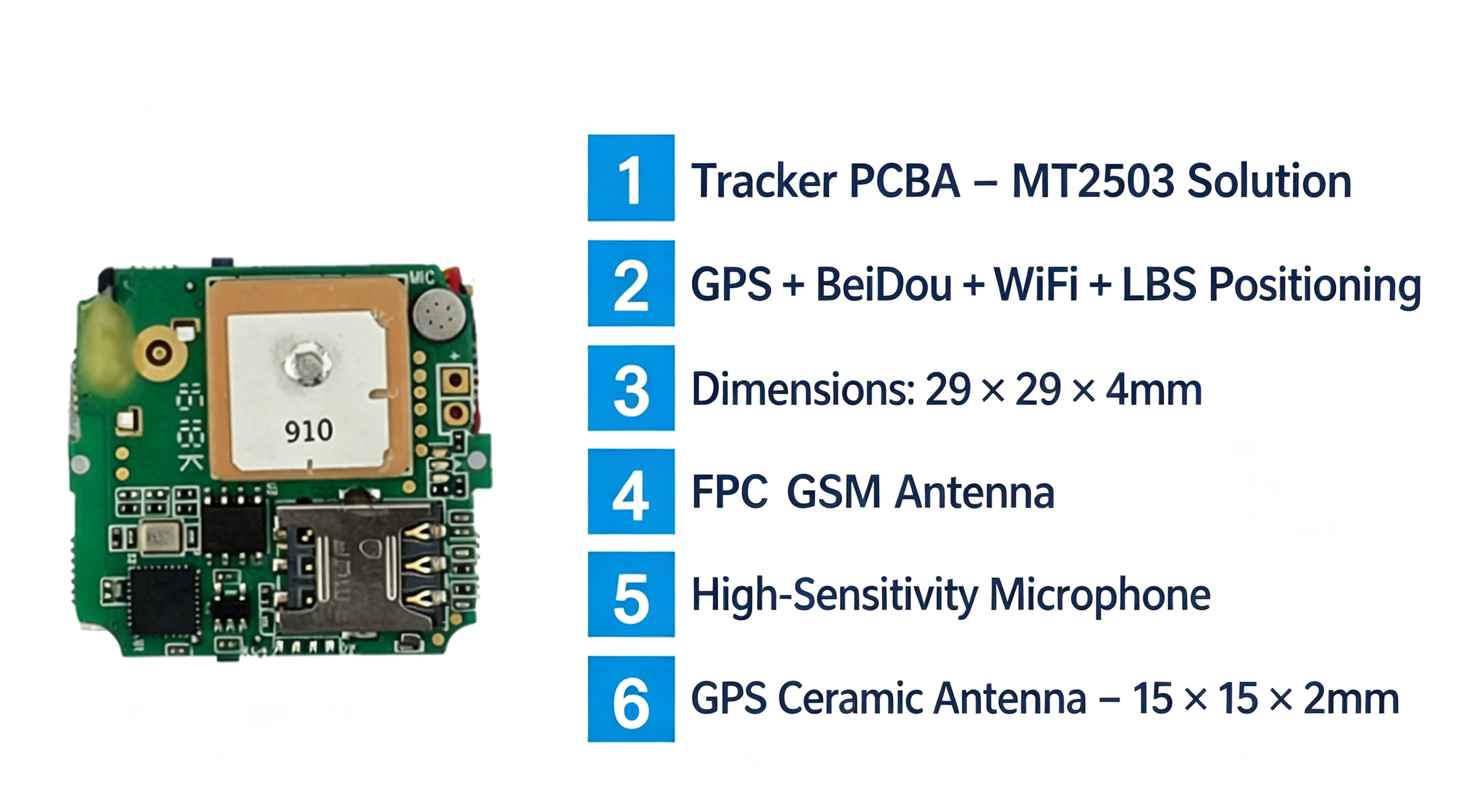

We designed a highly integrated tracker module PCBA based on the MediaTek MT2503 platform — a proven solution combining high performance with low power consumption for tracking applications.

Key design features:

1. Main Control & Positioning Platform

• MT2503 integrated chip with built-in GPS/GNSS engine and GSM baseband processor

• Supports GPS, BeiDou, AGPS, LBS, and WiFi positioning for reliable location in various environments

• Supports Chinese address resolution and blind area data storage with auto-reporting

2. RF & Antenna Design

• Onboard GPS/BeiDou antenna and GSM antenna for integrated design

• Optimized RF front-end matching for reliable performance in weak signal environments

• Carefully designed antenna routing and grounding to minimize signal interference

3. Power Management

• Efficient low-power management unit with sleep and deep-sleep modes

• Wide voltage input range, compatible with 3.7V Li-ion batteries or 5V USB power

• Built-in battery monitoring circuit with low-battery alert function

4. Sensors & Interface Expansion

• Integrated vibration sensor for motion detection and alerts

• Reserved GPIO interfaces for relay control and external sensors

• SMS parameter configuration and query support for easy setup

5. PCB Manufacturing

• High-density interconnect (HDI) PCB design for compact integration

• Precise impedance control for RF signal integrity

• Industrial temperature range (-20°C to +70°C) for versatile operating conditions

Technical Specifications

Results and Value Delivered

• High Integration: Combined positioning, communication, antenna, and power management on a single board

• Flexible Customization: OEM/ODM support including protocol modification, APP development, and platform integration

• Mature Platform: MT2503 is a proven, reliable solution for tracking applications

• Production Ready: Full PCBA manufacturing support from prototype to batch production

Application Areas

• Asset tracking and logistics management

• Vehicle tracking and security

• Pet tracking and monitoring

• Personnel tracking and safety

• Shared equipment location tracking

• Industrial equipment remote monitoring

Ready to develop your tracking or positioning product? Contact us to learn how AnyPCBA can support your product development and production.
