In the realm of electronics, capacitors are essential components that store electrical energy. Just as a well-placed brick can support a towering structure, choosing the right capacitor from a supplier like DigiKey is critical for a circuit's stability and performance. This guide will delve into the diverse range of DigiKey capacitors, exploring their types, applications, and selection process, to help you make informed choices for your projects.

Understanding Capacitor Basics

A capacitor is a fundamental passive electronic component designed to store electrical energy in an electric field, effectively acting as a temporary reservoir of charge. This energy storage capability is crucial in diverse electronic circuits, enabling functions ranging from filtering and smoothing to timing and energy decoupling. Key parameters characterizing a capacitor include capacitance, which measures its charge storage ability; voltage rating, indicating the maximum voltage it can withstand before failure; and tolerance, reflecting the acceptable deviation of the actual capacitance from its nominal value. Understanding these parameters is crucial for selecting the appropriate capacitor for any application.

• Capacitance (C)
  Measured in Farads (F), capacitance quantifies a capacitor's ability to store charge. Common units are microfarads (µF), nanofarads (nF), and picofarads (pF).
• Voltage Rating (V)
  The maximum voltage a capacitor can safely handle before its dielectric breaks down, leading to permanent damage or failure. It is crucial to select a capacitor with a voltage rating higher than the maximum voltage expected in the circuit.
• Tolerance
  Indicates the allowable percentage deviation of the actual capacitance value from the specified nominal value. A tighter tolerance implies higher precision, which may be necessary in some applications. Common tolerances range from ±1% to ±20%.
• Function in circuits
  Capacitors store electrical energy when voltage is applied and discharge this energy when the voltage source is removed. They can also filter out unwanted noise or variations in voltage and current, and enable timing by slowing down the change of voltage in circuits.

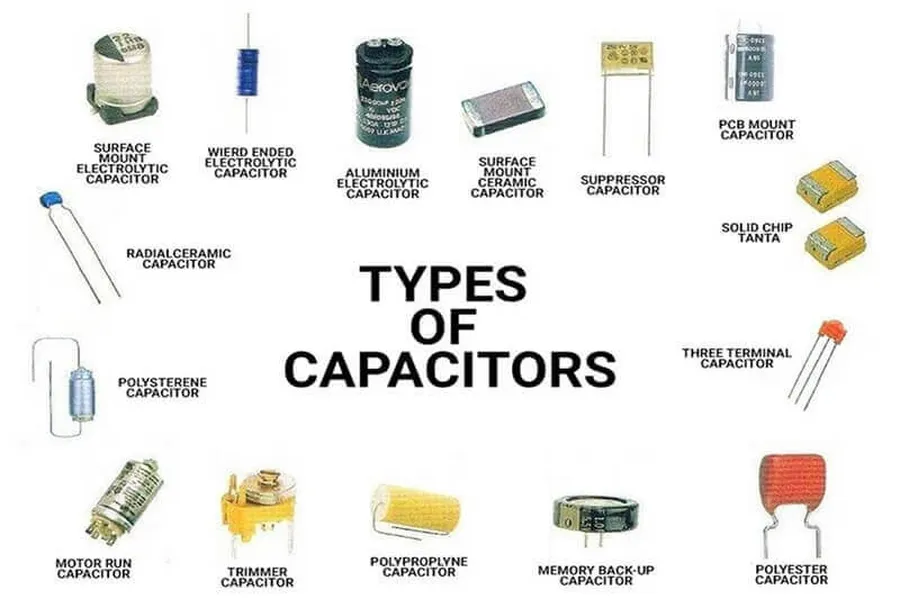

DigiKey's Capacitor Product Range Overview

DigiKey offers a broad spectrum of capacitors, catering to diverse electronic design needs. These components, fundamental to circuit operation, are available in various types, each with unique characteristics and applications. Understanding these distinctions is crucial for effective component selection.

Each capacitor type has its specific advantages and limitations, making it essential to consider the application's requirements when making a selection. DigiKey's comprehensive catalog allows engineers to find the most suitable capacitor for their design goals.

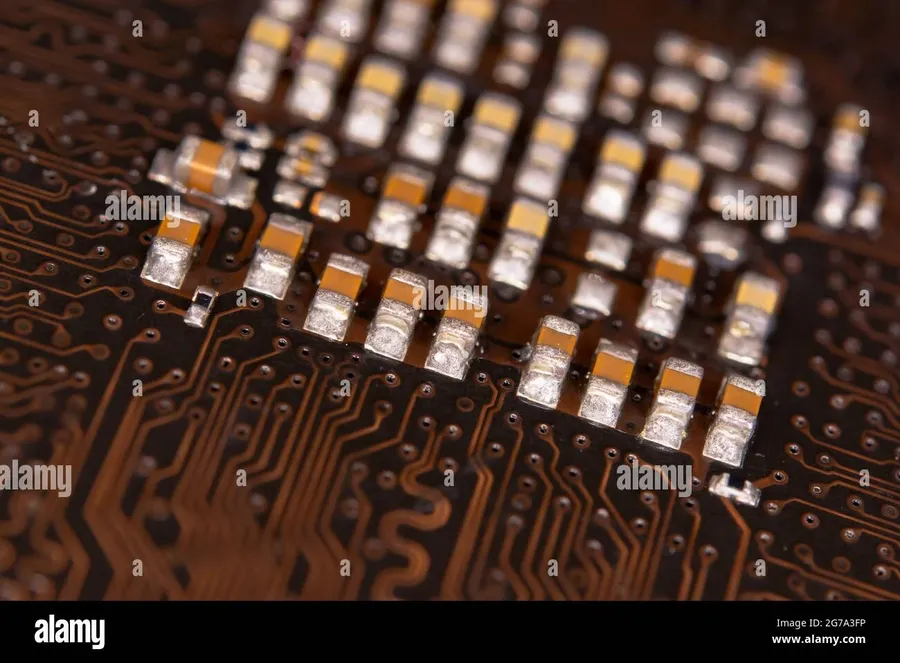

Deep Dive into Ceramic Capacitors

Ceramic capacitors, ubiquitous in modern electronics, leverage ceramic materials as their dielectric. Their compact size, cost-effectiveness, and wide range of values render them suitable for numerous applications. This section delves into their construction, diverse types, and performance characteristics.

The construction of a ceramic capacitor involves alternating layers of ceramic dielectric and metallic electrodes, typically silver. These layered structures are then sintered at high temperatures to form a monolithic block. The type of ceramic material used dictates the capacitor's electrical properties, such as temperature stability and capacitance variation.

Different classifications of ceramic capacitors exist, primarily based on their dielectric material, influencing their performance. Key types include:

• Class 1 (C0G/NP0)
  These capacitors boast excellent stability, exhibiting minimal changes in capacitance with temperature and voltage variations. Their low loss and high precision render them ideal for applications in resonant circuits, precision timing, and other high-stability scenarios. Typically made of paraelectric ceramics, they are noted for their minimal aging effects.
• Class 2 (X7R, X5R)
  Class 2 capacitors, employing ferroelectric ceramic dielectrics, demonstrate higher capacitance values in smaller packages. While they offer greater volumetric efficiency, they exhibit more variation in capacitance with temperature, voltage, and time. X7R capacitors, for example, maintain their capacitance within ±15% from -55°C to 125°C. Common applications include filtering, decoupling, and general-purpose coupling.
• Class 3 (Y5V)
  Class 3 ceramic capacitors have the highest capacitance per unit volume but also the largest variation in capacitance over temperature and voltage changes. They are typically used in non-critical decoupling and filtering applications where very high capacitance values are required but performance variation is tolerable.

Ceramic capacitors offer numerous benefits, including small physical size, wide availability of capacitance values, low cost, and excellent high-frequency characteristics. However, some disadvantages include the potential for capacitance variation over temperature and voltage, as well as the possibility of piezoelectric effects in some types. Careful selection is vital to ensure the proper performance in different applications. The part number on digikey provides all the parameter you need for proper selection.

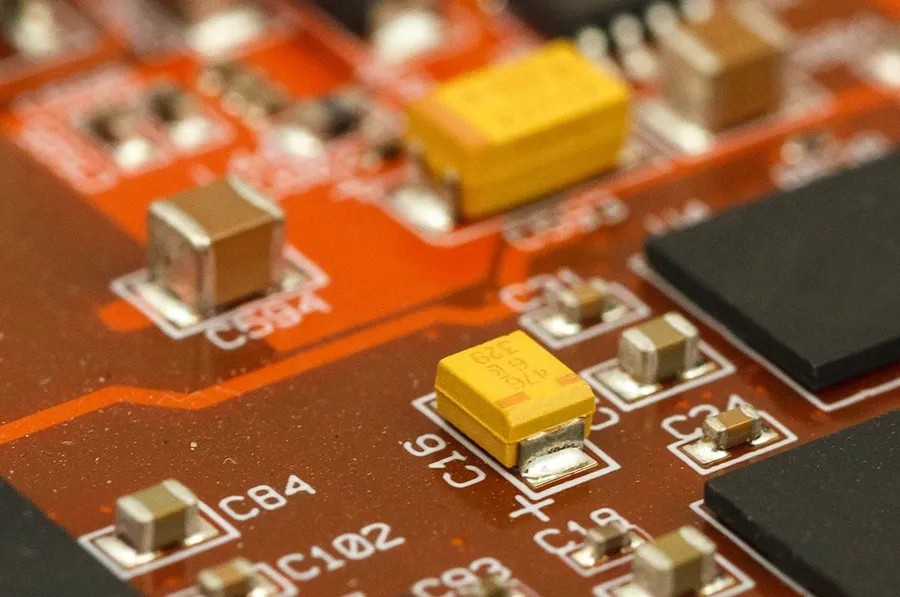

Tantalum Capacitors: When to Use Them

Tantalum capacitors are a specialized type of electrolytic capacitor distinguished by their use of tantalum as the anode material. They are particularly favored in applications demanding high capacitance within a small form factor. This characteristic makes them ideal for space-constrained environments, such as portable electronics, where component density is a critical design parameter.

Key advantages of Tantalum capacitors include their high volumetric efficiency, meaning they can store a large amount of charge for their size, and their stability over a range of temperatures. However, they also present some disadvantages, such as their higher cost compared to ceramic or aluminum electrolytic capacitors, and their sensitivity to reverse voltage conditions. Understanding these characteristics is vital when deciding if tantalum capacitors are the right choice for a specific project.

The reliability of tantalum capacitors is generally considered good, but they are susceptible to failure if subjected to reverse voltage or excessive current. Therefore, care must be taken during circuit design and implementation to ensure they operate within their specified limits. Despite their specific constraints, tantalum capacitors offer a valuable solution for applications that require a high capacitance-to-volume ratio, making them a preferred choice in many modern electronic circuits.

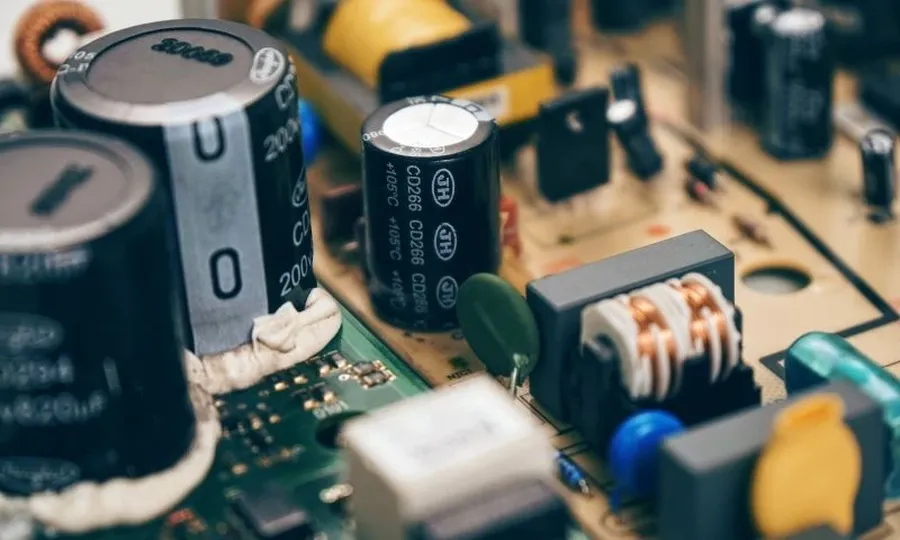

Electrolytic Capacitors: Power Storage and Filtering

Electrolytic capacitors are a class of capacitors characterized by their high capacitance values relative to their physical size, achieved through the use of an electrolyte. These capacitors are predominantly used for power supply filtering and decoupling applications due to their ability to store large amounts of electrical charge.

Electrolytic capacitors leverage an electrolyte, which can be liquid, solid, or polymer, to create a large effective surface area for charge storage. This design, while providing high capacitance, results in other characteristics that must be considered in application. For instance, the electrolytic capacitor’s polarity means that incorrect reverse voltage can damage or destroy it. Additionally, they are generally not suited for high-frequency applications due to their equivalent series resistance (ESR) and equivalent series inductance (ESL). The ESR may cause a temperature rise if subjected to a high ripple current. Degradation in performance of electrolytic capacitors will occur with extended use or extended storage under high temperatures. In essence, an electrolytic capacitor’s lifetime is a function of temperature, ripple current and other electrical and environmental factors.

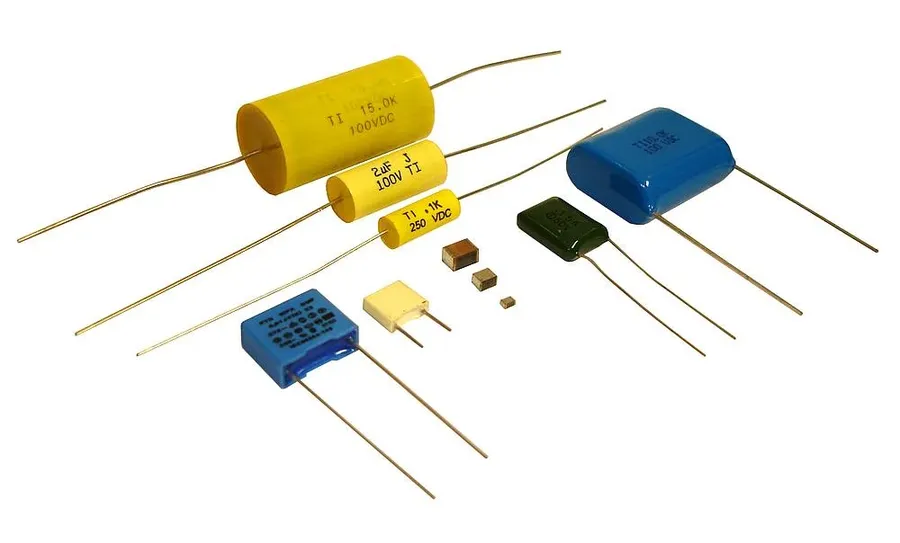

Film Capacitors: Precision and Stability

Film capacitors are characterized by their exceptional precision and stability, making them indispensable components in applications demanding high reliability and consistent performance. These capacitors utilize thin plastic films as their dielectric material, resulting in low loss and excellent long-term stability, and they're essential in various electronic circuits.

• Common Film Capacitor Materials:
  Polyester (PET), Polypropylene (PP), Polystyrene (PS), and Teflon (PTFE) are the most frequently used materials. Each material has unique electrical characteristics, enabling the selection of the right film capacitor to meet a specific application's requirements.
• Applications:
  Film capacitors are used in circuits where precise capacitance values are crucial. This includes audio equipment, where stability is needed to ensure low-distortion signals. They are also widely used in high-frequency filtering, power electronics and timing circuits where stable, reliable performance is essential.
• Advantages:
  Film capacitors excel in precision and long-term reliability, offering minimal capacitance drift over time and temperature changes. These capacitors are also known for their high voltage capabilities and low loss characteristics. This combination makes film capacitors well-suited for high-quality applications.
• Disadvantages:
  Compared to other capacitor types, film capacitors are typically larger, which can limit their use in space-constrained applications, and also they are more costly than ceramic or electrolytic capacitors. Their size is a trade-off for the benefits of stability and reliability.

Selecting the Right Capacitor: A Step-by-Step Guide

Selecting the appropriate capacitor for a specific application is a crucial step in electronic circuit design. This section outlines a systematic approach to choosing the right capacitor from DigiKey's extensive inventory, focusing on key parameters and practical application of DigiKey's filtering tools to refine your selection.

1. Define the Circuit Requirements
   Start by clearly defining your circuit's requirements. Identify the operating voltage, the required capacitance value, and the expected temperature range. Also, determine the frequency at which the capacitor will operate, as this will impact the type you select. If space is a constraint, specify the physical size and package type required. Consider the level of tolerance required based on the application.
2. Determine the Necessary Capacitance Value
   The required capacitance is typically dictated by the application. For filtering applications, a higher capacitance is generally required to effectively remove unwanted signals. For timing circuits, the capacitance value will determine the timing constant. Use circuit analysis or simulation software to determine the ideal capacitance range. Keep in mind that the actual value of a capacitor can vary.
3. Consider the Voltage Rating
   The capacitor's voltage rating must be greater than the maximum voltage it will experience in the circuit. Always include a safety margin to account for voltage spikes or fluctuations. Exceeding the voltage rating can damage the capacitor and lead to circuit failure. DigiKey filters allow for voltage range selection.
4. Select the Appropriate Capacitor Type
   Based on the requirements (voltage, capacitance, frequency, temperature, application), select the appropriate type of capacitor: ceramic, tantalum, electrolytic, or film. Each type has unique advantages and disadvantages. For high-frequency applications, ceramic capacitors are preferred due to their low Equivalent Series Resistance (ESR). For applications requiring large capacitance values, consider electrolytic or tantalum capacitors, bearing in mind their size and polarity.
5. Filter by Temperature Characteristics
   The operating temperature range can also influence your decision, for example, X7R capacitors are suitable for operating within -55°C to +125°C, while C0G/NP0 capacitors offer even more stability. DigiKey allows filtering capacitors based on temperature range to ensure stable performance.
6. Utilize DigiKey's Filtering Tools
   DigiKey’s website offers powerful filtering tools. Start by filtering by the capacitance, voltage rating, and capacitor type. Then further refine your search by temperature range, size, and package type. The site also allows for ESR, impedance, and operating frequency selection. This reduces the number of potential candidates to a manageable set.
7. Review Datasheets and Specifications
   Once you have a short-list of capacitors from DigiKey, it is essential to review their detailed datasheets. Pay close attention to ESR, dissipation factor, and tolerances. Ensure the specifications align with your design requirements. Datasheets will also include details such as temperature coefficients, and expected life span under specific conditions, which will help in a proper selection.
8. Verify Availability and Pricing
   Finally, check the availability and pricing for your chosen capacitor on DigiKey. Sometimes, the ideal component may not be in stock or may be too costly. Consider alternatives that meet your essential requirements without compromising the overall circuit performance. Ensure that you are comfortable with lead time or minimum order quantities.

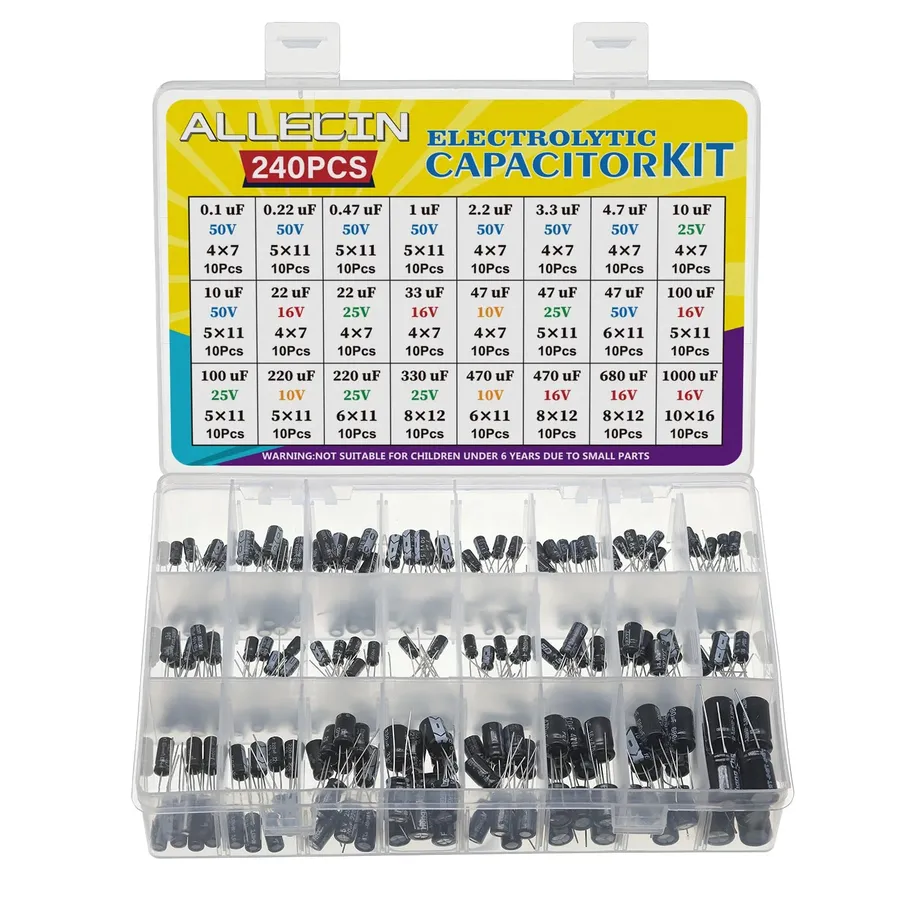

DigiKey Capacitor Kits: Convenient Options for Prototyping

DigiKey capacitor kits offer a streamlined solution for engineers and hobbyists engaged in prototyping and experimentation. These curated collections provide a variety of capacitor values and types, eliminating the need to purchase individual components and significantly accelerating the development process.

The primary advantage of utilizing DigiKey capacitor kits is the convenience they offer. Instead of sourcing and ordering numerous individual capacitors, often with minimum order quantities, users can acquire a diverse assortment in a single purchase. This not only saves time but also ensures that a wide range of capacitance values is readily available, facilitating iterative testing and design adjustments.

DigiKey offers a variety of capacitor kits tailored to different needs. These kits often include a mix of ceramic, tantalum, and electrolytic capacitors, catering to both general-purpose and specialized applications.

When selecting a capacitor kit from DigiKey, it's important to consider the specific needs of your project, and factor in key parameters like operating voltage, capacitance values, and temperature rating.

Frequently Asked Questions About DigiKey Capacitors

This section addresses common questions related to selecting, using, and understanding DigiKey capacitors. We'll cover topics from basic capacitor selection to advanced applications, aiming to provide clear and concise answers to your queries.

• How do I use the capacitance conversion calculator on DigiKey?
  DigiKey's website offers various online calculators, including a capacitance conversion tool. To use it, simply input the known capacitance value in one unit (e.g., microfarads, nanofarads, picofarads), and select the target unit for conversion. The calculator will then display the equivalent value in your desired unit. This is particularly useful for cross-referencing components with different labels.
• Where can I find DigiKey capacitor replacements?
  To find a replacement capacitor on DigiKey, start by identifying the key parameters of your existing capacitor (e.g., capacitance, voltage rating, type, package size). Then use these parameters as filters on the DigiKey website. Compare the specifications of available components and use the parametric search function. Pay particular attention to specifications such as equivalent series resistance (ESR) and temperature rating which may also affect device compatibility.
• What type of capacitor is appropriate for different project needs?
  The type of capacitor appropriate for a project depends on several factors including required capacitance, operating voltage, temperature range, frequency response, and space constraints. Ceramic capacitors are ideal for general-purpose applications, Tantalum for high capacitance in smaller packages, electrolytic for high capacitance and filtering, and film capacitors for high precision. Match the capacitor characteristics to project needs to ensure reliability.
• What is the price range of DigiKey capacitors?
  The price of DigiKey capacitors varies considerably based on type, specifications, and quantity ordered. Ceramic capacitors are typically the least expensive, while tantalum and high-precision film capacitors are generally more costly. Pricing details for specific part numbers are available on the DigiKey website and can be easily compared. Using their filtering options can help find components that fit both project needs and budget.
• What are the key differences between different capacitor brands available on DigiKey?
  While capacitors from different brands may have similar specifications, they may vary significantly in reliability, manufacturing quality, and specific performance characteristics. For example, some brands may have better temperature stability, lower ESR, or longer service life. Reviewing datasheets and independent testing reports is key in understanding the nuanced differences between different brands that often result in cost variations. Select a brand with a proven track record and consistent quality in applications similar to your own.
• How do I interpret capacitor datasheets on DigiKey?
  Capacitor datasheets include crucial information such as capacitance, voltage rating, tolerance, operating temperature range, temperature coefficient, ESR, and size. Begin by confirming that the capacitance and voltage rating meet your project specifications. Then verify that the capacitor's operating temperature range is within the limits of your project's requirements, and that the temperature and voltage coefficients will not adversely affect your project. Check package size to ensure compatibility with the board. All of these parameters and more must be carefully reviewed prior to any design or purchase.
• What are the considerations for selecting capacitors for high-frequency circuits?
  For high-frequency circuits, choose capacitors with low equivalent series inductance (ESL) and low ESR. Ceramic capacitors, especially those with C0G/NP0 dielectrics, are favored for these applications due to their stable performance across frequencies. Pay close attention to the self-resonant frequency (SRF) and ensure the capacitor's SRF is significantly higher than the frequency you intend to operate at to maintain its functionality and avoid impedance issues.

Choosing the right capacitor, especially from a vast inventory like DigiKey, requires a clear understanding of your project's needs and the characteristics of different capacitor types. Whether you need ceramic, tantalum, electrolytic, or film capacitors, DigiKey offers a wide variety for any application. Remember that selecting the correct DigiKey capacitor ensures optimal performance and reliability of your electronic circuits and is crucial for successful project outcomes. By following this guide, you will be well-equipped to navigate the world of DigiKey capacitors and make the best choice for your specific needs. Moreover, understanding capacitor specifications is a gateway to creating more advanced electronic designs and applications.
