In an era where efficiency and sustainability are paramount, understanding and optimizing energy consumption is no longer a luxury but a necessity. From industrial operations to smart homes, precise energy monitoring offers significant cost savings and environmental benefits. Zero One Solution Limited, a leader in rapid prototyping and PCB assembly solutions, introduces its cutting-edge Energy Consumption Monitoring and Analysis Board Solution. This comprehensive offering is designed to empower businesses and innovators to gain unprecedented insights into their energy usage, facilitating smarter decisions and sustainable growth. How can a tailored PCB solution transform your energy management strategy?

The Critical Need for Energy Monitoring

In an increasingly interconnected world, precise energy consumption monitoring is not merely a technical capability but a fundamental necessity for operational efficiency, significant cost reduction, and fostering environmental sustainability across a myriad of sectors. The ability to accurately track, analyze, and manage energy usage empowers businesses and consumers alike to make informed decisions, identify inefficiencies, and optimize resource allocation, ultimately contributing to a more sustainable future.

• Operational Efficiency
  Accurate energy data enables organizations to pinpoint energy-intensive processes or equipment, allowing for targeted interventions to optimize performance and reduce waste. This leads to streamlined operations and enhanced productivity.
• Cost Reduction
  By understanding energy consumption patterns, businesses can identify opportunities to minimize energy expenditures, negotiate better rates with utility providers, and implement energy-saving measures, directly impacting their bottom line. For instance, data centers can realize substantial savings by optimizing server cooling and power delivery based on real-time monitoring.
• Environmental Sustainability
  Monitoring energy usage is a cornerstone of corporate social responsibility (CSR) and environmental stewardship. It provides the data required to set meaningful reduction targets, comply with environmental regulations, and reduce carbon footprints, aligning with global efforts towards a greener planet.

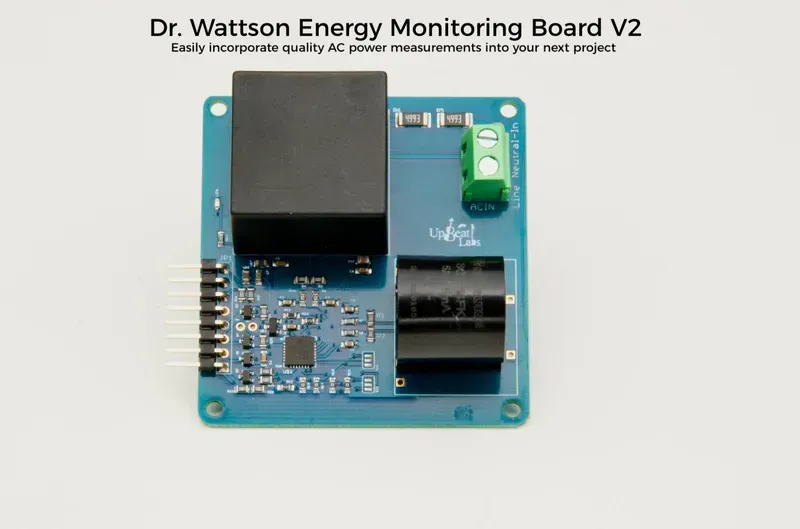

Introducing Zero One Solution Limited's Energy Monitoring Board

Zero One Solution Limited's Energy Consumption Monitoring and Analysis Board is engineered to address the complex challenges of energy management in modern systems. This specialized PCB solution provides comprehensive real-time insights into power usage, enabling unparalleled efficiency and cost savings. Our board is designed with a focus on high-performance data acquisition, versatile connectivity, and robust reliability, making it an ideal choice for diverse industrial and commercial applications requiring precise energy intelligence.

1. Real-time Data Acquisition
   Our board excels in capturing instantaneous energy consumption data, providing a granular view of power flows. This enables proactive identification of anomalies and optimization opportunities. With high sampling rates and precision ADCs, it ensures accurate readings even in dynamic load environments, crucial for sophisticated energy management strategies across industries like smart manufacturing and data centers, where even minor inefficiencies can lead to significant energy losses and operational costs. Data from the U.S. Energy Information Administration (EIA) indicates that effective real-time monitoring can reduce industrial energy consumption by 10-20% through optimized operations and predictive maintenance, directly impacting bottom-line profitability and environmental footprint.
2. Scalable & Adaptive Architecture
   The modular design of our energy monitoring board allows for seamless integration into existing infrastructures and easy scalability for future expansion. Its adaptable architecture supports a wide range of current and voltage sensors, enabling monitoring across various power loads and electrical configurations. This flexibility is vital for deployment in environments ranging from commercial buildings to intricate industrial control systems, where requirements can vary widely. For instance, in smart building management, the ability to scale from monitoring individual appliances to entire HVAC systems provides a unified platform for comprehensive energy oversight, aligning with industry trends towards holistic energy management solutions outlined by organizations like the International Energy Agency (IEA).
3. Robust Communication Interfaces
   Equipped with multiple communication protocols, including Wi-Fi, Bluetooth, Ethernet, and optional cellular (4G/5G) modules, our board ensures reliable data transmission to cloud platforms or local servers. This robust connectivity facilitates remote monitoring, control, and integration with broader IoT ecosystems, ensuring that energy data is always accessible for analysis and decision-making. The importance of secure and diverse communication channels is underscored by cybersecurity frameworks from NIST (National Institute of Standards and Technology), which emphasize data integrity and availability in critical infrastructure. Our board's design prioritizes secure data links, enabling seamless integration into enterprise-level energy management systems (EMS) without compromising data security or operational continuity.

Key Features and Technical Specifications of Zero One's Energy Monitoring Board

Zero One Solution Limited's Energy Consumption Monitoring and Analysis Board Solution is engineered with a comprehensive suite of features and robust technical specifications designed to deliver unparalleled accuracy and reliability in energy data acquisition. This advanced board integrates high-precision sensing, efficient data processing, and versatile communication protocols, making it a cornerstone for sophisticated energy management systems. Its design prioritizes modularity and scalability, ensuring seamless integration into diverse applications while maintaining optimal performance in demanding environments.

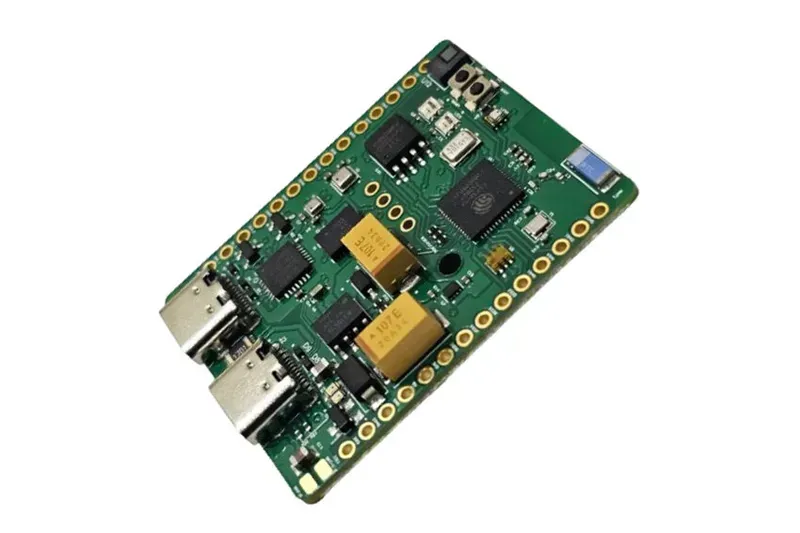

• High-Precision Sensor Integration
  Our boards support a wide array of current, voltage, and power sensors, enabling accurate measurement across various electrical parameters. This includes non-invasive current transformers (CTs) for AC systems, shunt resistors for DC applications, and advanced power ICs for real-time RMS calculations. The ability to integrate multiple sensor types ensures comprehensive data capture tailored to specific energy monitoring needs.
• Advanced Data Acquisition and Processing
  Equipped with high-resolution Analog-to-Digital Converters (ADCs), the board ensures precise digitization of analog sensor inputs. Powerful embedded microcontrollers (MCUs) or Digital Signal Processors (DSPs) are utilized for real-time data aggregation, filtering, and pre-processing. This allows for instantaneous calculation of critical metrics such as active power, reactive power, apparent power, power factor, and harmonic distortion, minimizing latency and providing actionable insights.
• Versatile Communication Interfaces
  To facilitate seamless data transfer to central monitoring systems or cloud platforms, our boards incorporate multiple communication options. Standard interfaces include Wi-Fi (IEEE 802.11 b/g/n) for wireless connectivity, Bluetooth Low Energy (BLE) for short-range communication, and Ethernet (RJ45) for reliable wired network integration. For remote or industrial applications, options like LoRaWAN, Zigbee, and cellular (4G/5G) modules can be integrated, ensuring robust data uplink regardless of the environment.
• Robust Power Management Features
  The board features an optimized power management unit (PMU) designed for efficiency and stability. It supports a wide input voltage range and incorporates protective features against overvoltage, undervoltage, and short circuits, ensuring reliable operation in fluctuating power conditions. Low-power modes are also implemented to extend battery life in portable or intermittently powered applications, making it suitable for continuous, long-term deployment.
• Expandable Memory and Storage
  Onboard non-volatile memory (e.g., Flash, EEPROM) and options for external SD card support provide ample storage for logged energy data, configuration settings, and firmware updates. This ensures data integrity even during network outages and enables offline data analysis, enhancing the board's autonomy and reliability.

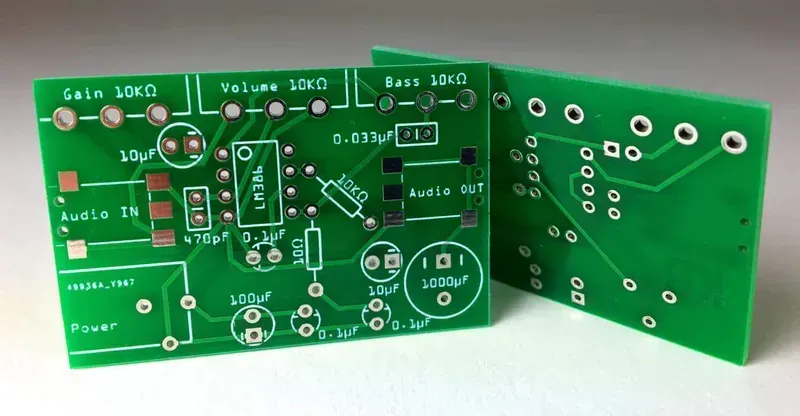

Customization and Design Flexibility

In the dynamic landscape of energy management, a one-size-fits-all approach is rarely effective. Zero One Solution Limited excels in providing unparalleled customization and design flexibility for our Energy Consumption Monitoring and Analysis Board Solution, ensuring that each board is precisely engineered to meet the unique demands of diverse applications and operational environments. This bespoke approach empowers businesses to optimize energy efficiency and achieve their specific sustainability and cost-saving goals with tailored precision.

• Tailored Form Factors
  We can adapt the physical dimensions and mounting options of the PCB to seamlessly integrate into existing enclosures or systems, whether space is at a premium or a specific form factor is required for robust deployment in industrial settings. This includes optimizing board layout for thermal management and signal integrity within confined spaces, ensuring long-term reliability and performance consistency.
• Optimized Functionality and Component Integration
  Beyond standard features, our engineers work closely with clients to integrate specific sensors, communication modules (e.g., LoRaWAN, NB-IoT for wider coverage, or specific industrial protocols like Modbus), or processing capabilities (e.g., edge AI for on-device anomaly detection) necessary for a particular application. This extends to selecting and integrating components with precise specifications for voltage, current, and frequency ranges, ensuring accuracy and reliability for unique measurement requirements.

Applications Across Industries

Zero One Solution Limited's Energy Consumption Monitoring and Analysis Board Solution is engineered for unparalleled versatility, enabling precise energy insights across a multitude of sectors. Its adaptable design and robust performance make it an indispensable tool for optimizing energy usage, reducing operational costs, and fostering sustainability in diverse industrial and commercial environments. By providing real-time, actionable data, our solution empowers organizations to make informed decisions, drive efficiency, and achieve their energy management goals.

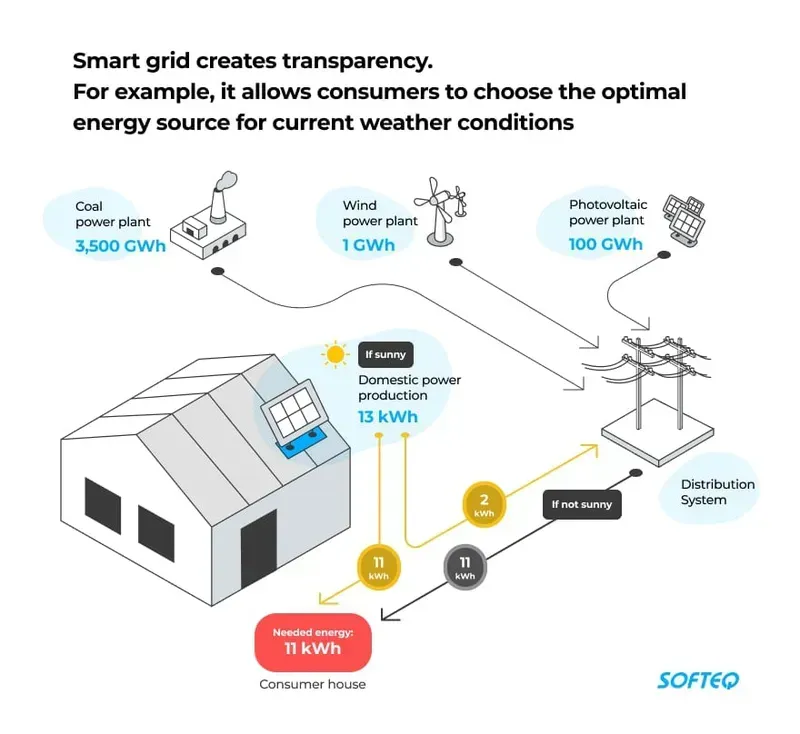

• Smart Grids
  Our boards are integral to modern smart grids, facilitating granular monitoring of energy flow from generation to consumption points. This enables advanced load balancing, demand-response management, and proactive fault detection, enhancing grid stability and efficiency. Utilities can precisely identify areas of energy loss and optimize distribution networks, leading to significant cost savings and improved service reliability.
• Industrial Automation
  In industrial settings, the monitoring boards provide critical insights into the energy consumption of machinery and production lines. This allows for predictive maintenance, identification of inefficient processes, and optimization of operational schedules to minimize energy waste. For instance, a manufacturing plant can detect abnormal energy spikes indicating equipment malfunction, preventing costly downtime and improving overall productivity by up to 15% in some cases, according to industry reports on energy optimization in manufacturing.
• Data Centers
  Data centers are notorious for high energy consumption. Our solution offers detailed power usage effectiveness (PUE) analysis, monitoring power distribution units (PDUs), servers, and cooling systems. This enables data center operators to optimize cooling strategies, identify phantom loads, and improve energy efficiency, directly contributing to substantial reductions in operational expenses and a lower carbon footprint. Studies show that optimizing data center energy efficiency can lead to a 10-30% reduction in energy costs annually.
• Building Management Systems (BMS)
  Integrating our boards into BMS allows for comprehensive energy oversight of commercial and residential buildings. This includes monitoring HVAC systems, lighting, and plug loads, enabling intelligent automation for energy savings. Building managers can implement dynamic energy strategies, respond to occupancy patterns, and reduce energy consumption by up to 20% through smart building initiatives, as demonstrated by successful smart building deployments globally. This enhances occupant comfort while significantly lowering utility bills and meeting green building certifications.

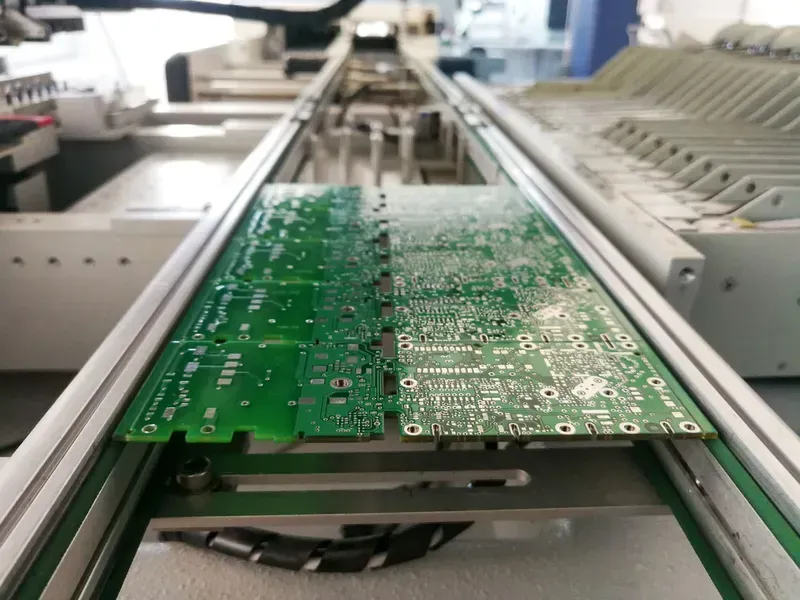

The Zero One Solution Limited Advantage: From Concept to Production

Zero One Solution Limited offers a distinct competitive advantage in the realm of Energy Consumption Monitoring and Analysis Board Solutions by providing a comprehensive, end-to-end service model. From initial concept validation and rapid prototyping to full-scale manufacturing and assembly, our integrated approach significantly accelerates product development cycles, reduces time-to-market, and ensures unparalleled quality and cost-efficiency. This seamless vertical integration, combined with our strategic global presence, positions us as the ideal partner for companies seeking to innovate and deploy advanced energy monitoring technologies.

• Rapid Prototyping Excellence
  Our core strength lies in rapid-response R&D prototype manufacturing. We drastically shorten the iteration cycles for energy monitoring board designs, allowing clients to quickly validate concepts and iterate on functionalities with minimal overhead. This agility is crucial for cutting-edge projects where time-to-market is a critical differentiator.
• Integrated Design to Manufacturing
  Unlike fragmented service providers, Zero One Solution Limited offers a complete one-stop solution encompassing PCB design, manufacturing, and assembly. This integrated workflow eliminates compatibility issues, streamlines communication, and ensures a cohesive development process from initial schematic capture to the final assembled product, delivering optimal performance for your energy monitoring solution.
• Global Strategic Presence
  Headquartered in Shenzhen, China, the world's electronics manufacturing hub, and with a branch office in Dubai, we leverage a robust global PCBA supply chain network. This strategic positioning provides seamless access to the most advanced components, competitive pricing, and efficient logistics, ensuring timely and cost-effective delivery of high-quality energy monitoring boards to any corner of the globe.

Ensuring Data Accuracy and Reliability

In the realm of energy consumption monitoring, the precision and trustworthiness of data are paramount, as inaccurate readings can lead to flawed insights, suboptimal decisions, and significant financial losses. Zero One Solution Limited's Energy Consumption Monitoring and Analysis Board Solution is engineered from the ground up to deliver exceptionally accurate and reliable data, empowering users with confidence in their energy management strategies. Our commitment to data integrity is embedded in every stage, from meticulous design and component selection to rigorous manufacturing and calibration processes, ensuring that the insights derived from our boards are actionable and dependable.

1. Precision Component Selection
   We utilize only high-grade, industrial-standard components known for their stability, low drift, and superior measurement accuracy. This includes selecting precision Analog-to-Digital Converters (ADCs) with high resolution (e.g., 24-bit) for capturing granular voltage and current data, and stable reference voltages that are resilient to temperature fluctuations. Each component is thoroughly vetted to meet stringent performance benchmarks, ensuring minimal error accumulation throughout the measurement chain. This meticulous selection process is a cornerstone of our board's inherent data accuracy, distinguishing our solutions in a competitive market. For instance, the use of current sense resistors with extremely low temperature coefficients ensures consistent readings across varying operational environments, which is critical for long-term energy monitoring deployments. Our sourcing strategy prioritizes suppliers with a proven track record of quality and reliability, minimizing the risk of component-related inaccuracies and enhancing the overall robustness of the solution.

1. Advanced Calibration and Validation
   Every Energy Consumption Monitoring and Analysis Board undergoes a multi-stage calibration process to guarantee its measurement accuracy. This involves both factory calibration against NIST-traceable standards and in-situ validation protocols. Our calibration routines account for potential variances across different current and voltage ranges, ensuring linear and precise readings across the entire operational spectrum. Post-manufacturing, each board is subjected to comprehensive validation tests under simulated real-world conditions, including temperature cycling and power load variations, to confirm its long-term stability and reliability. This rigorous approach minimizes systemic errors and ensures that the data collected is consistently reliable. For instance, a typical calibration procedure involves injecting precise current and voltage signals into the board and adjusting internal parameters to match known reference values, thereby correcting any minor deviations from the ideal. This meticulous process helps to ensure that the reported energy consumption figures are an accurate reflection of actual usage.

1. Robust Design for Signal Integrity
   Signal integrity is paramount for accurate data acquisition. Our PCB designs incorporate best practices to minimize noise and interference, such as optimized grounding schemes, differential signaling for critical measurement lines, and careful layout of analog and digital sections to prevent crosstalk. Electromagnetic compatibility (EMC) considerations are integral to the design phase, with shielding and filtering techniques employed to protect sensitive measurement circuitry from external disturbances. This holistic design approach ensures that the raw data captured by the board is clean and representative of the actual energy consumption, preventing corrupted or erroneous readings. For example, by separating high-current traces from low-voltage signal lines and employing guard rings around sensitive analog components, we significantly reduce inductive and capacitive coupling, thereby preserving the integrity of the measurement signals. This attention to detail in the PCB layout is critical for maintaining high accuracy in noisy industrial environments.

1. Comprehensive Quality Control and Testing
   Zero One Solution Limited implements a stringent quality control regimen throughout the entire manufacturing process. From incoming material inspection to in-process checks and final functional testing, every board is scrutinized to meet our exacting standards. Automated Optical Inspection (AOI) and X-ray inspection are utilized to verify solder joint integrity and component placement, while advanced functional testers simulate operational scenarios to confirm the board's performance under various loads. Our commitment to ISO 9001 standards ensures a consistent and repeatable manufacturing process, culminating in a product that delivers reliable data consistently over its operational lifespan. This multi-layered quality assurance approach guarantees that only boards meeting the highest benchmarks for accuracy and reliability reach our clients, underscoring our dedication to delivering superior energy monitoring solutions.

FAQs About Our Energy Monitoring Board Solutions

Understanding the intricacies of energy consumption monitoring is crucial for optimizing operations and achieving sustainability goals. Zero One Solution Limited's Energy Consumption Monitoring and Analysis Board Solutions are engineered to provide precise, reliable data, but potential users often have specific queries regarding their capabilities and deployment. This section addresses the most common questions to clarify how our solutions deliver unparalleled value.

• How does Zero One Solution Limited's Energy Monitoring Board ensure high data accuracy?
  Our boards integrate high-precision Analog-to-Digital Converters (ADCs) and calibrated current/voltage sensors, ensuring minimal measurement error. We employ rigorous factory calibration procedures and select only industrial-grade components known for their stability and long-term reliability. Furthermore, our design incorporates noise reduction techniques and robust signal conditioning to maintain data integrity even in challenging electrical environments. This meticulous approach guarantees that the energy consumption data collected is consistently accurate and dependable for critical analysis.
• What communication interfaces are supported for data transmission?
  Our Energy Monitoring Boards are designed with versatile connectivity options to suit diverse network infrastructures. Standard interfaces include Wi-Fi (2.4GHz/5GHz), Bluetooth Low Energy (BLE), Ethernet (RJ45), and optional cellular (4G/5G) or LoRaWAN modules. This wide range of options ensures seamless integration with existing IT/OT networks and cloud platforms, facilitating efficient data logging, remote monitoring, and system control. The choice of interface can be customized based on project requirements, including data throughput, range, and power consumption.
• Can your Energy Monitoring Board be customized for specific industry applications?
  Absolutely. Customization is a cornerstone of Zero One Solution Limited's service. We offer extensive tailoring of our Energy Monitoring Boards to meet unique industry demands, including specific form factors, sensor types (e.g., for multi-phase systems, DC loads, or high-current applications), communication protocols, and embedded software functionalities. Whether it's for smart grids, industrial automation, data centers, or consumer electronics, our agile design and manufacturing process allows us to adapt the solution precisely to your operational environment and performance criteria, ensuring optimal fit and function.
• What kind of technical support does Zero One Solution Limited provide for these boards?
  Zero One Solution Limited provides comprehensive technical support throughout the entire product lifecycle, from initial concept and design consultation to deployment and post-sales assistance. Our support includes detailed documentation, software development kits (SDKs), firmware updates, and direct access to our experienced engineering team. We offer troubleshooting, integration guidance, and optimization advice to ensure smooth operation and maximize the value of your energy monitoring solution. Our global presence in Shenzhen and Dubai facilitates responsive support for clients worldwide.

Zero One Solution Limited's Energy Consumption Monitoring and Analysis Board Solution stands as a testament to our commitment to innovation, quality, and client success. By offering rapid prototyping, bespoke design, and seamless manufacturing, we empower you to transform energy management challenges into opportunities for efficiency and sustainability. Partner with us to leverage our expertise and accelerate your product development cycles. Ready to optimize your energy consumption and drive innovation? Contact Zero One Solution Limited today to discuss your custom PCB solution needs!
