In our daily lives, we often interact with the physical world, from the simple act of pressing a button to complex interactions with touchscreens. Force sensing resistors (FSRs) are crucial components that enable devices to 'feel' the pressure we apply. This article explores how these ubiquitous sensors function, their unique properties, and their broad applications, bridging the gap between physical interaction and electronic response.

What is a Force Sensing Resistor (FSR)?

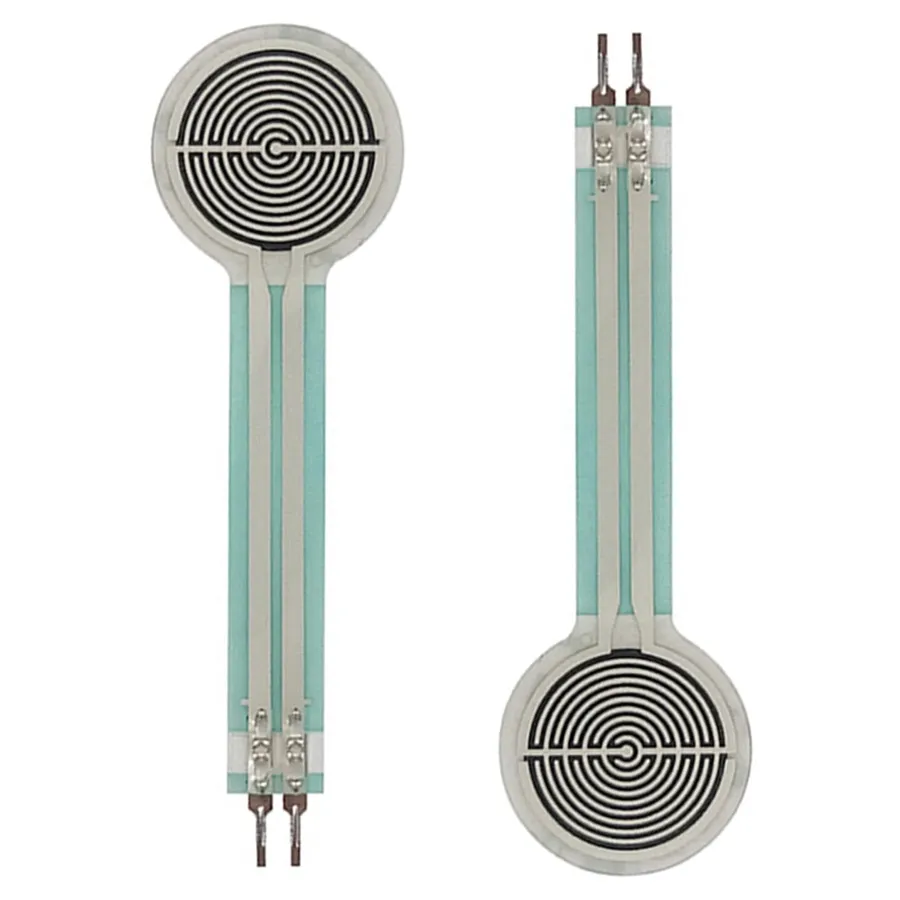

A Force Sensing Resistor (FSR) is a passive, variable resistor whose resistance decreases with an increase in applied force, pressure, or mechanical stress. These piezoresistive sensors are fundamental components in various applications requiring force or pressure measurement. Their change in resistance provides an electrical signal proportional to the applied mechanical force, making them versatile in detecting the magnitude of applied force.

How Force Sensing Resistors Work: The Science Behind the Sensor

Force sensing resistors (FSRs) operate based on the principle of piezoresistivity, where a material's electrical resistance changes in response to applied mechanical stress. This phenomenon is central to the sensor's ability to detect force or pressure. When pressure is applied, the internal structure of the FSR is compressed leading to a reduction in electrical resistance, making it a valuable technology for measuring force in various applications.

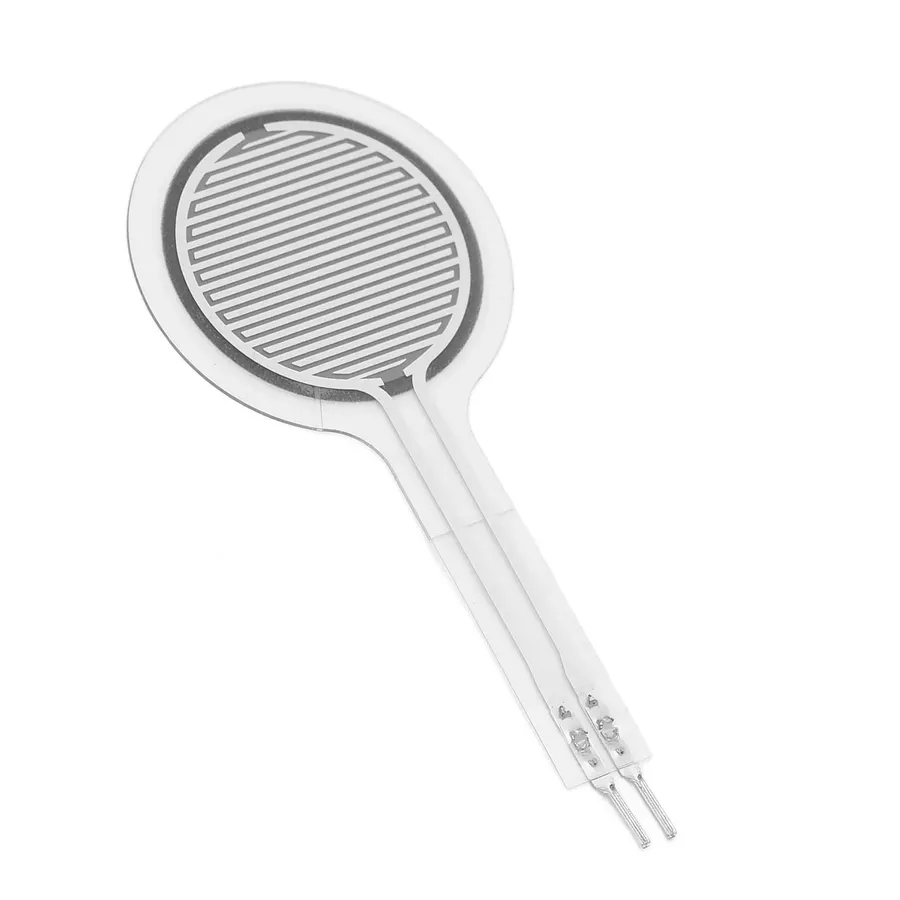

A typical FSR is constructed from several layers, each with a specific function. The key components include:

• Substrate Layer
  This layer provides the mechanical foundation for the sensor. It's typically made of a flexible and durable material like polyester film.
• Conductive Layer
  A conductive ink, often containing silver or other conductive materials, is printed onto the substrate. This layer forms the electrical contacts of the sensor.
• Piezoresistive Layer
  The heart of the FSR, this layer contains a pressure-sensitive material which is responsible for the piezoresistive effect. It is typically composed of a polymer matrix with conductive particles embedded within.
• Spacer Layer
  In some FSR designs, a thin spacer layer may be used to separate the conductive and piezoresistive layers. This helps control the initial resistance of the sensor.
• Top Protective Layer
  Often, a protective layer covers the entire assembly to guard against physical damage and environmental factors.

When force is applied, the piezoresistive material is compressed, bringing the conductive particles closer together. This increases the number of conductive paths and lowers the overall electrical resistance of the sensor. This effect is typically non-linear, meaning that the change in resistance is not directly proportional to the applied force.

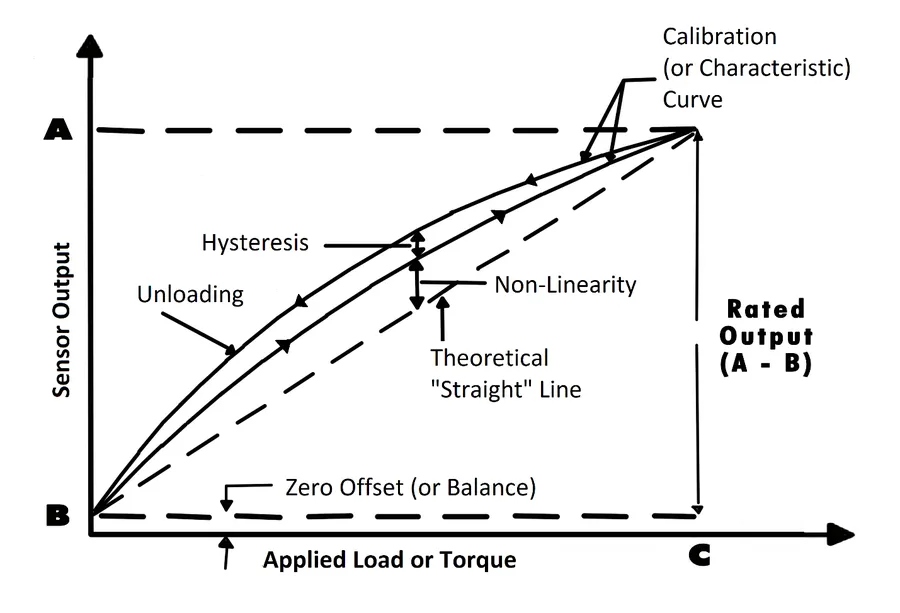

The relationship between applied force and resistance is a crucial aspect of FSR operation and can be approximately described as an inverse relationship: as force increases, the electrical resistance decreases. However, this relationship is not entirely linear and will be characterized by a calibration curve that is specific to each individual sensor.

Types of Force Sensing Resistors and Their Characteristics

Force sensing resistors (FSRs) are available in a variety of shapes, sizes, and material compositions, each influencing their performance characteristics. These variations allow for diverse applications, where different sensitivities, resistance ranges, and form factors are necessary. Understanding these characteristics is critical for selecting the appropriate FSR for a given task.

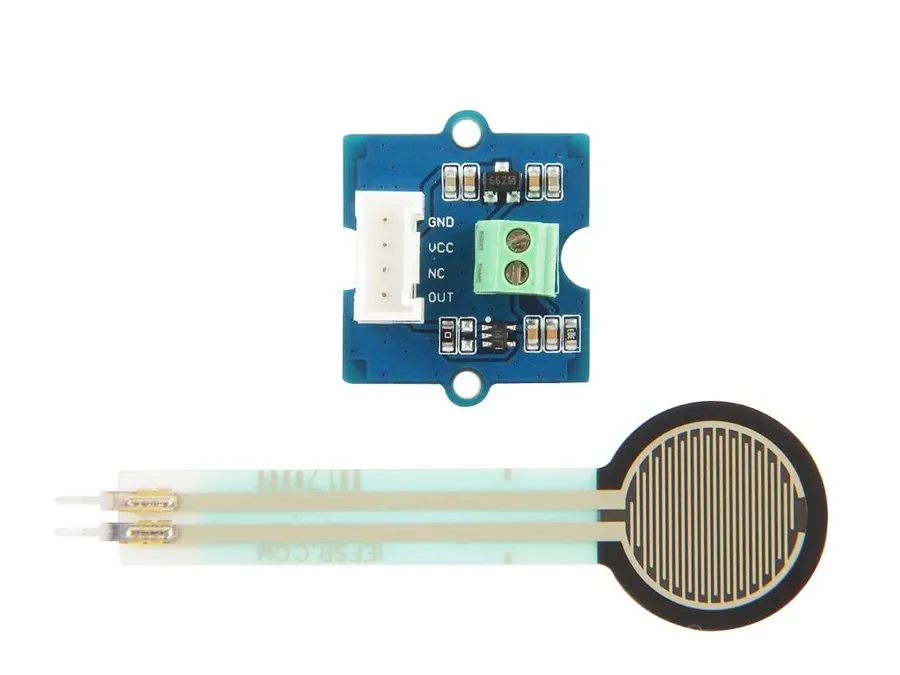

For example, round FSRs are frequently used in buttons, while square FSRs are useful for touchpads. Smaller FSRs provide greater spatial resolution, allowing them to more precisely measure a particular spot, but are typically less sensitive, whereas larger FSRs can detect a wider area but are less precise and more prone to positional variance. Material composition plays a significant role in defining the sensor’s sensitivity and operating range, which can vary widely based on the manufacturer and specific design requirements. Understanding these various shapes, sizes and material properties is necessary for engineers and designers to select the correct FSR for their intended application.

Key Advantages and Disadvantages of FSR Technology

Force sensing resistors (FSRs) offer a compelling balance of simplicity and functionality for various force and pressure sensing applications; however, like all technologies, they possess both advantages and limitations that must be carefully considered during the design process. FSRs are particularly appealing due to their low cost, ease of integration, and thin, flexible form factor. Understanding both their strengths and weaknesses is critical for successful implementation.

Force Sensing Resistor Applications in Everyday Life

Force sensing resistors (FSRs), with their ability to convert applied force into a measurable change in resistance, have become ubiquitous in a wide array of applications. Their versatility and low-profile nature make them ideal for integration into diverse devices, enhancing user interaction and enabling new functionalities.

• Pressure-Sensitive Buttons and Touchpads
  FSRs are commonly used in pressure-sensitive buttons, offering variable response depending on the applied force, unlike traditional on/off switches. This feature is used extensively in touchpads, allowing for pressure-sensitive actions in electronic devices, such as laptops and smartphones, enabling functions like variable speed scrolling or pressure-sensitive drawing.
• Gaming Interfaces
  In gaming, FSRs are instrumental in creating more intuitive and immersive experiences. They're used in game controllers, allowing players to vary their input based on pressure rather than binary button presses, leading to more nuanced control in games. This also translates into more realistic gaming experiences for peripherals like steering wheels, pedals, and flight sticks.
• Robotics
  In robotics, FSRs provide essential tactile feedback, helping robots sense contact and pressure. This helps in tasks that require delicate interaction, such as handling objects without crushing them. FSRs are used in robotic grippers to provide feedback on how firmly the robot is gripping the objects, and on robotic limbs to provide feedback for safer robot-human interaction.
• Musical Instruments
  FSRs enhance musical instrument interfaces, allowing for expressive control over sound. They can be integrated into drum pads to vary the volume or pitch based on the force of impact. In wind and string instruments they can be used to control modulation and other parameters, giving players finer control.
• Medical Devices
  In the medical field, FSRs are employed in devices requiring precise pressure monitoring, including wearable pressure monitors to detect bedsores or to track patients weight. They're also found in diagnostic tools, where accurate pressure measurement is necessary and devices that help individuals monitor their grip strength.
• Automotive Controls
  Within automotive applications, FSRs enable touch-sensitive controls that respond to variable pressure, offering an alternative to physical buttons. They can be found in steering wheels to detect hand grip and safety. Furthermore, they are used in car seat occupancy sensors and for adaptive cruise controls that respond to user input pressure.

Integrating FSRs into Electronic Circuits: A Practical Guide

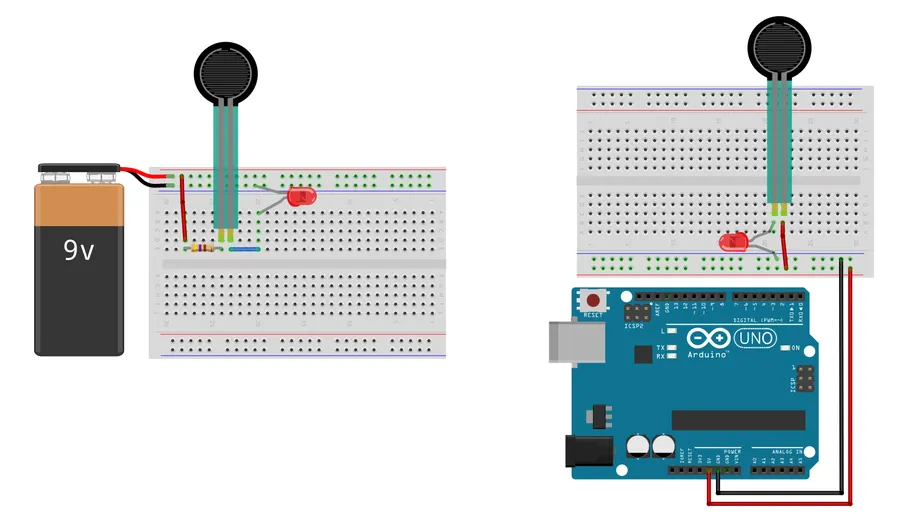

Integrating Force Sensing Resistors (FSRs) into electronic circuits is straightforward, making them accessible for various applications, particularly with microcontrollers like Arduino. This section will guide you through the necessary steps, from basic connection to calibration for accurate pressure measurement.

At the heart of FSR integration is the understanding of their variable resistance. As force is applied, the resistance decreases. To utilize this, a voltage divider circuit is typically implemented.

The FSR is placed in series with a known, fixed resistor, and the voltage across this fixed resistor is measured. This voltage varies with the FSR resistance, which depends on the applied force. This voltage is then read by the microcontroller's analog-to-digital converter (ADC).

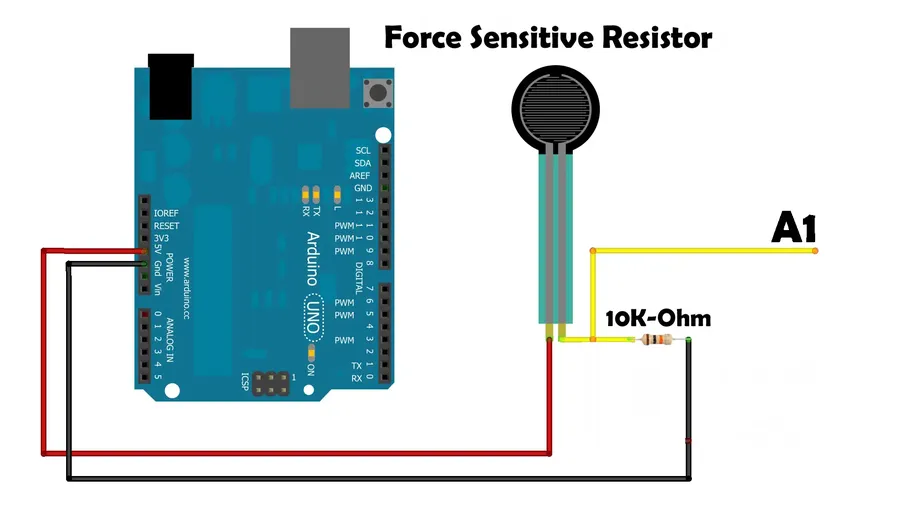

A simplified schematic involves connecting one FSR terminal to VCC, the other FSR terminal to one end of the fixed resistor, and the other end of the fixed resistor to GND. The junction between the FSR and the fixed resistor is connected to an ADC pin on the microcontroller. The output voltage of the FSR and fixed resistor node is the voltage read by the microcontroller.

To convert the analog reading into a force or pressure measurement, calibration is required. This involves recording ADC readings for known forces. The data is then used to create a mapping function that allows you to convert the voltage reading to force. Simple linear and more complex polynomial fitting are often used. Temperature compensation might be necessary for accurate measurement in varying environmental conditions.

// Arduino code example

const int fsrPin = A0; // Analog pin for FSR
const int fixedResistorValue = 10000; // Fixed resistor in ohms

void setup() {
  Serial.begin(9600);
}

void loop() {
  int sensorValue = analogRead(fsrPin);
  float voltage = sensorValue * (5.0 / 1023.0); // 5V reference

  // convert voltage to resistance
  float fsrResistance = fixedResistorValue * ((5.0/voltage) - 1);

  Serial.print("Sensor Value: ");
  Serial.print(sensorValue);
  Serial.print(", Voltage: ");
  Serial.print(voltage);
    Serial.print(", FSR Resistance: ");
  Serial.println(fsrResistance);
  delay(100);
}

Force Sensing Resistors vs. Other Force Sensors

Force sensing resistors (FSRs), strain gauges, and load cells are all used to measure force, but they operate on different principles and exhibit distinct performance characteristics. Understanding these differences is crucial for selecting the appropriate sensor for a specific application. FSRs are often chosen for their simplicity and low cost, while strain gauges and load cells are preferred when higher precision and accuracy are required.

Frequently Asked Questions About Force Sensing Resistors

This section addresses common queries regarding Force Sensing Resistors (FSRs), providing concise answers to enhance understanding and practical application of these sensors.

• What is the primary function of a Force Sensing Resistor?
  A Force Sensing Resistor (FSR) primarily functions as a transducer that converts mechanical force, pressure, or stress into a change in electrical resistance. The core principle is piezoresistivity, where the material's resistivity changes under mechanical stress. This change can then be measured electronically, enabling the force applied to the sensor to be determined.
• What is the operational principle behind a force sensing resistor (FSR)?
  FSRs operate based on the principle of piezoresistivity. When force is applied to the sensor, the conductive particles within the resistive material move closer together, increasing the contact area and thereby decreasing the electrical resistance. Conversely, when force is removed, the conductive particles move apart, increasing resistance.
• What type of resistor should be used in a circuit with a FSR?
  Typically, FSRs are used in a voltage divider configuration along with a fixed resistor. The value of this fixed resistor is crucial for proper circuit operation and sensitivity. A common approach is to choose a resistor value that is approximately equal to the resistance of the FSR when under a moderate force. This provides a good balance of dynamic range and sensitivity. The optimal fixed resistor value will depend on the specific FSR characteristics and the desired pressure range of your application.
• How does temperature affect FSR measurements and accuracy?
  Temperature changes can significantly affect the accuracy of FSRs. As temperature rises, the resistance of the FSR typically decreases, and vice versa. This thermal drift must be accounted for in applications requiring precise measurements. Compensation techniques, such as temperature calibration or using thermistors in the circuit, may be necessary to mitigate these effects.
• What is the key difference between a strain gauge and a force sensing resistor?
  Strain gauges and FSRs measure force but differ significantly in their mechanism, accuracy, and application. Strain gauges measure force by detecting small changes in the physical dimension of an object by resistance changes, offering high precision and accuracy. FSRs, on the other hand, are piezoresistive sensors measuring the change in resistance due to applied pressure, providing a simpler, lower-cost solution but with lower accuracy and higher susceptibility to temperature variations and drift.
• Are FSRs suitable for applications requiring high precision force measurement?
  FSRs are generally not suitable for high-precision force measurements due to their inherent non-linearity, sensitivity to temperature, and potential for drift over time. They are more appropriate for applications where the goal is to sense the presence, location, or relative magnitude of force rather than precise force measurement. For applications needing high accuracy, other types of force sensors such as strain gauges or load cells are preferable.
• What calibration process is required for a force sensing resistor?
  Calibration of an FSR is necessary to map the measured resistance (or voltage reading) to the actual applied force. This process involves applying a range of known forces to the FSR and recording the corresponding sensor readings. A calibration curve can then be generated, which is typically non-linear and specific to the individual sensor and test setup. Subsequent force measurements can then be interpreted based on this established calibration curve.

Force sensing resistors have become indispensable in modern technology due to their simplicity and versatility. From consumer electronics to industrial automation, FSRs enable intuitive interactions and precise measurements. Understanding their basic principles and limitations is essential for anyone working with sensors or designing electronic devices, as they serve as a fundamental bridge between the physical world and our technological creations. The continued advancements in FSR technology will undoubtedly expand their applications and impact on how we interact with the world around us.
