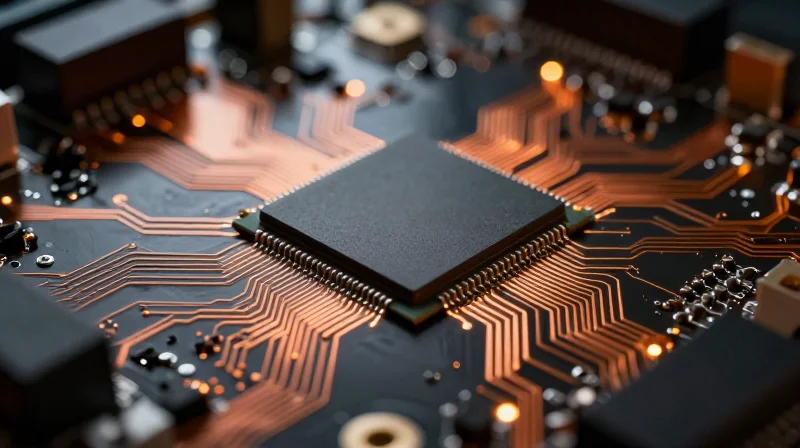

Matching MCU/SoC Architecture to Operational Demands

The core of a high-performance robot vacuum lies in the synergy between its processing power and the software stack. Selecting the right PCBA involves evaluating if the SoC (System on Chip) can handle intensive SLAM (Simultaneous Localization and Mapping) and real-time path planning without introducing latency that causes navigation errors or mechanical stalling. Over-engineering with server-grade silicon increases BOM costs unnecessarily, while under-powered MCUs lead to jerky movement and inefficient coverage.

Hardware Capability Comparison

Common Considerations for PCBA Selection

• How does path planning affect CPU requirements?
  Dynamic obstacle avoidance requires low-latency sensor fusion. If the algorithm is handled locally on the PCBA rather than the cloud, it necessitates a dedicated DSP or NPU to prevent CPU throttling.
• Is more RAM always better?
  Not necessarily. While high-resolution map storage requires more memory, optimized firmware can often perform well on mid-range LPDDR4 configurations; evaluate the mapping density requirements before selecting high-capacity modules.
• What is the impact of NPU integration?
  Modern smart home appliances benefit from an integrated Neural Processing Unit (NPU) to handle object recognition—like pet waste or power cords—without stressing the primary application processor, ensuring fluid navigation.

Architecting for Signal Integrity

For high-performance robot vacuums, the motherboard must manage high-bandwidth signals from cameras and LiDAR sensors alongside low-speed motor controls. The stack-up must prioritize ground plane continuity and controlled impedance for high-speed traces to prevent cross-talk and signal degradation, which are critical for real-time SLAM processing.

Core Stack-up Strategies

• Ground Plane Shielding
  Utilize solid ground planes directly beneath high-speed signal layers to provide a short return path, significantly reducing EMI and loop inductance.
• Controlled Impedance
  Ensure traces for MIPI CSI interfaces (cameras) and high-speed communication buses are designed with consistent width and spacing to meet specific impedance requirements (typically 50Ω single-ended or 100Ω differential).
• Layer Isolation
  Separate high-speed digital signals from noisy analog motor-drive circuits using dedicated inner layers to minimize noise coupling.

Stack-up Comparison: Standard vs. Optimized

While 4-layer boards may suffice for basic models, a 6-layer or 8-layer stack-up is standard for high-performance units. This allows for additional internal ground and power planes, creating a more stable reference environment for sensitive sensor data streams.

Essential Sensor Integration Capabilities

A robust PCBA for smart home robotics must act as a high-speed nervous system, capable of simultaneously polling disparate sensor arrays without data bottlenecks or latency. To support advanced navigation and situational awareness, the motherboard must feature high-resolution I/O interfaces, dedicated low-latency interrupt lines for safety-critical sensors, and signal conditioning circuitry that ensures noise-free data acquisition from delicate analog components like ultrasonic emitters.

Critical Sensor Data Interfaces

Common Integration Challenges

• How do we prevent signal crosstalk between digital sensors and analog cliff detectors?
  Utilize isolated ground planes and strategic trace routing to keep high-speed digital signals away from sensitive ADC input lines, alongside hardware-level Ferrite beads for EMI suppression.
• Why is dedicated hardware-based interrupt handling necessary for cliff sensors?
  Safety-critical sensors require near-instantaneous response times; handling these via software polling introduces non-deterministic latency that can lead to catastrophic hardware failure.
• Does the motherboard require an FPGA or CPLD for sensor fusion?
  While not always necessary for budget units, a companion CPLD or FPGA offloads time-sensitive data aggregation from the primary SoC, significantly improving the responsiveness of real-time SLAM algorithms.

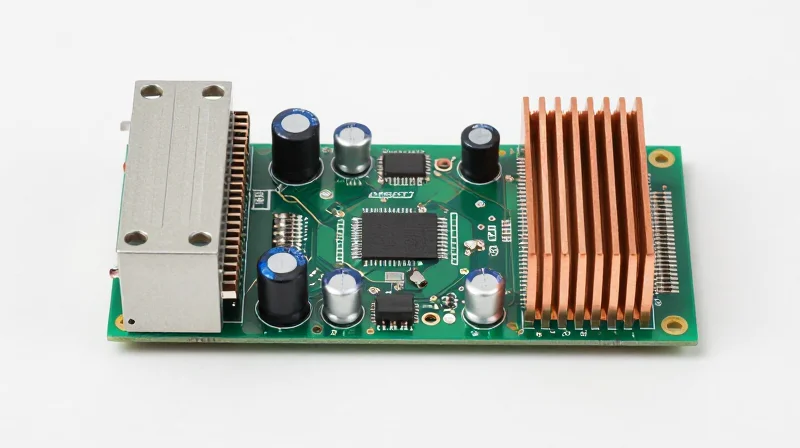

Optimizing the Power Delivery Network (PDN)

A robust Power Delivery Network (PDN) is the backbone of high-performance robotics. To prevent voltage drops during high-load scenarios—such as engaging motors while simultaneously processing intensive SLAM computations—the PCB design must prioritize low-impedance power planes and strategic decoupling. Engineers should ensure that high-current paths for vacuum motors are physically isolated from sensitive logic supply rails to minimize switching noise interference.

Efficiency Strategy Comparison

Key Considerations for Energy Efficiency

• How does multi-rail regulation improve reliability?
  By utilizing dedicated voltage regulators for sensors, the main processor, and motor drivers, you prevent voltage dips in the logic circuitry when the vacuum motor triggers a power surge.
• What is the importance of choosing low-RDS(on) MOSFETs?
  Lower resistance in power-switching MOSFETs reduces heat dissipation, which preserves energy and extends the longevity of components surrounding the power stage.
• How should standby power be managed?
  Integrate low-quiescent current LDOs or ultra-low power wake-up timers to ensure that the robot maintains essential sensor readiness without exhausting the battery during charging station inactivity.

Ultimately, the selection of the right PCBA requires verifying the efficiency curves of the onboard DC-DC converters under varying load conditions. High-performance appliances demand power stages that maintain 90% or higher conversion efficiency across the full operational spectrum, ensuring that maximum energy is translated into cleaning performance rather than thermal waste.

Ensuring Longevity Through IPC and Environmental Standards

To achieve high performance in consumer robotics, PCBA design must move beyond standard consumer electronics protocols and embrace industrial-grade reliability. By adhering to IPC-A-610 Class 2 or 3 standards, manufacturers ensure that solder joint integrity and component mounting can withstand the constant vibration and mechanical stress inherent in floor-cleaning operations.

Critical Reliability Testing Protocols

Thermal Dissipation and Structural Integrity

High-performance processing units—especially those running SLAM algorithms—generate significant localized heat. Reliability is compromised if heat dissipation is inconsistent. Effective PCBA designs incorporate high thermal conductivity substrates (such as TG170+ FR4) and strategic thermal vias connected to internal ground planes. This ensures that the motherboard remains within safe operating temperatures, preventing thermal throttling that would otherwise degrade navigation accuracy.

Frequently Asked Questions

• Why is conformal coating necessary for vacuum motherboards?
  Robot vacuums are exposed to varying humidity levels, particularly in kitchens and bathrooms. A high-quality conformal coating protects sensitive PCB traces from moisture, dust, and microscopic debris that can cause dendritic growth and subsequent failure.
• How does PCB thickness influence reliability?
  For mobile appliances, a standard 1.6mm thickness is often insufficient. Upgrading to a 2.0mm or multi-layer high-density interconnect (HDI) board improves structural rigidity, reducing board flexing during sudden stops or collisions.

Connectivity and IoT Considerations

For modern high-performance robot vacuums, the PCBA serves as the central communication hub. Integrating Wi-Fi and Bluetooth modules requires a strategic approach to RF layout, antenna placement, and power stability to ensure consistent cloud connectivity and smartphone app synchronization without signal interference from the motor driver circuits.

Optimizing Signal Integrity and RF Design

Maintaining a stable wireless connection amidst high-frequency noise requires rigorous PCB design practices. Developers should prioritize the following strategies to prevent packet loss and latency during mapping and cloud updates.

• Antenna Isolation
  Keep Wi-Fi and Bluetooth antennas away from high-current motor traces and switching power regulators to minimize EMI/RFI interference.
• Layer Stack-up Management
  Utilize dedicated ground planes beneath RF circuitry and ensure via shielding to create a clear return path for high-frequency signals.
• Impedance Control
  Maintain precise 50-ohm trace impedance for all RF paths between the communication module and the antenna to maximize transmission efficiency.

Selecting IoT Modules for Smart Home Integration

Security and Future-Proofing

Beyond physical design, the PCBA must support secure firmware over-the-air (FOTA) updates. This necessitates selecting processors with hardware-based secure boot mechanisms and sufficient flash memory headroom for OTA rollbacks. By decoupling the RF sub-system from the primary motor controller through high-speed serial interfaces (like SDIO or UART with flow control), developers can ensure the system remains responsive even during intensive cloud-sync operations.

Strategies for Cost-Effective PCBA Optimization

Balancing Bill of Materials (BOM) costs requires a disciplined approach to component selection, where performance-critical components are prioritized while commodity parts are aggressively value-engineered. By selecting microcontrollers and power management ICs that offer the specific feature sets required for high-performance navigation without over-specifying capabilities that remain underutilized, developers can achieve significant cost reductions without compromising the user experience.

Maximizing Design for Manufacturing (DFM)

Design for Manufacturing (DFM) is the bedrock of cost control. Reducing board layer counts, minimizing component variety to increase pick-and-place efficiency, and selecting standardized surface-mount device (SMD) packages can drastically lower assembly costs. Engaging with your PCBA partner early in the design cycle ensures that your board layout aligns with the manufacturer's automated assembly capabilities, reducing yield loss and rework costs during mass production.

• How does component consolidation impact reliability?
  Consolidating functions into fewer, higher-quality ICs reduces the total solder joint count, which statistically improves long-term reliability and lowers defect rates during assembly.
• When should I switch to a custom PCBA vs. off-the-shelf?
  Off-the-shelf boards are ideal for rapid prototyping, but custom PCBA designs become significantly more cost-effective once volume exceeds the 'break-even' point where NRE (Non-Recurring Engineering) costs are amortized over tens of thousands of units.
• How can I avoid supply chain volatility in BOM costs?
  Specify alternate components with equivalent technical profiles in the design documentation and maintain secondary sourcing agreements to prevent production halts caused by single-source shortages.

Designing for Longevity and Scalability

To prevent your smart home appliance from becoming obsolete within a few years, your motherboard PCBA must be engineered with overhead in mind. This involves selecting a processor with sufficient compute headroom to handle future AI-driven firmware algorithms, such as advanced obstacle avoidance or mapping enhancements delivered via Over-the-Air (OTA) updates.

Key Architectural Considerations

Frequently Asked Questions on Future-Proofing

• Why is dual-bank flash memory critical for OTA?
  Dual-bank flash allows the new firmware to be written to a secondary partition while the device operates. If the update fails, the system reverts to the stable version, ensuring the device never becomes 'bricked'.
• How much RAM headroom is recommended?
  Always aim for at least 30-50% unused system memory beyond current production requirements to accommodate future feature sets, such as advanced SLAM (Simultaneous Localization and Mapping) updates.
• Should I include physical expansion headers?
  Yes. Including standardized interface headers like UART, SPI, or I2C allows for secondary board attachments, which can add features like improved UV sanitization or secondary LiDAR sensors without a motherboard redesign.

Ultimately, the lifecycle of a high-performance robot vacuum is determined by its software's ability to evolve. By prioritizing a PCBA architecture that supports computational growth and modular peripheral expansion, you protect your market position and enhance the value proposition for the end-user over the entire product lifespan.
