In the world of electronics, where precision is paramount, the humble IC socket plays a crucial role. Think of it as a meticulously crafted handshake between delicate integrated circuits and the robust printed circuit boards they call home. From prototyping to final assembly, IC sockets facilitate easy chip replacement and protect sensitive components. This guide demystifies IC sockets, covering their types, applications, and best practices to enhance your projects.

What is an IC Socket?

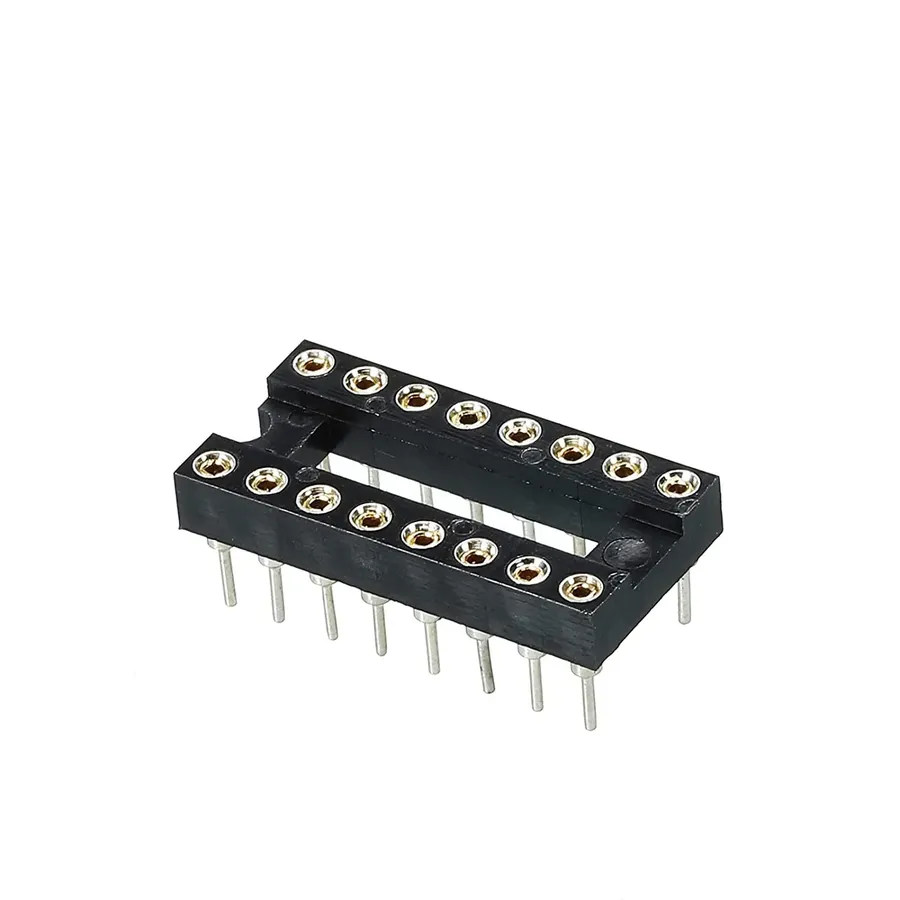

An IC socket is a crucial mechanical component that facilitates the mounting of integrated circuits (ICs) onto printed circuit boards (PCBs). Primarily, it serves as an intermediary connector, allowing for the insertion and removal of ICs without the need for soldering. This capability is indispensable for a variety of applications, including prototyping, testing, and the repair or replacement of ICs.

Why Use IC Sockets?

IC sockets are essential components in electronics, primarily employed to avoid direct soldering of integrated circuits (ICs) onto printed circuit boards (PCBs). This seemingly simple design choice offers a range of significant advantages, particularly in the areas of prototyping, testing, and device maintenance, and greatly extends the life and usefulness of electronic projects.

• Protection from Heat Damage
  Soldering processes can generate considerable heat, potentially damaging sensitive ICs. IC sockets allow for the mounting of these chips after the soldering process is complete, thereby protecting them from the detrimental effects of high temperatures. This is crucial for maintaining the integrity of the IC and ensuring its reliable operation.
• Facilitation of Easy Replacement
  When troubleshooting, or in the event of a failed component, replacing an IC that is soldered directly to a PCB is a time-consuming and often difficult task. IC sockets make IC replacement quick and simple, minimizing downtime and the risk of damaging other components on the board. This ease of access is a crucial benefit for both development and maintenance.
• Enablement of Modular Design
  IC sockets support modularity, which is very important for projects involving iterative design and repairs, allowing for ICs to be easily swapped for upgrades or testing purposes without the necessity of re-soldering components. This facilitates a more flexible and adaptable design process.
• Crucial for Prototyping and Experimentation
  During prototyping, ICs may need to be swapped frequently as design iterations are tested and refined. IC sockets are vital for this iterative process, offering a safe, reliable, and convenient way to experiment with different ICs and circuit configurations, without risking damage to the ICs or the PCB. This is a significant advantage in a fast-paced development cycle.

Types of IC Sockets: An Overview

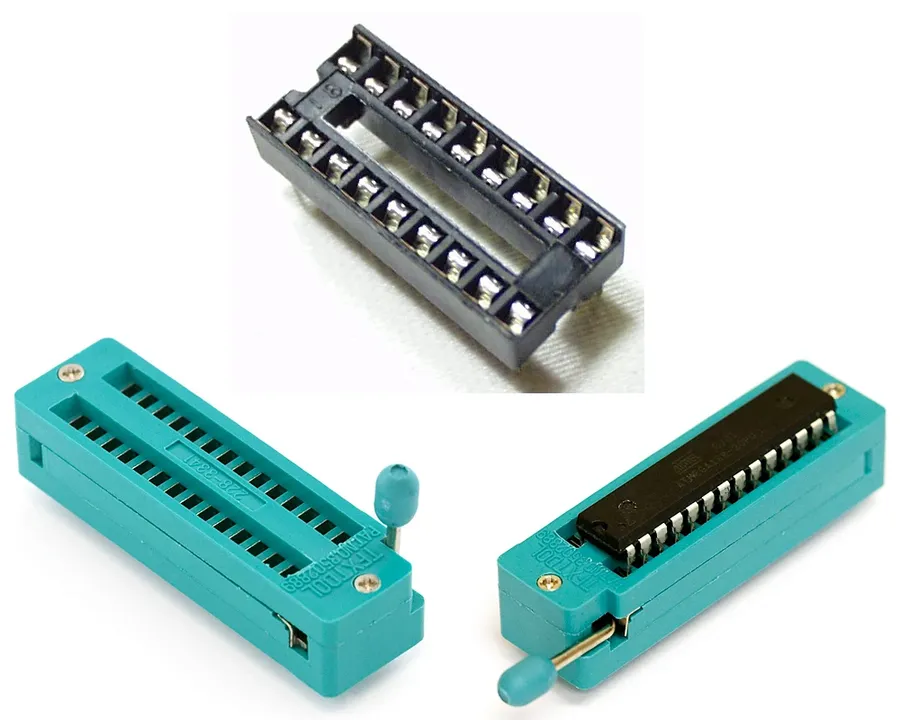

IC sockets are designed with specific integrated circuit packages in mind, resulting in a variety of socket types. The selection of the appropriate socket is crucial for ensuring proper fit, reliable electrical connection, and ease of use for different IC packages. Common types include DIP, PLCC, SOIC and PGA sockets, each catering to distinct IC form factors.

DIP Sockets: The Most Common IC Socket

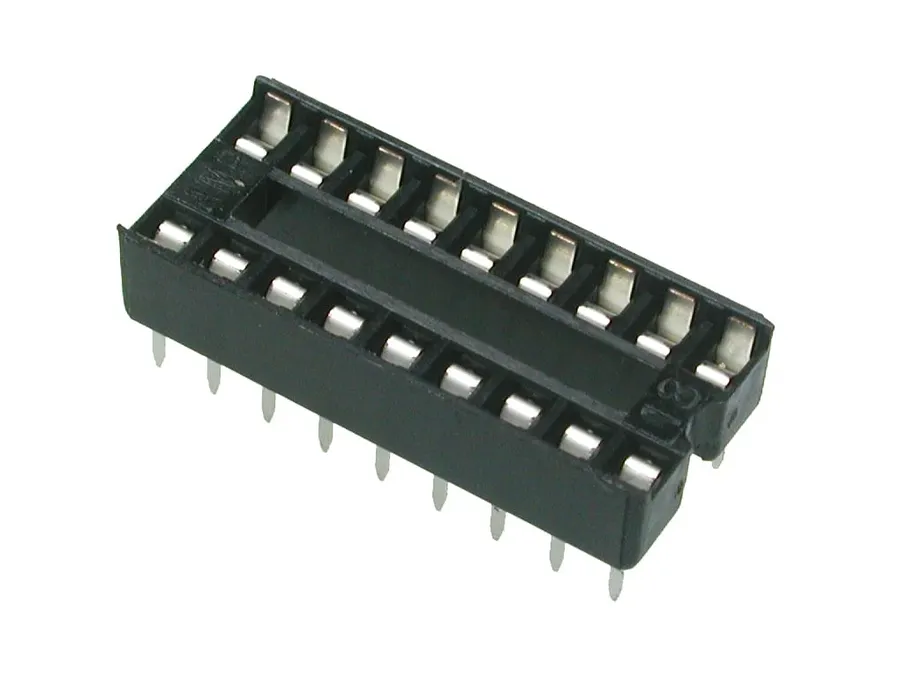

Dual In-line Package (DIP) sockets are a cornerstone in electronics prototyping and development, providing a robust and reliable method for mounting through-hole integrated circuits (ICs). Their design, featuring two parallel rows of pins, makes them incredibly user-friendly and widely applicable.

DIP sockets are particularly favored for their ease of use, enabling designers to quickly insert or replace ICs without the need for soldering, a critical advantage in testing and experimentation. This feature greatly reduces the risk of damage to the ICs from heat and physical handling. Their widespread adoption across a broad spectrum of electronics projects reflects their versatility and reliability, especially within education and hobbyist sectors.

PLCC and SOIC Sockets: Surface Mount ICs

PLCC (Plastic Leaded Chip Carrier) and SOIC (Small Outline Integrated Circuit) sockets are specifically designed to accommodate surface mount ICs, which are essential for modern high-density electronic designs. Unlike through-hole components, surface mount technology allows components to be mounted directly onto the surface of the PCB, leading to smaller and more compact electronic devices.

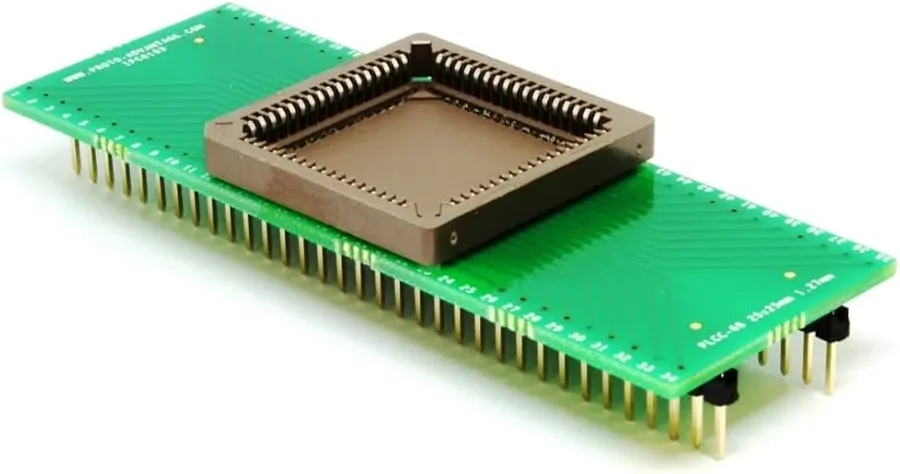

PLCC sockets are characterized by their square shape and J-shaped leads that wrap under the chip. This design provides a robust and secure connection and is often used for memory chips and microcontrollers. SOIC sockets, in contrast, are designed for rectangular chips with gull-wing leads that extend outward from the chip's body. SOIC is very popular and used in a wide range of applications like op-amps, logic gates, and various interface ICs. These sockets enable efficient board assembly and high-density packaging.

IC Socket Materials and Construction

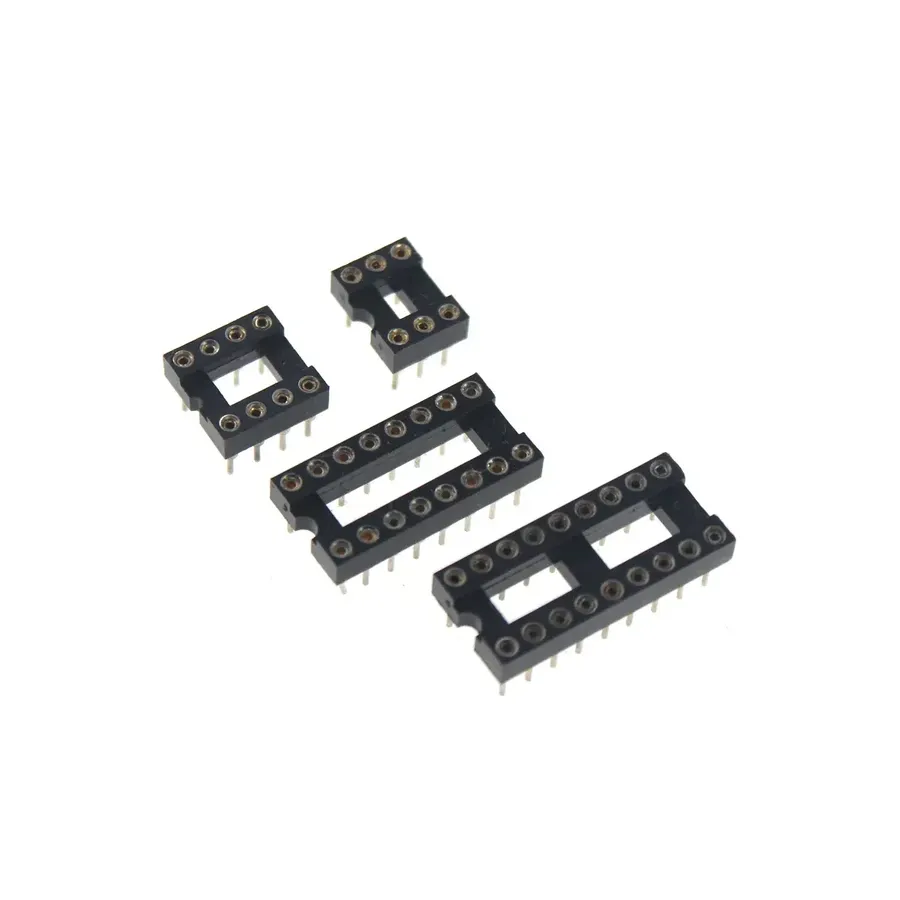

IC sockets are constructed from carefully selected materials to ensure reliable electrical connections and mechanical integrity. The choice of materials directly impacts the socket's performance, longevity, and suitability for different operating conditions. Key components include the contact material, which facilitates electrical signal transmission, and the socket body, which provides structural support and insulation.

The selection of contact plating is critical. While tin plating offers a cost-effective solution, it's susceptible to oxidation, which can increase contact resistance over time. Gold plating, though more expensive, provides superior conductivity and corrosion resistance, making it ideal for high-reliability applications and harsh environments. The socket body material is chosen for its ability to withstand high temperatures during soldering and operation, as well as for its electrical insulation properties. High-temperature thermoplastics like polyetherimide (PEI) or polyphenylene sulfide (PPS) are frequently used.

A critical consideration is galvanic corrosion. Mixing dissimilar metals in the contact area, such as tin-plated IC pins with gold-plated socket contacts, can lead to galvanic corrosion under certain environmental conditions, causing contact failure. Therefore, it's important to match the plating material of the socket to that of the IC pins, or to select socket contacts with appropriate plating to minimize potential corrosion.

IC Socket Selection Criteria

Selecting the correct IC socket is crucial for ensuring reliable electronic connections and efficient prototyping. The selection process requires careful consideration of several key factors, including the IC package type, pin count, mounting method, and operational environment, with primary importance given to ensuring full compatibility with the target IC.

Frequently Asked Questions About IC Sockets

This section addresses common questions about IC sockets, providing clear and concise answers to help users understand their function, types, and applications. These FAQs are designed to resolve common user pain points and provide practical information.

• What exactly is an IC socket?
  An IC socket is a mechanical connector designed to hold an integrated circuit (IC) securely on a printed circuit board (PCB). It facilitates easy insertion and removal of ICs without the need for soldering, which is crucial for prototyping, testing, and replacing components. This allows for non-destructive testing and component swapping.
• What is an IC test socket and how does it differ from a standard IC socket?
  An IC test socket is a specialized type of IC socket designed for frequent insertion and removal cycles, crucial for testing ICs. Unlike standard sockets, test sockets are built with more durable materials and a mechanism that ensures reliable electrical contact over many insertion cycles. They are often used in production testing and quality control. Standard sockets are more suited for long term placement of components in a device.
• What is an IC connector? Is it the same as an IC socket?
  The term 'IC connector' often refers to an IC socket, although it can also broadly refer to any connector that is used to interface with an integrated circuit, such as a ribbon cable connector. In the context of mounting ICs on a PCB, the terms are often used interchangeably. However, IC connectors can also refer to a connector that provides connectivity to external devices.
• What does 'IC' stand for in the context of electrical engineering?
  'IC' stands for 'Integrated Circuit'. An integrated circuit is a miniature electronic circuit (a network of electronic components) manufactured on the surface of a single semiconductor material, typically silicon. These can perform a wide variety of complex functions.
• Why are IC sockets preferred over soldering ICs directly onto a PCB?
  IC sockets offer several advantages over direct soldering. Firstly, they protect the IC from thermal damage during soldering. Secondly, they enable easy replacement of faulty chips without having to rework the PCB. They also make prototyping much faster and easier and facilitates easy changes to a board configuration for upgrades, or testing a different IC. This is very important for experimentation.
• What are the common types of IC sockets available?
  Common types of IC sockets include DIP (Dual In-Line Package) sockets for through-hole components, PLCC (Plastic Leaded Chip Carrier) sockets for surface mount chips with J-leads, and SOIC (Small Outline Integrated Circuit) sockets for surface mount chips with gull-wing leads. There are also PGAs for ICs with pin grid arrays.
• How do I choose the correct IC socket for my IC?
  Choosing the right IC socket requires you to consider the IC package type, the number of pins, the desired mounting method (through-hole or surface mount), and the operating environment. Ensure the socket matches the IC's physical package and pin configuration. Checking the manufacturer’s data sheet for your component is the most effective way to find this information.

How to Use IC Sockets Effectively

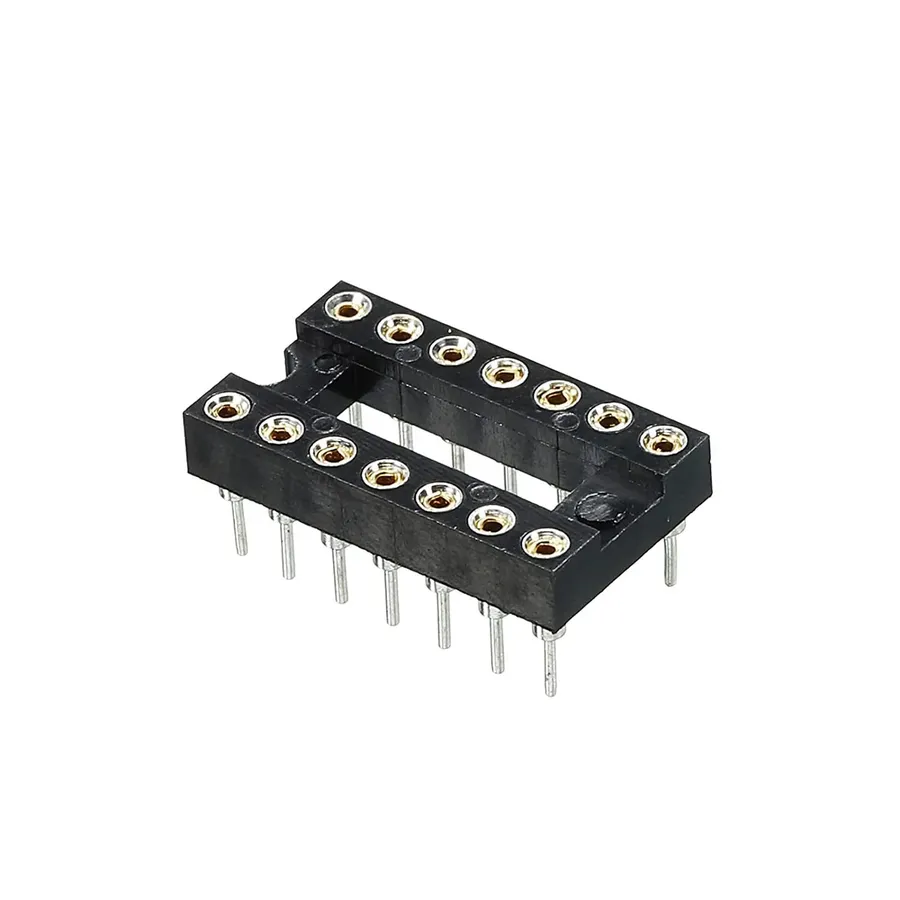

Effective utilization of IC sockets hinges on proper installation techniques to ensure reliable electrical connections and prevent damage to both the IC and the socket. Key aspects include correct alignment, careful insertion, and prevention of electrostatic discharge (ESD).

• Proper Alignment
  Before inserting an IC, meticulously align all pins with the corresponding socket holes. Misalignment can lead to bent pins and unreliable electrical connections. Typically, ICs have a notch or a dot on one end, which must be aligned with the corresponding mark on the socket. Always consult the datasheet for the exact orientation.
• Careful Insertion
  Insert the IC vertically into the socket, ensuring that all pins enter their respective holes simultaneously. Avoid angling the IC during insertion, as this can easily bend the delicate pins. A slight rocking motion might be necessary for some sockets, but apply gentle, even pressure.
• Static Discharge Precautions
  Electrostatic discharge (ESD) can damage sensitive electronic components. Always use ESD-safe practices. This includes wearing an anti-static wrist strap, working on an anti-static mat, and storing components in anti-static bags when not in use. Grounding yourself before handling any ICs is crucial.
• Consistent Pin Contact
  After insertion, visually inspect all pins to ensure that they are fully seated and making solid contact with the socket contacts. Poor contact can lead to intermittent failures or device malfunction. If problems are suspected, remove the IC carefully and inspect the pins and the socket for any damage. Verify the contact with a multimeter if needed.

Advanced Applications of IC Sockets

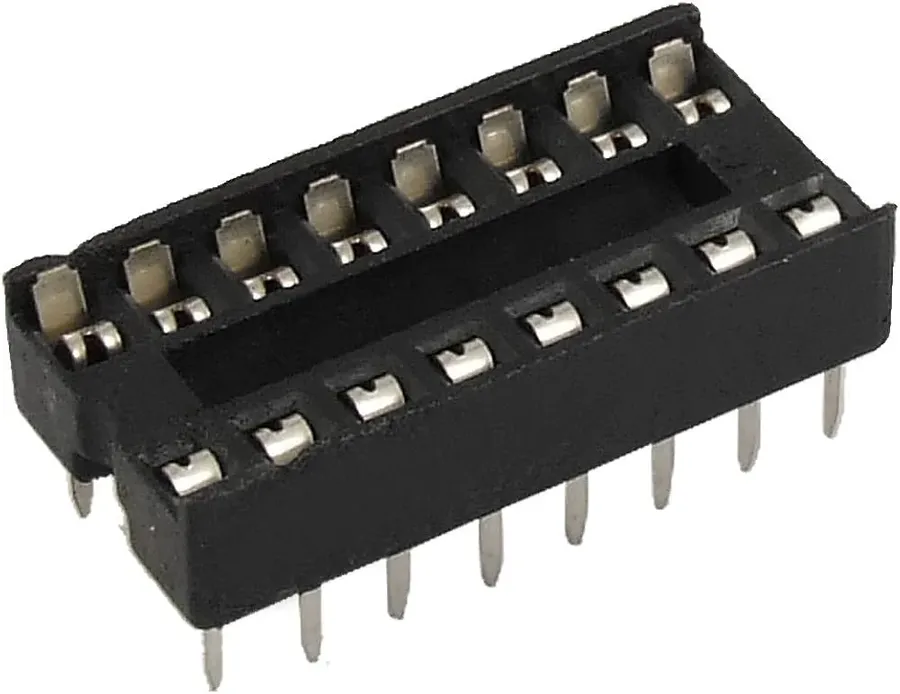

Beyond basic prototyping, IC sockets are crucial in specialized applications requiring frequent component changes, testing, and programming. They facilitate efficient and reliable connections in these advanced scenarios, and enable complex electronic designs and testing.

• Test Jigs and Fixtures
  IC sockets are extensively used in test jigs and fixtures, allowing for rapid insertion and removal of ICs during testing. This is particularly valuable in manufacturing and quality control processes.
• Device Programming
  IC sockets are essential for programming devices, enabling secure and reliable connections during the programming process. They support both in-circuit programming and device programming outside the main circuit board.
• High-Reliability Applications
  In high-reliability environments, IC sockets allow for quick replacements of faulty components or hardware upgrades. This greatly minimizes downtime, particularly in industrial or mission-critical operations, allowing devices to be easily swapped without the need to fully disassemble the device.
• IC Socket Adapters
  IC socket adapters are used when a circuit must be modified for a component with a different physical footprint. For example, a DIP package may need to be installed on a PCB with only a socket for a surface mount component. These adapters enable a wider variety of integrated circuits to be tested and used.

In summary, IC sockets are essential components for any electronics project involving integrated circuits. They safeguard valuable chips, ensure reliable connections, and provide the flexibility needed for design and repairs. By selecting the correct IC socket and applying best practices, you can enhance the quality, durability and efficiency of your electronic designs. Whether you are working on a simple Arduino project or a complex circuit, an IC socket will be a useful tool.
