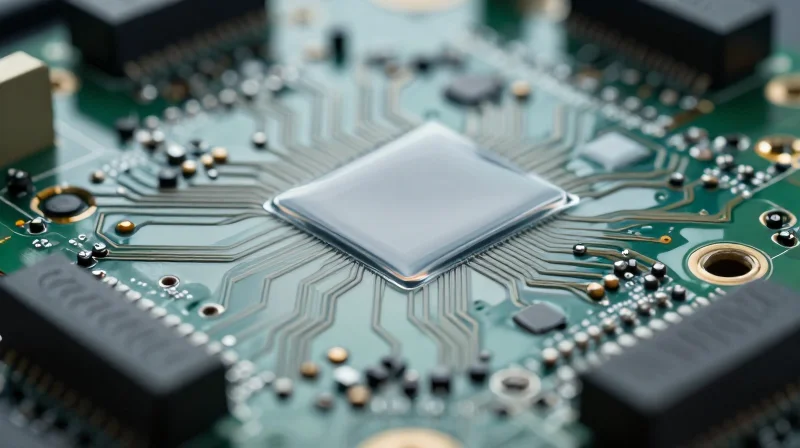

Conformal coating is frequently relegated to the final stages of the assembly process, treated as an afterthought rather than a core design requirement. This reactive approach often leads to compatibility issues, masking defects, and inconsistent material coverage that directly impacts long-term reliability. By adopting a proactive DFM strategy, engineers can establish board layouts that facilitate uniform deposition, accommodate material expansion coefficients, and minimize the risk of fluid migration into sensitive keep-out zones.

The Correlation Between DFM and Field Reliability

When conformal coating application is not considered during the routing phase, designers often inadvertently create 'wells' or 'pockets' where liquid coatings pool, leading to cracking or incomplete curing. Conversely, high-profile components placed too close together prevent proper spray access, leaving trace pathways exposed to moisture and salt fog. Effective DFM aligns component placement with the physical limitations of application equipment, ensuring a consistent environmental barrier that prevents electrochemical migration and short-circuiting in harsh field conditions.

Strategic DFM Implementation FAQs

• Why should DFM focus on keep-out zones?
  Defining strict keep-out zones early prevents the contamination of non-wettable areas such as connectors, switches, and heat sinks, which is essential to avoid the cost and risk of post-application masking or stripping.
• How does component profile affect coating uniformity?
  Steep component profiles create shadows during automated spray processes; grouping components of similar heights or providing sufficient clearance allows for a smooth transition of the coating material across the PCB landscape.
• Can DFM mitigate coating stress?
  Yes, by considering the Coefficient of Thermal Expansion (CTE) of both the coating and the components, DFM can minimize mechanical stress during thermal cycling, preventing delamination and solder joint fatigue.

Adhering to Industry Standards

The primary benchmark for conformal coating performance is IPC-CC-830, which defines the requirements for quality and reliability. Designing for DFM requires strict adherence to these testing protocols to ensure coating integrity. Standard thickness requirements typically range from 25 to 75 microns (1 to 3 mils). Applying thinner layers risks incomplete coverage over component edges, while excessive thickness can induce mechanical stress on solder joints due to coefficient of thermal expansion (CTE) mismatches during thermal cycling.

Material Selection Matrix

Selecting the Right Chemistry

• How do I choose between Acrylic and Silicone?
  Choose Acrylic for ease of assembly and reworkability. Select Silicone if your board will be exposed to wide temperature fluctuations where flexibility is needed to prevent component cracking.
• When is Parylene the preferred choice?
  Parylene should be specified for high-reliability applications where thin-film uniformity is required to penetrate tight spaces under fine-pitch components where liquid coatings cannot reach.
• Does thickness impact impedance?
  Yes, high-frequency circuits are sensitive to dielectric constant changes. Always consult with your coating supplier to ensure the selected material's dielectric properties align with your RF signal requirements at the target thickness.

Layout optimization for conformal coating involves establishing rigid keep-out zones around sensitive components where coating material could impair electrical contact or mechanical functionality. By defining these boundaries during the DFM phase, designers can transition from labor-intensive manual masking processes to automated or semi-automated dispensing, significantly reducing production costs and human error.

Establishing Design Keep-Out Guidelines

The primary objective is to keep non-conductive materials away from interface points while ensuring protection for adjacent traces. Designers should enforce a standard clearance zone—typically 1.0mm to 2.0mm—around connectors and switches to prevent capillary action from wicking coating material into sensitive internal mechanics.

Operational FAQs for Masking Reduction

• How can I avoid manual masking?
  Increase component clearance to at least 2mm and utilize automated selective coating equipment that features high-precision valves, removing the need for manual tape masking.
• What is the best way to handle high-density connectors?
  Utilize temporary masks or gel-based masks that are designed for easy removal after the curing process, ensuring no residue is left on mating surfaces.
• Are there specific layout patterns that reduce coating failures?
  Avoid placing sensitive components near the board edge or in 'pools' where coating can naturally migrate due to gravity, which prevents pooling and edge-bead accumulation.

Best Practice Summary

To achieve optimal DFM, standardize your keep-out libraries in your CAD software. By enforcing these rules at the schematic and layout level, you ensure that the manufacturing partner can utilize automated conformal coating systems, resulting in a cleaner finish, lower scrap rates, and consistent protection across every batch.

Conformal coating behavior is governed by the physical properties of the liquid chemistry and the surface energy of the substrate. When applying thin-film coatings, capillary action acts as a double-edged sword: it is essential for wicking under low-profile components to ensure full coverage, yet it can cause uncontrolled migration into unwanted areas like gold-plated contacts or sensitive switches. Achieving the ideal balance requires strict adherence to DFM rules regarding spacing and dam-and-fill structures.

Managing Capillary Flow via DFM

To prevent coating from wicking into forbidden zones, designers must manipulate the surface energy and physical barriers on the board. The most effective approach involves incorporating localized 'keep-out' buffers and mechanical barriers that disrupt the fluid's surface tension before it reaches critical terminals.

Design Best Practices for Surface Tension Control

• How does component density affect coating migration?
  High-density layouts with tight component-to-component gaps decrease surface tension breaks, creating 'rivers' for liquid coating to travel across the PCB surface via capillary action.
• Why should I use solder mask as a primary barrier?
  Solder mask typically has lower surface energy than exposed copper or FR4, making it naturally hydrophobic. Strategic use of mask bridges acts as a passive barrier to thin-film migration.
• What is the danger of low-profile component placement?
  Components with standoff heights below 0.1mm are highly susceptible to total encapsulation. While this provides excellent environmental protection, it may trap outgassing contaminants if the coating does not fully cure under the component body.

In summary, optimizing for coating flow is a function of board geometry. By utilizing solder mask dams and designing intentional surface tension breaks, you can ensure that the coating protects the intended components without jeopardizing the electrical integrity of connectors or high-speed interface ports.

Comparative Analysis of Application Methodologies

The choice between manual and automated application is primarily driven by production volume, consistency requirements, and the complexity of the PCBA topography. While manual processes offer low initial investment and high flexibility, they suffer from significant operator-dependent variability and high labor costs at scale. In contrast, automated systems provide repeatable, high-precision results that are essential for high-reliability applications.

Design for Manufacturing (DFM) Considerations

Optimizing for automated selective coating requires rigorous DFM adherence. Automated spray valves possess a minimum 'footprint' for deceleration and acceleration; therefore, placing sensitive components too close to keep-out areas leads to coating migration or mechanical interference. Designers must ensure that no critical connectors are situated within the 'splash radius' of automated nozzles, which typically extends 2–3mm beyond the keep-out perimeter.

Frequently Asked Questions

• Why is robotic selective coating preferred for high-density boards?
  Robotic systems offer precise control over volume and fluid dynamics, ensuring that coating is applied exactly where needed while avoiding critical exclusion zones that would require expensive manual masking.
• How does component height impact application method?
  Automated spray arms have fixed clearance thresholds. Tall components can cause shadowing or valve collision; therefore, tall components should be placed away from fine-pitch areas to ensure uniform coating coverage.
• When is dipping the most efficient process?
  Dipping is most effective for high-volume, low-complexity boards where the entire surface requires a uniform film thickness and the board can be designed to withstand total immersion without damage to internal connectors.

Engineering Barriers to Prevent Fluid Migration

Effective mitigation of coating leakage begins with layout geometry that discourages capillary action. By creating intentional breaks in the solder mask or incorporating 'moats' around sensitive headers, designers can interrupt the surface tension path that draws liquid material toward non-target areas.

Addressing Common Masking and Leakage Risks

• How does surface tension lead to coating failure?
  High surface tension materials tend to wick under components via capillary action. Designing wider keep-outs around headers reduces the pull force.
• What is the role of component height in leakage?
  Low-profile components are more prone to under-component flooding; specifying taller connectors or standoff heights improves the margin of safety during spray or selective dispensing.
• Can solder mask design prevent migration?
  Yes, utilizing dam-and-fill techniques on the PCB solder mask can act as a physical barrier to prevent fluid from migrating beyond defined zones.

Process-Integrated Safeguards

Beyond physical design, process parameters such as viscosity control and nozzle angle optimization are critical. If a design requires high-density placement, prioritize the use of low-surface-energy masking tapes or UV-curable masks that provide a tighter seal than mechanical boots, reducing the risk of leakage into high-density connector pins.

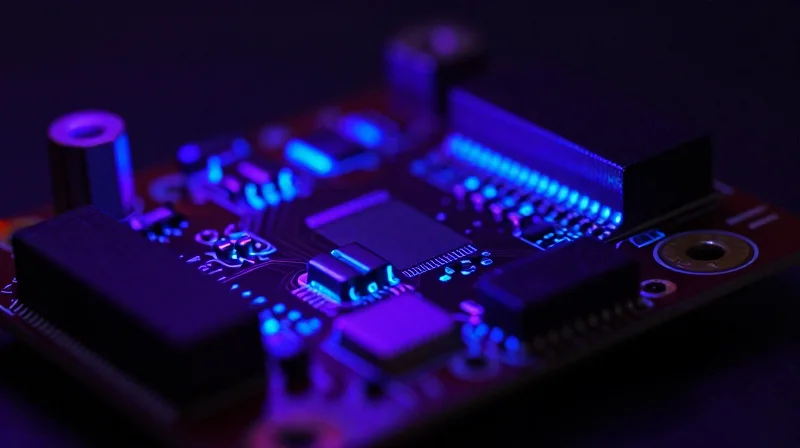

Implementing UV Fluorescent Inspection Standards

Visual inspection under UV light (365nm-400nm) serves as the primary method for verifying coating coverage and detecting defects like pinholes, bubbles, or migration. By incorporating UV fluorescent tracers into the coating formulation, inspectors can immediately identify areas of insufficient coverage or shadowing caused by complex component geometries. To optimize this, design DFM rules that mandate clear spacing around keep-out zones to ensure the UV source can illuminate critical solder joints and component leads without obstruction.

Dry-Film Thickness (DFT) Measurement Protocols

Measuring dry-film thickness is critical, as excessive coating can lead to mechanical stress on solder joints during thermal cycling, while insufficient coverage leaves circuits vulnerable to moisture ingress. Industry standards, such as IPC-CC-830, typically require a thickness range between 25µm and 75µm. Production teams should implement regular sampling using calibrated eddy current sensors or cross-sectional analysis to ensure process consistency.

Quality Assurance and Validation FAQs

• How often should calibration occur for automated coating equipment?
  Automated spray nozzles should undergo weekly calibration checks, with comprehensive flow-rate and pattern verification occurring after every maintenance cycle or material switch.
• What are the common indicators of an ineffective curing process?
  Surface tackiness, wrinkling, or micro-cracking under microscopic inspection suggest improper cure profiles or incorrect humidity levels during the drying phase.
• How does PCB cleanliness influence quality assurance?
  Ionic contamination under the coating can lead to dendritic growth and electrochemical migration; therefore, all validation protocols must include pre-coating cleanliness testing to ensure surface energy levels are sufficient for optimal adhesion.
