Mastering Prototype Boards: A Comprehensive Guide

In the realm of electronics, the prototype board is your canvas. Like a rough draft before the final masterpiece, these boards enable you to test, experiment, and refine your circuit designs. From simple LED circuits to complex sensor systems, understanding prototype boards is crucial for any electronics enthusiast or professional. This article delves deep into their types, usage, and best practices, ensuring you're equipped with the knowledge for successful project development.

Understanding the Basics of Prototype Boards

Prototype boards are fundamental tools in electronics, serving as the crucial link between theoretical circuit designs and functional hardware. They facilitate the rapid testing and refinement of electronic circuits without the permanence of soldering or custom PCB fabrication. At their core, they are platforms designed to allow engineers, hobbyists, and students to experiment and validate their electronic designs before committing to final production.

Types of Prototype Boards: Breadboards vs. Perfboards vs. Custom PCBs

Selecting the right prototype board is critical for efficient electronic development, with breadboards, perfboards (or stripboards), and custom PCBs each offering unique advantages and disadvantages depending on project requirements. Understanding these differences is essential for optimizing the prototyping process.

Each of these options plays a distinct role in the prototyping journey, from initial concept validation using breadboards, to iterative development with perfboards, and ultimately to producing finished products with custom PCBs.

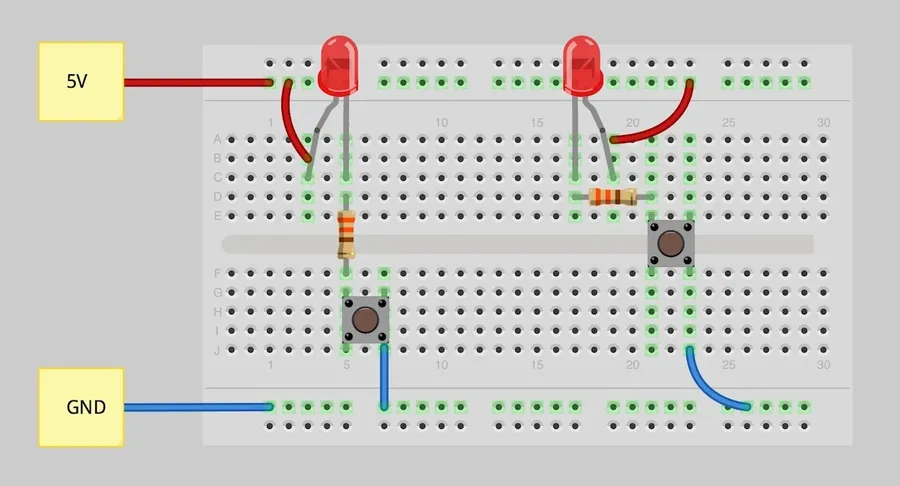

Breadboard Deep Dive: Advantages, Limitations, and Best Practices

Breadboards are fundamental tools in electronics prototyping, offering a solderless and reusable platform for constructing circuits. They are particularly useful for beginners and for rapidly testing circuit designs before committing to a more permanent solution like a PCB. Their ease of use allows for quick modifications and experimentation, making them an essential part of any electronics enthusiast's toolkit.

The primary advantage of a breadboard is its solderless design, which permits components to be connected and reconfigured easily without the need for specialized equipment or time-consuming soldering. However, this advantage comes with limitations, particularly in higher-frequency applications or for circuits requiring low impedance connections, where parasitics can become an issue.

• Advantages of Using Breadboards
  Quick Assembly: Circuits can be assembled and modified rapidly. Solderless Connections: No soldering is required, making it easy to reuse components and change layouts. Reusability: Breadboards and components can be used for multiple projects. Cost-Effective: Breadboards are relatively inexpensive compared to custom PCBs.
• Limitations of Breadboards
  High Parasitic Capacitance and Inductance: May affect high-frequency circuits due to the inherent construction of the breadboard. Not Suitable for High-Power Circuits: Can’t handle high currents or voltages due to the small size of the internal connections. Fragile Connections: Components can come loose easily, leading to intermittent circuit failures. Limited to Through-Hole Components: Can't accommodate surface-mount components.
• Best Practices for Using Breadboards
  Organized Layout: Plan your circuit layout before starting assembly for efficient troubleshooting. Power Rails: Utilize the power rails on the edges of the breadboard for consistent power distribution. Short Jumper Wires: Keep connecting wires short to minimize noise and unwanted signal coupling. Proper Grounding: Ensure proper and reliable grounding connections. Component Placement: Distribute components evenly for better heat dissipation and stability.

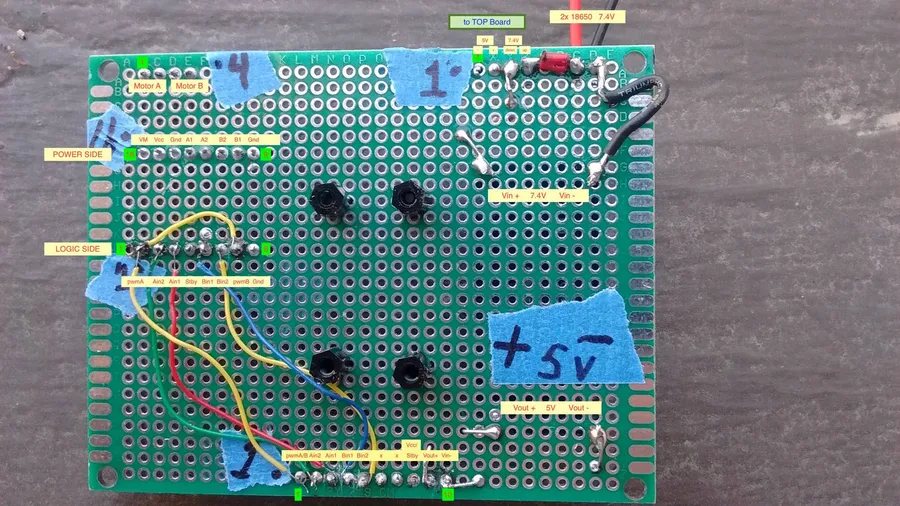

Perfboard (Stripboard) Techniques: Soldering, Layout, and Best Practices

Perfboard, also known as stripboard, offers a more permanent prototyping solution compared to breadboards. It requires soldering components onto copper tracks or pads, creating a more robust and reliable circuit for intermediate to advanced prototyping. This section delves into essential soldering techniques, layout strategies, and best practices for using perfboard effectively.

• Soldering Techniques for Perfboard
  Proper soldering is crucial for reliable perfboard circuits. This includes heating both the component lead and the pad simultaneously, applying solder to the joint, and avoiding cold solder joints by ensuring a shiny, smooth solder fillet. Use appropriate solder wire with flux, a temperature-controlled soldering iron with a fine tip, and take measures to prevent overheating components.
• Effective Perfboard Layout Strategies
  Careful planning of component placement is essential. Organize your layout before soldering by considering the current path and shortest connections, which can minimize noise and enhance the circuit's performance. Avoid complex wire runs and optimize placement to minimize crossover, and use jumpers or wire bridges to make necessary connections.
• Best Practices for Robust Perfboard Circuits
  Ensure mechanical stability and strain relief by securing components properly; where appropriate, use heat-shrink tubing on exposed wires to ensure they do not touch. Additionally, always double-check every solder joint with a multimeter to ensure electrical connections are correct and to identify any unintended short circuits. Consider using sockets for integrated circuits to reduce the need for re-soldering during debugging.

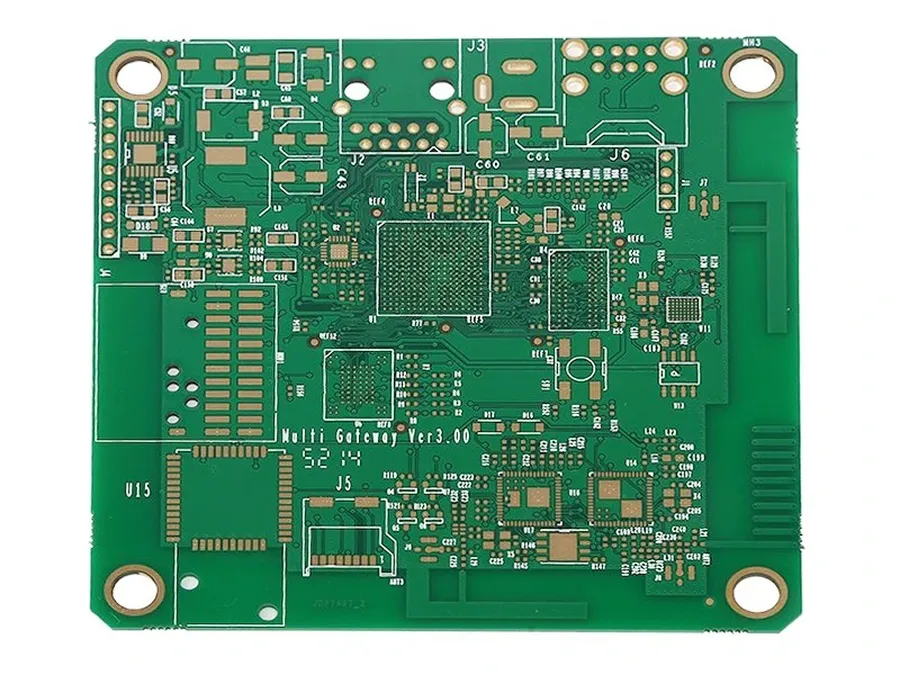

Designing Your Own Prototype PCB: When and How

Transitioning to a custom Printed Circuit Board (PCB) from breadboards or perfboards marks a significant step in electronic prototyping, indicating a move towards more complex, reliable, and potentially manufacturable designs. This section outlines the considerations for this transition, covering the 'when' – the circumstances prompting the need for a PCB – and the 'how' – the process of designing and fabricating one.

The decision to design a custom PCB is driven by the project’s increasing complexity and the limitations of simpler prototype boards.

• When to Consider a Custom PCB:
  Several key factors suggest it's time to move to a custom PCB including: Circuit complexity (Many components or intricate interconnections), Signal Integrity (Critical signal paths requiring controlled impedance), Reliability (A robust and durable design is needed), Volume production (PCB's are essential for mass production), Project Maturity (Once the design is relatively stable and unlikely to change)

Designing a PCB involves schematic capture, layout design, and finally fabrication. There are numerous tools available, each with advantages and disadvantages.

Once the design is complete, you have several options for fabrication, from small-batch prototype runs to full-scale production. Selecting the correct fabrication process is as important as designing the board.

• PCB Fabrication Options:
  Online PCB manufacturers offer a range of services, from basic prototyping to complex multi-layer boards. Consider turn-around time, cost, and quality when making a decision. Also, local PCB manufacturers may offer faster turn around times and better personalized service, but they may come at a higher cost.

Choosing the Right Prototype Board: A Comparative Analysis

Selecting the appropriate prototype board is crucial for the success of any electronics project, as it directly impacts development efficiency, cost, and the final product's reliability. This section provides a detailed comparative analysis of various prototype boards, considering factors such as project complexity, budget, and time constraints, to help engineers make informed decisions.

The selection of a prototype board involves a trade-off. Breadboards are excellent for initial proof-of-concept and rapid iterations due to their reusability and ease of use. Perfboards offer a more permanent solution with increased robustness, suitable for more stable prototypes where soldering is acceptable. Custom PCBs are essential for projects requiring high complexity, reliability, and optimal signal integrity. The project's maturity, requirements, available budget, and timeline will be the deciding factors in selecting the appropriate method.

Prototype Board Materials and Quality Considerations

The selection of materials and the overall quality of a prototype board are paramount to the reliability and longevity of the circuits they host. A thorough understanding of these aspects ensures the development of robust prototypes that accurately reflect the final intended product.

Prototype boards are commonly constructed from a variety of materials, each influencing performance and durability. The most frequently encountered base materials are:

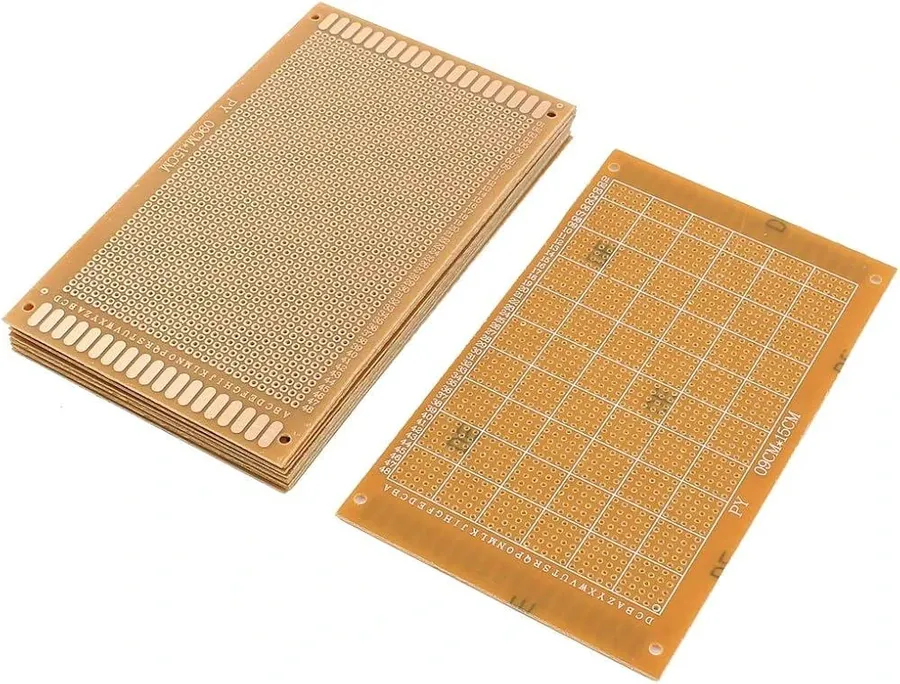

• Paper Phenolic
  Also known as FR-2, this is an inexpensive material often used in entry-level perfboards. It is cost-effective but offers limited mechanical strength, poor moisture resistance, and is not suitable for high-temperature applications. Its lower quality is reflected in its price point and is more suitable for less demanding applications.
• Glass Epoxy (FR-4)
  A more robust option, FR-4 offers superior mechanical strength, better moisture resistance, and can withstand higher temperatures compared to paper phenolic. It is the standard material used in most professional PCBs and provides a higher level of reliability. Although more costly than FR-2, it is the optimal choice for projects requiring higher performance and durability.
• Composite Materials
  Some prototype boards use composite materials, often incorporating both paper and fiberglass for a balance of cost and performance. These are often a middle ground offering better performance than paper phenolic and lower cost compared to FR-4, but with limitations in durability compared to FR-4.

The quality of the prototype board is influenced by factors beyond the base material, such as:

• Trace Quality
  The quality of copper traces is essential. Poorly etched or low-quality copper can lead to increased resistance and signal loss, impacting the functionality of the circuit, especially in high-frequency designs. High-quality boards have uniformly etched traces with consistent width.
• Plating Quality
  Surface plating, often tin or gold, protects the copper from corrosion and ensures reliable solder connections. Poor plating can result in oxidation and weak solder joints which will result in bad connections, thereby reducing the life of the prototype.
• Hole Quality
  The diameter and consistency of plated through-holes (PTH) are crucial for inserting components easily. Misaligned holes or poorly plated through-holes can make soldering difficult and compromise circuit performance. High-quality boards have consistent hole sizes and diameters, ensuring reliable connectivity.

Selecting the correct material and high quality board will not only extend the life of your prototype but also reduce debugging time due to more reliable components and more predictable circuit behaviour. Choosing higher quality boards can often justify its cost in terms of a more effective and efficient prototyping process.

Frequently Asked Questions About Prototype Boards

This section addresses common inquiries regarding prototype boards, providing concise answers to help you understand their usage, types, and applications in electronics prototyping.

• What exactly is a prototype board?
  A prototype board, also known as a protoboard, is a platform used to build and test electronic circuits. It allows for the temporary connection of electronic components without the need for soldering, facilitating experimentation and circuit design verification. Common types include breadboards and perfboards, each catering to different stages of prototyping.
• What is the primary use of a protoboard in electronics?
  The primary use of a protoboard is to enable rapid prototyping and testing of electronic circuits. It allows designers and engineers to quickly assemble, modify, and test circuits before committing to a final design on a printed circuit board (PCB). Protoboards are instrumental in the initial phases of project development.
• What is a perfboard and how does it differ from a breadboard?
  A perfboard, also called a stripboard, features a grid of holes with copper traces connecting columns or rows. Unlike a breadboard, components on a perfboard are typically soldered into place, creating more stable and permanent connections than a solderless breadboard. Perfboards are suitable for more robust prototypes that are closer to a final PCB design and can be used for circuits that will have long-term testing.
• How do I build a circuit using a prototype board?
  To build a circuit on a breadboard, insert components and use jumper wires to connect them, following the circuit diagram. On a perfboard, components are placed and soldered, connecting them with wires or by using the copper traces. Begin with simple circuits to ensure proper connections before progressing to more complex builds. Ensure components are placed correctly (orientation matters) and securely. Always verify your circuit before energizing it.
• When should I consider using a custom PCB instead of a prototype board?
  Custom PCBs are typically considered when a design is finalized, the circuit has been thoroughly tested on a prototype board, and you need a more robust, compact, and reliable final product. Moving to a custom PCB also provides opportunities for optimizing manufacturing and design for scale.
• Is soldering required when using a prototype board?
  Soldering is not required for all types of prototype boards. Breadboards are solderless, relying on spring-loaded contacts to secure components. However, perfboards (stripboards) and custom PCBs require soldering to make permanent connections. The choice depends on the stability and permanency needed for the circuit.
• What materials are commonly used in prototype boards, and how does quality affect performance?
  Prototype boards, such as breadboards, often use a plastic or composite material with spring-loaded metal clips for connections. Perfboards utilize materials such as phenolic or fiberglass, with copper traces. The quality of these materials impacts durability, conductivity, and the overall reliability of the circuit. Higher-quality boards often feature better contact materials, resulting in less signal loss and more consistent performance. For example, using gold-plated contacts in a breadboard can reduce contact resistance compared to tin-plated contacts.

Advanced Prototyping Techniques: Tips and Tricks

Mastering advanced prototyping techniques is crucial for efficiently developing robust and reliable electronic circuits. This section delves into strategies for optimizing the prototype process, focusing on testing, debugging, and implementation of complex projects, thereby bridging the gap between initial design and a polished, functional prototype.

• Modular Design Approach
  Break down complex projects into smaller, manageable modules. This approach facilitates easier testing and debugging of individual components before integrating them into the larger system, minimizing troubleshooting complexities.
• Strategic Component Placement
  Optimize component placement on the prototype board to minimize signal interference and ensure efficient signal flow. This includes grouping related components and separating sensitive analog circuits from digital circuitry to enhance circuit stability.
• Rigorous Testing Procedures
  Implement a thorough testing protocol at each stage of development. This involves using appropriate test equipment, such as multimeters and oscilloscopes, to verify signal integrity, voltage levels, and current consumption. This strategy is vital for identifying potential issues early on.
• Effective Debugging Methods
  Adopt systematic debugging strategies such as signal tracing, breakpoint analysis, and using logic analyzers to pinpoint and resolve circuit malfunctions efficiently. This includes isolating issues to specific components or sections of the circuit.
• Utilizing Simulation Software
  Employ simulation software to model circuit behavior before physical implementation. This enables early identification of design flaws and enhances optimization, preventing costly mistakes in the physical prototyping phase.
• Power Supply Management
  Implement robust power management strategies, including the use of decoupling capacitors and voltage regulators. This approach mitigates noise and ensures a stable power supply to all components, which is essential for reliable circuit operation.
• Documentation and Version Control
  Maintain detailed documentation of every prototype version, changes made, and test results. Utilize version control systems to manage modifications and track progress systematically. This ensures that design changes are well-managed and easy to revert, if necessary.

The prototype board is the heartbeat of electronics development, it’s the gateway to bringing ideas to life. Whether you’re a hobbyist or a seasoned engineer, mastering the art of prototyping is essential. By understanding the different types of prototype boards, including breadboards, perfboards, and custom PCBs, you can effectively transform your ideas into functioning electronic circuits. Embrace the flexibility and adaptability of prototype boards to make your projects a success, and always remember that the journey of innovation begins with a prototype.
