XH-M601: Intelligent 12V Battery Charging Control for Optimal Power Management
In our increasingly power-dependent world, managing battery charging efficiently is crucial. The XH-M601 steps in as an intelligent solution for 12V battery charging control. This compact module, often found powering various devices, automates the charging process, saving energy and extending battery life, seamlessly integrating advanced technology into everyday use. [xhm601] helps you understand how this device works and what it offers.
Understanding the XH-M601: Core Functionality
The XH-M601 is an intelligent charging controller specifically engineered for 12V lead-acid batteries. Its primary function is to automate the charging process, ensuring batteries are charged efficiently while being protected from both overcharging and undercharging conditions. By acting as an intermediary between the power source and the battery, the XH-M601 extends battery lifespan and ensures optimal performance.
Key Features of the XH-M601 Charging Module
The XH-M601 charging module is engineered for precise 12V lead-acid battery charging control, characterized by its defined operating parameters and integrated voltage monitoring. It ensures efficient and safe charging through its specific voltage thresholds and reliable performance. The module is built around an intelligent charging management system with an on-board DC voltmeter that monitors the battery voltage in real-time.
| Feature | Specification | Description |
|---|---|---|
| Operating Voltage Range | 13.8 - 14.8V DC | The voltage range within which the module operates effectively to charge a 12V battery. |
| Relay Trigger Voltage | 12.4V DC | The voltage level at which the relay activates, initiating the charging process. |
| Cut-off Voltage | 14.8V DC | The voltage level at which the charging process is automatically terminated to prevent overcharging. |
| Voltage Detection | Onboard DC Voltmeter | An integrated voltmeter enables real-time monitoring of the battery voltage, ensuring accurate operation. |
XH-M601 Automatic Charging/Stop Mechanism
The XH-M601 employs a sophisticated automatic charging and stop mechanism to maintain optimal battery health. It intelligently monitors the battery's voltage, initiating the charging process when the voltage drops to a predetermined level and ceasing charging when the battery reaches full capacity. This cycle ensures efficient energy use and prolongs the lifespan of connected 12V lead-acid batteries.
- Automatic Charging Initiation
The XH-M601 automatically activates charging when the battery voltage falls to 12.4V. This prevents the battery from being undercharged, which could lead to premature degradation. - Automatic Charging Termination
The module automatically terminates the charging process when the battery voltage reaches 14.8V. This prevents overcharging, a primary cause of battery damage and reduced lifespan. - Hysteresis in Charging Cycle
The difference between the start (12.4V) and stop (14.8V) charging voltage creates a hysteresis that prevents the relay from rapidly switching on and off, providing stable and efficient charging. This also contributes to the longevity of the relay. - Optimized Battery Life
By precisely controlling charge cycles, the XH-M601 optimizes battery performance and extends its usable life. This intelligent charge management reduces the need for frequent battery replacements. - Energy Efficiency
The automatic stop mechanism reduces energy consumption by preventing wasteful charging. Once the battery is full, the XH-M601 stops drawing power until needed, leading to more efficient energy usage.
Wiring and Installation Guide for XH-M601

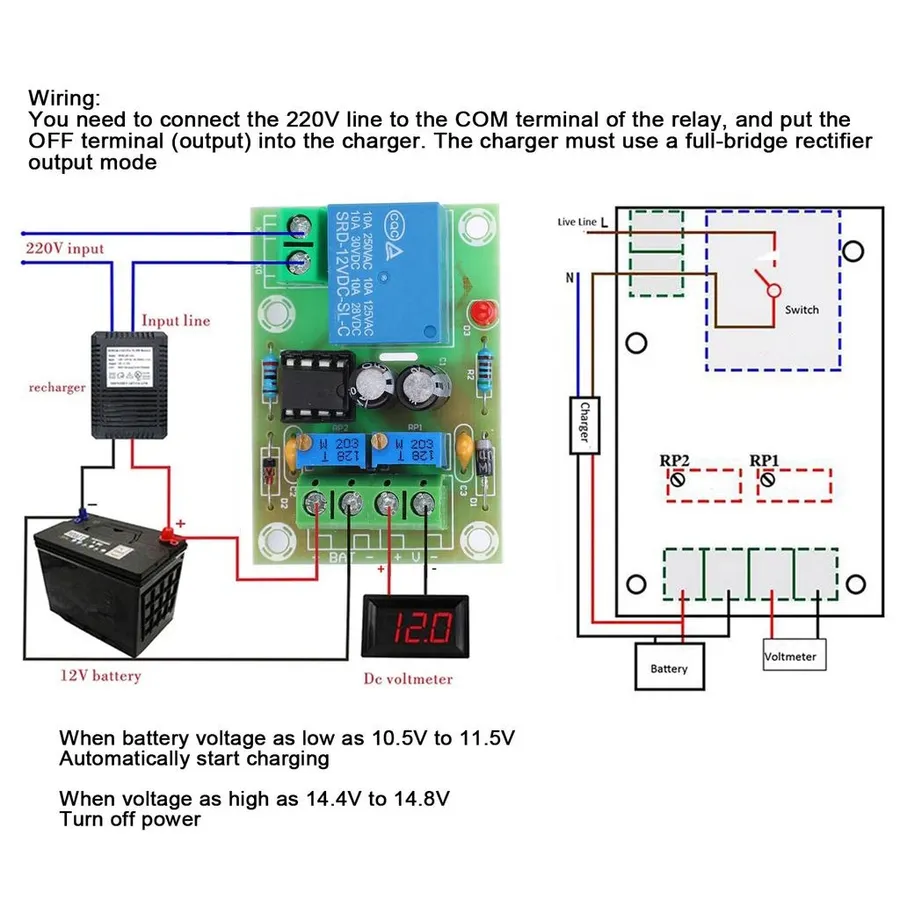

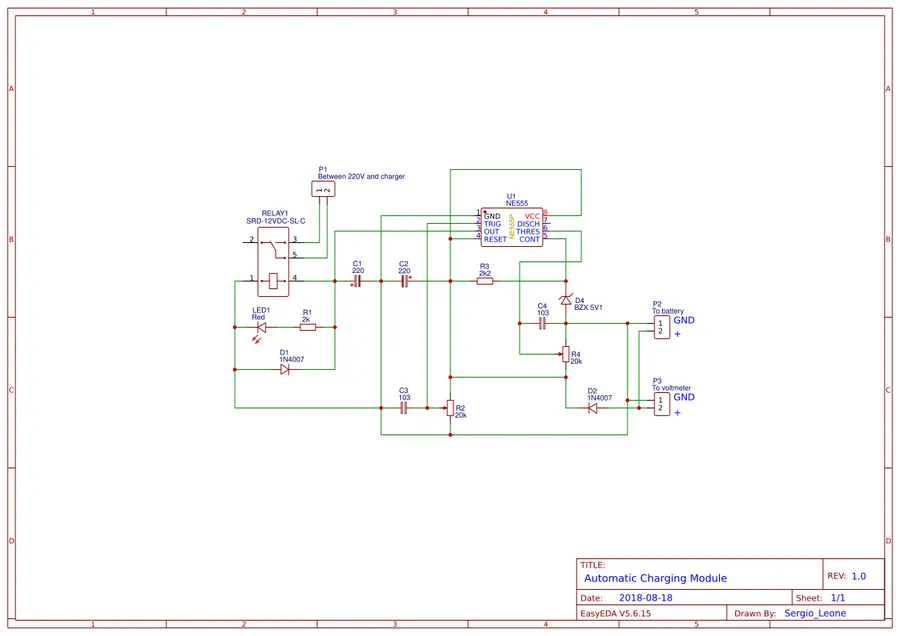

Proper wiring and installation of the XH-M601 module are crucial for its safe and effective operation. This section provides a comprehensive guide to ensure correct connections to both the 12V battery and the power supply, along with addressing common issues and best practices.
The XH-M601 operates within a specific voltage range, and understanding these parameters is essential for proper setup. The module is designed to manage the charging of 12V lead-acid batteries, with a charging trigger voltage around 12.4V and a cut-off voltage at approximately 14.8V. Here's a breakdown of the required connections and procedures:
- Power Supply Input:
Connect the positive terminal of your 12V power supply to the '+IN' terminal of the XH-M601 module, and the negative terminal of the power supply to the '-IN' terminal. - Battery Connection:
Connect the positive terminal of your 12V battery to the '+OUT' terminal of the XH-M601 module, and the negative terminal of the battery to the '-OUT' terminal. - Load Consideration:
Any load that requires power from the battery should be connected directly to the battery terminals, not to the XH-M601's output. This ensures that the module only controls the charging process. - Polarity:
Double-check the polarity of all connections before applying power to avoid damaging the module or the battery. Incorrect polarity can lead to short circuits and potential hazards.
When integrating the XH-M601 into a system, it's crucial to consider the specific needs and voltage requirements of the overall design. For instance, in solar power systems, the solar panel acts as the power supply, while in electric vehicles, the battery pack serves as both the power source and the load.
| Aspect | Detail | Importance |
|---|---|---|
| Terminal Labeling | +IN, -IN for power supply; +OUT, -OUT for battery | Prevents confusion and ensures correct connections. |
| Connection Order | Connect power supply to the module before connecting the battery | Helps avoid inrush current that may damage components. |
| Wiring Material | Use appropriate gauge wires to handle the charging current. | Avoids overheating of wires and maintains efficiency. |
| Insulation | Ensure all connections are well-insulated to prevent shorts. | Safeguards the module from external shorts |
| Regular Checks | Inspect connections periodically to ensure they remain secure. | Maintains a stable and safe operating environment. |
By adhering to these guidelines and safety protocols, the XH-M601 can be effectively integrated into a variety of systems, providing reliable and efficient battery charging control. This is a critical consideration for optimal performance and longevity of the system and the battery it serves.
Applications of the XH-M601 Battery Charger Control
The XH-M601's intelligent charging capabilities make it a versatile component across a multitude of applications, enhancing battery management in diverse settings. Its ability to automatically control charging, prevent overcharging, and maintain optimal battery levels contributes to the efficiency and longevity of battery-powered systems.
- Solar Power Systems

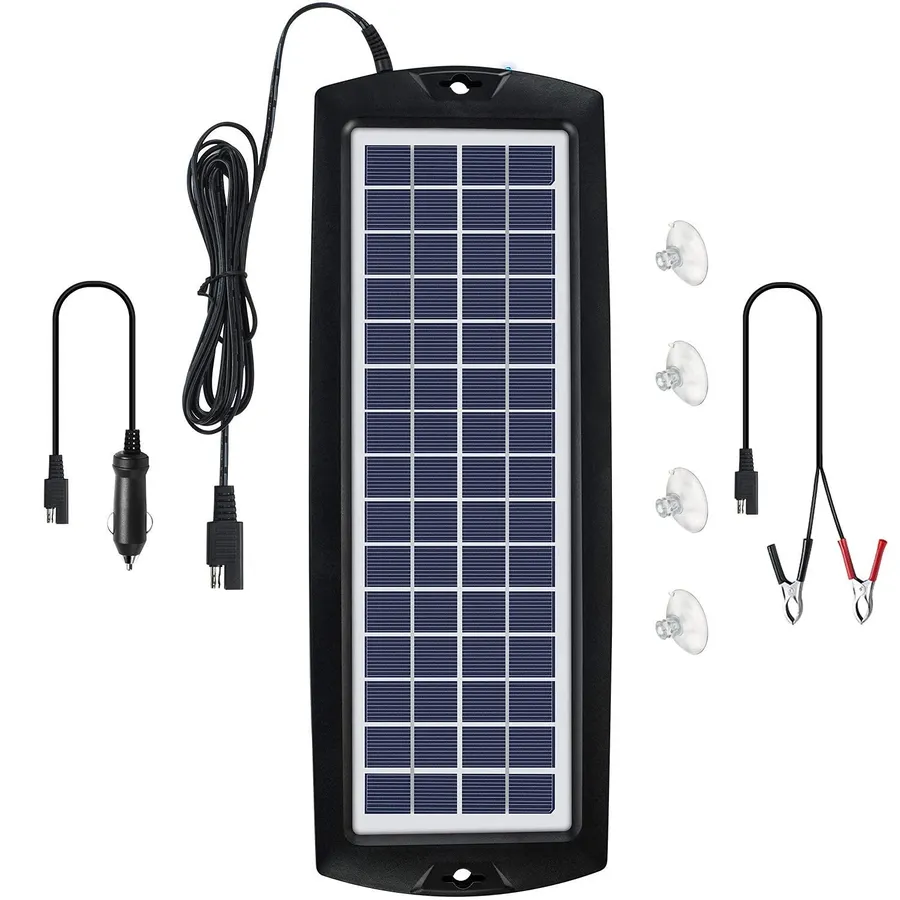

In solar setups, the XH-M601 manages battery charging from solar panels, optimizing energy storage and ensuring consistent power availability. It prevents overcharging during peak sunlight hours and maintains charge levels during low-light conditions. - Electric Vehicles (EVs)
The XH-M601 can be incorporated into EV charging systems, providing a cost-effective solution for charging auxiliary 12V batteries. It ensures that these batteries are charged efficiently, which is critical for the vehicle's control systems and accessories. - Uninterruptible Power Supply (UPS) Systems
In UPS systems, the XH-M601 acts as a crucial component for maintaining the charge of backup batteries. It ensures that the batteries are ready to provide power during outages by automatically regulating the charging process. It plays a vital role in emergency power supply. - Robotics
For mobile robots, consistent power is essential. The XH-M601 allows for precise control over battery charging, which in turn, optimizes the operational time and lifespan of the robot’s batteries. It integrates seamlessly into various robotics platforms. - Portable Power Solutions
The XH-M601 is ideal for portable power banks and off-grid power solutions, ensuring that batteries are charged efficiently and safely. This feature is beneficial for outdoor and emergency power needs. - DIY Electronics Projects
The XH-M601 caters to the DIY electronics community, providing a simple and effective solution for managing 12V battery charging in a variety of custom projects, where consistent voltage is needed. It simplifies battery charging management and makes it accessible for hobbyists.
XH-M601 vs. Traditional Battery Charging Methods

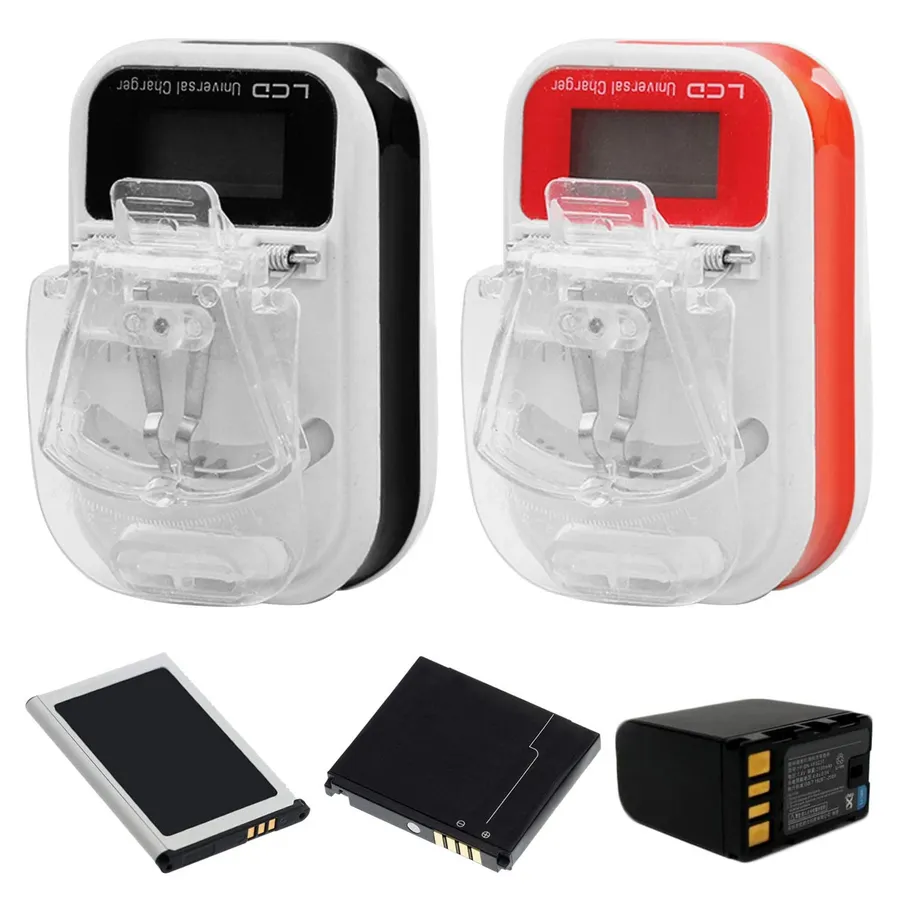

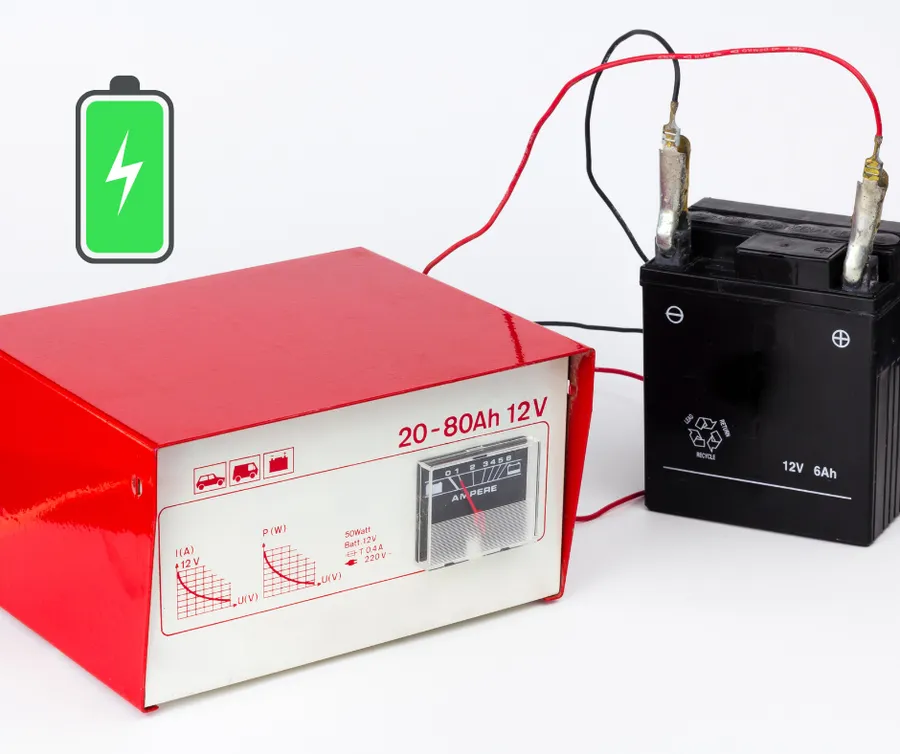

The XH-M601 distinguishes itself from traditional battery charging methods through its intelligent, automated approach. Unlike conventional chargers that often deliver a constant charge irrespective of battery condition, the XH-M601 offers dynamic charging management, significantly enhancing battery lifespan and efficiency. This section contrasts the XH-M601 with traditional methods, highlighting its advantages in overcharge protection, energy efficiency, and overall reliability.
| Feature | XH-M601 | Traditional Chargers |
|---|---|---|
| Automatic Cut-Off | Yes (at 14.8V) | Often lacking; manual disconnection required |
| Overcharge Protection | Built-in (stops charging at set voltage) | Limited or absent; risks battery damage |
| Undercharge Protection | Built-in (resumes charging at 12.4V) | Typically not addressed; may result in incomplete charging |
| Voltage Monitoring | Integrated DC voltmeter for real-time readings | May not provide continuous or accurate voltage data |
| Energy Efficiency | Improved due to automatic charging cycles | Potentially lower due to continuous charging |
| Battery Lifespan | Extended due to controlled charging | May be shortened due to overcharging or deep discharging |
| User Intervention | Minimal due to automation | Often requires manual adjustment or disconnection |
| Complexity | Relatively straightforward wiring and operation | Can range from simple to complex depending on the type |
| Reliability | High due to automatic charging cycles and protection | May vary based on design and components |
Troubleshooting Common Issues with XH-M601
The XH-M601, while robust, can occasionally encounter issues. This section provides a systematic approach to diagnosing and resolving common problems, ensuring the continued efficient operation of your battery charging system. Understanding these issues and their solutions is crucial for maintaining the reliability and longevity of your XH-M601-based setup.
- Incorrect Voltage Readings
If the onboard voltmeter displays inaccurate readings, first verify the connection integrity. Ensure that all wires are securely connected and that there are no breaks or shorts. Calibrate the voltmeter using a known reference if necessary. - Relay Failures
Relay malfunctions can manifest as the charging circuit failing to engage or disengage at the expected voltages. Check for any visible damage to the relay and its contacts. Using a multimeter, confirm that the relay is receiving the trigger voltage and that the output contacts are switching correctly when the appropriate voltage threshold is met. If the relay is defective, replace it. - Improper Charging Behavior
If the battery does not charge or overcharges, verify the cut-off and trigger voltage settings are correctly set for your specific battery chemistry. These thresholds are crucial for preventing damage to the battery. Examine your power supply to ensure it delivers the correct voltage to the XH-M601. - No Power to the Module
If the XH-M601 appears unresponsive, systematically check each connection point from the power supply, to the module and the battery, look for voltage drops or breaks in the circuit with a multimeter. Also make sure the power supply has the correct voltage and current ratings. - Overheating
If the module or relay shows signs of overheating, check the load current against the module's specifications to make sure it is within the designed tolerances. Provide proper ventilation and if the issue persists, decrease the load. - Intermittent Operation
If the XH-M601 operates inconsistently, check all wire connections, especially crimps, and the power supply input to ensure it is constant. A fluctuating power input can be a common culprit for erratic function.
Frequently Asked Questions About the XH-M601 Battery Charger Controller
This section addresses common queries regarding the XH-M601, providing clarity on its operational characteristics, compatibility, and practical use cases. Understanding these frequently asked questions will assist users in effectively implementing and managing the XH-M601 for their battery charging requirements.
- What types of batteries are compatible with the XH-M601?
The XH-M601 is primarily designed for 12V lead-acid batteries, including wet, gel, and AGM types. It's crucial to ensure the battery's nominal voltage aligns with the module's operating specifications to prevent any operational issues or damage. - Can the XH-M601 be used with other battery voltages?
The XH-M601 is specifically designed for 12V systems and should not be used with batteries of other voltages. Using it with a different voltage could result in improper charging, damage to the battery, or even damage to the module itself. Its operational parameters are precisely calibrated for 12V lead-acid batteries. - What is the expected lifespan of the XH-M601 module?
The lifespan of the XH-M601 depends on the usage conditions and the environment it operates in. Under normal conditions and with proper care, the module can last for several years. Factors that may affect its lifespan include excessive heat, humidity, and frequent high-current charging cycles. Regular checks for any signs of component degradation or connection issues can help prolong its life. - Is the XH-M601 safe to use, and are there any safety features?
The XH-M601 incorporates safety features to protect the battery from overcharging, which is a common risk with traditional charging methods. However, users should always observe basic safety measures, such as ensuring correct polarity and secure wiring connections. Avoid using in excessively humid environments or exposing it to extreme temperatures. Continuous monitoring during operation is recommended to avoid any potential issues. While the device has safeguards, it does not replace diligent operation. - How does the automatic charging/stop mechanism work on the XH-M601?
The XH-M601 uses a voltage-based mechanism for automatic charging and stopping. When the battery voltage is below 12.4V, the module starts charging. Once the voltage reaches 14.8V, it automatically stops charging. This process helps prevent overcharging and maintains the battery's health, automatically resuming when voltage drops. This is achieved through the onboard relay controlling the charging circuit based on the voltage readings from the integrated voltmeter. - What should I do if the XH-M601 isn't charging the battery as expected?
If the module fails to charge correctly, verify the input power supply is stable and within the specified range. Confirm the battery connections are secure and of the correct polarity. Also check the fuse or any circuit breaker involved. Inspect for loose or corroded connections. If problems continue after these basic checks, the module itself may require replacement. - Can the XH-M601 be used in solar power systems?
Yes, the XH-M601 is well-suited for use in solar power systems that utilize 12V batteries. Its automatic charging and cut-off feature is particularly beneficial for solar charging applications, where the charging input can be intermittent. It will protect the battery from overcharge during prolonged periods of direct sun exposure.
The XH-M601 is an essential component for anyone looking to efficiently manage the charging of 12V batteries. Its smart, automated functionality ensures battery longevity, saves energy, and provides a safe charging environment. The [xhm601] module's ease of use and wide range of applications make it a valuable addition to any power system. With its reliable performance and smart power management features, the XH-M601 stands as a cornerstone of efficient power management solutions.
