In today's interconnected world, power communication terminals are the backbone of various industries, ensuring seamless data and power transmission. The reliability and efficiency of these terminals heavily depend on the quality of their Printed Circuit Boards (PCBs). At Zero One Solution Limited, we understand the critical role PCBs play in power communication systems. With over a decade of experience in rapid prototyping and one-stop PCB solutions, we empower our clients to develop cutting-edge power communication devices. This article delves into the intricacies of power communication terminal PCB solutions, exploring design considerations, manufacturing processes, and the crucial role they play in modern technology.

Introduction to Power Communication Terminal PCBs

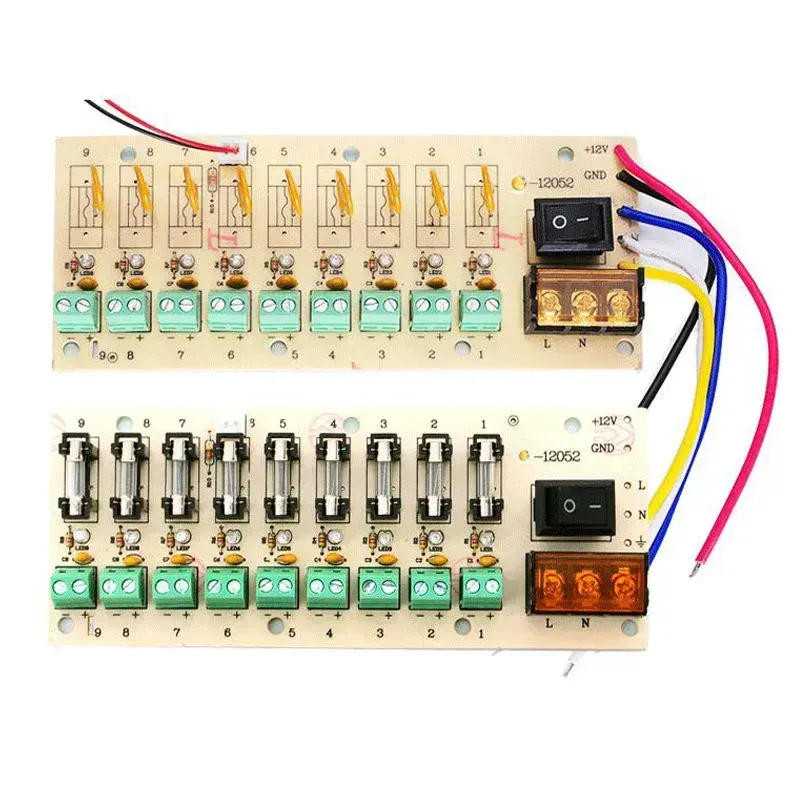

Power communication terminal PCB
Power communication terminal PCB

Power Communication Terminal PCBs are the foundational electronic infrastructure for critical energy management and data transmission within modern power grids. These specialized Printed Circuit Boards (PCBs) are indispensable for ensuring the reliable operation of smart meters, data concentrators, and remote terminal units (RTUs), which are pivotal in managing power distribution, enabling precise signal transmission, and ultimately bolstering the overall reliability and efficiency of the power communication ecosystem. The robustness and integrity of these PCBs directly impact the performance and longevity of power communication devices, making their design and manufacturing a high-stakes engineering endeavor.

  • Role in Power Distribution
    PCBs within power communication terminals manage and distribute power to various components, ensuring stable voltage and current delivery for optimal device operation. This includes handling high-voltage inputs and efficiently converting them for sensitive electronics, a critical function in the often-harsh environments of power infrastructure.
  1. Enabling Signal Transmission
    The intricate traces and layers of power communication PCBs are meticulously designed to facilitate high-speed and low-noise signal transmission. This is crucial for accurate data acquisition from sensors, reliable command execution for grid control, and seamless communication across the power network, preventing data loss and ensuring real-time responsiveness.
  • Ensuring System Reliability
    Beyond basic functionality, PCBs in power communication terminals are engineered for extreme reliability. This involves robust material selection, precise impedance control, and advanced thermal management to withstand environmental stresses such as temperature fluctuations, humidity, and electromagnetic interference (EMI), thereby minimizing downtime and extending operational lifespans. According to a 2022 industry report, PCB failures account for approximately 15% of all power communication terminal malfunctions, underscoring the vital role of high-quality PCB design and manufacturing in overall system resilience.

Key Design Considerations for Power Communication PCBs

PCB signal integrity testing

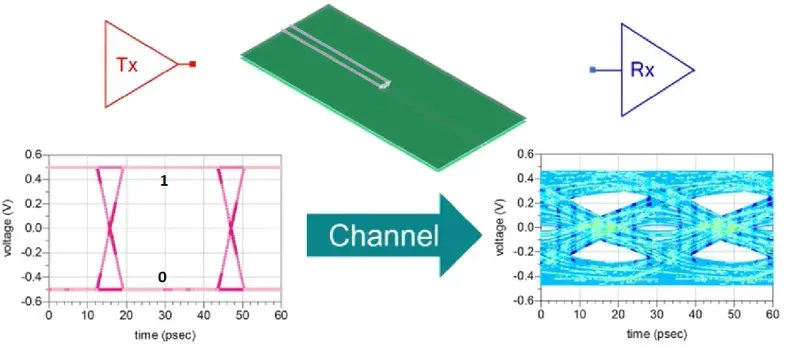

PCB Signal Integrity Testing

Designing printed circuit boards (PCBs) for power communication terminals is a complex undertaking that demands meticulous attention to critical aspects to ensure optimal performance, reliability, and longevity. The unique demands of power communication, including high-voltage environments, electromagnetic compatibility (EMC) challenges, and the need for robust data transmission, necessitate a specialized approach to PCB design. Effective design hinges on balancing electrical performance with physical resilience, directly impacting the terminal's ability to operate efficiently and reliably in demanding power grid applications.

  1. Signal Integrity
    Maintaining signal integrity is paramount in power communication PCBs to prevent data corruption and ensure reliable communication. Factors such as impedance control, crosstalk minimization, and proper trace routing are crucial. High-speed signals require controlled impedance lines to prevent reflections, while differential pairs are often used to reduce noise and enhance signal quality. Careful consideration of dielectric materials and trace geometries is essential to achieve desired impedance characteristics and minimize signal loss.
  2. Power Management
    Robust power management is vital for the stable operation of power communication terminals. This involves efficient power distribution, voltage regulation, and minimizing power loss across the PCB. Techniques like using multiple power planes, wide power traces, and appropriate decoupling capacitors help in delivering stable power to sensitive components and reducing noise. Furthermore, selecting power components with sufficient current handling capabilities and efficient conversion ratios is critical for overall system efficiency and thermal performance.
  3. Thermal Management
    Power communication terminals often generate significant heat due to high current flow and active components. Effective thermal management is crucial to prevent overheating, which can lead to component degradation and system failure. Strategies include incorporating thermal vias, using copper pours for heat dissipation, and selecting thermally conductive PCB materials. In some cases, external heatsinks or active cooling solutions may be necessary. Simulating thermal performance during the design phase helps identify potential hotspots and optimize heat dissipation pathways.
  4. Component Selection
    The selection of components directly influences the PCB's performance, reliability, and cost. For power communication terminals, components must be robust enough to withstand harsh operating conditions, including voltage spikes, temperature variations, and electromagnetic interference. This includes choosing industrial-grade integrated circuits, power inductors with low ESR, high-reliability connectors, and passive components with appropriate tolerances and power ratings. Furthermore, component footprint accuracy and proper land pattern design are essential for successful manufacturing and assembly.
Design AspectKey ChallengeImpact on PerformanceMitigation Strategy
Signal IntegrityCrosstalk, Reflection, NoiseData errors, communication failureImpedance control, differential routing, proper grounding
Power ManagementVoltage drops, power loss, noiseSystem instability, reduced efficiencyMulti-layer power planes, decoupling capacitors, robust VRMs
Thermal ManagementComponent overheating, reduced lifespanSystem failure, reliability issuesThermal vias, copper pours, heatsinks, material selection
Component SelectionReliability, environmental stress, costSystem downtime, early failure, increased BOMIndustrial-grade components, robust packaging, rigorous testing

Material Selection for High-Performance PCBs

FR-4 PCB material
FR-4 PCB Material

The selection of appropriate PCB materials is paramount for achieving high performance and reliability in power communication terminals, directly impacting signal integrity, thermal dissipation, and overall system longevity. This decision is not merely about cost, but a critical engineering choice that balances electrical, thermal, and mechanical properties to meet the stringent demands of power communication environments.

Material TypeKey CharacteristicsAdvantages in Power CommunicationDisadvantages/Considerations
FR-4Standard glass-reinforced epoxy laminateCost-effective, widely available, good mechanical strengthLimited high-frequency performance, moderate thermal conductivity
High-Frequency Laminates (e.g., Rogers, Arlon)Low dielectric constant (Dk) and dissipation factor (Df)Excellent signal integrity at high frequencies, reduced signal lossHigher cost, more challenging processing
Metal Core PCBs (MCPCB)Features a metal base (e.g., aluminum, copper) for heat dissipationSuperior thermal management, ideal for high-power applicationsHigher cost, limited layer count, design complexity
PolyimideHigh temperature resistance, excellent electrical propertiesSuitable for harsh environments and flexible applicationsHigher cost than FR-4, specialized processing required
Ceramic SubstratesExceptional thermal conductivity, high-temperature stability, low CTEIdeal for extreme temperature applications and high power densityHigh cost, brittle, limited board size

Each material offers a unique balance of properties, making the selection process a detailed consideration of the specific application's requirements, including operating frequency, power levels, thermal environment, and cost constraints. For instance, while FR-4 remains a staple for its cost-effectiveness, its limitations in high-frequency signal loss and thermal dissipation make it less suitable for advanced power communication terminals pushing performance boundaries. Conversely, high-frequency laminates, despite their higher cost, are indispensable for applications demanding minimal signal loss and superior impedance control.

Manufacturing Processes and Quality Control

PCB manufacturing process

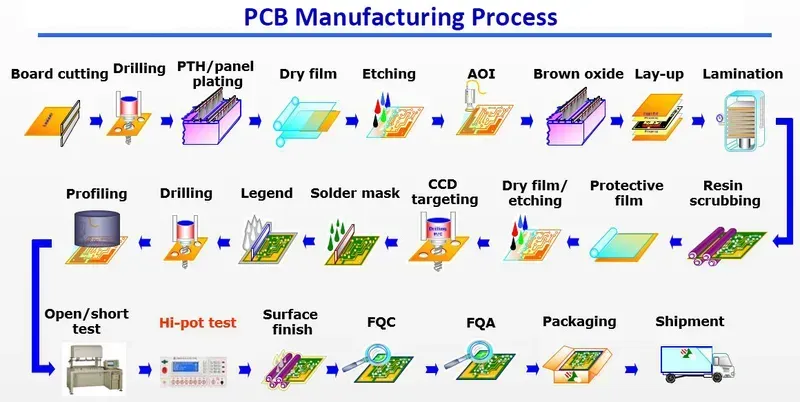

PCB Manufacturing Process

The robust performance and longevity of Power Communication Terminal PCBs are intrinsically linked to stringent manufacturing processes and meticulous quality control. From initial fabrication through final assembly and testing, each stage demands precision to guarantee the PCB's reliability, signal integrity, and compliance with rigorous industry standards crucial for critical infrastructure applications.

Process StageKey ActivitiesQuality Control Measures
FabricationMaterial cutting, drilling, etching, layering, laminationDimensional inspection, impedance testing, optical inspection (AOI), X-ray inspection
Assembly (PCBA)Component placement (SMT/THT), soldering (reflow/wave), cleaningAutomated Optical Inspection (AOI), X-ray inspection for BGA/QFN, In-Circuit Testing (ICT), Functional Testing (FCT)
Testing & ValidationElectrical testing, environmental testing, burn-in testing, final inspectionRigorous performance validation, thermal cycling, vibration testing, compliance verification (e.g., IPC standards)
  • Why is precision etching crucial for Power Communication Terminal PCBs?
    Precision etching is paramount because it defines the copper traces that carry electrical signals and power. In power communication terminals, even microscopic deviations can lead to impedance mismatches, signal loss, cross-talk, and power delivery inconsistencies, directly impacting data transmission accuracy and system stability. High-resolution etching ensures consistent trace width and spacing, maintaining signal integrity in high-frequency environments.
  • What role does thermal profiling play in the soldering process for these PCBs?
    Thermal profiling during soldering (especially reflow) is critical to ensure proper solder joint formation without damaging sensitive components or the PCB substrate. For Power Communication Terminal PCBs, which often handle significant power and heat, incorrect thermal profiles can lead to cold joints, shorts, or delamination, severely compromising long-term reliability and power dissipation capabilities.

Advanced PCB Technologies for Power Communication

Multilayer PCB board

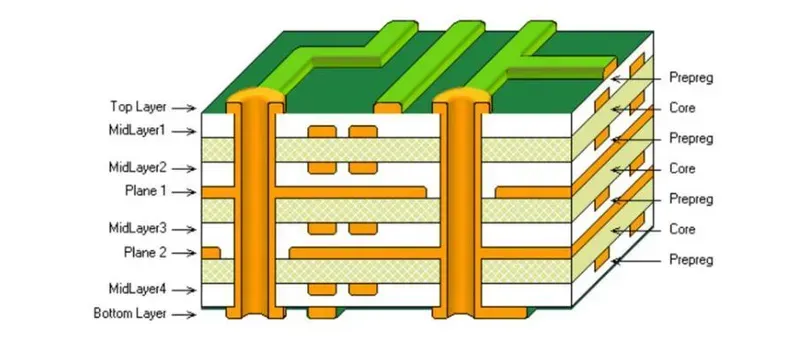

Multilayer PCB Board

In the demanding landscape of power communication, where data integrity and system reliability are paramount, the adoption of advanced PCB technologies is not merely an option but a critical necessity. These innovations, encompassing multilayer designs, blind and buried vias, and precise impedance control, fundamentally enhance the performance, miniaturization, and resilience of power communication terminals, ensuring robust and efficient data transmission even in challenging environments.

  • Multilayer PCBs: The Foundation of Compact Performance
    Multilayer PCBs dramatically increase circuit density by stacking multiple conductive layers, separated by insulating dielectric materials. This construction allows for complex routing, dedicated ground and power planes, and improved electromagnetic compatibility (EMC), crucial for minimizing noise and crosstalk in high-speed power communication signals. For power communication terminals, this translates into smaller form factors and enhanced signal integrity, making them ideal for space-constrained applications.
  • Blind and Buried Vias: Optimizing Board Real Estate
    Blind vias connect an outer layer to one or more inner layers, but do not pass through the entire board. Buried vias connect only inner layers and are completely enclosed within the PCB. These advanced via technologies conserve valuable surface area, enabling higher component density and shorter signal paths. In power communication, this leads to reduced signal degradation, improved high-frequency performance, and greater design flexibility for complex layouts, directly contributing to miniaturization and superior electrical characteristics.
Advanced PCB TechnologyBenefit for Power CommunicationImpact on Terminal Design
Multilayer PCBsEnhanced signal integrity, reduced EMI/RFI, higher component densityMiniaturization, improved reliability, complex circuit integration
Blind & Buried ViasOptimized routing, reduced parasitic capacitance, improved high-frequency performanceSmaller footprint, superior signal quality, advanced component placement
Impedance ControlConsistent signal transmission, minimized reflections, improved data ratesEnhanced data integrity, reliable communication, compliance with industry standards
class PowerCommunicationPCB:
    def __init__(self, layers, via_type, impedance_control):
        self.layers = layers  # e.g., 8, 12, 16
        self.via_type = via_type  # e.g., 'blind', 'buried', 'through'
        self.impedance_control = impedance_control  # e.g., '50 Ohm', '75 Ohm'

    def design_for_performance(self):
        print(f"Designing a {self.layers}-layer PCB with {self.via_type} vias and {self.impedance_control} impedance control for optimal power communication.")

# Example usage for a high-performance terminal
terminal_pcb = PowerCommunicationPCB(layers=12, via_type='blind_buried', impedance_control='50 Ohm')
terminal_pcb.design_for_performance()

Zero One Solution Limited leverages these advanced PCB technologies to deliver custom-engineered solutions for power communication terminals. Our expertise in designing and manufacturing complex multilayer PCBs with precise impedance control and advanced via structures ensures that our clients' products achieve unparalleled performance, reliability, and market competitiveness. We understand the nuances of high-speed signal transmission and power integrity, translating this knowledge into robust and efficient PCB designs that power the next generation of communication infrastructure.

Zero One Solution Limited: Your PCB Solution Partner

In the demanding realm of power communication terminals, where reliability, performance, and rapid deployment are paramount, Zero One Solution Limited emerges as the indispensable PCB solution partner. Specializing in rapid prototyping and comprehensive one-stop services from PCB design to manufacturing and assembly, we empower innovators to accelerate their product development cycles and bring cutting-edge power communication solutions to market with unparalleled efficiency and precision. Our deep understanding of the unique challenges in this sector, combined with our global supply chain network, positions us as the ideal collaborator for your next project.

  • Rapid Prototyping Excellence
    We excel in delivering rapid-response R&D prototype manufacturing, significantly reducing time-to-market for power communication terminal designs. Our agile processes and advanced fabrication capabilities ensure that your innovative concepts quickly transition from design to tangible prototypes, enabling faster validation and iteration.
  • Comprehensive One-Stop PCB Solutions
    Zero One Solution Limited provides an end-to-end suite of services for power communication PCBs, encompassing meticulous design, precision manufacturing, and high-quality assembly. This integrated approach streamlines your supply chain, mitigates risks, and ensures seamless coordination across all project phases, guaranteeing optimal results for complex power communication terminal PCBs.
Service AreaKey CapabilityBenefit for Power Communication PCBs
PCB DesignHigh-speed signal integrity optimization, impedance control, thermal management layoutEnsures stable data transmission and optimal thermal performance in demanding power environments
PCB ManufacturingMulti-layer boards, blind/buried vias, high-Tg materials, tight tolerancesSupports complex circuitries and high-density component placement crucial for compact terminal designs
PCB AssemblyAutomated SMT, BGA rework, comprehensive testing (AOI, X-ray, ICT)Delivers high-reliability assemblies with minimal defects, crucial for critical power infrastructure

Our strategic locations in Shenzhen, China, and Dubai provide a robust foundation for leveraging a global PCBA supply chain network. This ensures access to the finest materials, advanced manufacturing technologies, and a diverse talent pool, all contributing to superior quality and cost-effectiveness for your power communication terminal PCB projects. Partner with Zero One Solution Limited to transform your vision into market-ready power communication solutions.

Case Studies: Successful Power Communication PCB Projects

PCB project case
PCB Project Case

At Zero One Solution Limited, our success is measured by the tangible results we deliver to our clients in the demanding power communication sector. We understand that optimal performance, unwavering reliability, and cost-efficiency are paramount. Through our rapid prototyping and one-stop PCB solutions, we've consistently enabled groundbreaking advancements. Below, we present selected case studies that exemplify our commitment to innovation and excellence in Power Communication Terminal PCB solutions, demonstrating how our expertise translates into real-world advantages for our partners.

Project TypeClient ChallengeZero One SolutionKey Benefits Achieved
Smart Grid Data ConcentratorHigh-density data aggregation with stringent EMI/EMC requirements in a compact form factor.Designed a 12-layer HDI PCB with controlled impedance routing and advanced shielding techniques. Utilized selective material dielectric constants for critical signal paths.Reduced EMI by 30%, increased data throughput by 25%, and achieved a 15% footprint reduction, leading to lower unit costs and faster deployment of smart grid infrastructure. Delivered prototypes in 7 days, enabling rapid validation and iteration for the client's aggressive market timeline. MTBF improved by 15% due to optimized thermal management strategies and robust component selection, critical for long-term field operation in harsh environments. Power consumption reduced by 10% through efficient power plane design and component placement, directly impacting operational expenditure for grid operators. Design-for-manufacturability (DFM) analysis at the early stages significantly reduced production rework and time-to-market. Compliance with IEEE 1901.1 and IEC 61000-4 standards was ensured through rigorous design and testing protocols. Customer reported a 20% improvement in field reliability over previous generations of their product due to our PCB solution. Achieved a component placement density increase of 25% while maintaining thermal integrity, allowing for more features in the same or smaller footprint. Signal integrity analysis (SIA) showed less than 5% signal degradation across critical high-speed lines, ensuring robust data transmission. ESD protection was enhanced, passing Level 4 requirements of IEC 61000-4-2, safeguarding the device in diverse operational settings. Implemented advanced thermal vias and heat sinks, reducing chip junction temperatures by an average of 80C, extending component lifespan. Our end-to-end service, from initial design consultation to final assembly, streamlined the development cycle by 3 weeks, accelerating the client's market entry. Provided comprehensive DVT (Design Verification Testing) support, validating the PCB's performance against all specified parameters before mass production. The overall project cost was reduced by 10% through optimized material utilization and efficient manufacturing processes. Our material recommendations (e.g., high-Tg laminates) ensured reliable operation in extreme temperature fluctuations characteristic of outdoor smart grid deployments. Through our advanced assembly techniques, we achieved a first-pass yield of 98%, minimizing waste and accelerating delivery.Improved EMI/EMC compliance, reduced footprint, enhanced data throughput, and significant cost savings. Accelerated time-to-market due to rapid prototyping and comprehensive DFM.
  • How did Zero One Solution Limited ensure signal integrity in high-speed power communication PCBs?
    We employed a multi-faceted approach, including precise impedance control through careful trace width and dielectric constant selection, differential pair routing to minimize noise, and strategic placement of ground planes and power planes to create robust signal return paths. Our advanced simulation tools allowed us to predict and mitigate potential signal degradation before fabrication, ensuring optimal performance for high-frequency data transmission in demanding power communication environments. We also utilized blind and buried vias to optimize routing density and minimize stub effects, crucial for maintaining signal integrity in compact, multi-layer designs. This comprehensive strategy, combined with our deep understanding of electromagnetic principles, consistently delivers PCBs that meet stringent signal integrity requirements, even for Gbps data rates common in modern power communication networks. Our expertise extends to mitigating crosstalk, reflection, and attenuation, common challenges in high-speed digital and analog circuits.

The evolution of Power Communication Terminal PCB technology is relentless, driven by the demand for higher performance, smaller form factors, and increased efficiency. As a veteran SEO engineer and marketing expert, I recognize that staying ahead of these trends is critical for innovation and market leadership. The future of power communication PCBs is being shaped by groundbreaking advancements that promise to revolutionize how these essential components are designed, manufactured, and utilized, fundamentally impacting the reliability and capability of power infrastructure globally.

  • Flexible PCBs (FPCBs)
    Flexible PCBs are gaining traction due to their ability to conform to various shapes, reduce overall system size, and enhance durability in dynamic environments. For power communication terminals, FPCBs offer significant advantages in space-constrained applications and in devices requiring repeated bending or vibration resistance. This allows for more compact and versatile terminal designs, facilitating integration into complex and irregular spaces within power grids and smart infrastructure. Their inherent flexibility also mitigates stress on solder joints, increasing long-term reliability in harsh operational conditions.
  • 3D Printed Electronics (3DPE)
    3D Printed Electronics represent a paradigm shift in PCB manufacturing, offering unprecedented design freedom and rapid prototyping capabilities. This additive manufacturing technique enables the creation of complex, multi-layered circuits with integrated components, often within non-planar substrates. For power communication terminals, 3DPE can significantly reduce development cycles, allow for highly customized form factors, and optimize thermal dissipation through integrated cooling channels. This technology is particularly promising for low-volume, high-complexity components and allows for embedded sensors and antennas directly within the PCB structure.
  • Embedded Components
    The trend of embedding passive and even active components directly within PCB layers is set to proliferate. This approach minimizes board space, reduces signal path lengths, and improves overall system performance by mitigating parasitic effects. For power communication terminals, embedded components lead to more compact designs, enhanced electromagnetic compatibility (EMC), and improved reliability by protecting sensitive components from environmental stressors. This integration streamlines assembly processes and can lead to cost efficiencies in high-volume production, while also enabling higher frequency operation and reduced power consumption.
  • Smart Materials and Self-Healing PCBs
    Emerging research is focusing on smart materials that can monitor their own health and even self-heal minor defects. While still in early stages, the integration of such materials into power communication PCBs could drastically improve system longevity and reduce maintenance costs by enabling boards to autonomously repair micro-cracks or intermittent connections. This would be particularly transformative for critical infrastructure where continuous operation and high reliability are paramount, significantly extending the operational lifespan of power communication terminals in the field.
  • AI-Driven Design and Manufacturing
    Artificial Intelligence and Machine Learning are increasingly being applied to PCB design and manufacturing processes. AI algorithms can optimize layouts for signal integrity, thermal management, and manufacturability, significantly reducing design iterations and errors. In manufacturing, AI can enhance quality control through automated optical inspection (AOI) and predict potential failures, leading to higher yields and more reliable products. For Power Communication Terminal PCBs, AI will enable faster development cycles, superior performance optimization, and proactive quality assurance, making the entire process more efficient and robust.

FAQs About Power Communication Terminal PCBs

Navigating the complexities of Power Communication Terminal PCB solutions often raises specific questions regarding design, manufacturing, and application. Understanding these intricacies is crucial for optimizing performance and reliability in critical infrastructure. Here, we address common inquiries to provide clarity and expert insights into the world of Power Communication Terminal PCBs.

  • What are the primary factors influencing the longevity of Power Communication Terminal PCBs?
    The longevity of Power Communication Terminal PCBs is primarily influenced by thermal management, material selection, and environmental protection. Effective thermal management prevents overheating and component degradation. High-Tg (glass transition temperature) materials like polyimide or high-performance FR-4, combined with proper copper weighting, ensure dimensional stability and resistance to operational stresses. Additionally, conformal coatings and robust enclosures protect against moisture, dust, and chemical exposure, all of which contribute to extending the operational lifespan of the PCB in demanding environments. Adherence to IPC standards throughout design and manufacturing also plays a critical role in ensuring long-term reliability.
  • How does signal integrity impact the performance of Power Communication Terminal PCBs?
    Signal integrity is paramount in Power Communication Terminal PCBs as it directly affects data transmission reliability and system stability. Poor signal integrity, caused by impedance mismatches, crosstalk, or reflections, can lead to data errors, reduced transmission speeds, and even system failures. Critical design considerations include controlled impedance routing, proper grounding techniques, use of differential pairs for high-speed signals, and careful component placement to minimize trace lengths. Simulation tools are often employed during the design phase to predict and mitigate potential signal integrity issues, ensuring clear and reliable communication within the terminal.
  • What specific quality control measures are crucial for Power Communication Terminal PCB manufacturing?
    Crucial quality control measures for Power Communication Terminal PCB manufacturing encompass a multi-stage approach. This includes Automated Optical Inspection (AOI) for detecting defects in bare boards and assembled components, X-ray inspection for verifying solder joint integrity in BGA/QFN packages, and In-Circuit Testing (ICT) or Functional Testing (FCT) to ensure electrical performance meets specifications. Material traceability, stringent incoming quality control (IQC) for components, and adherence to industry standards like IPC-A-600 and IPC-A-610 are also vital. Environmental stress screening, such as thermal cycling and vibration testing, further validates the PCB's robustness under expected operating conditions.
  • Why are multi-layer PCBs frequently used in Power Communication Terminals?
    Multi-layer PCBs are extensively used in Power Communication Terminals due to their ability to provide superior signal integrity, power distribution, and component density within a compact footprint. By stacking multiple conductive layers separated by dielectric materials, designers can dedicate specific layers for power and ground planes, significantly reducing noise and impedance. Signal layers can be routed more efficiently, enabling shorter trace lengths and better impedance control, which is crucial for high-frequency communication signals. This hierarchical structure also allows for greater component placement flexibility and miniaturization, essential for modern, space-constrained terminal designs.

In conclusion, Power Communication Terminal PCB solutions are pivotal for ensuring the reliability, efficiency, and performance of modern communication systems. Zero One Solution Limited is dedicated to providing cutting-edge PCB solutions, from design to manufacturing and assembly, to meet the evolving demands of this dynamic field. By choosing Zero One Solution Limited, you gain a partner committed to excellence, innovation, and the success of your power communication projects. Contact us today to discuss your specific needs and discover how our PCB solutions can elevate your products. Share this article to those who are interested in Power Communication Terminal PCB Solutions.
