In the world of electronics, resistors and capacitors are the unsung heroes, much like the traffic lights and reservoirs that manage the flow of our daily lives. Resistors control the flow of electrical current, much like a narrow road limiting the number of cars, while capacitors temporarily store energy, akin to a water reservoir. This article explores the differences and applications of these key components, unraveling their fundamental roles in modern technology.

Basic Definitions: Resistors and Capacitors

Resistors and capacitors are fundamental passive electronic components that perform distinctly different functions in electrical circuits. Resistors, characterized by their resistance, impede the flow of electrical current, converting electrical energy into heat, while capacitors, characterized by their capacitance, store electrical energy in an electric field, acting as temporary energy reservoirs. Understanding their contrasting roles is crucial for effective circuit design and analysis.

How Resistors Work: Controlling Current Flow

Resistors are fundamental electronic components designed to impede the flow of electrical current within a circuit. This opposition to current flow is achieved by converting electrical energy into heat through a process known as Joule heating. The primary function of a resistor is to regulate and limit the current, ensuring that other sensitive components are not overwhelmed and circuits operate safely and efficiently. Resistors are ubiquitous in virtually all electronic circuits and their precise behavior is critical to circuit functionality.

The key characteristic of a resistor is its resistance, measured in ohms (Ω). A higher resistance value means the resistor will impede current flow more strongly than a resistor with a lower resistance. The relationship between voltage (V), current (I), and resistance (R) is defined by Ohm's Law: V = IR.

Resistors are available in a wide variety of types, each with specific characteristics and suitable for different applications. The most common types include:

• Carbon Composition Resistors
  These are made from a mixture of carbon and a binder and are inexpensive but less precise.
• Metal Film Resistors
  These have a thin metal film deposited on a ceramic substrate, and provide better precision and stability than carbon resistors.
• Wirewound Resistors
  These are made by winding a length of wire around a ceramic core, and have high power ratings but lower precision.
• Surface Mount Resistors (SMD)
  These are designed for direct mounting on circuit boards, and are very compact and readily used in modern electronic designs.

How Capacitors Work: Storing Electrical Energy

Capacitors are fundamental electronic components that store electrical energy by accumulating electric charge on two conductive plates separated by a dielectric material. This storage capacity, measured in farads (F), dictates how much charge a capacitor can hold at a given voltage. Unlike resistors that dissipate energy, capacitors temporarily hold and release energy, making them crucial for various circuit functions.

The operational principle of a capacitor is rooted in electrostatics, where an applied voltage causes electrons to accumulate on one plate while an equal number of electrons are repelled from the other, creating an electric field in the dielectric. This stored energy can then be discharged, providing a current surge or maintaining a voltage level within a circuit.

• Dielectric Material
  The insulating material between the capacitor plates (dielectric) is crucial as it influences the capacitor's properties. Different materials have different permittivities which affect how much charge can be stored. Common dielectrics include air, paper, ceramic, and various plastics.
• Capacitance Value
  Capacitance is measured in Farads (F), where one farad means one coulomb of charge stored for every volt of potential difference. Capacitors values are usually in picoFarads(pF), nanoFarads(nF) or microFarads (µF).
• Voltage Rating
  Capacitors have a maximum voltage rating which, if exceeded, will cause the dielectric to fail, and may damage the capacitor. Choose a capacitor with a voltage rating appropriate for the circuit design.
• Types of Capacitors
  There are different types of capacitors, each with specific characteristics suitable for various applications, including ceramic, electrolytic, tantalum, and film capacitors.

Key Differences Between Resistors and Capacitors

Resistors and capacitors, while fundamental passive components in electronic circuits, exhibit distinctly different behaviors and serve different purposes. Resistors primarily control current flow by impeding it, whereas capacitors store electrical energy by accumulating charge. The contrasting functionalities dictate their usage in diverse applications. Understanding these differences is crucial for effective circuit design.

Resistors and Capacitors in Series and Parallel Circuits

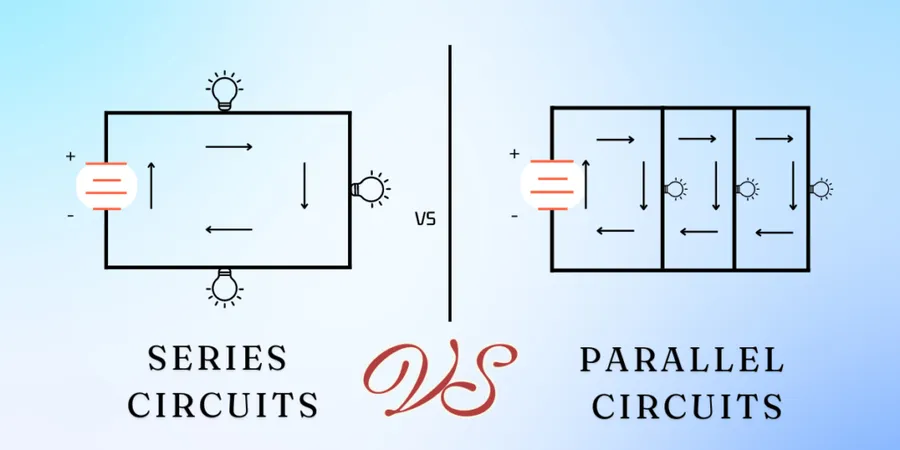

The behavior of resistors and capacitors in electrical circuits changes significantly depending on whether they are connected in series or parallel configurations. Understanding these differences is crucial for effective circuit design and analysis. In series circuits, components are connected end-to-end, forming a single path for current flow, while in parallel circuits, components are connected across each other, providing multiple paths for current.

Note: For capacitors, the equivalent capacitance calculation is reversed compared to resistors. Series capacitors reduce total capacitance, while parallel capacitors increase it. Total impedance of capacitors in both series and parallel connection is calculated similarly as resistors, where Zc is the impedance of one capacitor.

RC Circuits: Combining Resistors and Capacitors

The combination of resistors and capacitors in circuits, known as RC circuits, introduces time-dependent behavior, enabling functionalities such as energy storage, filtering, and timing. These circuits are fundamental to various electronic applications, exhibiting dynamic responses due to the charging and discharging characteristics of capacitors in conjunction with the current-limiting behavior of resistors.

A key concept in understanding RC circuits is the RC time constant (τ), calculated as the product of resistance (R) and capacitance (C) (τ = RC). This value represents the time it takes for the capacitor to charge to approximately 63.2% of its maximum voltage or discharge to approximately 36.8% of its initial voltage. The time constant dictates the transient response of the circuit, making it a critical factor in circuit design.

RC circuits are utilized for both low-pass and high-pass filtering, depending on the circuit configuration. In a low-pass filter, the output voltage is taken across the capacitor, allowing low-frequency signals to pass while attenuating high frequencies. Conversely, a high-pass filter takes the output across the resistor, permitting high-frequency signals to pass and blocking low frequencies.

Frequently Asked Questions About Resistors and Capacitors

This section addresses common queries regarding resistors and capacitors, clarifying their individual roles and interactions within electrical circuits. Understanding these fundamental components is crucial for effective circuit design and analysis.

• What happens if you don't use a resistor with a capacitor in a charging circuit?
  If a capacitor is connected directly to a voltage source without a resistor, it can lead to an extremely rapid charging process. This rapid charging can result in a very high initial current, potentially damaging the capacitor or other circuit components. The resistor limits the current, controlling the rate at which the capacitor charges, preventing damage and enabling controlled circuit behavior.
• What is the fundamental difference between resistance and capacitance?
  Resistance, measured in ohms (Ω), is the opposition to the flow of electric current. Resistors dissipate electrical energy, converting it into heat. Capacitance, measured in farads (F), is the ability of a component to store electrical energy in an electric field. Capacitors store charge and release it, acting as temporary energy storage elements.
• Why would you use a capacitor instead of a resistor in a circuit?
  Capacitors and resistors serve distinctly different purposes in circuits. While resistors control current flow and dissipate energy as heat, capacitors store electrical energy and can release it, making them suitable for applications such as energy storage, filtering, and smoothing voltage fluctuations. The choice between a capacitor and a resistor depends on the specific functional requirement within the circuit.
• Do I always need a resistor when using a capacitor?
  The necessity of a resistor with a capacitor depends on the circuit's requirements. Generally, when charging or discharging a capacitor, a resistor is needed to limit the current and control the charging and discharging rate to protect the components and control the circuit behavior. However, in certain circuits, such as those using capacitors for AC coupling or filtering, a resistor may not always be required directly in series with the capacitor, but the circuit function of a resistor is often used elsewhere for controlling the current. Therefore, it's important to consider the specific circuit conditions.
• How does a capacitor behave in a DC circuit?
  In a DC circuit, a capacitor initially allows current to flow as it charges. Once the capacitor is fully charged, it blocks the flow of DC current. Thus, in a steady-state DC circuit, a capacitor acts as an open circuit, as it neither passes nor blocks the current flow. This characteristic is fundamental to its use in many filtering and signal coupling applications.
• What's the relationship between a capacitor's size and capacitance?
  The physical size of a capacitor is loosely correlated with its capacitance but is not the sole determinant. Generally, larger capacitors *can* often store more charge, thus providing higher capacitance. However, the capacitance value also depends on the dielectric material used between the capacitor's plates and the spacing between the plates. This means a physically smaller capacitor can have the same or even higher capacitance than a physically larger one by utilizing more efficient materials and designs, especially for modern SMD components.
• Can capacitors be used to block DC and allow AC?
  Yes, a key function of capacitors is their ability to block DC signals while allowing AC signals to pass through. This characteristic is crucial in many signal coupling and filter applications. When a DC signal is applied, a capacitor charges and eventually blocks the flow of current. However, with AC signals, the capacitor continuously charges and discharges due to the alternating current, thus effectively passing the AC signal while blocking DC.

Practical Applications of Resistors and Capacitors

Resistors and capacitors are fundamental passive components in electronics, underpinning a vast array of applications across diverse fields. Their distinct yet complementary properties enable them to perform crucial roles in power management, signal processing, timing, and sensing circuits. Understanding how these components are leveraged in real-world scenarios is essential for practical electronic design.

• Power Supplies
  Resistors are crucial for current limiting and voltage division, ensuring that the right voltage and current levels reach different parts of a circuit. Capacitors act as filters, smoothing out voltage fluctuations and providing stable power.
• Audio Circuits
  Resistors control volume and signal levels, while capacitors are used for coupling signals, blocking DC offsets, and creating audio filters, allowing certain frequencies to pass while attenuating others, essential for tone control and noise reduction.
• Timing Circuits
  The combination of resistors and capacitors in RC circuits forms the basis of timers, oscillators and pulse generators. The time constant of the RC circuit determines the rate of charging and discharging of the capacitor, allowing for the precise creation of time delays and waveform shaping.
• Filter Circuits
  Resistors and capacitors form the backbone of filters (low-pass, high-pass, band-pass and band-stop). These filters allow specific frequencies in an electronic signal to pass while reducing others. Filter circuits have wide application in radio, audio, and data processing.
• Sensor Circuits
  Resistors and capacitors are used in various sensor interfaces. Resistors can form part of a voltage divider to measure changes in resistance based on temperature, light, or pressure, while capacitors, when used as sensors can detect variations in capacitance due to pressure or proximity.

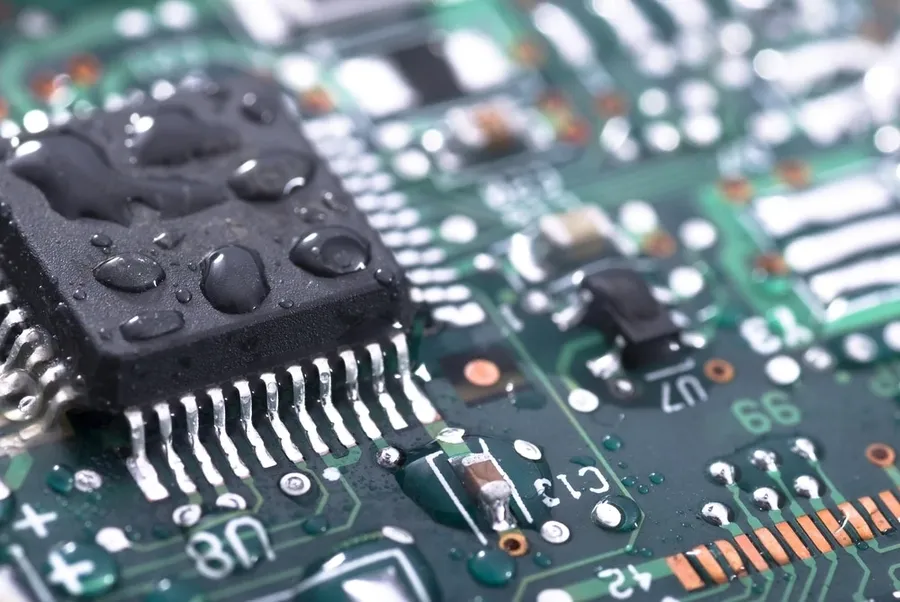

• Other Electronic Devices
  From the smallest consumer electronics to sophisticated industrial control systems, resistors and capacitors are building blocks for most electronic systems. These passive devices are found in almost all printed circuit boards performing a huge variety of essential functions.

Selecting the Right Resistor or Capacitor

Selecting the appropriate resistor and capacitor values is crucial for ensuring optimal circuit performance and reliability. This involves considering several key parameters including power rating, voltage rating, tolerance, and temperature stability. Incorrect component selection can lead to circuit malfunction, reduced lifespan, or even catastrophic failure.

• Power Dissipation in Resistors:
  Calculate the expected power dissipation using the formula P = I²R or P = V²/R. Choose a resistor with a power rating significantly higher than the calculated power to ensure reliable operation.
• Voltage Considerations:
  Ensure the voltage rating of the component exceeds the maximum anticipated voltage. Derate the rated voltage to account for temperature effects and other environmental factors.
• Environmental Factors:
  Consider environmental factors such as temperature and humidity, which can affect component performance. Use components with appropriate temperature coefficients and humidity ratings for consistent performance in extreme environments.
• Circuit Requirements:
  Evaluate the circuit needs. For example, in timing circuits, the stability of the capacitance and resistance value is critical, while in power supplies, the components must handle high current and voltage.
• Tolerance Requirements
  In circuits where precision is critical, use resistors and capacitors with low tolerance values. This ensures that the component values stay within an acceptable range from the nominal value.

Resistors and capacitors, though different in their function, are both critical for electrical circuit design. Resistors regulate current flow while capacitors manage charge storage and discharge. Understanding these roles, along with their behavior in different circuit configurations, enables us to harness the power of these humble components to bring about the innovative world we live in today. Their integration into complex systems showcases how these fundamental building blocks contribute to technological advancements across various fields.
