In bustling urban landscapes, subway systems are the lifelines that keep cities moving. At the heart of safe and efficient subway operations lies the platform screen door (PSD) system, and the control board is its brain. A reliable control board is paramount to ensure passenger safety and prevent accidents. Zero One Solution Limited, with its expertise in PCB solutions, offers comprehensive PCB design, manufacturing, and assembly services for subway PSD control boards. This article delves into the critical aspects of these solutions, highlighting the importance of robust PCB design and manufacturing in ensuring the safety and reliability of subway systems.

Introduction to Subway Platform Screen Door (PSD) Systems

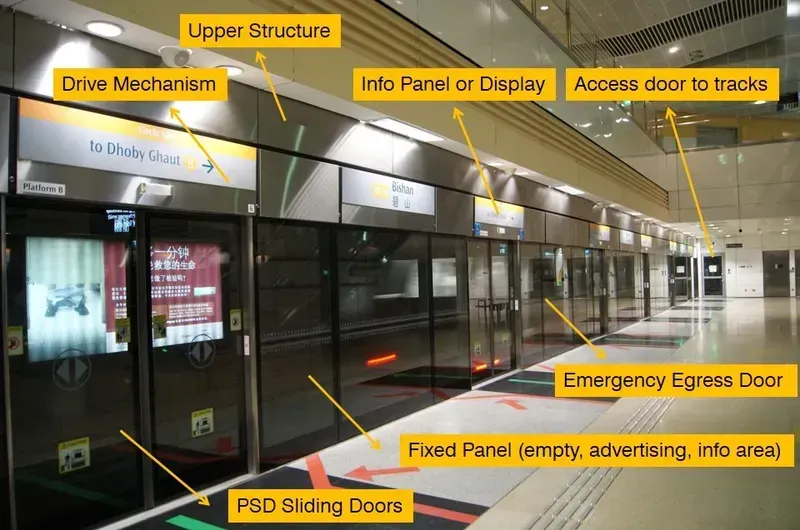

Subway Platform Screen Door (PSD) systems are critical safety infrastructures in modern urban transit, acting as a physical barrier between the train and the platform edge. These sophisticated systems significantly enhance passenger safety, prevent accidental falls onto the tracks, and mitigate risks associated with train movement, such as suction effects and collisions. Beyond safety, PSDs contribute to operational efficiency by reducing platform-side incidents and enabling precise train stopping, which shortens dwell times and improves overall service reliability. Furthermore, they enhance environmental control within stations, contributing to more stable temperatures and reduced noise levels, thereby improving passenger comfort and energy efficiency. Their integral role underscores the need for robust, reliable, and precisely engineered control board solutions.

• What are the primary functions of Subway Platform Screen Doors?
  The primary functions of Subway Platform Screen Doors (PSDs) are to enhance passenger safety by preventing accidental falls onto tracks, minimize train-related incidents, improve operational efficiency by enabling precise train stopping and reducing dwell times, and enhance environmental control within stations through improved climate regulation and noise reduction.

The Critical Role of the Control Board in PSD Operation

At the core of every efficient and safe Subway Platform Screen Door (PSD) system lies its control board, acting as the central nervous system that orchestrates seamless operations. This sophisticated electronic component is indispensable, interpreting commands, processing real-time sensor data, and managing the precise synchronization of door movements with train arrivals and departures, thereby safeguarding passenger flow and operational integrity. Without a highly reliable and responsive control board, the advanced safety features and automation of modern subway systems would be significantly compromised. It is the silent, yet critical, conductor ensuring that millions of commuters can travel safely and efficiently every day.

• What are the primary functions of a PSD control board?
  The PSD control board serves multiple critical functions, including precise control of door opening and closing mechanisms, real-time processing of sensor inputs (e.g., presence detection, obstruction detection), communication with the central train control system and station control room, fault detection and logging, and the implementation of safety interlocks to prevent hazardous conditions like doors opening when a train is not present or moving. It acts as the brain, processing complex logic to ensure safe and efficient passenger flow.
• How does the control board enhance passenger safety?
  The control board significantly enhances passenger safety by ensuring the doors operate only when safe, preventing accidents such as passengers falling onto tracks or being caught in closing doors. It achieves this through continuous monitoring of train positions, precise door synchronization, and rapid response to emergency signals or obstruction detection. Advanced control boards incorporate redundant safety features and fail-safe mechanisms to mitigate risks even in the event of component failure.

Key Requirements for a Robust PSD Control Board PCB

A robust Platform Screen Door (PSD) control board PCB is the bedrock of a reliable and safe subway system. The stringent operational environment of urban rail transit demands that these PCBs meet exceptional standards for performance, durability, and resilience against a myriad of potential disruptions. Achieving this level of robustness is paramount, directly influencing passenger safety, operational efficiency, and the long-term viability of the entire PSD system.

• High Reliability and Fault Tolerance
  The primary requirement for any PSD control board PCB is unwavering reliability. Given their critical role in public safety, these boards must operate flawlessly under continuous demand. Fault tolerance is integral, meaning the system should continue to function or degrade gracefully even if individual components fail. This is often achieved through redundant circuit designs, robust component selection, and sophisticated error detection and correction mechanisms. According to industry standards such as IEC 61508 for functional safety of electrical/electronic/programmable electronic safety-related systems, PSD control boards typically require a Safety Integrity Level (SIL) rating of at least SIL 3, underscoring the necessity for extreme reliability and fault-tolerant architectures to prevent hazardous failures.

• What specific safety standards must a PSD control board PCB adhere to?
  A PSD control board PCB must rigorously adhere to international safety standards, most notably IEC 61508 (Functional Safety of Electrical/Electronic/Programmable Electronic Safety-Related Systems), typically requiring a Safety Integrity Level (SIL) of SIL 3 or 4, depending on the specific application and risk assessment. Additionally, compliance with EN 50126 (RAMS: Reliability, Availability, Maintainability, and Safety), EN 50128 (Software for Railway Control and Protection Systems), and EN 50129 (Safety-Related Electronic Systems for Signalling) is crucial for ensuring the highest levels of safety and operational integrity within railway environments. These standards dictate robust design principles, rigorous testing protocols, and comprehensive validation processes to mitigate all foreseeable risks and ensure system reliability under diverse conditions.

Zero One Solution's Expertise in PSD Control Board PCB Solutions

At Zero One Solution Limited, we bring over a decade of specialized expertise to the forefront of PCB solutions, particularly for critical infrastructure like Subway Platform Screen Door (PSD) systems. Our commitment to rapid-response R&D prototyping, coupled with advanced manufacturing and rigorous quality control, positions us as a leader in delivering highly reliable and robust PCB control boards essential for the safety and efficiency of modern urban transit. We understand the unique demands of railway signaling and control systems, ensuring our solutions not only meet but exceed industry standards for performance and longevity.

1. Rapid Prototyping and Accelerated Development
   We excel in rapid prototyping, transforming complex PSD control board designs into functional prototypes with unparalleled speed. Our streamlined processes enable quick iterations, allowing clients to accelerate product development cycles and validate designs efficiently, reducing time-to-market for critical transit innovations. This agile approach is critical for high-stakes railway projects where speed and precision are paramount.

Our robust quality control protocols are integrated at every stage, from initial design review through manufacturing and final assembly. This includes automated optical inspection (AOI), X-ray inspection for internal solder joint integrity, and comprehensive functional testing to simulate real-world operational stresses. This multi-layered approach to quality assurance guarantees that every PSD control board we produce delivers uncompromised reliability and safety in demanding subway environments. Leveraging our strategic locations in Shenzhen and Dubai, we tap into a global supply chain network, ensuring access to the highest quality components and materials for unparalleled product reliability and cost-effectiveness. Our global reach facilitates agile response times and consistent project delivery, irrespective of geographical constraints.

Advanced PCB Design Considerations for PSD Control Boards

Designing printed circuit boards (PCBs) for critical infrastructure like Subway Platform Screen Doors (PSDs) demands a meticulous approach, extending far beyond basic circuit layout. Advanced PCB design considerations are paramount to achieving the unwavering reliability, fault tolerance, and extended operational lifespan required for PSD control boards. These considerations encompass intricate techniques that mitigate potential performance issues and ensure seamless, safe operation in demanding subway environments.

• Signal Integrity Analysis: The Backbone of Reliable Data Transmission
  Signal integrity (SI) analysis is crucial to prevent data corruption and ensure accurate communication within the PSD control board. High-speed signals are susceptible to issues like crosstalk, reflections, and electromagnetic interference (EMI). Employing techniques such as impedance matching, proper trace routing (e.g., differential pairs), and careful termination are vital. Zero One Solution utilizes advanced simulation tools to predict and mitigate SI issues early in the design cycle, ensuring robust data transmission.
• Thermal Management: Sustaining Performance in Varying Climates
  Subway environments can experience significant temperature fluctuations. Effective thermal management in PSD control board PCBs is essential to prevent overheating, which can lead to component degradation, reduced lifespan, and even system failure. This involves strategic component placement to distribute heat, incorporating thermal vias, using heat sinks, and selecting materials with optimal thermal conductivity. Our designs prioritize efficient heat dissipation to maintain stable operating temperatures for critical components.
• Component Placement Optimization: Maximizing Performance and Minimizing Interference
  The physical arrangement of components on the PCB significantly impacts performance and reliability. Optimal component placement minimizes trace lengths, reduces electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues, and facilitates efficient power distribution. Considerations include grouping related components, separating analog and digital sections, and placing high-frequency components strategically to avoid unwanted coupling. Precision in component placement is a hallmark of our PSD control board designs.
• Power Integrity (PI) Design: Delivering Stable Power to All Components
  Stable power delivery is fundamental for reliable operation. Power integrity (PI) design focuses on minimizing voltage drops and noise on power distribution networks (PDNs). This involves proper decoupling capacitor placement, effective power plane design, and low-inductance routing. Our rigorous PI analysis ensures that all components on the PSD control board receive clean and stable power, even under varying load conditions, preventing erratic behavior or malfunctions.
• Material Selection: Foundation for Durability and Performance
  The choice of PCB substrate material directly impacts electrical performance, thermal properties, and mechanical durability. For PSD control boards, materials with excellent dielectric properties, low loss tangents, and robust mechanical strength are selected. This includes considerations for flame retardancy, moisture resistance, and compatibility with harsh industrial environments. Zero One Solution carefully selects advanced PCB materials to guarantee the long-term reliability of our solutions.

Manufacturing and Assembly Processes for High-Reliability PCBs

Ensuring the unwavering reliability of Subway Platform Screen Door (PSD) control boards necessitates a meticulous and rigorous approach to manufacturing and assembly. At Zero One Solution Limited, our processes are engineered from the ground up to eliminate potential failure points and guarantee peak performance under the demanding operational conditions of subway environments. This commitment to precision and quality is paramount for safeguarding passenger safety and maintaining operational efficiency within modern rail transit systems.

1. Advanced PCB Manufacturing Techniques
   Our manufacturing process begins with the selection of high-grade, durable substrates and advanced lamination techniques to create robust multi-layer PCBs. We utilize precise laser direct imaging (LDI) and automated drilling for superior accuracy, ensuring optimal signal integrity and power distribution. Strict environmental controls are maintained throughout the fabrication process to prevent contamination and ensure consistent quality, adhering to IPC Class 2/3 standards for high-reliability electronics.

Beyond fabrication, the assembly stage employs state-of-the-art technologies and stringent quality control measures to achieve unparalleled reliability:

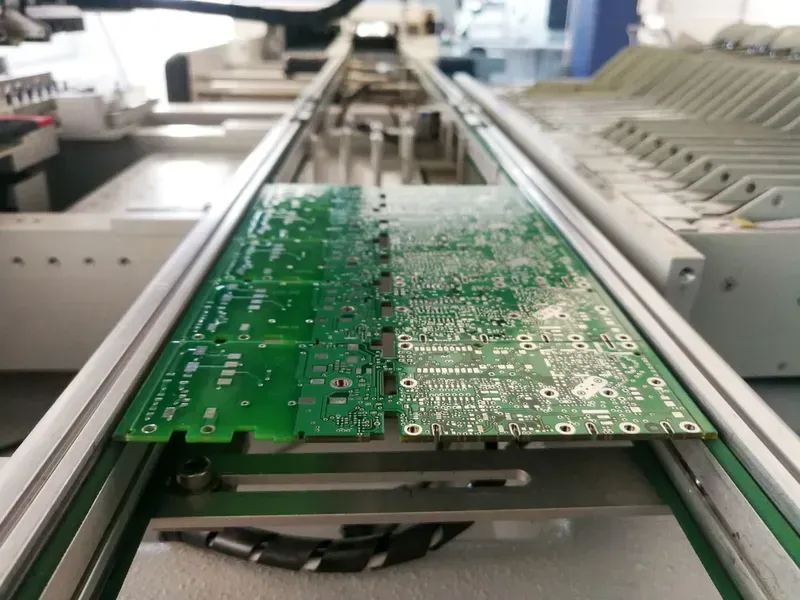

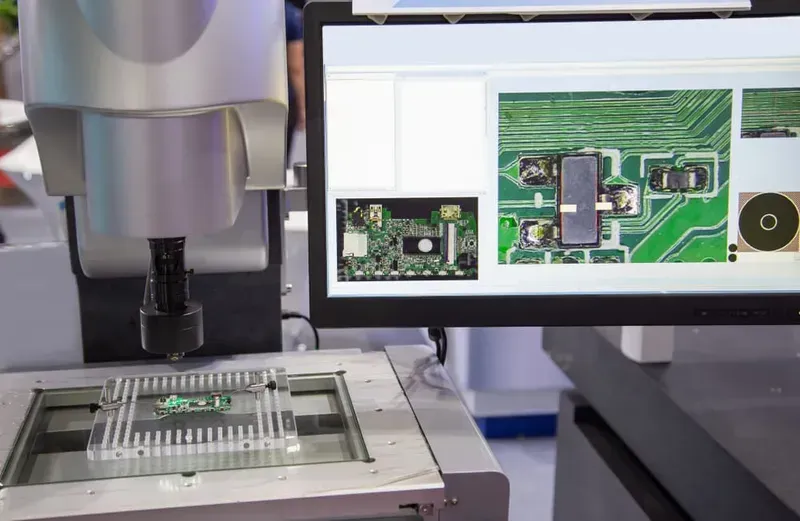

• Automated Optical Inspection (AOI)
  Post-reflow, AOI systems rapidly scan PCBs for visual defects such as missing components, incorrect polarity, solder shorts, and open circuits. This automated process ensures consistent inspection quality and identifies defects that may be difficult to detect manually, significantly enhancing reliability and throughput. Our AOI systems are programmed with sophisticated algorithms to compare the assembled board against design specifications, identifying even subtle deviations that could impact performance or longevity.

• In-Circuit Testing (ICT)
  ICT is employed to verify the electrical functionality of individual components and test for shorts, opens, resistance, capacitance, and other electrical parameters. This stage helps to identify manufacturing defects that affect electrical performance early in the production cycle, ensuring that each component functions as designed within the circuit.

Finally, before deployment, every PSD control board undergoes rigorous functional testing:

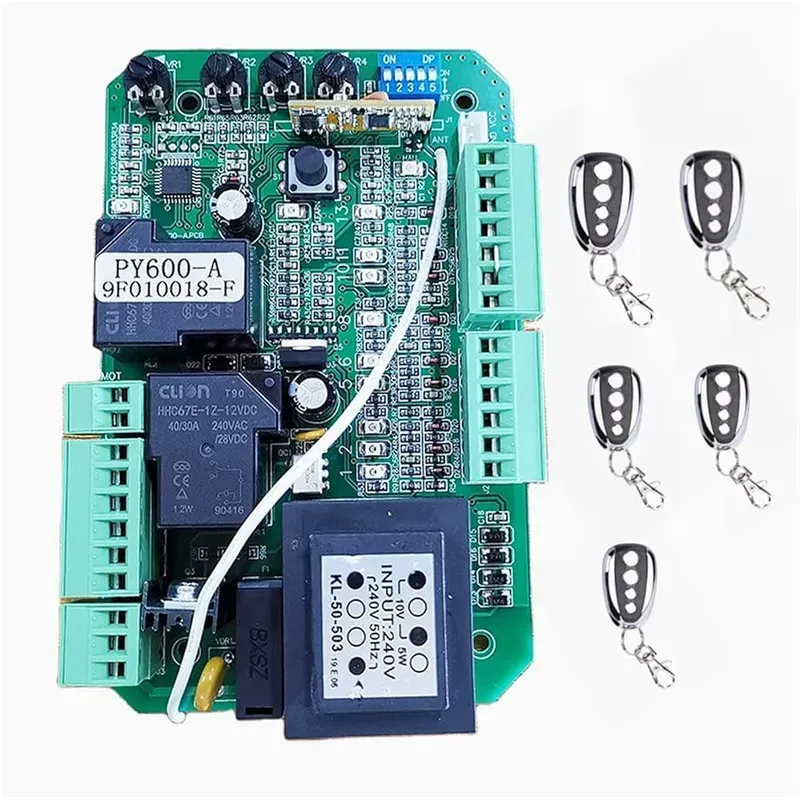

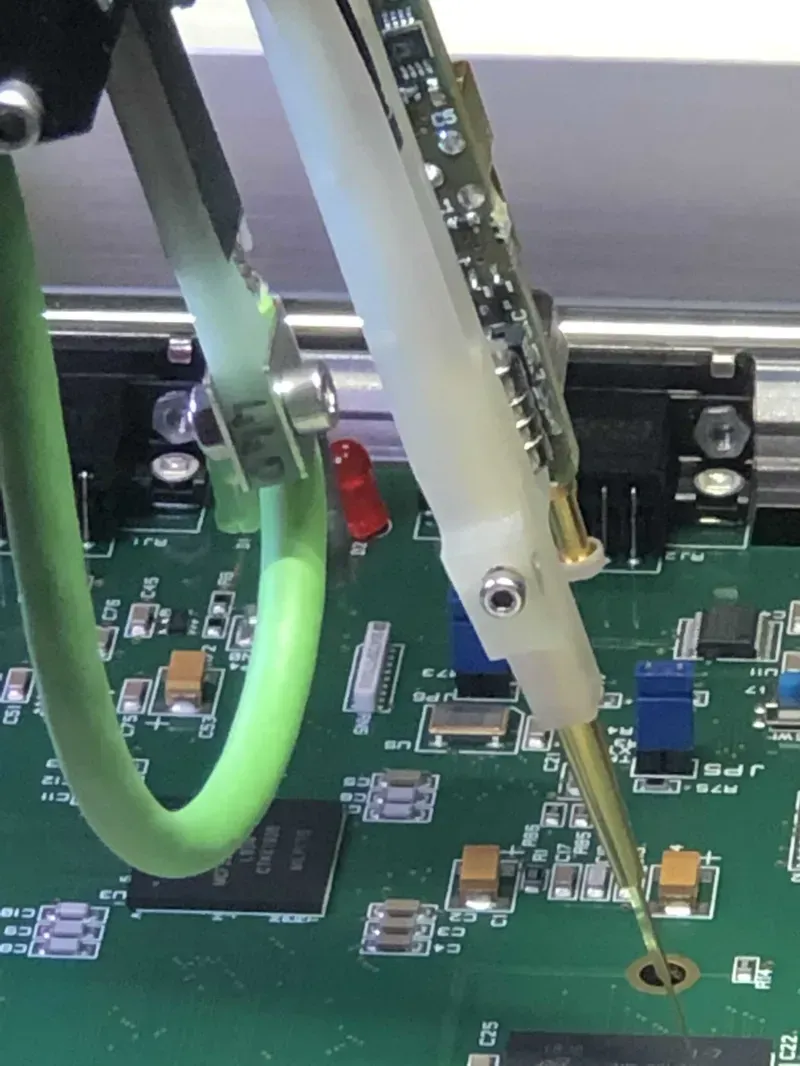

1. Functional Testing (FCT)
   FCT simulates the actual operational environment of the PSD control board, verifying its performance under various scenarios. This includes testing communication protocols, sensor inputs, actuator outputs, and fault detection mechanisms. This comprehensive testing ensures the board meets all specified operational parameters and safety requirements, guaranteeing its reliability in the field and adherence to stringent industry standards like EN 50126, EN 50128, and EN 50129 for railway applications.

Case Studies: Successful PSD Control Board Projects

The true measure of a robust Subway Platform Screen Door (PSD) Control Board Solution lies in its real-world application and proven performance. Zero One Solution Limited has consistently delivered high-reliability PCB solutions that underpin the safety and efficiency of critical public transportation infrastructure. Our rapid prototyping and stringent quality control processes enable us to meet the demanding specifications of complex PSD systems, ensuring seamless integration and superior operational longevity. These case studies exemplify our commitment to excellence and our capability to transform intricate requirements into tangible, successful implementations that enhance both passenger safety and operational reliability.

• Urban Transit Network Upgrade – City A
  Zero One Solution partnered with a major urban transit authority in City A to upgrade their aging PSD systems across 15 high-traffic stations. The challenge involved integrating new control boards with existing legacy infrastructure while improving overall system response time and fault tolerance. Our custom-designed PCBs, featuring enhanced EMI shielding and redundant communication pathways, reduced system downtime by 30% and improved door synchronization accuracy by 25%. This project showcased our ability to deliver highly compatible and resilient control board solutions within a complex operational environment, contributing directly to heightened passenger safety and reduced operational expenditure for the transit authority.
• New Metro Line Development – City B
  For the launch of a new metro line in City B, Zero One Solution was tasked with providing the complete suite of PSD control board PCBs. Given the greenfield nature of the project, the primary focus was on implementing cutting-edge technology for maximum reliability and future scalability. We implemented control boards incorporating advanced diagnostic capabilities and real-time data logging, allowing for proactive maintenance and predictive fault detection. The project achieved a 99.99% operational uptime for the PSD systems in its first year, demonstrating the exceptional reliability and performance of our solutions in a demanding, high-stakes environment.
• High-Speed Rail Platform Modernization – Regional Network
  A regional high-speed rail network sought to modernize its platform screen doors to accommodate increased train speeds and passenger volumes. The critical requirement was a control board capable of extremely precise timing and robust operation under varying environmental conditions, including significant temperature fluctuations. Our solution involved multi-layered PCBs with optimized thermal management and industrial-grade components, ensuring stable performance across a wide temperature range (-40°C to +85°C). The upgraded PSD systems delivered a 15% improvement in door opening/closing cycle times, directly enhancing passenger flow efficiency and reducing dwell times, proving our capacity to meet stringent performance demands for high-speed applications.

The Future of PSD Control Boards: Trends and Innovations

The evolution of Platform Screen Door (PSD) control boards is rapidly accelerating, driven by advancements in smart city infrastructure and the imperative for enhanced safety and operational efficiency in modern transit systems. Future PSD control boards will transcend their current operational scope, integrating cutting-edge technologies to enable smarter, more resilient, and predictive functionalities, fundamentally reshaping how urban rail systems manage passenger flow and safety.

• How will wireless communication impact PSD control board design?
  Wireless communication, such as 5G and Wi-Fi 6, will enable greater flexibility in PSD system architecture by reducing complex cabling and simplifying installation and maintenance. This will facilitate real-time data exchange between control boards and central monitoring systems, allowing for immediate fault detection, remote diagnostics, and over-the-air firmware updates, thereby increasing system uptime and reducing manual intervention. It also paves the way for more distributed control systems, improving overall system resilience.
• What role will IoT integration play in the next generation of PSD control boards?
  IoT integration will transform PSD control boards into intelligent nodes within a larger, interconnected urban infrastructure. By embedding sensors and connectivity, control boards can collect vast amounts of data on door operation, environmental conditions, and passenger interaction. This data, when analyzed, will provide insights for optimizing performance, predicting potential failures, and enabling adaptive responses to real-time events, such as adjusting door opening/closing speeds based on platform congestion, thereby enhancing passenger experience and operational fluidity.
• How will predictive maintenance capabilities enhance PSD system reliability?
  Predictive maintenance, powered by machine learning algorithms analyzing data from IoT-enabled PSD control boards, will shift maintenance strategies from reactive to proactive. Instead of scheduled maintenance or repairs after failures, the system will identify patterns and anomalies indicative of impending component degradation or malfunctions. This allows for targeted maintenance interventions before a failure occurs, significantly reducing downtime, extending the lifespan of components, and ensuring uninterrupted service and safety for passengers. This approach minimizes operational costs and enhances overall system dependability.

Why Choose Zero One Solution for Your PSD Control Board Needs?

Choosing the right partner for your critical Subway Platform Screen Door (PSD) control board solutions is paramount, as the reliability and safety of public transportation systems depend on it. Zero One Solution Limited offers an unparalleled combination of rapid prototyping capabilities, a robust global supply chain network, and an unwavering commitment to customer satisfaction, making us the ideal choice for developers and manufacturers seeking high-performance and dependable PCB solutions for PSD systems.

• How does Zero One Solution ensure rapid prototyping for PSD control boards?
  Zero One Solution leverages advanced DFM (Design for Manufacturability) analysis, high-speed automated production lines, and an agile project management methodology. This enables us to quickly iterate on designs, produce functional prototypes with short lead times, and facilitate accelerated product development cycles crucial for the fast-paced railway industry.
• What are the benefits of Zero One Solution's global supply chain network for PSD control boards?
  Our strategic locations in Shenzhen, China, and Dubai provide direct access to a vast network of top-tier component suppliers and material providers. This global reach ensures competitive pricing, diversified sourcing to mitigate risks, enhanced material availability, and streamlined logistics, ultimately leading to more cost-effective and efficient production of PSD control boards.
• How does Zero One Solution demonstrate its commitment to customer satisfaction in PSD projects?
  Our commitment is reflected through dedicated project managers, transparent communication channels, stringent quality control protocols at every stage from design to delivery, and responsive post-delivery support. We prioritize understanding and addressing unique client requirements, ensuring that the delivered PSD control board solutions not only meet but exceed performance and reliability expectations.

In conclusion, the reliability and performance of subway platform screen door systems hinge on the quality and design of their control boards. Zero One Solution Limited offers comprehensive PCB solutions, from design to manufacturing and assembly, ensuring that these critical components meet the highest standards of safety and performance. By partnering with Zero One Solution, subway operators can enhance the safety and efficiency of their systems, providing a safer and more reliable commuting experience for passengers. Contact us today to discuss your PSD control board PCB needs and discover how our expertise can benefit your project. With a global presence and a commitment to excellence, Zero One Solution Limited is your trusted partner for PCB solutions in the railway industry.
