Our client, a manufacturer of high-performance electric scooters, needed a smart control system that could deliver both power and connectivity. The system required a 36V 15A controller with Bluetooth integration, enabling APP-based control and monitoring for modern mobility products.
Key System Components:

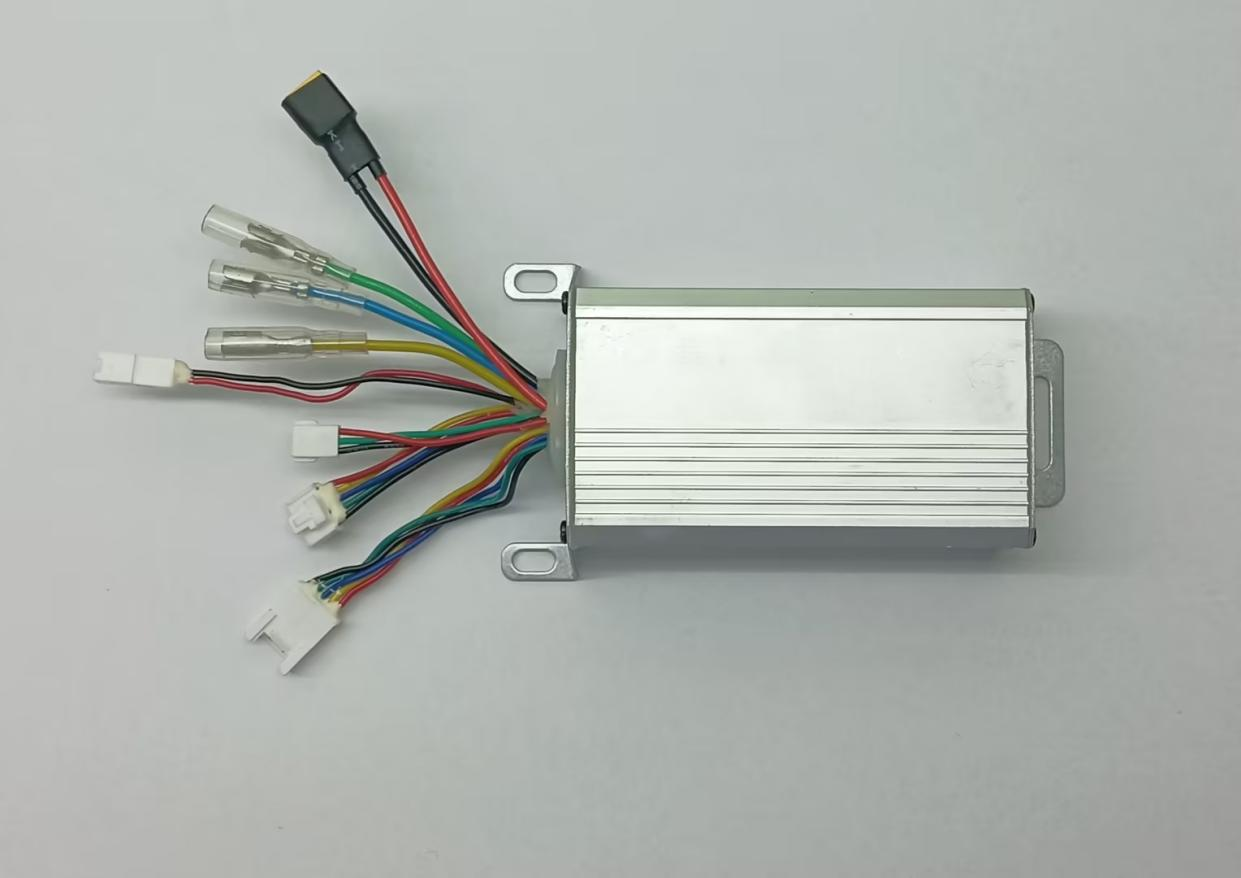

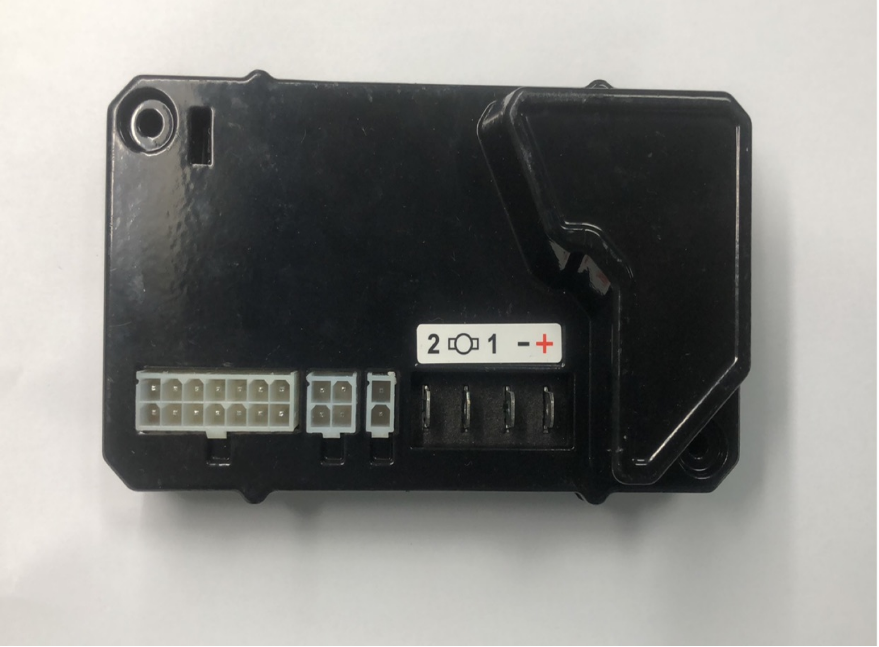

Motor Controller: 36V 15A±1, based on Zhongying MCU, with Bluetooth module

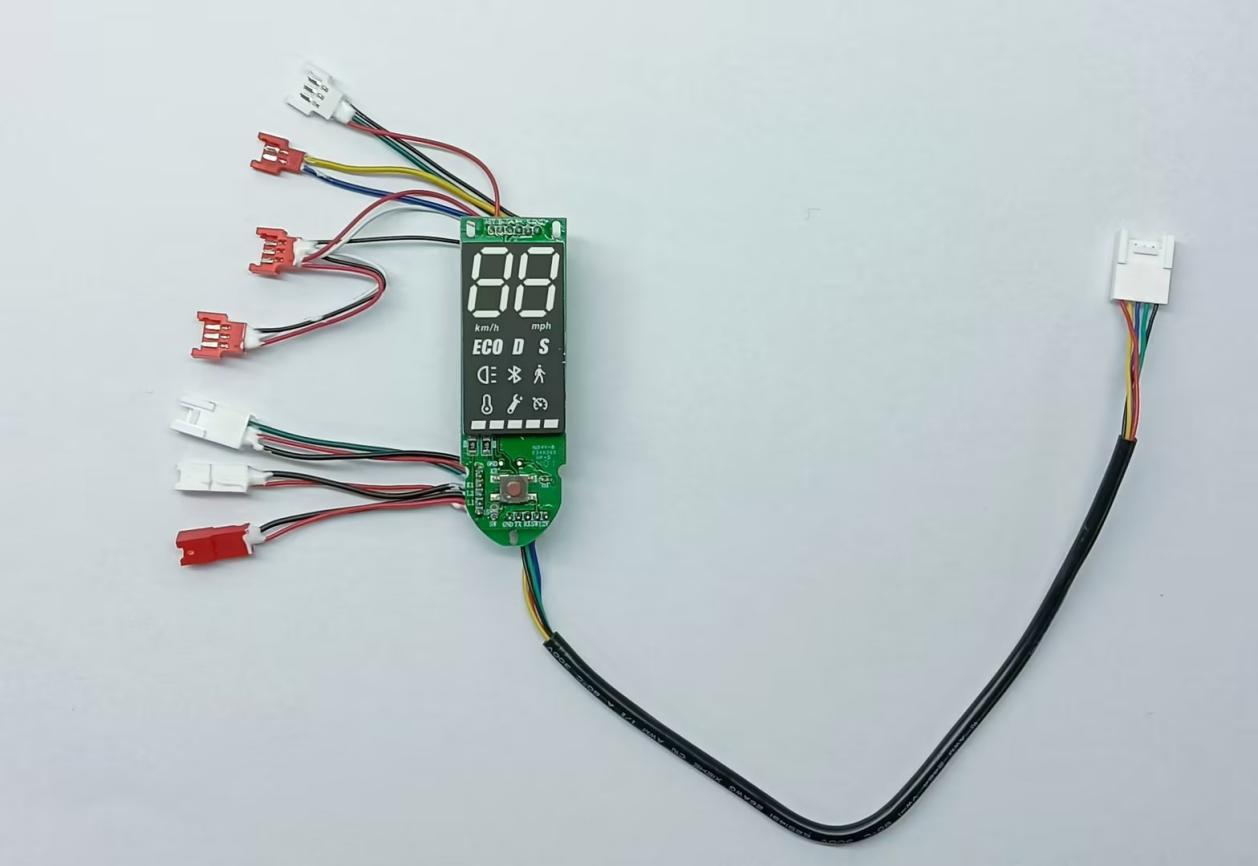

Smart Dashboard: Tuya bare-chip based display with speed, battery, and status indicators
Control Interfaces: Throttle, brake, headlight, turn signals, horn
Mobile App: Tuya Smart APP for remote control and vehicle monitoring
1. Powerful 15A Drive System
Maximum Current: 15A ±1A – delivering high torque and acceleration
Voltage: 36V battery system with 8.5-inch motor support
Three-Speed Control: 1st gear (0-10km/h ECO), 2nd gear (0-15km/h D), 3rd gear (0-20km/h S)
Speed Unlock: Up to 25-30km/h with speed limit release
Unit Switching: KM/H or MPH with memory function
2. Bluetooth Smart Connectivity
Built-in Bluetooth module with unique name "RSX"
Tuya Smart APP integration for full vehicle control
Auto-reconnect with memory function
Real-time vehicle monitoring (speed, battery, mileage, location)
3. Full-Featured APP Control
| Function | Description |
|---|---|
| Vehicle unlock/lock | Motor lock with "P" display |
| Gear switching | 1st/2nd/3rd gear selection |
| Zero-start toggle | Enable/disable zero-start |
| Cruise control | Enable/disable with memory |
| Headlight control | On/off via APP |
| Unit switching | KM/H ↔ MPH |
| Live tracking | Real-time GPS location, riding time, mileage, average speed |
| Data clearing | Clear total mileage |
4. Multi-Function Dashboard
The integrated dashboard displays:
Speed (digital with unit indicator)
Battery level (5-bar indicator)
Bluetooth connection status
Cruise control status
Headlight status
Fault codes (E1-E8)
Gear position indicator
"P" lock indicator
5. Intelligent Operation System
| Operation | Function |
|---|---|
| Long press ON/OFF | Power on/off (with buzzer) |
| 2x ON/OFF | Gear switching (with memory) |
| 1x ON/OFF | Headlight/tail light on/off |
| 3x ON/OFF | KM/H ↔ MPH switching (with memory) |
| 4x ON/OFF | Cruise control on/off (with memory) |
| 5x ON/OFF | Zero-start on/off (with memory) |
| 9x ON/OFF | Clear total mileage |
| Brake + 6x ON/OFF | Speed limit unlock/lock (with memory) |
| Brake + 10x ON/OFF | Vehicle lock/unlock |
| Brake + ON/OFF (boot) | Bluetooth pairing reset ("UC" display) |
| Long press ON/OFF (12s) | Factory reset |
6. Comprehensive Protection & Fault Diagnosis
| Protection | Specification |
|---|---|
| Low Voltage Protection | 31V ±0.5V (motor stop) |
| Over Voltage Protection | Greater than 34V |
| Over Current Protection | 15A ±1A limit |
| Stall Protection | Less than 7 seconds |
| Auto Shutdown | 10 minutes idle |
| Thermal Protection | 85°C motor stop |
Fault Codes:
| Code | Fault | Code | Fault |
|---|---|---|---|
| E1 | Brake fault | E5 | Hall sensor fault |
| E2 | Throttle fault | E6 | Motor lock protection |
| E3 | Communication fault | E7 | Under-voltage protection |
| E4 | MOSFET/over-current | E8 | Over-voltage protection |
7. Battery Monitoring & Display
| Bars | Voltage Range |
|---|---|
| 5 bars | 41.0V – 42.0V |
| 4 bars | 40.0V – 40.9V |
| 3 bars | 37.0V – 39.9V |
| 2 bars | 36.0V – 36.9V |
| 1 bar | 34.0V – 35.9V |
Low voltage warning: Less than 34V (1 bar flashing)
Under-voltage protection: Less than 31V (motor stop)
| Parameter | Specification |
|---|---|
| Battery Voltage | 36V |
| Maximum Current | 15A ±1A |
| Motor Type | 8.5-inch, right cable output |
| Controller MCU | Zhongying |
| Dashboard MCU | Tuya (bare chip) |
| Bluetooth | Built-in, name "RSX" |
| APP Platform | Tuya Smart |
| Sleep Current | Less than 20uA |
| Standby Current | Less than 100mA |
| Minimum Start Voltage | 24V |
| Low Voltage Protection | 31V ±0.5V |
| Gear 1 Speed | 0-10km/h (ECO) |
| Gear 2 Speed | 0-15km/h (D) |
| Gear 3 Speed | 0-20km/h (S, unlockable to 25-30km/h) |
| Auto Shutdown | 10 minutes idle |
| Thermal Protection | 85°C |
| Stall Protection | Less than 7 seconds |
Smart Connectivity: Integrated Bluetooth and APP control for modern mobility
