Project Background

The intelligent upgrade of construction machinery, agricultural equipment, and special-purpose vehicles requires an information gateway device capable of long-term stable operation in harsh electromagnetic environments with strong vibration. This project aims to design an industrial-grade gateway controller PCBA for special-purpose vehicles, enabling real-time equipment status collection, remote monitoring, and data upload.

Key Hardware Requirements:

• Multi-Protocol Communication: Support for multi-channel CAN (including CAN FD), RS232/RS485, K-Line, and general-purpose I/O to interface with various vehicle sensors and control units

• Industrial-Grade Reliability: Wide operating temperature range (-40°C to +85°C), vibration resistance, and electromagnetic interference (EMI) protection

• Remote Data Transmission: Integration of 2G/4G, Wi-Fi, or Bluetooth modules for cloud data upload and mobile device configuration

• Data Acquisition: Support for analog/digital input and output for connecting temperature, pressure, speed sensors, etc.

• Power Supply Adaptability: Wide input voltage range (9-30V) to accommodate vehicle power fluctuations

Our PCBA Solution

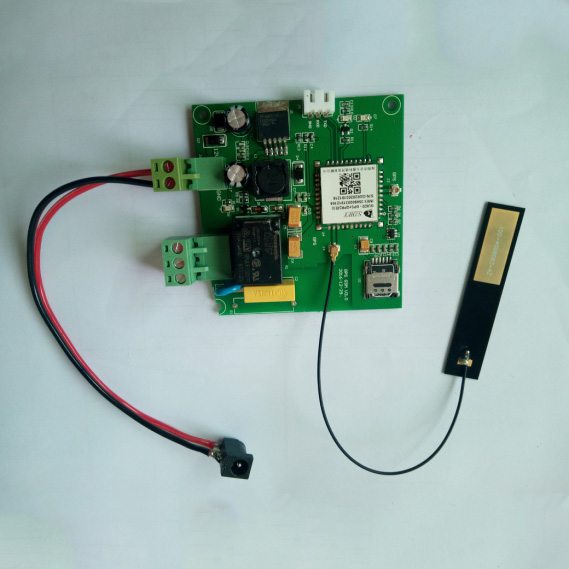

We designed a high-reliability intelligent gateway controller PCBA for special-purpose vehicles, integrating data acquisition, protocol conversion, and remote communication functions.

Key design features:

1. Core Processor Platform

• Industrial-grade 32-bit ARM Cortex-M series MCU

• Built-in large-capacity Flash and RAM

• Supports multi-channel CAN communication, compatible with both classic CAN and CAN FD protocols

2. Multi-Protocol Communication Interfaces

• Multi-channel CAN bus (CAN/CAN FD) for connecting vehicle control units and sensor networks

• RS232/RS485 serial interfaces for industrial instruments and GPS modules

• General-purpose I/O (DI/DO) supporting both analog (voltage/current) and digital signal acquisition

• K-Line and L-Line vehicle diagnostic protocol support

3. Remote Communication Module

• 4G/2G (GPRS) wireless modules for remote data transmission and OTA updates

• Optional Wi-Fi module for different deployment scenarios

• Bluetooth interface for mobile APP-based local configuration and debugging

4. Power Management & Environmental Adaptability

• Wide voltage input (9-30V) with built-in over-voltage and reverse polarity protection

• Industrial-grade component selection and PCB design for -40°C to +85°C operation

• Vibration-resistant design: reinforced connectors and component underfill/encapsulation

• Strict EMC/EMI design compliant with industrial ESD immunity standards

5. PCB Manufacturing

• High-TG FR4 material for wide-temperature operation

• Conformal coating on critical signal areas for moisture and dust protection

• Compliance with industrial control computer system specifications

Technical Specifications

Results and Value Delivered

• High Reliability: Designed for -40°C to +85°C temperature range and high-vibration environments

• Multi-Protocol Compatibility: Supports CAN, RS232/RS485, K-Line, I/O, and other vehicle communication protocols

• Remote Monitoring: Integrated wireless communication for real-time equipment status upload and remote management

• Flexible Configuration: Supports mobile-based local configuration for field debugging and maintenance

• Industrial-Grade Manufacturing: Built to industrial standards for construction, agricultural, and other harsh environment applications

Application Areas

• Construction machinery (excavators, cranes, bulldozers) data acquisition and remote monitoring

• Agricultural equipment (tractors, harvesters, seeders) smart information management

• Construction vehicles and special-purpose vehicle condition monitoring and diagnostics

• Commercial vehicles and new energy vehicle gateway control
