The electric vehicle industry stands at a technological crossroads. As demand for range and safety intensifies, the reliance on heavy, complex wire harnesses—the 'arteries' of traditional Battery Management Systems (BMS)—is becoming a bottleneck. By shifting to wireless architectures, automakers are not just cutting weight; they are reimagining the fundamental safety and scalability of EV power systems.

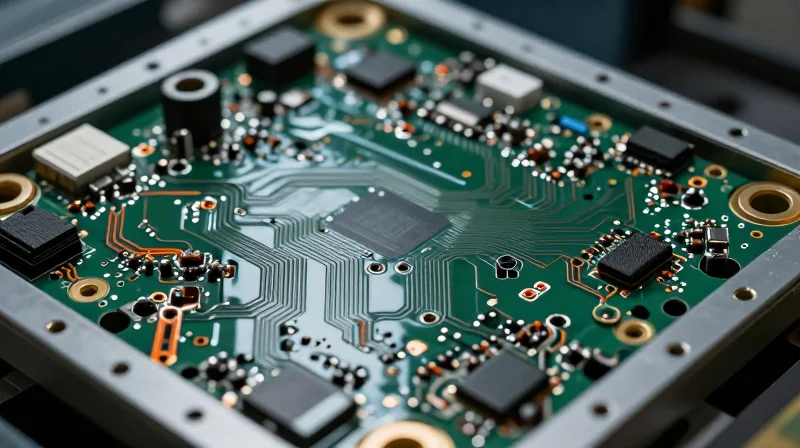

The Current State: Limitations of Rigid-Flex PCB Architectures

The evolution of Electric Vehicle (EV) battery packs has reached a critical juncture where the physical integration of battery management systems (BMS) is struggling to keep pace with performance demands. While rigid-flex PCB architectures have long served as the industry standard, they are increasingly defined by mechanical constraints that limit scalability, increase assembly complexity, and create significant points of failure.
The Mechanical Burden of Rigid-Flex Assemblies
Rigid-flex circuits—composed of multiple rigid boards joined by flexible polyimide layers—require complex routing to navigate dense battery modules. As cell counts increase to extend vehicle range, the sheer volume of wiring harness connectivity creates a 'spaghetti' effect. This architecture demands high-precision assembly processes, where even minor mechanical stresses during installation or thermal expansion cycles can lead to micro-fractures in the flex regions.
| Limitation Factor | Impact on BMS | Resulting Risk |
|---|---|---|
| Physical Density | Routing congestion within battery modules | Increased assembly error rates |
| Mechanical Flex | Stress on solder joints during vibration | Premature fatigue and intermittent failure |
| Serviceability | Hard-wired, monolithic connections | Higher maintenance costs and labor intensity |
Challenges in Maintenance and Reliability
- Why are wire harnesses considered a single point of failure?
Wired architectures rely on thousands of individual connections. Each connector, solder joint, and crimp is a potential failure point due to corrosion, thermal cycling, or manufacturing defects. - How does rigidity impact maintenance?
Replacing a damaged BMS segment in a rigid-flex system often requires dismantling large sections of the battery pack, which is both labor-intensive and increases the risk of damaging surrounding healthy modules. - Do traditional PCBs limit pack innovation?
Yes; because the PCB layout is tied to the physical geometry of the cells, changing the battery form factor requires a complete redesign of the BMS interconnects, stalling rapid R&D iteration.
The fundamental tension lies in the fact that rigid-flex systems were designed for static environments, not for the high-vibration, high-heat, and high-energy-density requirements of modern EV platforms. As manufacturers push for longer-lasting batteries, the maintenance overhead and hardware fragility of traditional wired systems are becoming the primary inhibitors of vehicle uptime and long-term safety.
What is Wireless BMS (wBMS) Technology?

Defining Wireless BMS (wBMS) Architecture
At its core, a Wireless Battery Management System (wBMS) eliminates the physical daisy-chain cabling that traditionally connects individual battery module controllers to the main Battery Management Unit (BMU). Instead, wBMS utilizes a dedicated low-latency wireless protocol to transmit vital battery health data, such as voltage, temperature, and current, across the entire battery pack. By removing these physical connectors, automakers can streamline assembly processes, reduce total vehicle weight, and mitigate failure points inherent in traditional wiring harnesses.
Key Components of the Wireless Ecosystem
- Wireless Cell Monitoring Units (wCMU)
These units are integrated directly onto the battery modules, replacing traditional boards to measure cell parameters and transmit data wirelessly via an integrated antenna. - Central Wireless Gateway
Acting as the hub, the gateway coordinates traffic among modules, ensuring encrypted, time-synchronized data packets reach the primary ECU without collision or signal interference. - Secure Communication Protocol
wBMS relies on robust, interference-resistant protocols—often operating in the 2.4 GHz spectrum—designed to maintain integrity even within the high-electromagnetic-interference (EMI) environment of an electric powertrain.
Traditional Wired vs. Wireless Architecture Comparison
| Feature | Wired (PCB/Harness) | Wireless (wBMS) |
|---|---|---|
| Communication Media | Copper/Flex Cables | RF Radio Waves |
| Complexity | High (Harness congestion) | Low (Minimal hardware) |
| Failure Points | Connector/Cable fatigue | None (Signal-based) |
| Weight Impact | Significant (10-20kg) | Negligible |
Why Shift to Wireless?
The primary driver for wBMS adoption is the drastic reduction in structural complexity. Traditional wired systems suffer from 'wiring fatigue' caused by thermal cycling and vehicle vibration, leading to communication drops. wBMS architectures enable modular battery design where cells can be swapped or upgraded without modifying complex communication harnesses. Furthermore, by removing the physical link, manufacturers gain the flexibility to design pack layouts that are optimized for energy density rather than accessibility for human wiring technicians, directly advancing the future of scalable EV battery safety.
Weight Reduction and Efficiency Gains

Weight Reduction and Efficiency Gains
The transition from traditional wired Battery Management Systems (BMS) to wireless architectures (wBMS) represents a critical shift in automotive engineering, moving away from bulky copper harnesses toward streamlined, software-defined connectivity. By removing the physical communication lines, manufacturers can achieve significant weight savings per battery module, which scales linearly across the entire high-voltage pack. This reduction in curb weight is not merely incremental; it allows for higher energy density optimization, as the volume previously occupied by wiring can now be repurposed for additional cell capacity or cooling infrastructure.
Quantifying the Impact of Harness Removal
| Component | Wired BMS (Typical) | Wireless BMS (wBMS) | Impact |
|---|---|---|---|
| Copper Wiring | High mass/volume | Eliminated | Direct weight reduction |
| Connector Complexity | High failure points | None | Improved reliability |
| Module Assembly | Manual/Slow | Automated/Fast | Increased throughput |
| Energy Density | Baseline | +3% to 5% | Higher kWh per kg |
Key Considerations for wBMS Integration
- How does wBMS specifically improve range?
By lowering the vehicle's total curb weight, the powertrain requires less energy to overcome rolling resistance and inertia, resulting in a direct improvement in range per kilowatt-hour of battery capacity. - Does weight reduction compensate for the added weight of wireless transceivers?
Yes, the mass of modern low-power wireless transceivers and integrated antennas is negligible compared to the substantial weight of copper harnesses, shielding, and heavy-duty connectors found in traditional packs. - What are the secondary benefits of weight reduction?
Beyond range, lighter vehicles experience reduced wear on suspension components and tires, contributing to lower long-term maintenance costs and a more balanced center of gravity for improved handling.
Safety Implications: Resilience and Fault Detection

Resilience Through Hardware Simplification
Traditional wired BMS architectures rely on extensive wire harnesses, connectors, and PCB-to-PCB ribbons. Each physical junction represents a potential point of failure—vulnerable to vibration, thermal fatigue, and corrosion. By transitioning to wireless protocols, wBMS eliminates the risk of short circuits stemming from frayed wiring or loose contact pins, directly enhancing the structural integrity of the battery management network.
Enhanced Fault Detection and Diagnostic Precision
wBMS architectures enable decentralized data processing, where individual cell monitoring units (CMUs) can transmit status updates independently. This redundancy ensures that even if one segment of the battery module experiences an issue, other nodes remain fully functional. Furthermore, the absence of physical signal degradation associated with long cable runs allows for higher signal-to-noise ratios, providing more accurate thermal and voltage data to the battery controller.
| Feature | Wired PCB Architecture | Wireless BMS (wBMS) |
|---|---|---|
| Physical Failure Points | High (Connectors, Harnesses) | Low (Integrated Wireless Nodes) |
| Diagnostic Latency | Variable based on bus length | Consistent, localized reporting |
| Vibration Resilience | Susceptible to connection looseness | Immune to mechanical fatigue |
| Failure Isolation | Can lead to daisy-chain collapse | High (Redundant nodes) |
Addressing Safety Concerns: A Brief FAQ
- How does wBMS handle interference from the EV powertrain?
Modern wBMS utilizes proprietary, secure frequency-hopping protocols that are specifically designed to operate in high-EMI environments, ensuring that battery data remains encrypted and prioritized over other vehicle signals. - Does wireless communication increase fire risk?
Actually, the opposite is true. By reducing the volume of flammable plastic-based wiring harnesses and insulating tapes within the pack, wBMS reduces the overall fire load and eliminates the spark risk associated with high-voltage connector arcing.

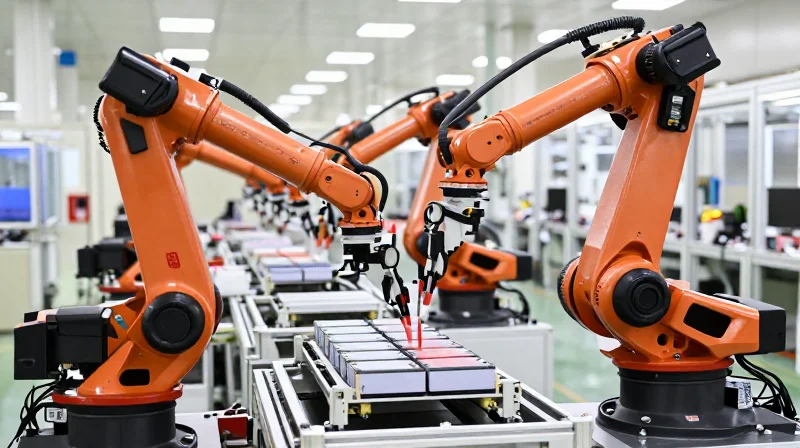

Manufacturing Scalability and Assembly Automation

Simplifying the Assembly Line through Wireless Architecture
Traditional wired Battery Management Systems (BMS) necessitate intricate, manual routing of high-voltage-isolated daisy-chain cabling. This process is prone to human error, including incorrect torque specifications for connectors and potential signal interference from cable stress. In contrast, wireless architectures eliminate the physical interconnects between modules, enabling a 'plug-and-play' design that permits robotic arms to place battery modules into a chassis without the need to manually connect communication wiring.
Comparative Analysis: Wired vs. Wireless Assembly
| Metric | Traditional Wired BMS | Wireless BMS (wBMS) |
|---|---|---|
| Assembly Complexity | High (Manual cable routing) | Low (Robotic modular drop-in) |
| Component Count | High (Cables, connectors, clips) | Minimal (PCB and integrated antennas) |
| Fault Points | Connectors, crimps, cable fatigue | Software-defined signal path |
| Scalability | Low (Custom harness per model) | High (Universal module design) |
Modularity and Future-Proofing
The shift to wBMS enables OEMs to adopt a 'universal battery module' strategy. Since the communication link is wireless, modules are no longer tethered to a specific wiring topology. This flexibility allows manufacturers to scale battery capacity across different vehicle segments—from compact cars to heavy-duty trucks—using the same standard module design. This creates a circular supply chain, simplifying the future repair, replacement, or recycling of battery units, as individual modules can be extracted without disturbing a complex web of interconnecting cables.
Frequently Asked Questions
- Does wireless communication increase assembly test time?
No, it reduces it. Wireless pairing protocols allow for near-instantaneous network detection of new modules, bypassing the time-consuming physical electrical continuity testing required for wired daisy chains. - How does wBMS affect robotic automation?
By removing the need for manual cable connection, manufacturers can fully automate the battery pack assembly line using standard robotic pick-and-place equipment, significantly increasing production uptime. - Is the wireless hardware more prone to failure than physical connectors?
Reliability is actually increased, as physical connectors are a leading cause of intermittent faults due to vibration, thermal expansion, or oxidation, whereas industrial wireless protocols are designed for high-interference environments.
Security and Signal Integrity in Automotive Environments
Cybersecurity in Wireless Battery Management Systems
Transitioning from physical cabling to wireless communication introduces a critical attack surface that demands military-grade security. A wireless battery management system (wBMS) must defend against signal spoofing, unauthorized access, and data tampering to prevent malicious actors from compromising battery health or vehicle control systems.
- How is data protected in transit?
Modern wBMS architectures utilize rolling code encryption and AES-128 cryptographic standards to ensure that all telemetry packets are authenticated and tamper-proof. - What prevents unauthorized nodes from joining the network?
The system employs a secure pairing process at the manufacturing plant, where each wireless node is hard-linked to the base station via a unique identifier, preventing external devices from masquerading as internal battery modules.
Managing Radio Frequency Interference (RFI)
The high-voltage, high-current environment of an EV creates a challenging electromagnetic landscape. Achieving signal integrity requires frequency hopping spread spectrum (FHSS) techniques that allow the BMS to switch channels dynamically, effectively 'jumping' over noise generated by the traction inverter or motor controllers.
| Feature | Wired PCB Architecture | Wireless BMS Architecture |
|---|---|---|
| Signal Interference | Susceptible to crosstalk | Resilient via frequency hopping |
| Security Model | Physical bus protection | Cryptographic data encryption |
| Failure Mode | Cable fatigue/shorting | Adaptive signal rerouting |
Operational Reliability and Redundancy
Beyond external threats, wBMS must maintain signal integrity under extreme physical duress. By utilizing redundant wireless channels and mesh networking topologies, the system ensures that even if one node encounters significant noise or physical shielding from the battery enclosure, the data packet can be re-routed through an adjacent module to reach the central gateway.
Regulatory Compliance and Future Industry Standards
Adapting Standards for Wireless Architectures
The transition to wireless Battery Management Systems (wBMS) necessitates a re-evaluation of established safety frameworks. Traditionally, ISO 26262 focused on wired physical integrity; however, current regulatory discourse centers on radio-frequency communication robustness and the Functional Safety (FuSa) of non-physical links. As OEMs adopt wBMS, certification pathways are shifting toward proving that wireless protocols can meet Automotive Safety Integrity Level (ASIL) D requirements, particularly concerning communication latency and error detection.
Comparison of Safety Compliance Focus
| Compliance Metric | Traditional PCB (Wired) | Next-Gen wBMS |
|---|---|---|
| Failure Mode | Cable/connector fatigue | Signal interference/jamming |
| Diagnostic Focus | Physical loop integrity | Protocol heartbeat & latency |
| ISO 26262 Target | Physical continuity/voltage drop | Data packet integrity (E2E) |
| Security Scope | Access port protection | Encryption & spoofing prevention |
Future Regulatory Outlook
Industry consortia are actively drafting standardized wireless frequency protocols to prevent signal congestion in high-density vehicle environments. Looking forward, we anticipate a fusion of functional safety standards and cybersecurity regulations, effectively mandating that wireless communication paths satisfy both reliability and protection criteria simultaneously.
Frequently Asked Questions
- How does ISO 26262 view wireless links?
ISO 26262 classifies wireless links under 'data communication' modules, requiring developers to ensure end-to-end (E2E) protection, including CRC checks and sequence counters to maintain safety integrity. - Will regulations mandate a redundant wired backup?
Current trends suggest that instead of physical wires, redundant wireless channels or multi-frequency hopping mechanisms are becoming the preferred methods for satisfying fault-tolerance requirements. - What is the biggest hurdle for global wBMS adoption?
Global harmonization of radio frequency bands remains a key challenge, as battery systems must operate reliably across various international spectrum regulations without interfering with critical vehicle-to-everything (V2X) infrastructure.
The Road Ahead: Challenges and Strategic Implementation
Overcoming the Integration Hurdle
The shift from rigid-flex PCB architectures to wireless battery management systems (wBMS) is not merely a component swap; it is a fundamental architectural overhaul. OEMs must confront significant challenges, including electromagnetic compatibility (EMC) in high-voltage environments and the need for standardized data protocols that ensure deterministic latency. Strategic implementation requires a phased approach, prioritizing modularity and interoperability to prevent vendor lock-in during the rapid development cycles of next-generation EV platforms.
Strategic Implementation Framework
| Phase | Key Focus | Strategic Outcome |
|---|---|---|
| Phase 1: Validation | EMI/EMC Testing | Risk Mitigation |
| Phase 2: Modularization | System Abstraction | Flexibility |
| Phase 3: Automation | Robotic Integration | Reduced Takt Time |
Operational Challenges and Frequently Asked Questions
- How do OEMs ensure signal reliability in a high-noise cabin environment?
Implementation of proprietary frequency-hopping spread spectrum (FHSS) techniques and dedicated industrial RF bands is critical to maintaining low-latency communication despite high-voltage switching interference. - Does wireless architecture increase the total cost of ownership?
While initial R&D costs are higher, the reduction in wiring harnesses, assembly labor, and improved vehicle weight efficiency results in lower net costs over the vehicle's production lifecycle. - What is the primary barrier to full-scale adoption?
The primary barrier remains the harmonization of functional safety standards like ISO 26262 with wireless transmission, requiring rigorous software-defined verification to ensure a Safety Integrity Level (ASIL) D rating.
The transition to wireless Battery Management Systems represents a significant evolution in automotive engineering, promising lighter, safer, and more efficient electric vehicles. As the industry matures, moving beyond legacy wire harnesses is essential for long-term scalability. Contact our engineering consulting team today to discuss how we can help your organization integrate next-gen wBMS solutions into your upcoming EV platform designs.
