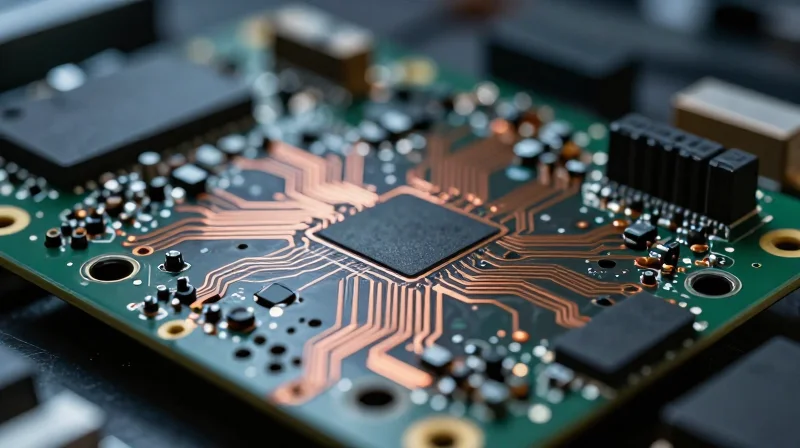

The High Stakes of Automotive Reliability

In modern automotive engineering, the transition toward lightweight wiring harnesses is driven by the need for increased vehicle range and fuel efficiency. Flex-rigid PCBs serve as the backbone of these systems, yet they operate in one of the most hostile environments imaginable. Unlike consumer electronics, which are designed for temperate, controlled conditions, automotive PCBs must function flawlessly under massive thermal cycling, intense vibration, and potential exposure to chemical contaminants over a vehicle lifespan of 15 years or more.

Consumer-Grade vs. Automotive-Grade Standards

Why Compromise is a Safety Risk

Selecting a supplier based solely on cost-efficiency often leads to the adoption of material sets or manufacturing processes that cannot survive the rigorous automotive qualification protocols. A failure in a lightweight wiring harness—often managing critical signal or power distribution—can lead to total system breakdown, fire hazards, or safety system failure.

• Why does thermal cycling matter for flex-rigid PCBs?
  Vehicles constantly fluctuate between sub-zero environments and high-heat engine or powertrain operation; standard laminates suffer from micro-cracking and delamination under these conditions.
• What is the consequence of low-quality copper adhesion?
  During extreme vibration, poor copper adhesion leads to interconnect fatigue, resulting in intermittent connections that are notoriously difficult to diagnose and dangerous to safety systems.
• Does weight reduction compromise structural integrity?
  It can if the supplier does not utilize specialized polyimide materials and optimized copper foil structures designed to maintain mechanical strength while shedding mass.

The Non-Negotiable Necessity of IATF 16949

In the automotive industry, IATF 16949 is far more than a simple quality badge; it is an integrated management system designed to minimize variation and waste in the supply chain. For manufacturers of lightweight wiring harness systems, selecting a partner without this certification introduces unacceptable risks, including potential product recalls, safety hazards, and catastrophic field failures. By mandating IATF 16949, you ensure that your supplier operates under a continuous improvement philosophy rooted in evidence-based decision-making.

Key Pillars of Automotive Quality Management

Common Questions Regarding Supplier Certification

• Can ISO 9001 substitute IATF 16949?
  No. While ISO 9001 provides a general quality framework, it lacks the automotive-specific rigors regarding safety-critical components, defect prevention, and supply chain risk management essential for modern wiring harness systems.
• How do I verify the validity of a certificate?
  Always request the IATF registration number and verify it directly through the IATF Global Oversight database. Ensure the scope of the certification specifically includes the manufacturing of rigid-flex or flex-rigid printed circuit boards.
• Does a valid certificate guarantee top-tier performance?
  Certification is the baseline. While it confirms the supplier has the necessary processes in place, you must still conduct on-site audits and review their specific track record with high-density interconnect (HDI) technologies relevant to lightweighting.

Choosing a supplier that adheres to IATF 16949 standards provides your engineering team with the assurance that every PCB utilized in your lightweight wiring harness has been manufactured within a controlled, repeatable, and audited environment.

Managing Thermal Stress: Tg and CTE Considerations

In under-the-hood applications, flex-rigid PCBs encounter rapid, extreme temperature swings that necessitate high-performance dielectric materials. To prevent delamination and solder joint failure, engineers must prioritize materials with high Glass Transition Temperatures (Tg) and low Coefficients of Thermal Expansion (CTE), specifically Z-axis expansion control.

Material Selection FAQs

• Why is Z-axis CTE control more critical in automotive flex-rigid boards than in consumer electronics?
  Automotive boards endure intense thermal cycling that causes the PCB material to expand and contract. If the Z-axis CTE is not tightly matched to the copper interconnects, the resulting stress leads to micro-cracking in the vias and potential open-circuit failures.
• What role does polyimide play in these harsh environments?
  Polyimide films provide superior thermal stability and flexibility compared to standard FR-4. Its ability to maintain mechanical integrity at temperatures exceeding 200°C makes it the industry standard for the flexible sections of automotive rigid-flex circuits.
• How do I verify a supplier's material capabilities?
  Request current material datasheets and ask for third-party thermal cycling validation reports. A qualified supplier should be able to provide evidence of successful testing per AEC-Q100 or AEC-Q200 standards.

Ultimately, your supplier must demonstrate a deep understanding of resin system chemistry. Ensuring the material set is specifically qualified for automotive-grade reliability is non-negotiable for lightweight wiring harness longevity.

Advanced Interconnect Techniques: Micro-vias

In automotive lightweighting, high-density interconnect (HDI) technology is essential to compress board size. For a supplier to be considered viable, they must demonstrate mastery in laser-drilled micro-via technology. Unlike mechanical drilling, laser micro-vias minimize the heat-affected zone (HAZ), reducing the risk of micro-cracks that initiate fatigue failures. When auditing a supplier, prioritize those utilizing sequential lamination processes with copper-filled micro-vias, as this technique provides superior reliability under thermal cycling.

Managing Transition Zone Reliability

The transition zone—the interface between rigid layers and the flexible polyimide core—is the most common failure point in flex-rigid PCBs. To mitigate mechanical stress during vehicle operation, evaluate the supplier's ability to execute 'filleted' copper traces and optimal bond-ply placement. Suppliers must show evidence of rigorous testing regarding copper strain limits, specifically at the rigid-to-flex boundary, to prevent trace breakage during repeated thermal expansion and contraction.

Expert Insights: Key Supplier Questions

• How do you control drill depth in blind via formation?
  Look for suppliers using controlled-depth laser drilling with automated depth sensors to ensure consistent via-to-pad alignment.
• What is your validation process for the rigid-to-flex interface?
  A high-tier supplier should provide data on accelerated mechanical bend testing and cross-sectional reliability reports specifically for the transition zone.
• Do you support micro-via stacking in high-vibration applications?
  Stacking requires extreme precision to avoid registration errors; confirm the supplier performs X-ray inspection on every batch of high-density HDI designs.

Infrastructure and Process Control Audit Framework

Auditing a potential supplier for automotive lightweight wiring systems requires shifting focus from mere capacity to the precision of process control environments. The integrity of flex-to-rigid transition zones is heavily dependent on the cleanliness, stability, and monitoring capabilities of the manufacturing floor. A robust audit should prioritize the digital traceability architecture and the technical sophistication of the Automated Optical Inspection (AOI) protocols.

Verification Checklist for Process Excellence

Key Audit Questions

• How does the AOI system handle variable lighting for multi-material flex-rigid stacks?
  The supplier must demonstrate multi-spectrum lighting capabilities to differentiate between polyimide base materials, coverlays, and metallic traces without producing false positives.
• Is the traceability system manual or fully automated via MES?
  Look for fully automated Manufacturing Execution Systems (MES) that log every process parameter—temperature, pressure, and cure time—to specific board serial numbers.
• How are corrective actions handled regarding defect escapes?
  A high-performing supplier provides a documented closed-loop feedback system where AOI defect data automatically triggers root cause analysis and machine recalibration.

Finalizing your audit means ensuring the supplier does not merely check for defects but proactively manages the process environment to prevent their occurrence. Prioritize partners who treat their digital traceability logs as a competitive asset, as this transparency is essential for high-reliability automotive lightweight wiring harness deployment.

Ensuring Supply Chain Transparency and Lifecycle Longevity

Automotive programs typically span a decade or longer, requiring suppliers to maintain strict process consistency, material availability, and rapid support capability throughout the entire vehicle lifecycle. Choosing a partner with a transparent, robust supply chain architecture is essential to prevent costly redesigns or late-stage production disruptions.

Vendor Stability Indicators

Frequently Asked Questions

• How can I verify a supplier's long-term material availability?
  Demand a formal Bill of Materials (BOM) transparency disclosure that identifies manufacturers of critical laminates, adhesives, and plating chemistries, alongside evidence of buffer stock agreements for long-lead-time items.
• What constitutes a robust Change Control Process in automotive PCBs?
  A superior supplier must demonstrate a formal 'Product Change Notification' (PCN) system that allows 12–18 months of lead time for any material or manufacturing process change, providing ample time for re-validation and testing.
• Why is 'End-of-Life' (EOL) planning critical for wiring harnesses?
  Automotive platforms require years of spare parts availability. Suppliers must provide a documented commitment to support production or provide final lifetime buy options to prevent forced design changes during the service life of the vehicle.

Beyond the Unit Price: The True Cost of Automotive PCB Sourcing

In the automotive sector, the initial quote is often a misleading indicator of financial performance. Selecting a supplier solely based on the lowest unit price frequently masks significant downstream costs associated with defect rates, material failures, and the administrative burden of managing non-conforming parts. A low-cost bid often lacks the stringent material certifications and advanced process controls required for high-reliability automotive environments, creating a false economy that fails the moment these systems enter the field.

Strategic Assessment of Lifecycle Expenses

To effectively calculate Total Cost of Ownership (TCO), procurement teams must integrate qualitative factors into their spreadsheet models. This includes evaluating the supplier's investment in automation, which reduces human-error-related defects, and their ability to maintain consistent production yields over a decade-long vehicle lifecycle. Suppliers that provide comprehensive documentation and traceability demonstrate that the quality cost is already embedded in the process, rather than being added as a reactive burden to the OEM.

Frequently Asked Questions on Cost and Quality

• How do I account for the 'hidden cost' of poor PCB quality?
  Include the cost of inbound inspection, the loss of throughput due to assembly line stoppages, and the projected financial impact of field warranty claims directly into your vendor comparison model.
• Does higher quality always equate to higher up-front pricing?
  Not necessarily. Suppliers with advanced manufacturing maturity often offer lower unit prices at high volumes due to superior yield rates and less waste, showing that quality maturity actually improves cost efficiency.
• Why is supplier financial stability relevant to PCB TCO?
  Financial instability often leads to deferred maintenance on production lines, sub-par raw material sourcing, and potential supply chain disruption, all of which introduce massive risk to your production timeline.

Implementing a Weighted Decision Matrix

Selecting a supplier for automotive-grade flex-rigid PCBs requires moving beyond subjective assessments toward a weighted decision matrix. Engineering managers should assign numerical values to core competencies, ensuring that technical capabilities, such as high-temperature reliability and mechanical fatigue resistance, hold higher significance than simple unit cost metrics.

Assessing Partnership Readiness

Partnership readiness is determined by how well the supplier’s internal systems synchronize with your production roadmap. A truly 'ready' supplier demonstrates agile communication channels, established change control processes, and a proactive approach to automotive quality standards.

• Does the supplier have a dedicated automotive key account team?
  A dedicated team ensures alignment between your project timelines and their manufacturing queue, preventing critical bottleneck delays.
• How does the supplier handle ECN/ECO implementation?
  An ideal partner offers a transparent Engineering Change Order process that minimizes production downtime and maintains strict documentation traceability.
• Is there a contingency plan for raw material shortages?
  Verify if the supplier maintains a diversified material sourcing strategy or strategic inventory buffers for high-performance polyimide and bonding films.

Final Validation Step: The Pilot Run

Before finalizing a long-term supply agreement, mandate a 'Production Part Approval Process' (PPAP) pilot run. This final check should involve full testing of the flex-rigid stack-up under simulated vehicle environmental conditions, including thermal cycling and vibration stress tests, to confirm that the supplier’s real-world output matches their technical documentation.
