Choosing the Right 4 Layer PCB Manufacturer: A Comprehensive Guide

In our interconnected world, printed circuit boards (PCBs) are the unsung heroes powering countless devices, from smartphones to advanced medical equipment. A 4-layer PCB is a fundamental component in many electronic designs, offering a balance of complexity and cost-effectiveness. This guide dives into the key considerations when choosing a 4 layer PCB manufacturer, helping you navigate options and understand the trade-offs between cost and quality. Whether you're designing a high-performance device or a cost-sensitive prototype, selecting the right partner is paramount to success. Let's explore what sets apart the best in the industry.

Understanding 4 Layer PCBs: What They Are and Why They Matter

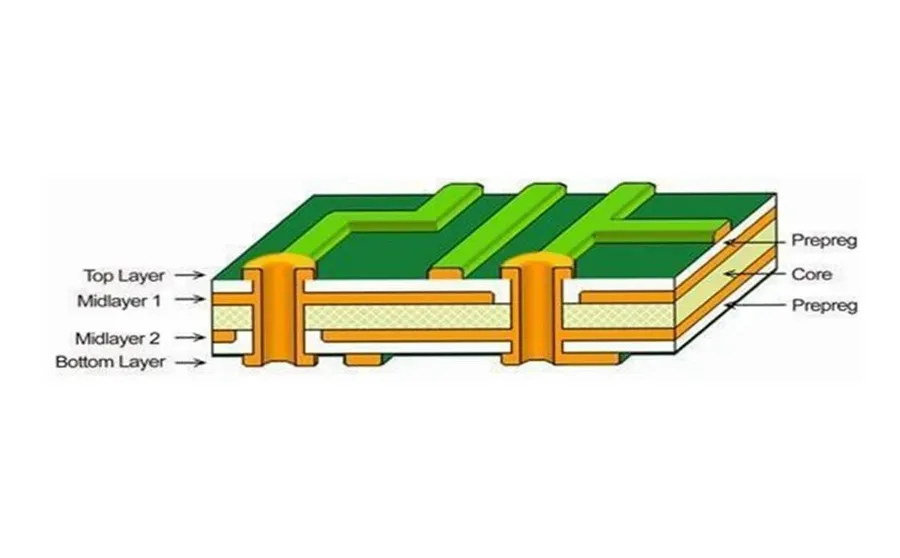

A 4-layer PCB is a printed circuit board composed of four conductive layers, typically copper, separated by insulating material. This configuration is pivotal in modern electronics, providing enhanced functionality and performance compared to simpler 2-layer boards. The layers are strategically arranged to facilitate signal routing, power distribution, and ground connections, enabling the design of more complex and reliable electronic devices.

The standard configuration of a 4-layer PCB usually includes two outer signal layers, an internal ground plane, and an internal power plane. This arrangement offers several key advantages. The dedicated ground and power planes reduce noise and signal interference, resulting in improved signal integrity. This characteristic is essential for high-speed digital circuits and sensitive analog designs. In comparison, 2-layer PCBs have significant limitations in managing these factors.

The adoption of 4-layer PCBs is driven by the need for more complex circuit designs that can't be achieved on 2-layer boards. This includes the ability to route more signals in a smaller area, the capacity to handle a wider range of voltages and currents, and the superior thermal management capabilities inherent in the design. These advantages make 4-layer PCBs suitable for a wide variety of applications, including but not limited to consumer electronics, industrial equipment, automotive systems, and communication devices.

Key Factors to Consider When Choosing a 4 Layer PCB Manufacturer

Selecting the right 4-layer PCB manufacturer is critical for ensuring the success of your electronic project. This section details the essential criteria, including manufacturing capabilities, material options, quality control processes, turnaround time, and pricing, with a specific focus on high-Tg materials often used by leading manufacturers. A careful evaluation of these factors will directly impact the performance, reliability, and cost-effectiveness of your final product.

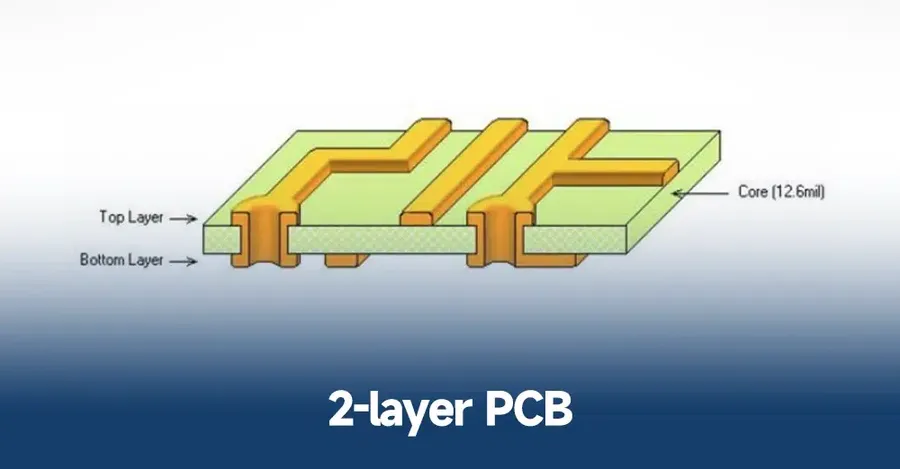

Cost Analysis: 2 Layer vs. 4 Layer PCB

The cost of a printed circuit board (PCB) is a critical consideration in electronic design and manufacturing. A significant cost driver is the number of layers; consequently, there exists a notable cost difference between 2-layer and 4-layer PCBs, which stems from the added complexity and materials required for the latter.

Several factors contribute to cost variations within 4-layer PCB manufacturing. These include:

• Material Choice
  The type of substrate material (e.g., FR-4, high-Tg FR-4, polyimide) significantly impacts cost. High-performance materials, such as high-Tg FR-4, are more expensive but provide better thermal and electrical properties, which affects the reliability and lifespan of the PCB.
• Layer Alignment Accuracy
  The precision required for layer alignment, also known as registration, in the lamination process directly influences the cost and yield. The greater the accuracy needed, the higher the cost, due to the complex processes and equipment required.
• Surface Finish
  The type of surface finish (e.g., HASL, ENIG, Immersion Tin/Silver) affects the cost. ENIG, for example, offers superior solderability and reliability but is more expensive than HASL, thus increasing overall PCB costs.
• Quantity
  The volume of PCBs significantly affects the per-unit cost due to economies of scale. Prototyping (low volume) incurs higher costs per board than mass production, where production costs are distributed across a large number of units.
• Special Requirements
  Any specific requirements, such as impedance control, blind and buried vias, or specific testing procedures, will further drive up the cost due to the increased manufacturing complexity and quality assurance efforts involved.

Furthermore, the cost difference between prototyping and mass production for a 4-layer PCB is substantial. Prototypes often require customized setups and smaller batch runs, leading to higher per-unit costs. Mass production benefits from standardized processes and economies of scale, which lowers the cost per board considerably. Therefore, early design optimization to reduce complexity can significantly reduce the cost of mass production.

Material Selection for 4 Layer PCBs

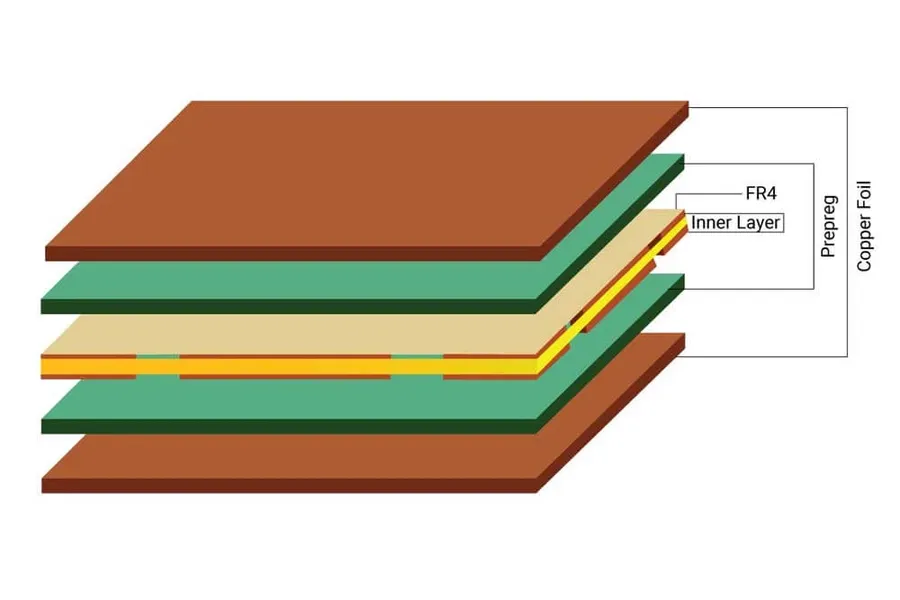

The selection of materials for a 4-layer PCB is paramount, directly influencing its performance, reliability, and cost. The most common material is FR-4, a glass-reinforced epoxy laminate, offering a good balance of electrical properties, mechanical strength, and cost-effectiveness. However, specialized applications may require alternative high-performance materials.

FR-4, with its varying Tg (glass transition temperature) options (standard, mid, and high Tg), is the most common choice for cost effective solutions. The selection of higher performance materials, such as those offered by Rogers or the use of Polyimide laminates, is dictated by specific application needs such as those involving high temperature, high frequency, or flexural requirements. Material selection should be based on the performance requirements of the final application, while carefully considering cost implications. Proper material choices will help meet the design specifications, ensure product reliability, and minimize unnecessary expenditures.

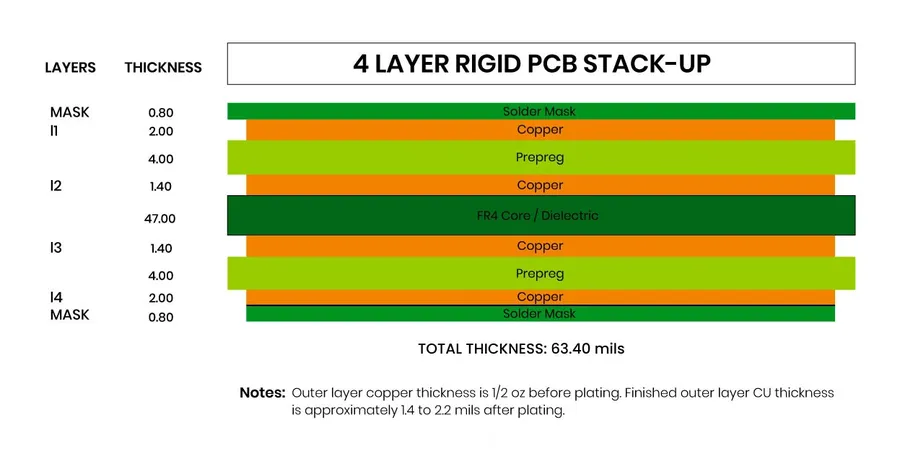

The Importance of PCB Stack-Up Design for 4 Layer PCBs

The stack-up design of a 4-layer PCB is paramount to its performance, influencing critical aspects such as impedance control, signal integrity, and thermal management. A well-planned stack-up ensures the board operates efficiently and reliably, while a poorly designed one can lead to signal degradation, noise issues, and thermal problems, ultimately affecting the overall functionality of the electronic device.

Fundamentally, a 4-layer PCB comprises four conductive layers separated by dielectric material. Typically, these layers are arranged as follows: a signal layer on the top, a ground plane, a power plane, and another signal layer on the bottom. This arrangement is not arbitrary but rather carefully considered to optimize the circuit's electrical and thermal performance. The exact spacing and thickness of each layer and the dielectric material used are all critical parameters influencing the performance of the board.

A key benefit of carefully managing stack-up design is enhanced impedance control. By precisely defining the spacing between signal layers and ground or power planes, we can ensure that the signal traces on the PCB maintain a consistent characteristic impedance. This is crucial for preventing signal reflections, which can lead to signal distortion and data errors, particularly in high-speed digital circuits. For example, in high-speed communication interfaces, the impedance of signal lines should be closely matched to 50 ohms, or 75 ohms for RF applications, and that is ensured by proper stack-up design. In addition, signal integrity is significantly enhanced through effective stack-up design. By locating the ground and power layers adjacent to the signal layers, we can minimize signal crosstalk and reduce noise from external interference. The presence of these planes also acts as shields, reducing electromagnetic interference (EMI) and ensuring that the board does not generate undue EMI and impact other electronic devices.

Furthermore, a carefully designed stack-up can dramatically improve thermal management of the PCB, particularly for densely populated boards with components that dissipate a lot of heat. The copper planes, especially those in the ground and power layers, act as heat spreaders, effectively dissipating heat away from hot spots. Proper layer thicknesses and materials also contribute to effective thermal pathways, lowering operating temperatures and boosting the reliability of the overall system. Hence, the stack-up design, far from being an afterthought, is a critical element in achieving a functional, high-performance, and reliable PCB.

Evaluating Manufacturer Capabilities for 4 Layer PCBs

Selecting the right manufacturer for 4-layer PCBs requires a thorough evaluation of their capabilities, ensuring they can meet both your current and future needs. This evaluation extends beyond pricing, encompassing certifications, technological prowess, equipment, testing protocols, and special service offerings, such as those for ENIG (Electroless Nickel Immersion Gold) PCBs.

Here’s a detailed breakdown of key evaluation points:

• Certifications and Compliance
  Look for manufacturers holding certifications such as ISO 9001, which indicates a commitment to quality management. Compliance with industry standards like IPC (Association Connecting Electronics Industries) is also crucial for ensuring the PCB meets established reliability benchmarks. These certifications provide assurance of consistent quality control and adherence to industry best practices.
• Technological Capabilities
  Assess the manufacturer's ability to handle your design's specific requirements. This includes: layer count, minimum trace width and spacing, via types (e.g., blind, buried), and impedance control. Modern PCBs often require laser drilling for microvias and controlled impedance to ensure signal integrity; verify that the manufacturer possesses the necessary technology and techniques.
• Equipment and Infrastructure
  Cutting-edge equipment indicates the manufacturer's capability to deliver high-precision PCBs. Key areas to consider include the age and type of drilling machines, etching lines, plating equipment, and automated optical inspection (AOI) systems. Advanced equipment reduces process variation and defect rates.
• Testing Procedures
  Rigorous testing is essential to guarantee the performance and reliability of PCBs. Inquire about the types of tests performed, such as: electrical testing (open/short tests), impedance testing, and AOI. Manufacturers should provide a testing report that verifies the integrity of the fabricated PCBs. For critical applications, consider manufacturers that can perform more rigorous testing such as time-domain reflectometry (TDR) and environmental stress tests.
• Material Handling and Options
  A qualified manufacturer should be able to advise on material selection based on the application and should be able to provide a wide range of options and can meet all the design requirements. Understanding the material Tg (glass transition temperature), dielectric constant and loss tangent is essential for the application.
• Specialty Services and Discounts
  Some manufacturers offer discounts on specific finishes such as ENIG for higher-quality and more reliable surface finish and solderability for the PCB. Evaluate how these special services and discounts align with the project's goals without compromising on the PCB quality.

By meticulously evaluating these aspects, you can select a 4-layer PCB manufacturer that not only meets your current production needs but also ensures the long-term success and reliability of your electronic products.

4 Layer PCB Prototyping vs. Mass Production

The transition from a 4-layer PCB prototype to mass production involves significant shifts in process, volume, and cost considerations. Understanding these differences is crucial for efficient and cost-effective scaling of electronic products. Prototyping focuses on validating design functionality, while mass production optimizes for volume and cost-efficiency.

During prototyping, the focus is on rapid iteration and validating design concepts. This phase utilizes more manual processes and is less concerned with cost per unit as the main goal is to test and refine the design. Mass production, however, requires the implementation of highly efficient and automated processes to keep costs low, while maintaining high yield and quality. This is facilitated through higher investments in tooling and production setup, which amortizes over the larger volumes.

Scaling up from prototyping to mass production involves several considerations:

1. Design for Manufacturing (DFM):
   Ensuring the PCB design is optimized for high-volume manufacturing processes which includes checking for manufacturability issues with the manufacturer.
2. Supplier Selection:
   Finalizing the manufacturer based on their mass production capabilities, quality track record and cost efficiency.
3. Volume Pricing:
   Negotiating pricing based on the required quantity and considering volume discounts.
4. Logistics:
   Planning for storage, handling, and shipping for larger volumes of PCBs.
5. Quality Assurance:
   Implementing rigorous quality control processes throughout the manufacturing and assembly.

Frequently Asked Questions About 4 Layer PCB Manufacturing

This section addresses common questions regarding 4-layer PCB manufacturing, providing clear, concise answers to help you understand key aspects of this technology, from layer composition to cost considerations and manufacturer selection.

• What are the four layers of a PCB?
  A standard 4-layer PCB typically comprises a signal layer on the top and bottom surfaces, a ground plane, and a power plane in the inner layers. This configuration allows for more efficient signal routing and improved noise reduction compared to 2-layer boards.
• What is the difference between a 4-layer PCB and a 6-layer PCB?
  The primary difference is the number of layers available for signal routing and power distribution. A 6-layer PCB offers two additional signal layers, which provides greater flexibility and improved performance for complex designs. This can lead to better impedance control and signal integrity but at a higher cost. The choice between 4-layer and 6-layer typically depends on design complexity, required signal performance and budgetary constraints.
• What factors influence 4-layer PCB manufacturer cost?
  Several factors impact the cost of 4-layer PCBs, including the material used (e.g., FR-4 vs. high-Tg materials), board size, quantity ordered, copper thickness, trace width and spacing, surface finish (e.g., ENIG), and testing requirements. Manufacturing location, turnaround time, and any special features also play a role in overall cost.
• Who are some of the major 4-layer PCB manufacturers?
  Some of the prominent manufacturers in the PCB industry include PCBWay, JLCPCB, RushPCB, and Advanced Circuits (AdvancedPCB). These companies offer various services from prototyping to mass production with different specializations and pricing models. It is crucial to evaluate each manufacturer based on your specific needs and technical requirements.
• Is a 4-layer PCB good for all applications?
  While 4-layer PCBs are suitable for a wide array of applications, they may not be ideal for every situation. For very basic circuits, a 2-layer board might be sufficient and more cost-effective. For highly complex designs with high-speed signals, a 6-layer or more layered PCB may be necessary to achieve required performance and signal integrity.
• How do I determine the optimal stack-up for a 4-layer PCB?
  The ideal stack-up depends heavily on the specific application and requirements. Generally, a signal layer on both the top and bottom with the ground and power planes in the middle is common. Impedance control requirements, noise sensitivity, and thermal considerations are crucial in the selection of the precise stack-up. It is often beneficial to consult with a PCB design expert or the manufacturer to ensure the proper configuration.
• How can I get a quote for 4-layer PCB manufacturing?
  To obtain a quote, provide your PCB design files (Gerber files, etc.) along with the specifications required including material type, board dimensions, quantity, desired delivery date, and any specific requests to your chosen PCB manufacturer. Most manufacturers will have a user-friendly online quoting system. By thoroughly preparing all required design data, and understanding all aspects influencing price, you can ensure a precise quote.

Comparing Leading 4 Layer PCB Manufacturers

Selecting the right 4-layer PCB manufacturer is crucial for ensuring the quality, reliability, and cost-effectiveness of your electronic projects. This section provides a comparative overview of several leading manufacturers, highlighting their strengths and weaknesses to help you make an informed decision.

Selecting the appropriate 4 layer PCB manufacturer is crucial for ensuring the quality, cost-effectiveness, and timely delivery of your electronic products. By considering factors such as material selection, manufacturing capabilities, and cost, you can make informed decisions that lead to success. A reliable 4 layer pcb manufacturer not only produces the boards but also provides valuable support throughout the design and production process, ensuring your project meets its objectives and performance goals. As the technology advances, continue to re-evaluate your manufacturing partners to stay competitive and efficient.
