The Ultimate Guide to 2.2uF Capacitors: Selection, Uses & More

In the world of electronics, the humble 2.2uF capacitor plays a vital yet often unseen role. From smoothing power supplies to shaping audio signals, this small component is crucial to countless circuits. In the same way that a well-placed water reservoir (capacitors) can control water flow, electronic capacitors control current flow. This article delves into the intricacies of the 2.2uF capacitor, exploring its various types, applications, and selection criteria to improve performance for your electronic project. Think of this as your in-depth exploration of 2.2uF capacitors, a critical component in modern electronics.

Understanding the Basics of a 2.2uF Capacitor

A 2.2uF capacitor is a fundamental electronic component characterized by its ability to store electrical energy in an electric field, measured in microfarads (µF), and resist changes in voltage. It's a crucial element in a wide variety of electrical circuits, performing functions like filtering, energy storage, and timing.

The '2.2uF' designation indicates the capacitor's capacitance, which quantifies its ability to store charge. This value is not merely an arbitrary number; it represents a specific capacity essential for achieving desired circuit behavior. Capacitance, measured in Farads (F), is often encountered in submultiples like microfarads (µF) due to the typically small charge storage capacity of practical capacitors. A 2.2µF capacitor stores 2.2 x 10^-6 coulombs of charge per volt applied across its terminals.

Different Types of 2.2uF Capacitors

2.2uF capacitors are fundamental components in electronic circuits, available in various types distinguished by their construction and material properties. These variations directly influence their performance characteristics and suitability for different applications. The primary types include ceramic, electrolytic (radial), Mylar, and film capacitors.

Ceramic 2.2uF Capacitors

Ceramic 2.2uF capacitors are characterized by their small physical size and stability, making them a widely used general purpose capacitor. They utilize ceramic materials as their dielectric, which allows them to function efficiently across a wide range of temperatures with minimal performance fluctuations.

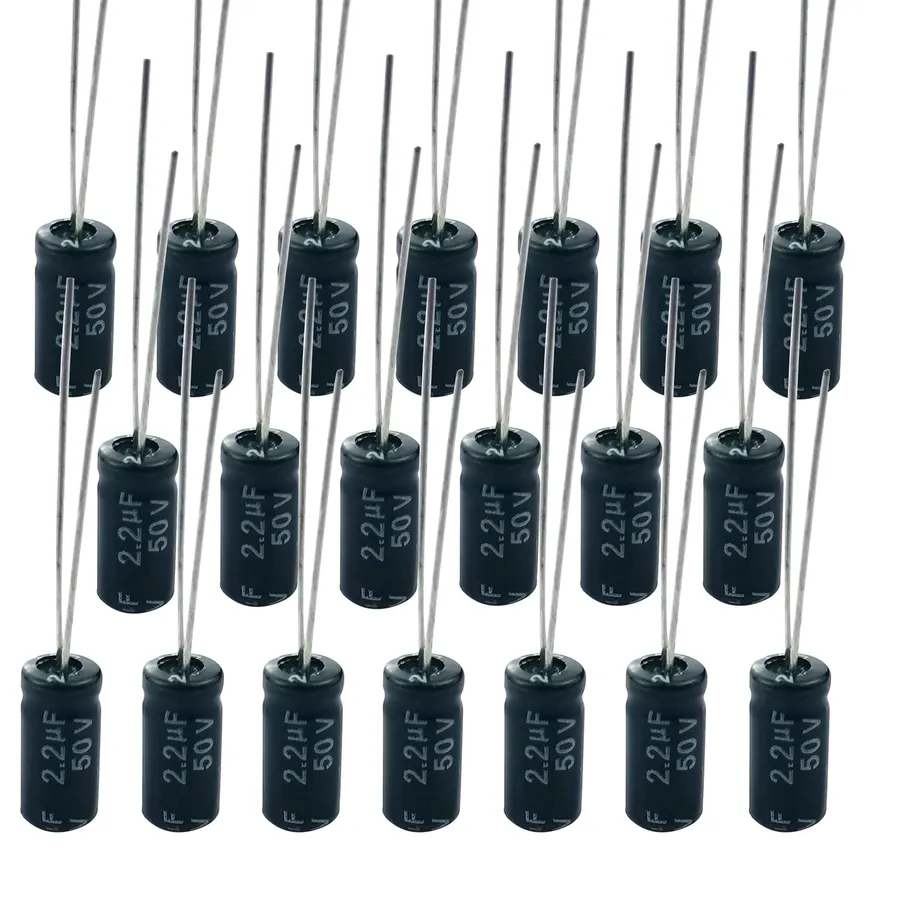

Electrolytic 2.2uF Capacitors

Electrolytic 2.2uF capacitors are known for providing a higher capacitance value in a smaller physical form factor. These capacitors use an electrolyte (liquid or solid) as one of their electrodes. A crucial characteristic is their polarity, meaning they must be connected correctly in a circuit to avoid damage or failure. Their uses include filtering and smoothing in power supplies.

Mylar and Film 2.2uF Capacitors

Mylar and film 2.2uF capacitors offer enhanced precision and stability compared to ceramic capacitors. Mylar capacitors, using polyester film, are a cost-effective choice for many applications. Film capacitors, available with various polymer dielectrics (polypropylene, polyester, etc), provide excellent performance for critical applications, such as audio circuits, where low signal loss and signal integrity is a priority. Precision film capacitors, often with a 1% tolerance, are sought after where accuracy is paramount.

Ceramic 2.2uF capacitors are characterized by their compact size, stability, and cost-effectiveness, making them a versatile choice for numerous electronic applications. Their construction involves ceramic dielectric materials, which provide excellent temperature stability and low equivalent series resistance (ESR), contributing to their reliable performance in diverse circuits.

These capacitors are particularly suitable for applications where space is limited and high-frequency performance is crucial. Their inherent stability ensures consistent operation, even under varying environmental conditions, making them a preferred component in modern electronic designs. The following sections will outline their features, common applications, and key considerations when selecting ceramic 2.2uF capacitors.

Electrolytic 2.2uF capacitors are characterized by their relatively high capacitance per unit volume compared to other types, achieved through the use of a liquid or gel electrolyte. This characteristic makes them suitable for applications requiring significant energy storage or filtering in a compact space. A key consideration when using electrolytic capacitors is their polarity; they must be connected correctly in the circuit to avoid damage or failure.

Typical applications for 2.2uF electrolytic capacitors include power supply filtering, where they help smooth out voltage fluctuations, and coupling/decoupling applications in lower-frequency circuits. They are also commonly used in audio circuits, although not usually for critical signal path applications due to their non-ideal behavior at high frequencies. Specifically, due to their relatively large size for a 2.2uF value, they are most common in power supply applications. Despite their advantages, electrolytic capacitors have limitations, such as a defined lifespan and higher equivalent series resistance (ESR) compared to film or ceramic capacitors, and considerations should be made when designing for long-term or high-frequency operation.

Mylar and film capacitors, including polyester film capacitors, are favored for applications demanding high precision, stability, and low losses. Their construction from thin layers of plastic film and metal electrodes results in excellent electrical characteristics, making them a preferred choice for audio circuits and other precision applications.

The advantages of Mylar and film capacitors are notable, which lead to their widespread use. Key advantages include:

• High Precision
  They offer very tight tolerances, often down to 1%, making them ideal where accurate capacitance values are critical. This characteristic is particularly important in applications like precision filters and audio circuits.
• Low Loss Tangent
  These capacitors exhibit low dissipation factor, translating to minimal energy loss as heat. This efficiency is crucial for high-frequency circuits and sensitive electronic equipment where heat generation must be minimized.
• High Stability
  Mylar and film capacitors maintain stable capacitance values across varying temperatures and frequencies. This characteristic is essential in environments with fluctuating conditions where consistency in electrical characteristics is a requirement.
• Durability and Reliability
  The robust construction of film capacitors makes them less susceptible to degradation from environmental stress, ensuring a long lifespan and high reliability compared to other types of capacitors.

Within the realm of audio applications, precision audio capacitors with a 1% tolerance are specifically selected for their ability to maintain signal integrity. By minimizing signal distortion and ensuring accurate frequency response, these capacitors deliver the highest possible audio fidelity. This makes them indispensable in high-end audio systems, where even slight deviations in component performance can become noticeable to the listener.

Key parameters to consider when specifying a Mylar or film capacitor include the voltage rating, temperature coefficient, and specific dielectric material (e.g., polypropylene, polyester). Understanding these factors is essential in selecting the most suitable capacitor for specific applications.

Key Specifications to Consider for 2.2uF Capacitors

Selecting the appropriate 2.2uF capacitor requires a thorough understanding of its key specifications. These parameters dictate the capacitor's performance, reliability, and suitability for specific applications. Ignoring these specifications can lead to circuit malfunction or failure. Key considerations include voltage rating, temperature rating, tolerance, polarity, and dissipation factor.

Common Applications of 2.2uF Capacitors

The 2.2uF capacitor, a component designed to store electrical energy, plays a crucial role in a variety of electronic circuits due to its specific capacitance value. Its applications range from filtering and decoupling to timing and energy storage, and it's particularly prevalent in areas like power supplies, audio circuits, and signal processing.

• Power Supplies
  In power supply circuits, 2.2uF capacitors are often utilized for filtering and decoupling. They help to smooth out voltage fluctuations, reducing noise and ensuring a stable supply of power to sensitive components. Decoupling capacitors are placed close to ICs, providing a local charge reservoir to mitigate transient current demands.
• Audio Circuits
  Specifically in audio systems, 2.2uF capacitors find application in crossover networks, particularly in tweeter circuits. Here, they act as a high-pass filter, blocking low-frequency signals and allowing only the higher frequencies to reach the tweeter, protecting it from damage and ensuring optimal sound quality. The accurate capacitance of 2.2uF is suitable for this frequency band.
• Signal Processing
  In signal processing, 2.2uF capacitors are used in circuits that modify or filter specific frequencies. They can be part of active filters, where they help shape the frequency response of a signal, or in timing circuits where their charging and discharging characteristics provide time-dependent behaviors to various electronic systems.

2.2uF Capacitor Equivalents and Substitutions

In electronic circuit design, the precise value of a 2.2uF capacitor is often crucial, but situations may arise where a direct replacement is not readily available, necessitating the use of equivalent or substitute components. Understanding when and how to safely deviate from the specified capacitance value is essential to avoid circuit malfunction or damage.

The primary consideration when substituting a capacitor is its capacitance, measured in microfarads (uF). While a 2.2uF capacitor is a specific value, there are circumstances under which using a slightly different value might be acceptable. The following sections detail the implications of using higher or lower capacitance values, and when such substitutions are viable.

When substituting capacitors, particularly in critical circuits like filters, it's crucial to consider the overall impedance and frequency response characteristics. Capacitors in series have a combined capacitance (C_total) calculated as 1/C_total = 1/C1 + 1/C2 + ... + 1/Cn. If a specific capacitance is needed, you can calculate the series of capacitors needed to achieve the target value. For capacitors in parallel, the combined capacitance is simply the sum of individual capacitances, i.e., C_total = C1 + C2 + ... + Cn.

The tolerance of a capacitor is also an important factor. A capacitor with a ±10% tolerance could have a value ranging from 1.98uF to 2.42uF. Substituting a capacitor within this range is generally acceptable in most non-critical applications, but it is crucial to consider the effect of this variation on the circuit's overall performance.

When working with substitute capacitors, careful consideration should always be given to the voltage rating of the new capacitor to ensure that it meets or exceeds the voltage requirement of the original 2.2uF capacitor. Failing to do so may result in the new capacitor failing or causing damage to the circuit.

Where to Buy 2.2uF Capacitors

Sourcing 2.2uF capacitors requires careful consideration of both reliability and specific needs. A variety of vendors offer these components, each with their strengths. This section guides you through selecting reputable suppliers and the factors influencing your choice, ensuring you procure components that meet your project's requirements.

• Mouser Electronics
  Mouser is a global distributor known for its extensive catalog of electronic components, including a wide array of 2.2uF capacitors. They offer a large selection of brands, specifications, and package types. Their website provides detailed datasheets and technical information, aiding precise selection. Mouser is a solid choice for engineers needing a wide range of options and reliable sourcing.
• DigiKey
  DigiKey is another major electronic component distributor with a vast inventory of 2.2uF capacitors. Like Mouser, they provide in-depth product specifications and offer a huge selection to cater to different project needs. DigiKey's strengths lie in its efficient order processing and global reach. They are an excellent choice for professionals and hobbyists alike.
• Amazon
  Amazon can be a convenient source for 2.2uF capacitors, particularly for smaller quantities and faster delivery. However, it's essential to verify the seller's reputation to ensure product authenticity and quality. Amazon's ease of access makes it suitable for quick, straightforward purchases, but greater diligence is advised regarding source verification. Customer reviews can be beneficial.
• Tayda Electronics
  Tayda Electronics is a popular choice for hobbyists and smaller-scale projects due to their competitive pricing and a wide variety of components, including 2.2uF capacitors. While their selection might not match the breadth of Mouser or DigiKey, they offer a more budget-friendly option for many applications. Tayda is advantageous for cost-sensitive projects requiring moderate component selection.
• Jameco Electronics
  Jameco is a long-standing electronics distributor known for its reliable service and a good selection of components, including various types of 2.2uF capacitors. They offer a balance of product availability and customer support. Jameco is a suitable option for both professional engineers and hobbyists. They provide a reliable source for standard components.
• Parts Express
  Parts Express specializes in audio and electronics components and provides a more focused selection of capacitors for audio projects, including 2.2uF options. They carry components geared toward audio applications. Parts Express is beneficial for users looking for capacitors optimized for audio circuits. They also provide robust product information for audio-specific capacitors.

When selecting a supplier, consider the following factors to ensure you get the right 2.2uF capacitor for your application. Firstly, verify the component's authenticity and reputation by cross-referencing with datasheets, and reading customer reviews. Check the supplier's shipping times and costs to see if it fits your timeline and budget. Lastly, evaluate the support services provided by the supplier, as this is particularly crucial in the event of defects or the need for detailed technical queries.

FAQ: Addressing Common Questions About 2.2uF Capacitors

This section addresses frequently asked questions about 2.2uF capacitors, providing concise and informative answers to common queries regarding their usage, specifications, and alternatives. The goal is to clarify any confusion and provide practical guidance for selecting and using these components effectively.

• What is a 2.2uF capacitor typically used for?
  2.2uF capacitors are commonly used for filtering, decoupling, and timing circuits in electronic applications. In audio circuits, they are often found in crossover networks, particularly for tweeters, where they block low frequencies while allowing high frequencies to pass through. They also play a key role in power supply circuits for smoothing out voltage ripples and enhancing signal processing for signal integrity.
• Is it acceptable to use a higher uF capacitor instead of a 2.2uF capacitor?
  While it's generally possible to use a capacitor with a higher capacitance than 2.2uF, it is critical to understand the impact. Increasing capacitance can affect the time constant of the circuit, potentially altering the frequency response or timing behavior. In decoupling applications, a higher uF value may provide better filtering, but it may also increase inrush current. It's always best to check the circuit design requirements to ensure compatibility and optimal performance and be aware of the specific application to understand any potential unintended consequences.
• What does the 'uF' number on a capacitor signify?
  The 'uF' on a capacitor stands for microfarads, which is the unit of capacitance, and measures the capacitor's ability to store an electrical charge. One farad is a large unit; hence, microfarads (10^-6 farads) are commonly used. A 2.2uF capacitor can store 2.2 millionths of a farad, indicating the amount of charge it can store at a particular voltage.

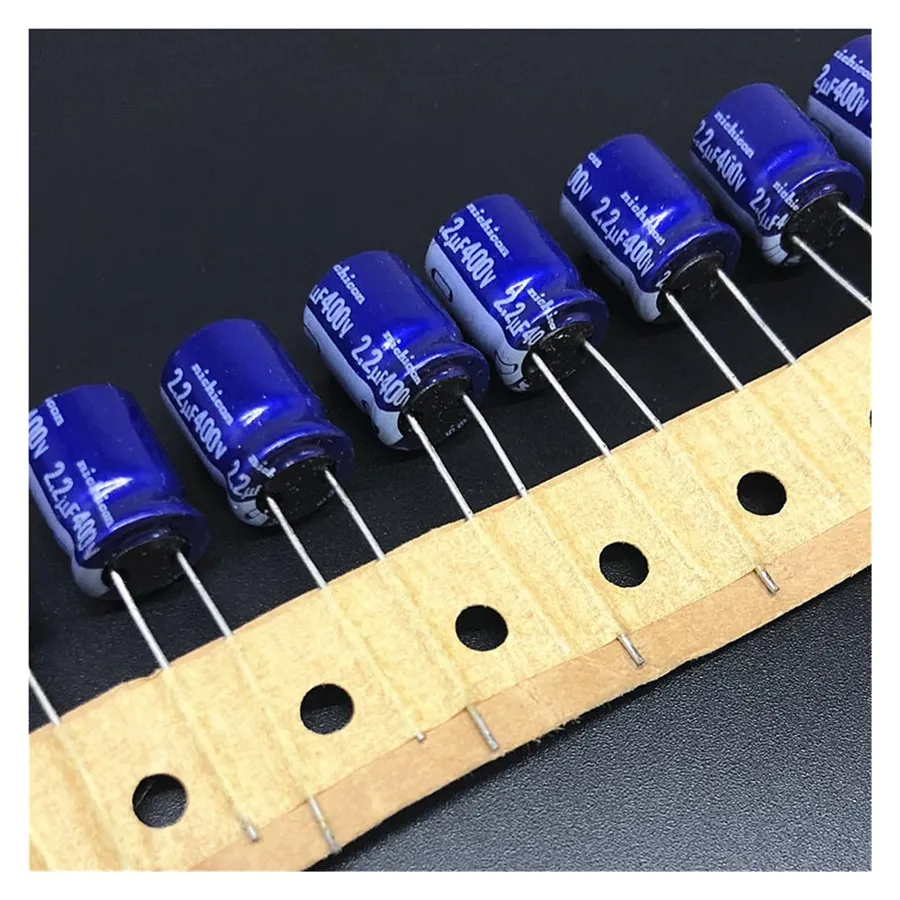

• Where might a 2.2uF 400V capacitor be used?
  A 2.2uF 400V capacitor is typically employed in applications where high voltage is a consideration. Common uses include power supply circuits, particularly in the power factor correction or switching stages, and in audio amplifier circuits where the signal and voltages can be higher. The 400V rating provides a safety margin and ensures the capacitor won't break down under high voltage conditions.
• Can I use a 2.2uF capacitor for a low voltage application?
  Yes, a capacitor rated for higher voltage can always be used in a lower voltage application. For instance, a 2.2uF 400V capacitor is suitable for a 5V circuit because the voltage rating of the capacitor indicates its maximum operating voltage, not its minimum. However, using a higher voltage rating might mean a slightly larger physical size, and could be more expensive.
• What are the important parameters for 2.2uF capacitor selection?
  Key specifications include the voltage rating (must be equal or higher than the circuit’s working voltage), temperature coefficient (how its capacitance varies with temperature), tolerance (how much the real capacitance may vary from the listed 2.2uF), dissipation factor (a measure of energy loss), and physical size. Consider the specific electrical and environmental requirements of the intended application.
• Are there any safety precautions when using a 2.2uF capacitor?
  Always observe proper polarity for electrolytic capacitors and never apply voltage exceeding their rated limits. Be mindful that capacitors can hold a charge even after the circuit is disconnected, hence you should always use a resistor to discharge the capacitor safely. Handle with care, and ensure proper thermal management and ventilation, especially when used in high power applications.

The 2.2uF capacitor, a seemingly simple component, is integral to countless electronic applications. Understanding its different types, specifications, and uses is essential for engineers and hobbyists alike. Whether you're designing a high-fidelity audio system or a stable power supply, selecting the right 2.2uF capacitor is crucial for optimal circuit function. The technology of the capacitor has greatly increased our productivity, but also has many areas that can be explored. Think about the next-generation applications of capacitors with even higher specifications and the impact on the electronics industry.
