AC Capacitor Home Depot: Your Guide to Finding the Right Replacement

In the sweltering heat, a malfunctioning air conditioner can be a nightmare. Often, the culprit is a faulty capacitor, a small but crucial component responsible for starting and running your AC's motor. Luckily, AC capacitors are readily available, and a good place to start your search is your local Home Depot. This article will guide you through identifying, finding, and replacing your AC capacitor, helping you keep cool.

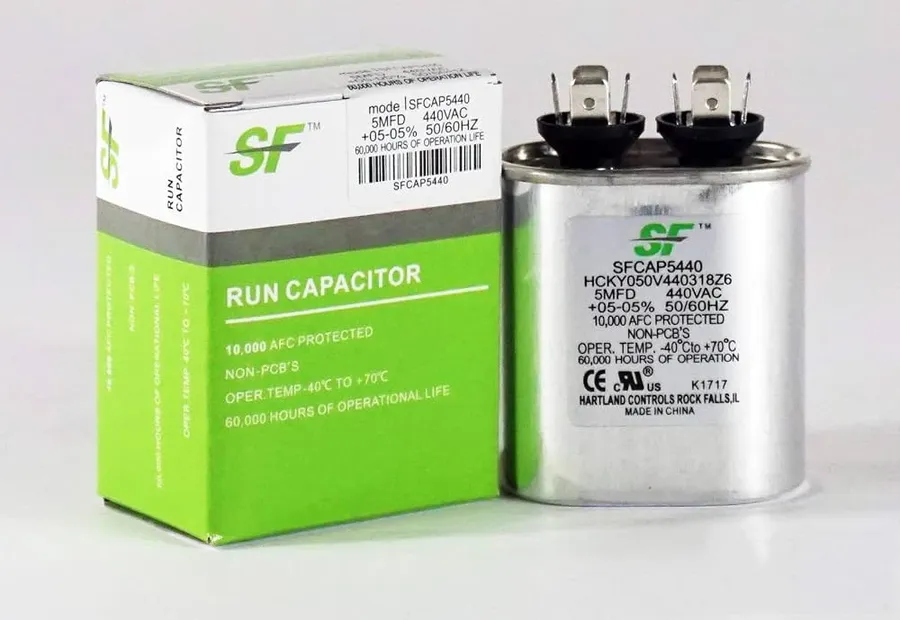

Understanding AC Capacitors: Types and Functions

AC capacitors are essential components in air conditioning systems, serving as energy storage devices that facilitate motor starting and running. They come in two primary types, start and run capacitors, each with distinct functions crucial for the efficient and reliable operation of your AC unit. Understanding their roles is key to diagnosing problems and ensuring proper maintenance.

The start capacitor provides the high-energy surge needed to initiate the compressor motor, while the run capacitor ensures the motor operates smoothly and efficiently during continuous use. A failure in either type can lead to operational issues, such as the AC unit failing to start or running inefficiently. The performance of AC capacitors directly impacts the overall efficiency and reliability of your cooling system.

Common Signs of a Failing AC Capacitor

A failing AC capacitor can manifest in several noticeable ways, often indicating that it's no longer effectively performing its role in the air conditioning system. Recognizing these symptoms early can prevent more significant damage to your AC unit and potentially save on costly repairs. These signs typically involve the motor's ability to start and run smoothly and can include unusual noises and inconsistent performance.

• Humming Noise from the AC Unit
  One of the most common indicators of a failing capacitor is a humming sound emanating from the outdoor AC unit, especially during startup. This suggests the motor is struggling to start due to insufficient electrical charge from the capacitor. The humming noise is the sound of the motor attempting, but not succeeding, to turn.
• Difficulty Starting or Delayed Startup
  A capacitor's primary role is to provide the initial boost of energy required to start the AC's motor. If the capacitor is weak or failing, the compressor motor might struggle to start, exhibiting a delay or sometimes failing to start at all. This can manifest as the unit taking longer than usual to turn on or, in some cases, failing to initiate completely.
• Premature AC Shutdowns
  A failing capacitor can cause the AC unit to shut off prematurely during its operation. Because the capacitor is critical for maintaining the voltage required to operate, intermittent or unexpected shutdowns can occur as the system struggles to maintain necessary power levels. If the AC turns off shortly after starting, especially repeatedly, it is another clear symptom that the capacitor could be the culprit.
• Reduced Cooling Capacity
  A failing capacitor can lead to decreased performance of the AC system, even if it still runs. This is because the capacitor isn't supplying the necessary charge for the compressor and fan motor to operate at their maximum capacity. This reduced efficiency can result in your AC struggling to cool your space effectively, and may result in higher energy bills for the same cooling performance.
• Clicking Sounds
  Sometimes, a failing capacitor will emit a clicking sound, which differs from the humming noise. This sound can occur during startup or operation and can indicate that the capacitor is trying to provide a charge but struggling. A clicking sound is an abnormal and immediate call for troubleshooting, as this could result in further system damage.
• Bulging or Leaking Capacitor
  A visual sign that a capacitor has failed is a physical deformity in the capacitor itself. A bulging or leaking capacitor is a sure sign of failure, as it suggests internal component damage. If your capacitor has a visibly bulging top, or leaking oils, it is imperative that you replace the capacitor.

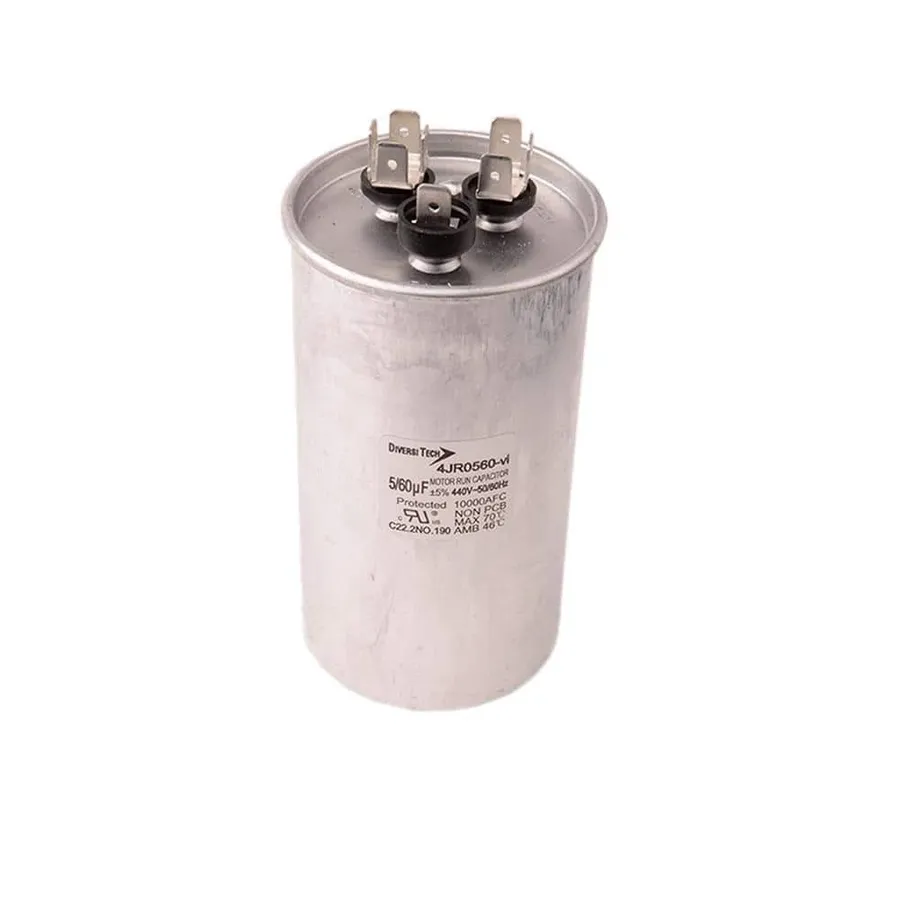

Finding the Right AC Capacitor at Home Depot

Locating the correct AC capacitor at Home Depot requires careful attention to specifications and understanding the available options both online and in-store. Matching the voltage, microfarad (µF) rating, and physical dimensions of your existing capacitor is critical for proper AC unit function. Home Depot provides multiple avenues to find these components; therefore, this guide provides detailed instruction on utilizing both online and in-store resources.

Navigating Home Depot's Online Catalog for AC Capacitors: The Home Depot website provides a robust search and filtering system to help you find the precise AC capacitor you need. Start by entering 'AC capacitor' in the search bar, then refine your search with additional filters.

• Voltage:
  Select the exact voltage of your existing capacitor, commonly 370V or 440V.
• Microfarad (µF):
  Match the microfarad rating precisely, noting that dual run capacitors will have two µF ratings such as '45/5 µF.'
• Physical Dimensions:
  Compare the physical size and shape with your existing capacitor to ensure it will fit within the unit housing.
• Capacitor Type:
  Confirm whether you need a start capacitor, a run capacitor, or a dual run capacitor, as they are not interchangeable.
• Brand and Model:
  If available, filter by brand and model, although generic capacitors can also be used if the above specifications match.

Home Depot In-Store Options for AC Capacitors: While online shopping offers convenience, in-store visits can be beneficial if you need immediate replacement or prefer hands-on verification. Here's how to approach Home Depot stores:

• Locate the HVAC Section:
  AC capacitors are usually located in the HVAC (Heating, Ventilation, and Air Conditioning) section, often near other AC parts or electrical components.
• Bring Your Old Capacitor:
  Having the old capacitor allows you to directly compare specifications and dimensions with those available in the store.
• Consult with a Store Associate:
  If you are having trouble locating a replacement, a store associate can assist by locating matching capacitors and comparing the technical parameters
• Double Check Specifications:
  Before purchasing, double check that the voltage, microfarad rating, and physical dimensions match your existing unit. If there is any doubt, consult with a professional before attempting the repair.

Online vs. In-Store Availability at Home Depot: Home Depot's online catalog usually provides a broader selection of AC capacitors, including specialty models and options from various manufacturers. In-store availability might be limited depending on the location and seasonality. Below is a comparison that can assist you in making a purchase decision.

How to Identify Your Existing AC Capacitor Specifications

Accurately identifying your existing AC capacitor's specifications is crucial for selecting the correct replacement. These specifications, including voltage, microfarad (µF) rating, and physical dimensions, ensure the new capacitor is compatible with your AC unit, preventing potential damage and ensuring efficient operation.

• Locate the Capacitor Label
  The capacitor's label contains all the essential specifications. It's typically located on the side of the capacitor itself. Carefully examine it for the necessary information.
• Identify Voltage Rating
  The voltage rating, usually indicated in volts (V), specifies the maximum voltage the capacitor can handle. Common ratings include 370V, 440V, or 480V. Always replace with a capacitor of equal or higher voltage rating, never lower. Using a capacitor with a lower voltage rating is unsafe and will lead to premature failure.
• Determine Microfarad (µF) Rating
  The microfarad (µF) rating indicates the capacitance, typically displayed as a number followed by 'µF' or 'MFD'. For dual run capacitors, you'll see two ratings (e.g., '45/5 µF'). It’s imperative to match the exact µF rating of your old capacitor. A slight variance can negatively impact your AC unit's performance.
• Measure Physical Dimensions
  Record the diameter and height of the capacitor. These measurements are crucial, particularly when selecting a new capacitor in store where physical size may limit which units will fit into the space allocated by the HVAC manufacturer. Ensure the new capacitor fits properly within the designated space in your AC unit. Use a ruler or tape measure for precise measurements.

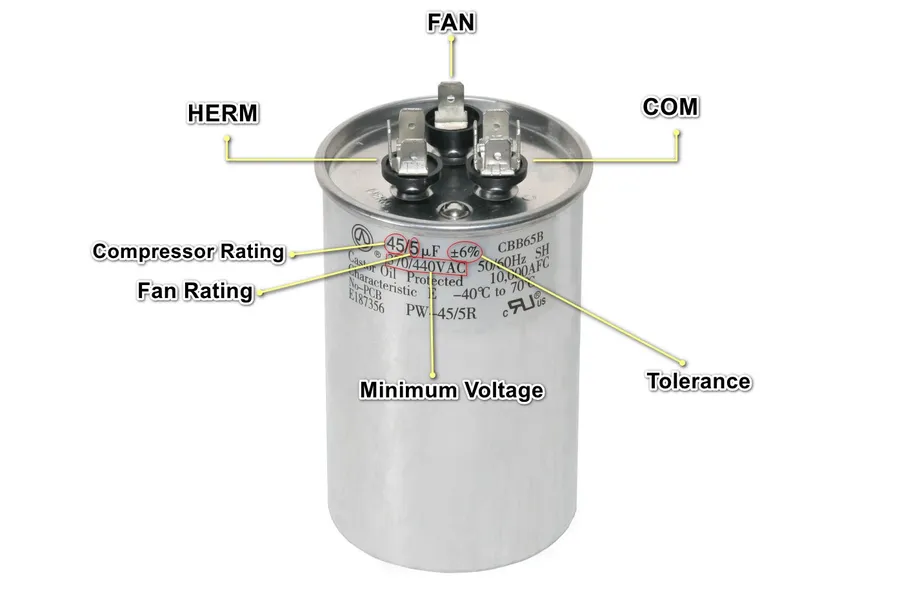

• Interpreting Markings
  Common markings include values such as '440V' indicating the voltage rating, and combinations like '45/5 uF' for dual run capacitors, specifying two different microfarad ratings. Some capacitors will be rated in 'mfd' instead of 'µF', but they both refer to the same measure: microfarads. Always double-check these values before making a purchase.

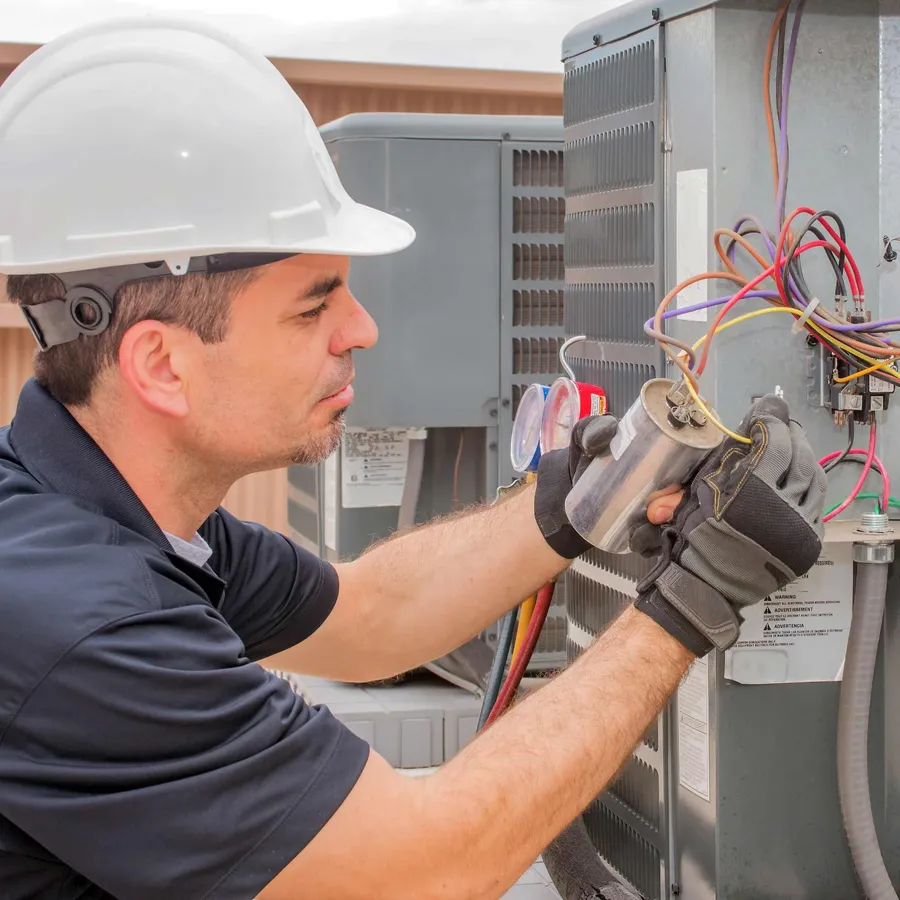

Step-by-Step Guide to Safely Replacing Your AC Capacitor

Replacing an AC capacitor is a task that can be safely accomplished by a homeowner with basic mechanical skills, if performed correctly. However, it's crucial to understand the inherent electrical risks. This section provides a detailed guide to safely replacing your AC capacitor, emphasizing safety precautions at every step. Always prioritize safety and when in doubt, consult a qualified HVAC technician.

Before initiating the replacement, the fundamental step is to completely disconnect electrical power to the air conditioning unit. Neglecting this step poses a significant risk of severe electrical shock. It is imperative to confirm that the power is completely off and there is no residual voltage.

• Required Tools and Materials
  Gather the necessary tools and materials before you begin. This includes a non-contact voltage tester, insulated screwdrivers (both flathead and Phillips), replacement AC capacitor matching the specifications of the old one, work gloves, and safety glasses.
• Safety First: Disconnecting Power
  Before anything else, turn off the power to your AC unit at the circuit breaker. Use a non-contact voltage tester to confirm that no electricity is flowing to the unit. Always verify power is disconnected before proceeding.
• Locate the Capacitor
  Access the outdoor condenser unit. Inside, you will find an electrical panel which contains the capacitor. It's typically a cylindrical component. Take pictures of wiring connections before disconnecting anything to help with correct reassembly.
• Discharge the Capacitor
  Even with power off, the capacitor can hold a dangerous electrical charge. Use an insulated screwdriver to carefully short the terminals of the capacitor, discharging any remaining power. This should be done with extreme caution, and multiple times to ensure complete discharge. If you are uncomfortable with this step, consult a professional.
• Disconnect the Wires
  Carefully disconnect the wires from the old capacitor, noting the exact position of each wire. Typically, these are color coded or marked. Take pictures of wiring connections before disconnecting anything to help with correct reassembly.
• Remove the Old Capacitor
  Once the wires are disconnected, remove the old capacitor from its mounting bracket or clips. Note the orientation of the capacitor to ensure the new one is installed correctly.
• Install the New Capacitor
  Place the new capacitor into the mounting bracket. Connect the wires to the new capacitor, ensuring they match the positions on the old one. Double-check wire connections.
• Reassemble and Test
  Carefully close the electrical panel. Restore power at the breaker and turn on the AC unit. Observe the unit to ensure proper operation. If the AC does not start or operates poorly, turn off the power and consult a professional.

AC Capacitor Replacement: Cost Considerations

Replacing an AC capacitor involves several cost factors, including the price of the component itself, potential labor expenses if you opt for professional installation, and the choice between DIY and professional services. Understanding these elements is crucial for making an informed and cost-effective decision while ensuring the repair is both safe and correctly executed.

• DIY vs. Professional Installation
  DIY replacement can save on labor costs, but requires careful adherence to safety guidelines and proper electrical knowledge. Professional installation ensures a correct repair and may come with warranties, providing peace of mind, but at a higher cost.
• Tips for Cost Savings
  Obtain multiple quotes if considering professional services to negotiate costs. When sourcing parts, confirm the exact capacitor specifications required by your system to ensure correct replacement and compatibility. Consider buying a capacitor with the same specifications online at different retailers to compare prices.
• Cost Benefit Analysis
  Evaluate your comfort level with electrical work, your existing tool set and your ability to diagnose the issue correctly. If you are confident with all aspects of the work the DIY approach is the most cost effective option. If in doubt about any part of the process, always seek out a qualified professional for help.

AC Capacitor Selection: Matching Your HVAC Brand

Selecting the correct AC capacitor often involves considering your HVAC system's brand. While universal capacitors exist, matching your specific brand, such as Goodman or Carrier, can ensure optimal performance and compatibility. This section will guide you through finding brand-specific replacements at Home Depot and understanding the nuances between universal and brand-specific models.

Brand-specific capacitors are designed to work seamlessly with the original equipment manufacturer's (OEM) specifications. While universal capacitors offer a broader fit, they may not always provide the same level of performance or longevity. Using a capacitor designed for your system can minimize issues related to voltage fluctuations or improper capacitance.

• OEM Specifications
  Original equipment manufacturer (OEM) capacitors are designed to match the exact electrical and physical specifications required by your HVAC system. This ensures optimal performance and avoids potential compatibility problems.
• Universal Capacitors
  These are designed to fit a range of HVAC systems. They are more convenient for situations with limited brand-specific options. However, care must be taken to ensure the electrical specifications like microfarads (µF) and voltage match the requirements of your air conditioner. Universal options may lead to less efficient performance compared to OEM if not selected carefully.

To determine if you need a brand-specific capacitor, start by checking the capacitor's label itself and look for your HVAC unit model number. Home Depot may carry brand-specific capacitors both online and in their stores. Here's how to navigate the selection process:

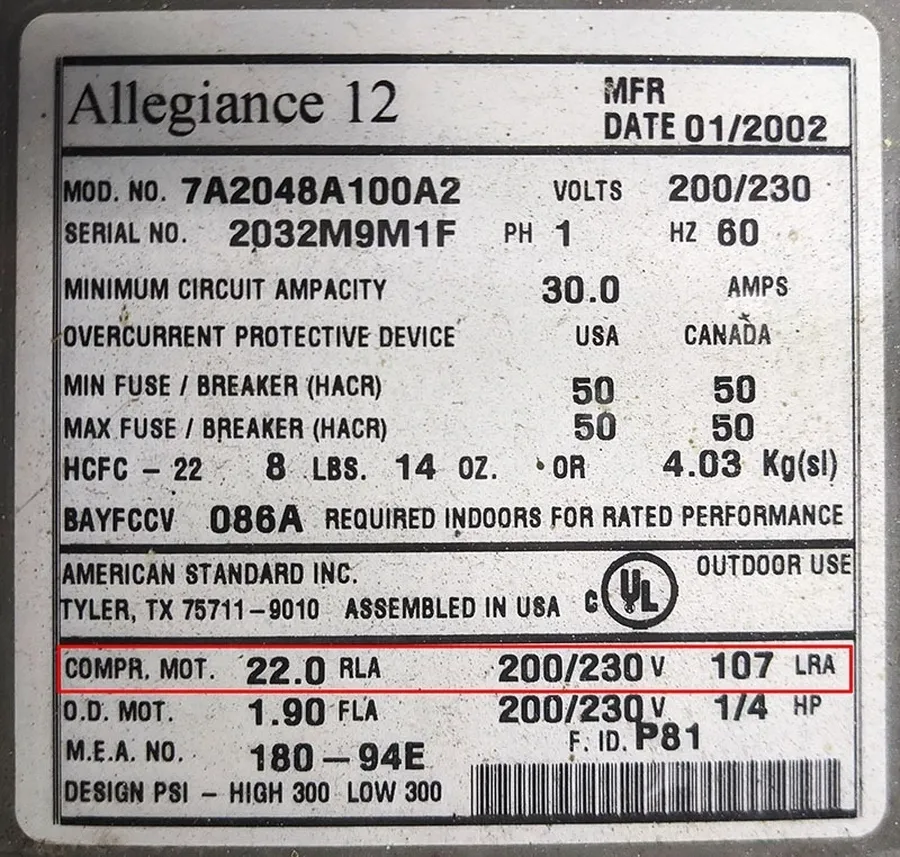

1. Identify Your HVAC Unit Model Number
   Locate the model number on your air conditioning unit. This is typically found on a label on the unit's exterior or near the condenser.
2. Check the Capacitor Label
   The capacitor itself will have a label with vital information, such as microfarads (µF) and voltage ratings.
3. Use Home Depot's Online Filters
   On the Home Depot website, use the search bar and filters to specify your HVAC brand (e.g., Goodman, Carrier) and the required capacitor specifications. Use your HVAC unit's model number to ensure compatibility.
4. Consult In-Store Experts
   When visiting a physical Home Depot store, seek assistance from an associate. Provide them with your HVAC unit model number and the capacitor's microfarad and voltage requirements to help you find the correct match. Always double-check if the physical dimensions of the capacitor will allow it to fit in the original housing.

Frequently Asked Questions About AC Capacitors

This section addresses common questions regarding AC capacitors, providing concise and actionable answers to help you understand their function, identify issues, and determine appropriate replacement strategies.

• How can I tell if my AC capacitor is bad?
  Signs of a failing AC capacitor include a humming noise from the outdoor unit, the AC struggling to start, the fan not running, or the AC shutting down prematurely. A physically bulging or leaking capacitor is a clear indication of failure and requires replacement.
• Is it safe to replace an AC capacitor myself?
  Replacing an AC capacitor can be a DIY project if you're comfortable working with electrical components and follow safety precautions meticulously. However, if you lack experience, it's advisable to hire a qualified HVAC technician to avoid risks of electrical shock or incorrect installation.
• How do I choose the correct replacement capacitor for my AC unit?
  To select the correct capacitor, verify the voltage, microfarad (µF) rating, and physical dimensions of your existing capacitor. These specifications are printed on the capacitor label. It is critical to match these parameters to ensure proper operation and prevent damage to your AC system.
• Can my AC operate without a capacitor?
  No, the AC system typically cannot operate without a functioning capacitor. The capacitor provides the initial energy boost needed to start the compressor and fan motor. A faulty capacitor can prevent these components from starting, effectively disabling the AC unit.
• Where can I buy an AC capacitor?
  AC capacitors are available at home improvement stores like Home Depot, Lowe's, and online retailers such as Amazon. You can also find them at HVAC supply stores or through local HVAC service providers.
• Can I use a capacitor with a slightly higher microfarad rating?
  While minor deviations may sometimes be tolerated, it is generally recommended to use a capacitor with the exact microfarad rating specified for your AC unit. Using a capacitor with a significantly different rating can lead to inefficient operation, overheating, or damage to the system.
• What is the function of an AC capacitor?
  The AC capacitor is a critical electrical component which provides the high voltage boost needed to start and run AC compressor and motor efficiently, and it will store and release electrical energy to the motor to provide a continuous electrical current.

Troubleshooting AC Capacitor Issues

Replacing an AC capacitor is often a straightforward fix, but if the issue persists, it indicates that the problem might lie elsewhere within the HVAC system. A systematic approach to troubleshooting is necessary to pinpoint the root cause.

• New Capacitor Doesn't Fix the Problem
  If the AC still fails to start or runs intermittently after a capacitor replacement, other components may be at fault. This includes the compressor, fan motor, or other electrical components. A multimeter can help diagnose electrical continuity and voltage issues.
• AC Unit Still Humming or Not Starting
  A humming noise that persists even with a new capacitor could suggest a failing compressor motor, which requires specialized repair or replacement. If the AC still won't start at all, it could be a problem with the contactor, overload protector, or circuit breaker.
• AC Unit is Running but Not Cooling Effectively
  If the AC unit runs but doesn't cool effectively, the issue could be unrelated to the capacitor, such as low refrigerant levels, a dirty condenser coil, or a malfunctioning TXV valve. These problems require different diagnostic and repair procedures.
• Tripping Circuit Breakers
  If your AC unit keeps tripping the circuit breaker, even after a capacitor replacement, this indicates an electrical fault, possibly with the compressor, wiring, or a short circuit. Consult a qualified electrician to investigate.
• When to Seek Professional Help
  If basic troubleshooting doesn't resolve the issue, or if you are not comfortable working with electrical components, it is advisable to call a qualified HVAC technician. Professional diagnostics and repairs are essential for complex problems.

Finding the right AC capacitor at Home Depot doesn't have to be daunting. By understanding the function, identifying signs of failure, and following the steps outlined, you can often replace a faulty capacitor yourself, saving time and money. Always prioritize safety, and when in doubt, consult a qualified HVAC technician. Keeping your AC running efficiently with the right components from a retailer like Home Depot not only ensures comfort but can also extend the life of your system and save on energy costs.
