CBB60 Capacitor: The Ultimate Guide for Motors and Appliances

In our daily lives, from the gentle hum of a refrigerator to the powerful spin of a washing machine, capacitors like the CBB60 play a crucial, yet often unseen role. These small components are vital for the smooth operation of many AC motors and appliances. This article will delve into the specifics of the CBB60 capacitor, its applications, and what you need to know for reliable performance, connecting everyday technology with the fundamental principles of electrical engineering.

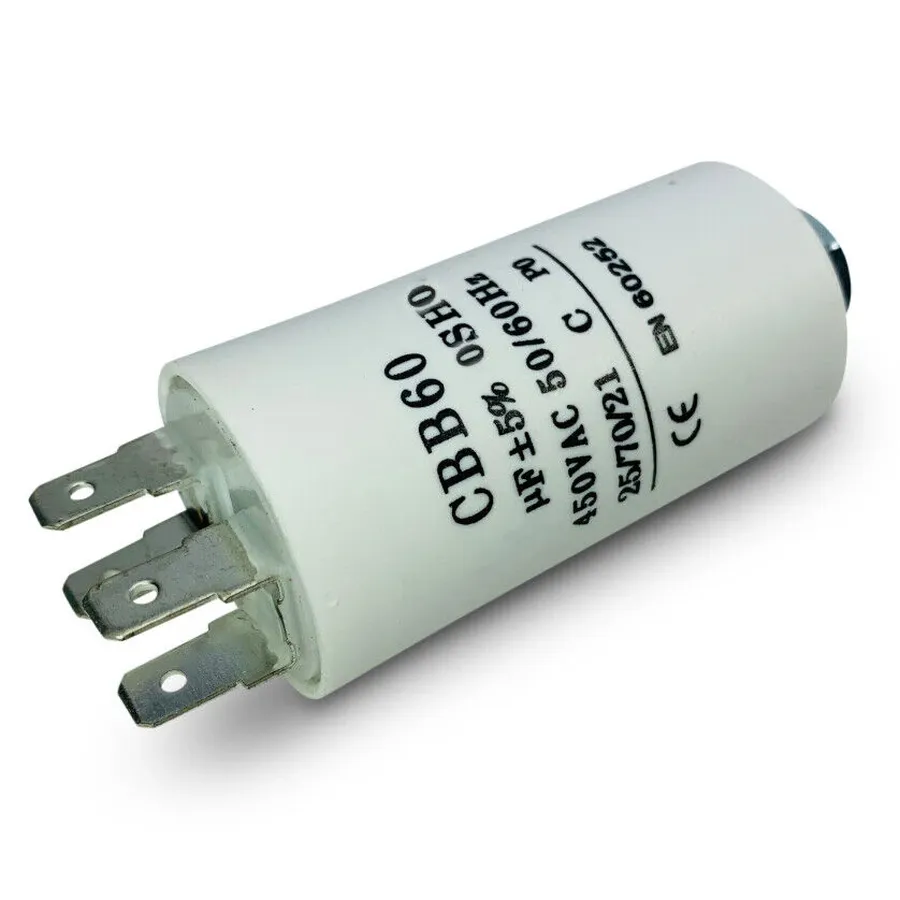

Understanding the CBB60 Capacitor: What It Is and How It Works

The CBB60 capacitor is a crucial component in single-phase AC motor circuits, primarily functioning as a run capacitor. Its design leverages a metallized polypropylene film dielectric, which offers high insulation resistance, low losses, and robust self-healing properties. This design ensures that the capacitor can handle the continuous operation demanded by motor applications, maintaining optimal power factor and contributing to efficient energy usage in appliances.

These capacitors are typically constructed by layering metallized polypropylene film. The film layers are wound together and encased in a flame-retardant plastic or aluminum housing, often with resin or epoxy filling to enhance mechanical stability and environmental protection. This construction minimizes internal vibrations and prevents moisture ingress. Terminals are typically screw or quick-connect type, facilitating easy installation and replacement.

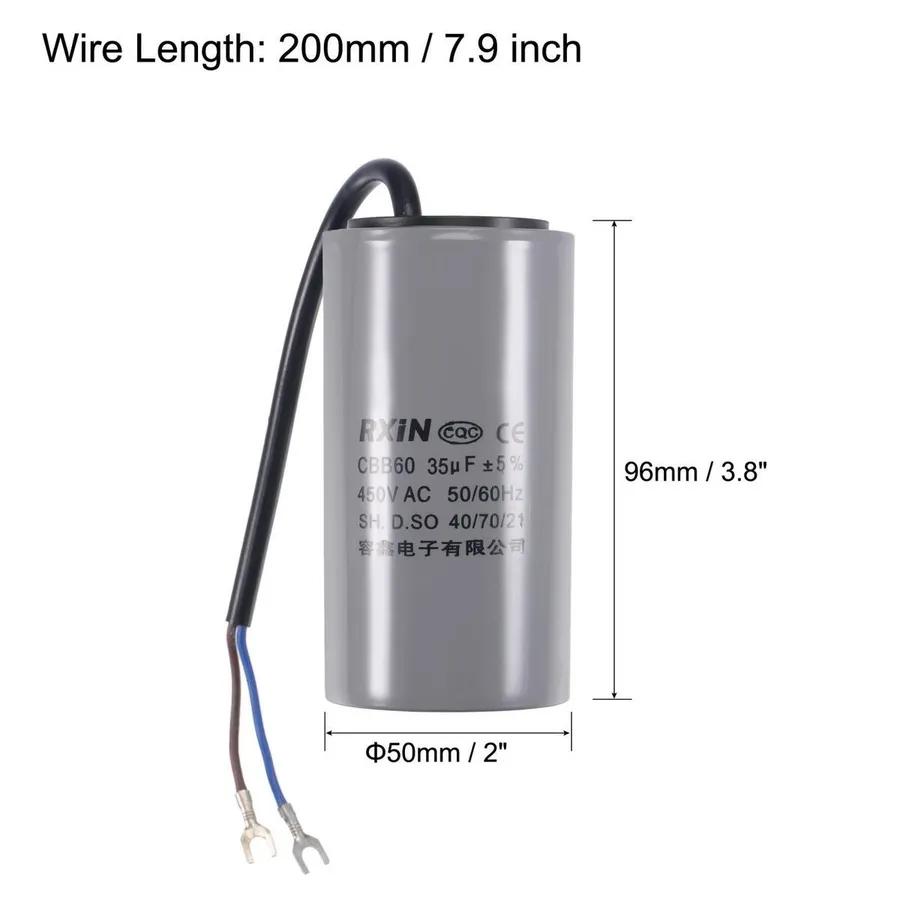

Key Specifications of CBB60 Capacitors: Voltage, Capacitance, and Dimensions

Selecting the correct CBB60 capacitor requires careful consideration of its key specifications, including voltage, capacitance, tolerance, and physical dimensions. These parameters are crucial for ensuring the capacitor functions correctly within its intended application and directly impact the performance and longevity of the equipment it serves.

Common Applications of CBB60 Capacitors

CBB60 capacitors are predominantly used as motor run capacitors in single-phase AC motor circuits. Their robust design and electrical characteristics make them ideal for various applications where consistent and reliable motor operation is essential. These capacitors play a crucial role in providing the necessary phase shift for the motor's starting and running torque, ensuring smooth and efficient performance.

• Air Conditioners
  In air conditioning systems, CBB60 capacitors facilitate the efficient operation of compressor and fan motors. They ensure a constant phase difference between the motor windings, which enables a consistent torque and reduces wear and tear, especially during the compressor's high demand periods.
• Refrigerators
  Refrigerators utilize CBB60 capacitors in their compressor motor circuits. These capacitors assist in both starting and running the compressor motor, maintaining consistent cooling temperatures and preventing motor overheating by providing the necessary phase shift for operation.
• Washing Machines
  Washing machines rely on CBB60 capacitors to power their drum motors and water pump motors. These capacitors contribute to the smooth operation of the drum during wash cycles and ensure the pump can effectively drain water. Their consistent performance minimizes motor stresses.
• Water Pumps
  CBB60 capacitors are integral to the function of water pumps, enabling reliable operation of their motors. The capacitor provides a phase shift between the start and run windings, ensuring consistent power delivery to the pump’s motor and allowing it to operate efficiently and maintain proper water pressure.
• Fans
  Various types of fans, including ceiling fans, exhaust fans, and table fans, use CBB60 capacitors. The capacitor assists in providing the rotational torque necessary for smooth and consistent motor function, thus ensuring reliable operation of the fan and allowing for long-term use.
• Other Appliances
  Beyond the specific applications listed above, CBB60 capacitors are often used in a wide range of home appliances that employ single-phase AC motors, such as small-scale industrial equipment or DIY setups. Their durable construction and stable operation make them a versatile solution for motor run needs.

CBB60 Capacitor Wiring Diagrams and Installation Tips

Correctly wiring and installing a CBB60 capacitor is essential for the safe and effective operation of any appliance or motor it serves. This section provides practical guidelines to ensure proper connections, adherence to safety protocols, and optimal performance.

• Safety First
  Before starting any wiring work, ensure the power is disconnected from the appliance or motor. This prevents electrical shock and potential damage to the equipment.
• Understanding Terminal Types
  CBB60 capacitors typically feature two terminals, which are usually blade-type connectors, screws, or wires. Note the configuration, as it affects the type of connector needed. Make sure the connectors are secure to avoid disconnections. Loose connections can cause overheating and damage to both the capacitor and the motor.
• Polarity Considerations
  Unlike electrolytic capacitors, CBB60 capacitors are non-polarized, meaning that the connections do not have positive or negative terminals and can be wired in either direction. This simplifies installation, but proper identification of terminals is still essential.
• Wiring Procedure
  Connect each of the capacitor's terminals to the correct points in the circuit as specified by the motor or appliance's wiring diagram. Ensure secure connections that provide a reliable electrical path. Wiring diagrams are very specific and using the wrong connection points could damage the motor and or the capacitor.
• Using Correct Wire Gauge
  Ensure the wire gauge used for connections is suitable for the current that will be flowing through the circuit. Insufficient wire gauge will cause a fire hazard and cause a circuit malfunction.
• Avoid Over-Tightening Connections
  When working with screw-type connections, avoid over-tightening the screws. This can damage the capacitor terminals or the equipment casing. Use appropriate torque to ensure a firm, yet safe connection.
• Check Connections
  Double check all connections to make sure they are wired correctly, securely fitted and insulated to prevent unwanted electrical shorts. Incorrect wiring can lead to immediate failure of the capacitor or even permanent damage to the equipment.
• Insulate connections
  Any exposed wiring should be insulated, if using a wire nut ensure the wires are inserted fully into the nut. If using electrical tape ensure all wiring is fully covered, this is important to prevent short circuits.

Different devices and systems may have unique wiring setups, and consulting specific wiring diagrams from the device manufacturer is always recommended. General guidance should only be used as general advice and should not be substituted for wiring diagrams from the equipment manufacturer.

Troubleshooting and Diagnosing a Faulty CBB60 Capacitor

Identifying a failing CBB60 capacitor is crucial for maintaining the performance and safety of electrical appliances and motors. Early detection of issues can prevent more significant damage and costly repairs. This section outlines common symptoms, diagnostic methods, and safe handling practices for faulty CBB60 capacitors.

• Visual Inspection for Physical Damage
  Examine the capacitor for any visible signs of damage such as a bulged or cracked casing. A deformed case indicates internal pressure build-up, often due to capacitor failure, or overheating. Additionally, check for any leaks, which would indicate an electrolyte breach, and should be considered non-functional.
• Performance Degradation
  A failing CBB60 capacitor can cause noticeable performance issues in connected equipment. These include slow motor starting, reduced motor torque, erratic motor operation, or unusual noises such as humming. In some cases, the appliance may not start at all. These symptoms indicate a reduction in the capacitor's ability to perform its function in the circuit.
• Electrical Short
  An electrical short within a capacitor can manifest as a blown fuse or tripped circuit breaker. It is essential to inspect the device and replace a suspected capacitor before attempting to reset the fuse or circuit breaker, since repeating the cycle may result in damage to other electrical components and is a potential fire hazard.
• Use of a Multimeter for Capacitance Testing
  A digital multimeter with a capacitance measurement function can be used to test the capacitor. Disconnect the capacitor from the circuit, discharge any stored energy safely using a suitable resistor (see safety precautions below), and measure the capacitance value. A significant deviation from the specified capacitance rating (typically printed on the capacitor) suggests degradation or failure. An open circuit reading indicates a complete internal failure.
• Use of an ESR Meter
  An Equivalent Series Resistance (ESR) meter can provide further insight into the capacitor's health by measuring the internal resistance. High ESR values indicate capacitor degradation due to internal aging, and can contribute to heat generation and performance degradation. Low ESR is expected for a functional capacitor.

Safety Considerations: When diagnosing and replacing CBB60 capacitors, ensure the power to the appliance is disconnected. Since capacitors store electrical charge, safely discharge the capacitor using a suitable resistor (such as a 10kΩ resistor, 5W) before handling. Always wear appropriate personal protective equipment, such as gloves and safety glasses. Dispose of old or faulty capacitors in accordance with local regulations for electronic waste. Never try to disassemble or repair a capacitor yourself.

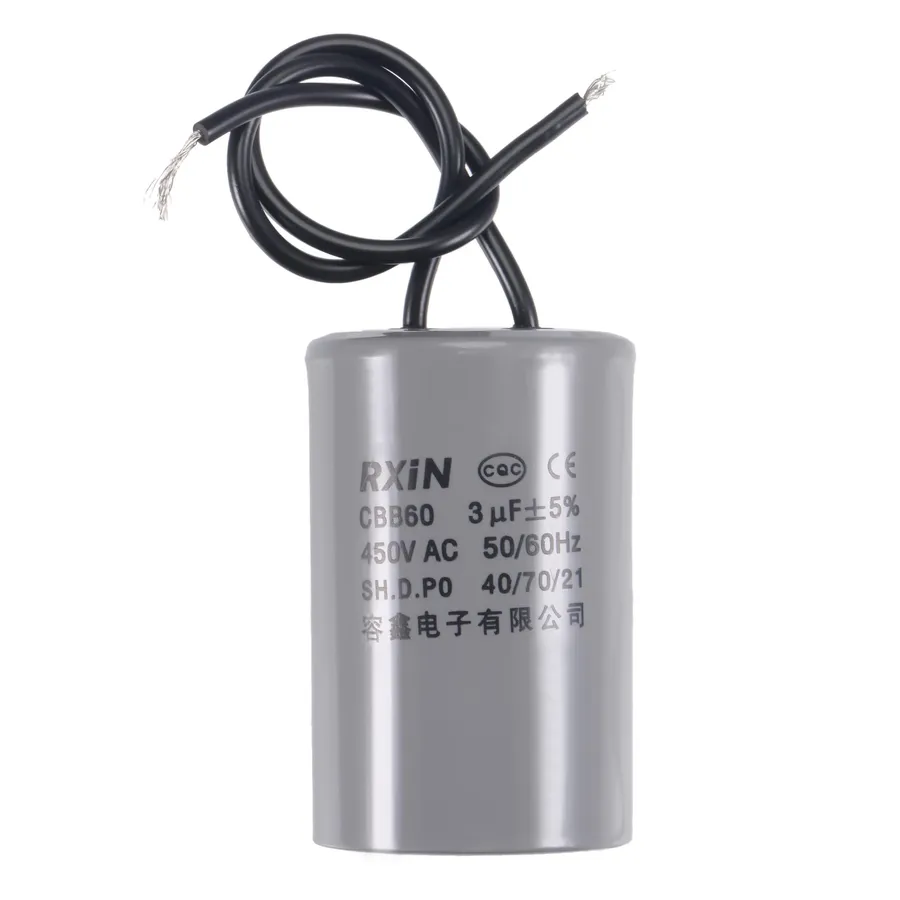

CBB60 vs. Other Capacitors: Understanding the Differences (CBB61)

While CBB60 capacitors are primarily used as run capacitors in AC motors, it's essential to understand how they differ from other types, particularly the CBB61. These differences are crucial for selecting the right capacitor for your application. The CBB60 is optimized for continuous operation in motor run applications, whereas the CBB61 is often used for starting and running, with a focus on higher starting torque.

The choice between CBB60 and CBB61 capacitors depends primarily on the operational demands of the application. For continuous running applications without a significant need for high starting torque, the CBB60 is preferable. However, for applications requiring a large start-up surge, the CBB61 offers superior performance.

Frequently Asked Questions About CBB60 Capacitors

This section addresses common inquiries regarding CBB60 capacitors, providing concise and authoritative answers to help users understand their functionality, application, and troubleshooting. Understanding these answers is crucial for the safe and effective use of CBB60 capacitors in various applications.

• What does 'CBB60' signify on a capacitor?
  The designation 'CBB60' refers to the capacitor's construction and intended application. 'C' indicates it's a capacitor, 'BB' denotes that it's a metallized polypropylene film capacitor, and '60' specifies its design for motor run applications. It's critical to know this for selecting the correct capacitor.
• What are the common symptoms of a failing CBB60 capacitor?
  Common indicators of a failing CBB60 capacitor include a bulging or cracked case, visible leakage, reduced motor torque, humming noises from the motor, or the motor failing to start. These symptoms suggest the capacitor's dielectric material is degrading.
• What happens when a CBB60 capacitor fails in an AC motor circuit?
  When a CBB60 capacitor fails, it can lead to several issues in an AC motor circuit, such as the motor failing to start, running with reduced power or speed, experiencing excessive heat, or making unusual noises. In a worst-case scenario, the motor could suffer permanent damage. The capacitor's role is fundamental to the proper operation of the motor's starting and running windings.
• Is it preferable to use a CBB60 capacitor with a higher or lower capacitance than specified?
  It's best to adhere to the device manufacturer's specified capacitance rating. Using a capacitor with higher capacitance can cause excessive current draw, resulting in motor overheating and potentially damaging its windings. A lower capacitance may reduce torque and cause the motor to perform poorly or fail to start. Exact matching is crucial for optimal performance and longevity.
• How does a CBB60 capacitor differ from a CBB61 capacitor?
  CBB60 capacitors are primarily designed for motor run applications, providing a continuous phase shift to the motor windings during operation. In contrast, CBB61 capacitors are often used for motor starting, providing a temporary boost to get the motor going. CBB60 capacitors tend to have a higher capacitance value to support the continuous operation. The application dictates the type of capacitor to be used.
• Can a CBB60 capacitor be replaced with a different brand or manufacturer?
  Yes, a CBB60 capacitor can be replaced with one from a different manufacturer as long as the replacement meets or exceeds the original capacitor's specifications for capacitance, voltage, temperature rating, and physical dimensions. It is not recommended to replace the capacitor with another type, such as an electrolytic type, as the electrical characteristics are very different.
• How long does a CBB60 capacitor typically last?
  The lifespan of a CBB60 capacitor depends on various factors, including the operating temperature, voltage, humidity, and the quality of its manufacturing. Typically, one can expect it to last 3-5 years in moderate duty applications. Proper ventilation, correct installation, and operation within its ratings are essential to maximize its lifespan. Regular inspections and monitoring can detect issues early on and prevent failure.

Selecting the Right CBB60 Capacitor: A Practical Guide

Choosing the correct CBB60 capacitor is crucial for ensuring the optimal performance and longevity of your electrical equipment. This selection process involves carefully matching the capacitor's specifications to the requirements of the device it will be used in. The primary considerations are voltage, capacitance, physical dimensions, and operating conditions. A mismatch in any of these factors can lead to reduced performance, premature failure, or even damage to the device.

When replacing a CBB60 capacitor, carefully note the existing capacitor's markings, paying close attention to voltage rating and capacitance. It is also advisable to consider the operating conditions of the equipment. Always choose a capacitor that meets or exceeds the original specifications to ensure reliable performance and longevity. For example, if the original capacitor is 450VAC and 25uF, select a new CBB60 capacitor with at least these same ratings, and confirm the physical dimensions will allow fitment. Understanding the markings on the CBB60 capacitor is straightforward; they typically include the capacitance, voltage rating, operating temperature code and a brand identifier. Always match the old with the new when replacing.

CBB60 Capacitor Maintenance and Longevity

Ensuring the longevity and stable operation of CBB60 capacitors involves careful maintenance and consideration of environmental factors. Proper care can significantly extend their lifespan and prevent premature failures, which are critical for the reliable functioning of motors and appliances.

• Environmental Considerations
  Avoid operating CBB60 capacitors in excessively high temperatures, which can degrade their internal components, leading to reduced performance and a shorter lifespan. High humidity should also be avoided as it can corrode terminals and internal elements. Ensure proper ventilation to prevent overheating.
• Regular Inspections
  Conduct routine visual inspections to check for any physical signs of damage, such as bulging, cracking, or leaks. If any such signs are apparent, the capacitor should be replaced. Also check for loose connections or corroded terminals that may affect performance.
• Monitoring Performance
  Monitor the performance of the equipment where the capacitor is installed. If you notice unusual noises, slow starting, or inefficient operation, it may indicate that the capacitor is nearing the end of its life, and testing should be performed.
• Proper Storage
  When not in use, store capacitors in a cool, dry place away from direct sunlight and extreme temperatures to prevent degradation. Avoid storing them near corrosive substances or in damp areas.
• Safe Handling Practices
  Always handle capacitors with care; avoid dropping them as this could cause damage, which may not be visible to the naked eye, but could lead to premature failure. Wear appropriate PPE when handling and connecting capacitors, as they can hold a charge even when disconnected.

Understanding the role of CBB60 capacitors is essential for maintaining the performance of numerous household and industrial appliances. By choosing the correct type and ensuring proper maintenance, you can safeguard equipment and ensure the longevity of components, from air compressors to washing machines. Armed with knowledge about the technical aspects and common failure points, you can tackle repairs and replacements with confidence, making your technological world run more efficiently thanks to the small but mighty CBB60 capacitor.
