Decoding All Electronic Components: A Comprehensive Guide

In our digitally driven world, electronic devices have become ubiquitous, silently performing countless functions. These marvels of engineering are built from a fascinating array of electronic components, each with its unique purpose. From the humble resistor to the complex integrated circuit, understanding these fundamental building blocks is key to appreciating the technology that shapes our lives. This article delves into the world of all electronic components, providing a clear and comprehensive guide suitable for both beginners and seasoned enthusiasts.

Resistors: Controlling the Flow of Electricity

Resistors are fundamental electronic components designed to impede the flow of electrical current within a circuit, thereby controlling voltage and current levels. Their primary function is to introduce a specific amount of resistance, which is measured in ohms (Ω), influencing the circuit's behavior and ensuring proper operation and component protection.

• Fixed Resistors
  These resistors have a single, unchanging resistance value determined during manufacturing. They are commonly used for setting bias points, limiting current, and providing a stable reference in various electronic circuits. Common materials include carbon film, metal film, and wire-wound.
• Variable Resistors (Potentiometers and Rheostats)
  Variable resistors allow their resistance value to be adjusted manually. Potentiometers feature three terminals and are used as voltage dividers, while rheostats use two terminals and function as variable resistances. Applications include volume controls, calibration adjustments, and sensor interfaces.
• Special Resistors
  Certain resistors possess specialized properties. Thermistors, for instance, exhibit resistance that changes significantly with temperature, while photoresistors change resistance in response to light intensity. These are used in temperature sensing and light-sensitive circuits, respectively.

Resistor color codes utilize a series of colored bands to indicate resistance value and tolerance. Each color corresponds to a numerical value and multiplier, which are interpreted sequentially to determine the resistor's nominal value in ohms. For example, a resistor with color bands brown, black, red, and gold would correspond to a 1000-ohm resistor with a 5% tolerance.

Resistors are crucial components in a wide variety of electronic applications, including, but not limited to: signal conditioning, voltage division, current limiting, pull-up and pull-down configuration, temperature and light sensing. Understanding their properties and functions is foundational for electronic circuit design and analysis.

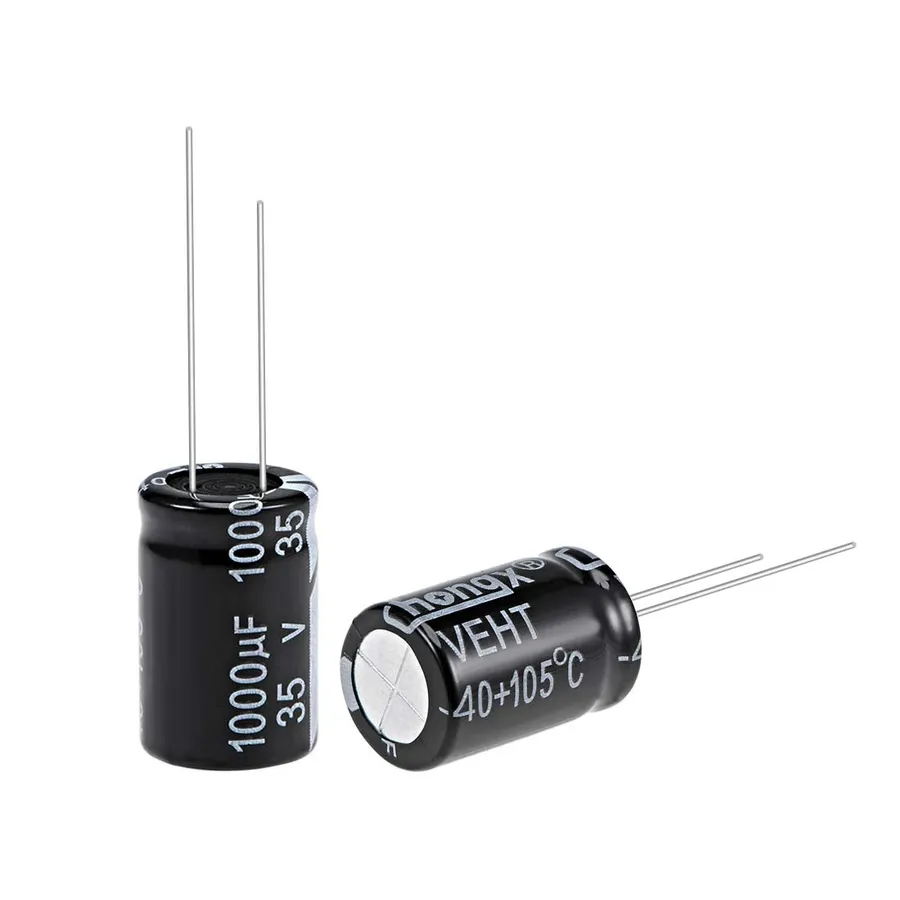

Capacitors: Storing Electrical Energy

Capacitors are fundamental passive electronic components designed to store electrical energy within an electric field. They are characterized by their ability to accumulate charge and release it when needed, making them crucial in various applications such as filtering, energy storage, and timing circuits. The basic structure of a capacitor consists of two conductive plates separated by a dielectric material, which prevents the direct flow of charge and allows the build-up of an electric field.

• Capacitance Value
  The capacitance, measured in Farads (F), indicates the amount of charge a capacitor can store for a given voltage. Common units include microfarads (µF), nanofarads (nF), and picofarads (pF).
• Voltage Rating
  The voltage rating specifies the maximum voltage a capacitor can safely withstand without dielectric breakdown. Exceeding this rating can lead to permanent damage.
• Types of Capacitors
  Capacitors are available in different types, each with specific characteristics that make them suitable for particular applications. Common types include ceramic, electrolytic, film, and supercapacitors.
• Applications
  Capacitors are widely used in smoothing power supply outputs, filtering unwanted frequencies, energy storage in portable devices, and timing applications in circuits.

Diodes: Directing Current in One Direction

Diodes are semiconductor devices that act as one-way valves for electrical current, allowing current to flow easily in one direction (forward bias) while significantly impeding it in the opposite direction (reverse bias). This directional conductivity is fundamental to their function in electronic circuits.

Diodes are not simply on/off switches. The relationship between the current through the diode and the voltage across it is described by the diode equation, which shows a non-linear behavior, and it's also temperature-dependent. This non-linearity is key to many of the useful properties of diodes.

Understanding the concepts of forward and reverse bias is essential for utilizing diodes effectively. In forward bias, a positive voltage is applied to the anode (the 'arrow' side of the diode symbol) and a negative voltage to the cathode (the 'bar' side), allowing current to flow. Conversely, in reverse bias, the voltage is applied in the opposite direction, which ideally prevents current flow. In practice, a small leakage current may exist in reverse bias.

Diodes are fundamental building blocks in numerous electronic systems. They enable AC-to-DC conversion for providing stable power, and they form part of complex digital circuits where they perform signal rectification, clipping, and clamping. Their applications range from basic power supplies to sophisticated optical sensors.

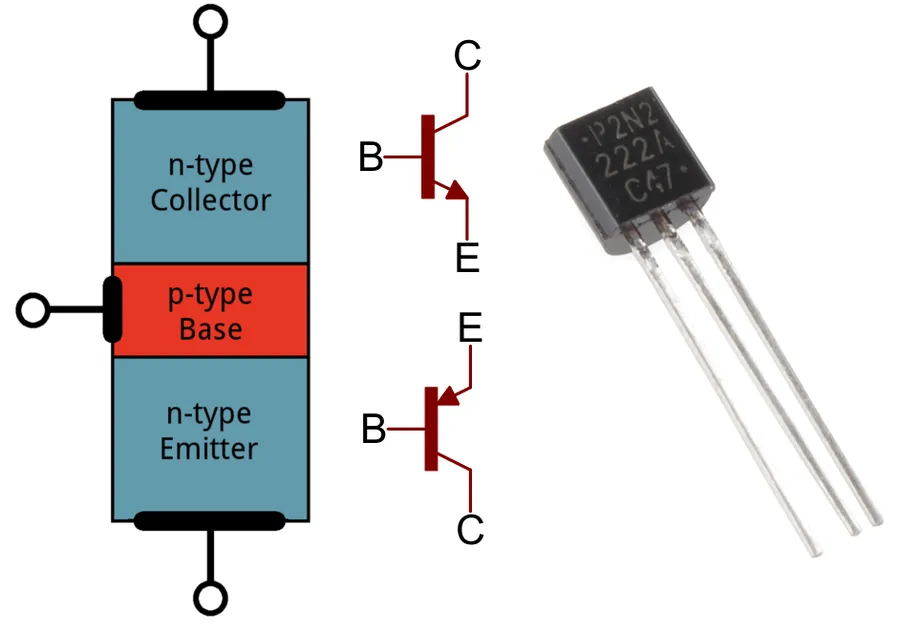

Transistors: Amplifying and Switching Signals

Transistors are fundamental semiconductor devices that act as both electronic switches and signal amplifiers, forming the backbone of modern electronics. Their ability to control electron flow makes them indispensable in applications ranging from simple circuits to complex microprocessors.

The transistor's dual functionality—switching and amplification—underpins its ubiquitous role in electronic systems. The switching action allows transistors to act like electronic on/off switches controlled by electrical signals, a property that's critical for digital logic. Amplification, in contrast, makes transistors suitable for boosting weak signals into stronger, more usable forms. Together, these two properties have enabled countless applications.

Transistors are not merely components; they are fundamental building blocks of modern electronics, enabling the digital revolution through their functions in memory, logic, and power control. Understanding transistors is crucial to comprehending the intricacies of nearly every electronic device.

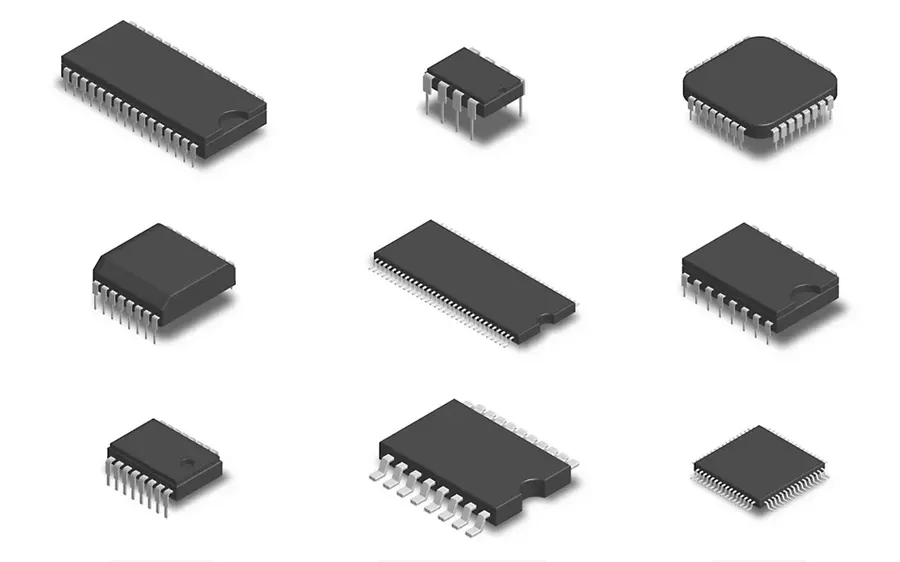

Integrated Circuits (ICs): Miniaturized Powerhouses

Integrated Circuits (ICs) represent a monumental leap in electronics, encapsulating entire circuits within a single, tiny semiconductor chip. This miniaturization has revolutionized technology, enabling the development of compact and powerful devices, from smartphones to complex computing systems. ICs, also known as microchips or chips, are the building blocks of modern electronics, featuring digital logic gates, microcontrollers, and microprocessors. Their versatility and complexity stem from the intricate manufacturing processes that create these densely packed circuits.

The fabrication of an IC involves sophisticated techniques such as photolithography, where patterns are transferred onto silicon wafers. These wafers undergo a series of chemical and physical processes to create transistors, diodes, resistors, and capacitors, all connected within a tiny space. This advanced manufacturing allows millions or even billions of components to be integrated onto a single chip, showcasing the sheer engineering brilliance behind IC technology.

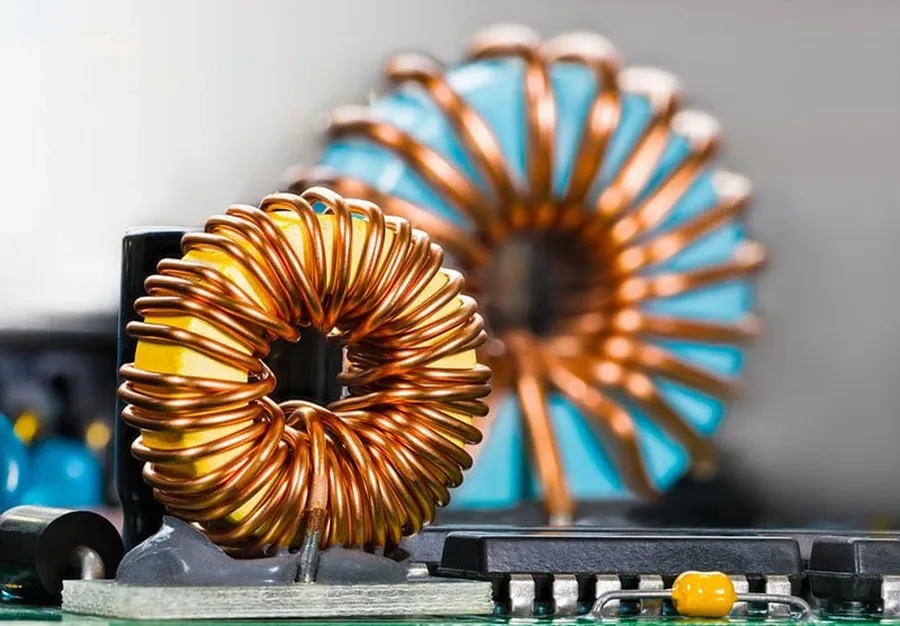

Inductors: Storing Energy in Magnetic Fields

Inductors are fundamental electronic components that store energy within a magnetic field generated by the flow of electric current. This property makes them crucial for various applications, including filtering, energy storage, and signal processing, particularly at higher frequencies where their behavior becomes more pronounced. Unlike resistors that dissipate energy as heat and capacitors that store energy in an electric field, inductors store energy in a magnetic field.

The core principle of an inductor is based on Faraday's Law of Induction, which states that a changing magnetic field induces an electromotive force (EMF) or voltage in a conductor. In an inductor, this EMF opposes changes in current flow, a property known as inductance, measured in Henrys (H). The amount of inductance is determined by the geometry of the coil, the number of turns, and the core material.

Inductors find diverse applications in electronic circuits. In filter circuits, they are utilized to block or pass certain frequencies. For instance, in low-pass filters, they allow low-frequency signals to pass while attenuating high-frequency signals. In energy transfer applications, inductors play a crucial role in switching power supplies by storing and releasing energy as needed, often in conjunction with capacitors. The inductive reactance, which opposes changes in current, increases with frequency, a key parameter in filter design. Furthermore, inductors are employed in resonant circuits, transformers, and as chokes in power supplies to mitigate current spikes and EMI.

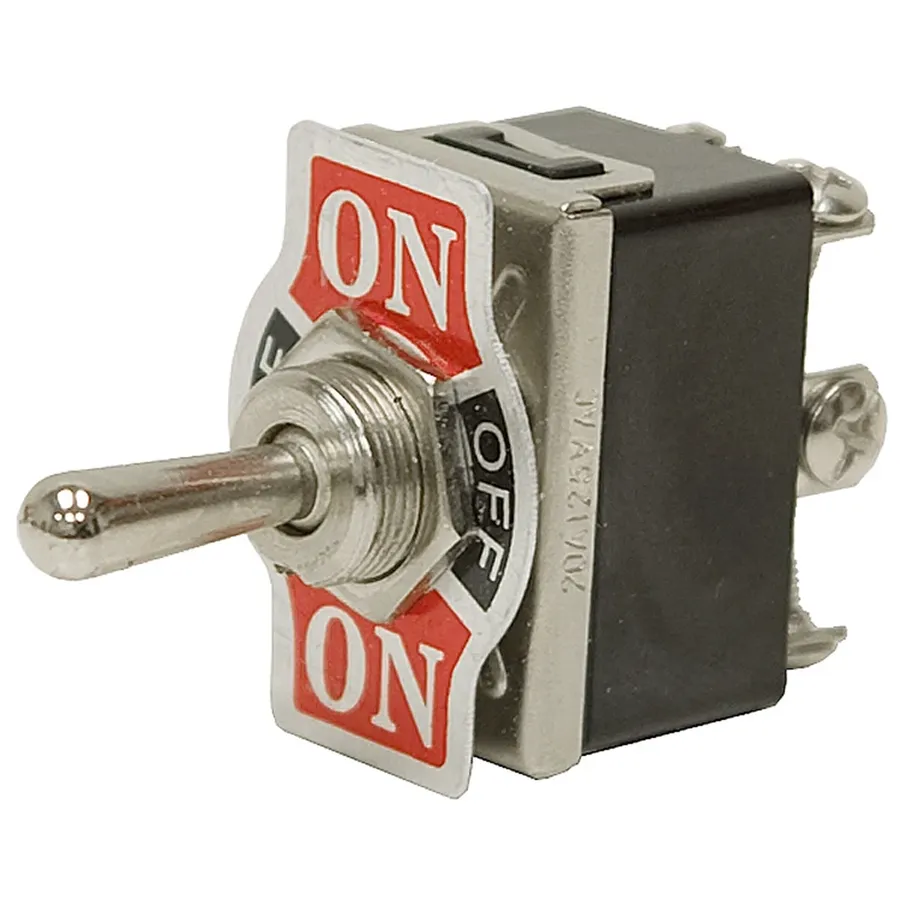

Switches: Controlling Circuit Connections

Switches are fundamental components in electronic circuits, serving as a means to control the flow of electrical current by selectively opening or closing a circuit. Their primary function is to establish or interrupt an electrical path, thus enabling or disabling the operation of a circuit or its components. The selection of switch type is dictated by factors such as application needs and operational voltage or current.

The application of switches ranges from simple household appliances to complex industrial control systems. Their role is vital to allow precise management of current flow, ensuring controlled operation and safety of electronic devices. Understanding switch functionality is paramount for design and maintenance of electrical and electronic circuits.

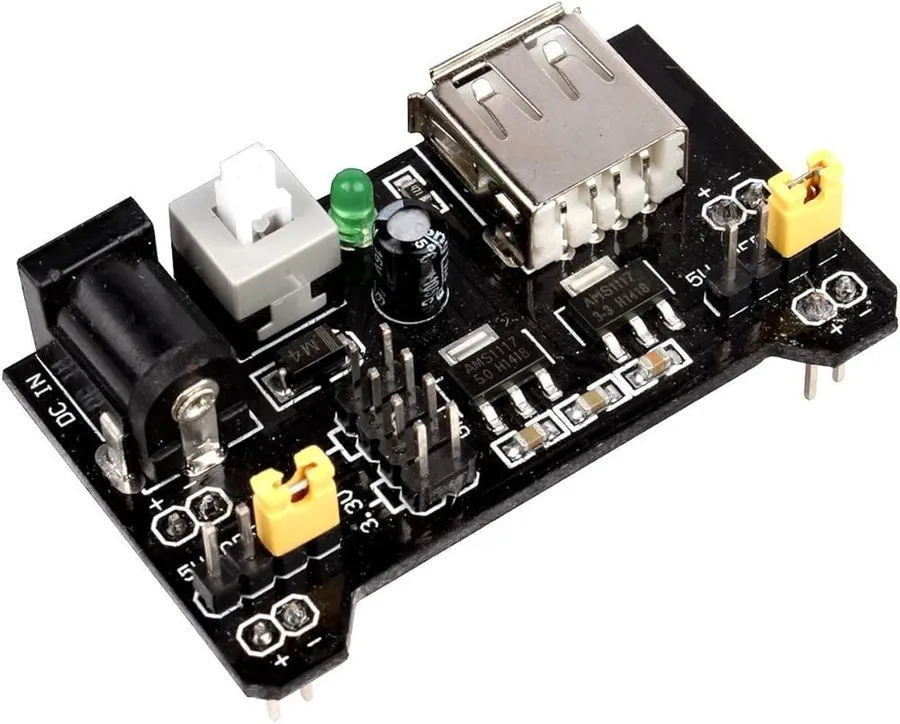

Power Sources and Signal Generators: Essential Circuit Drivers

Power sources and signal generators are fundamental to the operation of any electronic circuit, providing the necessary energy and control signals for components to function correctly. Power sources provide the energy required for the circuit to operate, while signal generators provide the waveforms that carry information or control the behavior of the circuit.

Power sources can be broadly categorized into several types: Batteries convert chemical energy into electrical energy. DC power supplies transform AC mains power into stable DC voltages and currents. Solar cells directly convert light energy into electrical energy. Each type serves a different application depending on circuit needs. Signal generators create electrical waveforms that are used to test circuits or operate as control signals. Types of signal generators include Function Generators which produce basic waveforms, Arbitrary Waveform Generators (AWG) which can generate complex waveforms, and Oscillators which generate periodic signals with a specific frequency.

• DC Power Fundamentals
  Direct current (DC) is the unidirectional flow of electric charge. The voltage and current are constant over time in ideal DC supplies. Common DC power sources include batteries and regulated power supplies, with applications ranging from portable devices to industrial control systems. Understanding voltage, current, and power in DC circuits is essential. Power (P) in a DC circuit is calculated as P = V * I, where V is the voltage and I is the current. The total energy that a DC supply can output is a crucial design consideration.
• AC Power Fundamentals
  Alternating current (AC) is the bidirectional flow of electric charge, where current and voltage periodically change direction. AC power is the prevalent form of electricity delivered by national power grids. The key parameters for AC power are voltage (V), current (I), frequency (f), and phase (φ). AC power systems use RMS (Root Mean Square) values for voltage and current, which correspond to the effective DC equivalents. In AC circuits, power is calculated as P = Vrms * Irms * cos(φ) with cos(φ) representing power factor. Transformers are a key AC component used to step up or step down voltage.
• Signal Generator Waveforms
  Signal generators are versatile tools used to generate electrical signals for testing, characterizing, and operating circuits. Common waveforms generated are Sine waves used in frequency analysis, square waves which provide digital signals, triangular waves used in linear system testing and pulse waves where duty cycle is critical to analysis. Parameters such as frequency, amplitude, and duty cycle are controlled by the generator and vary depending on the requirements of the circuits they are driving. An important consideration is that any signal generator needs to be calibrated accurately to provide accurate analysis and testing of the electronic components in use.

Frequently Asked Questions (FAQs) about Electronic Components

This section addresses common questions about electronic components, providing clear and concise answers to enhance understanding of these essential elements of electronic circuits.

• How many different types of electronic components are there?
  The number of electronic component types is vast and continually evolving with technological advancements. While it's impossible to give an exact figure, they can be broadly categorized into active components (like transistors and ICs), passive components (like resistors, capacitors, and inductors), electromechanical components (like switches and relays), and interconnect components. Each category contains numerous sub-types, leading to thousands of distinct component variations, each with unique properties and applications. Furthermore, new custom components are created and modified to suit the use case, so the answer to this question is constantly changing.
• What are the 5 basic electrical components?
  The five fundamental passive electrical components are: resistors, which limit current flow; capacitors, which store electrical energy; inductors, which store energy in a magnetic field; diodes, which allow current to flow in one direction only; and switches which can be used to open and close circuit connections.
• What are the most commonly used electronic components?
  Among the most frequently used electronic components are resistors, capacitors, diodes, transistors, and integrated circuits (ICs). These components form the bedrock of most electronic devices, from simple circuits to complex systems. Resistors manage current, capacitors store energy, diodes control current direction, transistors amplify and switch signals, and ICs perform complex functions in a tiny package. The pervasiveness of these components across various applications underscores their importance in electronics.
• What do electronic components typically consist of?
  Electronic components are fabricated from a wide array of materials, each chosen for specific electrical, thermal, and mechanical properties. Common elements include semiconductors (like silicon and germanium for transistors and ICs), conductors (like copper and silver for wires and connectors), insulators (like ceramics and polymers for circuit boards), and magnetic materials (like ferrite for inductors). The combination and arrangement of these materials dictate a component's behavior and performance within an electronic circuit.
• What is the difference between an active and a passive component?
  Active components are those that can control the flow of electrical current and exhibit gain, such as transistors and integrated circuits (ICs). They require a power source to function. Passive components, on the other hand, do not require a power source and cannot amplify or control the flow of current on their own. Examples include resistors, capacitors, and inductors. They modify the existing electrical signals rather than adding energy or controlling the signals directly.
• What is an integrated circuit (IC), and what are its benefits?
  An integrated circuit (IC), often referred to as a microchip or chip, is a miniature electronic circuit containing numerous components (transistors, resistors, capacitors) on a single piece of semiconductor material. ICs offer significant benefits, including reduced size, lower cost, improved reliability, higher performance, and lower power consumption compared to circuits built from discrete components. This makes them essential for miniaturizing and enhancing the capabilities of modern electronics.

From the foundational resistors and capacitors to the advanced transistors and integrated circuits, all electronic components work harmoniously to drive the devices we use daily. Understanding the function of each component, be it an inductor storing energy or a diode directing current, is vital to appreciating the complex systems that shape our world. By continuously learning about the ever-evolving landscape of electronics, we empower ourselves to be active participants in the age of technology and innovation. This guide provides a foundation for your journey into the world of electronics, encouraging you to explore further and deepen your knowledge of these essential building blocks.
