Electric Condensers: Understanding Their Role and Types

The electric condenser, also known as a capacitor, is a fundamental component in modern electronics. Much like a small, rechargeable battery, it stores electrical energy. From powering your smartphone to stabilizing energy grids, the principle of the electric condenser is crucial in numerous applications of social science and technology, forming the backbone of our technological world. This article will delve into the world of electric condensers, demystifying its functions, types, and importance.

The Basic Principle: What is an Electric Condenser?

An electric condenser, fundamentally known as a capacitor in electronics, is a passive two-terminal electrical component designed to store electrical energy electrostatically in an electric field. This storage is achieved by accumulating electric charges on two conductive plates or surfaces, separated by a dielectric material or insulator. The condenser's ability to store charge is quantified by its capacitance, measured in Farads.

The primary function of an electric condenser is to temporarily store electrical energy, unlike batteries that store and convert chemical energy. This makes them ideal for applications needing quick energy release or charge filtering.

Capacitor vs. Condenser: Are They Different?

In the realm of electronics, the terms 'capacitor' and 'condenser' are essentially synonymous, both referring to a passive two-terminal electrical component used to store energy electrostatically in an electric field. However, the term 'condenser' may also describe components with different functionalities in other scientific and engineering fields, particularly concerning thermodynamic processes where it signifies a device that converts a substance from a gaseous to a liquid state, such as in refrigeration or power generation.

Key Characteristics of Electric Condensers (Capacitors)

Electric condensers, also known as capacitors, are characterized by their ability to store electrical energy in an electric field. Understanding their key characteristics is critical for their effective use in electrical circuits. These characteristics primarily revolve around capacitance, voltage rating, and the dielectric material used.

Types of Electric Condensers: Exploring the Variety

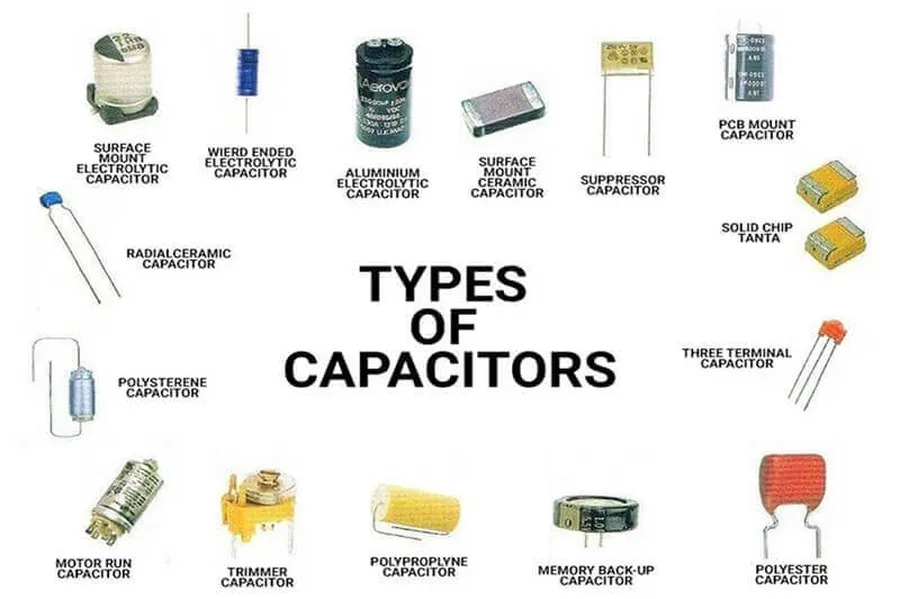

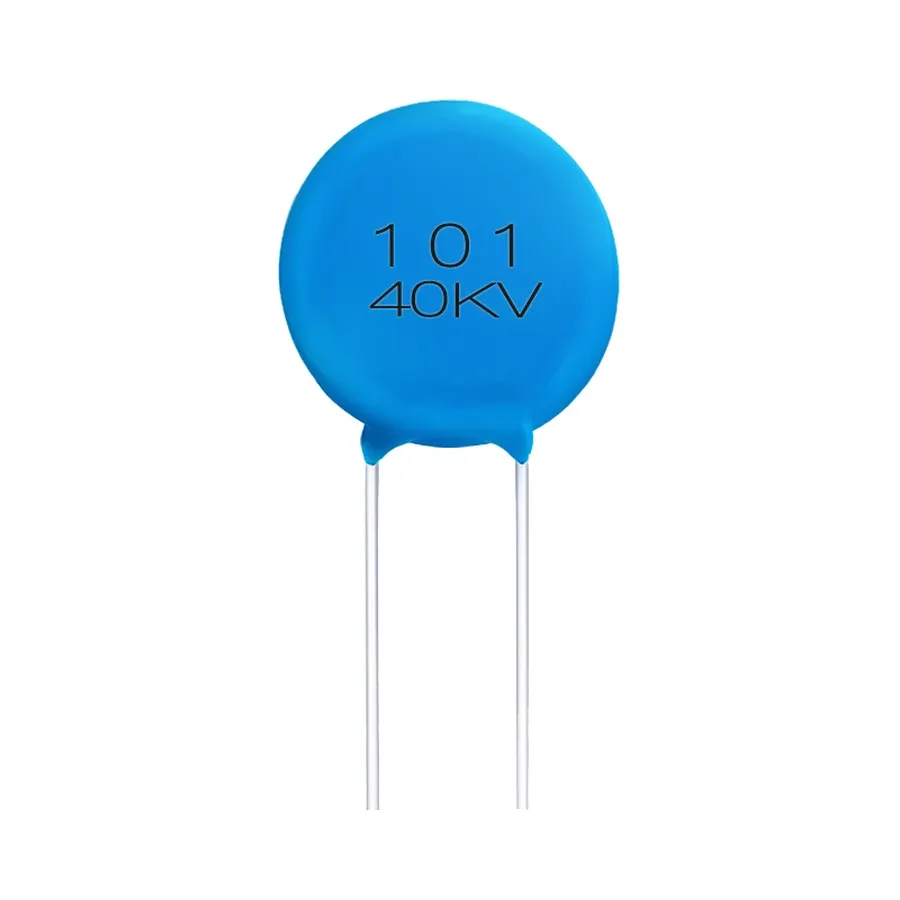

Electric condensers, commonly known as capacitors, exhibit a wide array of types, each engineered to meet specific application requirements across diverse fields. These variations arise from differences in materials and construction, directly influencing their electrical characteristics and performance.

The Function of Condensers in Electrical Circuits

Electric condensers, or capacitors, serve multifaceted roles within electrical circuits, functioning beyond simple energy storage. They are crucial for manipulating electrical signals, managing power flow, and ensuring the stable operation of electronic devices. Their ability to store and release electrical energy, filter frequencies, and couple AC signals makes them indispensable in modern electronics.

• Energy Storage
  Capacitors store electrical energy in an electric field created between two conductive plates. This stored energy can be quickly released to power a circuit during brief power fluctuations or for specific pulsed applications. Unlike batteries, capacitors charge and discharge rapidly, making them ideal for short-term energy storage.
• Filtering
  Capacitors are employed as filters in electrical circuits due to their frequency-dependent impedance. They exhibit high impedance to low-frequency signals (DC) and low impedance to high-frequency signals (AC). This characteristic allows them to block DC components while passing AC signals or vice versa, used to reduce noise and isolate different frequency bands.
• Smoothing
  In power supplies, capacitors are used to smooth out voltage fluctuations or ripples. They help to stabilize the output voltage by charging during high voltage periods and discharging when the voltage drops. This ensures a steady, reliable power supply to sensitive electronic components.
• Signal Coupling
  Capacitors can be used to couple alternating current (AC) signals from one circuit stage to another while blocking direct current (DC) components. This is crucial in multi-stage circuits to prevent unwanted DC bias from affecting the operation of subsequent stages. The AC signal can pass through the capacitor, while the DC signal is blocked.
• Tuning
  In resonant circuits, such as radio tuners, capacitors are combined with inductors to select a specific frequency. By varying the capacitance, it's possible to tune into different frequencies, for example, a specific radio station. This forms a fundamental concept for frequency-selective applications.

Synchronous Condensers: Power Factor Correction

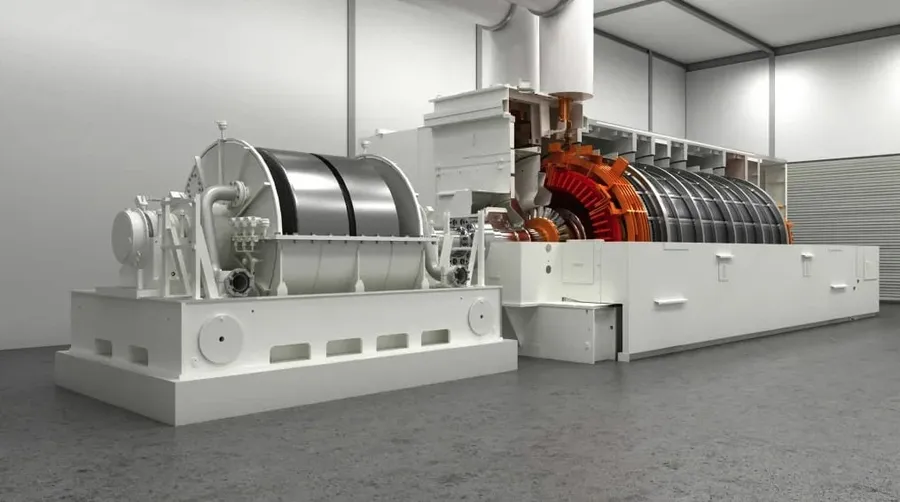

Synchronous condensers, unlike their static capacitor counterparts, are not passive components; they are essentially synchronous motors operating without a mechanical load, used primarily for power factor correction and voltage support in electrical grids. These rotating machines play a critical role in maintaining the efficiency and stability of power systems.

A synchronous condenser’s ability to generate or absorb reactive power dynamically allows it to actively manage the power factor and support voltage levels during fluctuations in the grid. This dynamic behavior is a key differentiator from static capacitors, which provide a fixed amount of reactive power compensation.

The operational principle of synchronous condensers is derived from the nature of synchronous motors. By controlling the field excitation, these machines can be made to either supply leading reactive power (capacitive behavior) or absorb lagging reactive power (inductive behavior). This control is essential for balancing reactive power demands, preventing voltage collapse, and enhancing overall power system stability.

Electric Condensers in Everyday Applications

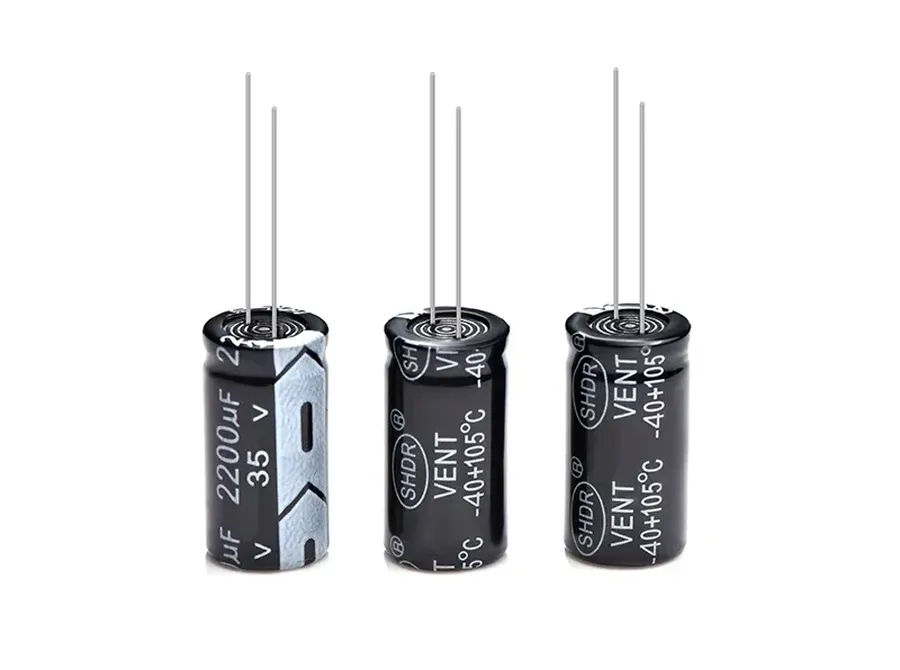

Electric condensers, often referred to as capacitors, are fundamental components in a vast array of modern electronic devices, quietly enabling the functionality we often take for granted. These devices, though small, perform crucial functions in nearly every electronic system, from portable devices to large-scale industrial equipment.

• Smartphones and Mobile Devices
  In smartphones, capacitors are indispensable for power management, filtering, and signal processing. They smooth out the power supply, ensuring stable operation for the processor, display, and other components. Capacitors also play a key role in audio filtering and signal transmission in RF circuits.
• Computers and Laptops
  Computers rely heavily on capacitors for similar reasons as smartphones, primarily for power supply stabilization and noise reduction. They can be found in the motherboard, power supply unit, and various peripheral interfaces to ensure proper performance and system stability. Capacitors are also used in memory circuits for timing and data storage.
• Home Appliances
  Many household appliances, such as refrigerators, washing machines, and microwave ovens, employ capacitors in their control and power circuits. They are used for motor starting, power factor correction, and noise suppression. For example, in a refrigerator, a capacitor is often used to provide the initial torque to start the compressor motor.
• Industrial Machinery
  In industrial environments, capacitors are used in a variety of applications. They are utilized in power converters, motor drives, and control systems for energy storage, filtering, and power factor correction. These applications require robust capacitors with higher voltage ratings and current handling capabilities. They play critical roles in ensuring the reliable operation of machinery in demanding environments.
• Automotive Systems
  Modern vehicles integrate numerous electronic systems that heavily utilize capacitors. From engine control units (ECUs) to infotainment systems and anti-lock braking systems (ABS), capacitors are essential for power delivery, signal conditioning, and noise filtering. The increasing number of electronic components in automobiles highlights their importance to vehicle safety and performance.
• Renewable Energy Systems
  Capacitors are key components in solar energy inverters, wind turbine controllers, and energy storage systems. They are used to smooth out fluctuating power from solar panels and wind turbines. Additionally, high capacitance capacitors are important for energy storage, such as in supercapacitor-based energy storage systems, which enhance the efficiency and stability of renewable power infrastructure.

Electric Condenser Diagrams and Symbols

Accurate interpretation of circuit diagrams necessitates familiarity with the standard symbols used to represent electric condensers (capacitors). These symbols provide a universal language for engineers and technicians to understand circuit designs without ambiguity, facilitating effective communication and collaboration in electrical and electronic engineering.

• Basic Capacitor Symbol
  The most common symbol for a capacitor consists of two parallel lines of equal length, often depicted as straight lines, occasionally with a slightly curved line representing a polarized capacitor. This symbol denotes a device storing charge. A curved line signifies the polarity of electrolytic capacitors
• Polarized Capacitor Symbol

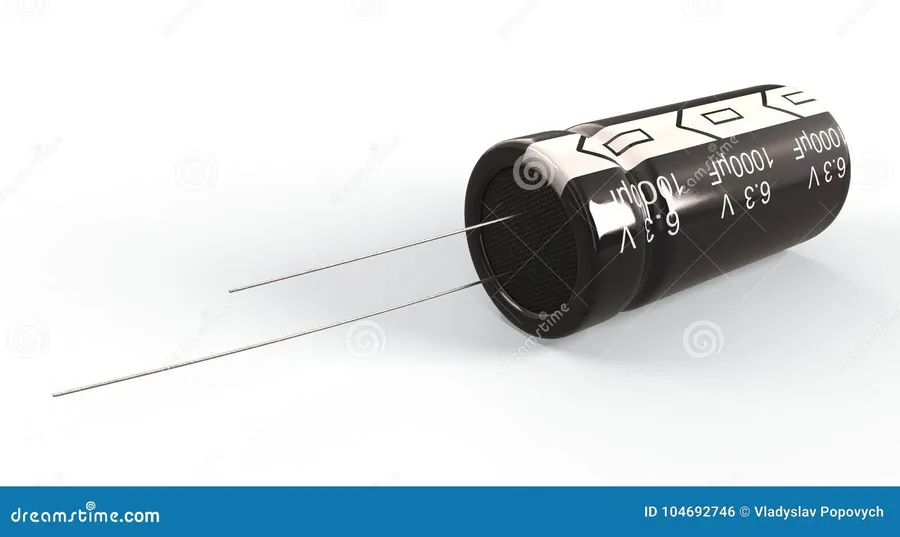

  Electrolytic capacitors, which have a defined polarity, are represented with one of the parallel lines curved, often accompanied by a '+' symbol next to the positive terminal, this distinction is crucial to prevent damage or misoperation of the circuit.
• Variable Capacitor Symbol
  Variable capacitors, are represented with the standard capacitor symbol crossed with an arrow indicating that its capacitance can be adjusted.
• Symbol Variations
  While the basic symbols are standardized, slight variations may appear in older schematics or those from different geographical regions. However, the core meaning remains consistent.

Frequently Asked Questions About Electric Condensers (Capacitors)

This section addresses common questions regarding electric condensers, often referred to as capacitors, their operational characteristics, and their diverse applications across various industries. Understanding these frequently asked questions is crucial for both novice and experienced professionals working with electronic circuits and systems.

• What is the fundamental difference between a condenser and a capacitor?
  The terms 'condenser' and 'capacitor' are often used synonymously, especially in electronics. However, the term 'condenser' has broader applications. In the context of electronics, they refer to the same component—a passive two-terminal electrical component used to store electrical energy electrostatically in an electric field. However, in other fields, like refrigeration or power generation, a condenser is a device that converts a substance from its gaseous to its liquid state.
• What is the role of a condenser in an electric field?
  Within an electric field, a condenser (capacitor) acts as a temporary storage unit for electrical energy. It achieves this by accumulating electrical charges on its conductive plates when a voltage is applied. This stored energy can then be released back into the circuit. The amount of energy it can store is determined by its capacitance.
• How does a capacitor function in an electrical circuit?
  A capacitor's primary function in a circuit is to store and release electrical energy. It can block DC (direct current) while allowing AC (alternating current) to pass. This property makes capacitors vital in various circuits for filtering, smoothing, coupling, and timing applications. Its behavior is dictated by the circuit's voltage and current.
• Why is a capacitor sometimes referred to as a condenser?
  The term 'condenser' historically predates 'capacitor.' The term was initially used because the device ‘condensed’ and stored charge. Although the term 'capacitor' is now preferred, particularly in electronic and electrical engineering, the term 'condenser' is still used. Often, they are interchangeable when discussed in electronics, but other contexts exist, such as condensers in refrigeration.
• What are the key parameters to consider when selecting a capacitor for a specific application?
  Key parameters include capacitance (measured in Farads), voltage rating (the maximum voltage it can withstand without damage), temperature coefficient (how much the capacitance changes with temperature), tolerance (how much variation in capacitance is acceptable), and the dielectric material, which affects the capacitor's performance characteristics and stability.
• How do synchronous condensers differ from traditional capacitors?
  Synchronous condensers are not passive components; they are synchronous motors operating without a mechanical load. They are primarily used in electrical power grids to adjust the power factor and enhance voltage stability. Unlike standard capacitors, they consume energy to deliver reactive power, acting as voltage support. Their capacity can be dynamically adjusted, whereas passive capacitors have fixed capacitance.
• Can a capacitor fail, and how do I identify a failing capacitor?
  Yes, capacitors can fail due to excessive voltage, temperature, or age. Signs of failure can include bulging, leaking, or changes in its capacitance or ESR (equivalent series resistance). Such failures can result in circuit malfunction or complete system failure. Regular inspection and testing of capacitors in critical applications is important.

The electric condenser, whether we call it a capacitor or another form, is a cornerstone of modern technology. Understanding its basic principles, types, and applications highlights its role in our daily lives. From the smallest circuit boards to the largest power grids, electric condensers facilitate the smooth and efficient operation of countless devices, driving innovation and development. Continuing to learn about and advance this technology is key to shaping our future.
