Essential Electric Circuit Parts: A Comprehensive Guide

In our technologically driven world, electric circuits are the unsung heroes, powering everything from our smartphones to our homes. These circuits rely on a variety of parts working in harmony. This article will illuminate the essential components of an electric circuit, explaining their functions and importance, and shedding light on how these seemingly simple elements drive our modern lives.

Power Source: The Heart of the Circuit

The power source is fundamental to any electric circuit, providing the necessary energy for electrons to flow and enabling the circuit to perform its intended function. These sources convert various forms of energy, such as chemical (batteries), mechanical (generators), or solar (photovoltaic cells), into electrical energy, which then drives the circuit's operation.

The choice of power source depends heavily on the specific application. For portable devices, batteries are often the best choice due to their compact size and DC output. In contrast, AC power supplies are utilized for larger appliances and devices needing higher voltages or currents. Understanding the specific characteristics of each power source, such as the voltage, current capacity, and stability, is essential for designing a reliable and effective electrical circuit.

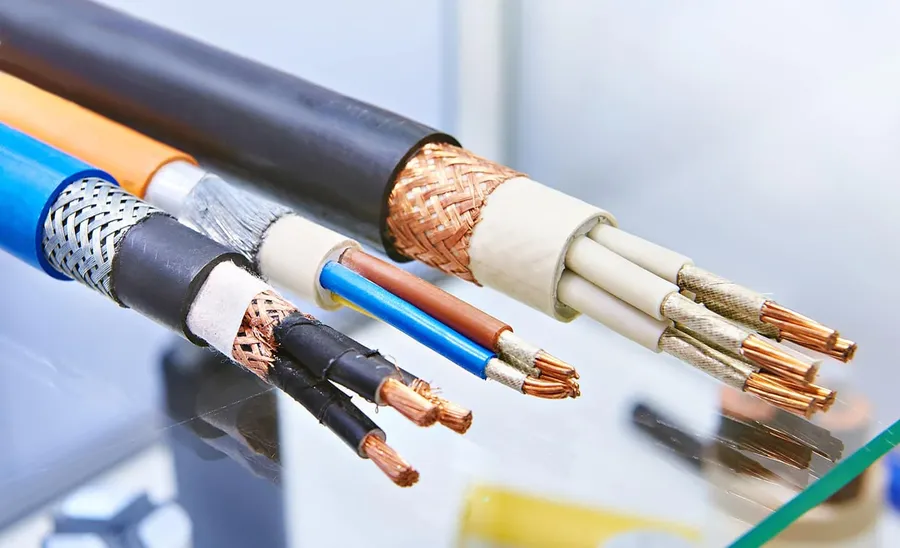

Conductors: The Pathways for Current

Conductors are essential components in electric circuits, providing the necessary pathways for electrical current to flow. Typically made of materials with high electrical conductivity, such as copper and aluminum, conductors facilitate the movement of electrons, enabling the circuit to function. Understanding the properties and specifications of conductors is critical for effective circuit design and performance.

The selection of conductive material, wire gauge, and insulation type are crucial design considerations. Copper is often chosen for its excellent conductivity, while aluminum provides a more lightweight alternative in specific applications. Proper gauge selection prevents overheating, and insulation protects against short circuits, contributing to circuit reliability and safety.

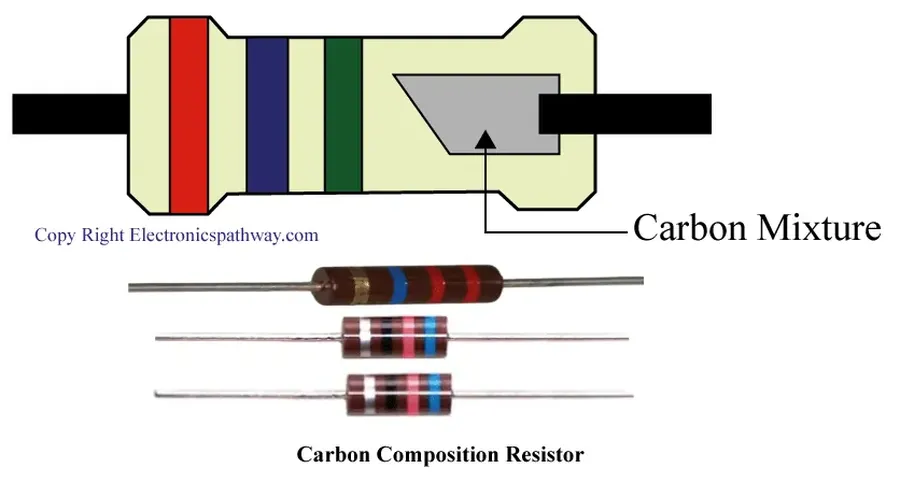

Resistors: Controlling the Current

Resistors are fundamental electric circuit parts that impede the flow of electrical current, playing a crucial role in controlling the behavior of electronic circuits. They achieve this by converting electrical energy into heat, a process that is essential for various applications, from preventing damage to delicate components to adjusting signal levels.

Understanding how resistors function is key to designing and analyzing circuits. This includes an appreciation of their different types, their properties, and their practical applications. Below, we will delve into these critical aspects.

Resistors come in various types, each with its specific characteristics and suitable applications:

• Fixed Resistors
  These are the most common type, having a constant resistance value. They are used in general-purpose applications to set current levels.
• Variable Resistors (Potentiometers)
  These allow the resistance to be manually adjusted, often used for volume control or to tune a circuit. They are characterized by having three terminals, allowing for the creation of a variable voltage divider.
• Trimmers
  Small variable resistors designed for infrequent adjustments during calibration of electronic devices. They require a screwdriver or similar tool for adjustment.
• Thermistors
  Their resistance changes significantly with temperature and are used in thermal control and sensing circuits.
• Photoresistors (LDRs)
  Their resistance changes based on light intensity and is applied in light-sensing circuits such as automatic lighting systems.

Resistors are crucial components in a wide range of applications, including:

• Current Limiting
  Protecting components from damage due to excessive current.
• Voltage Division
  Creating specific voltage levels from a source voltage.
• Signal Attenuation
  Reducing the amplitude of a signal in circuits.
• Biasing Transistors
  Setting the operating point of a transistor, important for amplification and switching circuits.

The resistance value of a fixed resistor is often indicated through a color code printed on its body. Each color corresponds to a numerical value, and these values are used in a specific sequence to calculate the total resistance and the tolerance of the component. It is important to understand this code to choose the correct resistor in different circuit designs.

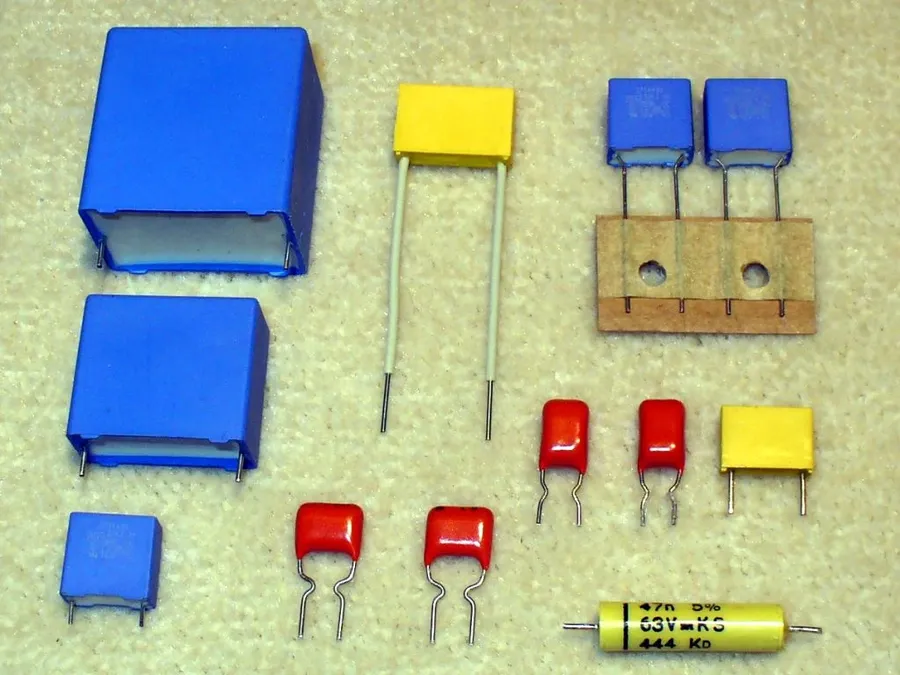

Capacitors: Storing Electrical Energy

Capacitors are essential passive electronic components designed to store electrical energy in an electric field. They are fundamental in various circuits for energy storage, filtering, timing, and decoupling, acting like temporary batteries by accumulating charge and releasing it when needed. This ability to store and release energy makes them indispensable for smoothing voltage fluctuations, preventing signal interference, and establishing time-dependent circuit behaviors.

Capacitance, measured in farads (F), indicates a capacitor's ability to store charge. Common sub-units include microfarads (µF), nanofarads (nF), and picofarads (pF). The stored energy (E) within a capacitor can be calculated using the formula: E = 0.5 * C * V^2, where C represents capacitance and V represents the voltage across the capacitor.

• Filtering
  Capacitors are used in filters to block or pass certain frequencies, smoothing out voltage variations and signal noise. This is done by using a capacitor's property of blocking DC and allowing AC to pass through.
• Timing
  In timing circuits, capacitors are used in conjunction with resistors to create time delays or oscillating signals. The charging and discharging characteristics of the capacitor provide the basis for these time delays and oscillations.
• Decoupling
  Capacitors are used to decouple electronic components by providing local energy storage. This helps to ensure a stable supply voltage and prevent voltage dips when current demands change.
• Energy Storage
  Capacitors can store electrical energy temporarily and release it rapidly, acting as a short-term energy storage device. However, they typically store less energy than batteries of a similar size.

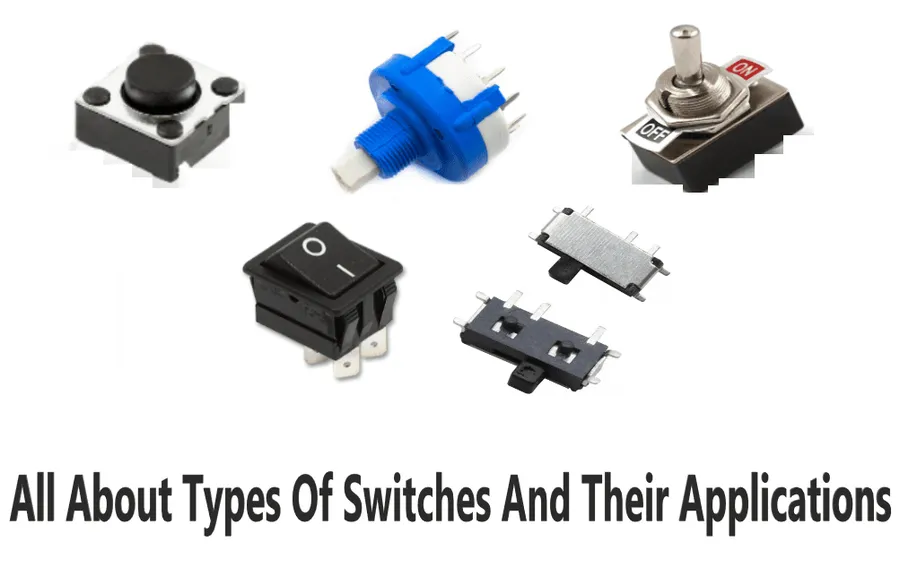

Switches: Controlling Circuit Flow

Switches are fundamental components in electric circuits, acting as gatekeepers that control the flow of electrical current by selectively opening or closing the circuit path. These devices enable us to control the operation of electrical devices and systems. This section will delve into various types of switches and their applications.

The core functionality of any switch is to provide a means to interrupt or complete a circuit. In the 'off' state, the switch creates an open circuit, preventing current flow. Conversely, in the 'on' state, it creates a closed circuit, allowing current to pass through. This simple on/off mechanism forms the basis for all switch operations.

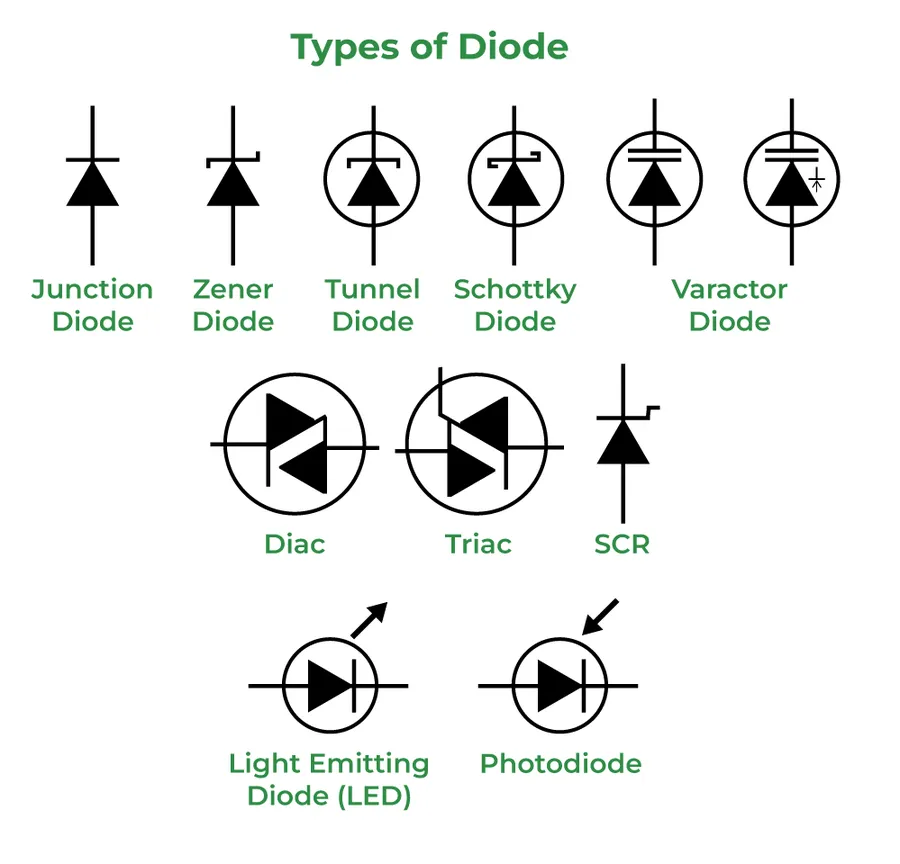

Diodes: Allowing One-Way Current Flow

Diodes are semiconductor devices that function as one-way valves for electrical current, exhibiting a unique property of allowing current to flow predominantly in one direction while significantly restricting it in the opposite direction. This characteristic is fundamental to many electronic circuits and applications, primarily where directional control of current is required.

The behavior of a diode is governed by its junction, which forms when two different types of semiconductor material (p-type and n-type) are joined. When a positive voltage is applied to the anode (p-type side) and a negative voltage to the cathode (n-type side), the diode is said to be in 'forward bias,' allowing current to flow with minimal resistance. Conversely, when the polarity is reversed, placing the diode in 'reverse bias,' the diode impedes current flow, exhibiting high resistance.

Diodes are instrumental in rectification, a process that converts alternating current (AC) to direct current (DC). Rectifiers, built using diodes, are fundamental in power supplies, enabling electronic devices to operate on DC power converted from AC sources. Furthermore, diodes play crucial roles in voltage regulation, signal processing, and protection circuits, showcasing their versatile applicability.

• Rectification
  Diodes are fundamental in converting AC to DC in power supplies.
• Signal Demodulation
  Diodes enable the recovery of information from modulated signals.
• Overvoltage Protection
  Zener diodes can shunt current to protect circuits from overvoltage situations.

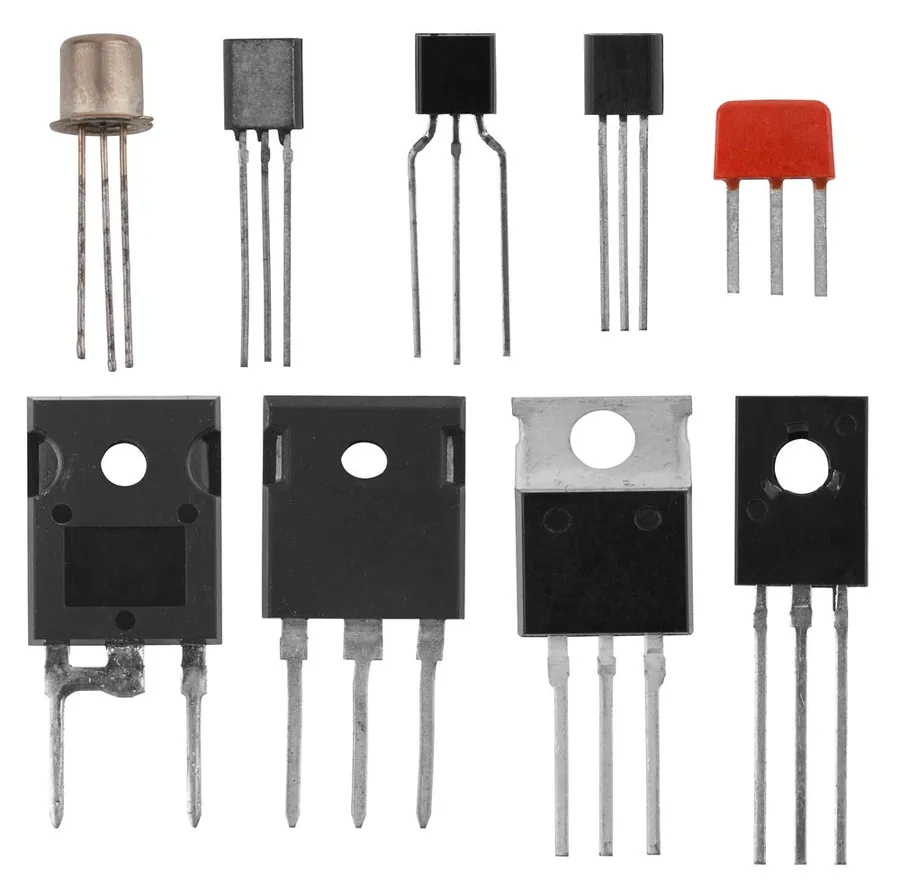

Transistors: Amplifying and Switching

Transistors are fundamental semiconductor devices that act as electronic switches and amplifiers, forming the cornerstone of modern electronics. Their ability to control and manipulate electrical signals has revolutionized technology, enabling the development of complex circuits and systems.

At their core, transistors regulate the flow of electrical current, allowing them to perform two primary functions: switching and amplification. As switches, they control the activation and deactivation of circuit components. As amplifiers, they increase the magnitude of electrical signals, facilitating signal processing and transmission.

There are two primary categories of transistors, each with unique characteristics and applications:

• Bipolar Junction Transistors (BJTs):
  BJTs are current-controlled devices, meaning that a current applied to the base terminal regulates the current flowing between the collector and emitter terminals. They are available in NPN and PNP configurations, each with unique biasing requirements. BJTs are commonly used in amplifier and switching applications where large current gains are needed.
• Field-Effect Transistors (FETs):
  FETs are voltage-controlled devices, where the voltage applied to the gate terminal controls the current flow between the source and drain terminals. FETs come in several varieties, including JFETs and MOSFETs, and can be either N-channel or P-channel. FETs are popular in low-power applications and for constructing integrated circuits due to their high input impedance.

The choice between BJTs and FETs depends on the specific application and design constraints. BJTs are often preferred in applications requiring high current gain, while FETs are more suitable for low-power or high-impedance circuits. Understanding the fundamental functionality of these devices is crucial for anyone working in electronics.

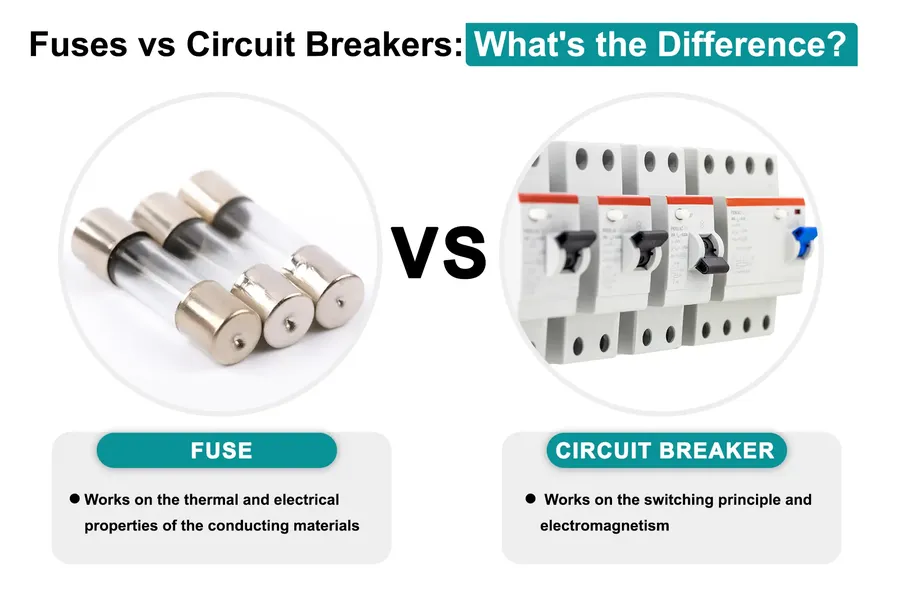

Fuses and Circuit Breakers: Safety Mechanisms

Fuses and circuit breakers are crucial safety devices in electrical circuits, designed to prevent damage from overcurrents. They act as protective mechanisms, interrupting the circuit when current exceeds a safe level, thus safeguarding components and preventing potential fire hazards.

Proper selection of fuses and circuit breakers is critical for circuit protection. Fuses are rated based on the amount of current they can handle before melting and breaking the circuit. Circuit breakers are rated based on the current they can carry and the tripping current, the current at which they will interrupt the circuit. Selecting the correct rating for the circuit's requirements is essential for reliable protection, a slightly higher rating than necessary can prevent nuisance tripping, while a much higher rating compromises the protection. Incorrectly sized protection devices can either render the protection useless or result in a catastrophic failure or fire.

Frequently Asked Questions About Electric Circuit Parts

This section addresses common questions regarding electric circuit components, offering detailed explanations to enhance understanding. These questions cover the fundamental building blocks and their roles within electrical systems.

• What are the fundamental parts of an electric circuit?
  An electric circuit fundamentally comprises a power source, conductors, and a load. The power source, such as a battery or AC supply, provides the energy. Conductors, typically wires, allow the electrical current to flow. The load, like a light bulb or resistor, utilizes the electrical energy to perform work. Essential supporting parts often include switches for controlling flow and protective devices like fuses or circuit breakers.
• What are the five basic components commonly found in electronic circuits?
  While the exact 'five basic' components can vary slightly depending on the context, a common grouping includes: (1) Power Source (battery or power supply), (2) Conductors (wires), (3) Resistors (to control current), (4) Capacitors (to store charge), and (5) Switches (to control circuit flow). This selection highlights components fundamental to a wide array of circuits.
• What are the key differences between a fuse and a circuit breaker?
  Both fuses and circuit breakers are safety devices, but they operate differently. A fuse contains a wire that melts and breaks the circuit during an overcurrent. It is a one-time-use device. A circuit breaker, on the other hand, uses a mechanical switch that can be reset after tripping due to an overcurrent. Circuit breakers are reusable, while fuses need replacement after activation.
• How does a diode function in an electrical circuit?
  A diode acts like a one-way valve for electrical current. It allows current to flow easily in one direction (forward bias) and blocks current flow in the opposite direction (reverse bias). This behavior is crucial for tasks like converting AC to DC (rectification) and preventing reverse currents from damaging sensitive components.
• What is the role of a transistor in modern electronics?
  Transistors are fundamental semiconductor devices that serve as both electronic switches and amplifiers. As a switch, a transistor can rapidly and efficiently control the flow of current. As an amplifier, it boosts the strength of electrical signals. Their small size, low power consumption, and speed have enabled complex electronic circuits in virtually all modern devices.
• What is the purpose of a capacitor in an electrical circuit?
  Capacitors are designed to store electrical energy in an electric field. They are used for various purposes, such as filtering unwanted frequencies in circuits, smoothing out voltage fluctuations, and storing energy temporarily for timing circuits. Their capacity is measured in Farads, and different capacitor types (ceramic, electrolytic) are selected based on the desired function within a circuit.
• Why are resistors necessary in electric circuits?
  Resistors are crucial for limiting current flow in a circuit, preventing overloads that could damage sensitive components. They also play a role in voltage division, enabling the design of circuits with specific operating parameters. The resistance value, measured in ohms, is selected based on the circuit's design and the function it needs to perform.

Understanding the various electric circuit parts is crucial to comprehending how electronic devices operate. From the power source to the load, each component plays a vital role in enabling the flow of electrical current. As technology advances, these fundamental building blocks remain essential, shaping how we interact with the electronic world. By understanding these parts and their functions, we gain a deeper appreciation for the complexities and simplicities of the electrical systems all around us. We can only anticipate greater advancement in technology with a deeper understanding of the role of each circuit part.
