Essential Guide to Electronic Devices and Circuits

In our daily lives, electronic devices are ubiquitous, from smartphones to sophisticated medical equipment. At the heart of every electronic device lies an intricate network of circuits, enabling these devices to perform diverse functions. This article explores the core concepts of electronic devices and circuits, illuminating how these fundamental building blocks power the technology shaping our world. Understanding the basic principles not only enhances our comprehension of how technology works, but also provides a foundation for the advancements that continue to shape our society.

Fundamentals of Electronic Devices

Electronic devices are the fundamental building blocks of all electronic systems, categorized primarily into active and passive components. Active devices, such as transistors and diodes, control current flow and perform amplification or switching, while passive components, including resistors, capacitors, and inductors, manage energy storage and impedance within the circuit. Understanding their individual characteristics and interactions is crucial to analyzing and designing complex electronic systems.

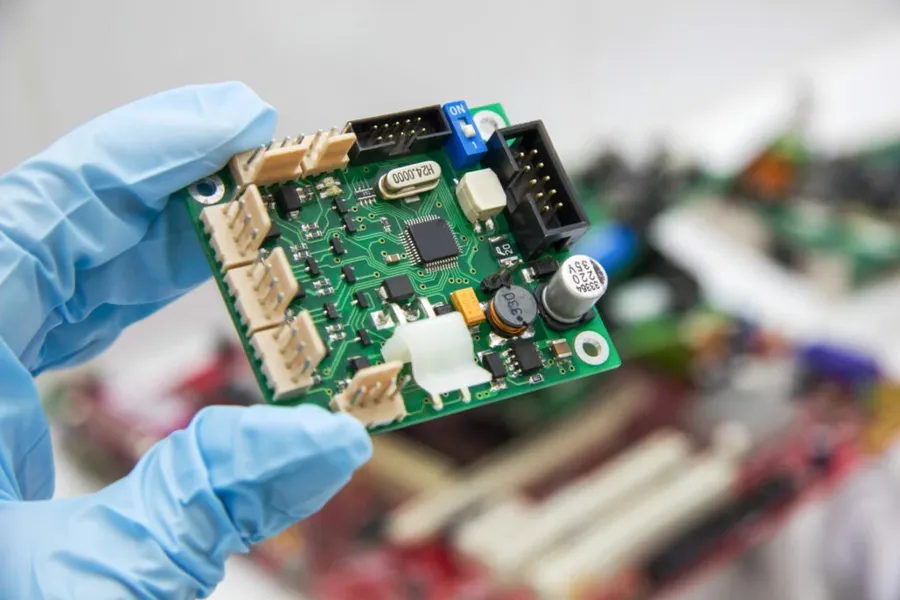

Understanding Electronic Circuits

Electronic circuits are the pathways that facilitate the flow of electrical current, enabling the performance of various functions. These circuits are constructed using a combination of electronic components, each with distinct properties that contribute to the overall behavior of the circuit. Understanding the fundamental components and their interactions is crucial for designing and analyzing electronic systems.

The primary building blocks of electronic circuits include passive components like resistors, capacitors, and inductors. Resistors impede current flow, converting electrical energy into heat, while capacitors store electrical energy in an electric field, and inductors store energy in a magnetic field. These components exhibit unique behaviors when subjected to different circuit conditions such as AC and DC signals which influences circuit performance. This section examines how these components and their configurations determine the functionality of electronic circuits, forming the basis for more complex electronic systems.

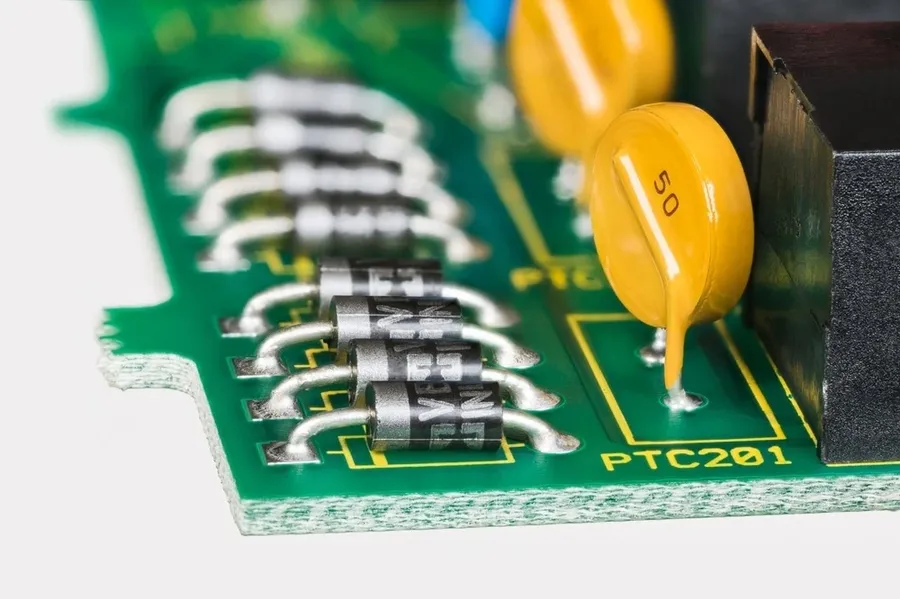

Semiconductor Diodes and Their Applications

Semiconductor diodes are fundamental two-terminal electronic components that exhibit a unique asymmetrical current-voltage characteristic, allowing current to flow primarily in one direction. This characteristic stems from their construction, typically involving a p-n junction formed by joining p-type and n-type semiconductor materials, enabling them to serve as rectifiers, signal modulators, and in various other critical electronic functions.

• Rectification
  Diodes are extensively used in rectifier circuits to convert alternating current (AC) to direct current (DC), fundamental for many electronic devices.
• Signal Processing
  In signal processing, diodes are used as clippers and clampers to modify the shape and level of signals, protecting circuits and performing waveshaping operations.
• Voltage Regulation
  Zener diodes are specifically designed to operate in the reverse bias breakdown region and are utilized in voltage regulation circuits, providing stable reference voltages.
• Logic Gates
  Certain types of diodes are also used as part of logic gates in digital circuits.
• Light Emission
  Light-emitting diodes (LEDs) are a type of diode that emit light when current passes through, used in displays and lighting.

Transistors: The Building Blocks of Modern Electronics

Transistors are fundamental active components in modern electronics, acting as the cornerstone for amplification and switching functionalities. They are essential in both analog and digital circuits, enabling complex signal processing and computational operations. This section will explore the diverse types of transistors, focusing on Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs), alongside their pivotal applications in contemporary electronic systems.

BJTs are current-controlled devices, where a small current at the base terminal controls a larger current between the collector and emitter. FETs, conversely, are voltage-controlled devices, where the gate voltage modulates the current between the source and drain terminals. This difference in control mechanisms leads to distinct performance characteristics and suitability for various applications. Within FETs, MOSFETs, are particularly prominent due to their high input impedance and compatibility with digital integrated circuits.

• Amplification:
  Transistors amplify weak electrical signals into stronger ones, forming the backbone of audio amplifiers, radio frequency circuits, and instrumentation amplifiers. By leveraging their ability to control a large output signal with a smaller input signal, they allow for signal boosting without significant loss of signal integrity.
• Switching:
  Transistors act as rapid, efficient switches, allowing the creation of digital logic circuits for computers and microcontrollers. These switches can be rapidly turned on and off, allowing for high-speed digital processing, enabling computation and control in electronic devices.
• Digital Logic:
  Transistors are essential in constructing logic gates such as AND, OR, and NOT gates, which form the foundation of all digital systems. By combining these logic gates, complex digital functions can be achieved, enabling everything from basic logic circuits to sophisticated computing systems.

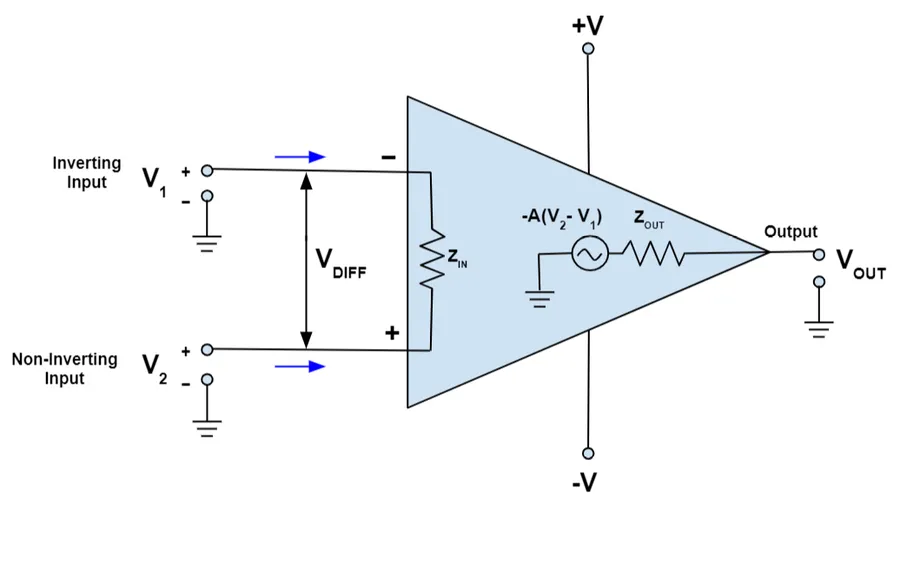

Operational Amplifiers (Op-Amps) in Circuit Design

Operational amplifiers, commonly known as op-amps, are fundamental building blocks in analog circuit design. These versatile devices are high-gain voltage amplifiers with differential inputs and a single-ended output, making them ideal for a wide array of applications including signal processing, filtering, and feedback control systems. Their ability to perform mathematical operations on analog signals is why they are a cornerstone of modern analog electronics.

Op-amps are frequently used in various circuit configurations that leverage negative feedback to establish stable, predictable functionality. These applications include, but are not limited to:

• Inverting and Non-Inverting Amplifiers
  Used to amplify signals with a gain determined by the ratio of external resistors. The inverting configuration introduces a 180-degree phase shift, while the non-inverting configuration does not.
• Summing Amplifiers
  Allows the summation of multiple input voltages, each scaled by their respective resistor ratios.
• Difference Amplifiers
  Amplifies the difference between two input voltages, rejecting any common-mode voltage. The basic operation of the difference amplifier is determined by the following equation Vout = A(V+ - V-). Where A is the gain, V+ is the non-inverting input, and V- is the inverting input
• Integrators and Differentiators
  Performs integration and differentiation on input signals, essential in signal shaping and control systems.
• Active Filters
  Using op-amps to create filters with higher accuracy and flexibility than passive filters, providing low-pass, high-pass, band-pass and band-stop configurations.
• Comparators
  Op-amps used in open loop configuration to compare two voltages. The output switches when one input is larger than the other.

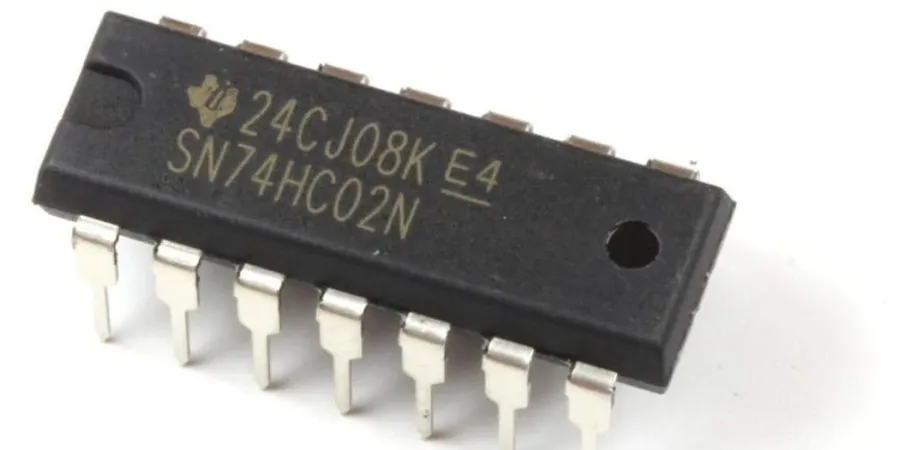

Digital Logic Gates and Integrated Circuits

Digital logic gates and integrated circuits (ICs) form the bedrock of modern digital electronics and computing. These fundamental building blocks manipulate binary signals (0s and 1s) to perform logical operations, enabling complex computational tasks. Understanding these components is crucial for anyone seeking to grasp the inner workings of digital systems.

Digital logic gates are elementary circuits that perform basic Boolean operations. The most fundamental gates include AND, OR, and NOT gates. More complex gates, such as NAND, NOR, XOR, and XNOR are derived from these basics.

Integrated circuits (ICs), commonly known as chips, contain a vast number of interconnected transistors, resistors, and other electronic components fabricated onto a single semiconductor substrate. This miniaturization allows for complex functionalities to be packaged into small, easily manageable components. ICs are categorized based on their integration scale, such as small-scale integration (SSI), medium-scale integration (MSI), large-scale integration (LSI), and very-large-scale integration (VLSI). VLSI is primarily used in modern microprocessors and memory units, while MSI and LSI ICs can form many important components such as timers, counters, and more.

• Combinational Logic Circuits
  These circuits produce outputs based solely on the current inputs (e.g., multiplexers, demultiplexers, encoders, decoders, adders, comparators)
• Sequential Logic Circuits
  These circuits include memory elements, with the current output being influenced by the current as well as past inputs (e.g., Flip-flops, latches, registers, counters)

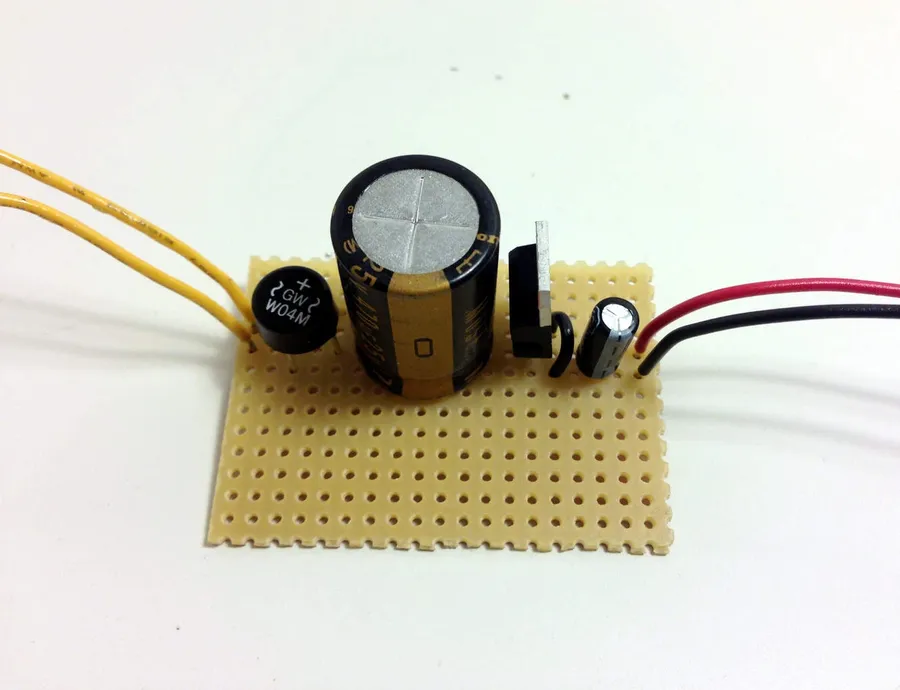

Power Supplies and Voltage Regulation

Stable and reliable DC power is paramount for the proper functioning of electronic circuits; this section explores the critical role of power supplies and voltage regulation techniques, including both linear and switching power supplies, in ensuring consistent circuit performance.

The primary function of a power supply is to convert the available electrical power (typically from the AC mains) into a stable DC voltage suitable for electronic circuits. Voltage regulation is the process of maintaining a constant output voltage despite variations in input voltage or load current. Without proper voltage regulation, electronic circuits may malfunction or become damaged.

Linear regulators, like the 78xx series, function by dissipating excess power as heat to maintain a constant output voltage. This method is simple and produces a clean, stable output but is inherently inefficient, particularly when the difference between the input and output voltage is large. In contrast, switching regulators, also known as switch-mode power supplies (SMPS), achieve voltage regulation by rapidly switching the input current and storing energy in inductors and capacitors. They are more complex but significantly more efficient, which is crucial in applications where power conservation is a concern. Switching regulators are classified into step-up (boost), step-down (buck), and inverting topologies depending on their output voltage relative to the input voltage.

Practical Applications of Electronic Devices and Circuits

Electronic devices and circuits are not abstract concepts confined to laboratories; they are the fundamental building blocks of a vast array of technologies that permeate modern life. This section explores their crucial roles across diverse sectors, demonstrating their real-world impact on consumer electronics, healthcare, and industrial automation.

• Consumer Electronics
  From smartphones and laptops to smartwatches and home appliances, electronic devices and circuits are integral. Microprocessors, memory chips, display drivers, and power management circuits work together to enable the functionality we rely on daily. For example, integrated circuits in smartphones manage communication, processing, and user interface functions, demonstrating the power of miniaturization and integration.
• Healthcare
  The healthcare sector is heavily reliant on electronic devices for diagnostics, monitoring, and treatment. Medical imaging devices like MRI and CT scanners employ sophisticated circuits and sensors. Patient monitoring systems, such as ECG machines and blood glucose monitors, depend on accurate signal processing and data acquisition. Implantable devices, such as pacemakers, use highly reliable and low-power electronic circuits to sustain life.
• Industrial Automation
  In industrial settings, electronic devices and circuits are the backbone of automation and control systems. Programmable Logic Controllers (PLCs) use digital logic and microcontrollers to manage manufacturing processes. Robotic arms and automated assembly lines incorporate motor control circuits, sensors, and feedback systems to achieve precision and efficiency. These systems reduce human error, increase output, and improve workplace safety.
• Telecommunications
  Modern telecommunications systems, from cellular networks to satellite communications, depend on advanced electronic circuits for signal transmission, processing, and routing. Transceivers in cell towers, fiber optic communication systems, and GPS devices all rely on carefully designed circuits to ensure reliable and efficient data transfer over vast distances.
• Automotive Industry
  Modern vehicles contain numerous electronic control units (ECUs) that manage everything from engine performance to safety systems like anti-lock braking (ABS) and electronic stability control (ESC). These systems rely on sensors, microcontrollers, and power electronics to achieve optimal vehicle performance and safety.

Frequently Asked Questions About Electronic Devices and Circuits

This section addresses common queries regarding electronic devices and circuits, clarifying the distinctions between devices and circuits, circuits and electronics, and the fundamental role circuits play in electrical systems. Understanding these differences is crucial for anyone delving into electronics.

• What are electronic devices and circuits?
  Electronic devices are individual components (like transistors, diodes, and resistors) that manipulate electrical signals. Electronic circuits, on the other hand, are networks of these devices interconnected to perform a specific function. Therefore, devices are the building blocks, and circuits are the structured arrangement of these blocks.
• What is the core difference between electronic devices and circuits?
  The primary difference lies in their scope and functionality. A device is a single unit with a defined electrical characteristic (e.g., a transistor amplifies current), while a circuit is a collection of interconnected devices designed to accomplish a specific task (e.g., an amplifier circuit amplifies a signal). Think of devices as the 'words' and circuits as the 'sentences' in electronics.
• How do electronic circuits differ from electronics in general?
  Electronics is the broad field encompassing the study and application of electronic devices and circuits. Electronic circuits are specific, tangible implementations within this field. Electronics as a discipline includes theory, design, and applications, while electronic circuits represent the physical instantiation of those design principles.
• What is the role of a circuit in electrical devices?
  A circuit provides the pathway for electrical current to flow and perform a desired function within an electrical device. Without a circuit, electrical energy would not be harnessed to power a device or manipulate signals. Circuits are essential for controlling and directing electrical power and signals, enabling the device to perform its intended operation.
• Are all electrical circuits also electronic circuits?
  No, not all electrical circuits are electronic circuits. Electrical circuits can be basic pathways for current, like in a simple light switch, involving only basic components and the direct flow of electricity. Electronic circuits, however, typically involve more complex active components like transistors and integrated circuits, that modify and control the electrical signal for more advanced functionalities.
• Can a single electronic device constitute a functional circuit?
  Generally, no. While some specialized components can perform circuit-like functions, a functional circuit needs multiple devices interconnected to create a closed loop for current to flow and perform specific tasks. A single transistor can be used to amplify, for example, it requires additional components for bias and input and output. The core definition of a circuit involves a network of components working together.

Electronic devices and circuits form the bedrock of modern technology, powering everything from the simplest gadgets to the most complex systems. Understanding the fundamental principles of these devices and their circuits is not just academic, but crucial for innovation. As we continue to push the boundaries of technology, a solid grasp of electronics will remain at the core of any technological advancement, making it vital for those who aspire to be at the forefront of the technological revolution. As circuits become more complex, understanding these fundamentals becomes even more critical for future technological development and application across all industries.
