Murata Capacitors: A Comprehensive Guide to Types, Applications, and Innovations

In our increasingly interconnected world, capacitors are indispensable components of electronic devices. Among the leading manufacturers, Murata stands out with its commitment to innovation and quality, especially in its line of capacitors. From the tiniest MLCCs powering wearables to high-frequency options in communication systems, Murata's capacitors are the unsung heroes that keep our technology running smoothly. This guide delves into the world of Murata capacitors, examining their various types, applications, and the technological advancements that make them critical components in modern electronics.

Understanding Murata's Capacitor Product Range

Murata stands as a leading manufacturer, providing a broad spectrum of capacitor technologies meticulously engineered to meet diverse application requirements. Their portfolio encompasses ceramic capacitors, polymer aluminum electrolytic capacitors, trimmer capacitors, single-layer microchip capacitors, and variable capacitors, each with unique performance characteristics.

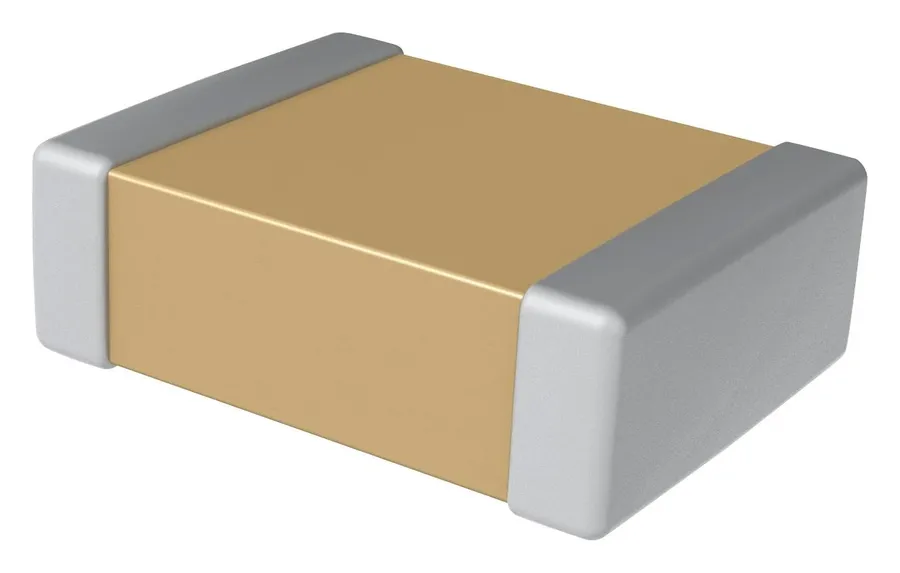

Multilayer Ceramic Capacitors (MLCCs): The Workhorse of Electronics

Multilayer Ceramic Capacitors (MLCCs) stand as the most prevalent type of capacitor manufactured by Murata, recognized for their compact dimensions, substantial capacitance, and dependable performance. These components are indispensable in a wide array of electronic devices, serving critical functions such as energy storage and noise suppression.

MLCCs are constructed by layering ceramic dielectric material between conductive electrodes. This structure creates multiple capacitors in parallel within a single package, thus achieving high capacitance within a small footprint.

Murata MLCCs are available in a variety of case sizes, capacitance values, voltage ratings, and temperature characteristics, ensuring suitability for diverse application requirements. The dielectric material used in the capacitors also varies, enabling specific performance characteristics such as temperature stability (X5R, X7R) and high capacitance (Y5V).

Common applications include:

• Mobile Devices
  Used for power management, signal filtering, and decoupling in smartphones and tablets.
• Home Appliances
  Found in power supplies, motor control circuits, and user interface electronics of devices.
• IoT Devices
  Essential components in sensor modules, communication interfaces, and battery-powered devices for reliable power.
• Automotive Electronics
  Employed in engine control units (ECUs), infotainment systems, and safety systems for robust performance
• Industrial Equipment
  Used in industrial controllers, power systems, and monitoring equipment for stable operation

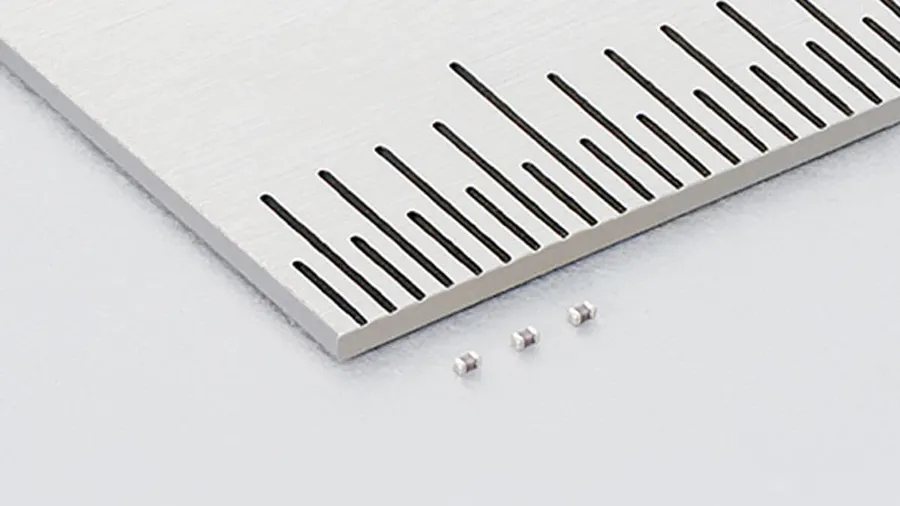

The Innovation in Miniaturization: Murata's 006003-inch MLCC

Murata has achieved a significant breakthrough in miniaturization with the introduction of the 006003-inch (0.16mm x 0.08mm) multilayer ceramic capacitor (MLCC). This achievement represents a 75% reduction in volume compared to its predecessors, fundamentally advancing the design of compact electronic devices.

The reduced size of the 006003-inch MLCC impacts electronic design in several ways. The ability to place more components within a limited area has resulted in higher density and more efficient circuit boards. This miniaturization opens opportunities for compact designs in smartphones, wearable devices, and other space-constrained applications. Moreover, these components maintain the performance and reliability expected of Murata capacitors.

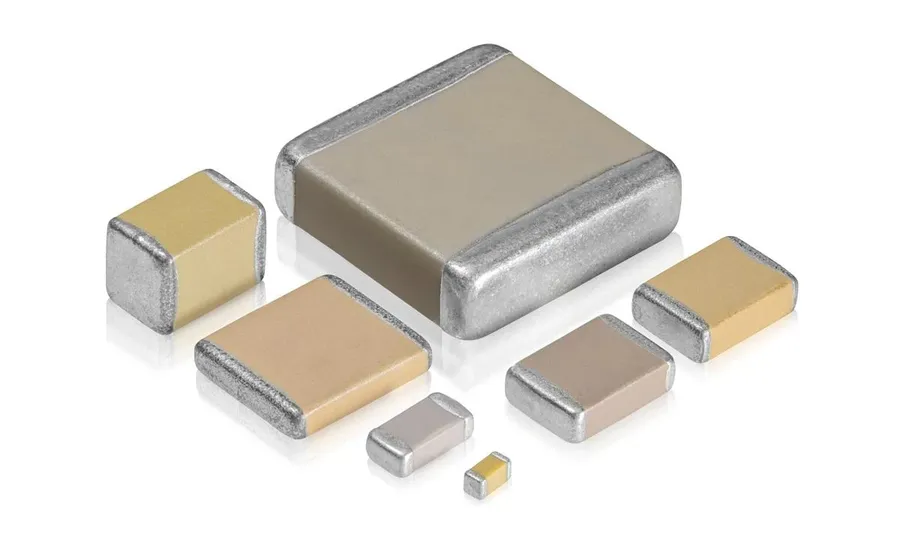

High-Frequency, High-Q Capacitors for Demanding Applications

Murata's GJM series capacitors represent a pinnacle in high-frequency performance, specifically engineered for applications operating within the 500 MHz to 10 GHz range. These capacitors, characterized by their high Q-factor, are crucial in circuits where signal integrity and minimal energy loss are paramount, such as in high-frequency communication and signal processing modules.

The 'Q' factor, or quality factor, is a dimensionless parameter that quantifies the energy efficiency of a capacitor. A high Q-factor indicates low energy dissipation, which is essential in applications like voltage-controlled oscillators (VCOs) and power amplifier (PA) modules where signal purity and power transfer efficiency are critical. Murata's GJM series capacitors achieve this through advanced material science and precision manufacturing techniques.

The specific application of high-Q capacitors in VCOs directly influences the phase noise performance, crucial for clean signal generation and precise frequency control. In PAs, these capacitors minimize signal losses, enhancing output power and efficiency. Furthermore, high-Q capacitors are essential components in RF filters, providing sharp selectivity and minimal insertion loss, and are also employed in impedance matching circuits to maximize power transfer.

Murata Capacitor Applications in Various Industries

Murata capacitors are integral components across a wide spectrum of industries, leveraging their diverse types and performance characteristics. Their applications range from consumer electronics to demanding industrial environments, showcasing their versatility and reliability.

• Smartphones and Mobile Devices
  In smartphones, Murata MLCCs are crucial for power management, signal filtering, and noise reduction due to their compact size and high capacitance. They are used extensively in the RF circuits, power amplifiers, and logic boards, enabling smooth and stable device operation. Their small form factor allows for the ever-shrinking size of mobile devices.
• Wearable Technology
  Wearable devices like smartwatches and fitness trackers utilize Murata capacitors for similar reasons as smartphones: efficient power management and noise suppression. The miniature MLCCs are ideal for integration into the tight spaces available in these devices, while offering the high performance required for reliable functionality.

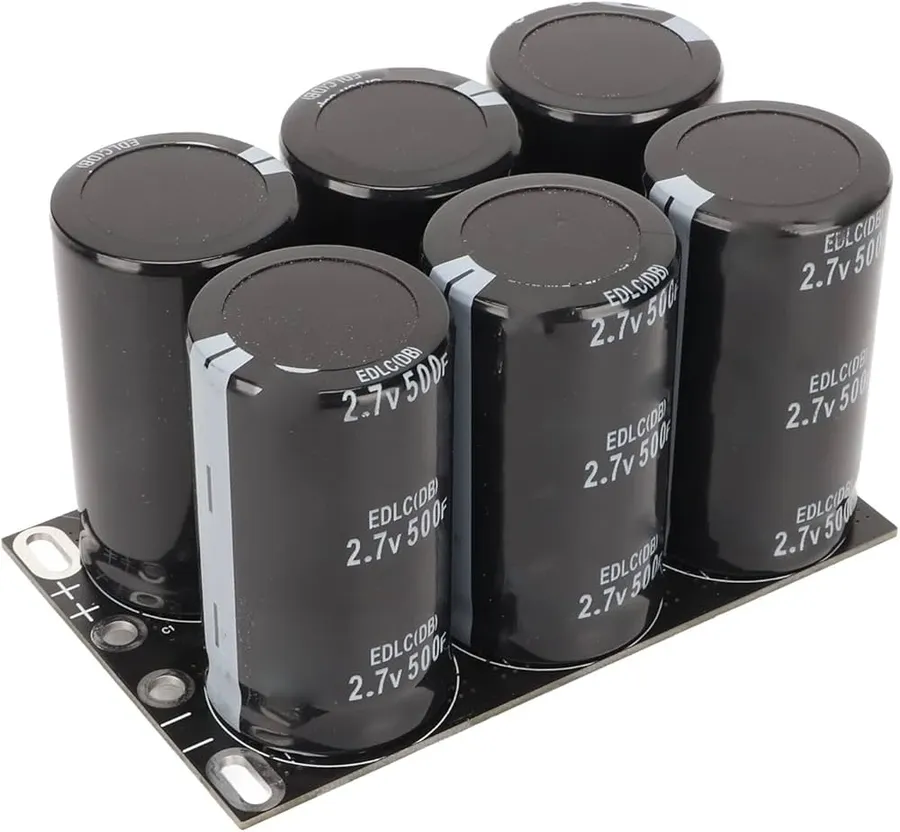

• Automotive Industry
  Automotive applications present a challenging environment for electronics. Murata capacitors, especially their high-temperature and high-reliability versions, are used in various vehicle systems such as engine control units (ECUs), braking systems, and infotainment systems. Their reliability under harsh conditions and stable performance is paramount for safe vehicle operation.
• Industrial Equipment
  Industrial equipment employs Murata capacitors for robust performance in demanding conditions. They are found in power supplies, motor controllers, and sensor interfaces. High-reliability capacitors ensure continuous operation, crucial for industrial processes where downtime can be costly. Their tolerance to harsh environments, temperature fluctuations, and high mechanical stress makes them indispensable.
• Medical Devices
  Medical devices need components with high reliability and safety standards. Murata capacitors are utilized in diagnostic equipment, patient monitoring systems, and implantable devices due to their high quality and reliability. Their stability under varying conditions ensures accurate and consistent operation of medical equipment.
• Networking and Telecommunications
  In networking and telecommunications infrastructure, Murata capacitors play a vital role in signal processing, noise filtering, and impedance matching. High-Q capacitors are particularly used in applications requiring precise frequency control, such as RF transceivers and filters, ensuring seamless communication.

Frequently Asked Questions About Murata Capacitors

This section addresses common questions regarding Murata capacitors, focusing on practical aspects like lifespan, operational limits, and technical considerations. We aim to provide clear and concise answers to help users better understand and utilize Murata capacitors effectively.

• What is the typical lifespan of a Murata capacitor?
  The lifespan of a Murata capacitor is highly dependent on its operating conditions, including voltage, temperature, and current. Under normal operating conditions, ceramic capacitors, like MLCCs, can last for many years, often exceeding the lifespan of the device they're integrated into. However, exposure to extreme voltage, temperatures, or humidity may reduce their lifespan.
• How does temperature affect Murata capacitor performance?
  Temperature significantly impacts capacitor performance. High temperatures can lead to a decrease in capacitance and an increase in leakage current, while extremely low temperatures can also reduce capacitance. Murata provides detailed temperature coefficients in their datasheets, indicating how capacitance changes with temperature. Selecting capacitors rated for the operational temperature range of your application is crucial.
• What is voltage acceleration in capacitors and how does it affect Murata products?
  Voltage acceleration refers to the increased rate of degradation in a capacitor's performance when subjected to higher-than-rated voltages. While Murata capacitors are designed to handle their rated voltage effectively, exceeding this limit will accelerate wear and potentially lead to premature failure. It's crucial to operate the capacitor within its voltage specification, factoring in the peak voltages and transient conditions.
• How do I interpret Murata capacitor datasheets?
  Murata datasheets provide critical information for selecting the right capacitor. Key parameters include: capacitance value and its tolerance, voltage rating, temperature coefficient, size, and equivalent series resistance (ESR). Understanding these parameters is essential for ensuring the capacitor meets the performance needs of the application. SimSurfing is a useful tool provided by Murata to help users interpret capacitor characteristics.
• What are the key differences between various Murata capacitor types?
  Murata offers a variety of capacitor types including MLCCs, polymer aluminum electrolytic, and trimmer capacitors. MLCCs are widely used for their small size and reliability, suited for general-purpose applications. Polymer aluminum electrolytic capacitors are often preferred for high capacitance and low ESR in power applications, while trimmer capacitors are utilized for fine-tuning circuits. Selecting the right type depends on the application requirements and specific needs.
• How do I select a capacitor for high-frequency applications?
  For high-frequency applications, such as RF circuits, select Murata high-Q capacitors, such as the GJM series, which are designed to operate with minimal losses at these frequencies. Consider parameters such as Quality factor (Q), self-resonant frequency (SRF), and ESR, as these values are critical for ensuring minimal signal degradation and efficient performance at high frequencies.
• Are Murata capacitors RoHS compliant?
  Yes, Murata capacitors comply with the Restriction of Hazardous Substances (RoHS) directive. This ensures that Murata capacitors are environmentally responsible, containing no harmful substances, like lead or mercury and are safe for use in a wide range of applications.

Choosing the Right Murata Capacitor: A Practical Guide

Selecting the optimal Murata capacitor involves careful consideration of several key parameters to ensure it meets the specific demands of your application. This section provides a practical guide to navigate these critical factors, helping you make informed decisions.

It is also important to consider the application when selecting a capacitor. For instance, an MLCC used for power supply filtering will require different parameters than one used for RF tuning. For example, high-frequency applications require capacitors with low ESR and ESL. Automotive applications require compliance with AEC-Q200 and more stringent operating conditions.

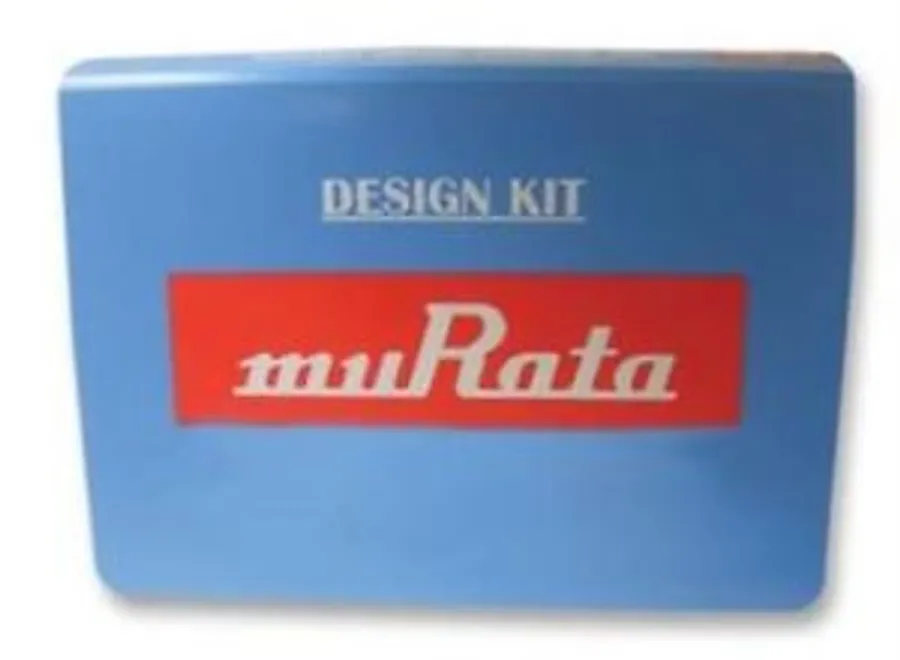

Murata Capacitor Design Kits: Simplifying the Selection Process

Murata capacitor design kits are curated collections of various capacitor types and values, incorporating the latest advancements in capacitor technology. These kits are designed to streamline the component selection process for engineers by providing a diverse range of options to test and evaluate under different operating conditions, thereby expediting prototyping and design validation.

These kits provide a hands-on approach to capacitor selection, enabling engineers to empirically assess performance metrics such as capacitance stability, temperature dependence, and frequency response, directly in their application circuits, which is more effective than relying solely on datasheets.

• Variety of Capacitor Types
  Kits include a selection of Murata's diverse capacitor offerings, such as MLCCs, polymer aluminum electrolytic capacitors, and single-layer microchip capacitors, catering to a wide range of application requirements.
• Range of Values
  Each kit provides a spectrum of capacitance values, allowing engineers to select components optimized for specific circuit needs and fine-tune parameters for optimum performance.
• Latest Technology
  The kits incorporate Murata's most recent technological advancements, giving engineers access to state-of-the-art components for cutting-edge design projects.
• Testing and Evaluation
  Engineers can use the kits to test capacitors under varied conditions, measuring performance parameters and determining the suitability for their applications, thus enabling informed decision-making for selecting the right Murata capacitor.
• Simplified Selection Process
  The kits streamline the selection process, reducing the time and effort involved in identifying the correct capacitor. This is especially advantageous in projects with precise specifications or where a wide range of capacitance values need evaluation.

Where to Buy Murata Capacitors: Authorized Distributors

Purchasing Murata capacitors from authorized distributors is crucial to ensure product authenticity and reliability. These distributors provide genuine components, technical support, and traceability, safeguarding against counterfeit products that could compromise performance and safety. This section provides guidance on identifying and selecting reliable sources for acquiring Murata capacitors.

• Key Authorized Distributors
  Reputable distributors such as Mouser Electronics and Digikey are authorized partners of Murata. These companies offer a vast selection of Murata's capacitor products, complete with detailed specifications, datasheets, and application notes. They maintain strict quality control processes to ensure the integrity of the components they supply.
• Importance of Choosing Authorized Distributors
  Selecting authorized distributors is paramount to prevent the purchase of counterfeit components. Counterfeit capacitors can exhibit unpredictable behavior, leading to circuit failures, performance degradation, and safety risks. Authorized channels provide product traceability, allowing engineers to trace the components back to their manufacturing origins.
• Benefits of Purchasing from Authorized Channels
  Authorized distributors not only guarantee the legitimacy of the components but also offer value-added services such as technical support, design assistance, and access to the latest product information. This comprehensive support system is crucial for engineers, aiding in seamless integration and optimal performance of the capacitors in their applications.
• Verifying Distributor Authorization
  When unsure about a distributor's authorization status, verify this information directly on Murata's official website. Their distributor locator tool can help in identifying all official partners. Alternatively, you can contact Murata’s customer service for confirmation. Exercise extreme caution when dealing with unofficial distributors, especially those offering prices that seem too good to be true.

Murata capacitors are at the forefront of electronic component technology, offering a wide range of solutions from the miniature MLCCs that power personal devices to the high-performance options used in critical applications. As technology continues to evolve, Murata's commitment to research and development will undoubtedly continue to provide us with innovative capacitor solutions. Whether you are designing a smartphone or a sophisticated industrial system, understanding Murata’s capacitor offerings is key to building high-performance, reliable products. The future of electronics depends on these small yet powerful components, and Murata is leading the charge.
