Understanding Capacitor Circuits: Function, Types & Applications

Capacitors are fundamental to electrical circuits, analogous to tiny rechargeable batteries, but with unique charging and discharging characteristics. From powering our smartphones to stabilizing power grids, capacitor circuits play a crucial role in modern electronics. This article delves into the world of capacitor circuits, exploring their function, diverse types, and practical applications. Understanding these circuits provides insights into the very pulse of our devices.

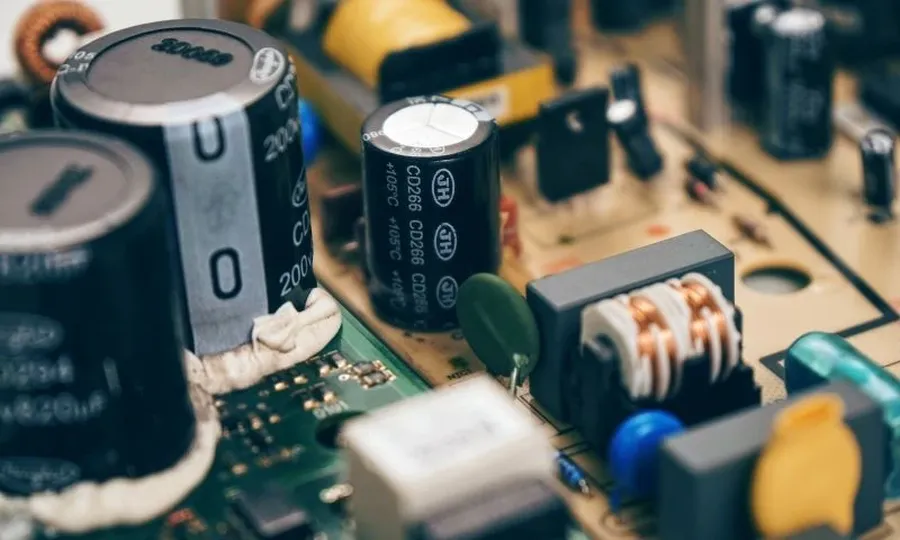

The Fundamental Role of Capacitors in Circuits

Capacitors, fundamental passive electronic components with two terminals, are essential for energy storage within an electric field. Their primary function in electronic circuits revolves around their ability to shape current flow and manage voltage fluctuations. This behavior makes them indispensable for a wide range of applications.

• Energy Storage
  Capacitors store electrical energy, unlike resistors that dissipate energy.
• Shaping Current Flow
  By storing and releasing charge, capacitors alter the flow of current within the circuit.
• Voltage Fluctuation Management
  Capacitors act to smooth out changes in voltage, a key for stable circuit operation.

How Capacitors Store and Release Energy

Capacitors store electrical energy by accumulating charge on two conductive plates separated by a dielectric material, the insulator. This energy storage is analogous to a temporary reservoir of electrons. The process of charging involves the movement of electrons to one plate, creating a negative charge, while electrons are depleted from the other plate, creating a positive charge. This charge separation establishes an electric field within the dielectric, which represents the stored energy. When a capacitor discharges, the electrons move back, releasing the stored energy from the electric field.

The ability of a capacitor to store energy is quantified by its capacitance, measured in Farads (F). A capacitor’s energy storage capacity is directly proportional to its capacitance and the square of the voltage applied, as indicated by the equation: E = 1/2CV^2, where E is energy, C is capacitance, and V is voltage. This illustrates that higher capacitance and higher voltage across the capacitor correspond to higher energy storage capability.

The speed at which a capacitor can charge or discharge is affected by the circuit's resistance and capacitance values. In a circuit with low resistance and a high capacitance, the charging and discharging will occur rapidly. The rapid release of energy is what allows capacitors to perform a variety of functions such as filtering, signal coupling and timing in circuits.

Key Capacitor Characteristics: Capacitance, Voltage, and Tolerance

Capacitors are characterized by three primary parameters: capacitance, voltage rating, and tolerance. These parameters are critical for selecting the appropriate capacitor for a given application and ensuring the reliable operation of electronic circuits. Understanding these characteristics is essential for circuit design and analysis.

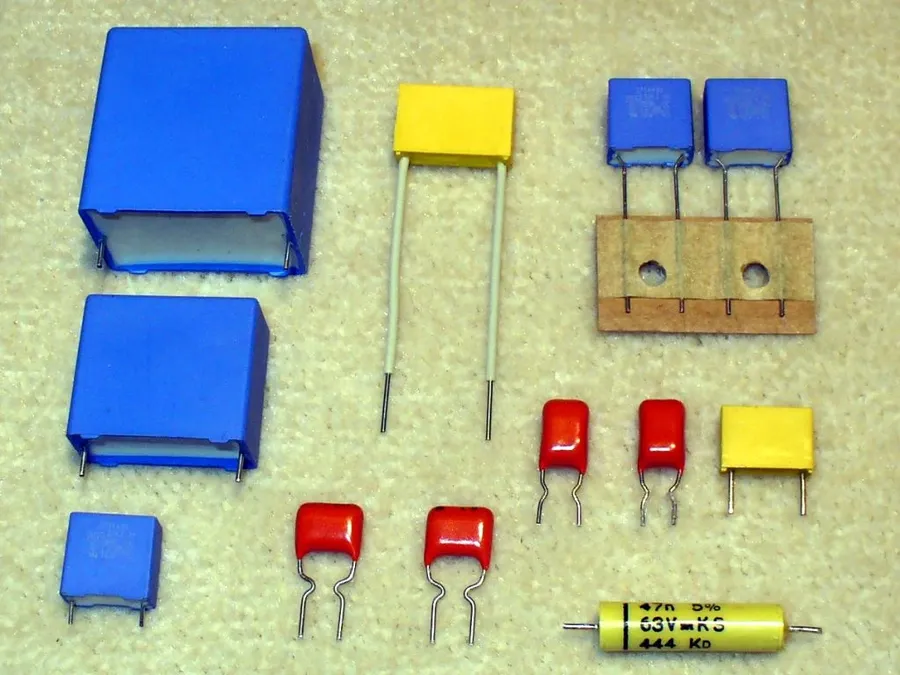

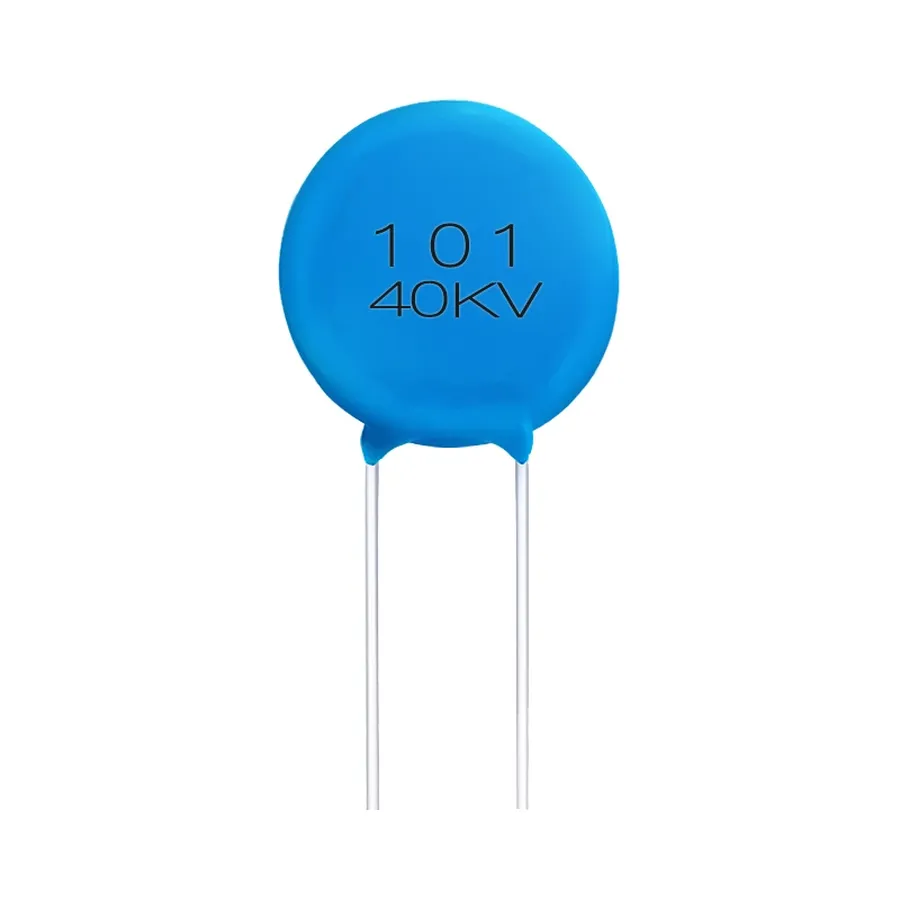

Types of Capacitors: Ceramic, Electrolytic, and More

Capacitors are not monolithic; they are manufactured with different materials and construction techniques, resulting in distinct types each suited for specific applications. The selection of a capacitor type is dependent upon the circuit requirements, which includes voltage rating, capacitance value, stability, temperature performance, and the desired lifespan of the circuit. Understanding these diverse types is crucial for effective circuit design.

Capacitor Circuit Applications: AC Coupling, DC Blocking and Smoothing

Capacitors are indispensable components in electronic circuits, serving critical functions such as AC coupling, DC blocking, power supply filtering, and timing. Their ability to store and release energy makes them vital for shaping signal behavior across a wide range of applications, from audio circuits to sophisticated power systems. Specifically, their frequency-dependent impedance allows for precise manipulation of signals based on their frequency content.

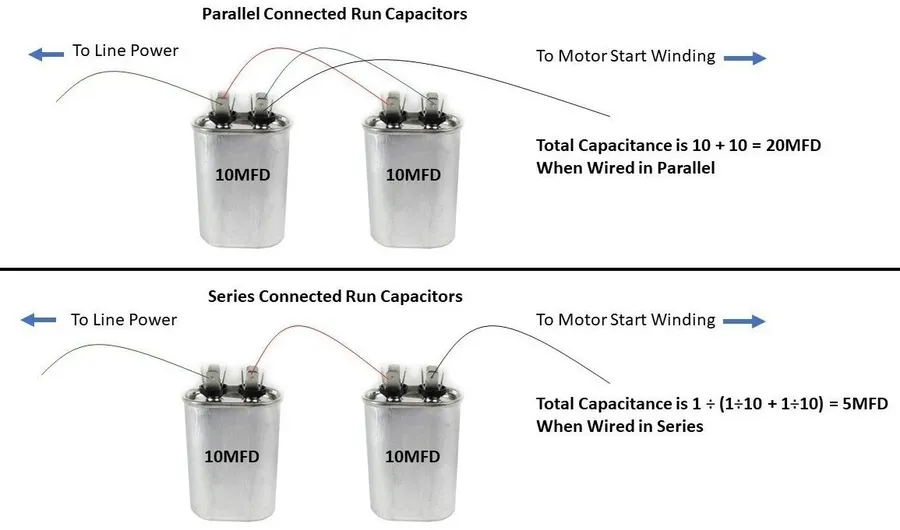

Capacitors in Series and Parallel: Understanding Equivalent Capacitance

Analyzing capacitor circuits involves understanding how capacitors behave when connected in series and parallel configurations. The total or equivalent capacitance of these configurations differs significantly, impacting circuit behavior.

Understanding these configurations is crucial for predicting the behavior of capacitor networks within circuits. The choice between series and parallel arrangements allows engineers to manipulate the effective capacitance to meet specific design requirements.

The formulas provided above are derived from the fundamental principles of charge conservation and voltage division across capacitors. In a series connection, the charge stored by each capacitor is the same, whereas in parallel connection, the voltage across each capacitor is the same. These fundamental differences lead to distinct formulas for calculating total capacitance.

Understanding the Capacitor Formula and Calculations

The behavior of capacitors in circuits is governed by fundamental formulas that relate charge, voltage, and capacitance. These equations are essential for analyzing and designing circuits. This section details these formulas and provides practical examples to illustrate their application.

The fundamental relationship between charge (Q), capacitance (C), and voltage (V) across a capacitor is given by the formula: Q = CV. Where: * Q is the charge stored on the capacitor in coulombs (C). * C is the capacitance in farads (F). * V is the voltage across the capacitor in volts (V).

The current (I) flowing through a capacitor is related to the rate of change of voltage across it, expressed as: I = C (dV/dt), where: * I is the current in amperes (A). * C is the capacitance in farads (F). * dV/dt is the rate of change of voltage with respect to time, measured in volts per second (V/s). This formula highlights that a current will only flow through a capacitor when the voltage across it is changing. In a DC circuit with constant voltage, the current through an ideal capacitor is zero after an initial charging phase.

Capacitors store energy in the electric field between their plates. The energy (E) stored in a capacitor is given by: E = 1/2 CV^2, where: * E is the energy stored in joules (J). * C is the capacitance in farads (F). * V is the voltage across the capacitor in volts (V).

Consider a 100 μF capacitor initially uncharged. If a 12V voltage source is applied across it, the stored charge and the energy stored in capacitor can be calculated as follows. **Charge Calculation:** Using the formula Q = CV, where C = 100 μF = 100 × 10^-6 F and V = 12V, the charge Q = (100 × 10^-6 F) * (12 V) = 1.2 × 10^-3 C = 1.2 mC **Energy Calculation:** Using the formula E = 1/2 CV^2, the stored energy E = 0.5 * (100 × 10^-6 F) * (12 V)^2 = 0.0072 J = 7.2 mJ

Frequently Asked Questions About Capacitor Circuits

This section addresses common inquiries regarding capacitor circuits, providing clear and concise answers to help clarify their functionality and application in electronics.

• What is the primary function of a capacitor in a circuit?
  A capacitor's primary function is to store electrical energy in an electric field created between two conductive plates separated by a dielectric. This ability allows them to smooth voltage fluctuations, block DC signals, and couple AC signals.
• How does a capacitor differ from a resistor?
  A resistor opposes the flow of current, dissipating energy as heat, while a capacitor stores electrical energy. Resistors are primarily used to control current levels and create voltage drops; capacitors store energy and react to changes in current or voltage.
• Are capacitors used in AC or DC circuits, or both?
  Capacitors can function in both AC and DC circuits, but their behavior differs. In AC circuits, capacitors allow current flow, and in DC circuits, they initially allow current to charge, then block the current once fully charged. Capacitors are frequently utilized in AC circuits for filtering and coupling, and in DC circuits for smoothing and decoupling purposes.
• How do you troubleshoot capacitor-related problems in circuits?
  Troubleshooting capacitor problems involves checking for common failure modes, such as a short, open circuit, or change in capacitance value. Visual inspection for bulging or leakage is helpful for electrolytic capacitors. Additionally, a multimeter can be used to measure capacitance, equivalent series resistance (ESR) and leakage current, and compare these values to the manufacturer’s specifications. A shorted capacitor will show very low or zero resistance; an open one will not show any reading in the capacitance check. Capacitors often contribute to circuit malfunction and are therefore good to check when debugging.
• What are the different ways that capacitors can fail?
  Capacitors can fail in several ways: They can become shorted due to a breakdown of the dielectric material (insulation) between their plates, which will result in the capacitor acting like a direct connection. They can also become open due to the breaking of internal connections or if the plates become corroded, leading to loss of capacitance and signal blockage. The capacitance can also deviate from the intended value, this happens due to aging, damage, or thermal stress. Electrolytic capacitors are more prone to failure with age, as their electrolyte dries up, leading to increased internal resistance and reduced capacitance.
• What are the practical applications of capacitors in circuits?
  Capacitors have a wide range of practical applications in circuits, including AC coupling, DC blocking, power supply filtering, and timing circuits. They can be found in audio filters, where they block low-frequency sounds or signals, and in tuning circuits, where they are used to select specific frequencies. In power supplies, they are essential for smoothing out voltage fluctuations. Additionally, they are used in circuits to store energy briefly and provide it when needed.

Capacitor Circuit Diagrams and Symbols

Understanding capacitor circuit diagrams and symbols is crucial for analyzing and designing electronic circuits. These diagrams provide a standardized visual representation of how capacitors are interconnected with other components, allowing engineers to interpret and build circuits efficiently. This section will cover the common symbols and interpretations found in circuit schematics.

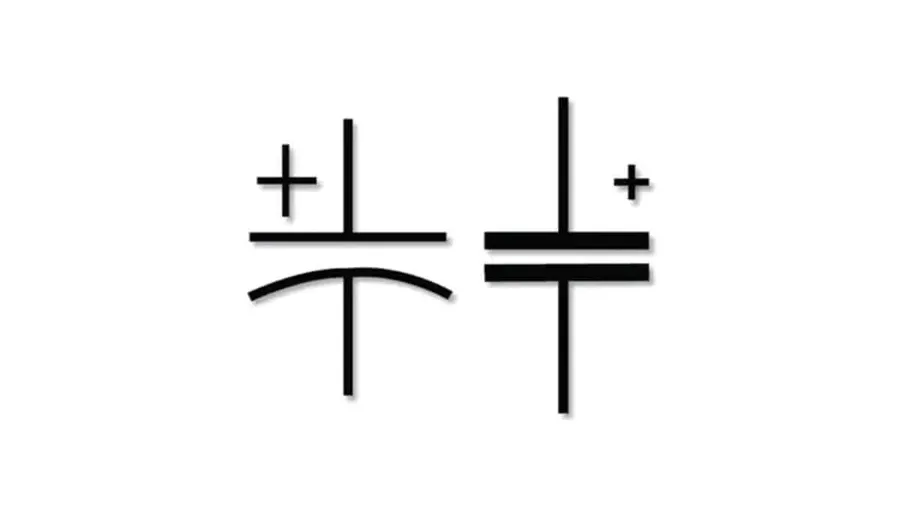

• Capacitor Symbols
  The fundamental capacitor symbol consists of two parallel lines of equal length, which represent the conductive plates. This symbol can appear with variations, such as curved or a straight line, depending on the type of capacitor. However, the core idea of two lines separated by a small space remains consistent.
• Polarized vs. Non-Polarized Capacitors
  Polarized capacitors, such as electrolytic types, have a curved line to indicate polarity. The curved line indicates the negative terminal, which should be respected when connecting the component in a circuit to avoid damage. Non-polarized capacitors, like ceramic and film capacitors, do not have a specific positive or negative side and can be connected either way. They are represented by two straight lines.
• Variable Capacitor Symbol
  A variable capacitor has an arrow through it symbol to indicate that its capacitance is adjustable. This is often found in tuning circuits.
• Capacitor Identification
  Symbols are usually annotated with the capacitor value (e.g., 10uF, 100nF) and sometimes the voltage rating, next to or below the schematic symbol, to aid in component selection. It's critical to match the schematic requirements with the actual component specifications.

Besides the basic symbol, understanding how capacitors are arranged in circuits is essential. In schematics, capacitors are shown alongside other components such as resistors, inductors, and voltage sources. These representations follow standard conventions to easily show connection points and circuit topology. The analysis of these circuits is based on applying the fundamental principles of circuit theory.

Capacitor circuits are integral components within the world of electronics and energy. Their ability to store and release energy makes them vital in various functions such as filtering, timing, and energy storage. From basic DC blocking to complex AC coupling, capacitors are essential to every electronic device. With a better understanding of capacitor circuits, you'll be able to better appreciate how the complex modern world is put together, and be ready to tackle more advanced topics in circuit design.
