Understanding the 10 Ohm Resistor: Applications, Types, and Selection Guide
Resistors are fundamental to electronics, and the 10 ohm resistor is a workhorse. Just like traffic lights control the flow of cars, resistors limit the flow of electricity. In this article, we’ll dive into what makes a 10 ohm resistor special, exploring its various forms, uses, and how to choose the perfect one for your project. Whether you're a hobbyist or a professional, understanding the 10 ohm resistor is essential for designing and building functional electronic circuits. We'll cover everything from basic applications to advanced use cases of this simple but crucial component.
What is a 10 Ohm Resistor?
A 10 ohm resistor is a fundamental electronic component designed to impede the flow of electrical current by providing a resistance of 10 ohms. In essence, it transforms electrical energy into heat as current passes through it. This precise resistance value is crucial in a wide array of electronic circuits, where controlling current and voltage levels is paramount. The Ohm (Ω) is the standard unit of electrical resistance, and a 10 ohm resistor offers a specific level of opposition to current, facilitating design objectives ranging from current limiting to voltage division.
Resistance, measured in ohms (Ω), is the measure of how much a material impedes the flow of electric current. It is fundamentally related to voltage (V) and current (I) by Ohm's Law: V = I * R, where 'R' represents resistance. Therefore, in a circuit with a given voltage, a 10-ohm resistor will allow a specific, predictable amount of current to flow. Resistance is typically measured using an ohmmeter, which applies a known voltage to the component and measures the resulting current, calculating resistance from these two values.
Common Applications of a 10 Ohm Resistor
The 10 ohm resistor, a component with a relatively low resistance, serves as a versatile tool in various electronic circuits, primarily for current control, voltage division, and providing a specific impedance. Its applications range from audio equipment and LED lighting to precision measurement and general electronic circuit design.
- Current Limiting
A key function of the 10 ohm resistor is to limit the amount of current flowing through a specific part of a circuit. This is crucial for protecting components like LEDs or sensitive ICs, preventing damage from overcurrent. For example, when using a high voltage power source to drive an LED with specific operating current, a 10 ohm resistor can be added in series to limit the current flowing into the LED and avoid burnout. - Voltage Division
In voltage divider circuits, a 10 ohm resistor paired with another resistor of a different value, creates a voltage divider. This is useful to create a desired voltage level for sensitive circuit sections, such as IC bias voltage, or for providing a reference voltage, where the output voltage is proportional to the ratio of resistances. This application is particularly useful where precise voltage control is needed without complex circuits. - Impedance Matching
In audio systems, the 10 ohm resistor can be used for impedance matching between different stages of the circuit. It facilitates efficient power transfer and reduces signal reflections, ensuring proper signal flow between different devices or circuit components. For instance, it can match the output impedance of an audio signal to the input impedance of an audio amplifier. - Pull-up/Pull-down Resistors
The 10 ohm resistor, or a resistor with similar values, can function as a pull-up or pull-down resistor. It is used to set the default input state of a logic gate or microcontroller pin to a known state (high or low) when no signal is present. This ensures stable and predictable operation of the digital circuit. - Current Sensing
When a 10 ohm resistor is used in series with a load, the voltage drop across it can be used to calculate the current flowing. Because of the relatively low resistance value, it has a minimal impact on the total circuit resistance, it is a good choice for accurately sensing the current, while reducing the power loss.
Types of 10 Ohm Resistors
10 Ohm resistors are available in various types, each designed with specific characteristics that cater to different applications. The selection of resistor type significantly influences circuit performance, particularly with regards to power handling, tolerance, temperature stability and physical size.
Common types of 10 ohm resistors include:
- Metal Film Resistors
Metal film resistors are known for their precision and stability, achieved by depositing a thin film of metal on a ceramic substrate. They offer low temperature coefficients, making them suitable for circuits where thermal stability is critical. - Wire-Wound Resistors

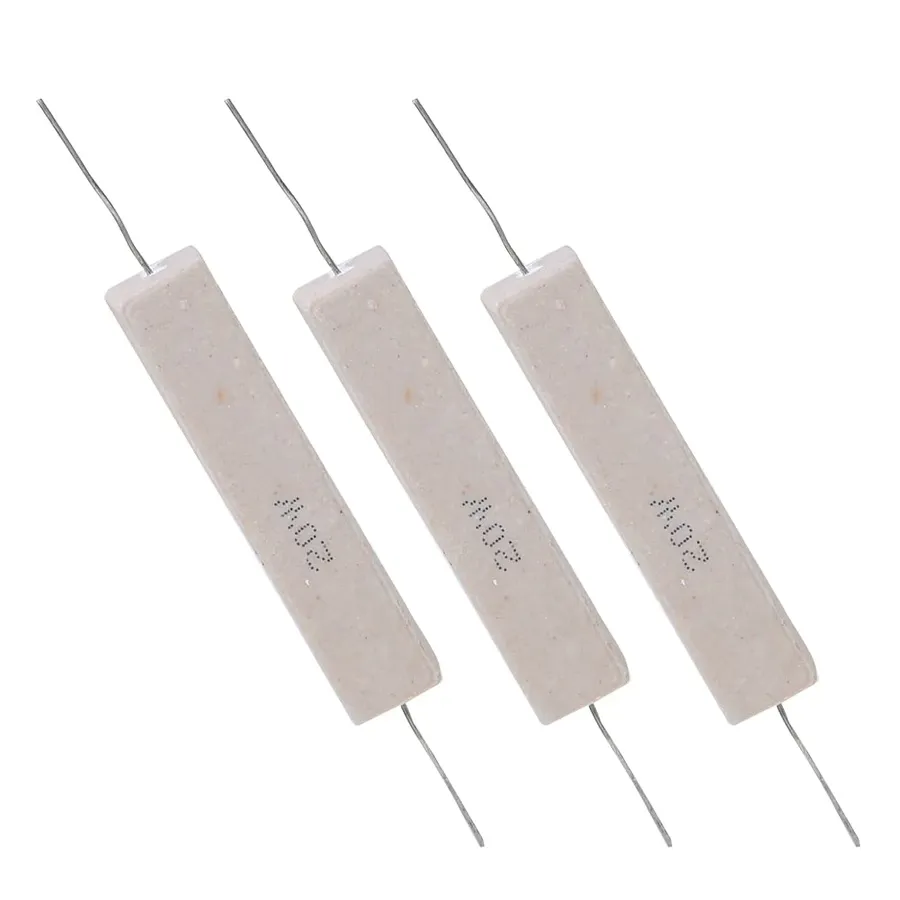

Wire-wound resistors are constructed by winding a metallic wire around a non-conductive core. They are capable of handling higher power ratings but are generally less precise than metal film resistors. Inductance can be a factor in high-frequency applications with this type of resistor. - Surface Mount (SMD) Resistors
Surface Mount Devices (SMD) are designed for automated assembly on printed circuit boards, offering miniaturization advantages. SMD resistors are available in metal film and thick film variations. They are ideal for compact and high-density circuit designs.
| Resistor Type | Power Handling | Tolerance | Temperature Coefficient | Typical Applications |
|---|---|---|---|---|
| Metal Film | Low to Medium | High (e.g., 1%, 0.1%) | Low | Precision circuits, audio equipment |
| Wire-Wound | High | Medium (e.g., 5%, 1%) | Medium | Power circuits, current sensing |
| SMD (Metal Film) | Low to Medium | High (e.g., 1%, 0.5%) | Low | High-density PCB designs |
Power Rating and Tolerance of 10 Ohm Resistors
Selecting the correct power rating and tolerance for a 10 ohm resistor is crucial for ensuring circuit reliability and performance. The power rating defines the maximum amount of power the resistor can dissipate without damage, while tolerance indicates the acceptable variation in the actual resistance value compared to the nominal 10 ohms.
Power ratings for 10 ohm resistors vary widely, typically ranging from fractions of a watt (e.g., 1/8W) for low-power circuits to several watts or more (e.g., 5W, 10W, or even 100W) for high-power applications. It is important to select a resistor with a power rating that exceeds the expected power dissipation to prevent overheating and premature failure. Standard tolerances include 1%, 5%, and 10%, with 1% being more precise, suited to sensitive applications, and 5% and 10% being suitable for common applications where slight variations in resistance are acceptable.
The power dissipated by a resistor is calculated using Joule's Law: P = I²R or P = V²/R, where P is power in watts, I is current in amperes, V is voltage in volts, and R is resistance in ohms. When selecting a 10 ohm resistor, the power rating should exceed the calculated power dissipation, typically by a factor of at least two or more to ensure the longevity and reliability of the component. Similarly, tolerance reflects the manufacturing precision; a resistor with a 5% tolerance, for example, may have an actual resistance value that varies between 9.5 and 10.5 ohms. The choice of tolerance depends on the precision required by the application; more stringent tolerance leads to more consistent results in precision circuits.
| Parameter | Description | Typical Values | Importance |
|---|---|---|---|
| Power Rating | Maximum power a resistor can dissipate without damage | 1/8W, 1/4W, 1W, 5W, 10W, 100W | Crucial for preventing overheating and failure; must be chosen according to the application’s energy needs. |
| Tolerance | Allowable deviation from the nominal resistance value | 1%, 5%, 10% | Important for applications requiring precision resistance values; tighter tolerances are necessary for sensitive circuits. |
10 Ohm Resistor Color Codes and Identification

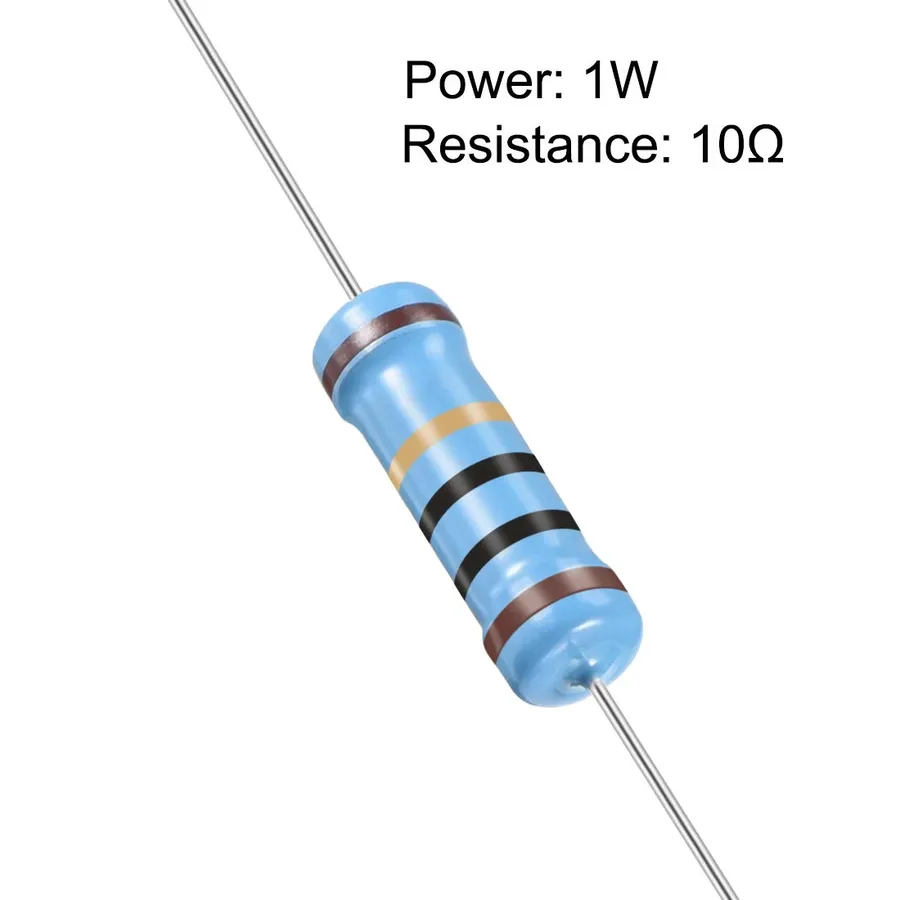

The color code system is a standard method for identifying the resistance value and tolerance of through-hole resistors. A 10 ohm resistor, typically a four-band resistor, uses color bands to represent numerical values, multipliers, and tolerance. Understanding this color code is crucial for accurately identifying and using resistors in electronic circuits.

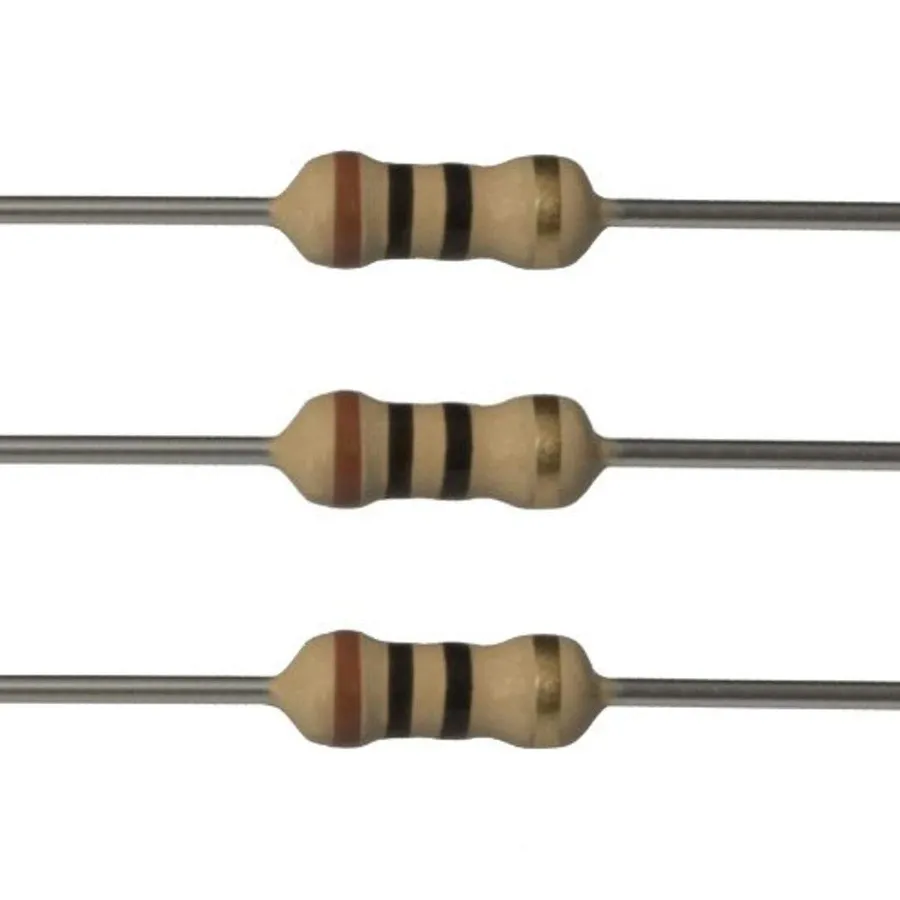

For a 10 ohm resistor, the four-band color code is typically: Brown, Black, Black, and Gold. Brown represents '1', black represents '0', the second black represents 'x 1' as a multiplier, and gold indicates a ±5% tolerance. If a five band resistor is used, the color code is Brown, Black, Black, Silver, Brown. Brown is '1', Black is '0' for the first two numbers, Black represents a multiplier of 1, a silver multiplier of 0.01, and brown represents a 1% tolerance.
Surface Mount Device (SMD) resistors, however, utilize a different marking system. These markings are typically numerical and sometimes alpha-numeric codes printed directly on the resistor's surface. A 10 ohm SMD resistor might be marked with '100', where '10' represents the resistance value and the '0' represents a multiplier of 10^0. This can also vary with different manufacturers with markings such as '10R' or 'R10' being used.
| Color Band | Digit | Multiplier | Tolerance |
|---|---|---|---|
| Black | 0 | 1 | N/A |
| Brown | 1 | 10 | ±1% |
| Red | 2 | 100 | ±2% |
| Orange | 3 | 1,000 | N/A |
| Yellow | 4 | 10,000 | N/A |
| Green | 5 | 100,000 | ±0.5% |
| Blue | 6 | 1,000,000 | ±0.25% |
| Violet | 7 | 10,000,000 | ±0.1% |
| Gray | 8 | N/A | ±0.05% |
| White | 9 | N/A | N/A |
| Gold | N/A | 0.1 | ±5% |
| Silver | N/A | 0.01 | ±10% |
| None | N/A | N/A | ±20% |

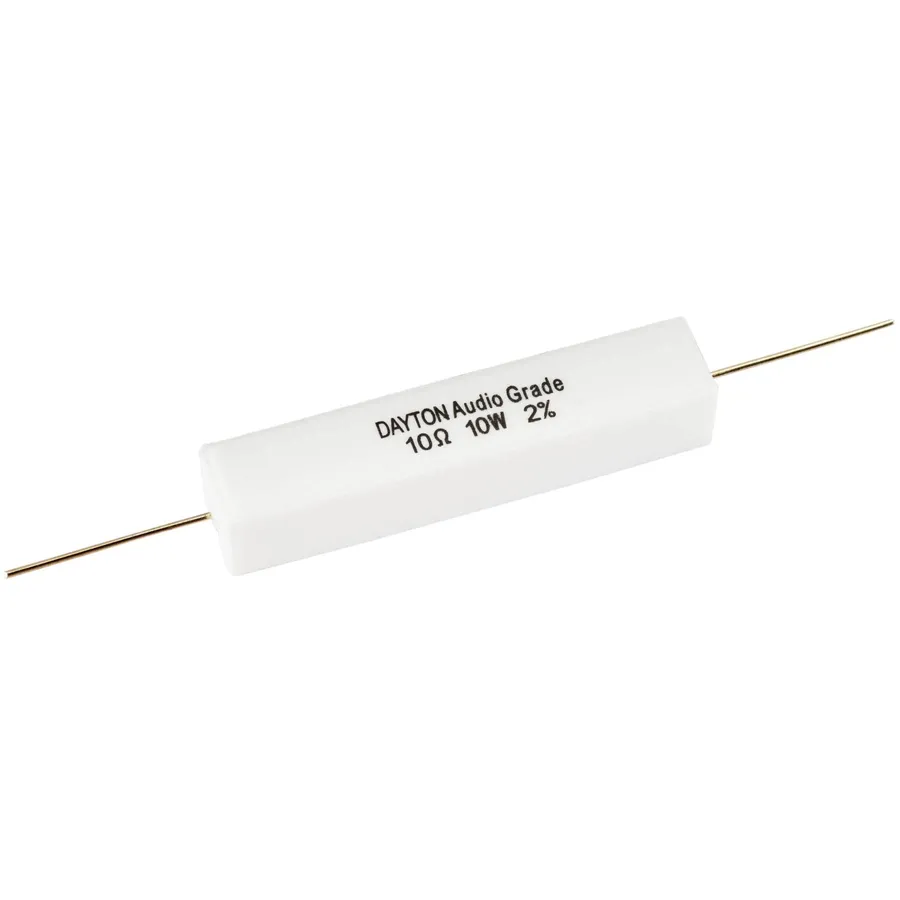

10 Ohm Resistors in Audio Applications
In audio systems, 10-ohm resistors serve crucial functions, primarily in impedance matching, signal attenuation, and within amplifier circuits. Their specific resistance value makes them suitable for managing signal levels and ensuring optimal power transfer, which is critical for maintaining sound fidelity.
Below are detailed use cases:
- Impedance Matching
In audio circuits, impedance matching is critical to ensure maximum power transfer and minimize signal reflections. A 10-ohm resistor can be strategically placed to match the impedance between different stages of an audio system. This helps in ensuring the signal is transferred efficiently, avoiding signal loss, and maintaining the integrity of the audio signal. For instance, a 10-ohm resistor might be placed in series or parallel with a speaker to create an ideal load for a power amplifier output stage. - Signal Attenuation
Signal attenuation is the intentional reduction of an audio signal's amplitude. A 10-ohm resistor, either alone or in conjunction with other resistors, can be used in a voltage divider circuit to lower the signal level before it reaches the next stage of an audio circuit. This is particularly useful to prevent overloading the input stage of an amplifier or other audio component, which could lead to distortion and damage. The value of the resistor determines the amount of signal reduction. - Audio Amplifier Circuits
Within amplifier circuits, 10-ohm resistors can be used in various configurations. They can be used for current limiting, especially in the output stage to protect against short circuits or excessive current draw. They may also be incorporated into feedback loops to set the gain of the amplifier or as part of bias networks to set the operating point of transistors or op-amps. In such scenarios, the resistor value plays an integral role in setting the overall performance characteristics of the amplifier, from gain and stability to frequency response. - Speaker Protection
10-ohm resistors are sometimes used in series with loudspeakers or headphones, to limit the current in case of a fault, or to provide protection from excessive power. In such a scenario, the resistor value is selected to limit the current to a level that will not damage the speaker or the amplifier.
Frequently Asked Questions About 10 Ohm Resistors
This section addresses common questions regarding 10 ohm resistors, providing clear, concise answers to help users understand their function, identification, and application. This includes inquiries about their purpose, color coding, and comparison to other resistor values.
- What is the primary function of a 10 ohm resistor?
A 10 ohm resistor's primary function is to limit the flow of electrical current within a circuit, providing a specific resistance value of 10 ohms. This controlled resistance is essential for circuit protection, proper operation of components, and precise voltage division. - How do I determine the resistance value of a 10 ohm resistor using color codes?
For through-hole resistors, a 10 ohm resistor typically has color bands of brown, black, black, gold or brown, black, black, silver (depending on the tolerance). The first two bands represent the first two digits of the resistance value, the third band represents the multiplier, and the fourth band is the tolerance. The standard color codes should be used to interpret these bands for each resistor. - What is the difference between a 10 ohm resistor and a 10k ohm resistor?
A 10 ohm resistor provides a very low resistance of 10 ohms, allowing relatively high current flow. Conversely, a 10k ohm resistor provides a very high resistance of 10,000 ohms, significantly limiting current flow. The 'k' indicates kilo, representing a factor of 1,000. The application for either type is different given the large difference in resistance. - Is '10R' the same as '10 ohm'?
Yes, '10R' is a common shorthand notation for 10 ohms, particularly in schematic diagrams and component labeling. The 'R' serves as a decimal point placeholder, so 10R means 10 ohms. This notation is helpful when printing is not precise or if the ohm symbol is not available. - Does a resistor have polarity, and how do I identify it?
No, standard resistors are non-polarized components. This means they can be connected in either direction within a circuit without affecting their functionality. Therefore, there is no need to identify a specific polarity for standard resistors. - How do you select the correct power rating for a 10 ohm resistor?
The power rating of a 10 ohm resistor should be selected based on the amount of power it will dissipate in the circuit. It's crucial to calculate the expected power dissipation using the formula P = I²R or P = V²/R, where P is power in watts, I is current in amps, V is voltage in volts, and R is resistance in ohms. The resistor's power rating should exceed the calculated power to prevent overheating and failure. Generally, it's good practice to select a resistor with at least twice the power rating of what the circuit is expected to dissipate.
Comparing 10 Ohm Resistors
Selecting the appropriate 10 ohm resistor involves carefully evaluating its type, power rating, and tolerance against the specific requirements of your application. Each type offers a unique combination of advantages and disadvantages. The following table provides a side-by-side comparison to aid in informed decision-making.
| Feature | Metal Film | Wire-Wound | Surface Mount (SMD) |
|---|---|---|---|
| Power Rating | Typically low to medium (e.g., 1/8W to 1W) | Medium to very high (e.g., 1W to 100W+) | Very low to low (e.g., 1/16W to 1W) |
| Tolerance | Low (e.g., 1%, 0.5%, or better) | Medium (e.g., 1% to 5%) | Low to medium (e.g., 1%, 5%) |
| Temperature Coefficient | Low | Moderate | Moderate |
| Applications | General-purpose, precision circuits, audio, signal processing | High-power circuits, power supplies, braking resistors | Compact electronics, high-density circuits, consumer electronics |
| Advantages | Precise, stable, low noise, good temperature coefficient | High power handling, robust | Small size, ease of automated assembly |
| Disadvantages | Limited power handling | Larger size, can be inductive | Difficult to handle manually, limited power handling |
Where to Buy 10 Ohm Resistors?
Sourcing 10 ohm resistors requires careful consideration of factors like price, quality, and availability. Understanding the landscape of both online and offline retailers is crucial for making informed purchasing decisions and ensuring you obtain components that meet your project’s specifications. The following will provide a summary of where to reliably purchase 10 ohm resistors.
- Online Retailers
Online electronics marketplaces offer a vast selection of 10 ohm resistors, often at competitive prices. These platforms provide a convenient way to browse through various types, power ratings, and tolerances, allowing for easy comparison. However, it's crucial to verify the supplier’s reputation and the authenticity of the products. - Major Electronic Component Distributors
Established electronic component distributors are a reliable source for high-quality resistors. These distributors often have direct relationships with manufacturers, ensuring genuine components that meet stringent quality standards. While their prices might be slightly higher than general online marketplaces, the reliability and traceability of their products justify the investment for critical applications. - Local Electronics Stores
Local electronics stores can be convenient for immediate needs, however, their selection and availability of 10 ohm resistors may vary widely, and prices might be higher compared to online options. Furthermore, product specifications may not be consistent, and this requires the consumer to evaluate the physical product, and their ability to meet the engineering requirements. - Direct from Manufacturer
For large-scale projects or when specific customization is needed, purchasing directly from the manufacturer could be advantageous. Direct purchases can offer better pricing, custom specifications, and a direct line of communication for any technical questions. However, direct manufacturers might not be accessible for smaller quantities or for individual hobbyist.
The 10 ohm resistor, though seemingly simple, is a versatile component in electronics. From protecting LEDs to balancing audio signals, it plays a crucial role in many circuits. By understanding its different types, specifications, and applications, you can harness its power to build reliable and efficient electronic systems. Whether you need a precise 1% 10 ohm resistor or a robust 10W wire-wound 10 ohm resistor, choosing the right resistor is key for project success. Continued innovation ensures that the 10 ohm resistor will remain a cornerstone of electronic design for years to come.
