Understanding the 22k Ohm Resistor: Applications & Selection

In the world of electronics, a seemingly small component like a 22k ohm resistor plays a critical role. Just as a carefully chosen path in a garden directs the flow of people, resistors, including the common 22k ohm variant, control the flow of electrical current. This article delves into the world of the 22k ohm resistor, exploring its characteristics, applications and how to select the right one for your needs. Whether you're a hobbyist or professional, understanding this component is vital for efficient circuit design.

What is a 22k Ohm Resistor?

A 22k ohm resistor is a fundamental passive electronic component designed to impede the flow of electrical current, presenting a resistance of 22,000 ohms. This specific resistance value plays a critical role in circuit design, enabling precise control over current and voltage levels within an electrical circuit. Essentially, it acts as a flow regulator, converting electrical energy into heat as current passes through it.

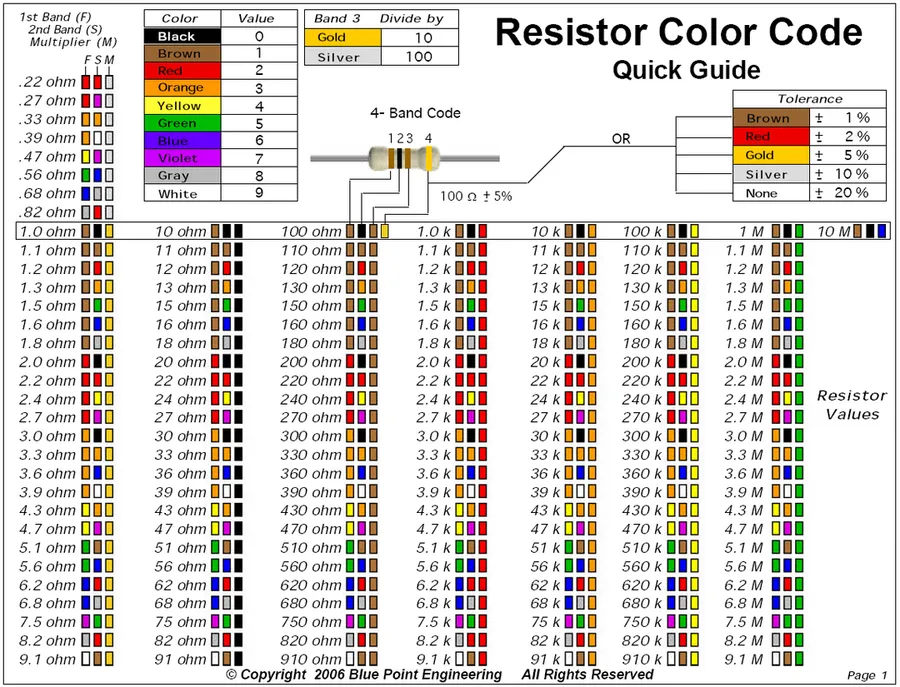

22k Ohm Resistor Color Code

The color code on a 22k ohm resistor is a standardized method to visually identify its resistance value and tolerance. This system uses colored bands, each representing a numerical digit or a multiplier, and the tolerance band indicates the precision of the resistance.

For a 22k ohm resistor, the color bands are typically arranged as follows: The first band (closest to the edge) is Red (2), the second band is also Red (2), and the third band is Orange (1,000 multiplier). The fourth band represents the tolerance and is usually Gold for 5% or Silver for 10%. Thus, Red-Red-Orange-Gold (or Silver) signifies a 22k ohm resistor with a 5% or 10% tolerance, respectively.

Common Applications of 22k Ohm Resistors

22k ohm resistors serve as fundamental components across a wide array of electronic circuits, primarily due to their effective resistance value which is neither too high nor too low for many applications. Their role in controlling current and voltage makes them essential in both digital and analog circuit designs, as well as specific applications such as signal conditioning and feedback control.

• Pull-up and Pull-down Resistors in Digital Circuits
  In digital logic circuits, 22k ohm resistors are frequently employed as pull-up or pull-down resistors. These resistors ensure that a digital input pin is at a defined logic high or low state when it's not actively driven by another component, preventing floating inputs that can cause erratic behavior. This helps in ensuring that circuits maintain stability, preventing unpredictable operations.
• Current Limiting Resistors for LEDs
  22k ohm resistors can also be employed to limit the current flow through Light Emitting Diodes (LEDs), ensuring they do not exceed their rated current capacity and burn out. This is essential to provide a long life of the LED and protects components. The high value of 22k ohm is usually for lower power LEDs, and this ensures that the LED brightness is consistent.
• Biasing Resistors in Amplifier Circuits
  In analog amplifier circuits, 22k ohm resistors are used for biasing transistors. A biasing resistor is crucial in establishing the operating point of the transistor, which dictates the amplification characteristics. They ensure proper functionality and performance of the amplification stage.
• Feedback Components in Analog Circuits
  22k ohm resistors are often used as part of a negative feedback network in operational amplifiers (op-amps). This feedback is critical to ensure stable operation and control the gain of the amplifier, helping in ensuring that circuit performance remains consistent and linear and avoids oscillation.

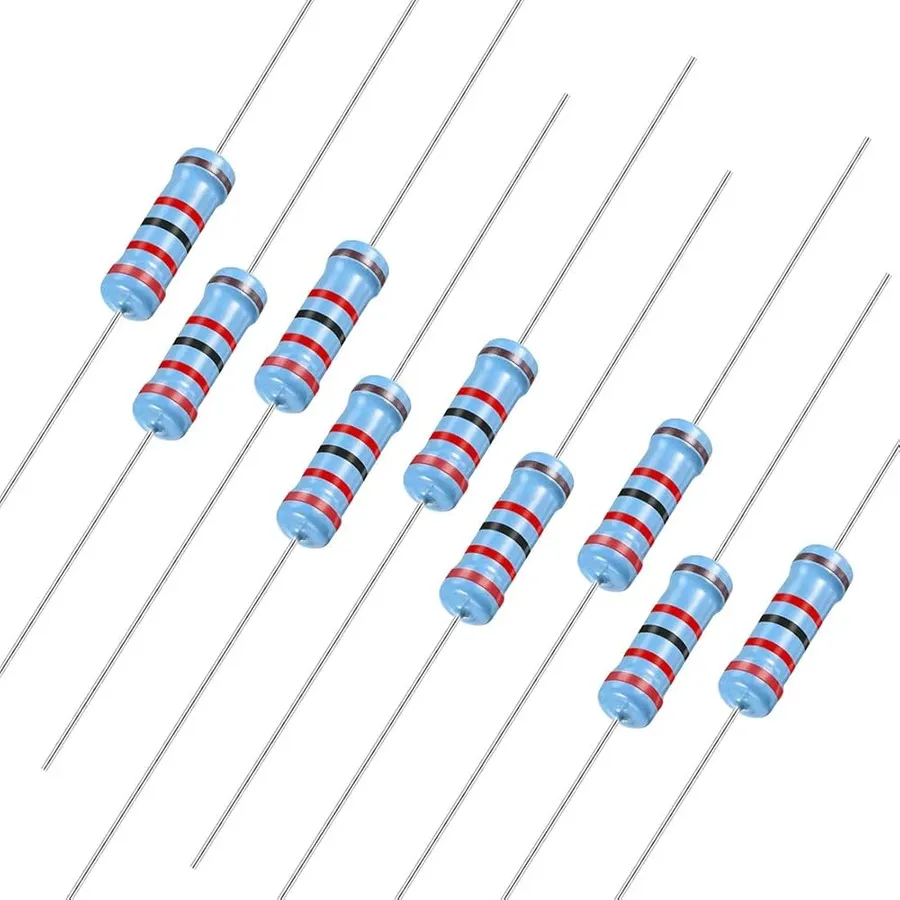

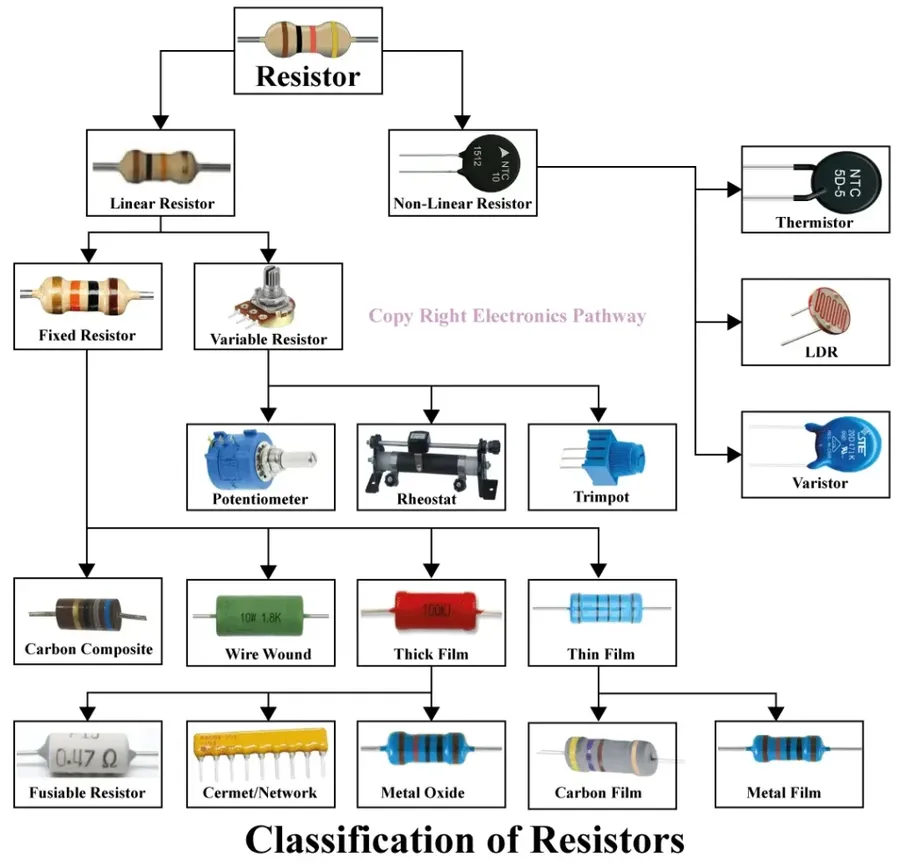

Types of 22k Ohm Resistors

22k ohm resistors are available in several types, each with distinct characteristics that make them suitable for different applications. These variations primarily involve the materials used in their construction, which affect parameters such as tolerance, power rating, temperature stability and overall reliability. Understanding these differences is crucial for selecting the appropriate resistor for a specific circuit design.

When selecting a 22k ohm resistor type, consider the environment in which it will operate. For instance, metal film resistors are preferred in environments with temperature fluctuations due to their better stability. For high-power applications, wire-wound resistors are more appropriate due to their ability to dissipate more heat. For general low power usage carbon film resistors are sufficient and more economical.

Selecting the Right 22k Ohm Resistor

Choosing the appropriate 22k ohm resistor is crucial for optimal circuit performance and reliability. Key factors include power rating, tolerance, temperature coefficient, and physical size, each impacting the resistor's function and longevity within the intended application. Prioritizing these specifications based on the practical requirements of the circuit ensures both functionality and durability.

Understanding these parameters and their implications is essential. For instance, in high-power applications, a resistor with an adequate power rating is essential to prevent burnout. In precision circuits, a low-tolerance resistor is necessary to ensure accurate resistance. Consider environmental conditions when selecting a resistor with an appropriate temperature coefficient to maintain stable performance across a range of temperatures.

22k Ohm Resistor vs. Other Resistor Values

The selection of a resistor value is pivotal in circuit design, with 22k ohm resistors offering a specific level of current control that differs significantly from other common values like 1k ohm and 10k ohm resistors. These differences impact circuit behavior and function. The 22k ohm resistor, by virtue of its higher resistance compared to 1k and 10k ohm resistors, allows for less current flow at the same voltage, offering unique applications and characteristics in circuits.

The choice of resistor value is not arbitrary; it is dictated by the function needed in the circuit. For example, a 1k ohm resistor, with its lower resistance, is often employed where higher current is required, and a 10k ohm resistor is chosen when a moderate level of resistance is required, such as when you need to reduce current while providing a reference or bias voltage. Conversely, the 22k ohm resistor is suited to applications where low current and higher impedance are needed. Understanding these differences allows for precise circuit design, optimizing for efficiency, stability and functionality in specific applications.

Frequently Asked Questions About 22k Ohm Resistors

This section addresses common questions about 22k ohm resistors, providing concise and authoritative answers to help you understand their characteristics and applications.

• What is the typical tolerance for a 22k ohm resistor?
  The standard tolerance for most general-purpose 22k ohm resistors is ±5%, indicated by a gold band. However, resistors with tighter tolerances, such as ±1% (indicated by a brown band), are also available for more precise applications. The tolerance specifies the acceptable deviation of the actual resistance from the stated 22k ohm value.
• What is the power rating for a standard 1/4 watt 22k ohm resistor?
  A 1/4 watt 22k ohm resistor is designed to safely dissipate 0.25 watts of power without overheating. Exceeding this rating can cause the resistor to fail, potentially damaging the circuit. Always ensure your resistor's power rating is sufficient for the expected power dissipation in your circuit, and consider selecting higher power ratings for safety margins.
• How do you measure a 22k ohm resistor using a multimeter?
  To measure a 22k ohm resistor with a multimeter, set the multimeter to the ohms (Ω) setting, selecting a range that includes 22,000 ohms. Connect the multimeter probes to each end of the resistor. The multimeter display will show the measured resistance, typically with a small deviation from 22,000 ohms due to the resistor's inherent tolerance. Ensure the resistor is not in circuit when measuring.
• What does the color code for a 22k ohm resistor mean?
  The color bands on a 22k ohm resistor are typically Red, Red, Orange, and Gold. The first two bands (Red, Red) represent the first two digits of the resistance value, which are 2 and 2, respectively. The third band (Orange) is the multiplier, which means to multiply by 1000 or k. The fourth band (Gold) indicates a 5% tolerance. Thus, the color code translates to 22 * 1000 = 22,000 ohms or 22k ohms, with a 5% tolerance.
• Can a 22k ohm resistor be used as a pull-up or pull-down resistor?
  Yes, a 22k ohm resistor is commonly used as a pull-up or pull-down resistor in digital circuits. It is particularly suitable where moderate current draw is acceptable. The choice between a pull-up or pull-down configuration depends on the logic level required when the switch or sensor is open. The resistor helps to ensure the input pin does not float.
• What are some common failure modes of a 22k ohm resistor?
  Common failure modes of a 22k ohm resistor include open circuit (where the resistor stops conducting current) and a significant increase in resistance value due to overheating, physical damage, or age. Visual inspection may reveal charring or cracks. These failures can lead to malfunctions or complete failure of the circuit. Use a multimeter to check its resistance if a problem is suspected.
• How does temperature affect the value of a 22k ohm resistor?
  The resistance of a 22k ohm resistor can vary with temperature. The temperature coefficient of resistance indicates the rate of change in resistance per degree Celsius. Metal film resistors typically have a lower temperature coefficient than carbon film resistors. When selecting a resistor, consider the environment of use and select a resistor with a suitable temperature coefficient to maintain circuit performance.

Practical Tips for Using 22k Ohm Resistors

Effectively utilizing 22k ohm resistors in electronic circuits requires careful consideration of installation, testing, and safety practices. Proper techniques ensure optimal circuit performance and longevity, while minimizing potential hazards.

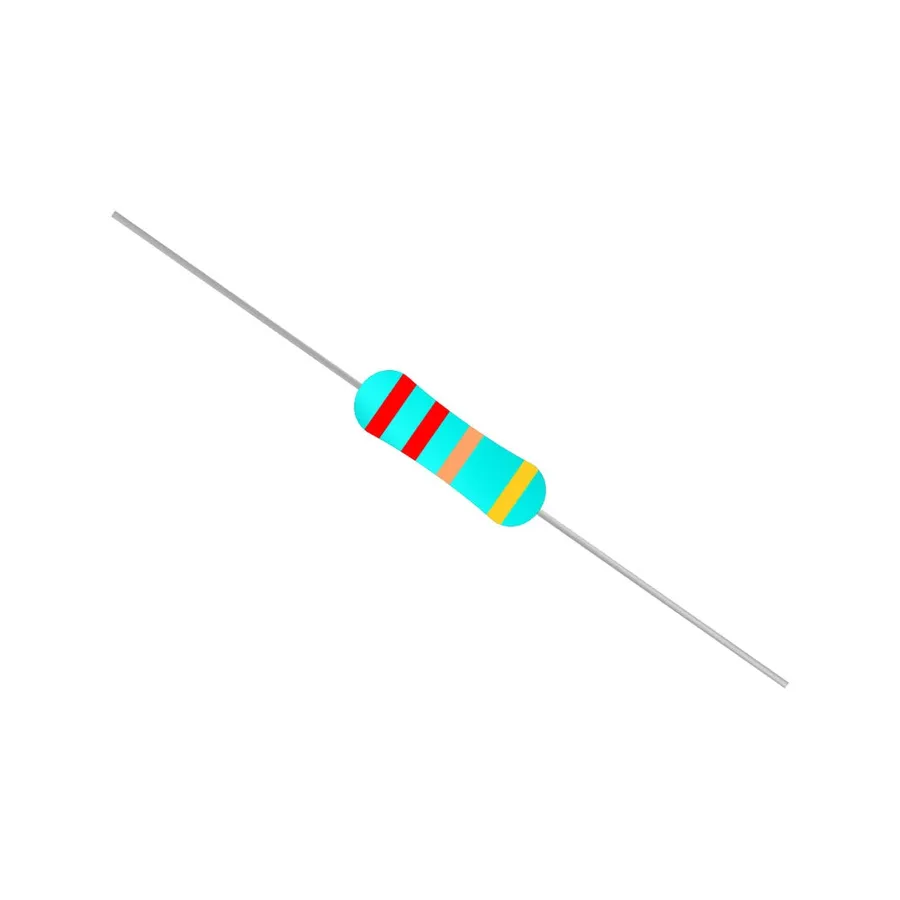

• Installation
  Ensure the resistor leads are correctly placed in the circuit, typically by soldering them to the appropriate pads or connecting them via breadboard jumpers. Verify that connections are secure and free from shorts or open circuits. For through-hole resistors, the component should be flush with the board, and leads should be cut to an appropriate length to avoid unintended contact. For surface mount resistors, proper alignment and soldering techniques should be used to ensure reliable connection and heat dissipation.
• Testing with a Multimeter
  Prior to installation, verify the 22k ohm resistance using a multimeter. Select the Ohms setting on the multimeter, connect the probes to each lead of the resistor, and observe the displayed value. Slight deviations from 22k ohms are expected based on tolerance, but significant deviations warrant inspection for damage or incorrect value. A reading of open circuit or 0 ohms means the component is faulty.
• Safety Precautions
  Always disconnect power before handling or modifying circuits containing 22k ohm resistors. Resistors can become hot if they dissipate significant power, so avoid direct contact during operation. Use proper insulated tools when working with live circuits. Also, be mindful of the power rating of the resistor, as exceeding the power rating can cause the resistor to fail. When replacing a damaged resistor, ensure that the new resistor has the same power rating to prevent damage and failure.
• Troubleshooting
  If a circuit is not functioning as expected, check the 22k ohm resistor for signs of damage such as discoloration, cracking or burning. In-circuit testing should be done after disconnecting power using the multimeter to rule out any issues with the resistor's resistance. If a resistor fails the test, replace it with a new one with the same value and power rating.

Troubleshooting Circuits with 22k Ohm Resistors

Troubleshooting circuits containing a 22k ohm resistor involves systematic analysis to identify and rectify potential issues. Resistor failure, misconnections, and incorrect component selection are common culprits. Understanding typical failure modes and adopting a methodical testing approach is crucial for effective circuit repair and debugging.

• Visual Inspection
  Begin by visually inspecting the 22k ohm resistor for signs of physical damage, such as cracks, burns, or discoloration, indicating possible failure due to overheating or overvoltage. Check for secure connections at the solder joints.
• Resistance Measurement with a Multimeter
  Use a digital multimeter to measure the resistance of the 22k ohm resistor. Disconnect the resistor from the circuit to obtain an accurate reading. A significantly different reading (outside of the resistor's tolerance) suggests a faulty component.
• Checking for Open Circuits
  If the multimeter displays an 'open circuit' or infinite resistance, the resistor has likely failed completely and needs replacement. This type of failure is common due to overcurrent or physical stress.
• Checking for Short Circuits
  If the measured resistance is significantly less than 22k ohms, a short circuit is likely occurring elsewhere in the circuit, or the resistor is damaged and presenting a lower resistance path. This requires further investigation of surrounding components and circuit board traces.
• Component Substitution
  If a suspected 22k ohm resistor is confirmed to be faulty, replace it with an equivalent resistor with the correct power rating and tolerance. Re-test the circuit to verify proper operation.
• Checking for Surrounding Component Failure
  A failure of the resistor could be the result of a failure elsewhere in the circuit. Check capacitors, inductors, transistors, and ICs for potential shorts or open circuits. It is best to isolate components using the circuit diagram to verify the fault, and make sure your readings are within reasonable values of the schematics.
• Step-by-Step Testing Method
  Isolate the circuit, visually inspect the component, check with a multimeter, replace the component if faulty, reassemble the circuit, and test the complete circuit functionality. This approach reduces any additional risk to the circuit.

The 22k ohm resistor, though small, is a cornerstone in electronics. Its ability to limit current and divide voltage, combined with it's color code, makes it an essential component in numerous applications. Whether you are building a simple LED circuit or a complex amplifier, understanding the nuances of the 22k ohm resistor, and properly selecting the right one for the right applications can lead to effective and efficient designs. And remember, always check your components such as a 22k ohm resistor to ensure safety and proper functionality.
