Understanding the Ohm Resistor: A Comprehensive Guide

Just as a water hose has a nozzle to control flow, an ohm resistor manages the flow of electricity. It's a fundamental electronic component, vital to countless devices we use daily. This guide unpacks the intricacies of ohm resistors, their role in circuits, how to identify them using color codes, and their relationship with Ohm's Law, offering a comprehensive understanding that bridges the gap from basic concepts to real-world applications, ensuring you grasp not just what they are, but why they are indispensable.

What is an Ohm Resistor?

An ohm resistor is a fundamental passive electronic component designed to introduce a specific amount of electrical resistance into a circuit, effectively impeding the flow of electrical current. This resistance is measured in ohms (Ω), named after Georg Ohm, the discoverer of Ohm's Law.

The primary function of an ohm resistor is to limit current flow, control voltage levels, or provide a voltage drop within a circuit. By controlling these parameters, ohm resistors play a critical role in managing the behavior of electronic circuits, ensuring they operate as intended and preventing damage from excessive current or voltage. The construction and composition of a resistor directly impacts its stability, precision, and temperature coefficient, making the selection of the correct type and rating essential for each application.

The Concept of Resistance and Ohms

Electrical resistance is a fundamental property that opposes the flow of electric current within a material, quantified by the unit 'ohm' (Ω). This opposition arises from the collisions between charge carriers (usually electrons) and the atoms of the material they traverse. Understanding resistance, measured in ohms, is crucial for designing and analyzing electrical circuits, as it directly influences how current flows in response to an applied voltage.

The ohm, symbolized by the Greek letter Omega (Ω), is defined as the resistance between two points of a conductor when a constant potential difference of one volt, applied to these points, produces in the conductor a current of one ampere. This is formally expressed through Ohm's Law, which establishes a proportional relationship between voltage, current and resistance.

The relationship between voltage (V), current (I), and resistance (R) is described by Ohm's Law: V = IR. This equation underscores that for a constant voltage, higher resistance results in lower current and vice-versa. A material's resistance depends on its inherent properties (resistivity), length, and cross-sectional area; longer and thinner materials exhibit greater resistance.

Ohm's Law Explained

Ohm's Law is a foundational principle in electrical engineering, describing the relationship between voltage, current, and resistance in an electrical circuit. This law is expressed mathematically as V = IR, where V represents voltage (measured in volts), I represents current (measured in amperes), and R represents resistance (measured in ohms). Understanding and applying Ohm's Law is crucial for both analyzing existing circuits and designing new ones.

The core of Ohm's law lies in the linear relationship that exists between voltage and current for many materials and components, particularly at fixed temperatures. This means if you double the voltage across a resistor, you will also double the current flowing through it, provided the resistance remains constant. This linear behavior is characteristic of what is known as an Ohmic material.

Ohm's Law can be rearranged to solve for different variables as required:

• Calculating Voltage:
  V = IR (Voltage equals current multiplied by resistance).
• Calculating Current:
  I = V/R (Current equals voltage divided by resistance).
• Calculating Resistance:
  R = V/I (Resistance equals voltage divided by current).

It's important to note that Ohm's Law has limitations and does not apply to all circuit components, or under all conditions. For example, some semiconductor devices exhibit non-linear behavior and do not follow Ohm's Law directly. Furthermore, the temperature of a component can alter its resistance, influencing the way Ohm's Law applies in real-world scenarios. Despite these limitations, Ohm's Law provides a valuable, fundamental model for understanding and working with electrical circuits.

Consider a simple circuit consisting of a 9V battery connected to a 100-ohm resistor. Using Ohm's Law:

# Given:
Voltage = 9 # V
Resistance = 100 # ohms

# Calculating Current
Current = Voltage / Resistance
print(Current)
# The result of this calculation is Current = 0.09 Ampere, or 90mA

This basic example illustrates how Ohm’s Law can be applied to calculate current in a simple circuit with known voltage and resistance values.

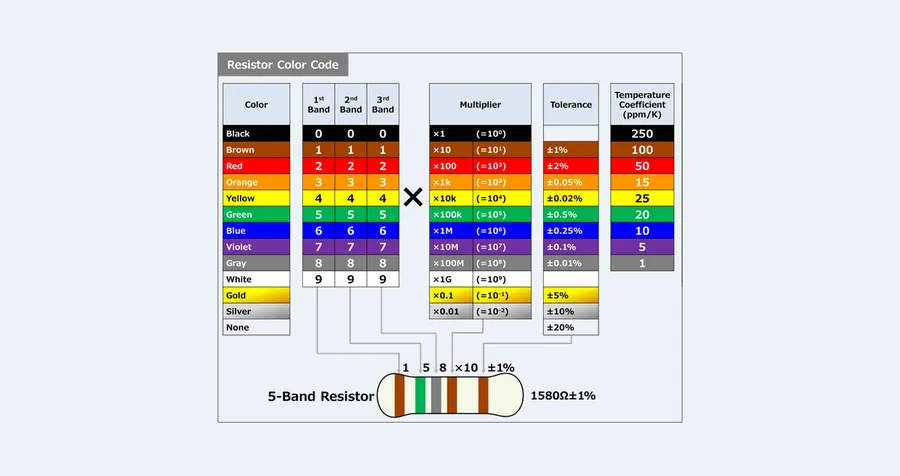

Resistor Color Codes: A Practical Guide

Resistor color codes provide a standardized method for quickly identifying the resistance value and tolerance of a resistor. These color bands, painted on the body of the resistor, offer a straightforward way to determine its specifications without the need for electronic testing in many situations.

Most resistors use either four or five color bands. In a four-band resistor, the first two bands represent the first two digits of the resistance value, the third band represents the multiplier, and the fourth band indicates the tolerance. Five-band resistors add a third digit to the resistance value by using three bands for the resistance value itself, before the multiplier and tolerance band. It's critical to note that reading the resistor code is done from left to right. The tolerance band is often set slightly apart from the other bands.

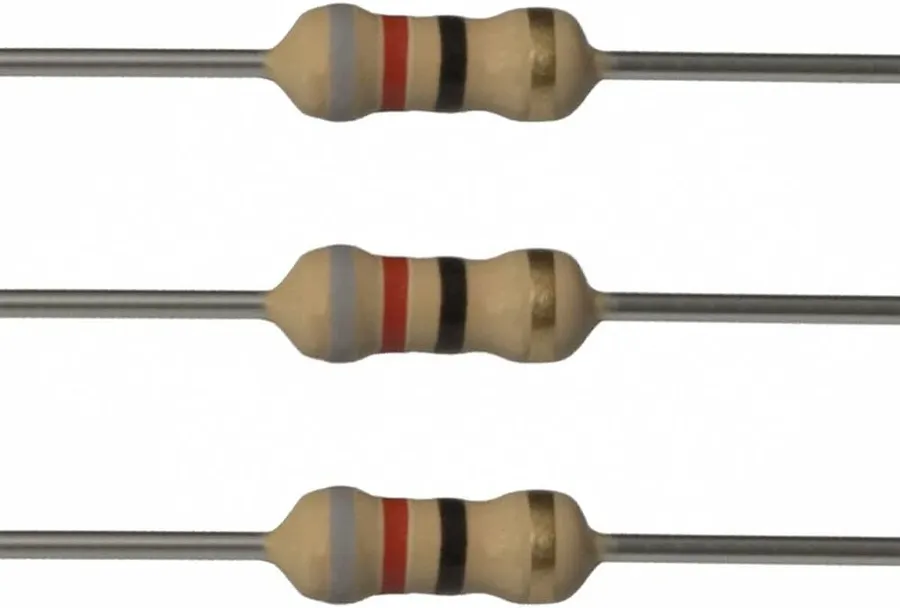

For example, a resistor with the bands Brown, Black, Red, and Gold would be interpreted as follows: Brown (1), Black (0), Red (multiplier of 100), and Gold (5% tolerance). Therefore, the resistance is 10 x 100 = 1000 ohms or 1kΩ with a tolerance of ±5%. The 5-band resistor with bands of Brown, Black, Black, Brown and Gold would be interpreted as 100 ohms and multiplied by 10 (brown) so the final value is 1000 ohms or 1kΩ with a tolerance of ±5%.

Understanding resistor color codes is essential for anyone working with electronics as it enables quick identification and use of components, and this skill is fundamental in assembling, repairing, and designing electronic circuits. Always ensure to double-check the code on a resistor, and to use tools such as a multimeter to verify the value if there is a possibility of misreading the band, or if the band is damaged and difficult to identify.

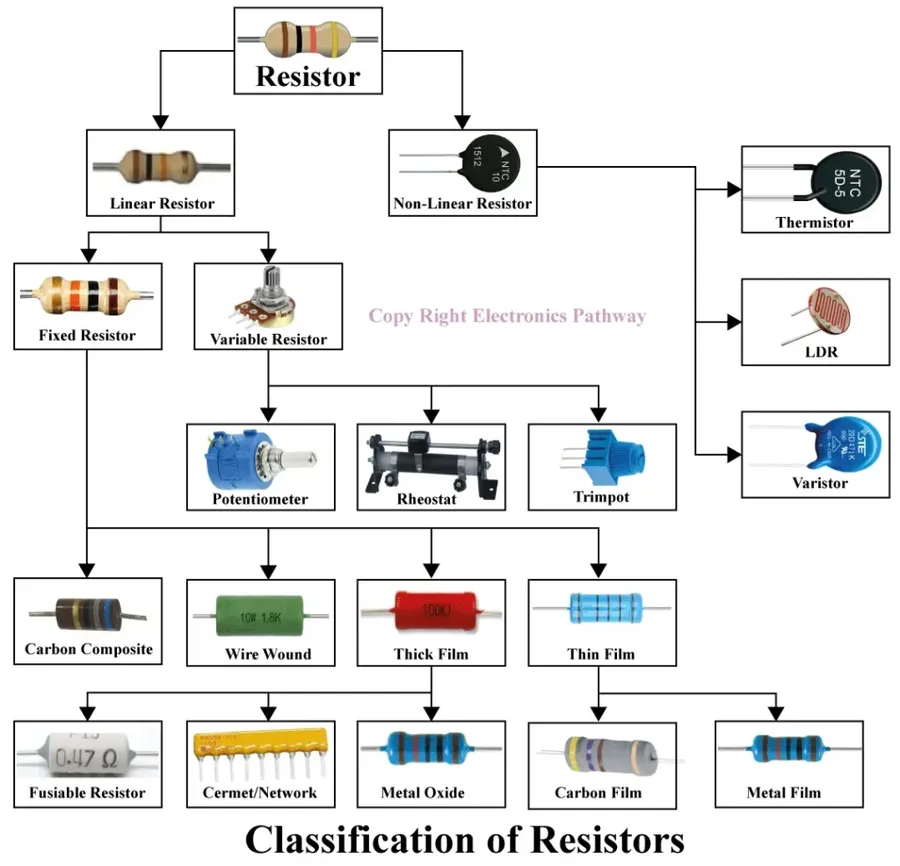

Types of Ohm Resistors and Their Applications

Ohm resistors, fundamental components in electronic circuits, are manufactured in a variety of types, each with distinct characteristics and applications. These variations arise from differences in construction materials and manufacturing processes, resulting in a range of electrical properties and suitability for diverse applications. Understanding these distinctions is critical for selecting the appropriate resistor for a given circuit design.

Key parameters in selecting resistors include power rating, which indicates the maximum power the resistor can dissipate without damage, and temperature coefficient, which describes how the resistance changes with temperature. Proper consideration of these factors ensures reliable performance of the electronic circuit. Different types of resistors exhibit specific trade-offs between accuracy, stability, cost, and suitability for particular uses.

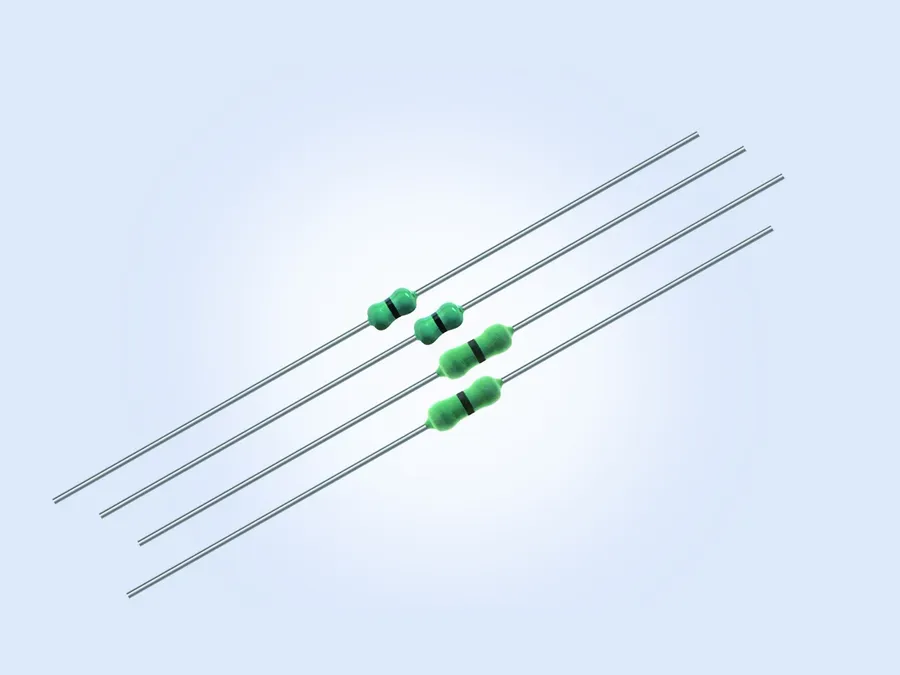

Zero-Ohm Resistors: Why Do They Exist?

Zero-ohm resistors, often appearing counterintuitive, are not actually resistors in the conventional sense but rather function as links or jumpers on a printed circuit board (PCB). Their primary purpose is to provide a direct electrical connection with minimal impedance, acting as a substitute for a wire trace. They offer manufacturing and design advantages over simply using a direct copper trace.

• Function as Jumpers
  Zero-ohm resistors act as convenient jumper points on PCBs, allowing traces to cross over each other without short circuits. This capability significantly simplifies complex board layouts, providing flexibility in routing and reducing the layers needed in PCB design.
• Simplified Rework
  In cases where circuit modifications or corrections are required, zero-ohm resistors can easily be removed and replaced by alternative components or modified links. This ease of rework reduces the complexity and cost of PCB changes.
• Automated Assembly
  Zero-ohm resistors, packaged like other surface mount components, facilitate automated pick-and-place assembly processes during PCB manufacturing. This ensures accurate and efficient placement on boards, aligning with high-volume production requirements.
• Test Points
  They can serve as temporary test points within a circuit during manufacturing and quality control. By including zero-ohm resistors in design, electrical connections can be easily monitored and verified, then replaced with normal resistors, if needed.
• Configuration Options
  Zero-ohm resistors enable circuit configuration options, allowing engineers to enable or disable parts of a circuit via changing components or bridging a connection. This is especially useful when creating multiple board variants.

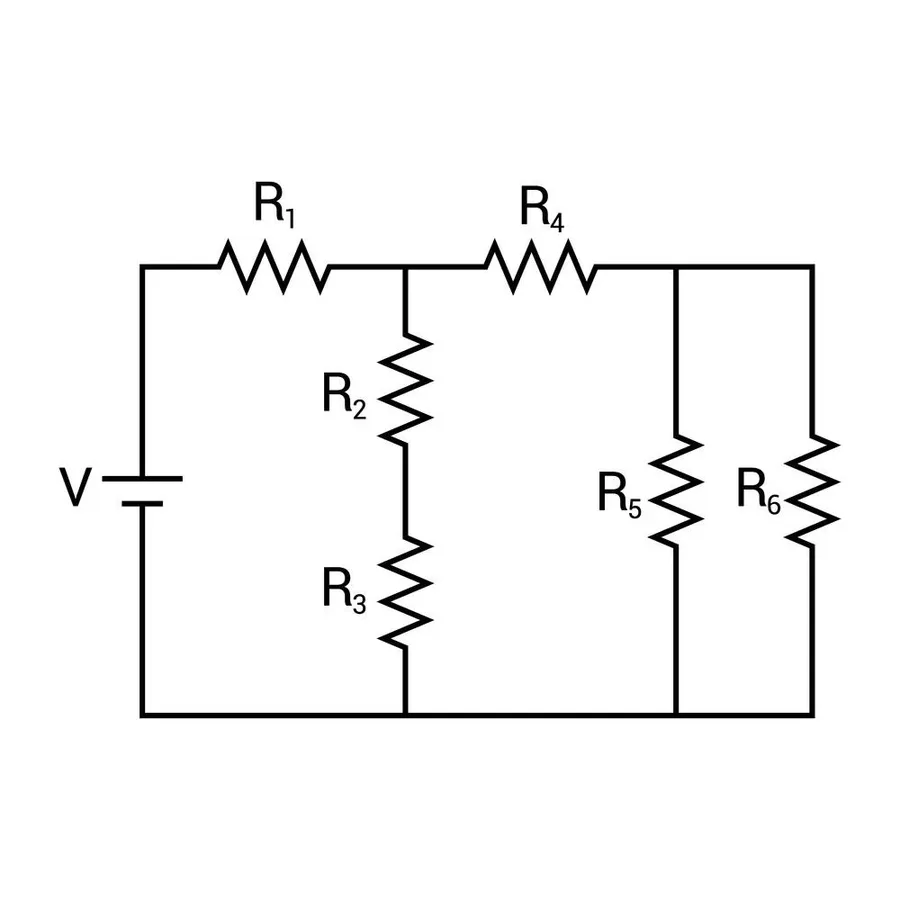

Resistors in Series and Parallel Configurations

Understanding how resistors behave in series and parallel configurations is crucial for designing and analyzing electronic circuits. These configurations affect the overall resistance, current flow, and voltage distribution within the circuit, requiring precise calculations for desired functionality.

In a series circuit, resistors are connected end-to-end, forming a single path for current flow. The total resistance in a series circuit is simply the sum of all individual resistances.

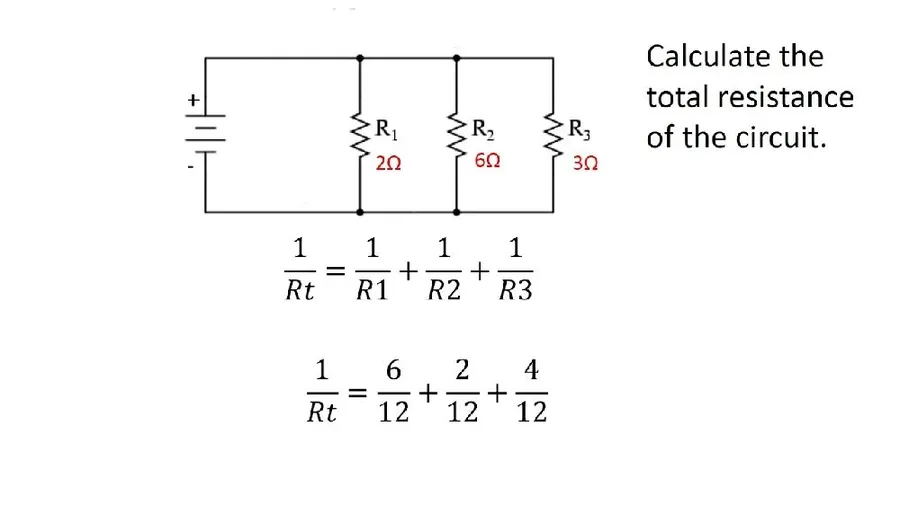

In a parallel circuit, resistors are connected side-by-side, creating multiple paths for current flow. The reciprocal of the total resistance is equal to the sum of the reciprocals of individual resistances.

Here's a breakdown of how to calculate total resistance and understand their effects:

• Series Resistors
  When resistors are connected in series, the same current flows through each resistor. The voltage across each resistor is proportional to its resistance. The total resistance is calculated by adding up the individual resistances. Example: If you have a 100 ohm resistor and a 200 ohm resistor in series, the total resistance is 300 ohms.
• Parallel Resistors
  When resistors are connected in parallel, the voltage across each resistor is the same, but the current splits between the resistors inversely proportional to their resistances. The total resistance is calculated using the reciprocal formula. Example: If you have a 100 ohm resistor and a 200 ohm resistor in parallel, the total resistance is approximately 66.67 ohms.

It is important to note that the formulas provided are applicable when dealing with resistors in ideal conditions. In practical scenarios, factors like resistor tolerances, temperature coefficients, and parasitic effects may impact the actual circuit behavior. Always consider these parameters when designing electronic circuits.

Frequently Asked Questions about Ohm Resistors

This section addresses common questions about ohm resistors, clarifying their uses, values, and impacts in electronic circuits. By answering these frequently asked questions, we aim to provide a solid understanding of how ohm resistors function in various applications.

• What is a 100 ohm resistor typically used for?
  A 100 ohm resistor is commonly used for current limiting, signal termination, and in pull-up or pull-down configurations in circuits. Specifically, it may be used in LED circuits to prevent overcurrent damage, or in amplifier and signal processing circuits to set input impedance and protect sensitive components from excessive signals or noise.
• Is a 1k ohm resistor equivalent to 1000 ohms?
  Yes, a 1k ohm resistor is indeed equivalent to 1000 ohms. The 'k' symbol represents the metric prefix 'kilo,' which signifies multiplication by 1000. Therefore, 1k ohms = 1 * 1000 ohms.
• What happens if I use a resistor with a higher ohm value than specified?
  Using a higher ohm resistor than specified will result in a lower current flow in the circuit. This can lead to reduced functionality such as lower brightness in an LED circuit or reduced gain in an amplifier circuit. In some cases, if the resistance is drastically increased, a component might not receive sufficient current to operate correctly, hence the importance of proper resistor selection.
• When should I use different resistor values in electronic circuits?
  Resistor values are selected based on specific circuit requirements, such as controlling current, voltage division, and impedance matching. For example, low-value resistors (e.g., 1 ohm or less) are often used for current sensing or protection, while higher values (e.g., 10k ohms or more) might be used in pull-up/pull-down configurations to establish logic levels or in timing circuits. The correct choice depends on the intended functionality of the specific circuit segment.
• What is the difference between a 1 ohm resistor and a 2 ohm resistor?
  A 1 ohm resistor introduces half the resistance of a 2 ohm resistor. Consequently, a 1 ohm resistor allows more current to flow compared to a 2 ohm resistor under the same voltage conditions. This difference in resistance and current is fundamental in designing circuits that need very fine current or voltage control and also in ensuring the protection of components sensitive to high currents.
• How does the power rating of a resistor impact its function?
  The power rating of a resistor dictates the maximum amount of power that the resistor can safely dissipate without overheating and potentially failing. If a resistor is subjected to power exceeding its rating, it can overheat, change its resistance value, or even burn out. Therefore, selecting a resistor with an adequate power rating is essential for the reliability and safety of any circuit.

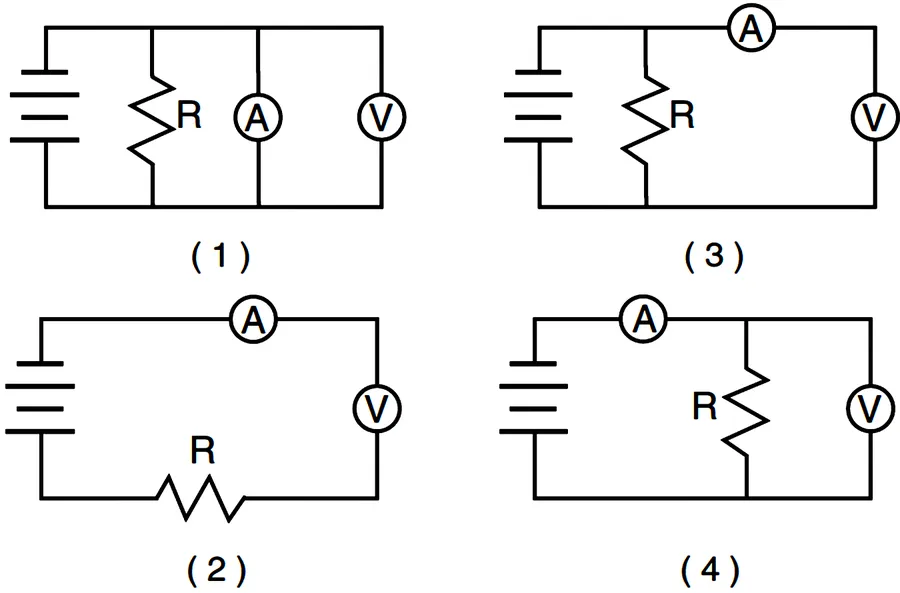

• Can a resistor be used to measure current?
  Yes, a resistor can be used to measure current using Ohm's Law. By placing a small, known resistor in series within the circuit and measuring the voltage drop across it, you can calculate the current flowing through the resistor using I = V/R. This method is often used in current-sensing circuits and requires the use of precision resistors and measurement instruments.

Practical Applications of Ohm Resistors

Ohm resistors, fundamental components in electronic circuits, are ubiquitously found across a wide spectrum of applications. They serve the primary function of limiting current flow, ensuring that other circuit components operate within their safe parameters. Their presence is not limited to simple circuits but extends into complex systems.

Below are several examples where ohm resistors play crucial roles, ranging from simple analog circuits to sophisticated digital systems:

• Audio Electronics
  In audio circuits, resistors are used for a variety of purposes such as setting gain levels in amplifiers, acting as pull-up or pull-down resistors in digital audio interfaces, and for impedance matching to ensure optimal signal transfer with minimal losses.
• Power Supplies
  Resistors are essential for regulating voltage and current levels in power supply circuits. They also serve to limit current inrush during start-up, and provide sense points for monitoring load conditions. Furthermore, they contribute to thermal management within the power supply unit by dissipating excess energy.
• Sensor Circuits
  In sensor applications, resistors are crucial for creating voltage dividers, which convert changes in the sensor's resistance to a measurable voltage. This conversion is fundamental for the interface of analog and digital signal processing. Resistors also create current limiting paths to protect delicate sensor elements.
• LED Lighting
  Ohm resistors are widely used in LED lighting to limit current passing through the LEDs. This prevents damage to the LEDs and ensures a consistent and controlled light output. The value of the resistor is selected according to the specific voltage and current requirements of the LED being used.

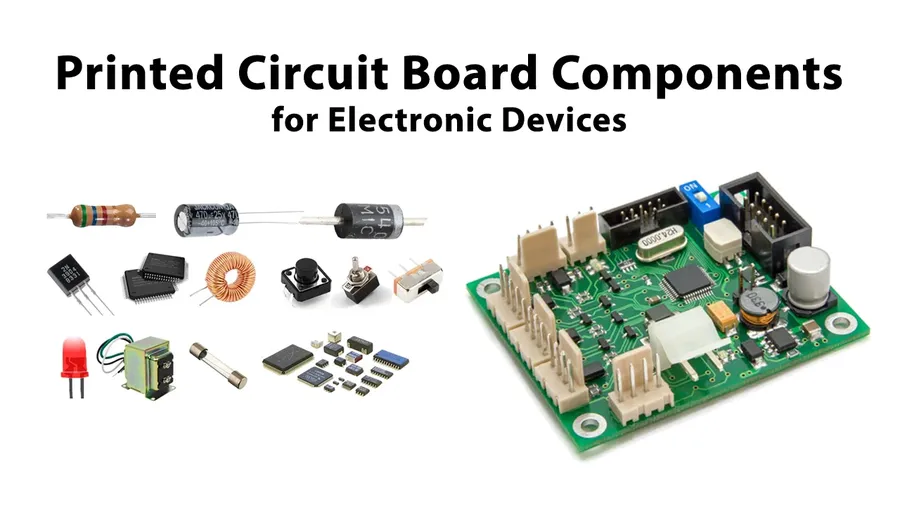

• Printed Circuit Boards (PCBs)
  Across various PCBs, resistors are essential as biasing elements, termination resistors in high-speed digital circuits, current limiters for signal transmission lines, and components in R-2R ladders for digital-to-analog conversion. These roles are critical for optimal performance and prevent signal degradation.
• Simple Circuits
  In simple circuits, resistors are commonly used to control the speed of motors, the brightness of LEDs, and the voltage and current levels of other components. This foundational use case demonstrates the wide versatility of these components.

The selection of appropriate resistor values and types is crucial for each application to ensure that the components function correctly and safely. Failure to do so may result in circuit malfunctions or component failure. Precise consideration of resistance, power rating, tolerance, and temperature coefficient is needed for any electronic design.

In summary, the seemingly simple ohm resistor is a cornerstone of modern electronics. Understanding its properties, from resistance values determined by color codes to its behaviour governed by Ohm's Law, empowers anyone to effectively design and troubleshoot circuits. Whether you are a student, hobbyist, or professional, mastering ohm resistors provides the building blocks for creating a wide array of electronic devices and systems. We encourage you to further explore this fundamental component and how it helps control electricity, essential for the operation of countless everyday technologies.
