Unlocking the Secrets of the Unijunction Transistor: A Comprehensive Guide

In the realm of semiconductor devices, the unijunction transistor (UJT) stands out for its unique ability to act as an electrically controlled switch. Unlike its more common cousins, the bipolar junction transistor (BJT) and field-effect transistor (FET), the UJT boasts a single junction and peculiar characteristics that make it indispensable in various timing and triggering circuits. This article will guide you through the intricacies of the UJT, exploring its structure, function, applications, and more, offering an illuminating glimpse into this essential component.

Understanding the Basic Structure of a Unijunction Transistor

The unijunction transistor (UJT) is a three-terminal semiconductor device distinguished by its unique structure and electrical characteristics. Unlike conventional bipolar junction transistors (BJTs), which have two junctions, the UJT features a single p-n junction, giving rise to its name. This singular junction is pivotal to its operation and is the source of its distinctive behavior.

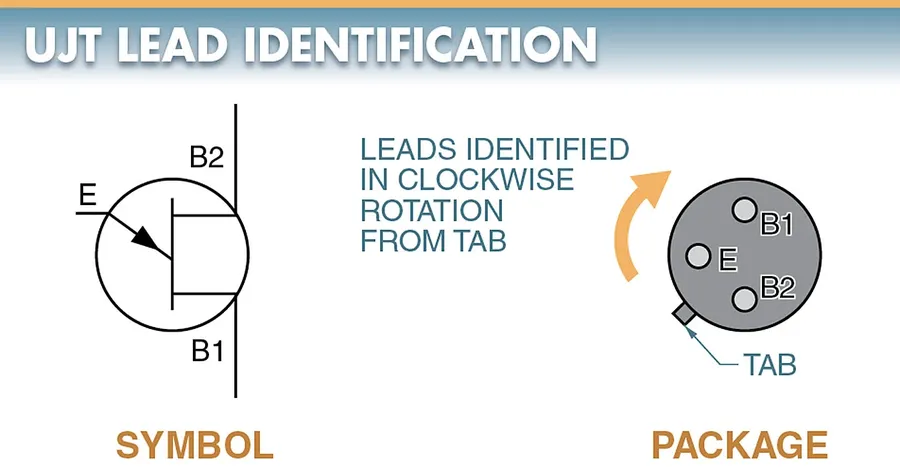

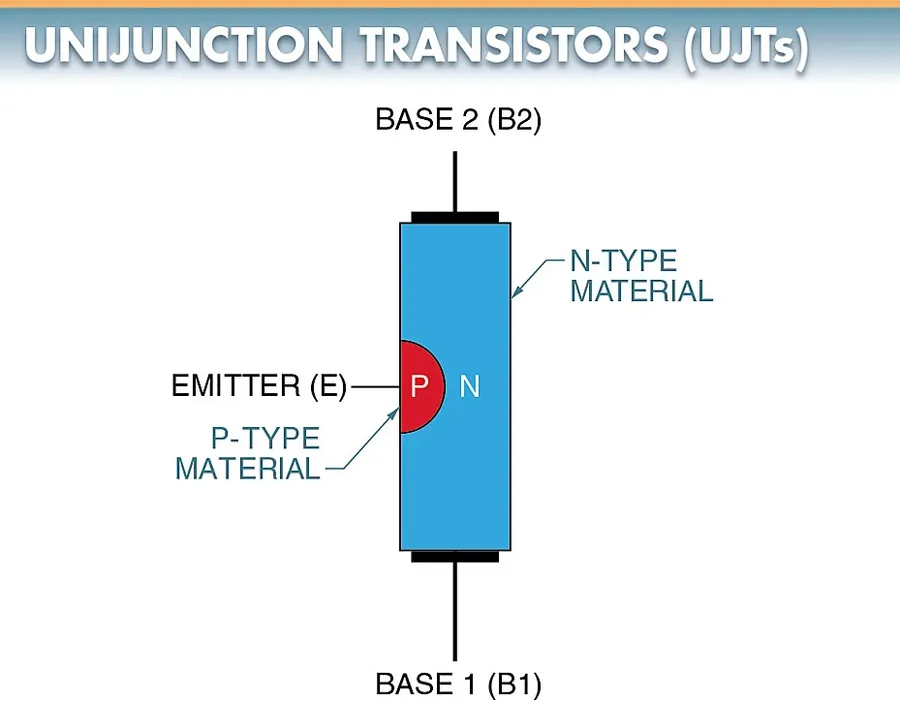

The UJT comprises a lightly doped n-type silicon bar with a small, heavily doped p-type region alloyed into it, creating a single p-n junction. This structure gives rise to three terminals: the emitter (E), which is connected to the p-type region, and two bases, Base 1 (B1) and Base 2 (B2), which are ohmic contacts at either end of the n-type silicon bar. Understanding the physical arrangement of these elements is crucial to grasping the device's functionality.

How a Unijunction Transistor Works: Operating Principles Explained

The unijunction transistor (UJT) operates based on a unique mechanism characterized by a negative resistance region, which is crucial for its applications, especially in relaxation oscillators. This behavior is governed by the device's internal structure and the interplay of voltage and current within its layers, which is distinct from standard bipolar junction transistors (BJTs).

Central to UJT operation is the intrinsic standoff ratio (η), a critical parameter that dictates the firing voltage, also known as the peak point voltage (Vp), at which the device switches from its off state to its conducting state. The UJT’s emitter-base junction exhibits a non-linear behavior where an increase in emitter voltage beyond Vp leads to a reduction in emitter resistance, demonstrating the aforementioned negative resistance characteristic.

The UJT's operation cycle begins with the emitter junction reverse biased, essentially acting as an open switch. When the voltage at the emitter reaches the peak point voltage (Vp), the emitter junction becomes forward biased due to conductivity modulation of the silicon bar, injecting current into the base region. This transition causes the UJT to enter a conductive state until the emitter current drops below the valley current, at which point it returns to its high-resistance state. This cyclic behavior is what makes the UJT suitable for relaxation oscillators and triggering mechanisms.

• Intrinsic Standoff Ratio (η)
  This parameter is crucial for determining the firing voltage (Vp) of the UJT. It's a fraction of the interbase voltage, calculated as R_B1/(R_B1 + R_B2), where R_B1 and R_B2 are the resistances between the emitter and the respective bases.
• Peak Point Voltage (Vp)
  This voltage level at the emitter triggers the UJT into its conductive state. Vp is given by the formula: Vp = η * V_BB + V_D, where V_BB is the interbase voltage and V_D is the forward voltage drop of the emitter-base junction.
• Negative Resistance Region

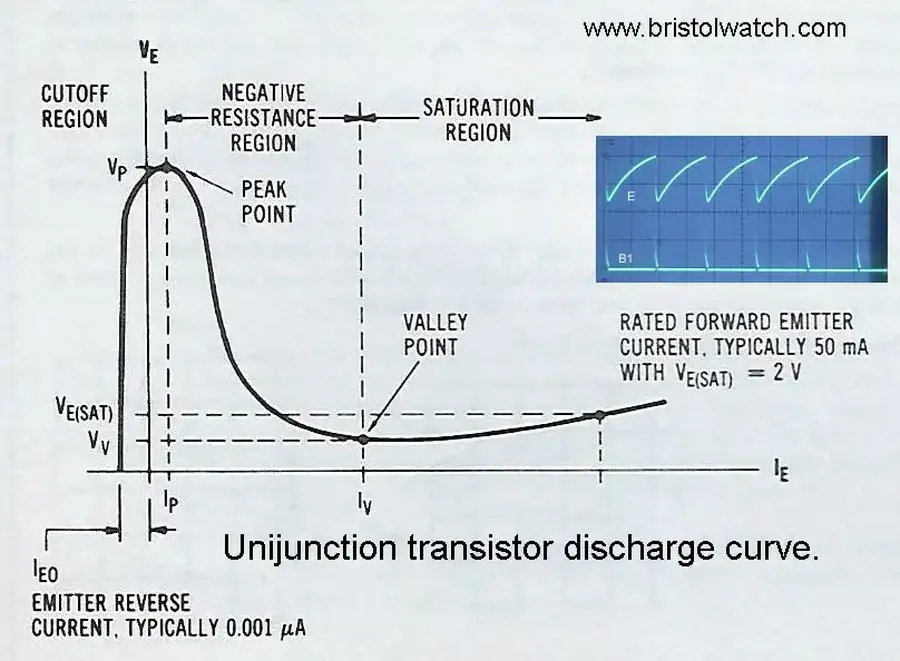

  Following the peak point voltage, the UJT exhibits a negative resistance characteristic. As the emitter voltage is further increased the resistance decreases, this behavior is crucial for oscillatory behavior.
• Valley Point
  The valley point is where the current-voltage curve of the UJT switches to a positive resistance region. Below this point the device returns to the high resistance state.

Unijunction Transistor Characteristics: Key Parameters and Performance

The performance of a Unijunction Transistor (UJT) is dictated by several key parameters, notably the peak point voltage (Vp), valley point voltage (Vv), and interbase resistance (Rbb). These parameters define the UJT's unique negative resistance region, which is crucial for its applications.

These parameters are interrelated and vary from one UJT model to another, however understanding these will help in effective circuit design. Notably, The peak point voltage (Vp) is calculated using the formula Vp = ηVbb + Vd, where Vbb is the voltage between the two bases and Vd is the voltage drop across the emitter diode. The intrinsic standoff ratio (η) is a crucial parameter that is defined as η=R1 / (R1+R2), which are effectively two internal resistances of UJT. The voltage across the UJT emitter needs to reach Vp for it to transition from OFF state to ON state.

Unijunction Transistor as a Relaxation Oscillator: The Core Application

The unijunction transistor (UJT) finds a primary application in relaxation oscillator circuits, leveraging its unique negative resistance characteristic to generate timing pulses. These oscillators are fundamental in many electronic systems where a simple and reliable timing circuit is needed.

The functionality of a UJT relaxation oscillator relies on the repetitive charging and discharging of a capacitor, controlled by the UJT's inherent properties. The core of this functionality resides in the UJT's capacity to switch between high and low resistance states based on the voltage at its emitter terminal, making it a natural fit for such circuits.

The operation can be described as follows: Initially, the capacitor charges through a resistor until the emitter voltage reaches the UJT’s peak point voltage (Vp). At this point, the UJT switches to its low-resistance state, allowing the capacitor to discharge rapidly through the emitter to base 1. Once the discharge is complete and the emitter voltage falls below the valley point voltage (Vv), the UJT reverts to its high resistance state and the capacitor begins to recharge, continuing the cycle, thus creating a pulsed output.

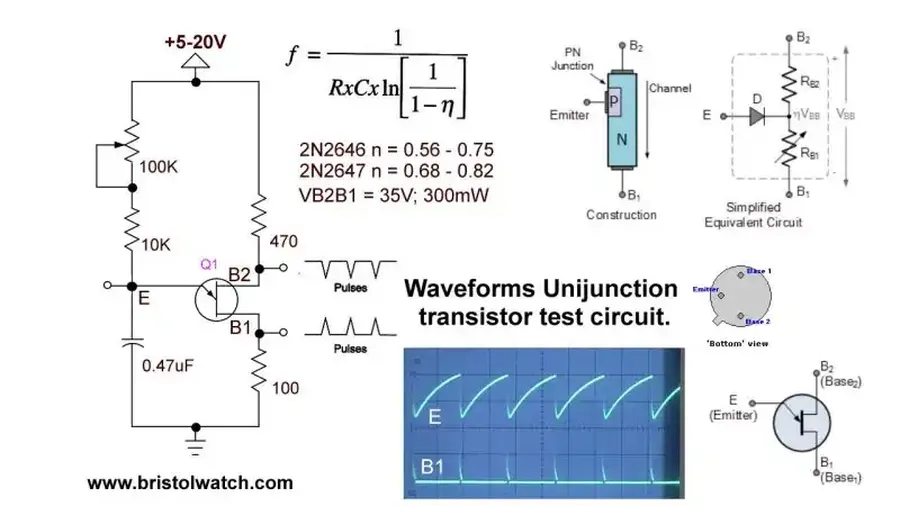

The frequency of oscillation for a UJT relaxation oscillator can be approximated using the following formula:

f ≈ 1 / (R * C * ln(1 / (1 - η)))

Where:

• f
  is the frequency of oscillation.
• R
  is the charging resistance.
• C
  is the capacitance of the capacitor.
• η
  is the intrinsic standoff ratio of the UJT.

This formula provides a practical means of calculating the expected oscillation frequency based on the chosen components and intrinsic device characteristics. It also explains why UJTs are ideal for this type of circuit, as the oscillation is determined by passive components, a very stable and predictable method.

Applications Beyond Oscillators: Practical Uses of the UJT

While the unijunction transistor (UJT) is most recognized for its role in relaxation oscillators, its unique characteristics make it suitable for other specialized applications, particularly in triggering circuits for power control and timing. These applications leverage the UJT’s ability to rapidly switch from a high-resistance to a low-resistance state when the emitter voltage reaches a specific threshold.

• SCR Triggering Circuits
  UJTs are commonly used to generate trigger pulses for silicon-controlled rectifiers (SCRs) and other thyristors. The UJT's negative resistance characteristic allows for the creation of a pulse of current that can reliably turn on the SCR. The timing of the trigger pulse can be controlled by the charging rate of a capacitor in the UJT circuit.
• Phase Control Circuits
  The UJT can be incorporated into circuits for phase control of AC power, enabling applications like light dimmers, speed control for universal motors, and simple power regulators. By adjusting the UJT's firing point within the AC cycle, the average power delivered to a load can be regulated.
• Timing and Delay Circuits
  Beyond oscillators, the UJT can be used in various timing and delay circuits where precise time intervals are needed. The charging characteristics of the capacitor connected to the emitter determines the time delay before the UJT switches on, which is useful in sequential control and time-delayed operations.
• Simple Overvoltage Protection
  The switching behavior of the UJT can be used in basic overvoltage detection circuits. When voltage reaches a predefined level, the UJT switches on triggering a control event such as activating a relay, or a visual indication of the overvoltage state. This prevents potential damage to circuits.

Unijunction Transistor vs. Bipolar Junction Transistor: Key Differences

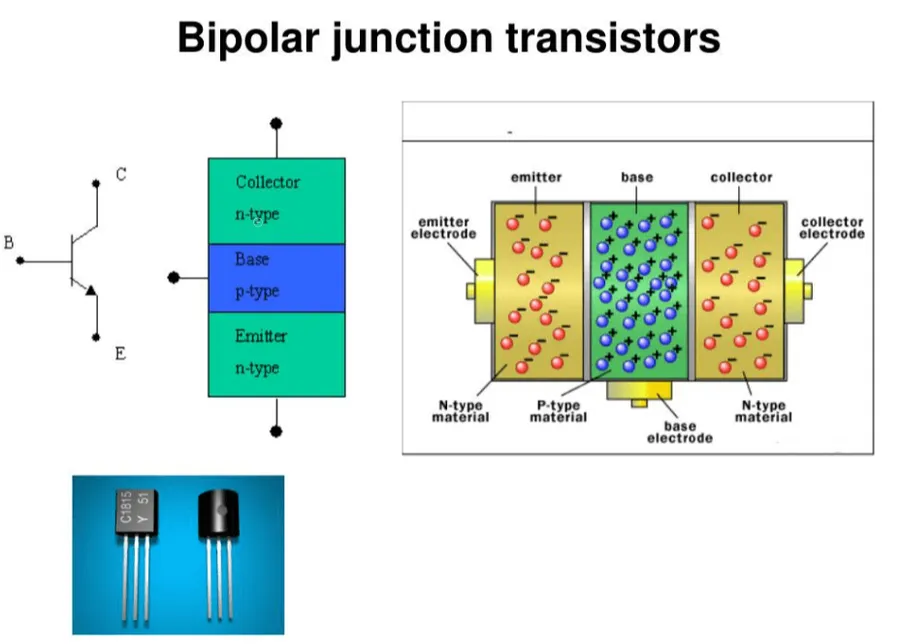

While both unijunction transistors (UJTs) and bipolar junction transistors (BJTs) are semiconductor devices used in electronic circuits, they differ fundamentally in their structure, operating principles, and typical applications. UJTs are primarily used for their unique negative resistance characteristic and ability to function as relaxation oscillators, while BJTs are more general-purpose devices used for amplification and switching.

Frequently Asked Questions about Unijunction Transistors

This section addresses common questions about unijunction transistors (UJTs), providing clear answers regarding their function, operational theory, and applications, particularly their use in relaxation oscillators. We aim to clarify the core concepts related to UJTs for a comprehensive understanding.

• What is a unijunction transistor?
  A unijunction transistor (UJT) is a three-terminal semiconductor device that exhibits a unique negative resistance characteristic. Unlike bipolar junction transistors (BJTs), the UJT has a single p-n junction and operates differently. It's primarily used as a switching device and in oscillator circuits.
• What is the primary function of a UJT?
  The main function of a UJT is to act as a voltage-controlled switch. It triggers (switches ON) when the voltage at its emitter terminal reaches a certain fraction of the voltage across its two base terminals (defined by its intrinsic standoff ratio), and it switches OFF once the current drops below the valley point, allowing for its use as a very efficient relaxation oscillator.
• What is the key difference between UJTs and BJTs?
  The key differences lie in their structure and operation. UJTs have a single p-n junction, exhibit negative resistance, and are primarily used for switching and timing applications. BJTs, on the other hand, have two p-n junctions, are current-controlled, and are commonly used for amplification and switching. Also, BJT's do not have an intrinsic standoff ratio like UJTs.
• What is the operational theory behind a UJT?
  The operational theory of a UJT is based on its unique construction and the modulation of conductivity in its base region. When the emitter voltage reaches a certain level (determined by the intrinsic standoff ratio), it causes a flow of current that results in a sudden drop in resistance in its negative resistance region. This characteristic allows it to be used for applications such as relaxation oscillators.
• Why are UJTs preferred in relaxation oscillator circuits?
  UJTs are preferred in relaxation oscillator circuits due to their unique negative resistance characteristics, which allows for a simple design requiring only a few external components such as a resistor and a capacitor. Their inherent ability to switch from a high resistance state to a low resistance state and then automatically reset is ideal for generating repetitive pulses.
• How does the intrinsic standoff ratio affect UJT operation?
  The intrinsic standoff ratio (η) of a UJT dictates the emitter voltage required to trigger the device. It defines the voltage at which the UJT transitions from its high-resistance to low-resistance state. The standoff ratio is an inherent property of the UJT, influenced by its internal structure and doping concentration of the base material.
• Can UJTs be used in applications other than relaxation oscillators?
  Yes, while UJTs are well known for relaxation oscillators, they are also used in other applications, such as triggering circuits for Silicon Controlled Rectifiers (SCRs). Their switching characteristics and ability to generate timing pulses make them a good choice for these applications.

Programmable Unijunction Transistors (PUTs): An Advanced Variant

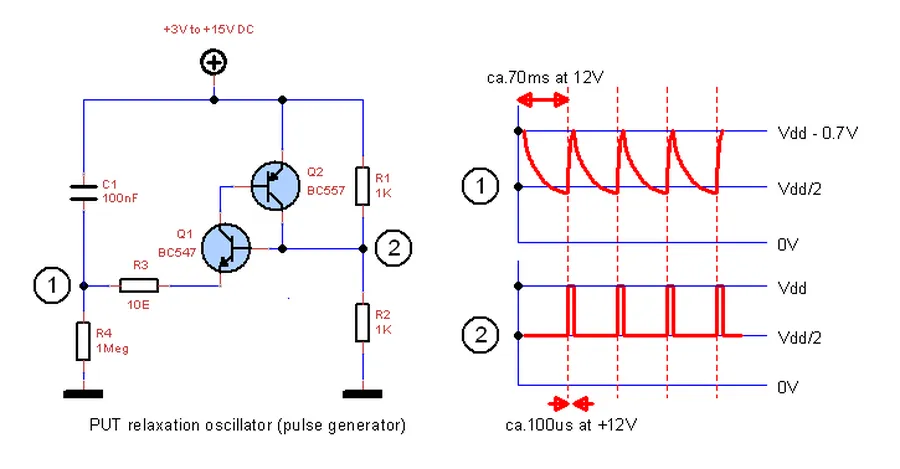

Programmable Unijunction Transistors (PUTs) represent an evolution of the standard UJT, offering greater flexibility in circuit design through adjustable characteristics. Unlike fixed-parameter UJTs, PUTs allow for the manipulation of their firing voltage, making them suitable for more sophisticated applications, particularly in timing and control circuits.

Key to the operation of a PUT is its four-layer structure, which more closely resembles a thyristor rather than a traditional transistor. The PUT's anode, cathode, and gate terminals allow for precise control over the device's triggering threshold. This control is achieved using external resistors, which set the gate voltage and, consequently, the firing voltage required to activate the device.

The fundamental principle governing PUT operation is based on a regenerative process. When the anode voltage exceeds the gate voltage by a specific threshold, the PUT switches rapidly from a non-conducting to a conducting state. This sharp transition, and the ability to program this transition, is what distinguishes PUTs from UJTs.

Moreover, PUTs exhibit strong similarities to Silicon-Controlled Rectifiers (SCRs) in terms of their operational characteristics. Both devices are members of the thyristor family and share a regenerative switching mechanism. In many applications, PUTs are used to trigger SCRs, leveraging the PUT's precise switching behavior to control the SCRs conduction.

In summary, Programmable Unijunction Transistors provide a more versatile and customizable solution compared to traditional UJTs. Their ability to have their characteristics programmed, through the use of external resistors, makes them useful for a wider range of control and triggering applications, and are closely related to the operational characteristics of devices such as SCRs.

Practical Tips for Using Unijunction Transistors in Circuit Design

Successfully integrating unijunction transistors (UJTs) into circuit designs hinges on understanding their unique characteristics and selecting appropriate components. This section provides practical guidance on UJT selection, design considerations, and troubleshooting techniques to optimize circuit performance and reliability.

• Selecting the Right UJT
  Begin by meticulously evaluating the specific requirements of your application. Essential parameters to consider include peak voltage (Vp), valley voltage (Vv), and interbase resistance (RBB). These parameters influence the triggering behavior and operational characteristics of the UJT within the circuit. Different UJT models offer varying ranges for these values; therefore, match them to the specific voltage and current demands of your application. Check the datasheet for the specific UJT to verify the parameters.
• Biasing the UJT for Reliable Triggering
  Proper biasing is crucial for ensuring consistent and predictable UJT operation. A typical UJT relaxation oscillator circuit includes a resistor connected to the emitter and another resistor connected between base 2 and ground. These resistors influence the charging time of the capacitor and hence the frequency of the relaxation oscillator. The resistor connected to the emitter should be selected such that it limits the current in the event that the UJT triggers.
• Understanding Temperature Effects
  The characteristics of a UJT are sensitive to temperature variations. Specifically, interbase resistance and peak voltage tend to decrease as the temperature increases. This can lead to a drift in the oscillation frequency, and this is a critical factor to consider when designing circuits intended for operation across a wide range of temperatures. Use temperature compensating components to mitigate this effect.
• Circuit Layout Considerations
  The physical layout of the components can also impact the circuit performance. Keep component leads short to minimize parasitic inductance and capacitance, which can induce oscillations. The UJT and the capacitor, particularly in a relaxation oscillator, should be placed close to each other to minimize stray capacitance that affects the oscillation frequency. Use a ground plane to reduce unwanted noise.
• Troubleshooting Common Issues
  If the UJT circuit fails to operate as designed, the first step is to verify the biasing conditions. Ensure that the supply voltage is correct and that the resistors in the circuit are of the correct value. If the circuit operates erratically, check for oscillations resulting from parasitic inductance. In relaxation oscillator circuits, check the capacitor and the resistor connected to the emitter, as these components can often fail. Proper measurements using a multimeter or an oscilloscope should be carried out to check the voltage levels and the waveform to isolate the problem component.

The unijunction transistor, despite its singular junction, plays a crucial role in electronics, particularly in applications requiring reliable timing and triggering mechanisms. From simple relaxation oscillators to complex thyristor control circuits, the UJT's unique negative resistance characteristic makes it an indispensable tool. Understanding the principles behind the unijunction transistor not only enhances your knowledge of semiconductor physics but also empowers you to innovate in the design of electronic devices, from basic circuits to more complex systems. The future might see even wider applications of UJTs in niche areas where precise pulse generation and control is needed.
